Ampinvt SPHV-Series 10kW 48V Solar Inverter Charger, 120/240VAC Split Phase, Parallel 1–6 Units

Overview

The Ampinvt SPHV-Series is a 10kW 48V solar inverter charger designed to deliver 120/240VAC split-phase output with pure sine wave power. It supports parallel expansion from 1 to 6 units for single-phase, split-phase, or three-phase configurations, and can charge a 48V battery bank from solar, utility AC, or a generator. For support with system design and parallel setup, contact https://tsolar.top/ or service@tsolar.top.

Key Features

• Continuous output power: 10000W; peak output power: 20000W
• 48V battery system only (battery required for operation)
• Pure sine wave output
• Built-in 200A MPPT solar charge controller
• MPPT voltage range: 125-425Vdc
• Maximum PV input power: 5500W + 5500W
• Maximum mix charge current: 200A
• Parallel support: 1-6 units (permitted parallel number: 1~6)
• Parallel system output support: 120V/240V split-phase and 208V three-phase (except single-phase mode)
• LED indicators + LCD display (LED + LCD dual display) with function keys
• Multiple charging and output modes
• Four charging modes: Hybrid Charging; Only Solar Charging; PV Priority; Utility Priority
• Compatible with multiple 48V battery types: LiFePO4, Lithium, AGM, GEL, Flooded, USER
• Efficiency: >92%

Protection Features

• PV night reverse-current protection
• Mains input over/under voltage protection
• Battery over/low voltage protection
• Load output short circuit protection
• Charge short protection
• Overload protection
• Heat sink over temperature protection
• CAN communication loss protection
• Parallel connection error protection

Interfaces & Terminals

• AC Input
• AC Output
• USB
• WIFI
• BMS
• DRY CONTACT
• ON/OFF rocker switch
• AC input switch
• Parallel communication
• Battery Negative
• Battery Positive
• PV input

Specifications

What’s Included

• 1 x 10KW 48V Solar Inverter
• 1 x User Manual

Notes

• This solar inverter is able to charge the battery bank when AC power, solar power, or a generator are connected to the inverter.
• Different loads have different starting impulse currents. Select an inverter model based on actual equipment power, current, and load characteristics.
• For resistive loads (e.g., laptop, TV, electric cooker), select continuous power higher than the appliance rated power; using about 80% of rated power is recommended.
• For motor/compressor loads (e.g., microwaves, water pumps, air conditioners), select an inverter with continuous power 3-10 times higher than the appliance.

Details

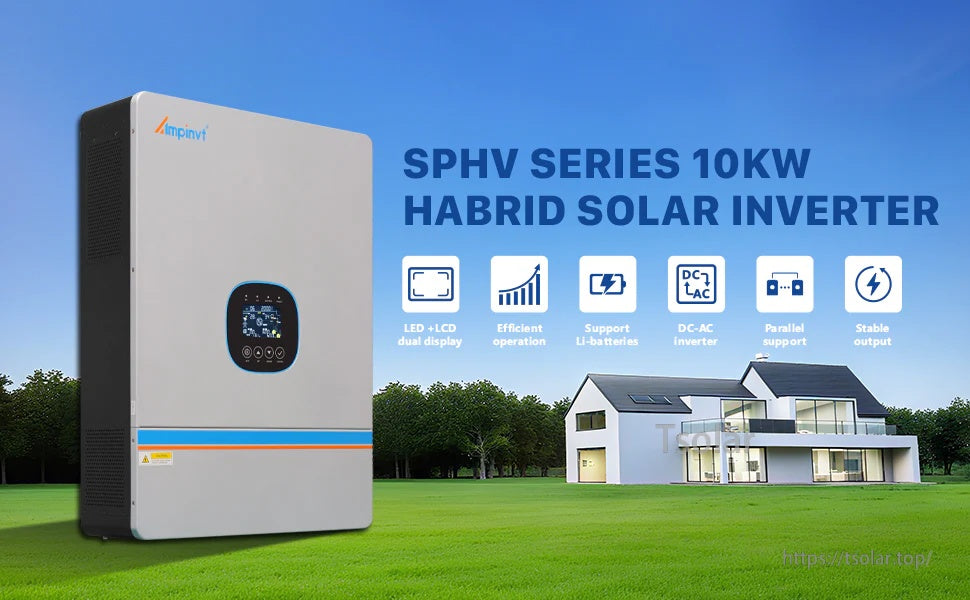

The Ampinvt SPHV Series 10kW hybrid solar inverter features a front LED+LCD dual display and notes support for Li-batteries and parallel operation.

The SPHV-series solar inverter is listed with pure sine wave output, a built-in 200A MPPT charge controller, and support for up to six units in parallel.

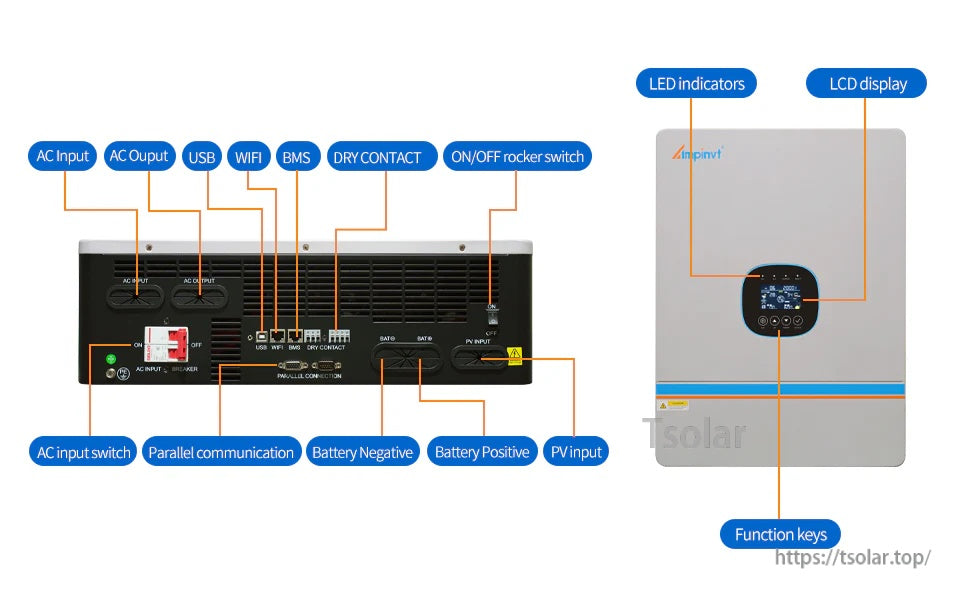

Ampinvt SPHV-Series 10kW 48V solar inverter includes clearly labeled AC input/output, PV input, battery terminals, and communication ports for straightforward wiring and setup.

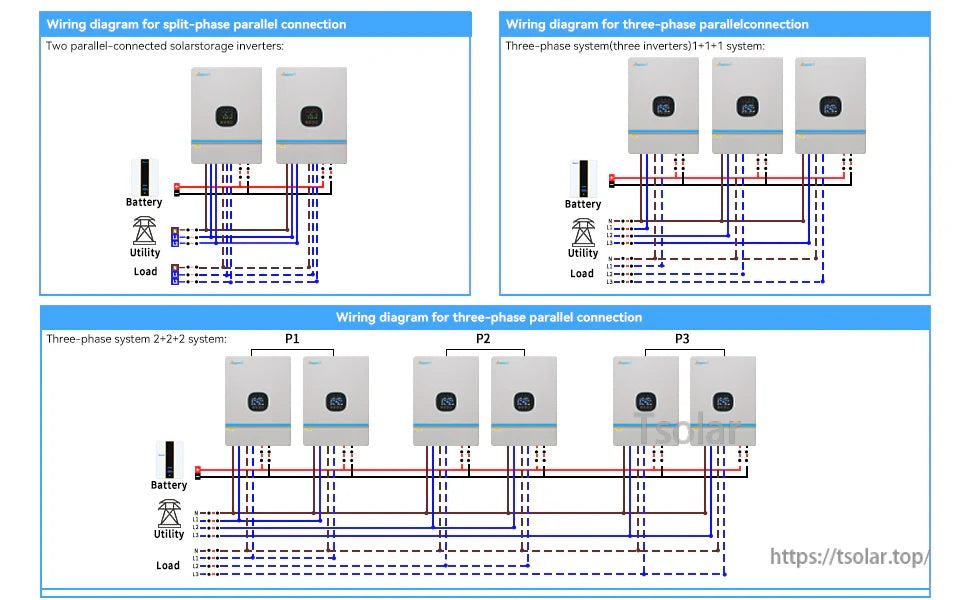

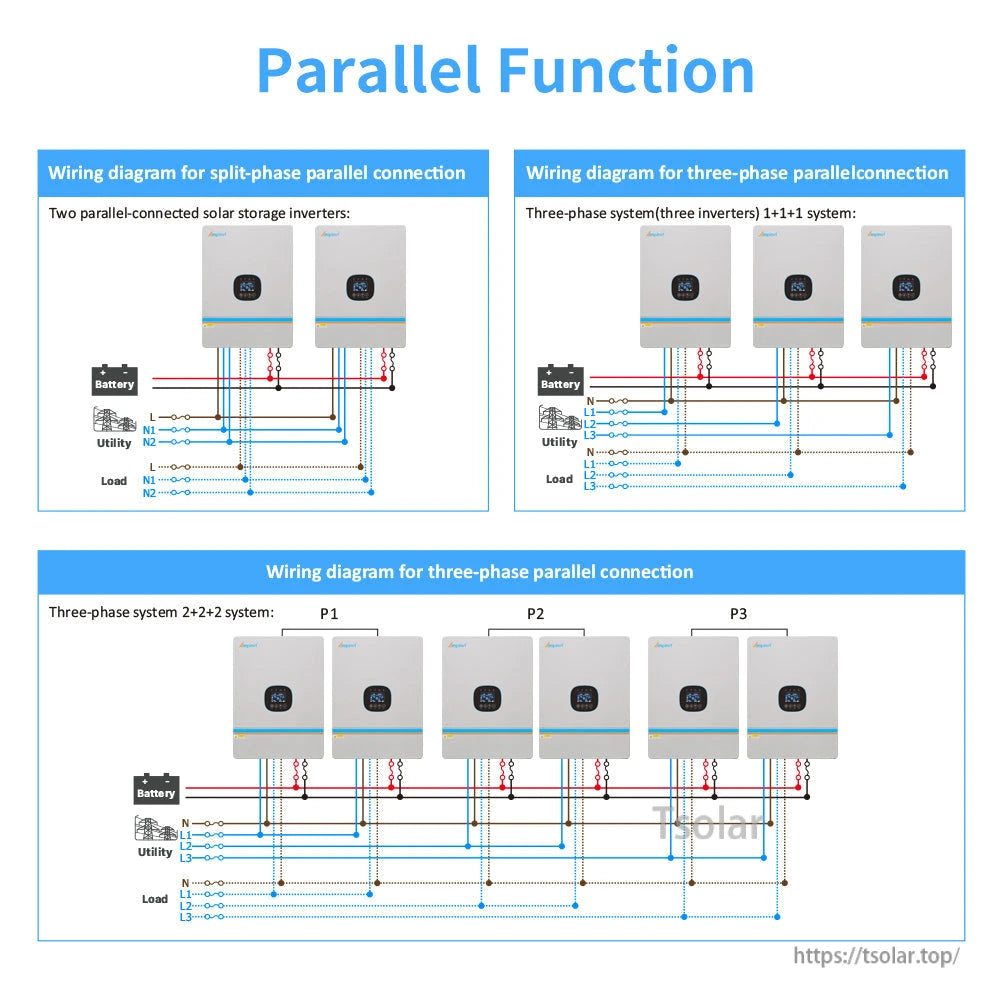

Parallel wiring diagrams show how to connect multiple SPHV-Series 48V solar inverters to the battery bank, utility input, and load for split-phase or three-phase systems.

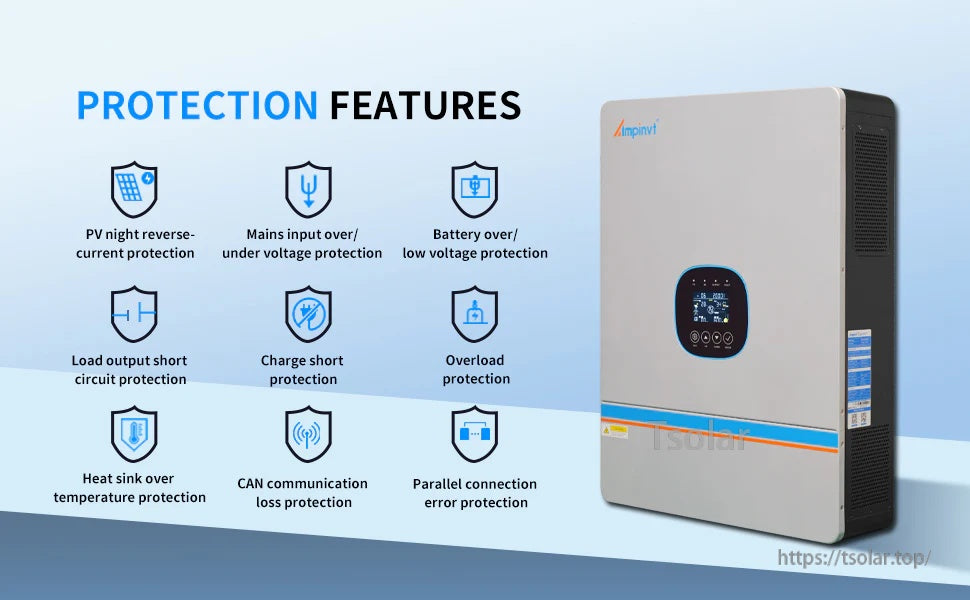

Ampinvt SPHV-series 48V solar inverter includes protection features like PV reverse-current, over/under-voltage, overload, and over-temperature safeguards.

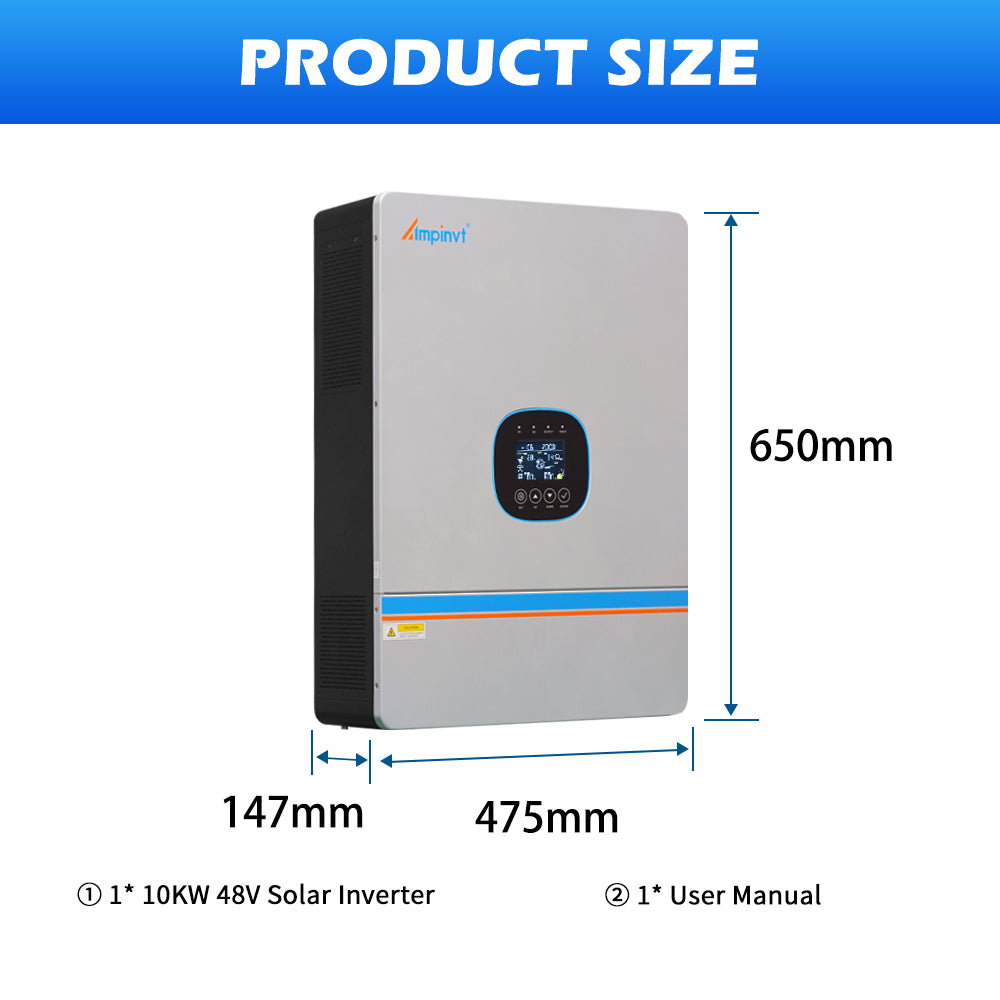

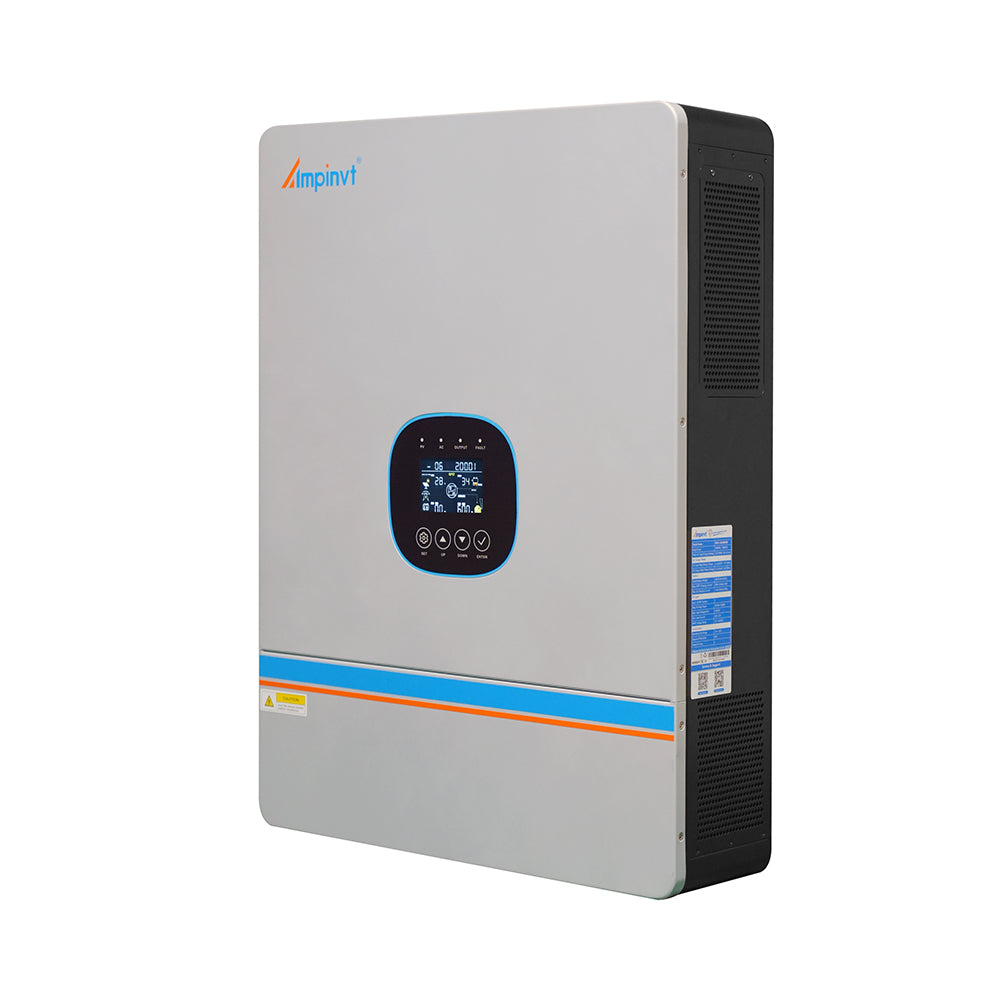

The Ampinvt SPHV-series 48V solar inverter has a compact wall-mount form factor (650 x 475 x 147 mm) with a built-in LCD control panel and includes a user manual.

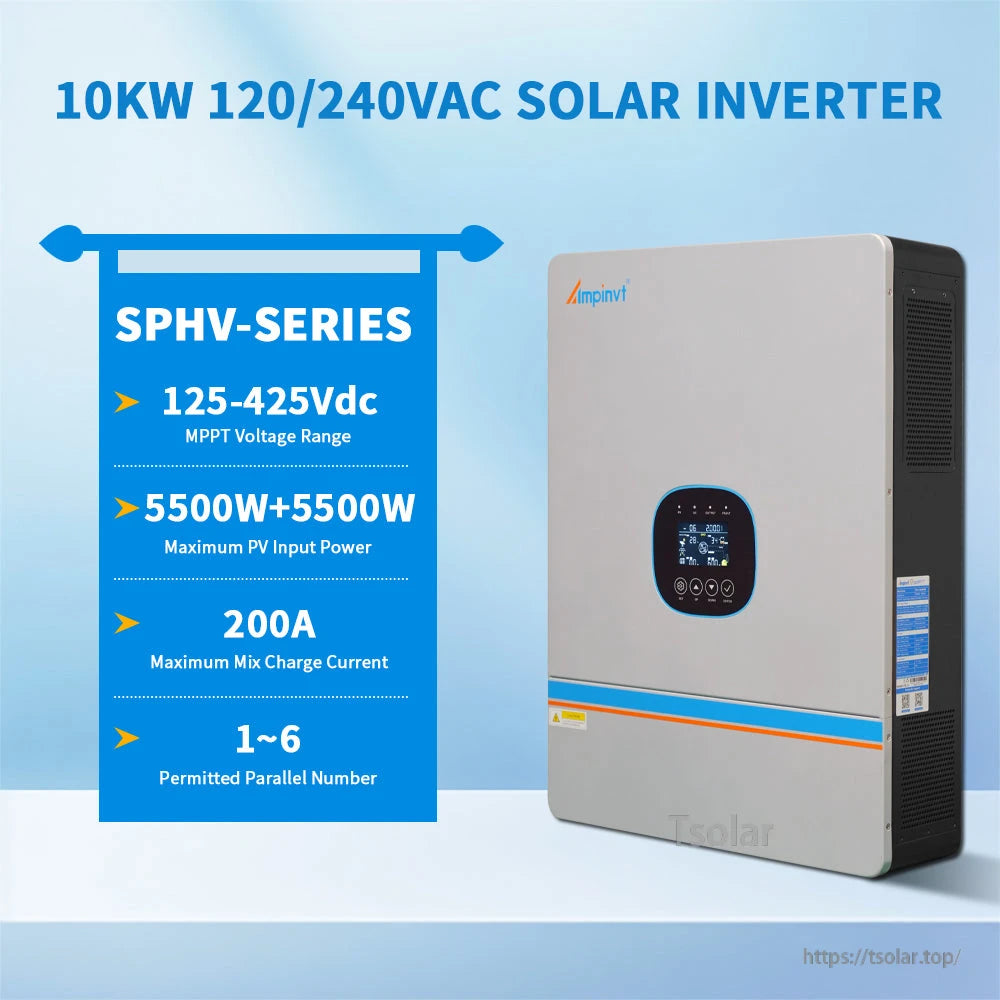

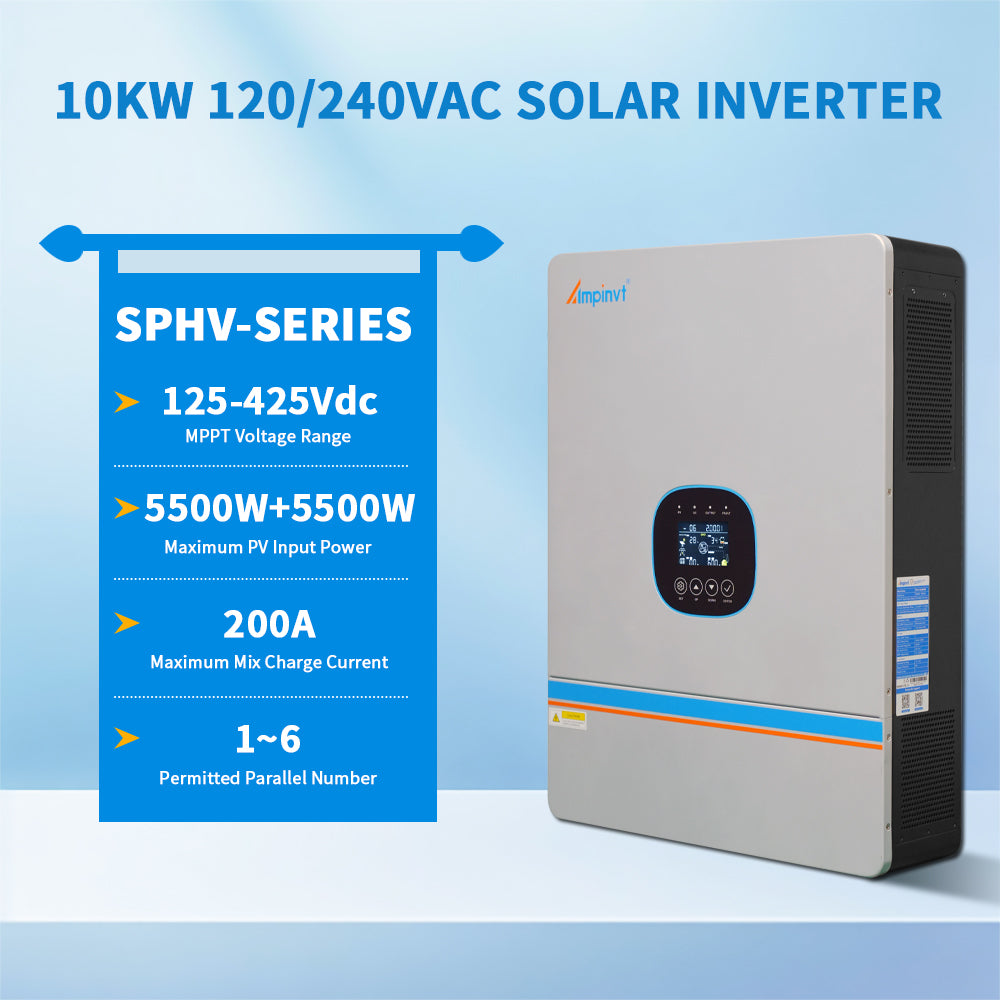

The Ampinvt SPHV-series 10kW 120/240VAC solar inverter lists a 125–425Vdc MPPT range, 200A max charge current, and 1–6 unit parallel support.

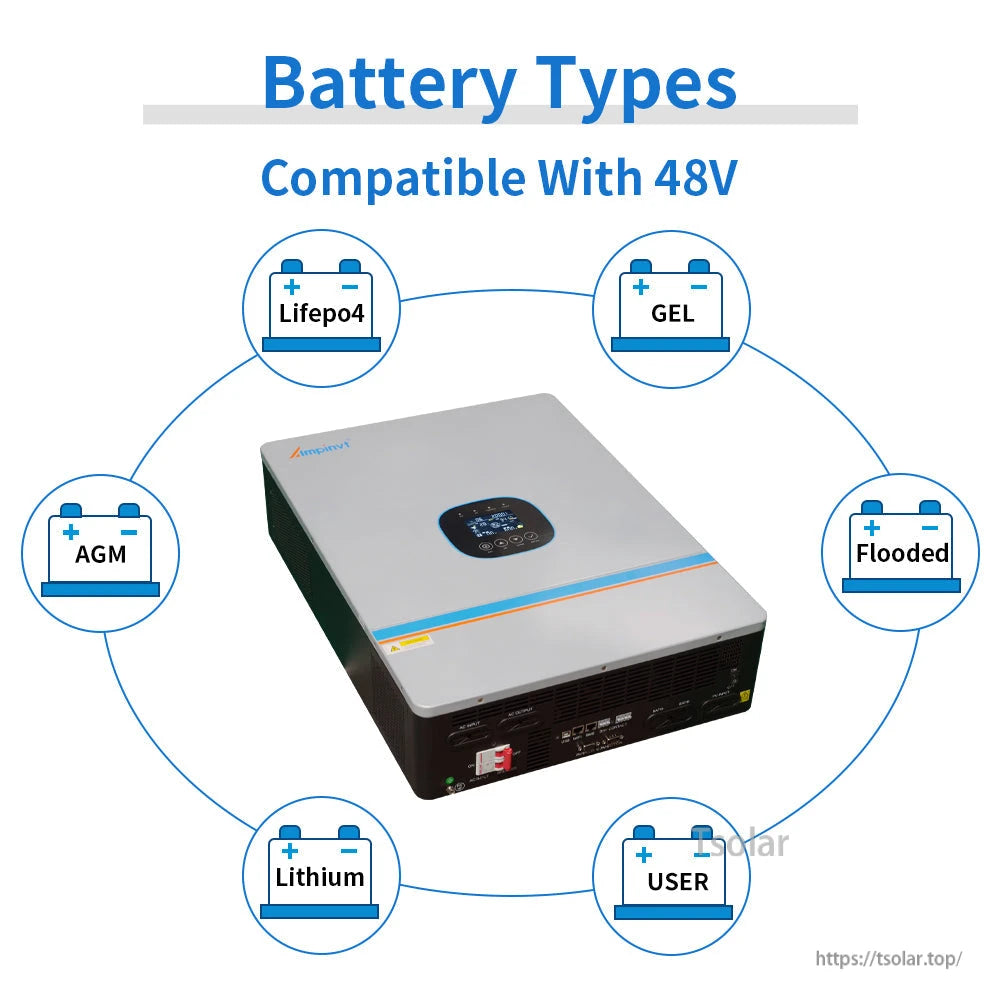

The Ampinvt SPHV-series 48V solar inverter supports multiple battery types including LiFePO4, GEL, AGM, flooded, lithium, and user-defined settings.

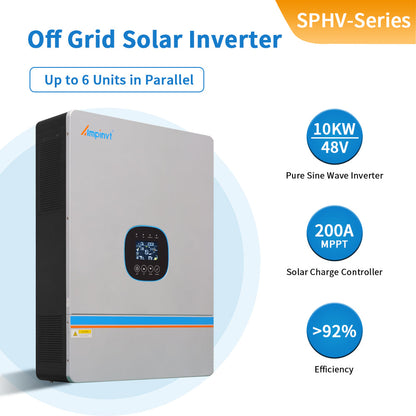

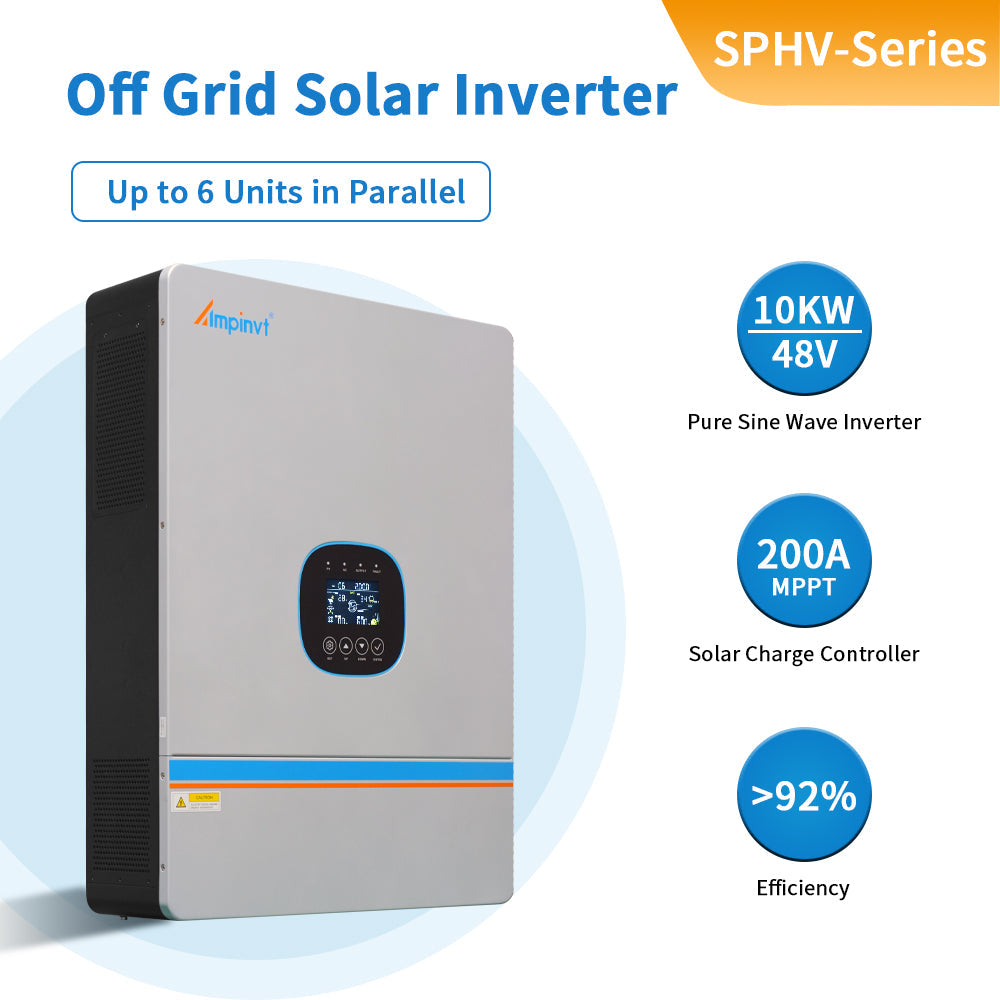

The Ampinvt SPHV-Series 10kW 48V off-grid solar inverter supports up to 6 units in parallel and includes a 200A MPPT solar charge controller.
