Overview

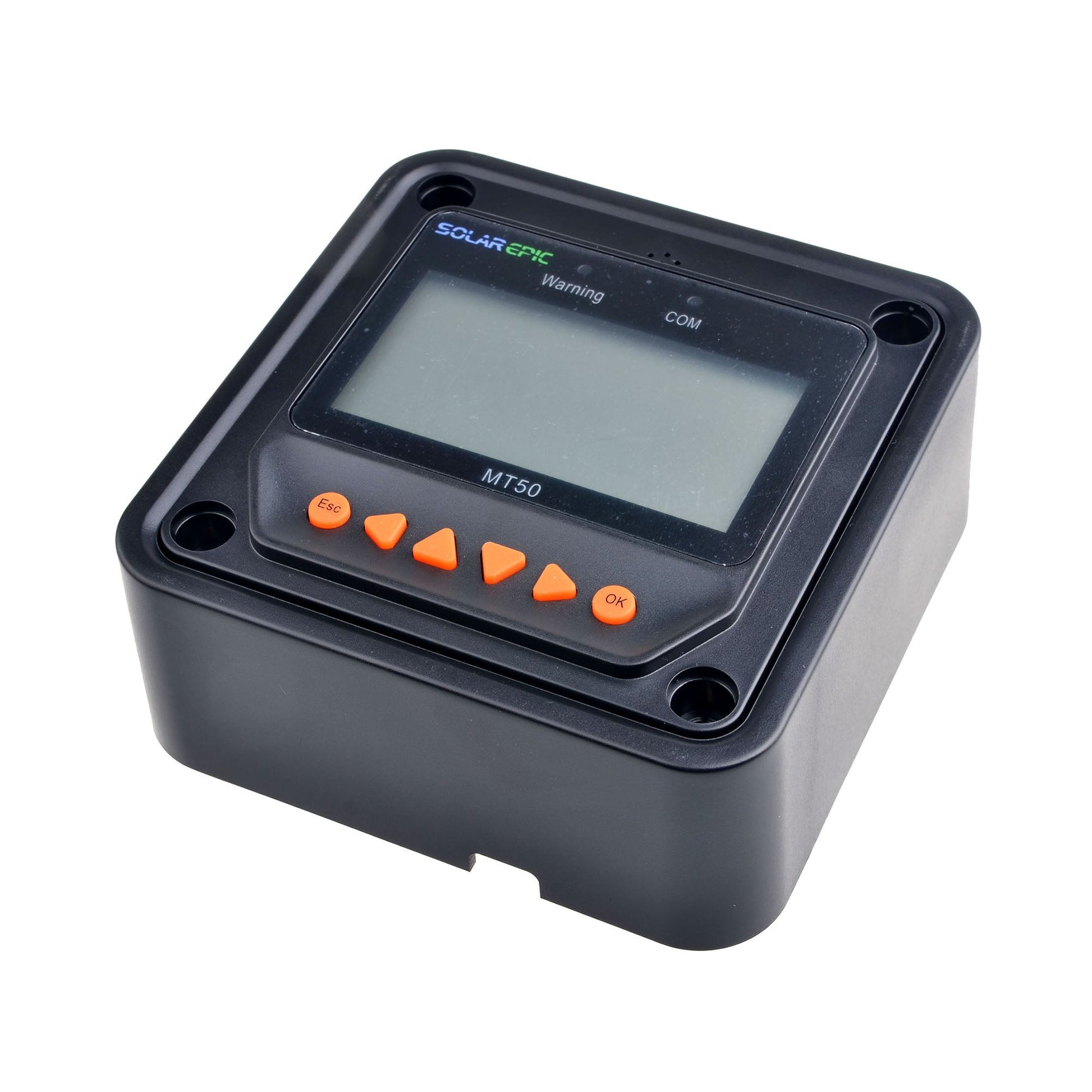

SolarEpic MT50 is an LCD remote meter (remote display unit) designed for compatible Epever solar charge controllers. It supports the latest controller communication protocol and controller voltage technology standard, and is intended for LSxxxxB(P), VSxxxxBN, TracerxxxxAN(P), and TracerxxxxBN(P) series controllers.
Compatibility note: This meter can only be used with Epever controllers and cannot be used with Renogy or HQST controllers. For compatibility help before purchase, contact https://tsolar.top/ or service@tsolar.top.
Key Features
- Automatically identifies and displays controller type, model, and relevant parameter data
- Real-time display of operational data and working status in digital, graphic, and textual forms via a large-screen multifunction LCD

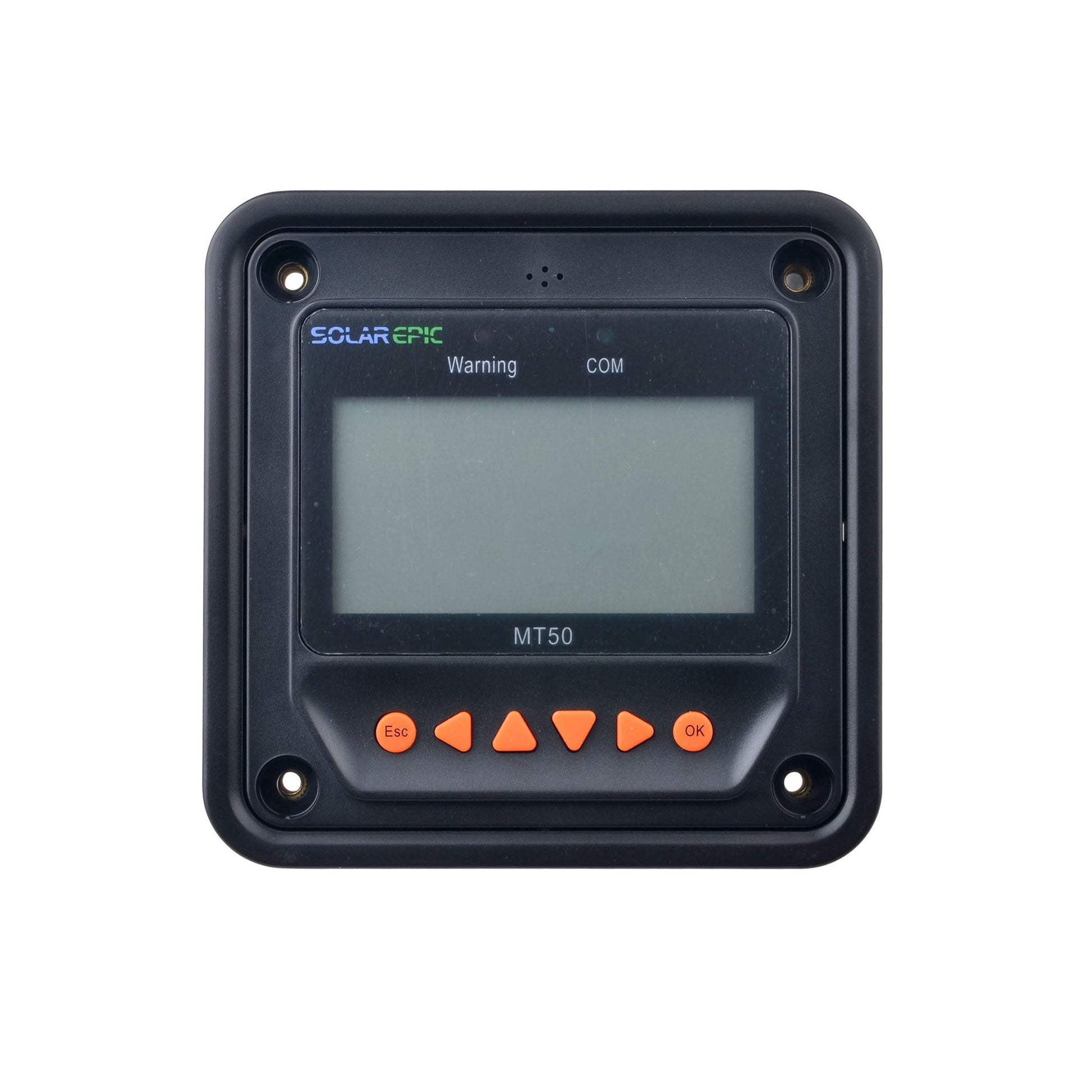

- Six navigation function keys for direct and convenient operation
- Data and power transmitted on the same lead (no external power required)
- Real-time monitoring, remote load switchover, parameter browsing and modification (device parameters, charge control parameters, load control parameters)
- Real-time failure information display with acoustic alarm
- Longer communication distance based on RS485
Specifications

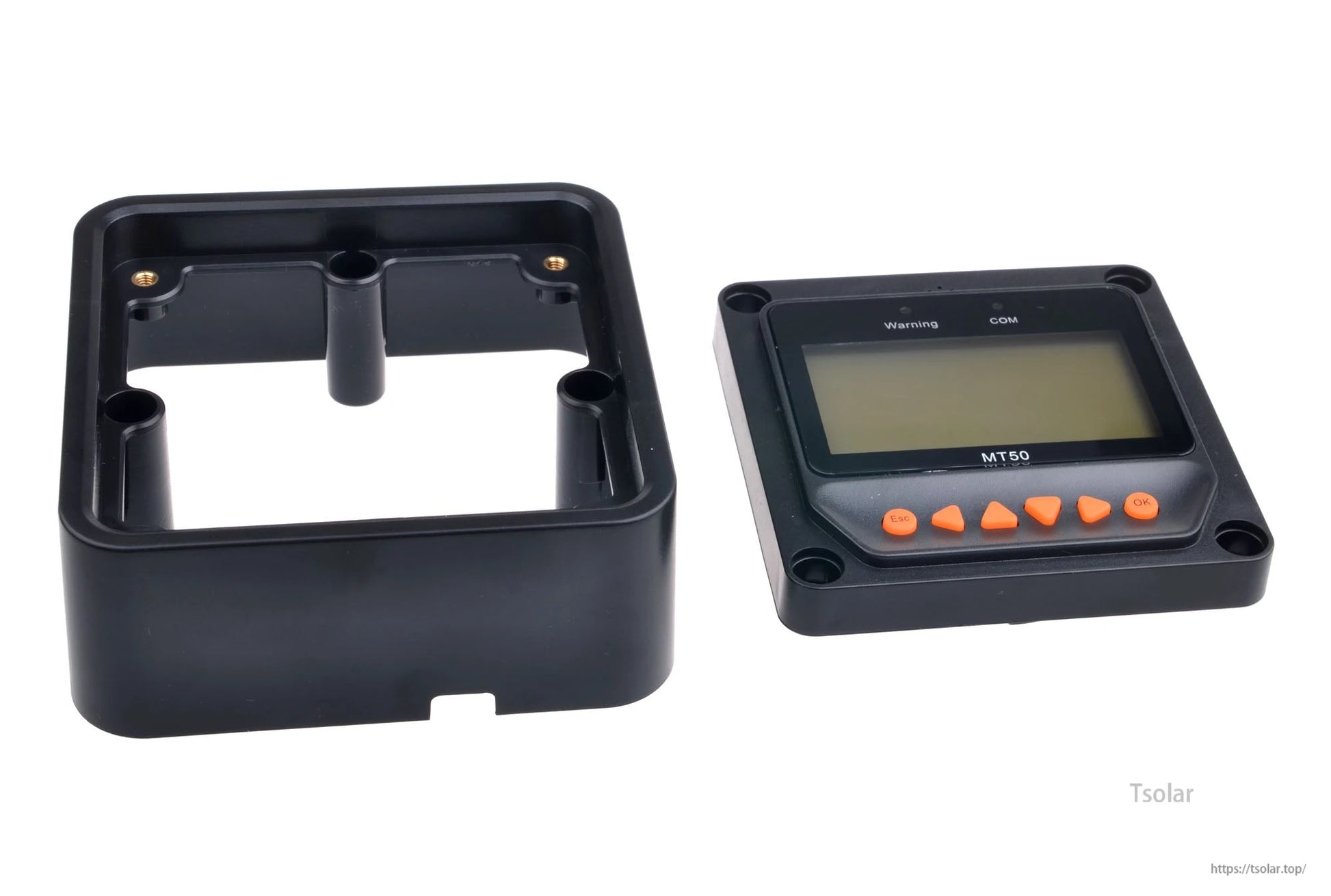

| Faceplate dimensions | 98 x 98 mm |

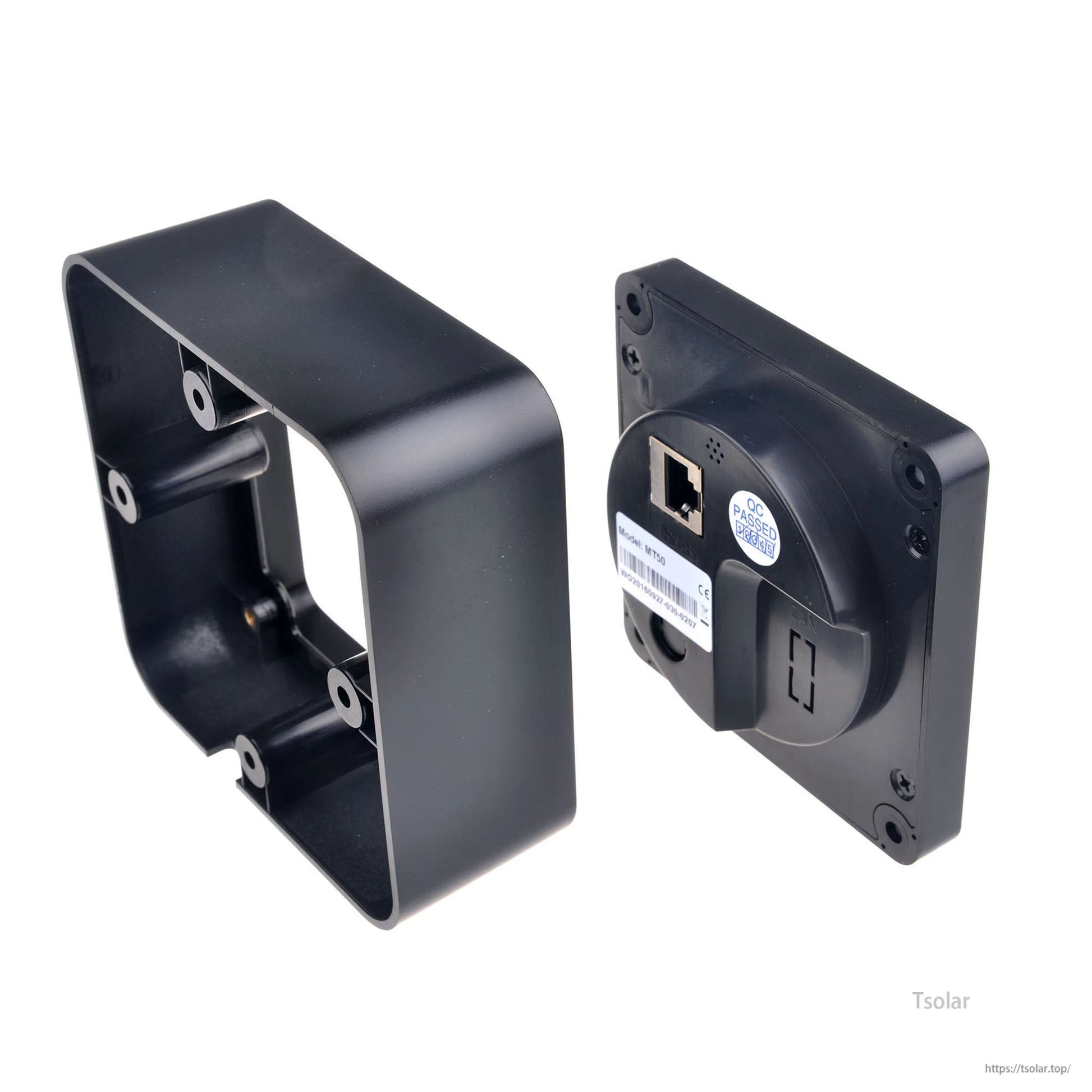

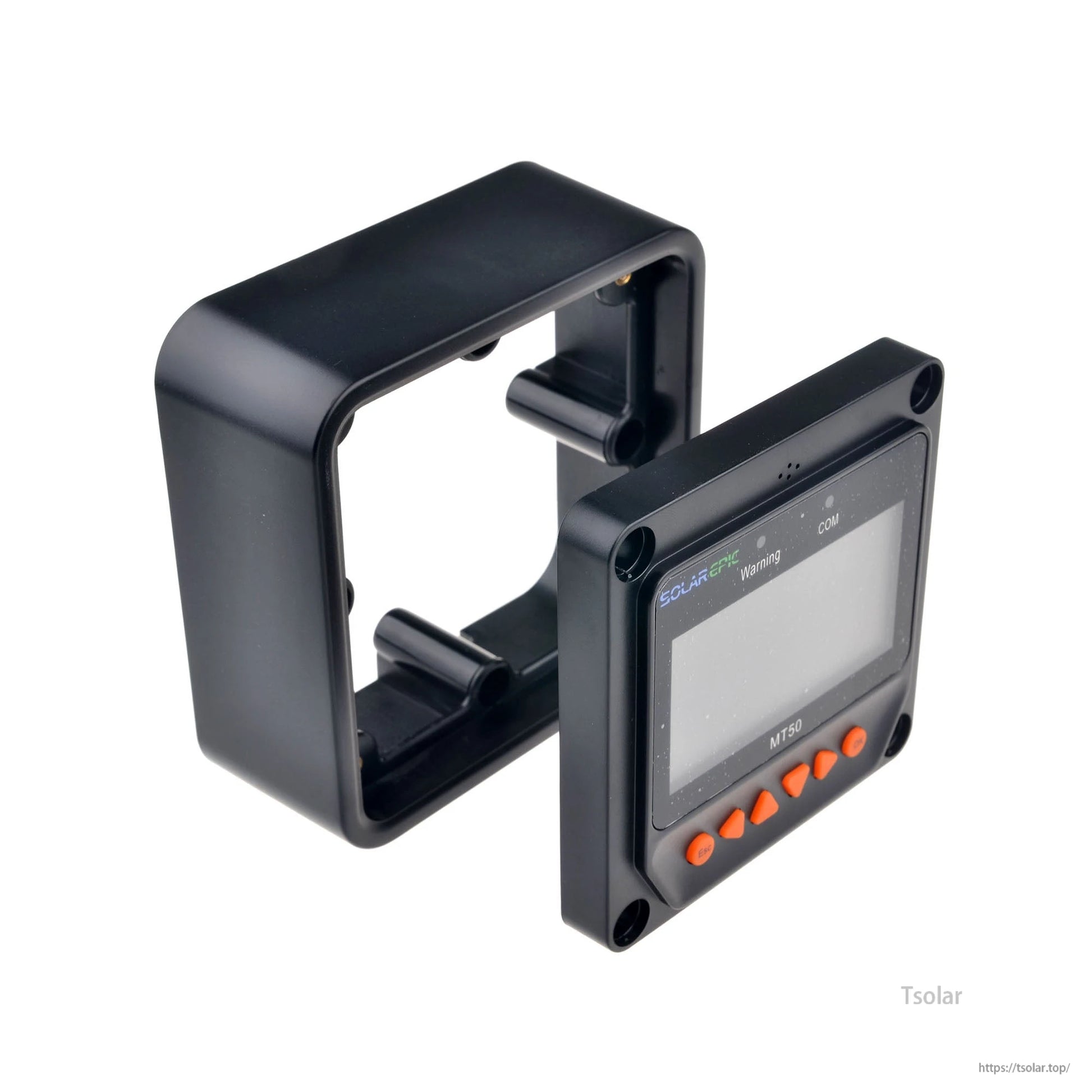

| Frame dimensions | 114 x 114 mm |

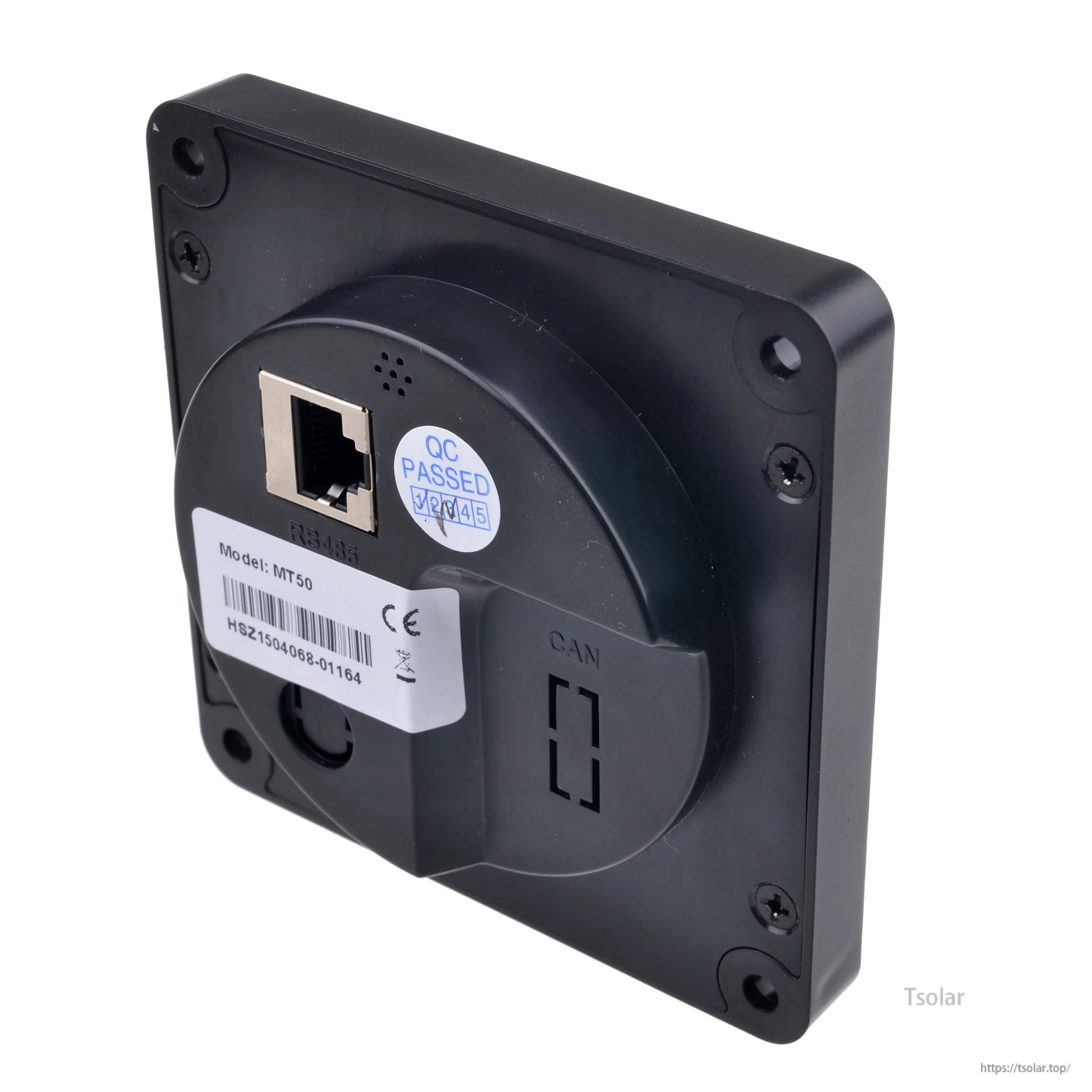

| Connector type | RJ45 |
| Meter cable | Standard 2 m, Max 50 m |
| Meter weight | Simple package: 0.23 Kg Standard package: 0.32 Kg |
| Ambient temperature | -20°C to +70°C |
