Overview

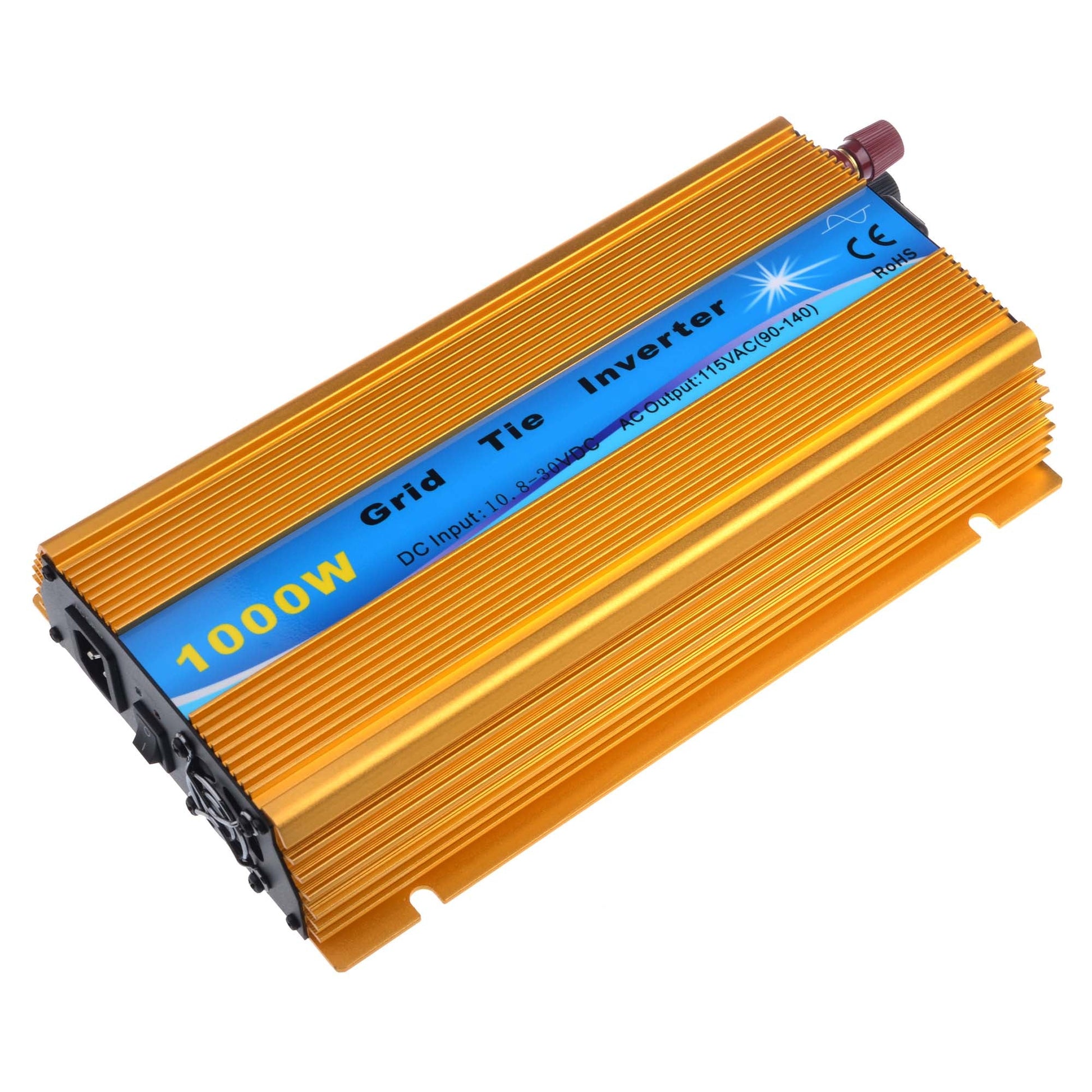

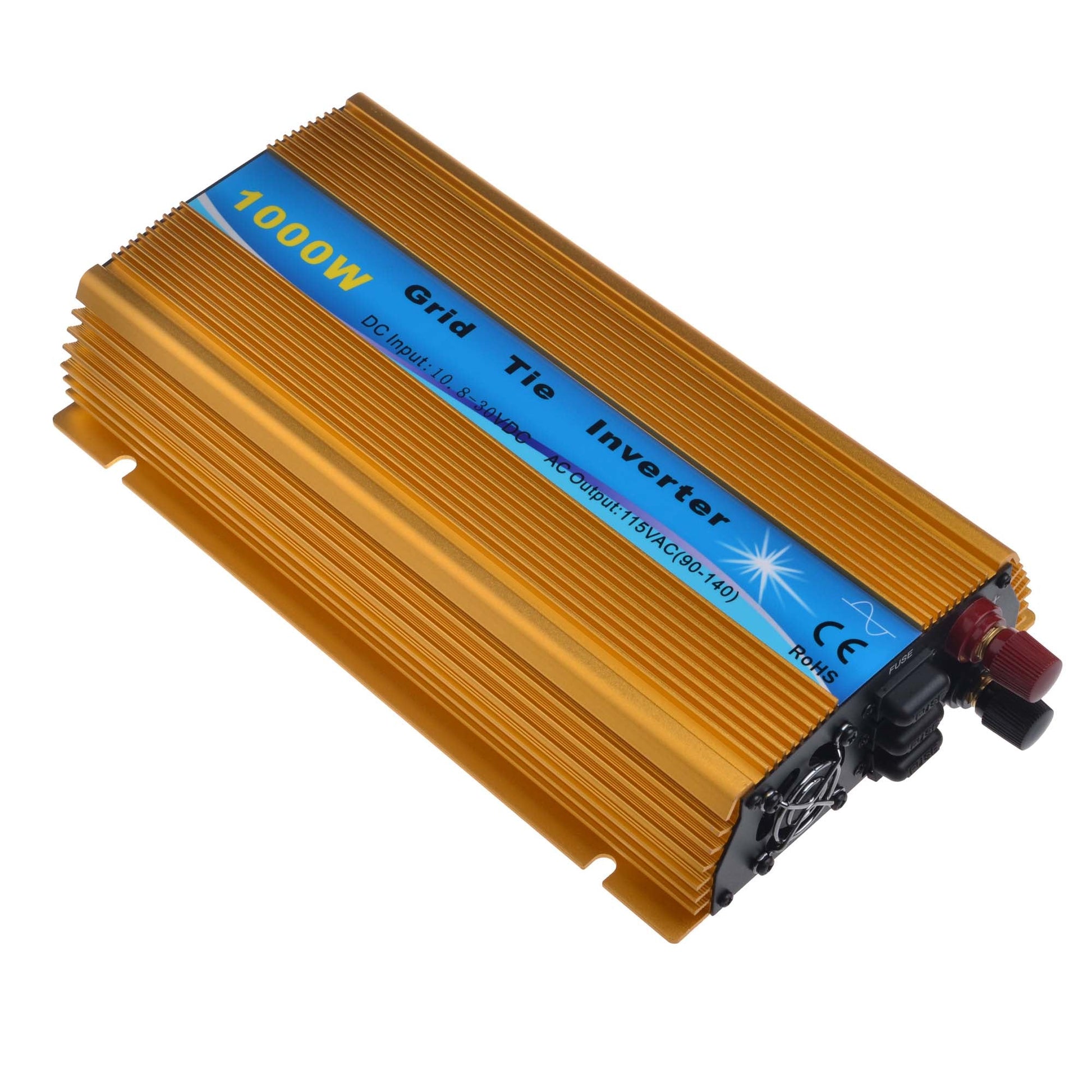

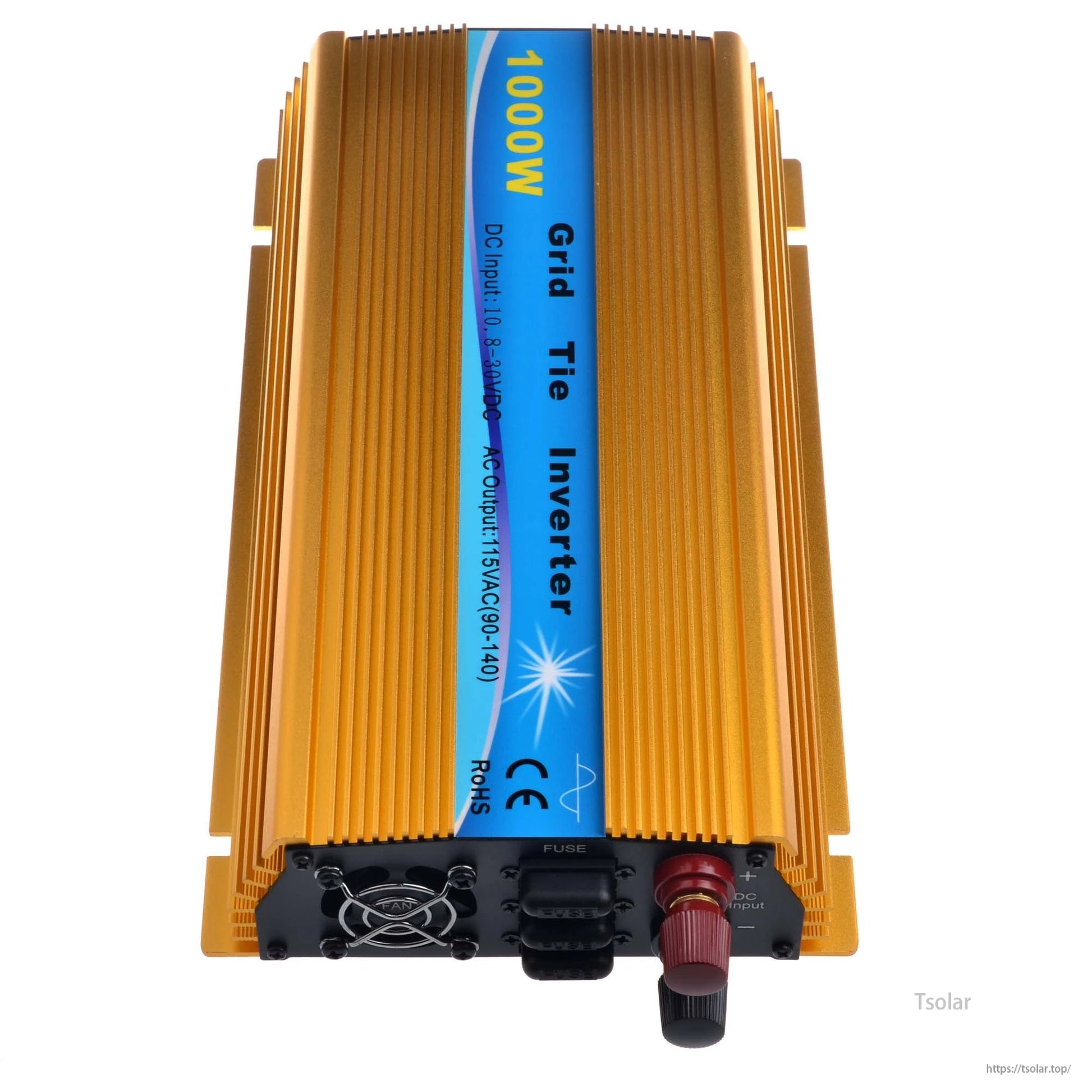

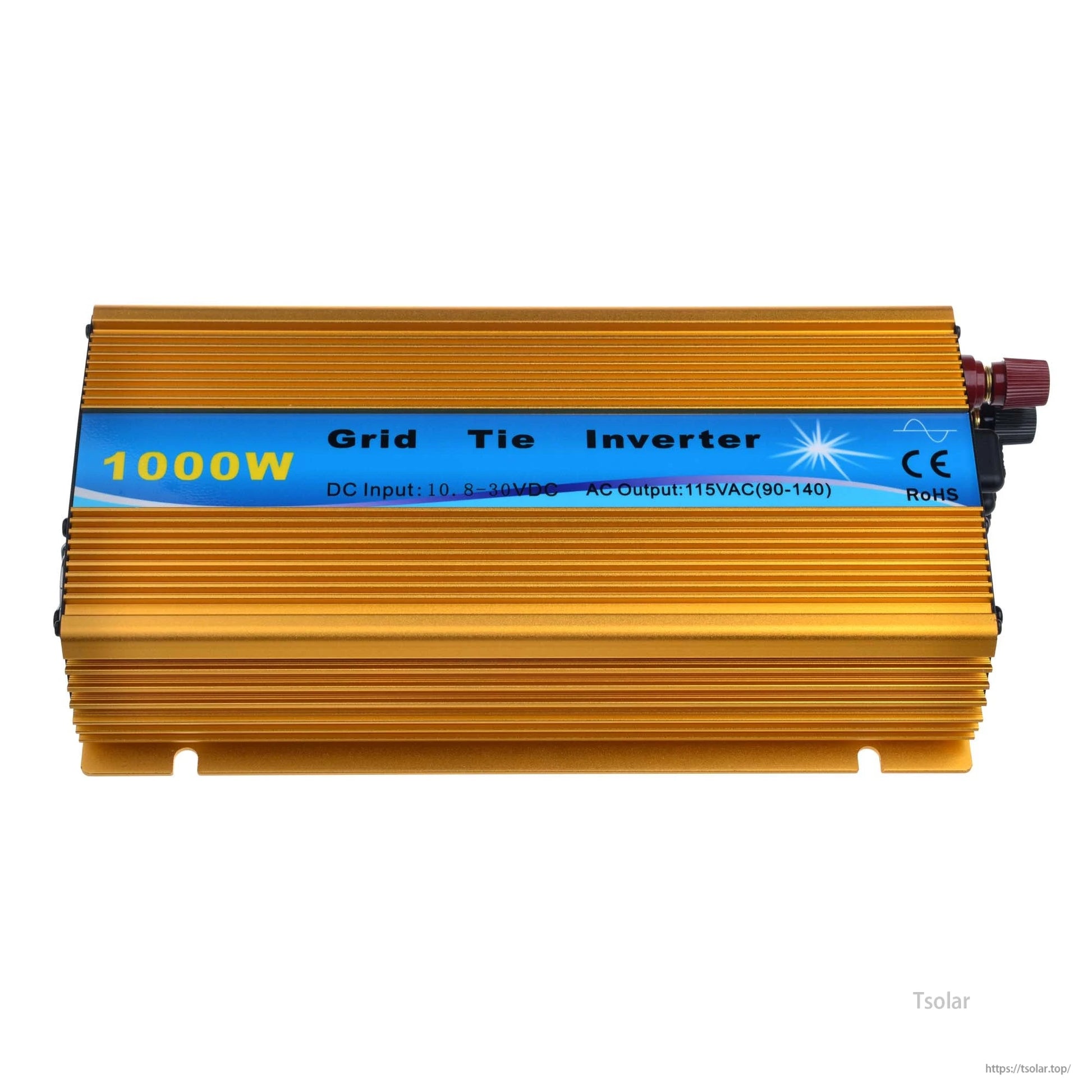

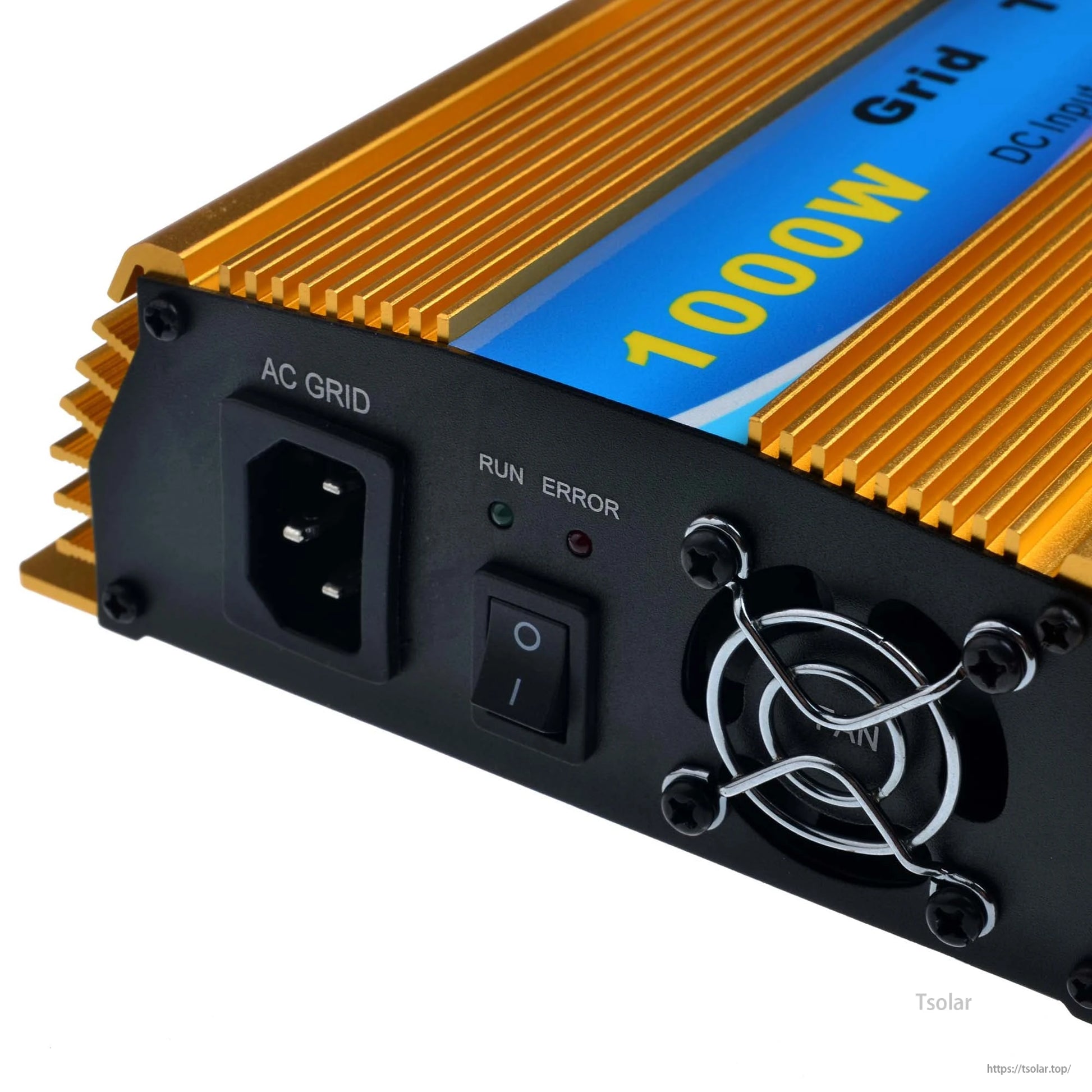

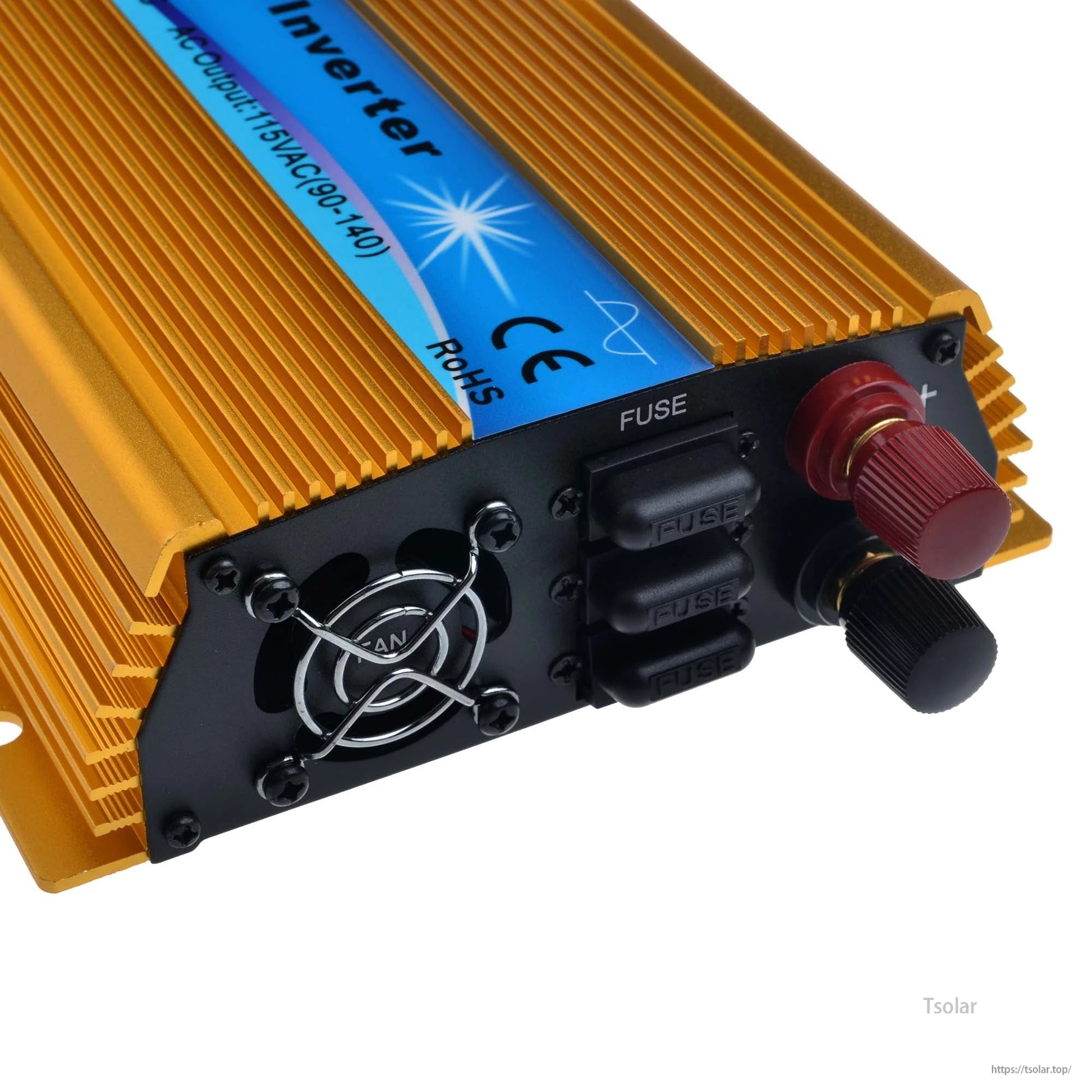

This 1000W MPPT grid tie inverter is a compact unit designed to convert DC from PV modules into grid-synchronized AC (in-phase with the utility grid). It is intended for PV power generation systems using common low-voltage solar module configurations and features a pure sine wave output in a golden-color housing.
Important: This grid tie inverter cannot be used as an off-grid/stand-alone solar system. The AC output must be connected to the grid power and cannot supply power directly to AC loads.
Key Features
- MPPT control designed to maximize PV module power export to the utility grid, even under conditions such as shading, soiling, orientation, or mismatch
- AC output synchronized and in-phase with the utility grid
- Supports common PV module types: 18V (36 cells), 24V (60 cells), and 36V (72 cells), monocrystalline or polycrystalline
- Designed for low-voltage DC wiring to reduce high DC voltage risk
- Protections: islanding, short-circuit, low voltage, over-voltage, over-temperature
For pre-purchase compatibility checks (PV input range, grid voltage selection, and wiring), contact https://tsolar.top/ or email service@tsolar.top.

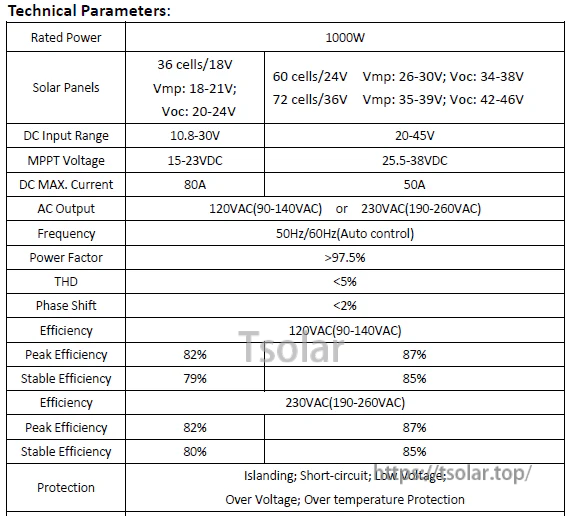

Specifications
| Rated Power | 1000W |
| Solar Panels |
36 cells/18V: Vmp 18-21V; Voc 20-24V 60 cells/24V: Vmp 26-30V; Voc 34-38V 72 cells/36V: Vmp 35-39V; Voc 42-46V |
| DC Input Range | 10.8-30V / 20-45V |
| MPPT Voltage | 15-23VDC / 25.5-38VDC |
| DC Max. Current | 80A / 50A |
| AC Output | 120VAC (90-140VAC) or 230VAC (190-260VAC) |
| Frequency | 50Hz/60Hz (Auto control) |
| Power Factor | >97.5% |
| THD | <5% |
| Phase Shift | <2% |
| Efficiency (120VAC) | Peak efficiency: 82% / 87% Stable efficiency: 79% / 85% |
| Efficiency (230VAC) | Peak efficiency: 82% / 87% Stable efficiency: 80% / 85% |
| Protection | Islanding; short-circuit; low voltage; over-voltage; over-temperature protection |
Applications
- PV power generation systems where AC output is connected to the utility grid
- Grid-connected powering of appliances and/or office equipment through the utility connection
Details

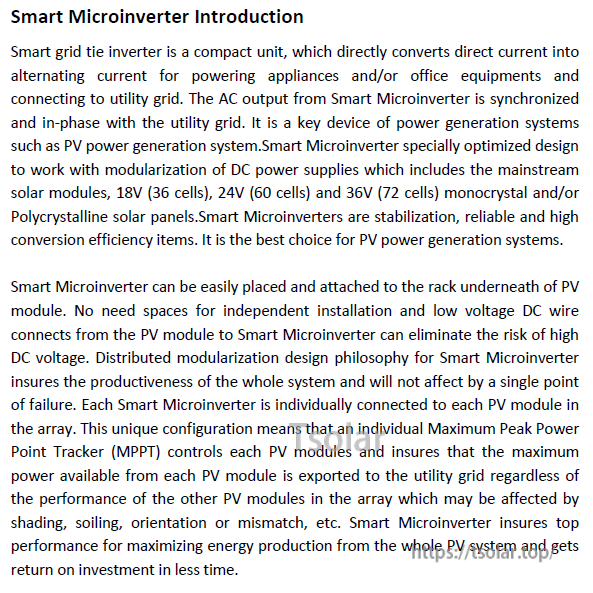

The smart microinverter grid-tie design describes MPPT control per PV module and compatibility with 18V (36 cells), 24V (60 cells), and 36V (72 cells) solar panels.
The 1000W MPPT grid tie inverter lists DC input ranges of 10.8–30V or 20–45V, with AC output options of 120VAC (90–140VAC) or 230VAC (190–260VAC) at 50/60Hz.
