Overview

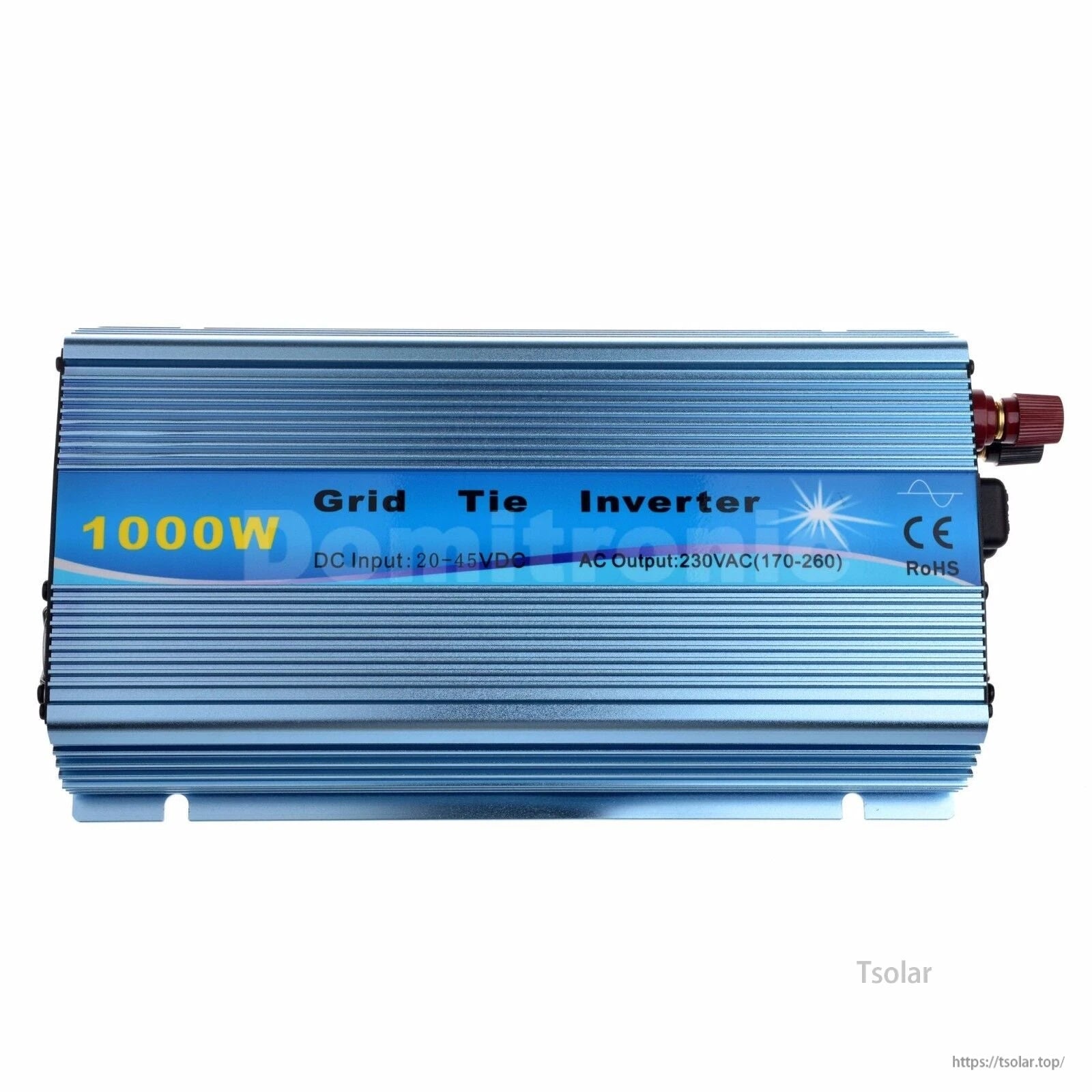

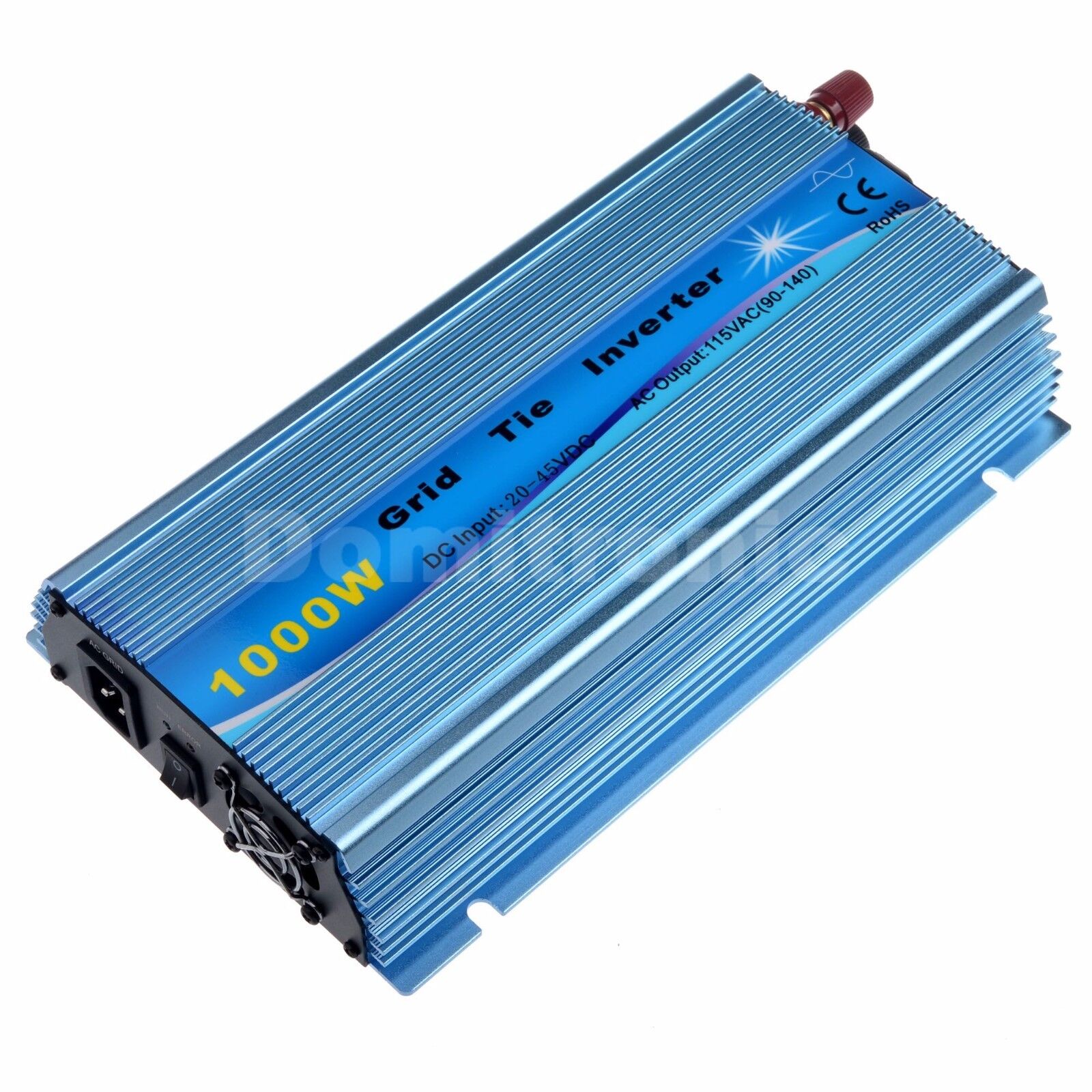

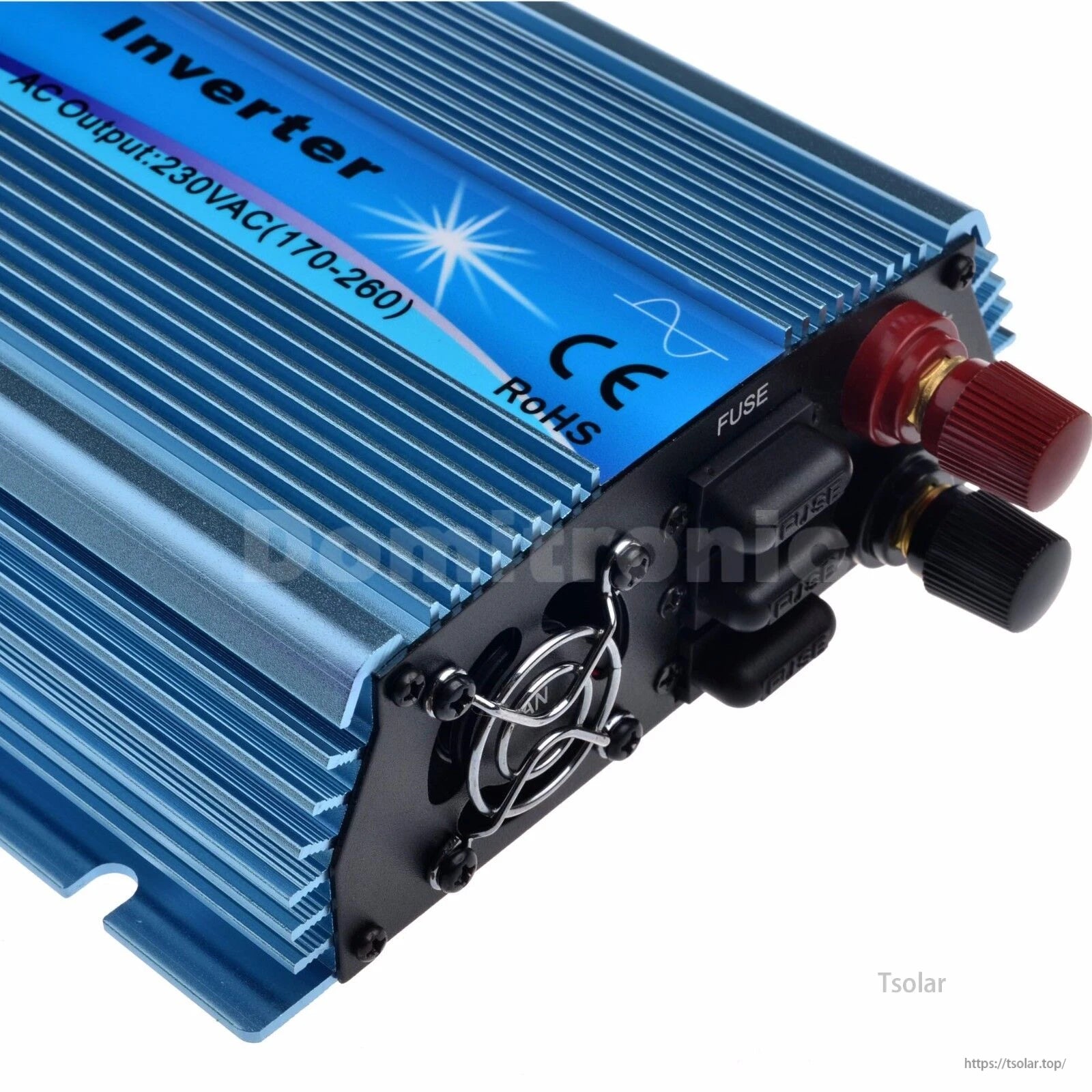

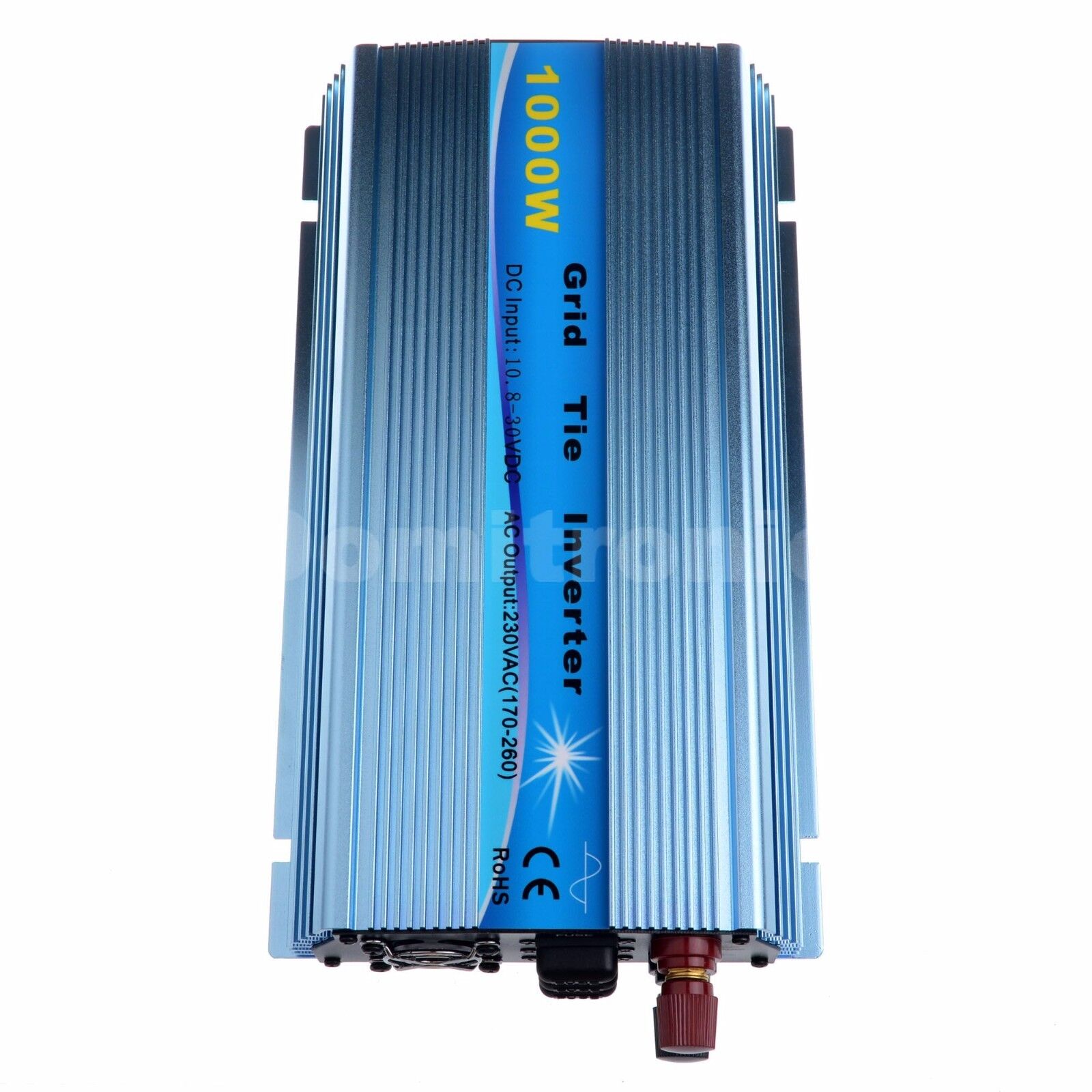

This 1000W grid tie inverter (pure sine wave, sky blue color) converts solar DC power into AC power synchronized and in-phase with the utility grid. The AC output must be connected to grid power and cannot supply AC loads directly; it is not for off-grid/stand-alone solar systems.
Key Features
- Grid-tie operation with AC output synchronized to the utility grid
- Designed for mainstream PV modules: 18V (36 cells), 24V (60 cells), and 36V (72 cells), monocrystalline and/or polycrystalline
- MPPT design intended to maximize energy harvest per PV module, including under shading/soiling/orientation mismatch
- Compact form factor intended for mounting under a PV module and using low-voltage DC wiring to reduce high DC voltage risk
- Auto 50Hz/60Hz control
- Protections: Islanding; Short-circuit; Low voltage; Over Voltage; Over temperature protection
Specifications

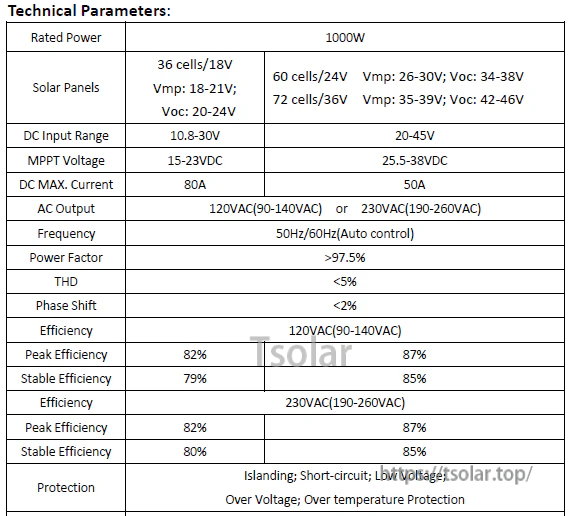

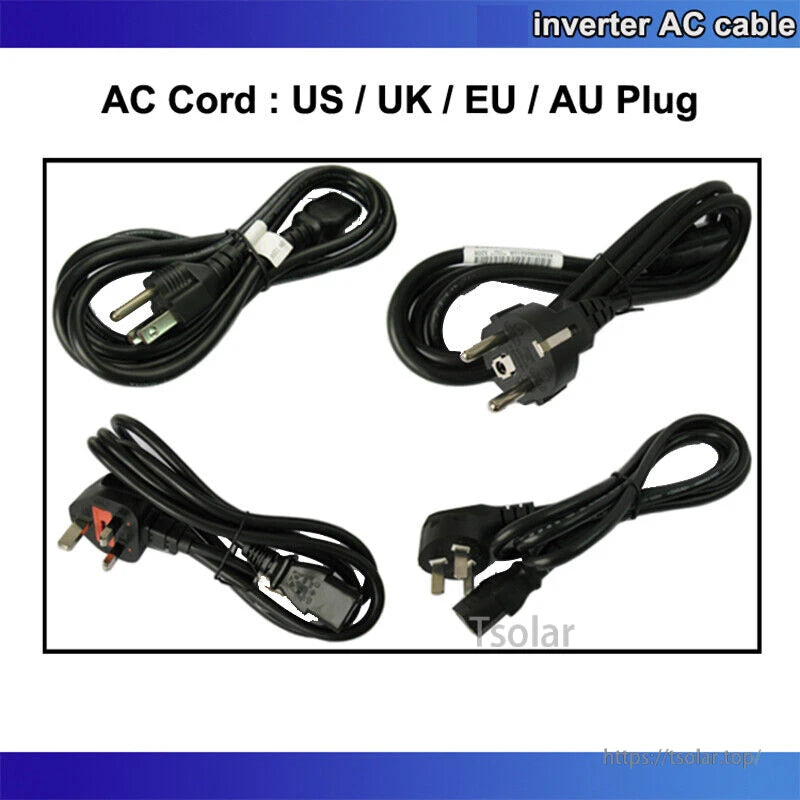

| Rated Power | 1000W |
| Solar Panels (36 cells/18V) | Vmp: 18-21V; Voc: 20-24V |
| Solar Panels (60 cells/24V) | Vmp: 26-30V; Voc: 34-38V |
| Solar Panels (72 cells/36V) | Vmp: 35-39V; Voc: 42-46V |
| DC Input Range | 10.8-30V / 20-45V |
| MPPT Voltage | 15-23VDC / 25.5-38VDC |
| DC MAX. Current | 80A / 50A |
| AC Output | 120VAC (90-140VAC) or 230VAC (190-260VAC) |
| Frequency | 50Hz/60Hz (Auto control) |
| Power Factor | >97.5% |
| THD | <5% |
| Phase Shift | <2% |
| Efficiency (120VAC, Peak) | 82% / 87% |
| Efficiency (120VAC, Stable) | 79% / 85% |
| Efficiency (230VAC, Peak) | 82% / 87% |
| Efficiency (230VAC, Stable) | 80% / 85% |
| Protection | Islanding; Short-circuit; Low voltage; Over Voltage; Over temperature Protection |
Applications

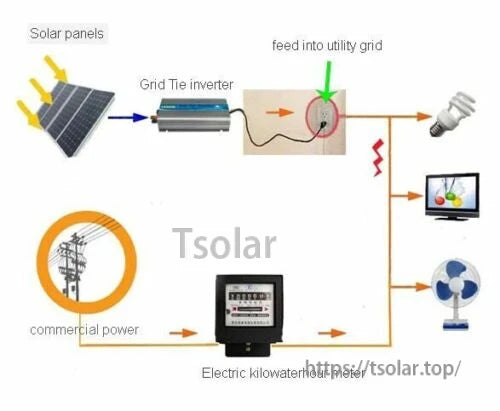

- Grid-tied solar PV generation systems where AC output is connected to the utility grid
- Distributed PV setups designed for per-module MPPT operation
For compatibility questions (PV module voltage, grid voltage selection, or installation planning), contact customer support at https://tsolar.top/ or service@tsolar.top.
Details

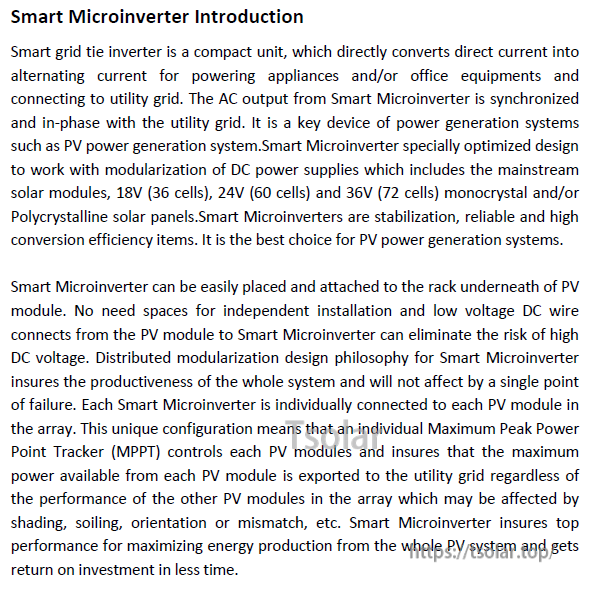

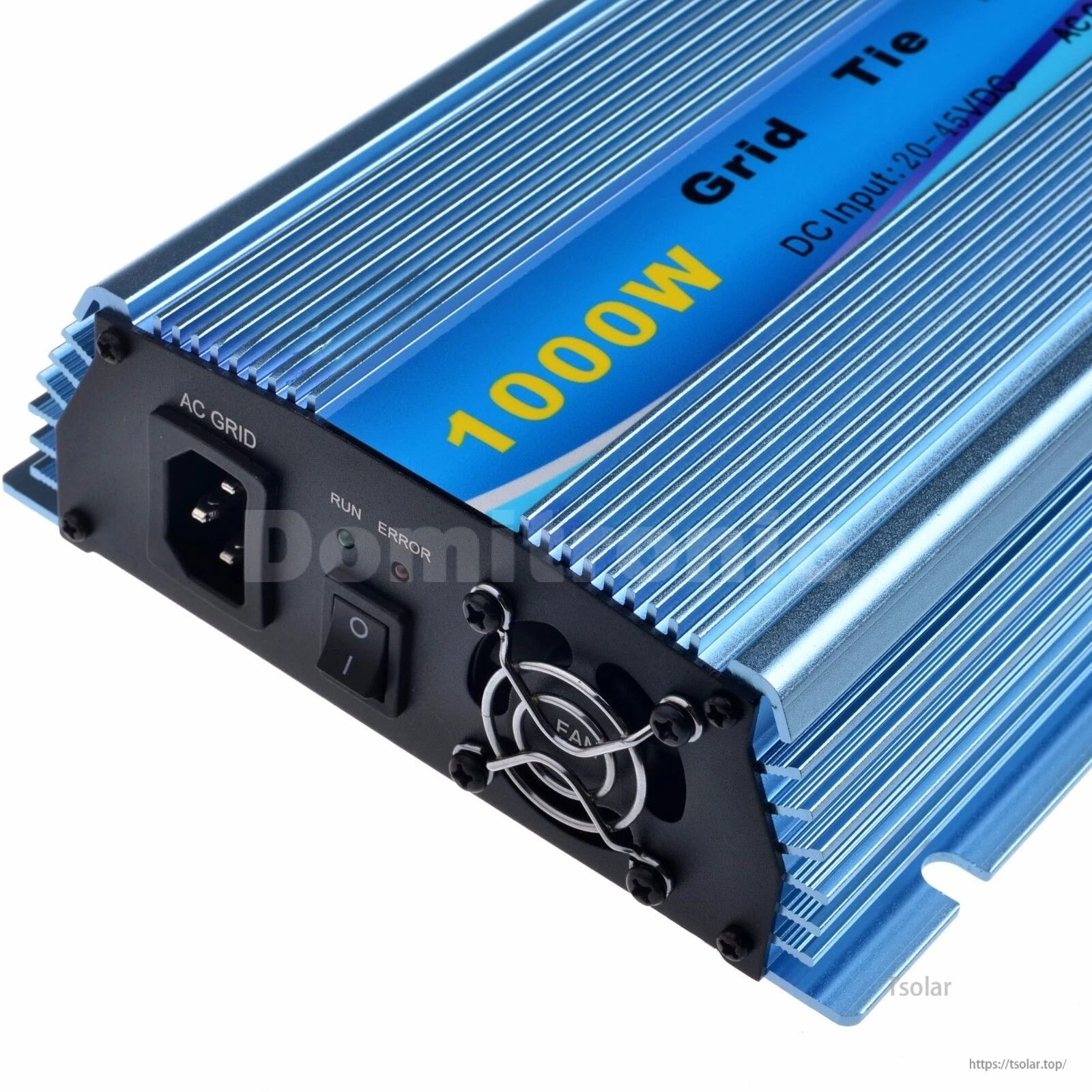

The smart microinverter description outlines grid-tie operation with per-panel MPPT control and support for 18V, 24V, and 36V PV modules.
The 1000W grid tie inverter supports 120VAC (90–140VAC) or 230VAC (190–260VAC) output with MPPT ranges of 15–23VDC or 25.5–38VDC and DC input ranges of 10.8–30V or 20–45V.
