Overview
This 1000W solar grid tie inverter converts DC from solar panels to AC and synchronizes output to the utility grid. It is not for off-grid/stand-alone systems: the AC output must be connected to grid power and cannot supply power directly to AC loads.
Key Features
- Rated power: 1000W
- Pure sine wave output

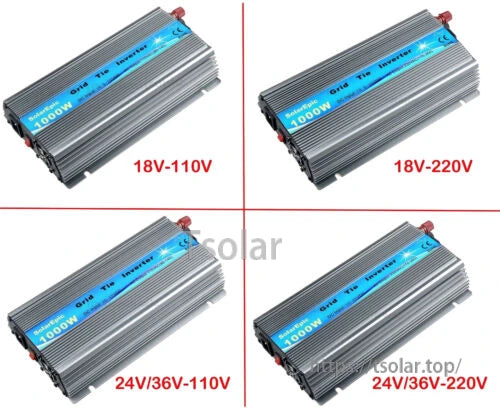

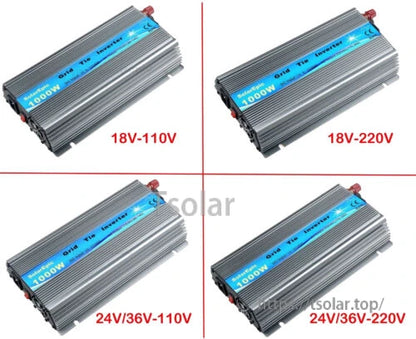

- AC output options: 120V (90-140V) or 230V (190-260V)
- Low stand-by power: < 1W
- Certifications: CE, RoHS
For product selection support, contact customer service at https://tsolar.top/ or service@tsolar.top.
Specifications

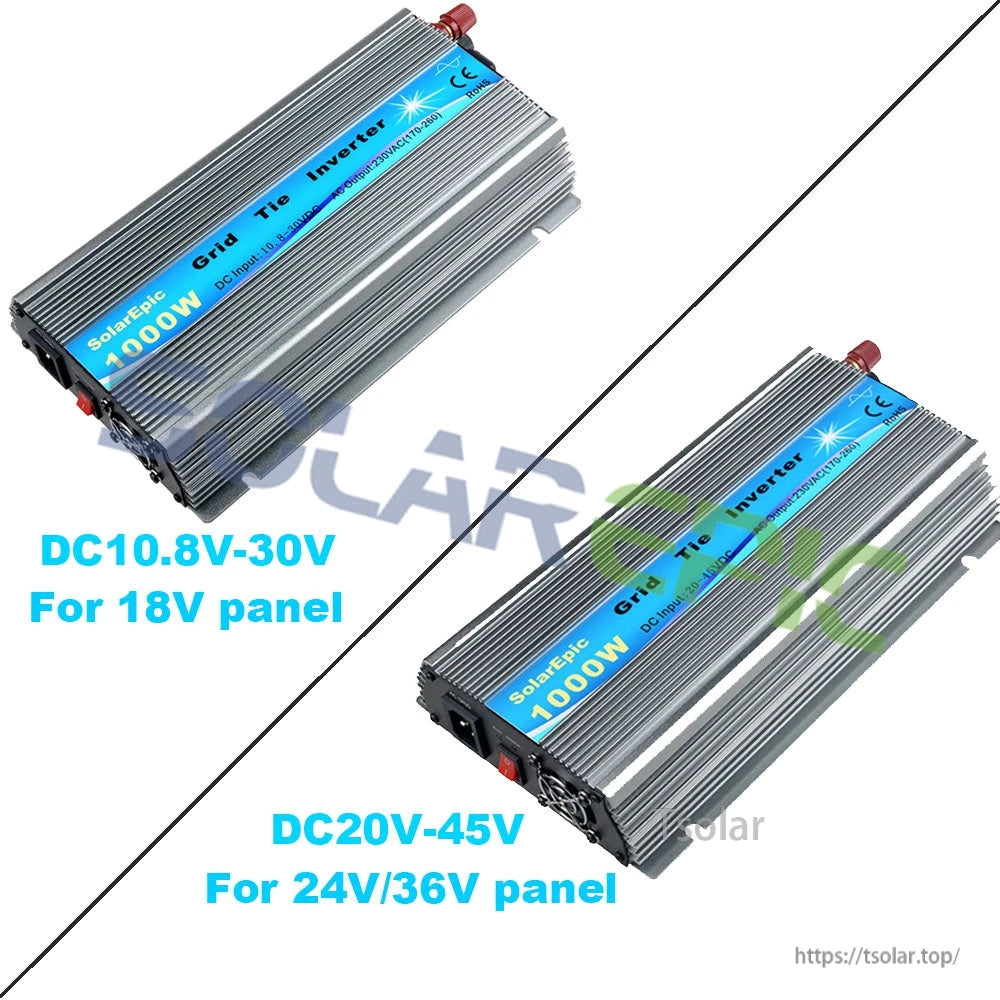

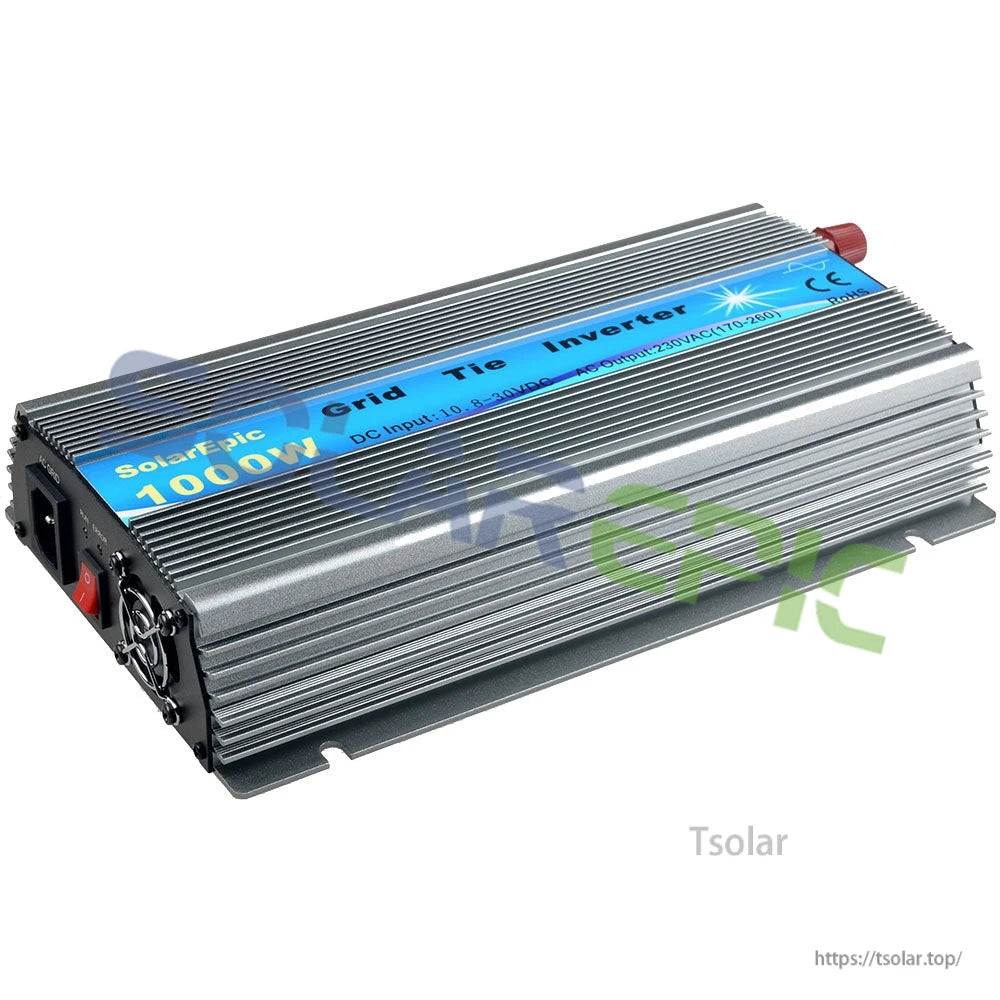

10.8-30V Version
| Rated Power | 1000W |
| Solar Panels | 36 cells / 18V |
| DC Input Range | 10.8-30V |
| MPPT Voltage | 15-23VDC |
| AC Output | 120V (90-140V) or 230V (190-260V) |
| Frequency | 48Hz-62Hz |
| THD | <5% |
| Power Factor | >97.5% |
| Stand-by Power | < 1W |
| Certification | CE RoHS |

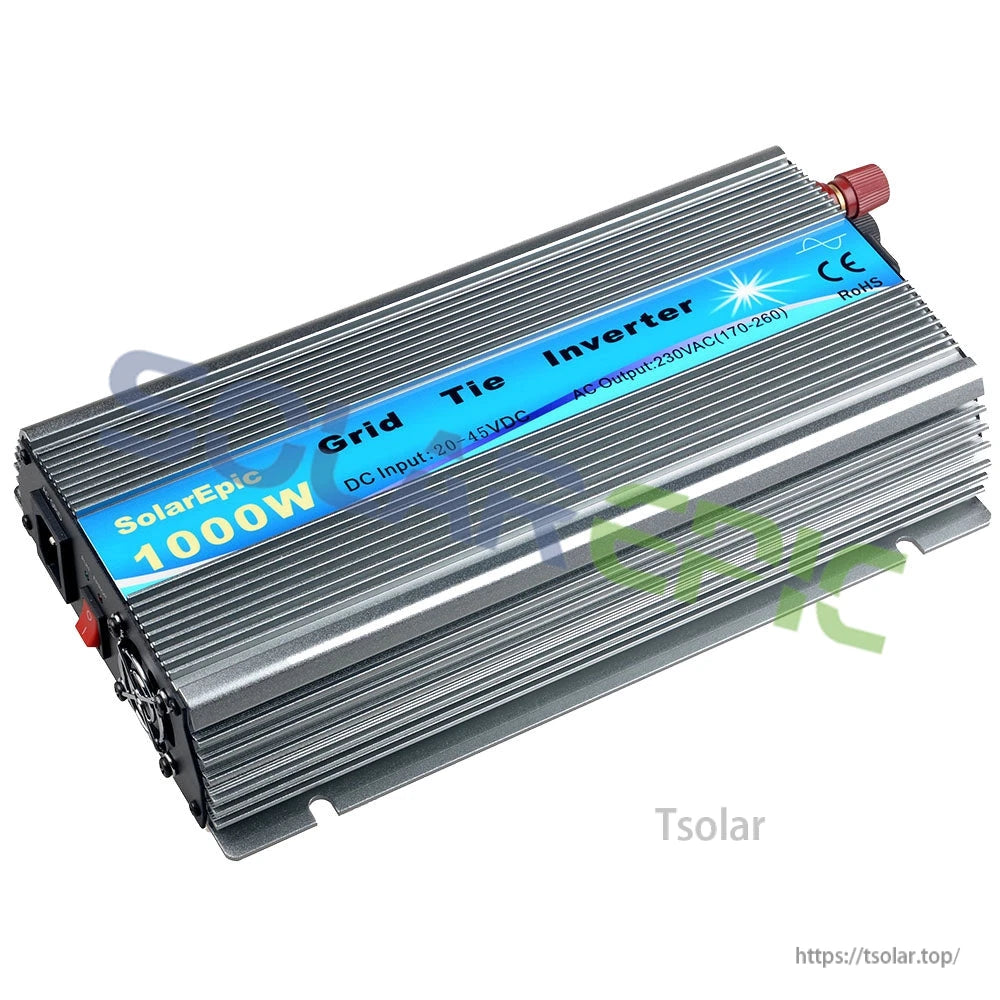

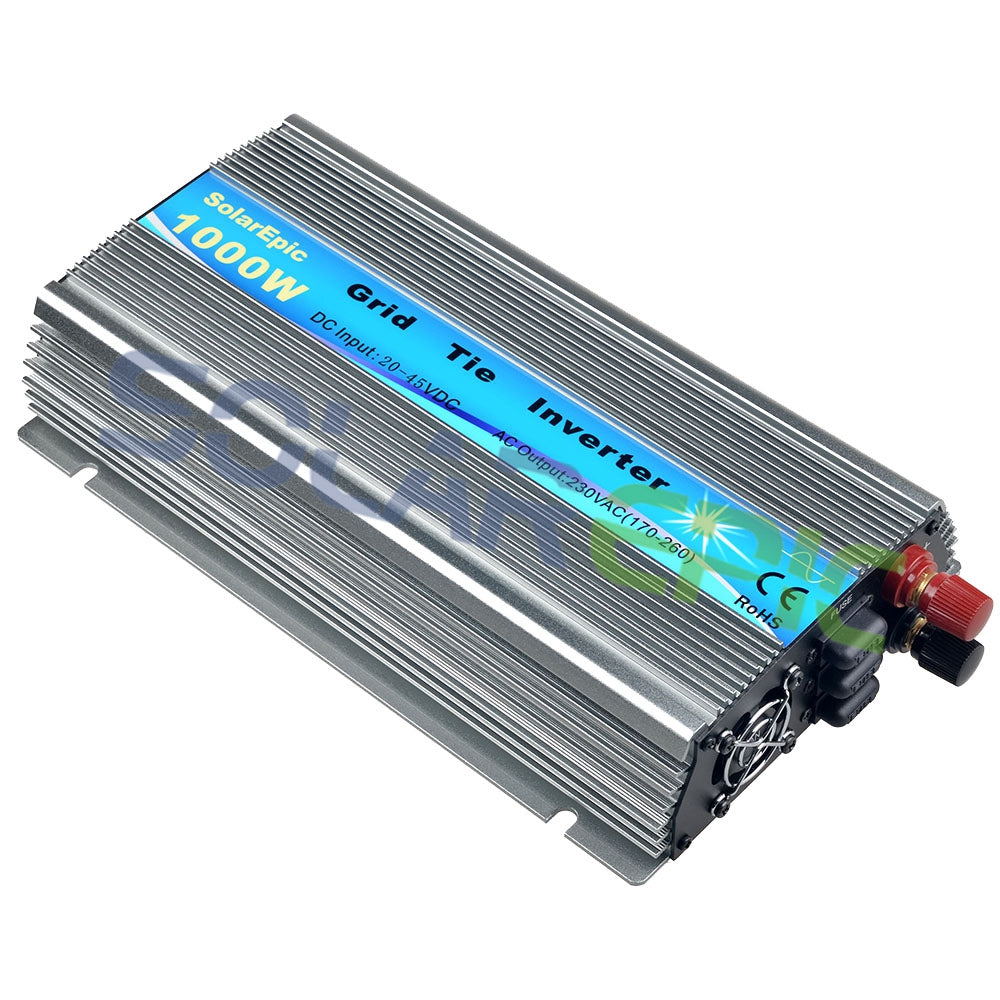

20-45V Version
| Rated Power | 1000W |
| Solar Panels | 60/72 cells; 30V/36V |
| DC Input Range | 20V-45V |
| MPPT Voltage | 26-36VDC |
| AC Output | 120V (90-140V) or 230V (190-260V) |
| Frequency | 48Hz-62Hz |
| THD | <5% |
| Power Factor | >97.5% |
| Stand-by Power | < 1W |
| Certification | CE RoHS |
What’s Included

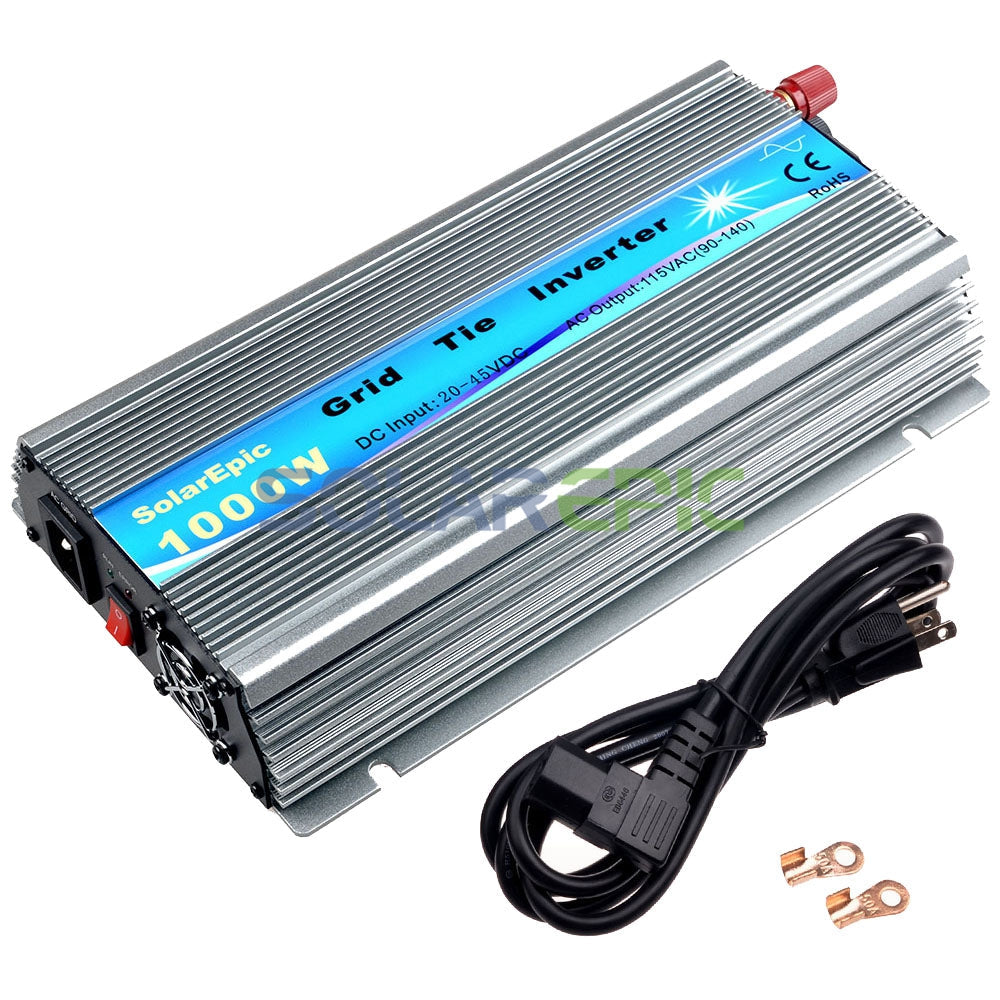

- 1 x 1000W Grid Tie Inverter
- 1 x User’s Manual
- 1 x AC Cord (US)
Warranty
1 year warranty.
