Overview

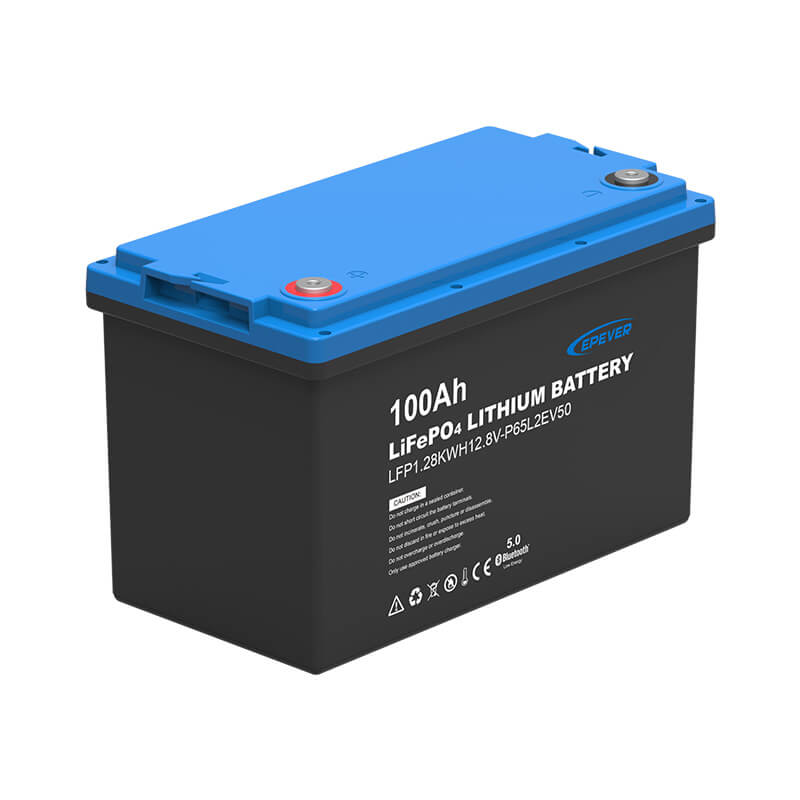

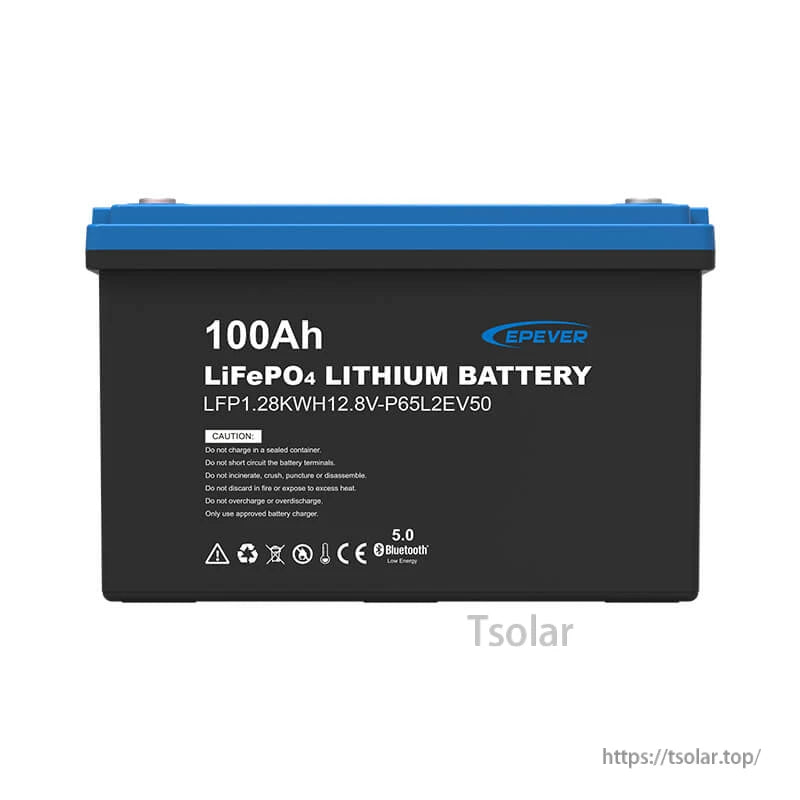

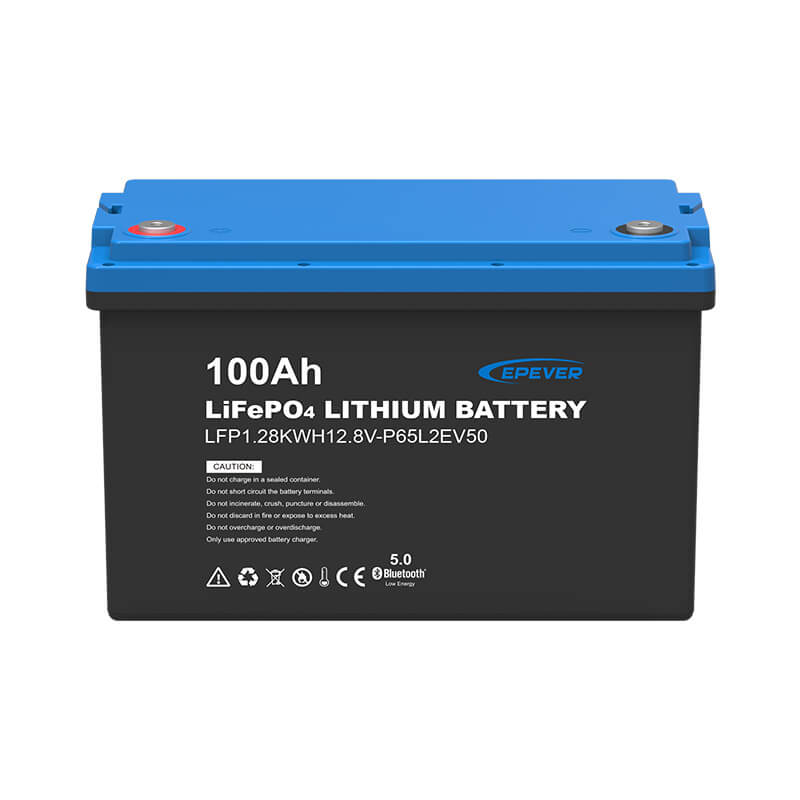

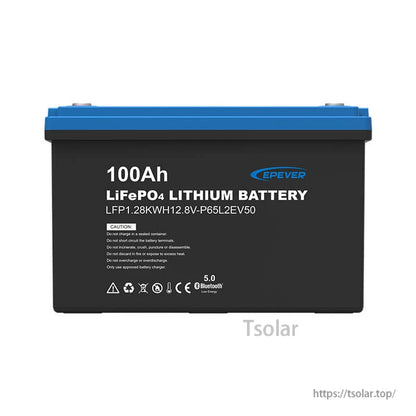

The EPEVER LFP1.28KWH12.8V-P65L2EV50 lithium battery is a 12.8V 100Ah LiFePO4 battery pack (1280Wh) with Bluetooth communication and heating function, built for reliable energy storage in mobile and stationary power systems.
Key Features
- Battery type: LiFePO4 (A grade brand new prismatic cells)
- Bluetooth communication
- Heating function / charging heating technique
- Cell balance function
- Protection features: overcharge, over-discharge, over temperature, low temperature, over current, short circuit
- Ingress protection: IP65
- Cycle life: > 5000 cycles (25 C, 0.5C) at 80% DOD
- Max 4 battery packs can be connected in series/parallel
- Certificates: UN38.3, MSDS, IEC62619, CE-RED, ROHS

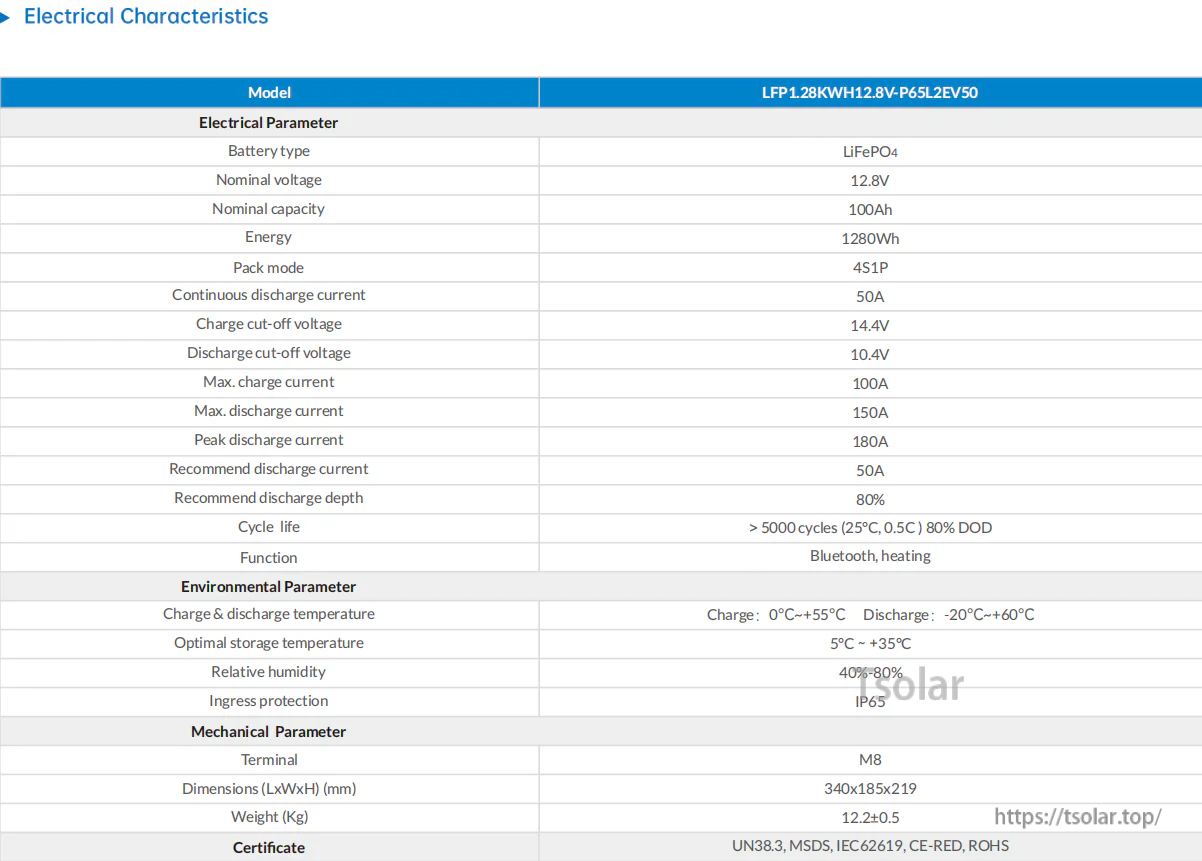

Specifications
| Model | LFP1.28KWH12.8V-P65L2EV50 |
| Battery type | LiFePO4 |
| Nominal voltage | 12.8V |
| Nominal capacity | 100Ah |
| Energy | 1280Wh |
| Pack mode | 4S1P |
| Continuous discharge current | 50A |
| Charge cut-off voltage | 14.4V |
| Discharge cut-off voltage | 10.4V |
| Max. charge current | 100A |
| Max. discharge current | 150A |
| Peak discharge current | 180A |
| Recommend discharge current | 50A |
| Recommend discharge depth | 80% |
| Cycle life | > 5000 cycles (25 C, 0.5C) 80% DOD |
| Function | Bluetooth, heating |
| Charge temperature | 0 C to +55 C |
| Discharge temperature | -20 C to +60 C |
| Optimal storage temperature | 5 C to +35 C |
| Relative humidity | 40% to 80% |
| Ingress protection | IP65 |
| Terminal | M8 |
| Dimensions (L x W x H) | 340 x 185 x 219 mm |
| Weight | 12.2 0.5 kg |
| Certificates | UN38.3, MSDS, IEC62619, CE-RED, ROHS |
Applications
- Solar battery backup and home energy storage
- Camping and off-grid power systems
- RV and marine power setups
- Emergency power and backup
For compatibility questions (charging settings, series/parallel configurations, or Bluetooth use), contact support at https://tsolar.top/ or service@tsolar.top.
Details
The EPEVER 12.8V 100Ah LiFePO4 battery is rated at 1280Wh with up to 50A continuous discharge and M8 terminals for connections.
