Overview
The Ampinvt 1200W off-grid low frequency solar inverter converts 12Vdc battery power to 120Vac output and can charge a battery bank when AC power and/or solar power is connected. It features a pure sine wave inverter with a built-in 40A MPPT charge controller (30A/40A series) and supports multiple working modes for flexible operation.
Key Features
- Continuous output power: 1200W
- Peak output power: 3600W
- DC system voltage: 12V battery system only
- Built-in MPPT solar charge controller: 40A (30A/40A series)
- Pure sine wave inverter
- 5 working modes intelligent select
- Multiple protection
- Charge current can be adjusted
- Accept different type of battery
- RS485 communication interface
- Front-panel LCD display, LED indicators, and function keys
Specifications
| Brand | Ampinvt |
| Inverter type | Off grid, low frequency, pure sine wave |
| Continuous output power | 1200W |
| Peak output power | 3600W |
| Battery system | 12V battery system only |
| DC input | 12Vdc |
| AC output | 120Vac |
| Solar charge controller | Built-in MPPT, 40A (30A/40A series) |
| Parallel operation | Not supported |
Working Modes
- AC/Line priority mode -- Always uses AC power as priority input, provides AC output, and automatically charges the battery.
- Battery priority mode -- Priority is given to battery power supply. After low voltage protection, it transfers to AC grid power supply. When the battery is full, it transfers back to battery power.
- ECO Mode -- Load < 10%: automatic sleep and stops output; load > 10%: automatically boots back to normal inversion.
- Generator mode -- A generator connected to the AC input; output is stabilized through AVR while the battery is recharged.
- Unattended Mode -- When battery voltage is low, the inverter enters standby (power saving). When battery voltage returns to the user-set value (such as via solar charging), it restores normal output for fully automatic operation.

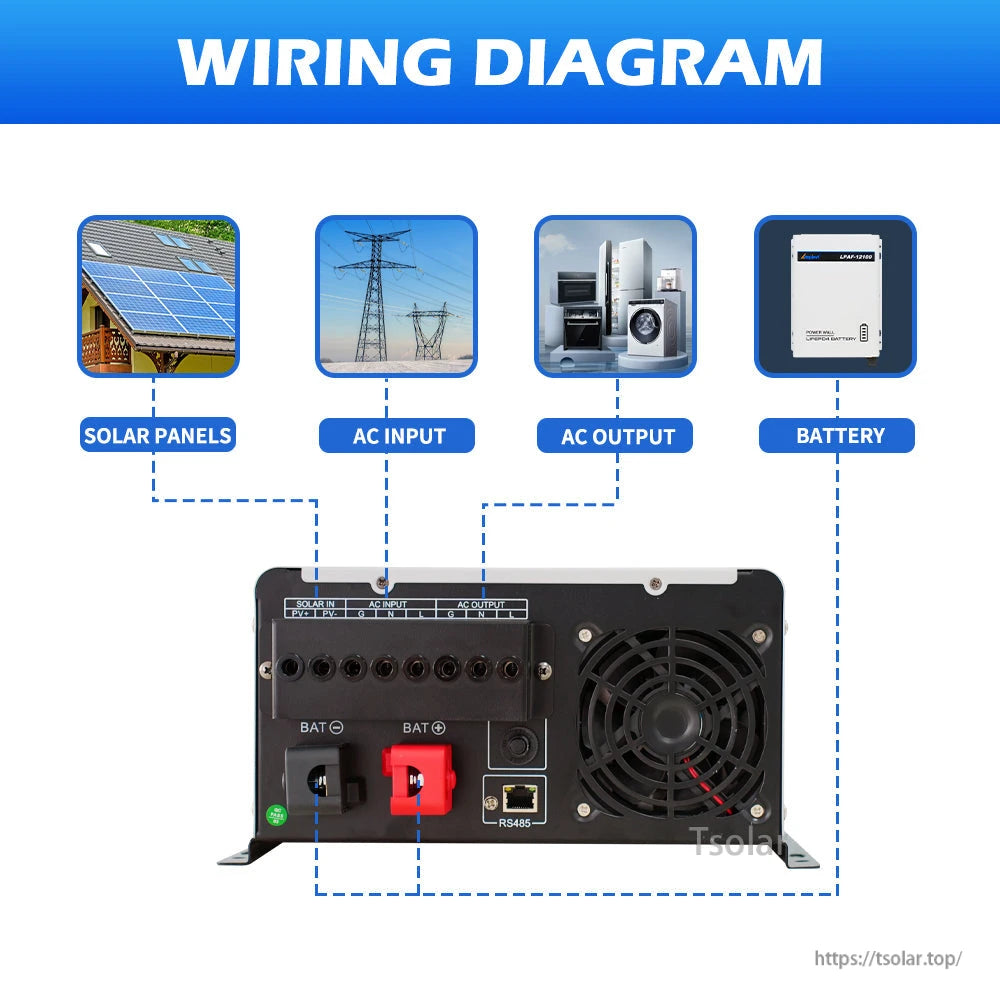

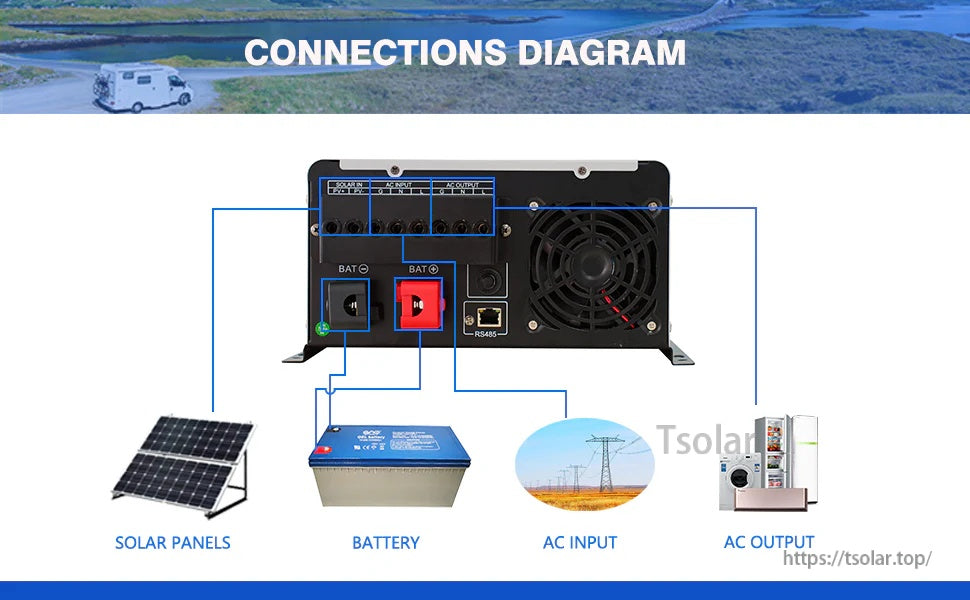

Connections & Interfaces
- Solar input
- AC input
- AC output
- Battery positive
- Battery negative
- RS485
Attention / Installation Notes
- This solar inverter is able to charge the battery bank when AC power/Solar power is connected to the inverter.
- This inverter can ONLY work with a 12V battery system.
- Inverter CAN NOT support connect in parallel.
- Inverter MUST have a battery, and the battery MUST be connected first.
For pre-sales checks (system voltage, wiring order, and mode selection) or after-sales support, contact https://tsolar.top/ or service@tsolar.top.
Details

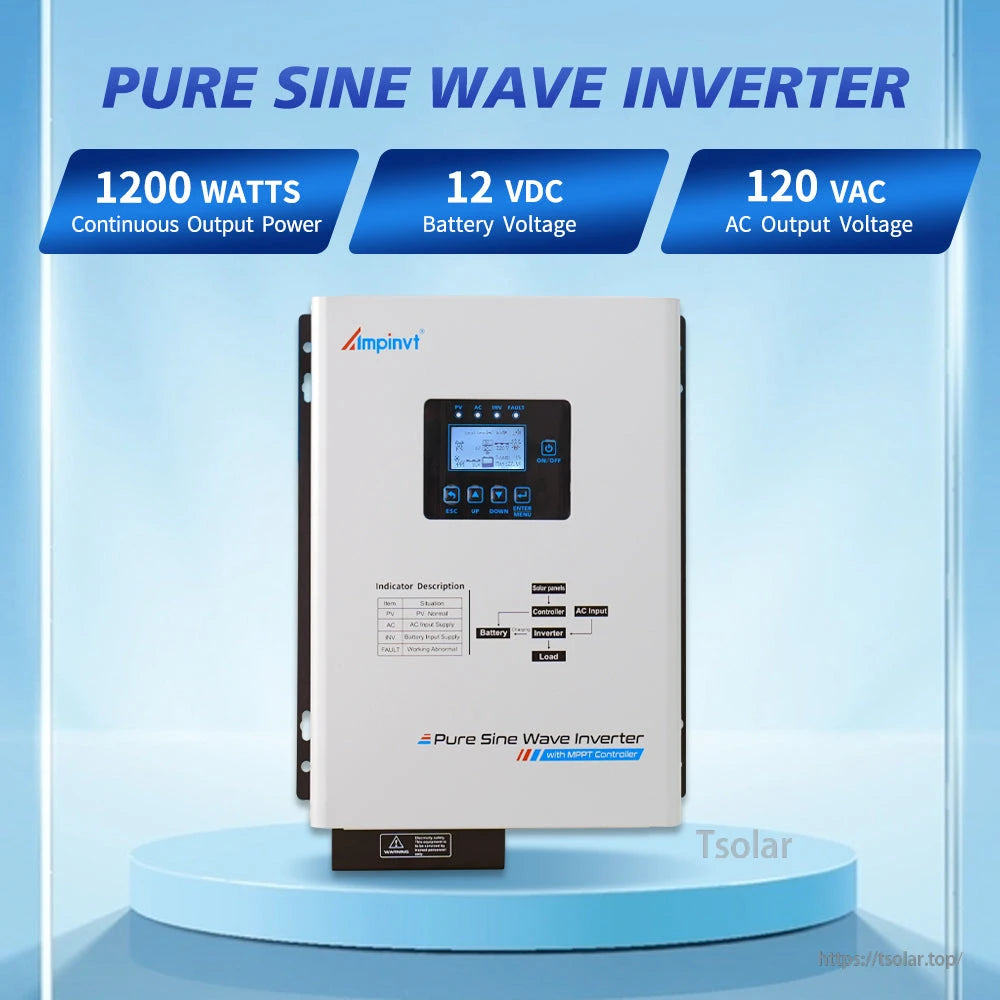

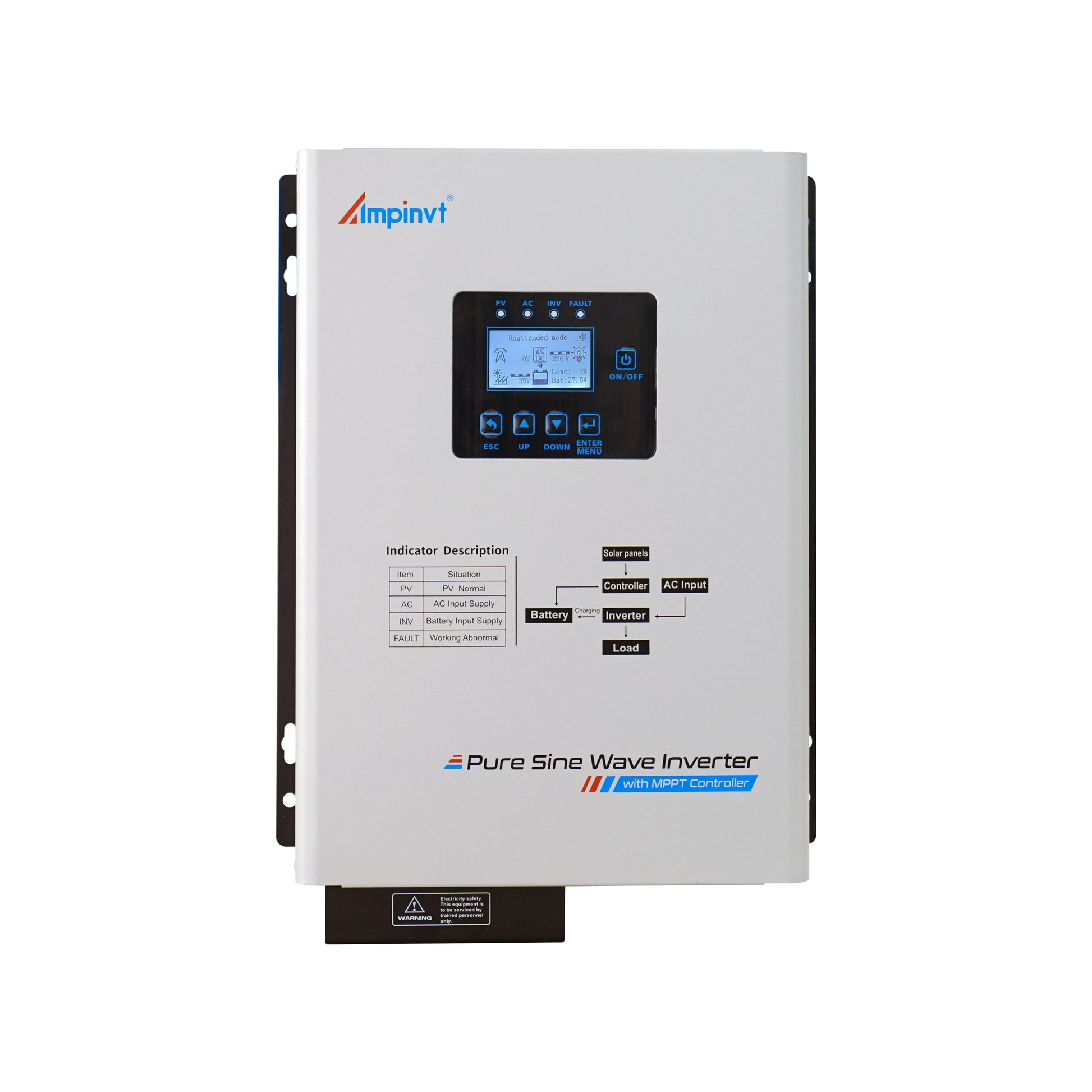

A 12V off-grid inverter that delivers pure sine wave AC output and includes a built-in MPPT charge controller for solar charging.

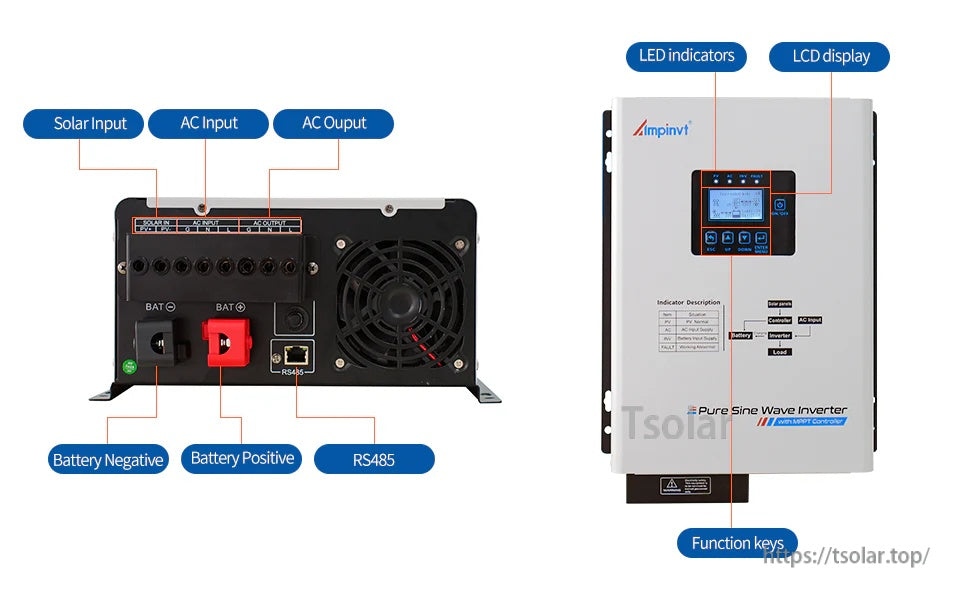

Clear connection points for PV, battery, and AC wiring, plus an LCD and function keys for quick status checks and setup.
