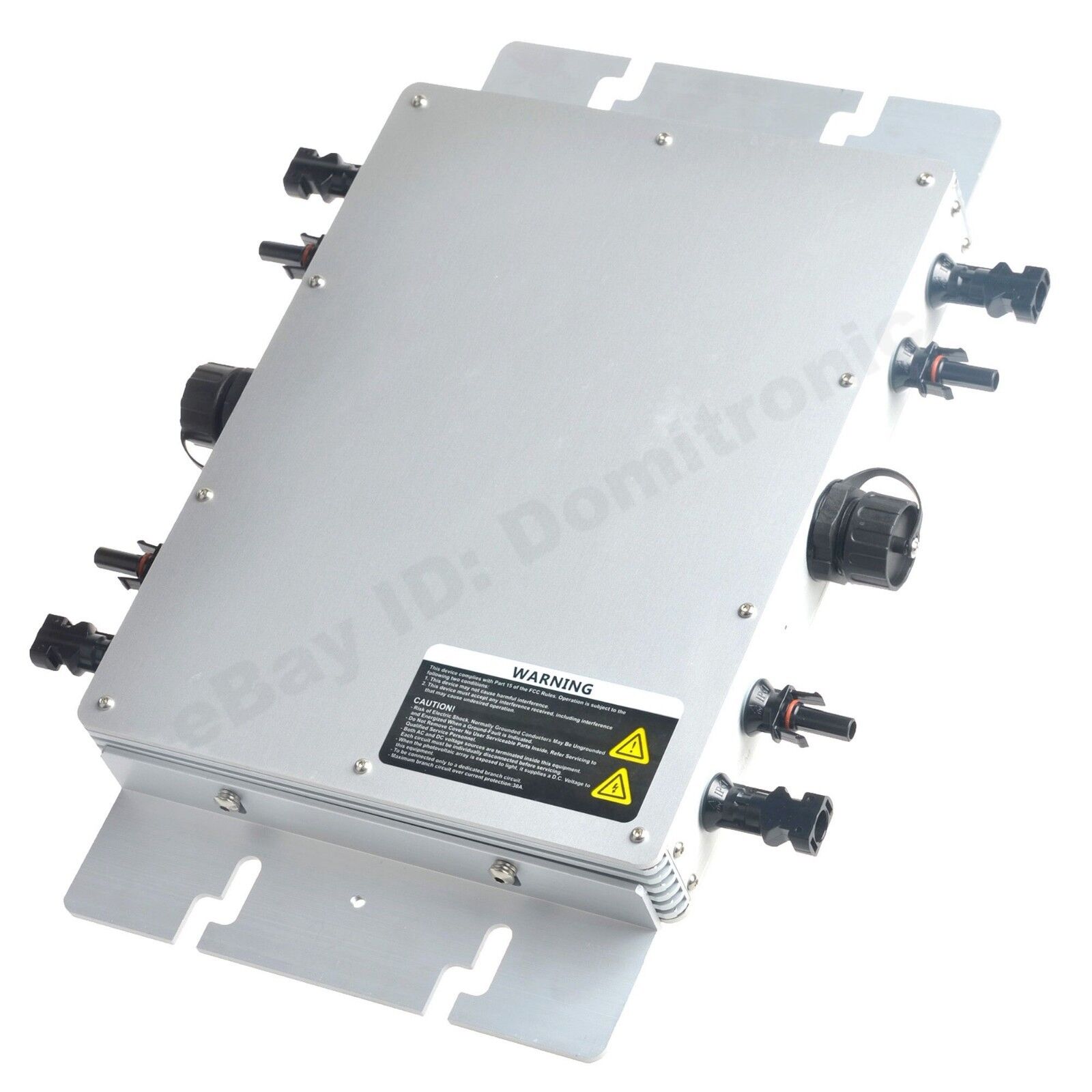

• 1200W waterproof grid tie inverter in metal enclosure with mounting brackets and multiple sealed cable connectors
  • 1200W Waterproof Grid Tie Inverter, 1200W grid tie inverter kit with aluminum enclosure, LCD display module, and connection cables
  • 1200W Waterproof Grid Tie Inverter, Metal waterproof grid-tie inverter unit with mounting flanges and multiple cable connectors on the sides
  • 1200W Waterproof Grid Tie Inverter, WVC-1200 micro inverter housing with multiple MC4-style connectors and mounting tabs for grid-tie setup
  • 1200W Waterproof Grid Tie Inverter, Plug-in AC power meter with blue LCD display showing voltage, current, power and frequency, with cord and plug
  • 1200W Waterproof Grid Tie Inverter, Inverter AC power cord options with US, UK, EU and AU plug types for grid-tie inverter connection

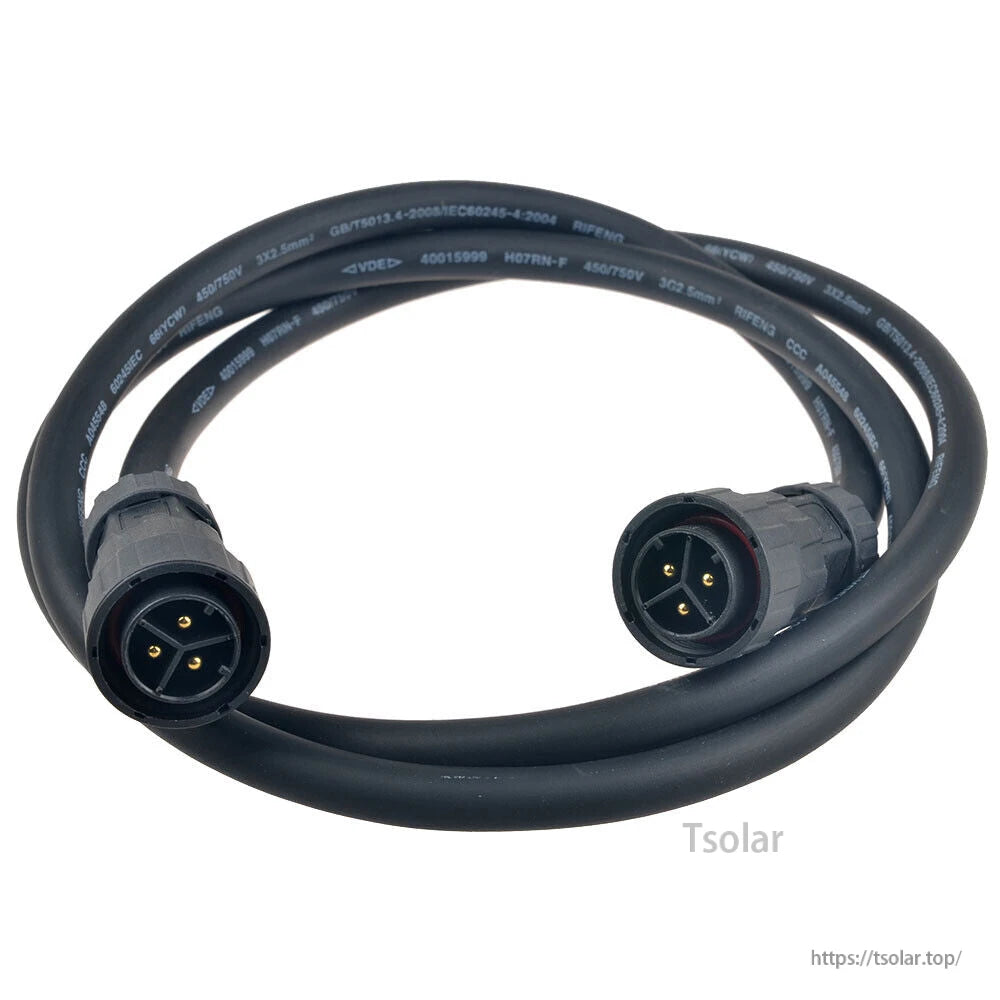

  • 1200W Waterproof Grid Tie Inverter, Black waterproof inverter connector cable with circular 3-pin male plugs on both ends

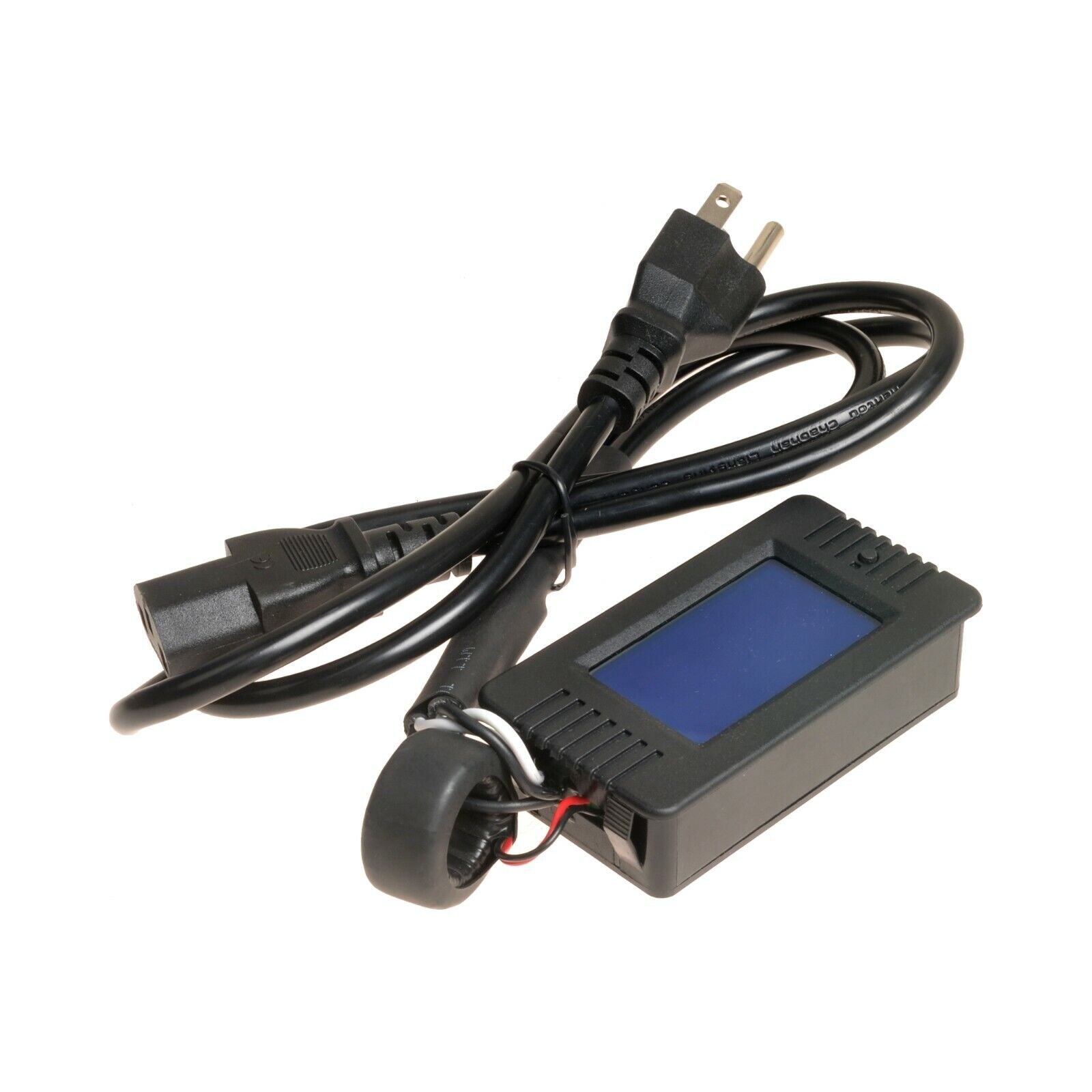

  • 1200W Waterproof Grid Tie Inverter, LCD power monitor module with current transformer clamp sensor and AC plug cable for grid-tie inverter setup
  • 1200W Waterproof Grid Tie Inverter, WVC-1200 micro inverter enclosure with mounting flanges and multiple sealed cable glands/connectors

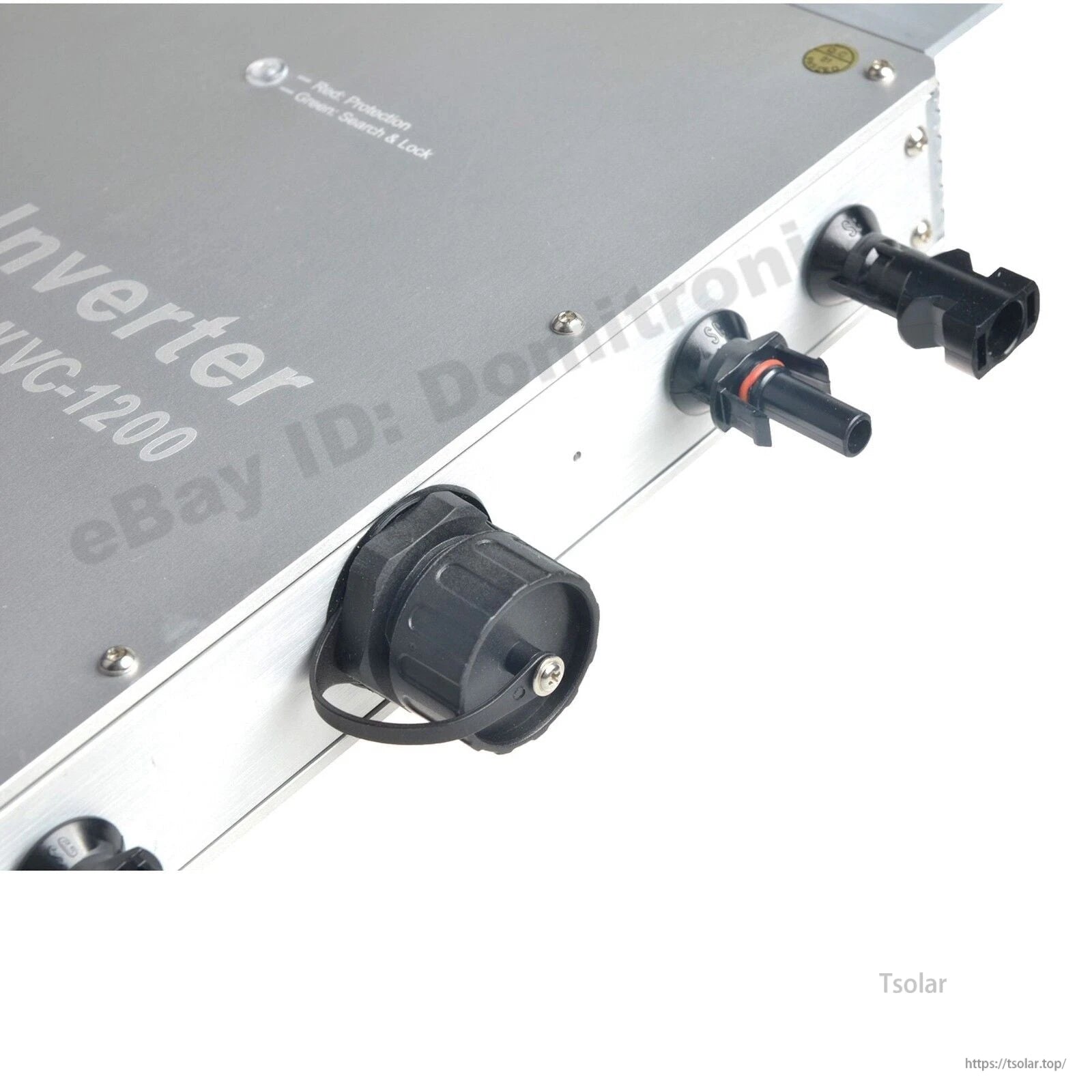

  • 1200W Waterproof Grid Tie Inverter, Close-up of a 1200W waterproof grid-tie inverter housing with MC4-style solar connectors and a sealed cable gland.

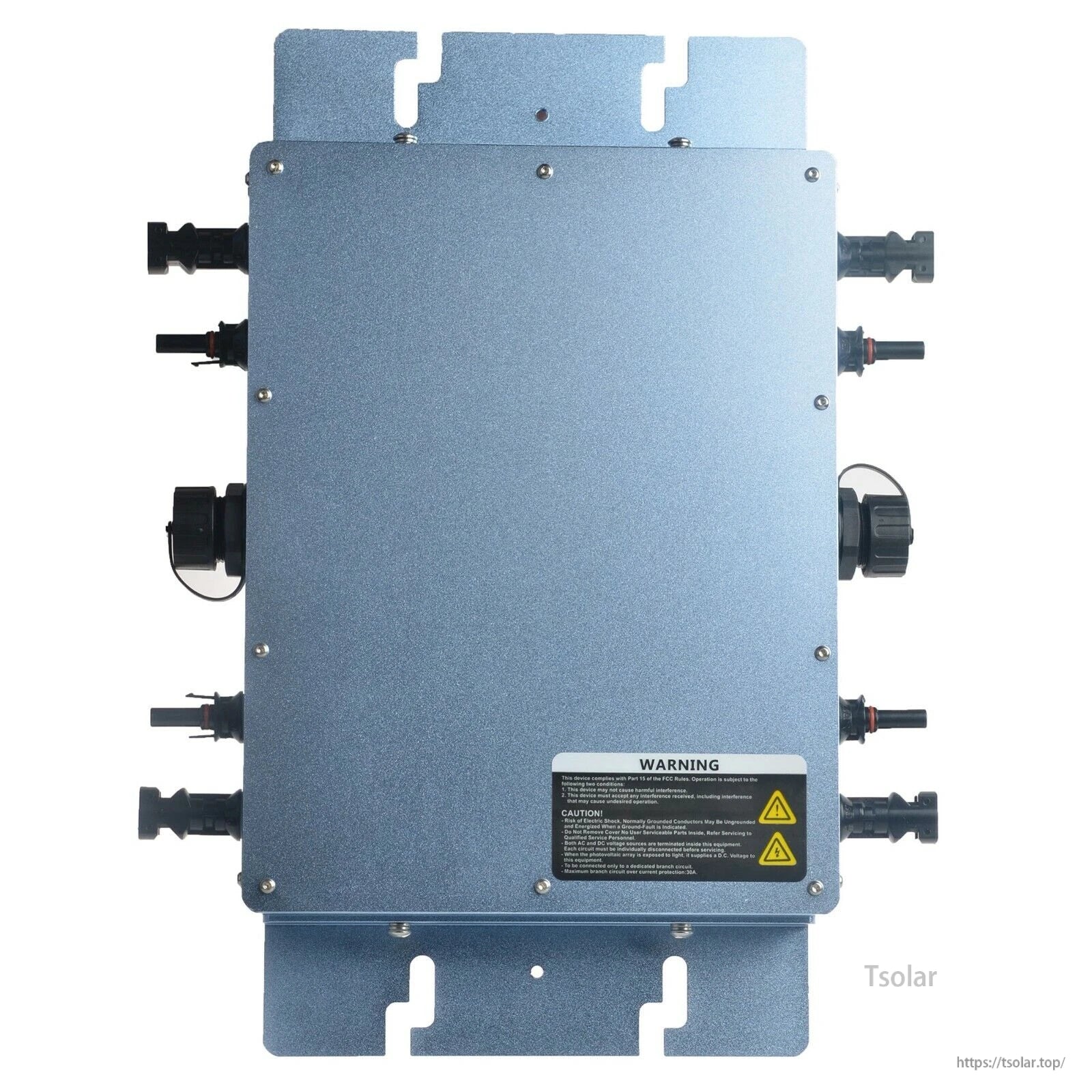

  • 1200W Waterproof Grid Tie Inverter, Metal-cased grid-tie inverter enclosure with multiple side connectors, mounting flanges, and warning label
  • 1200W Waterproof Grid Tie Inverter, Close-up of 1200W grid tie inverter AC output waterproof circular connector with screw cap and AC light indicator
  • 1200W Waterproof Grid Tie Inverter, 1200W grid tie micro inverter with silver metal housing, mounting brackets, and multiple MC4-style connectors

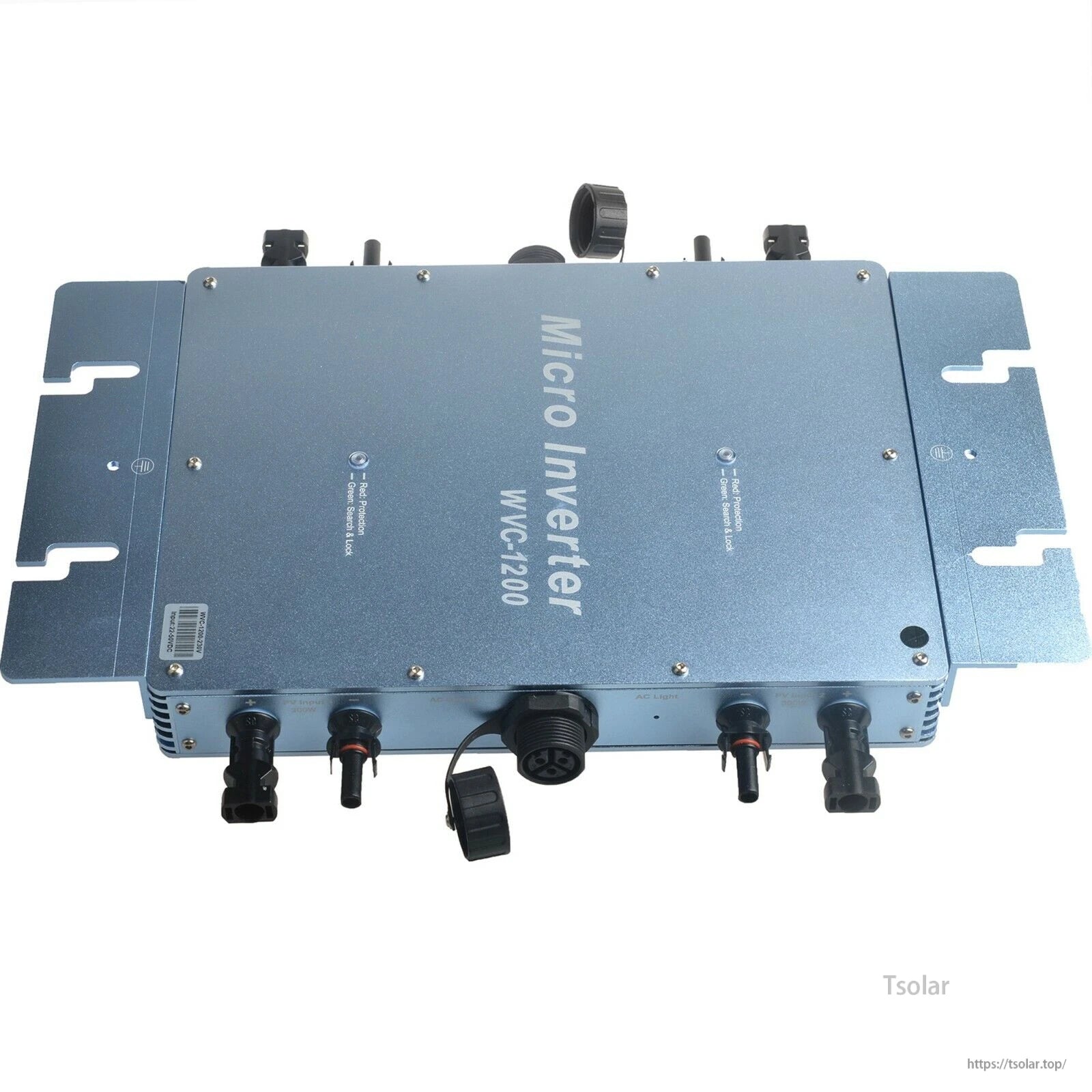

  • 1200W Waterproof Grid Tie Inverter, WVC-1200 micro inverter in blue metal housing with side mounting flanges and multiple bottom connectors

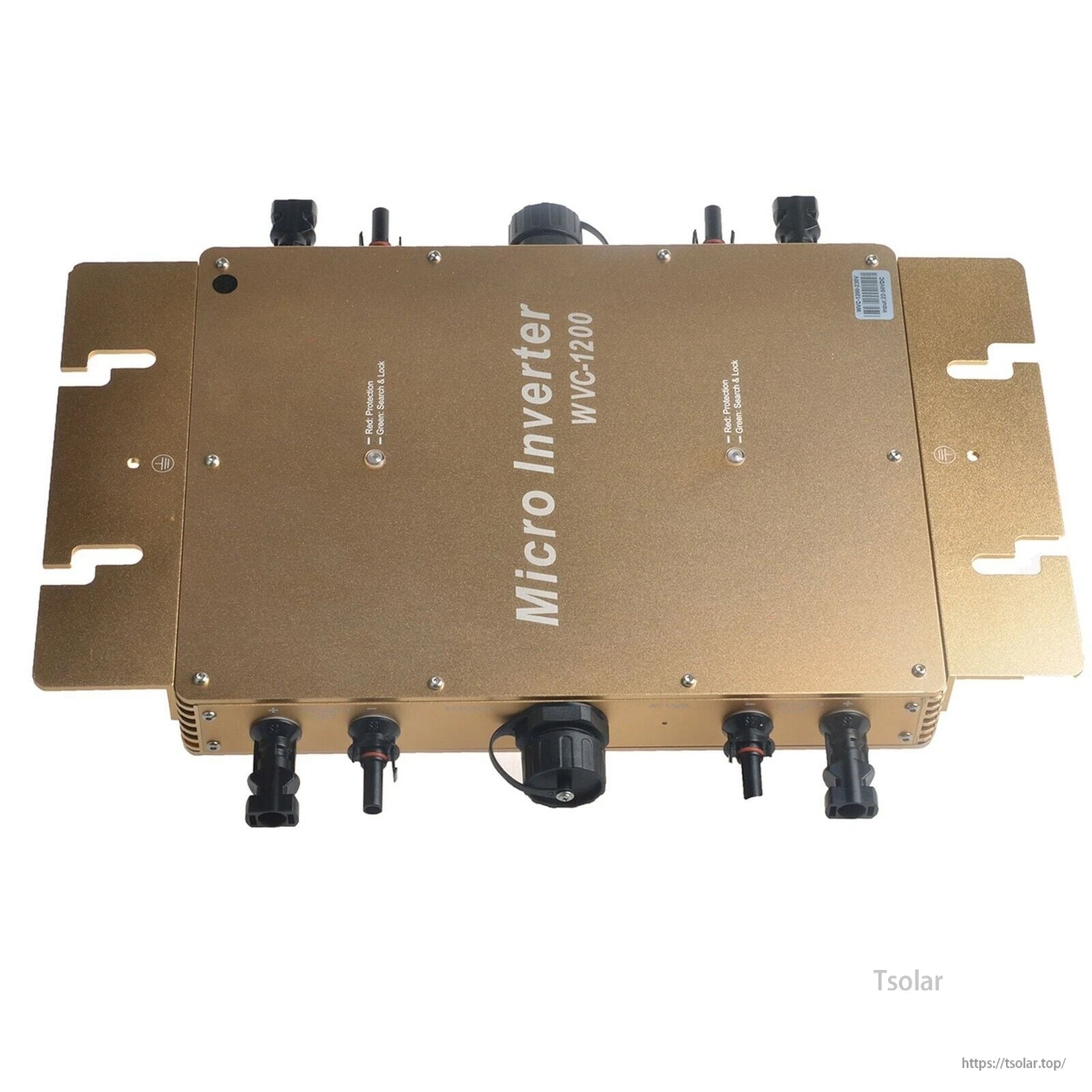

  • 1200W Waterproof Grid Tie Inverter, WVC-1200 micro inverter in gold housing with mounting tabs and multiple MC4-style connectors
1 13

SolarEpic

1200W Waterproof Grid Tie Inverter DC22-50V to AC110V/220V Pure Sine Wave IP65 with LCD Meter

1200W Waterproof Grid Tie Inverter DC22-50V to AC110V/220V Pure Sine Wave IP65 with LCD Meter

$268.99 USD
$268.99 USD
Sale Sold out
Shipping calculated at checkout.
AC Output Voltage:
Inverter Color:
View full details

Overview

This 1200W waterproof grid tie inverter converts DC power from solar panels (DC 22V-50V) to AC 110V or 220V with automatic 50Hz/60Hz operation. It is designed for direct PV connection (no battery required) and provides pure sine wave output. Note: this inverter does not have a monitoring function.

Key Features

  • Power rating: 1200W
  • Waterproof rating: IP65
  • Pure sine wave output using SPWM modulation
  • Wide DC input range: 22V to 50VDC
  • MPPT (Maximum Power Point Tracking) with Power Automatically Locked (APL)

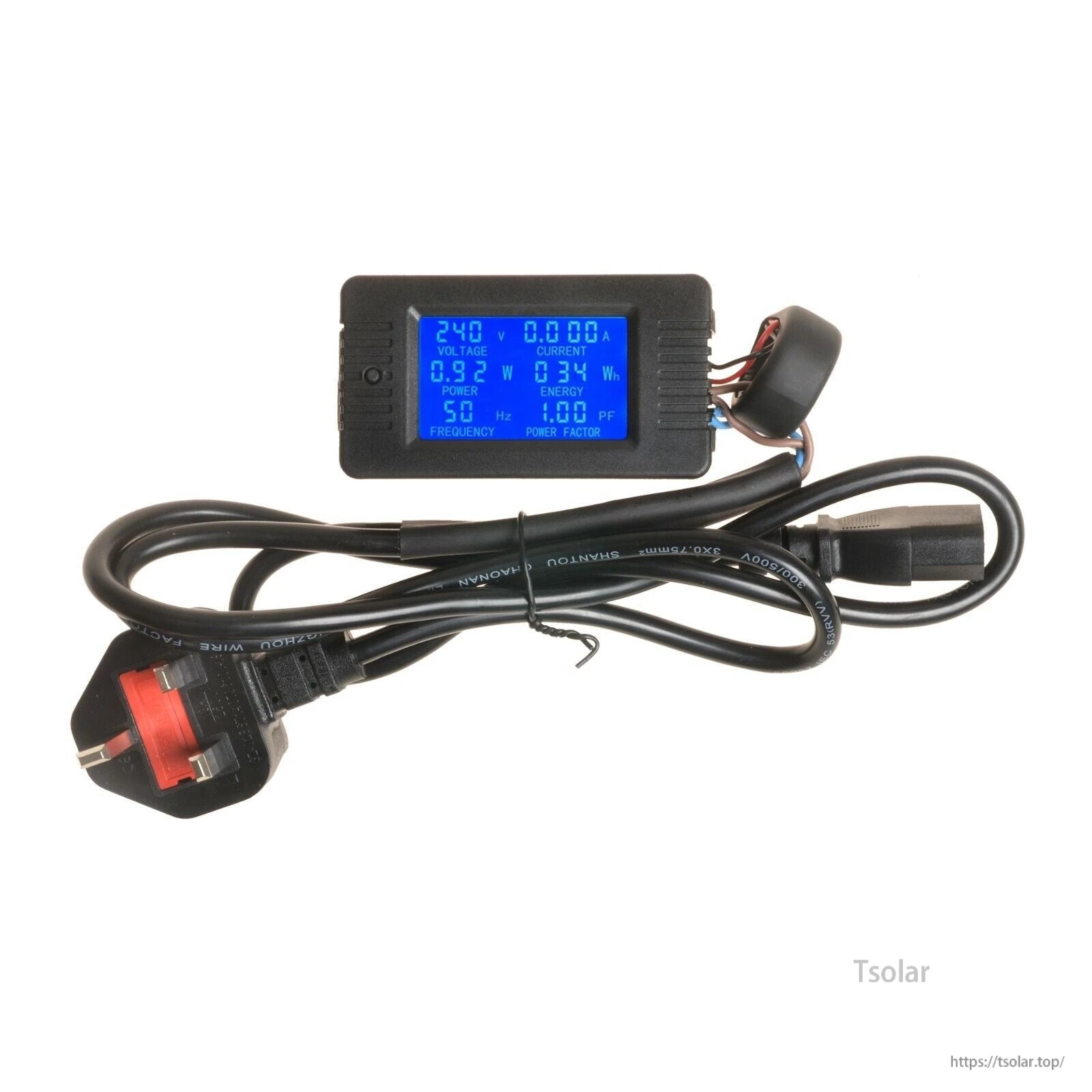

  • LCD display meter (remote meter): automatic identification and system status display
  • LCD data: AC voltage, current and frequency, generating capacity, power factor
  • 6-grade power search for low PV output conditions (e.g., overcast weather)
  • High-precision AC phase detection: phase shift rate < 1%
  • Protections: islanding protection, over-temperature protection, over/low AC voltage protection, over/low DC voltage protection, fault indication

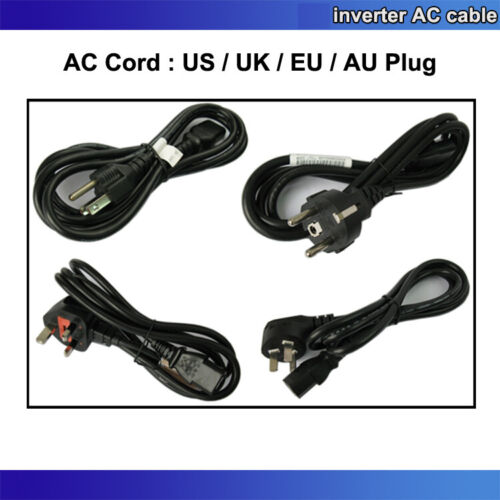

  • AC cord options: EU/UK/US/AU plug (sent according to destination country)

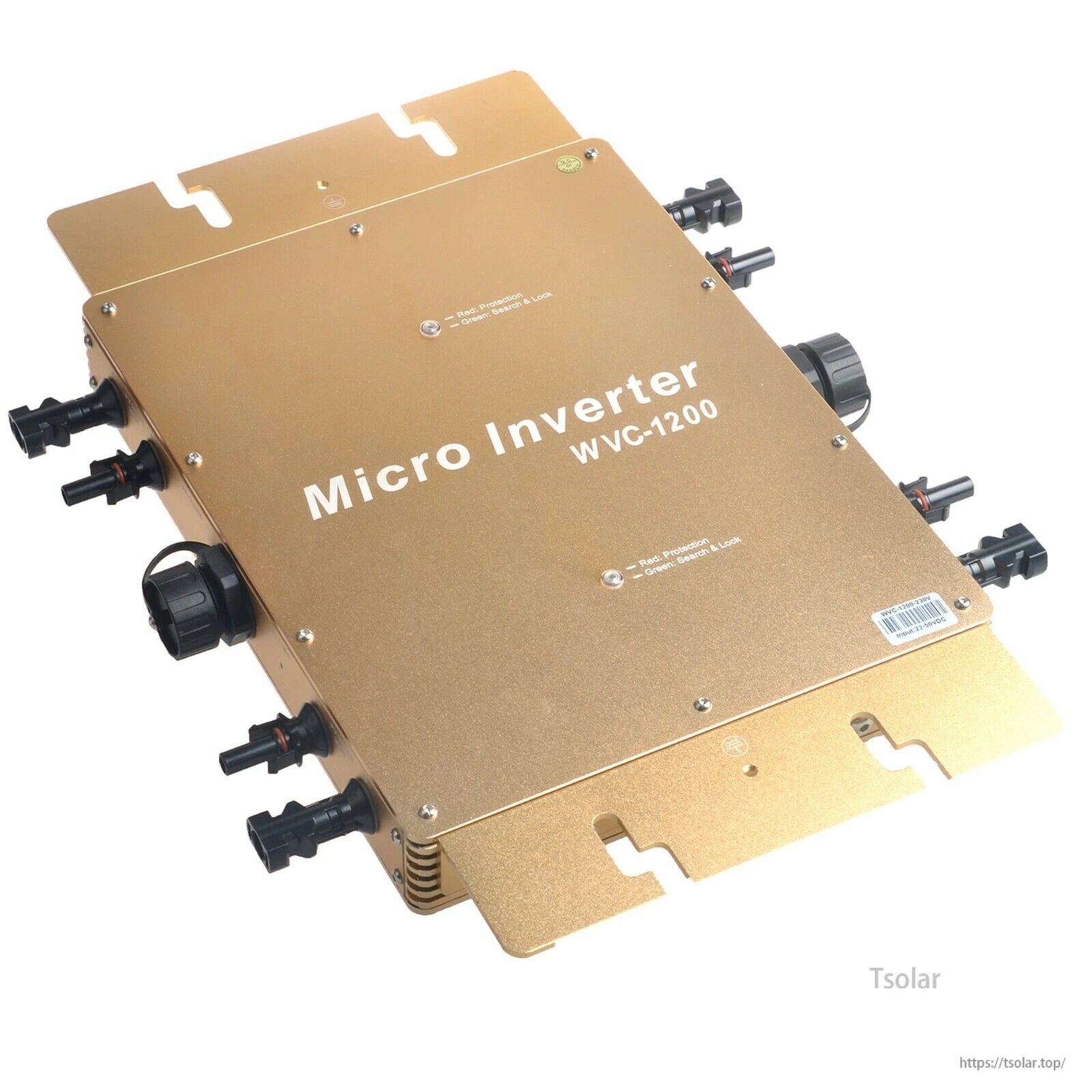

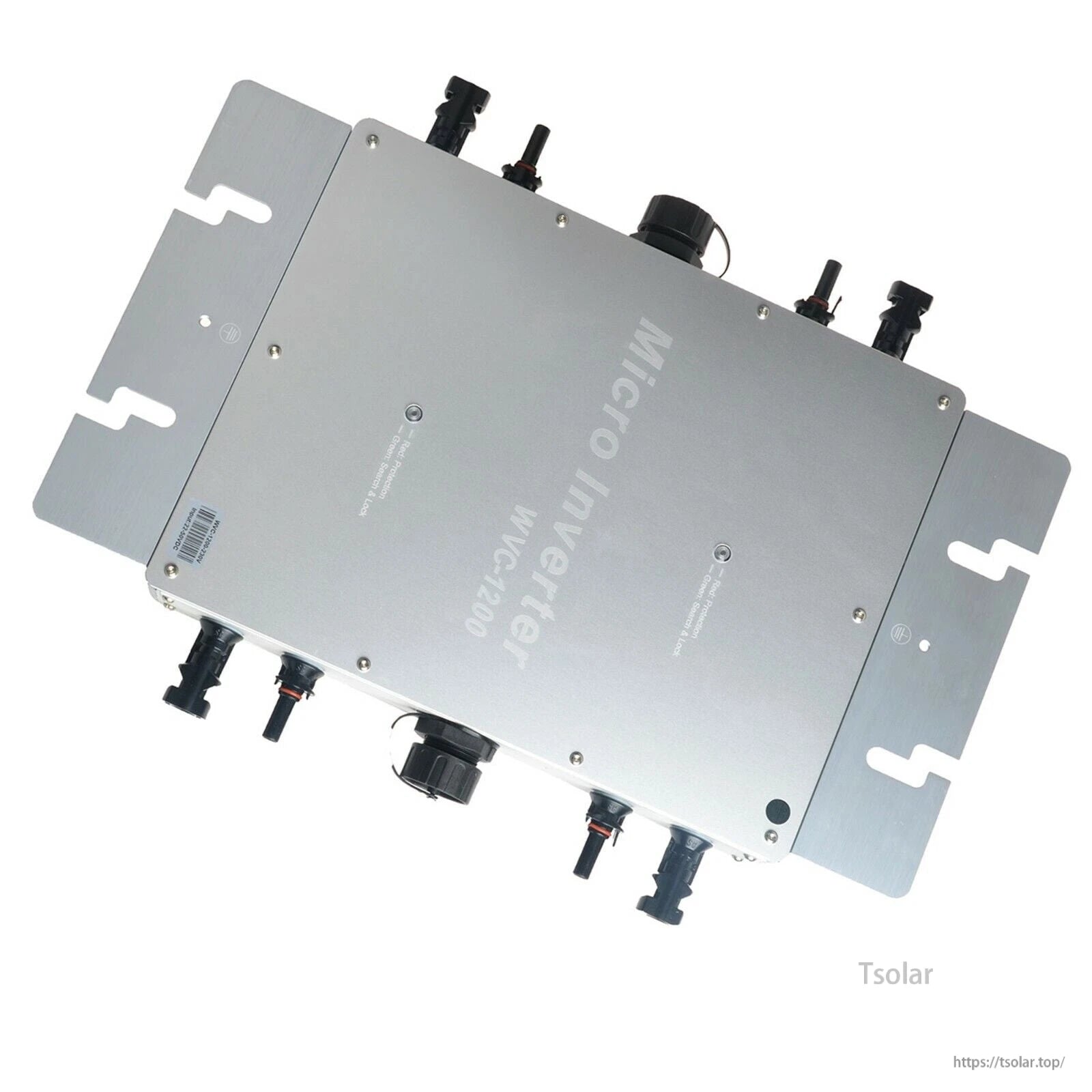

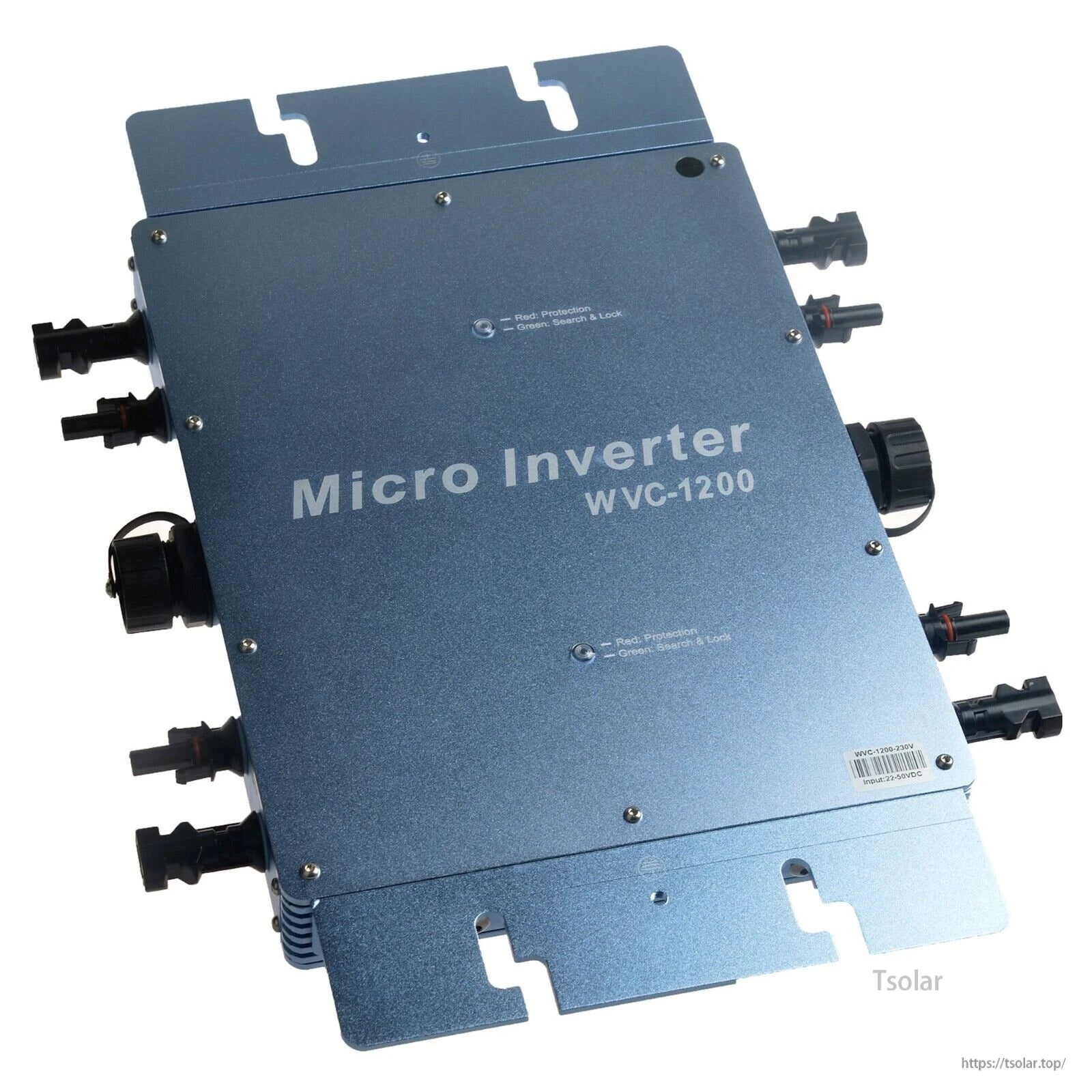

  • Color options: silver, golden, blue

Specifications

Rated power 1200W
DC input voltage range 22V to 50VDC
AC output (220VAC version) 180V - 262V, 50Hz
AC output (110VAC version) 80V - 160V, 60Hz
AC frequency compatibility 50Hz / 60Hz (auto)
Frequency range 45Hz - 64Hz
Waterproof rating IP65
High frequency 50KHz
Modulation synthesis Half wave and full-bridge modulation synthesis (100Hz / 120Hz)
Synthetic way MOSFET full-bridge
AC phase shift < 1%
Over-zero protection 0.2 VAC
Recommended PV panel guidance Recommend using power more than 30W and the standard voltage of 36V PV panels; suggestion making the PV in parallel
Colors Silver, golden, blue

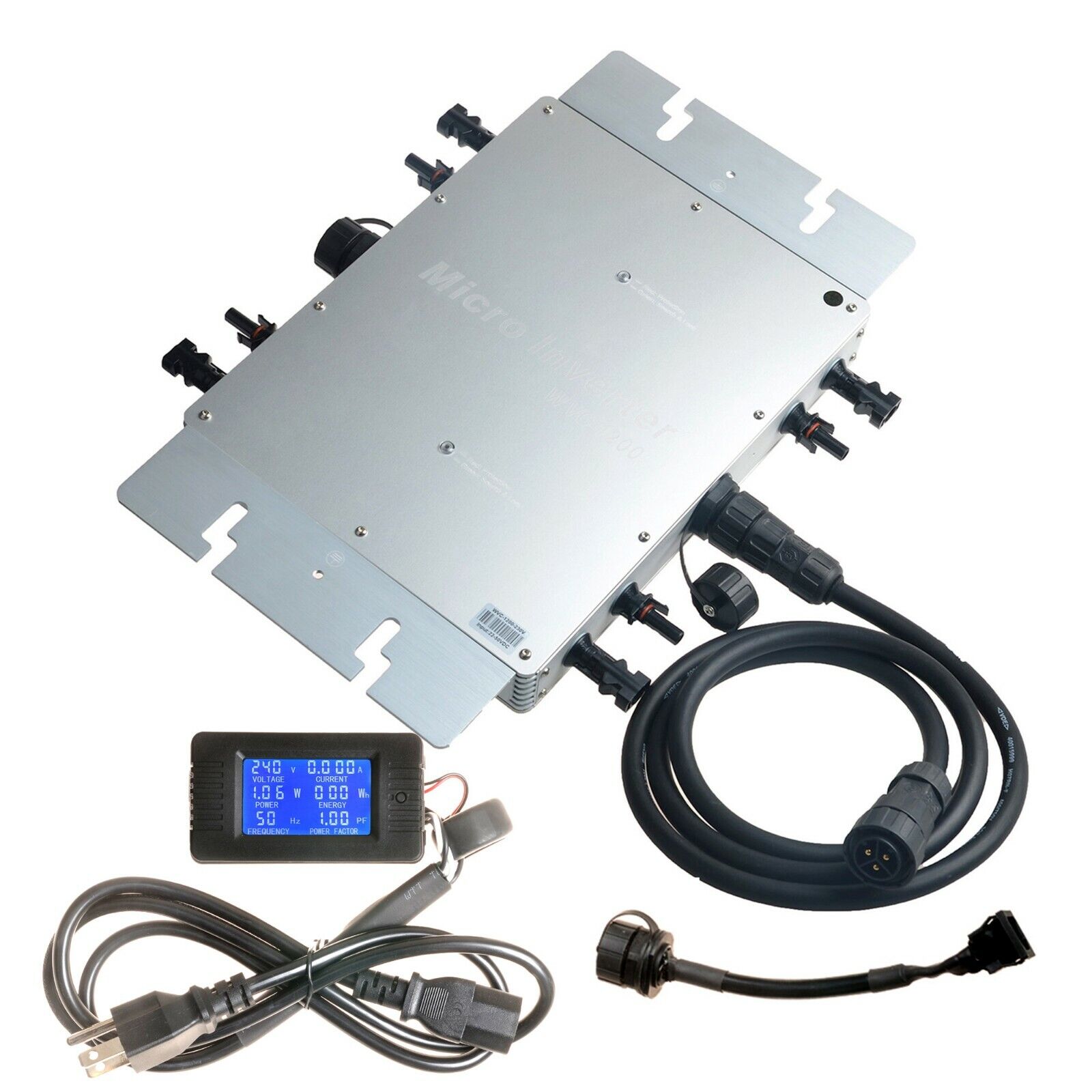

What’s Included

  • 1 x User manual
  • 1 x 1200W inverter
  • 1 x AC cable
  • 1 x LCD display meter with AC plug

LED Indicators

  • Red light (3 seconds): device starts, then enters working condition
  • Green flash fast: MPPT searching
  • Green flash slow: MPPT + searching
  • Red flash slow: MPPT - searching
  • Green on 3s, off 0.5s: MPPT locked
  • Red light steady: islanding protection / over-temperature protection / over or low AC voltage protection / over or low DC voltage protection / fault

Working sequence (typical): AC & DC connected -> Red LED 3s -> Green fast flash (MPPT searching) -> Green slow flash (MPPT +) or Red slow flash (MPPT -) or Green on 3s/off 0.5s (MPPT locked).

Notes

  • Follow the operation instructions for wiring and installation.
  • Non-professionals should not disassemble the unit; only qualified personnel may repair it.
  • Install in a low-humidity, well-ventilated place to reduce overheating risk, and keep away from flammable or explosive materials.
  • Keep away from children to reduce electric shock risk.

For product selection and setup support, contact customer service at https://tsolar.top/ or service@tsolar.top.

Details

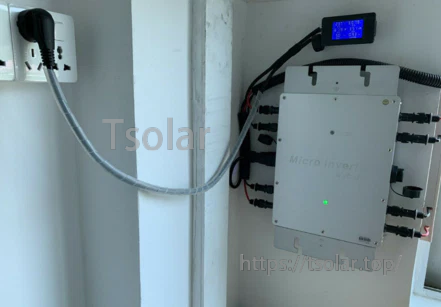

1200W Waterproof Grid Tie Inverter DC24V/36V to AC110 or 220V Solar Inverter LCD

The wall-mounted grid-tie micro inverter features a top display, status LED, and multiple side connectors for straightforward wiring.
