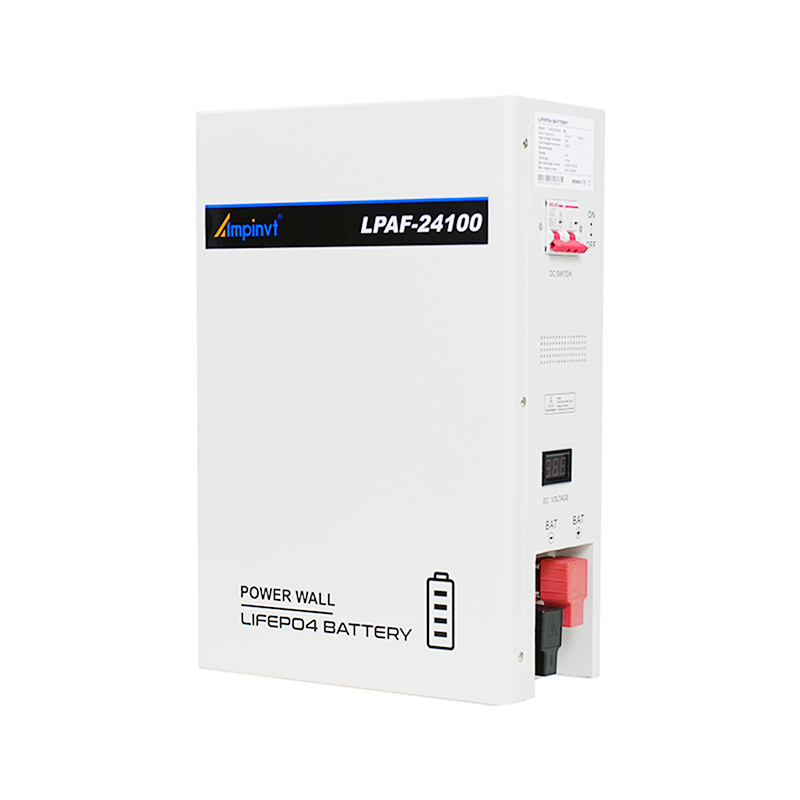

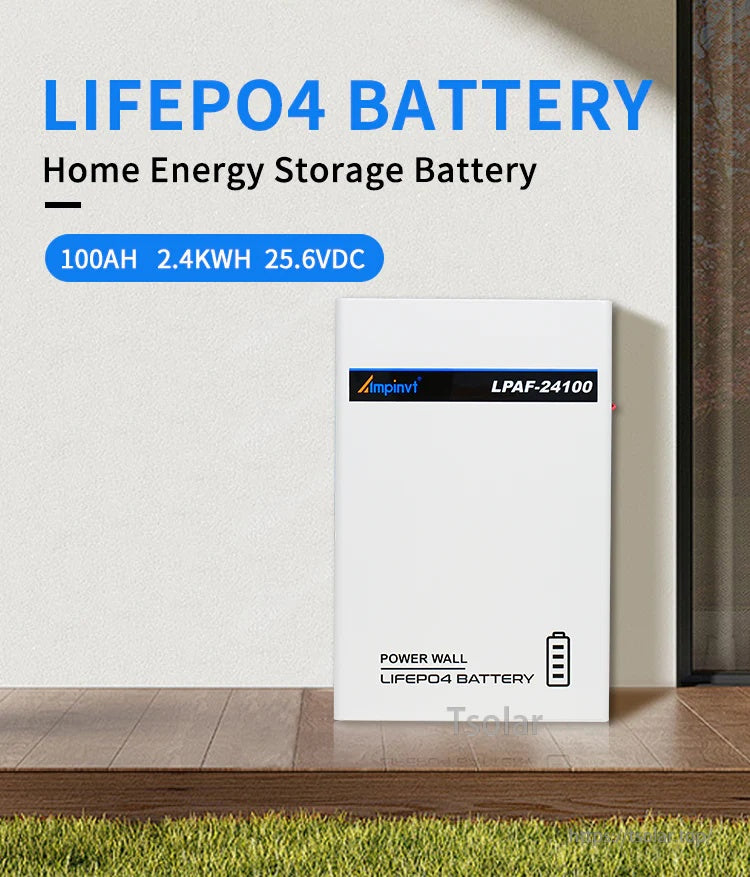

Ampinvt LPAF-24100 25.6VDC 100Ah 2.4kWh Power Wall LiFePO4 Lithium Battery with Smart BMS

Ampinvt LPAF-24100 25.6VDC 100Ah 2.4kWh Power Wall LiFePO4 Lithium Battery with Smart BMS

$656.00 USD
$656.00 USD
Sale Sold out
Shipping calculated at checkout.
24V100AH
View full details

Overview

The Ampinvt LPAF-24100 is a LiFePO4 (lithium iron phosphate) power wall battery for home energy storage. It is rated at 25.6VDC, 100Ah, and 2.4kWh, and features an integrated smart BMS for protection and cell balancing.

Key Features

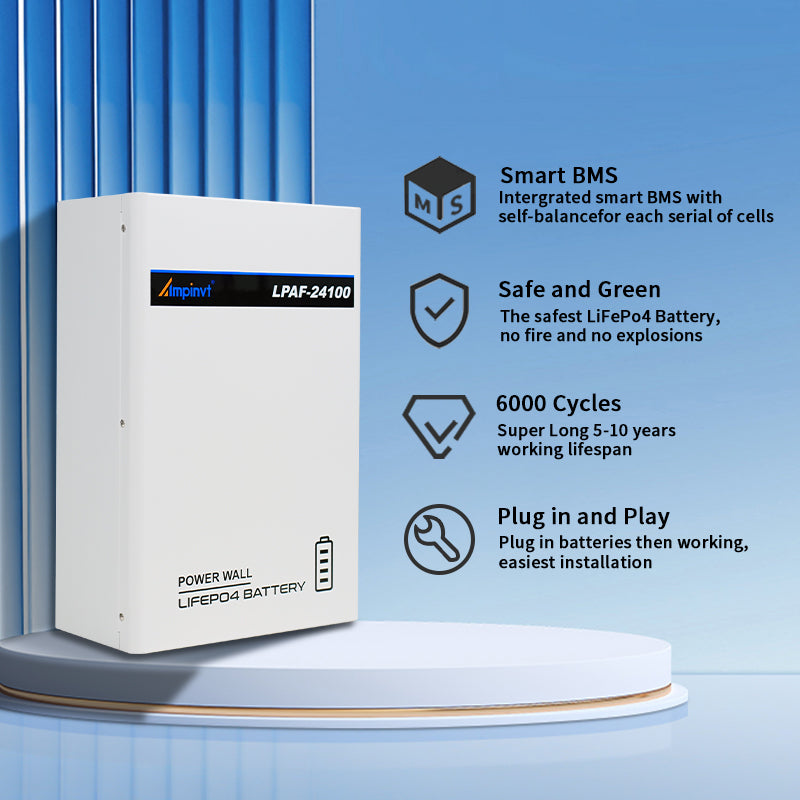

  • Smart BMS: Integrated smart BMS with self-balance for each serial of cells.
  • Smart BMS system function: Protects batteries and auto-balances the voltage gaps among serial of cells for maintenance.
  • Cycle life: 6000 cycles; also stated as >6000 cycles reliable performance.
  • Plug and play: Plug in batteries then working; easiest installation.

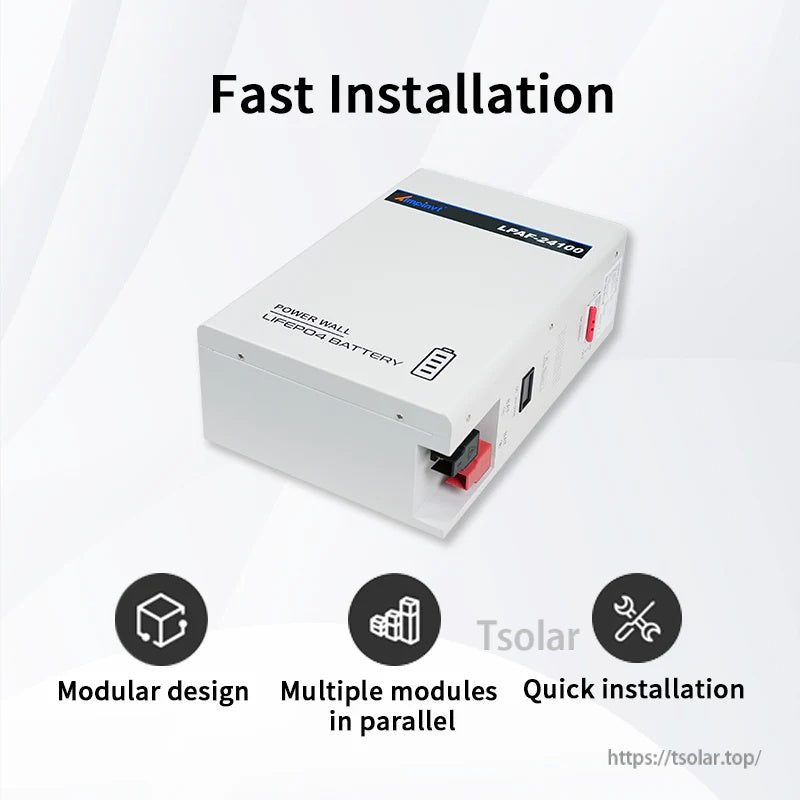

  • Fast installation design: Modular design, multiple modules in parallel, quick installation.
  • Compatibility statement: Compatible with most inverters in the market.
  • Use case statement: Designed for home solar systems.

Specifications

Brand Ampinvt
Series / Model LPAF-24100
Battery Type LiFePO4 (Lithium Iron Phosphate)

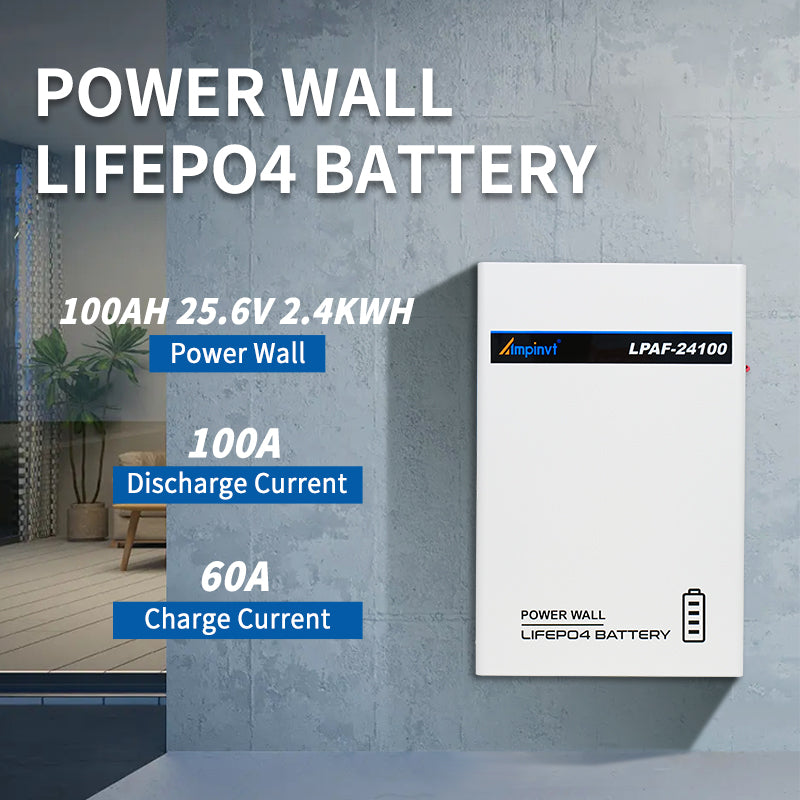

Nominal Voltage 25.6VDC
Capacity 100Ah
Energy 2.4kWh
Discharge Current 100A
Charge Current 60A
Cycle Life 6000 cycles; >6000 cycles (as stated)
Dimensions (W x H x T) 320mm x 486mm x 187mm

Interface / Connections

  • DC Switch (ON/OFF)
  • DC Voltage
  • Positive Output (BAT +)
  • Negative Output (BAT -)

Applications

  • Home solar system energy storage (inverter + solar panels + appliances)
  • Camping out
  • Home lighting
  • Grassland pastoral area power supply
  • Mountain power supply
  • Island fish boat power supply
  • Border post power supply
  • RV power supply
  • Night market lighting

For product selection and installation support, contact customer service at https://tsolar.top/ or email service@tsolar.top.

Details

Ampinvt LP-AF24100 24V 100AH 2.4KWH Power Wall LiFePO4 Lithium Battery with BMSAmpinvt LPAF-24100 front view with smart BMS, plug-and-play setup, and 6000-cycle highlightsSmart BMS system graphic describing battery protection and automatic cell voltage balancingLPAF-24100 battery angled view highlighting modular design, parallel expansion, and quick installation portsProduct highlights icons: >6000 cycles, BMS, parallel expansion support, and inverter compatibilityPower wall LiFePO4 battery specs graphic: 25.6V 100Ah 2.4kWh, 100A discharge and 60A charge currentAmpinvt power wall battery feature graphic with smart BMS, safety notes, 6000 cycles, and plug-and-play textInterface panel of Ampinvt 25.6V 100Ah LiFePO4 power wall battery with DC switch, voltage display, and +/- outputs

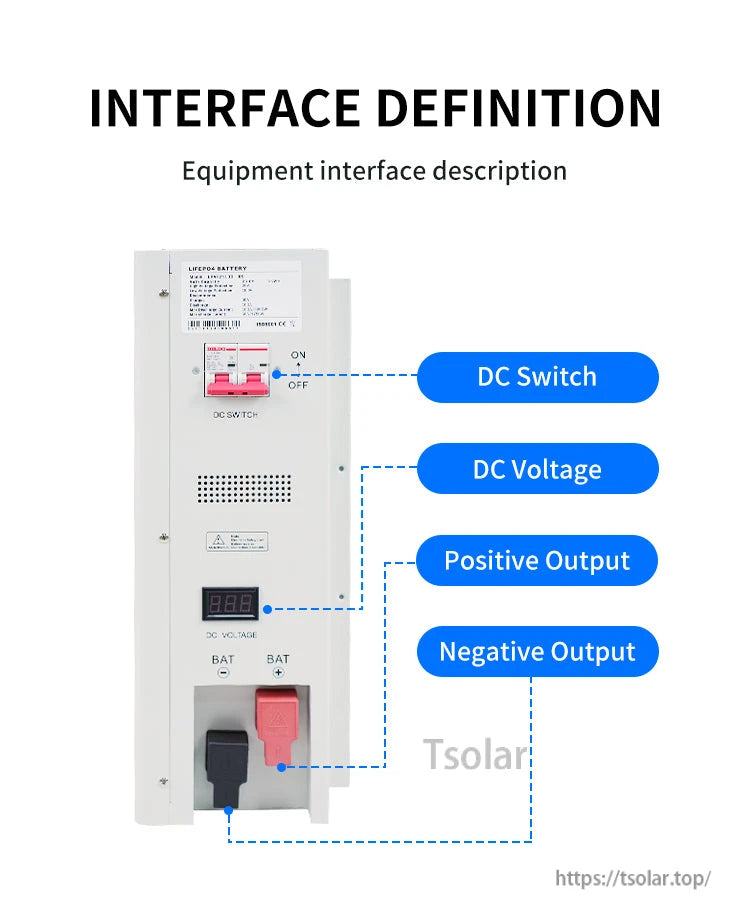

A front interface with a DC switch, DC voltage display, and clearly marked positive and negative outputs helps simplify wiring and shutoff.

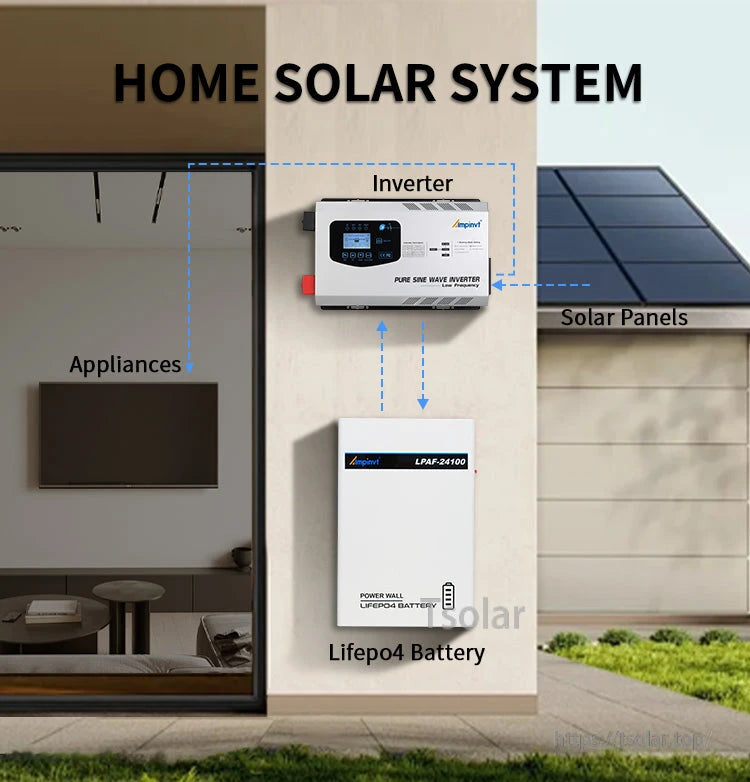

Ampinvt LPAF-24100 wall-mounted LiFePO4 power wall battery with inverter and solar panel connection diagram

The Ampinvt LPAF-24100 power wall LiFePO4 battery is designed for a home solar setup with solar panels feeding an inverter to run household appliances.

Application infographic for a 25.6V 100Ah LiFePO4 wall battery, covering camping, home, RV, boat, and lighting uses

The 25.6V 100Ah LiFePO4 power wall battery is positioned for off-grid and mobile setups such as camping, home lighting, RVs, boats, and market lighting.

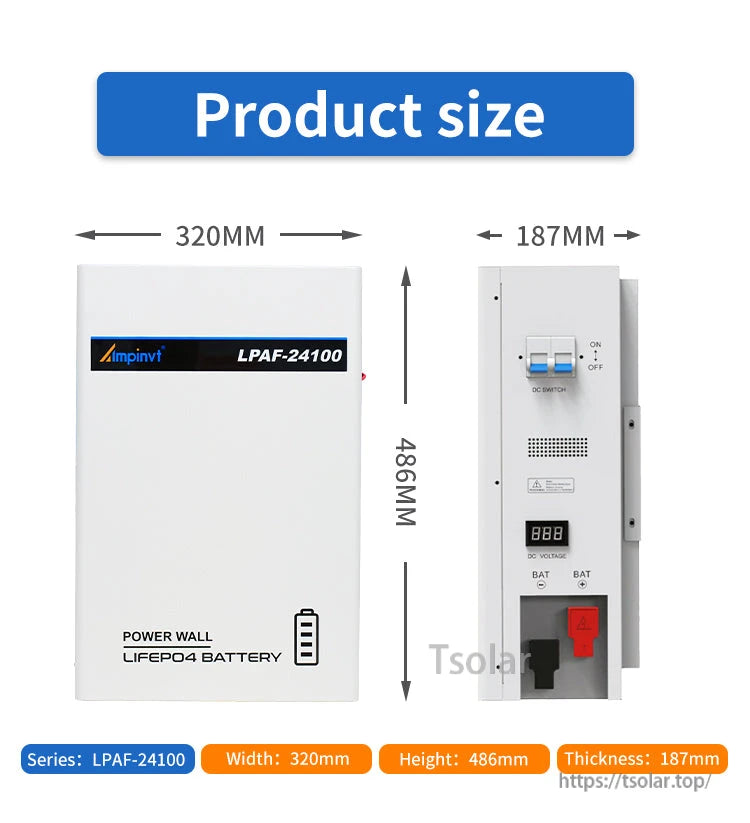

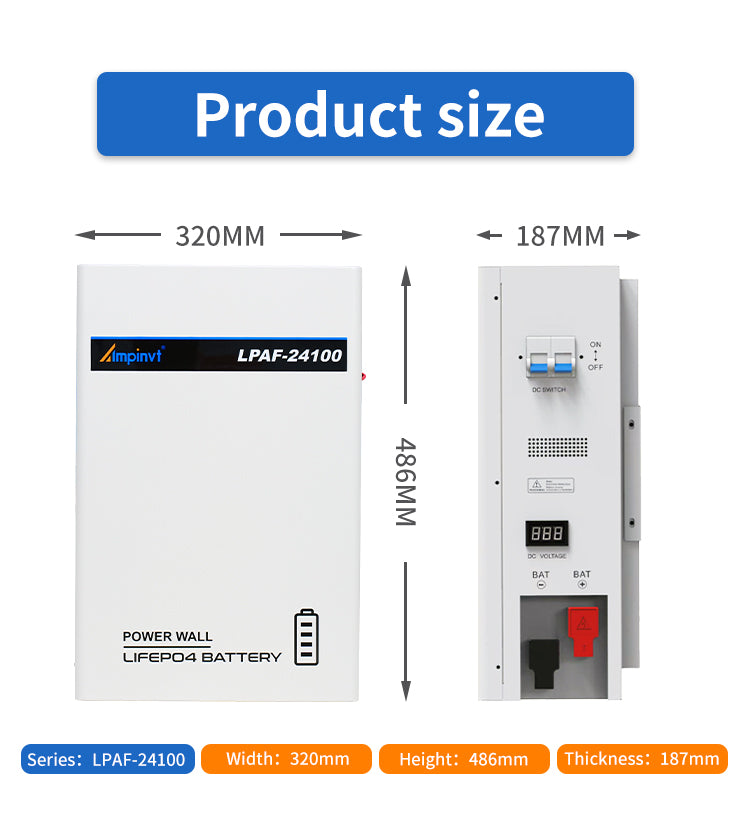

Ampinvt LPAF-24100 LiFePO4 power wall battery with side switches, voltage display, and 320×486×187mm size

The Ampinvt LPAF-24100 power wall LiFePO4 battery measures 320 mm wide, 486 mm high, and 187 mm thick for wall-mount installs.
