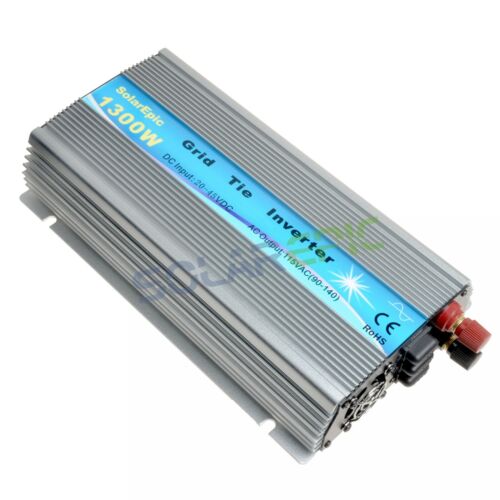

  • Solarpic 1300W Solar Grid Tie Inverter, Solarpic 1300W solar grid-tie inverter in finned aluminum case with blue label and DC/AC terminal connectors

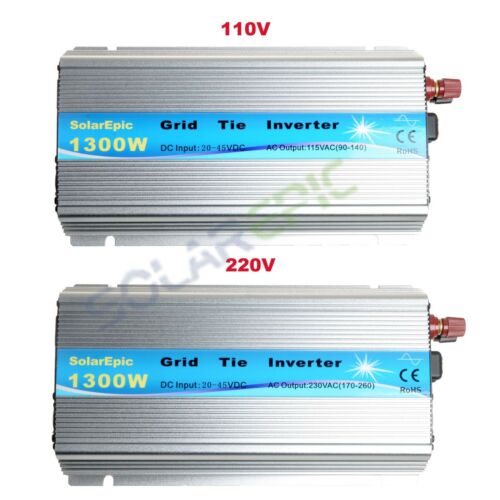

  • Solarpic 1300W Solar Grid Tie Inverter, SolarEpic 1300W grid tie inverter with DC input 20–45V and 115V/230V AC output options

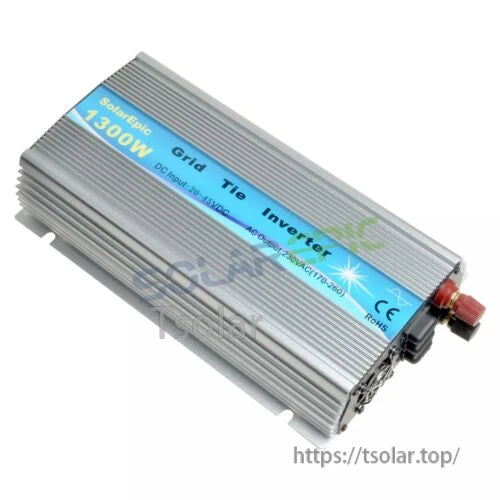

  • Solarpic 1300W solar grid tie inverter in finned aluminum case with cooling fan and DC/AC connector end

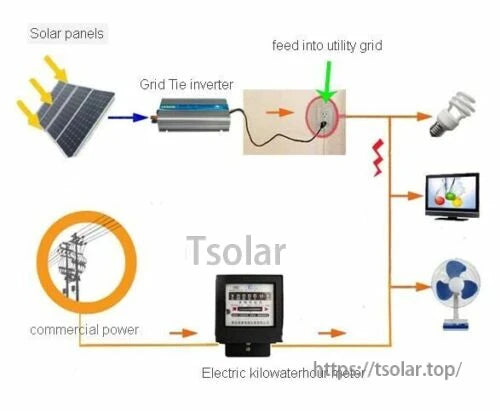

  • Solarpic 1300W Solar Grid Tie Inverter, Diagram of solar panels connected to a grid-tie inverter feeding power into the utility grid and home loads

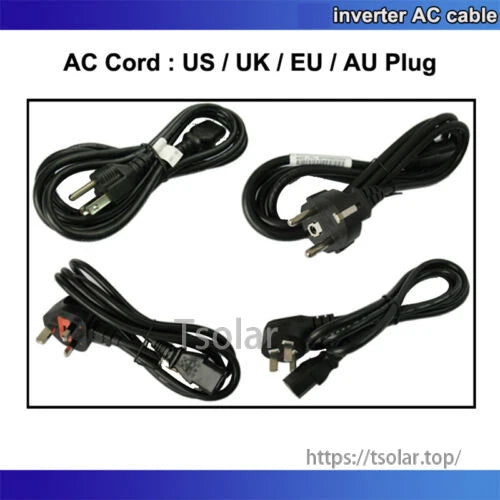

  • Solarpic 1300W Solar Grid Tie Inverter, Inverter AC power cords with US, UK, EU, and AU plug options for a solar grid-tie inverter

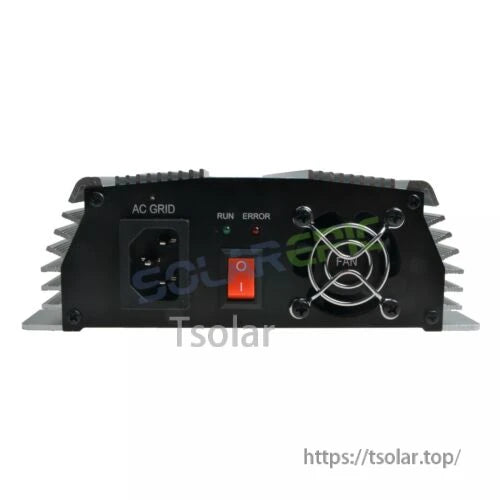

  • Solarpic 1300W Solar Grid Tie Inverter, Solarpic solar grid-tie inverter front panel with AC grid socket, power switch, run/error LEDs, and cooling fan

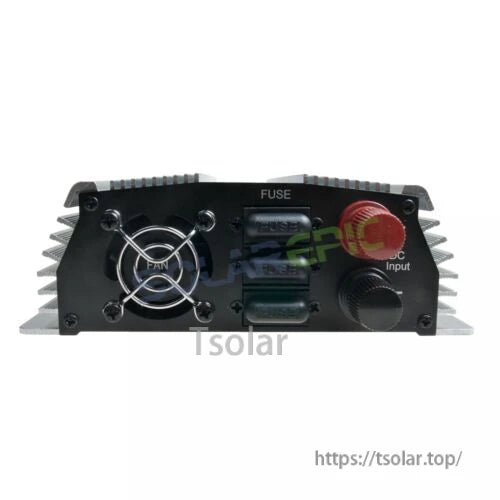

  • Solarpic 1300W Solar Grid Tie Inverter, Solarpic grid tie inverter rear panel with cooling fan, fuse holders, and red/black DC input terminals

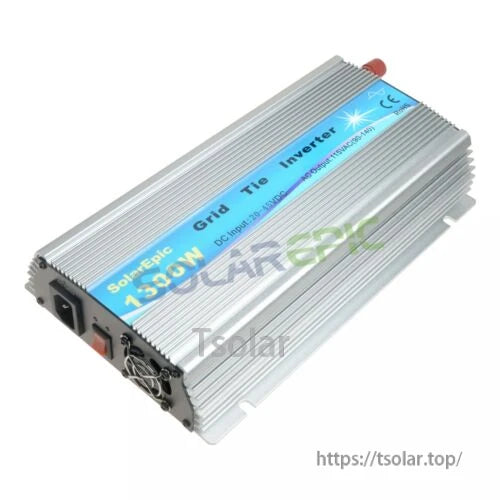

  • Solarpic 1300W Solar Grid Tie Inverter, Solarpic 1300W solar grid-tie inverter in finned aluminum case with side AC port, fan and DC terminals

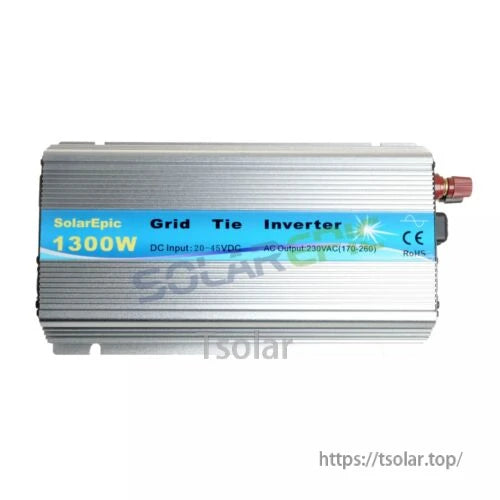

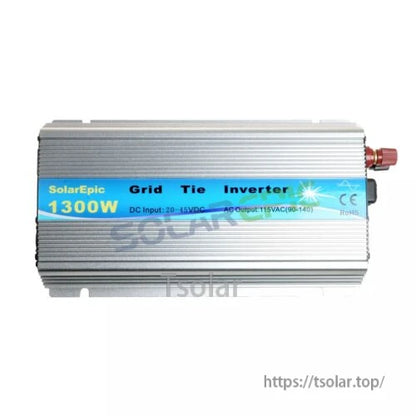

  • Solarpic 1300W Solar Grid Tie Inverter, SolarEpic 1300W grid tie inverter with finned aluminum case, DC input 20–45V and AC output 230V label
1 11

SolarEpic

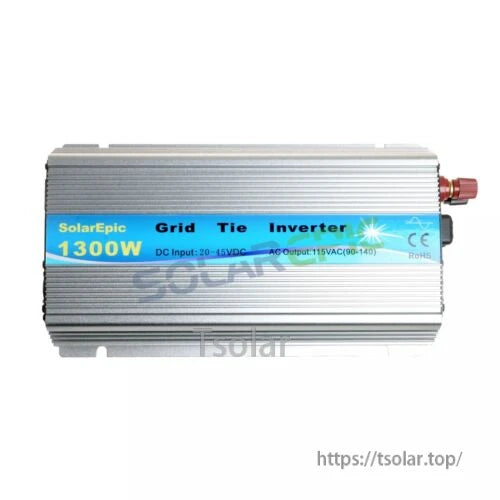

Solarpic 1300W Solar Grid Tie Inverter, DC20-45VDC to AC110V/220V 50/60Hz Pure Sine Wave MPPT

Solarpic 1300W Solar Grid Tie Inverter, DC20-45VDC to AC110V/220V 50/60Hz Pure Sine Wave MPPT

$152.99 USD
$152.99 USD
Sale Sold out
Shipping calculated at checkout.
AC Output Voltage:
View full details

Overview

The Solarpic 1300W solar grid tie inverter converts DC power from suitable solar panels to AC 110V or 220V (50Hz/60Hz, auto control) for a grid-tied system. This grid tie inverter must be connected to the utility grid and cannot be used as an off-grid/stand-alone inverter or to supply AC loads directly.

Key Features

  • Rated power: 1300W
  • DC input range: 20-45VDC
  • MPPT voltage range: 24-38VDC
  • AC output options: 120VAC (90-140VAC) or 230VAC (190-260VAC)
  • Frequency: 50Hz/60Hz (Auto control)
  • Pure sine wave output
  • Status indication: Luminous Diode (LED)
  • Cooling: Fan
  • Stand-by power: < 1W
  • Protections: Islanding; Short-circuit; Low Voltage; Over Voltage; Over temperature Protection

For compatibility or installation questions, contact https://tsolar.top/ or service@tsolar.top.

Specifications

Rated Power 1300Watt
Solar Panels 60cells - Vmp: 26-30V; Voc: 34-38V
72cells - Vmp: 35-39V; Voc: 42-46V
Recommended Panel System Voltage Use for 24V/30V/36V, 60cells/72cells Solar Panel
DC Input Range 20-45VDC
MPPT Voltage 24-38VDC
DC Max. Current 53A
AC Output 120VAC (90-140VAC) or 230VAC (190-260VAC)
Frequency 50Hz/60Hz (Auto control)
Power Factor >98%
THD <5%
Phase Shift <2%
Efficiency (120VAC version) Peak Efficiency: 88
Stable Efficiency: 86
Efficiency (230VAC version) Peak Efficiency: 88
Stable Efficiency: 86
Working Temperature -20°C to 65°C
Working Humidity 0%~90%RH non-condensing
Waterproof Indoor design
Show Luminous Diode (LED)
Cooling Fan
Stand-by Power < 1W
EMC EN61000-6-3:2007; EN61000-6-1:2007
Grid Disturbance EN 50178 + EN 62109-1 + VDE0126-1-12
Grid Detection DIN VDE 1026

Applications

  • Grid-tied solar PV systems where solar panels feed into the utility grid through an electric kilowatthour meter
  • Systems using commercial power (utility grid) connection for synchronization and export

What’s Included

  • 1 x Solar Inverter
  • 1 x User's Manual
  • 1 x AC Cord

Warranty

  • 1 Years Warranty

Details

Solarpic 1300W Solar Grid Tie Inverter DC24V to AC110V/220V 50Hz/60Hz Pure Sine Wave MPPT

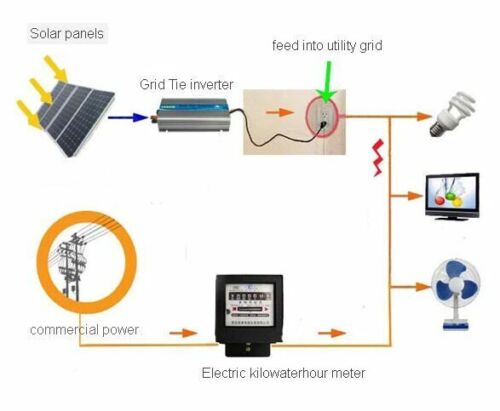

A grid-tie inverter setup converts solar panel output to feed the utility grid through a kilowatt-hour meter and power household loads.
