Overview

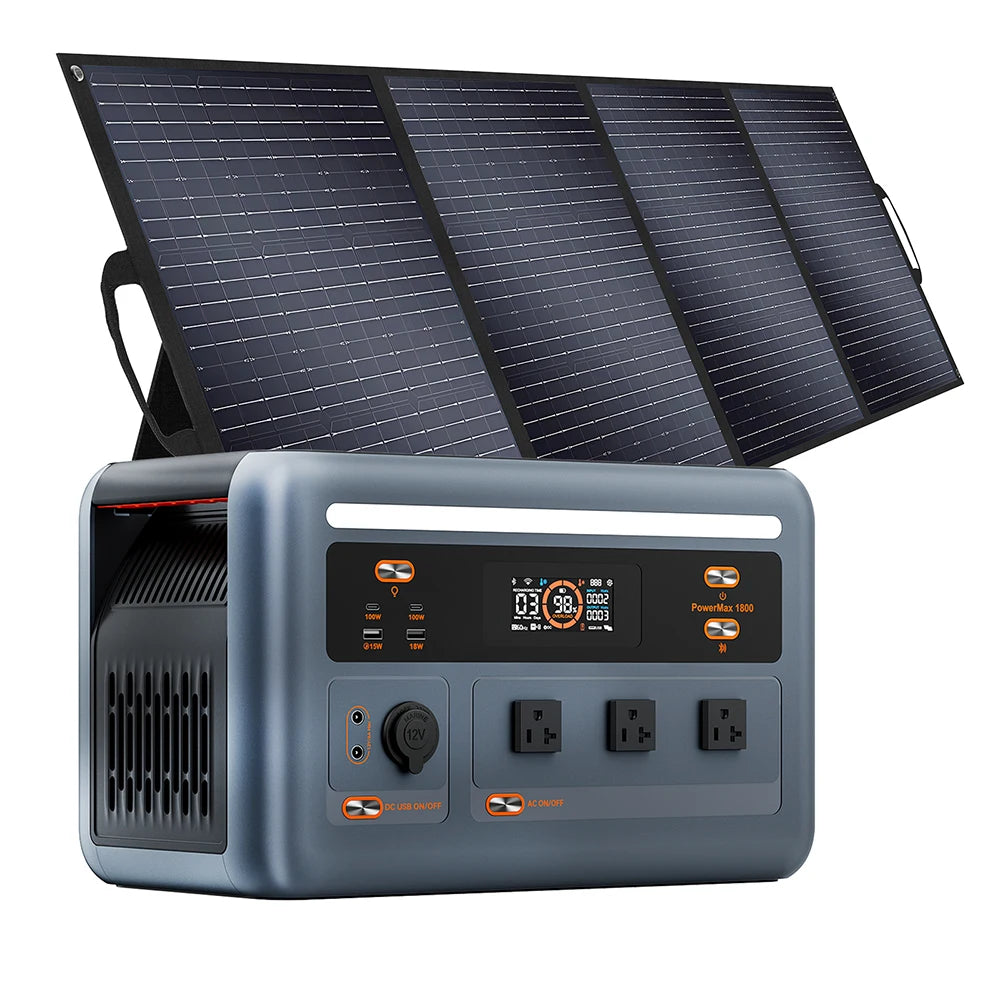

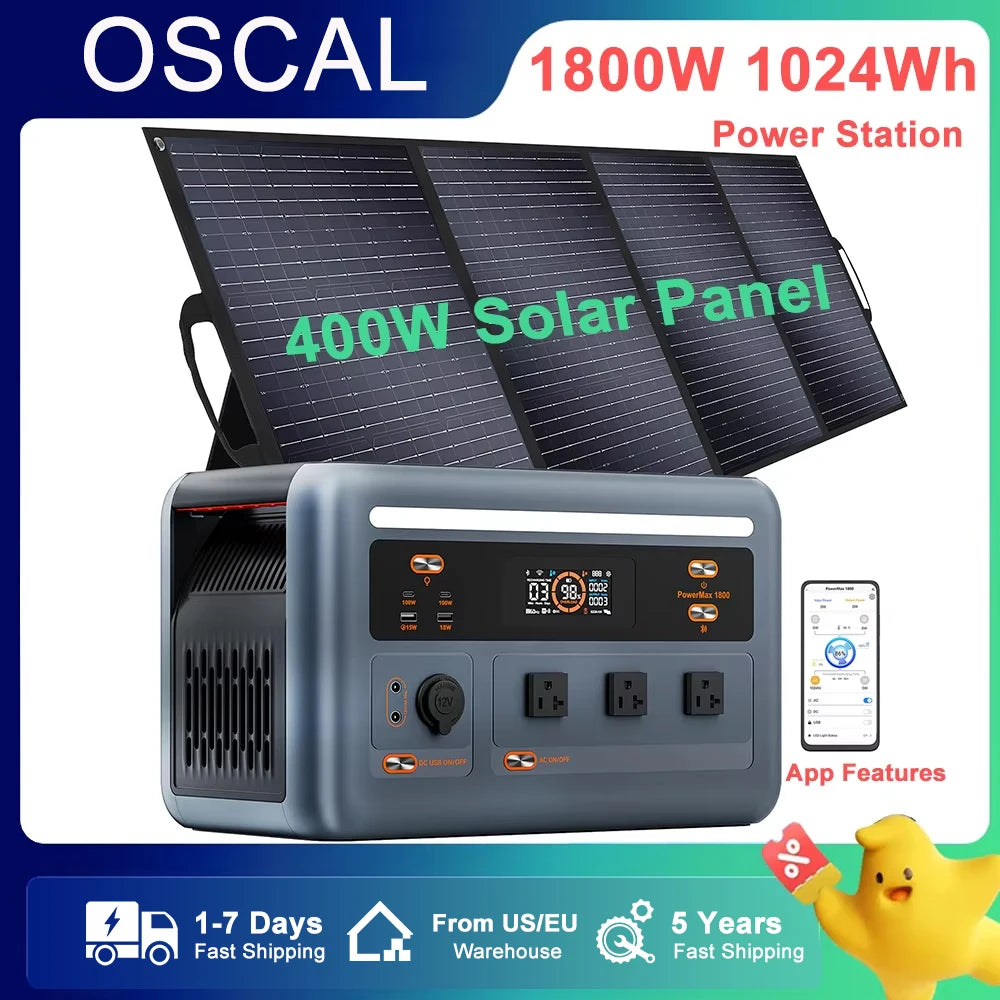

This Portable Power Station With Solar Panel bundle combines the OSCAL PowerMax1800 (1024Wh LiFePO4) with a 400W foldable solar panel to deliver reliable off‑grid and backup power for camping, outdoor garden work, travel, and home emergencies. It provides up to 1800W pure sine wave AC output (US 120V/EU 230V/JP 100V), fast replenishment (0–80% in about 1 hour per product highlights), IP54-rated protection, and 0.01s UPS backup, with smart control via Wi‑Fi/Bluetooth. Capacity scales to 2048Wh using the optional BP1800 expansion battery.
Key Features
- Scalable capacity: 1024Wh base, expandable to 2048Wh (BP1800, sold separately).
- High output: 1800W pure sine wave AC (EU/US) / 1500W (JP) to support most household and outdoor appliances.
- Fast recharging: product highlights state 0–80% in about 1 hour; supports AC, solar, vehicle charging, and AC+solar.
- Enhanced safety: LFP (LiFePO4) cells from EVE, multiple protection features, IP54, and 0.01s UPS backup (per highlights).
- Smart control and display: on-device screen, Wi‑Fi/Bluetooth app control (2.4GHz).
- 400W solar panel: ETFE-coated monocrystalline, up to 23.4% conversion efficiency; foldable 4-panel design for portability.
- European repair center and 5-year warranty (per highlights).
Specifications
| Brand Name | OSCAL |
| Model Number | powermax1800 with 400w |
| Product Type | Portable Power Station With Solar Panel |
| Application | Solar Power Storage |
| Cell Material | LFP (LiFePO4) |
| Battery Core Manufacturer | EVE |
| Battery Number | 1 |
| Nominal Capacity | 1024Wh |
| Cycle Life | More than 80% capacity remaining after 3500 cycles |
| Display Screen | Yes |
| Certification | CE, weee |
| Replacement Battery | No |
| Set Type | Charger Sets |
| Net Weight (main unit) | Approximately 14.25kg |
| Weight (highlight) | 15.5kg (per product highlights) |
| Net Weight (attribute) | 10 KG - 30 KG |
| Dimensions (main unit) | 420×238×256mm |
| Size (attribute) | 50.5X31X36.5cm58.5X172.5X3cm |
| WLAN | 2.4GHz (2400–2483.5MHz), max 20dBm |
| Bluetooth | 2.4GHz (2400–2483.5MHz), max 20dBm |
| Connection | Bluetooth-Compatible |
| AC Output (×3) | Pure sine wave; 1800W total (EU/US) / 1500W (JP); 100V~ (JP) / 120V~ (US) / 230V~ (EU); 50/60Hz |
| USB-A | 5V⎓3A, max 15W |
| USB-A Fast | 5V⎓3A, 9V⎓2A, 12V⎓1.5A (CV), max 18W |
| USB-C Fast (×2) | 5/9/12/15/⎓3A, 20V⎓5A; max 100W each, 200W total |
| Wireless Charging | Max 15W |
| Vehicle Charging Output | 12V⎓10A, max 120W |
| DC5521 (×2) | 12V⎓6A, total 72W |
| AC Charging Input (attribute) | 1500W - 2000W |
| AC Input Power (detailed) | Max 800W, 50Hz/60Hz |
| AC Input Voltage | 100–120V~ 15A (US/JP), 200–240V~ 10A (EU), 50/60Hz |
| Solar Charging Input (attribute) | 500W - 1000W |
| Solar Charging Input (detailed) | 10–60V, max 20A, max 800W |
| Vehicle Charging Input | 12V/24V⎓8A, max 192W |
| AC + Solar | Max 800W |
| Protection | High/low temperature; overdischarge; overcharge; overload; short-circuit; overcurrent; overvoltage; undervoltage; excessive voltage difference |
| Operating Temperatures | Charge 0°C–45°C; Discharge -10°C–45°C; Storage -10°C–45°C (ideally 20°C–30°C) |
| Expansion Battery | BP1800: 1.024kWh; connects to main unit (total 2×1.024kWh = 2.048kWh), sold separately |
| Solar Panel Rated Power | 400W (Pm) |
| Solar Panel Type | Monocrystalline with ETFE film |
| Solar Panel Conversion | Up to 23.4% |
| Solar Panel Design | 4-fold panel; unfolded size 78 × 240 × 0.35 cm (30.7 × 94.5 × 0.13 in) |
| Solar Panel Weight | 12.5kg (27.5lbs) |
| Solar Panel Electrical | Output voltage up to 21V (max), output current up to 26.67A (max), Voc 18V, Isc 22.2A |
| Solar Panel Temp Range | -10℃ to 70℃ (optimal +25℃) |
| Series/Parallel | Supports series or parallel connection (up to three panels) |
| Warranty | Five-year warranty (per listing); European Repair Center (per highlights) |
What’s Included
- 1 × OSCAL PowerMax1800 Main Unit
- 1 × AC Charging Cable
- 1 × Solar Charging Cable
- 1 × Car Charging Cable
- 1 × User Manual
- 1 × Warranty Card
- 1 × 400W Panel solar
- 1 × Cable de carga MC4
Applications
- Outdoor camping, garden projects, travel power, and home backup
- Hiking and disaster prevention use cases
- Solar power storage with portable solar generator functionality
Details

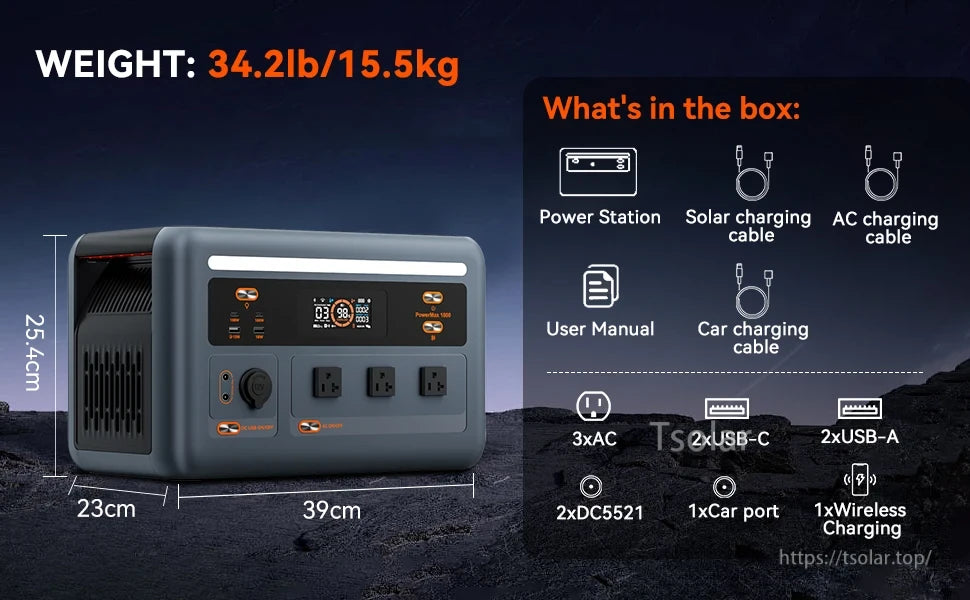

Portable power station: 1024Wh, 34.2lb, 39x23x25.4cm. Features AC/USB ports, wireless charging, solar/AC/car cables, and user manual.

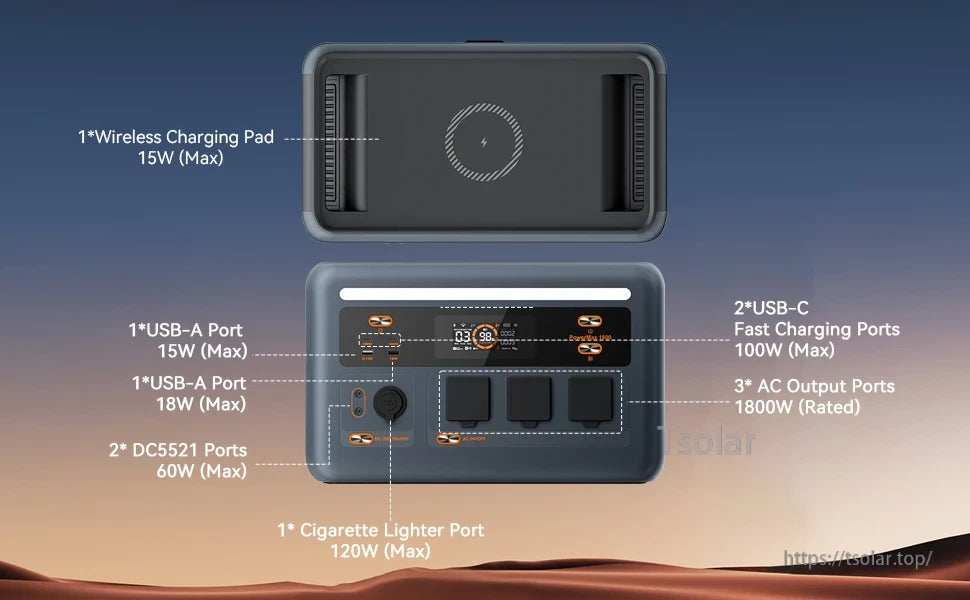

Portable power station offering 1024Wh capacity, 15W wireless charging, dual 100W USB-C ports, multiple USB-A ports, DC5521, cigarette lighter port, and three 1800W-rated AC outlets. Ideal for versatile, on-the-go power needs.

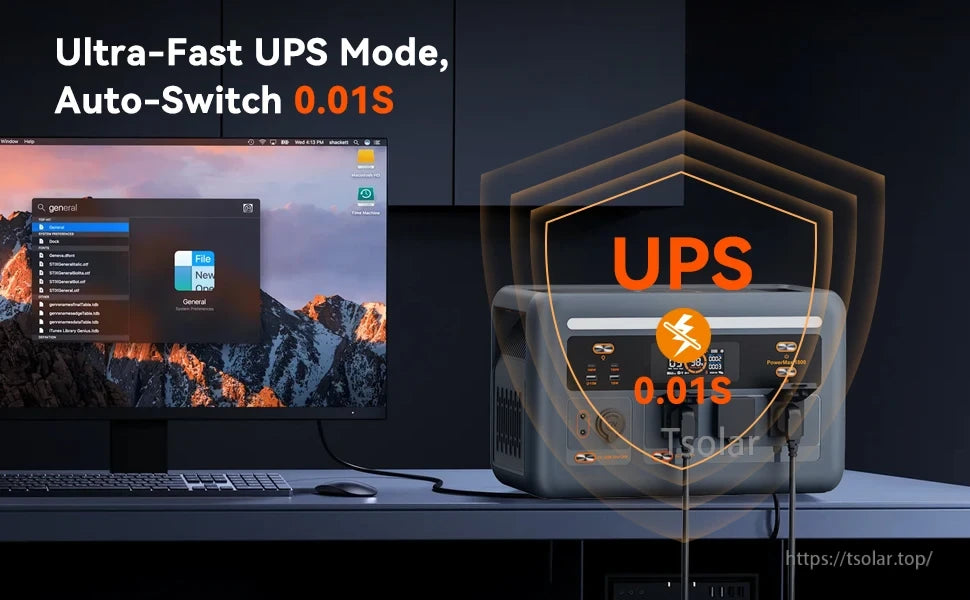

Portable power station with 0.01S ultra-fast UPS mode

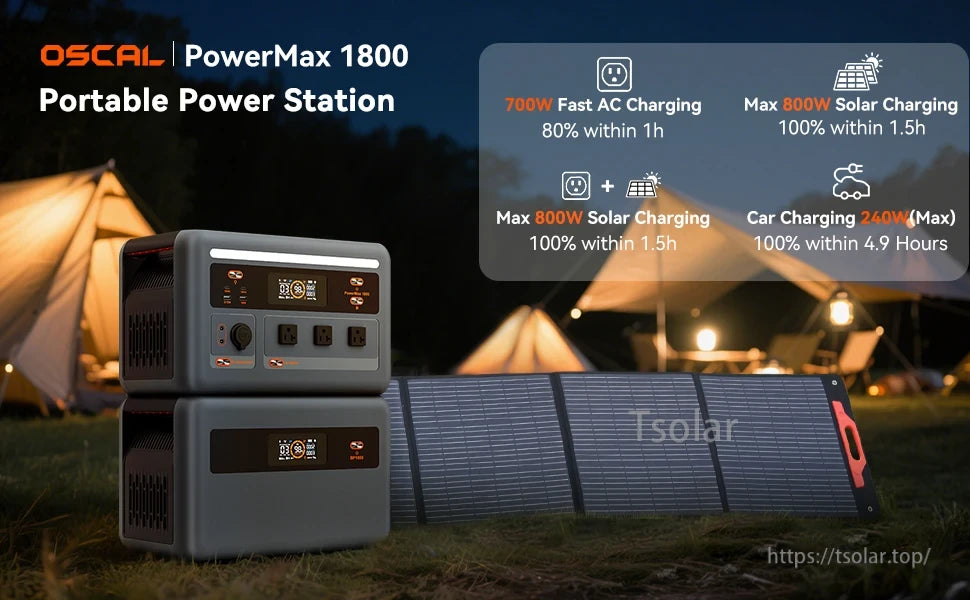

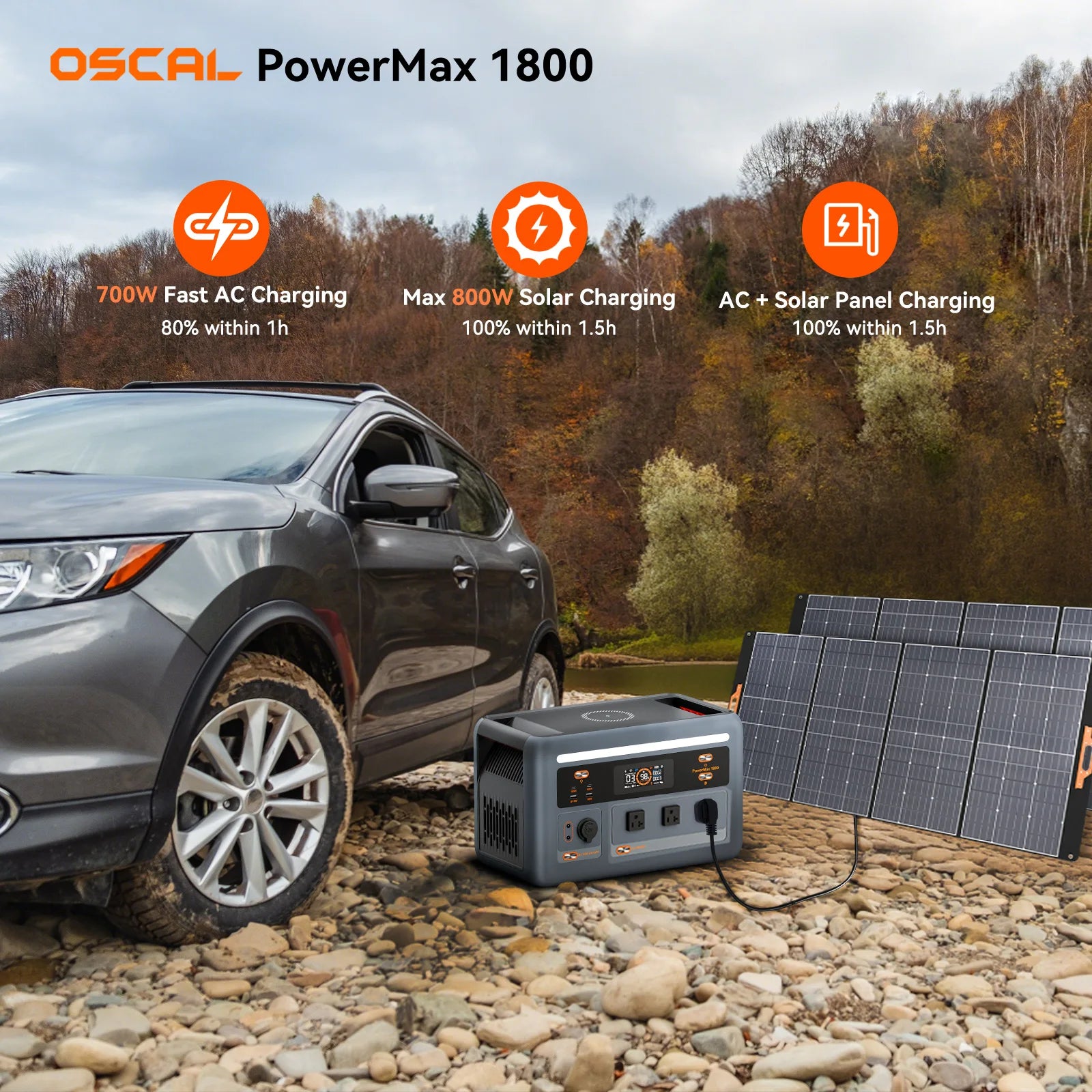

OSCAL PowerMax 1800 portable power station offers 700W AC, 800W solar, and 240W car charging, fully recharging in 1.5 hours via solar. (29 words)

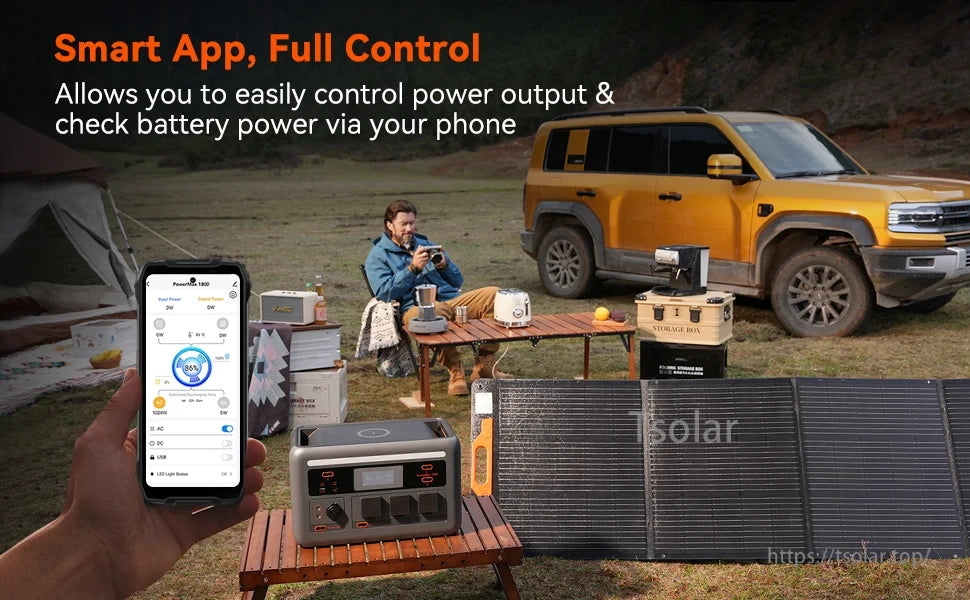

Smart app controls power output and battery level. Portable station with solar panels for outdoor use. (19 words)

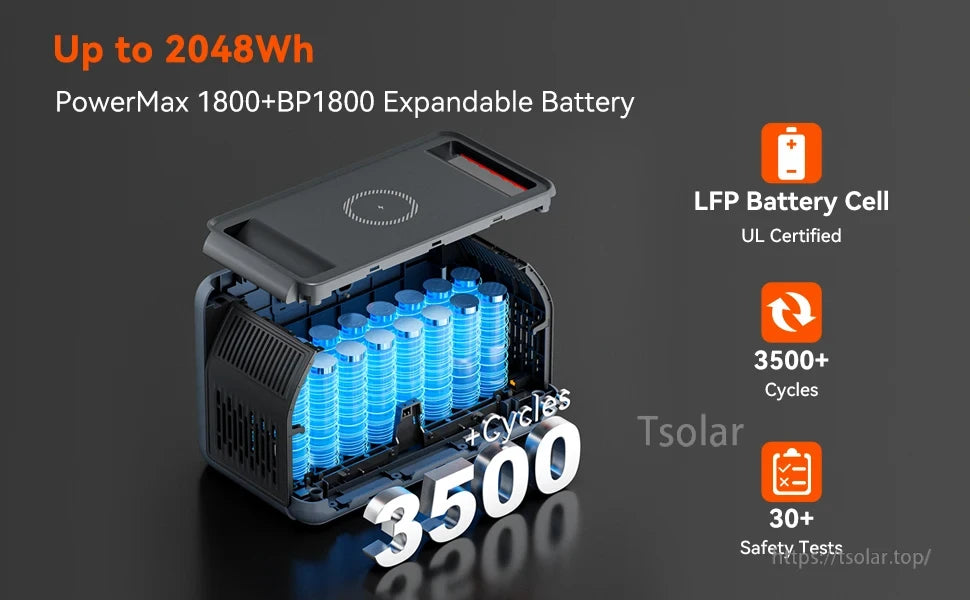

Up to 2048Wh expandable battery, LFP cell, 3500+ cycles, 30+ safety tests.
1800W rated power, 2400W surge power, pure sine wave output. Drives 99% of household appliances. Reliable power for hair dryers, ovens, and more.

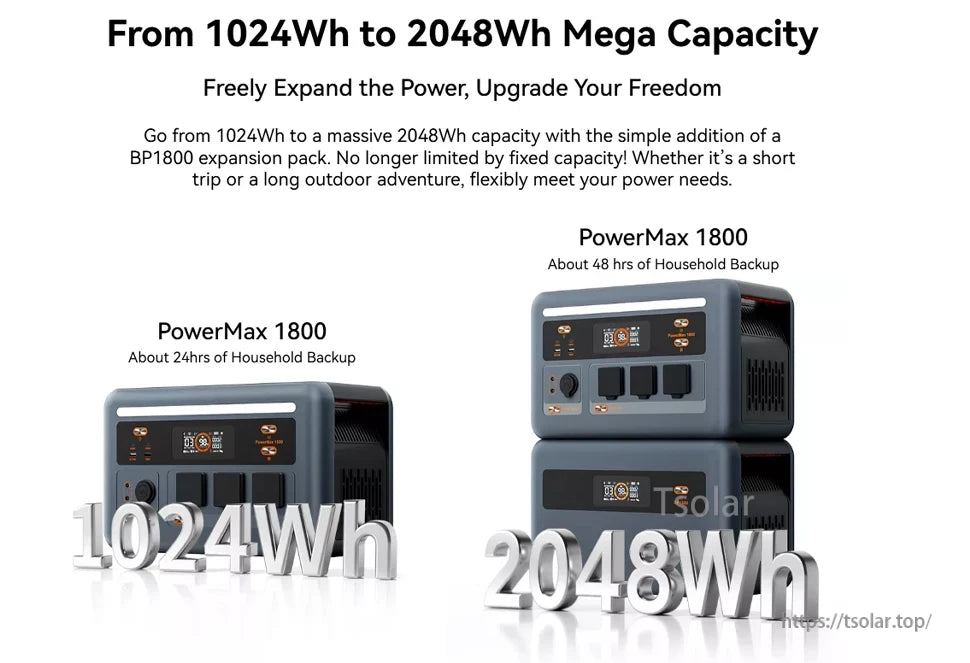

Expandable from 1024Wh to 2048Wh with a BP1800 pack, PowerMax 1800 frees you from fixed capacity limits. Ideal for short trips or extended outdoor adventures, it delivers up to 24 hours of household backup at 1024Wh and about 48 hours at full capacity. Equipped with multiple outlets and a digital display, it offers real-time power monitoring. Its modular design allows flexible power expansion, adapting to diverse energy needs. Upgrade your freedom and take control of your power supply—anytime, anywhere.

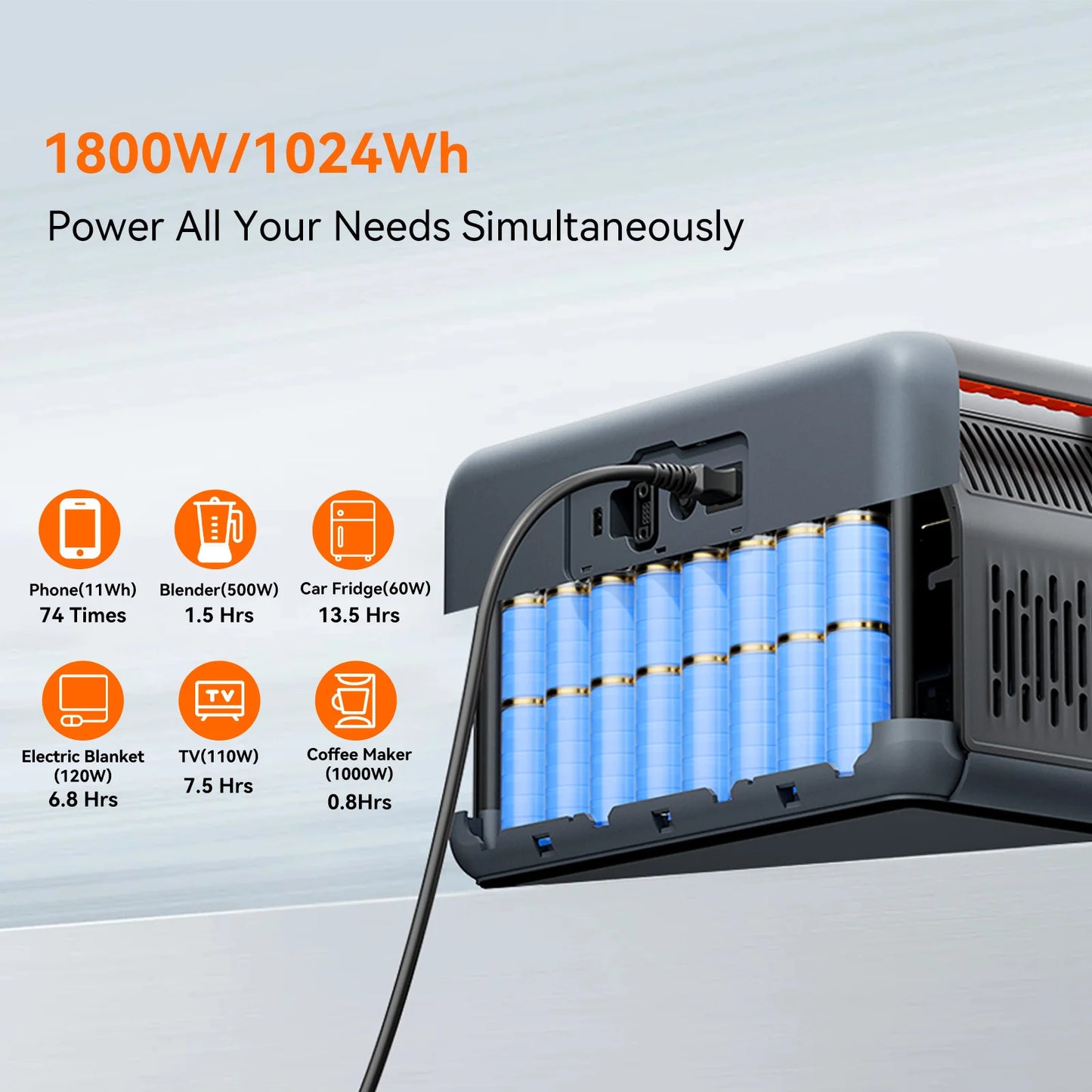

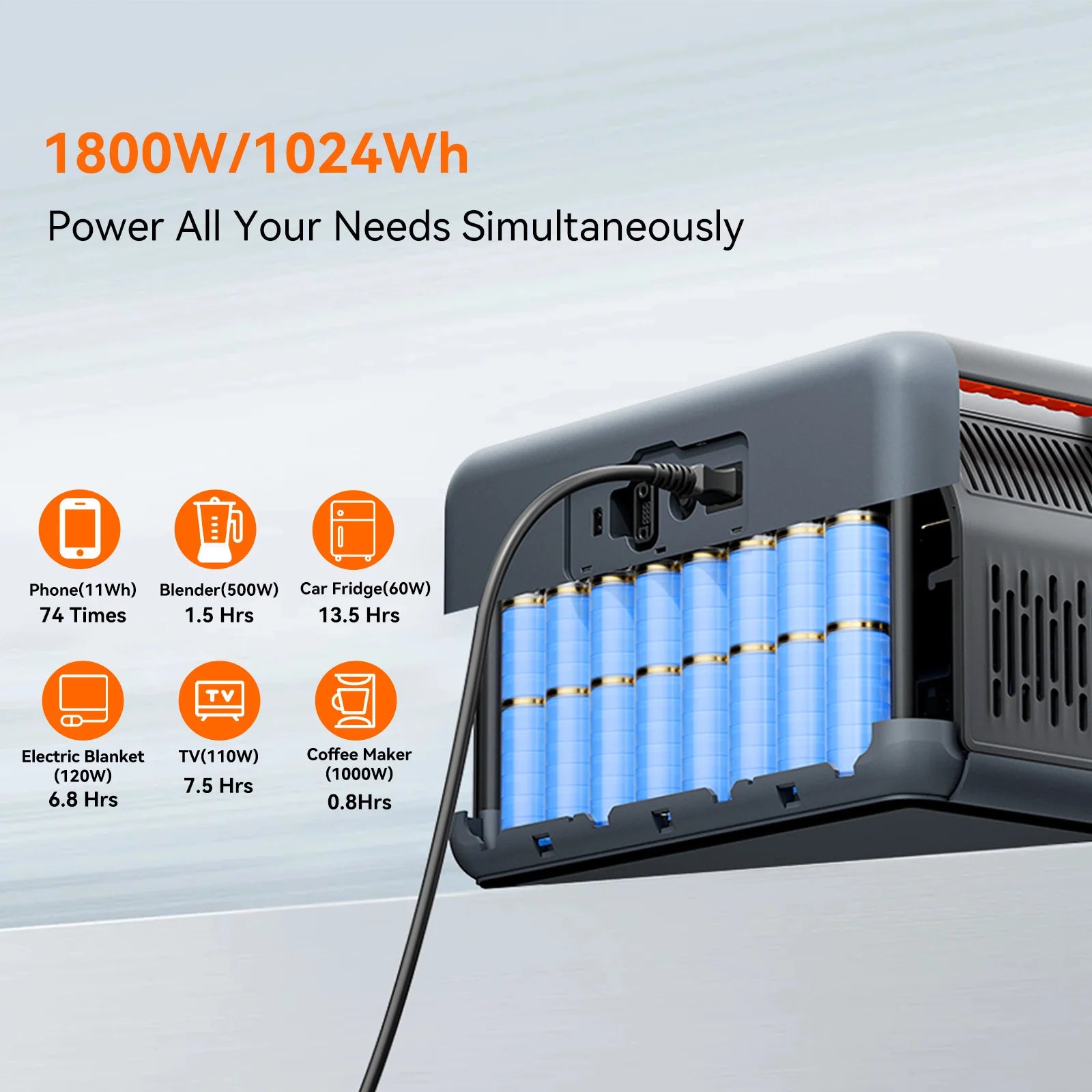

1800W portable power station with 1024Wh capacity. Perfect for camping, road trips, backup power, and outdoor work. Powers phones, laptops, fridges, tools, and more reliably.

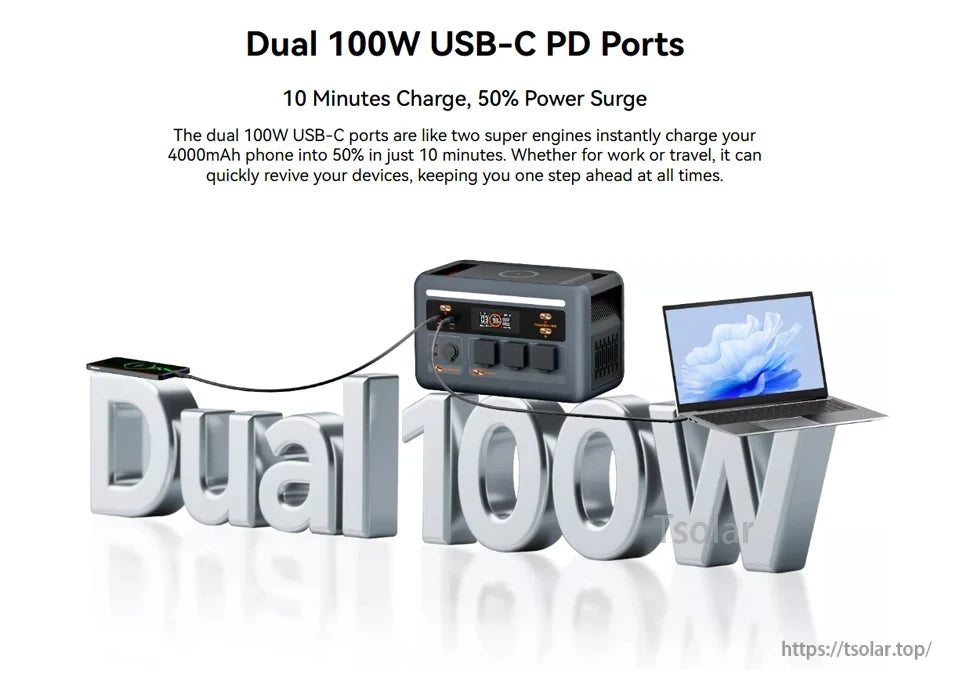

Dual 100W USB-C PD Ports charge devices rapidly. 10-minute charge delivers 50% power surge for phones and laptops, ideal for work or travel.
PowerMax 1800, 15.5kg lighter build, compact size 390*230*254mm, easy to carry. Ideal for travel, camping, home use. Lightweight design enhances portability compared to peers.
PowerMax 1800 vs low-end: 800W solar, faster charge, stronger emergency power.

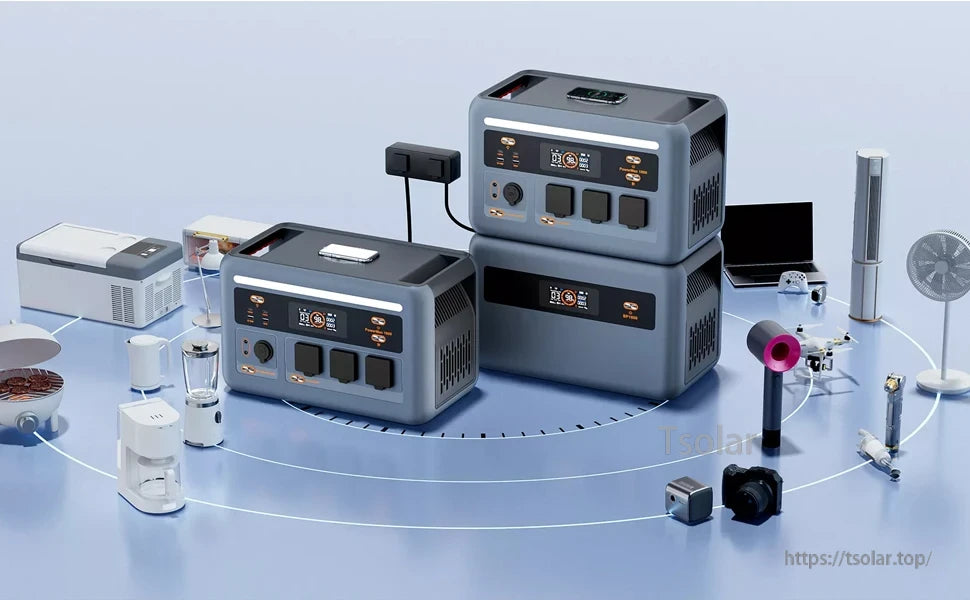

OSCAL provides a 5-year warranty for the PowerMax1800 1024Wh Portable Power Station, ensuring long-term reliability and peace of mind. After-sales service is quick and convenient via a QR code that grants access to the VIP support channel—the included card is the only warranty proof needed and registration takes just two minutes. Enjoy high-quality brand support, a comprehensive 5-year warranty, and round-the-clock professional customer assistance. This combination of durable performance and responsive service makes the PowerMax1800 a trusted choice for portable power needs, backed by OSCAL’s commitment to quality and customer satisfaction in every product.

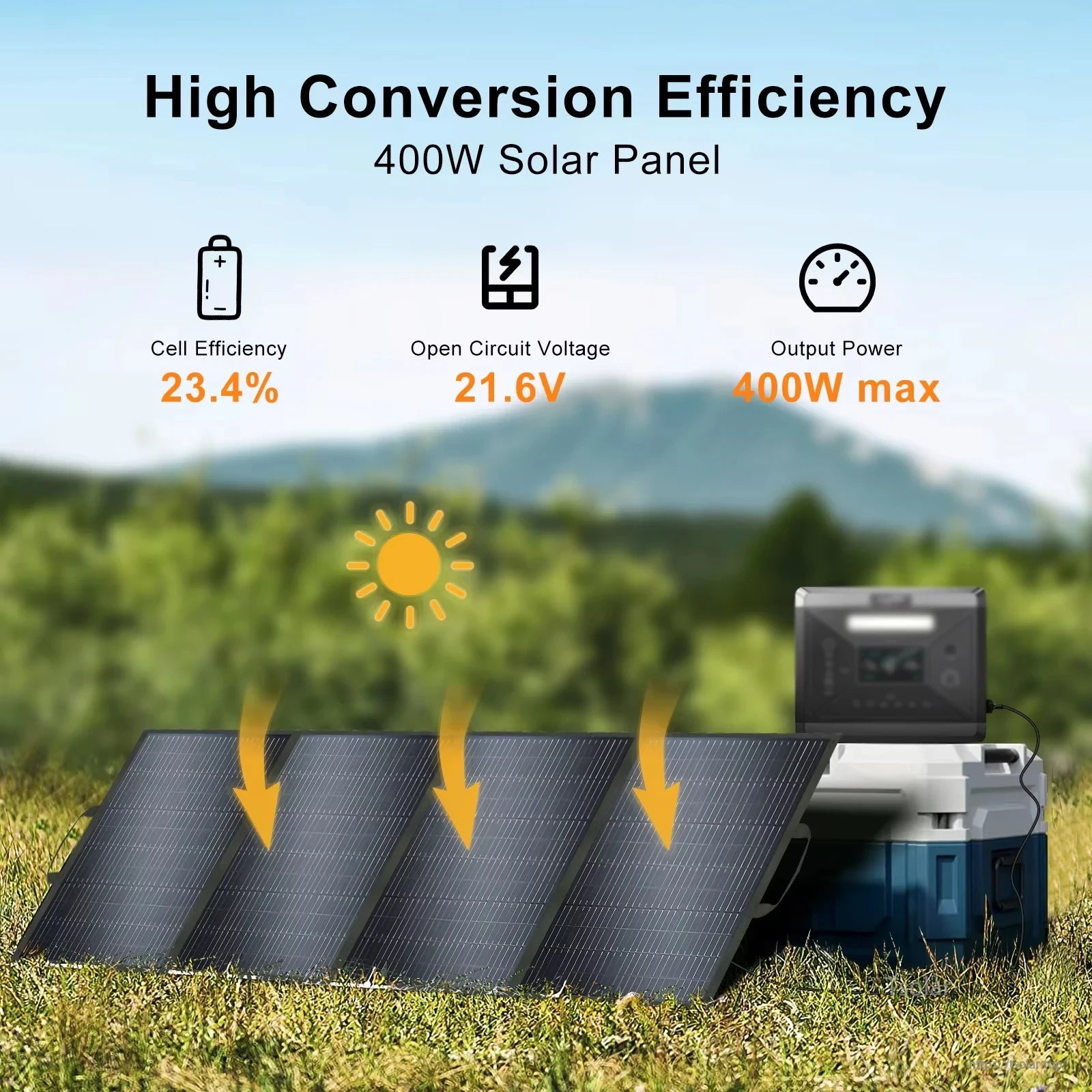

High conversion efficiency 400W solar panel, cell efficiency 23.4%, open circuit voltage 21.6V, output power 400W max.

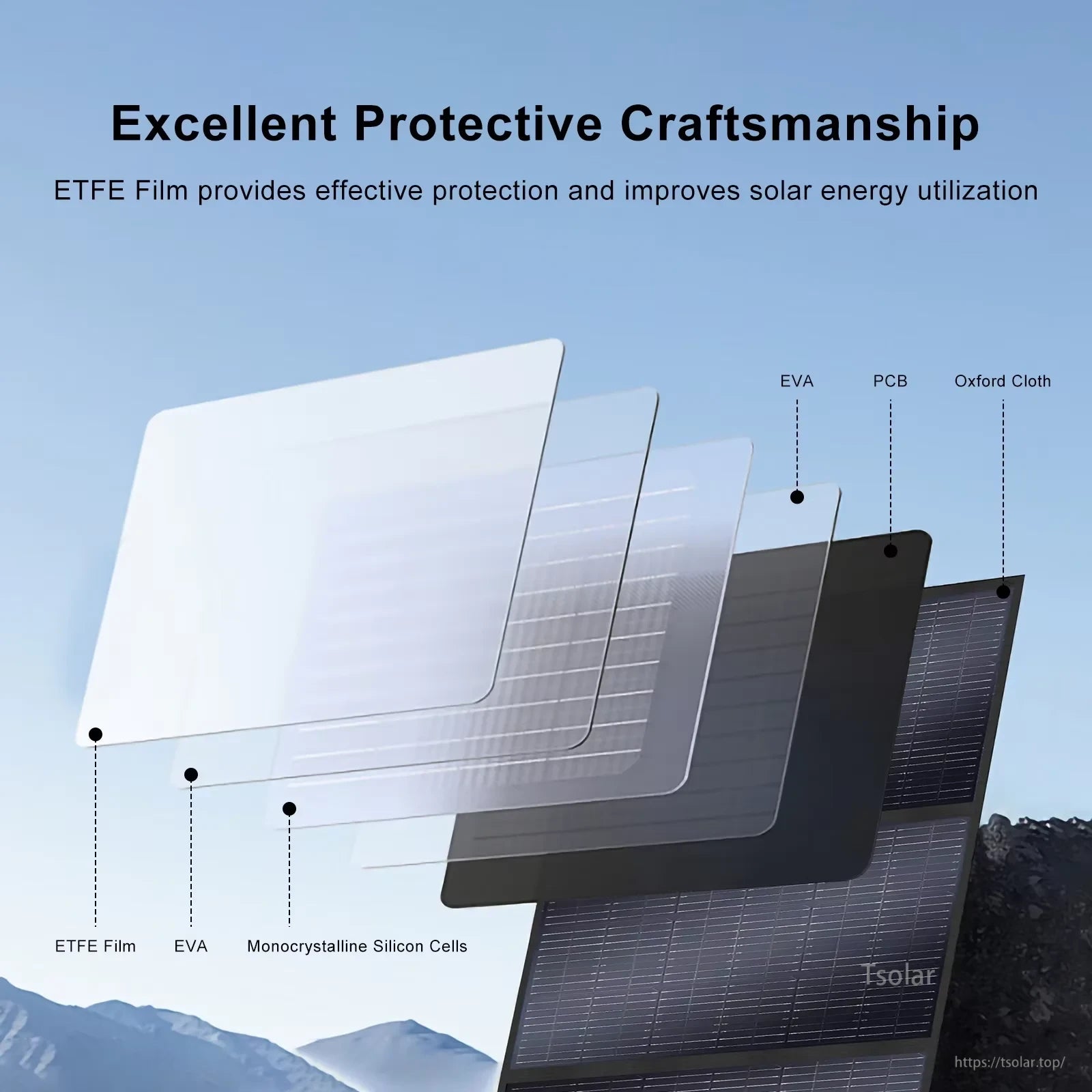

Excellent Protective Craftsmanship with ETFE Film and Solar Cells

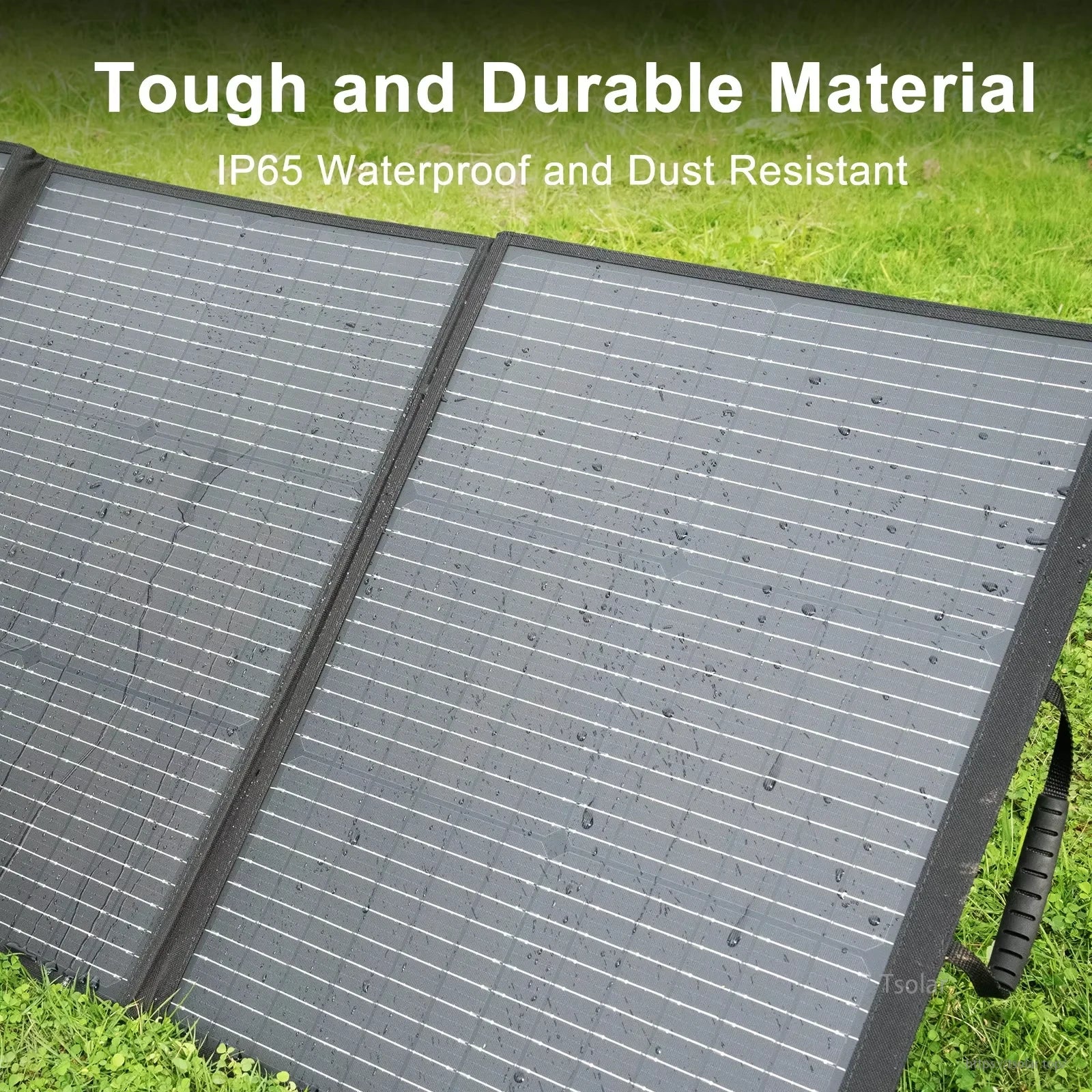

Tough durable material, IP65 waterproof and dust resistant solar panel.

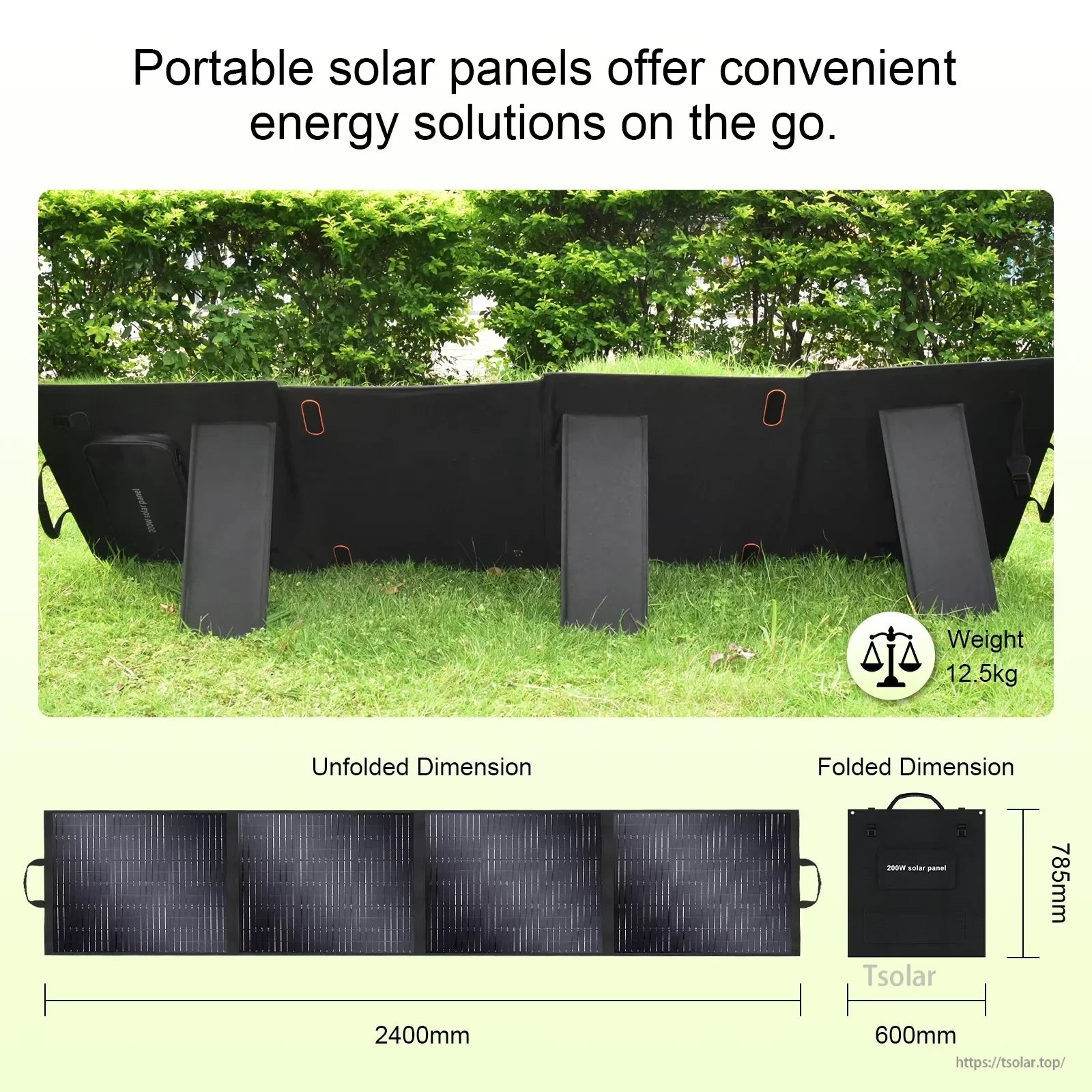

Portable solar panels offer convenient on-the-go energy.
