Overview

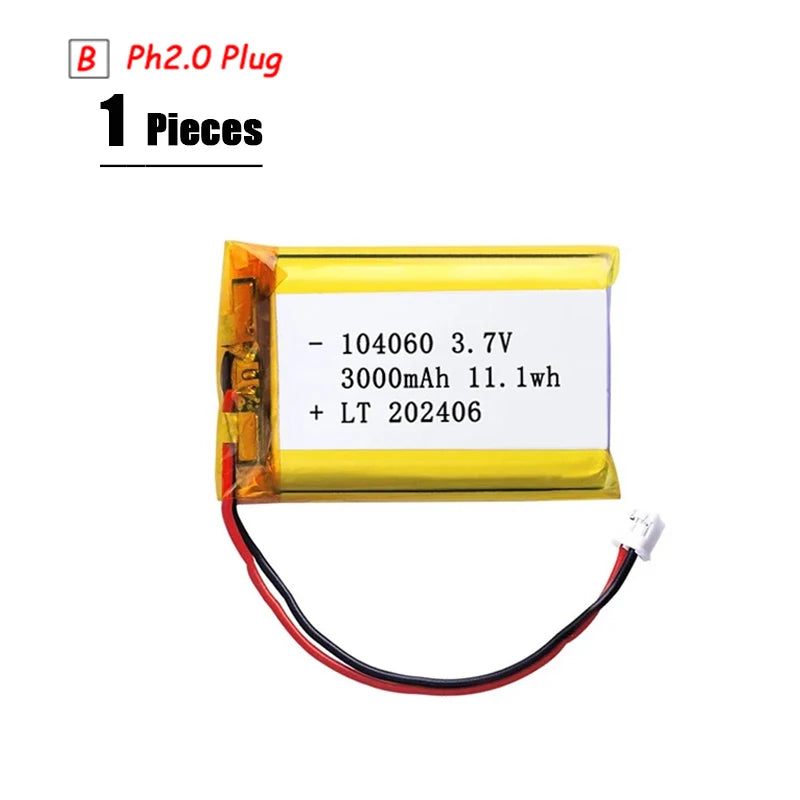

This Lipo Battery is a 3.7V rechargeable Li-Polymer pouch cell from L7ADFJ with a PH 2.0mm 2-pin plug and an approximately 70mm connection line. It features a protective board, 1S1P combination, nominal capacity of 3000mAh, and certifications CE, RoHS, and KC. Sold as Batteries Only (Battery Number: 1pcs).
Key Features
- 3.7V rechargeable Li-Polymer pouch Lipo Battery

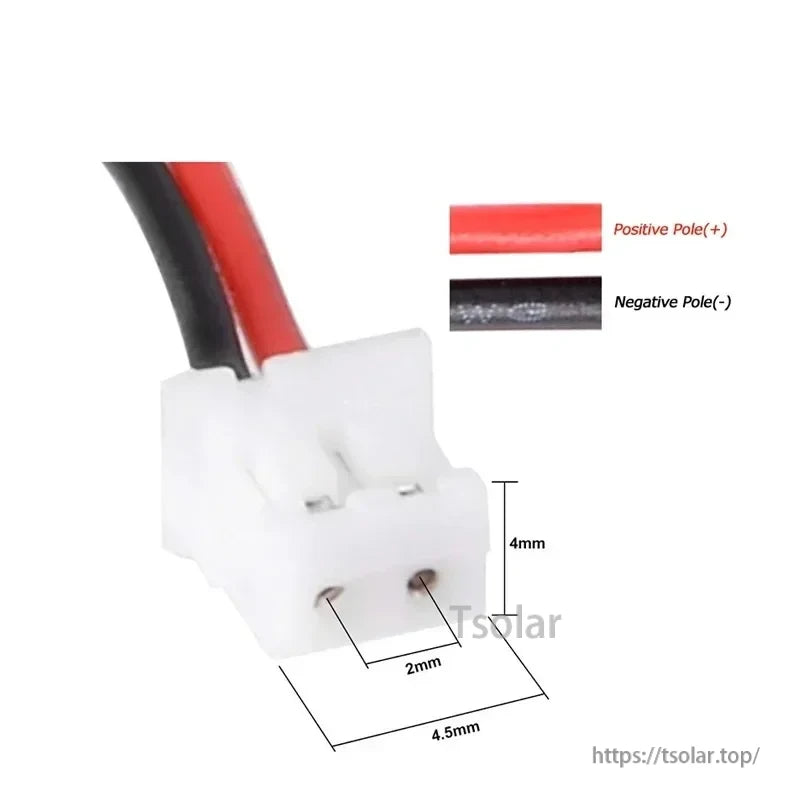

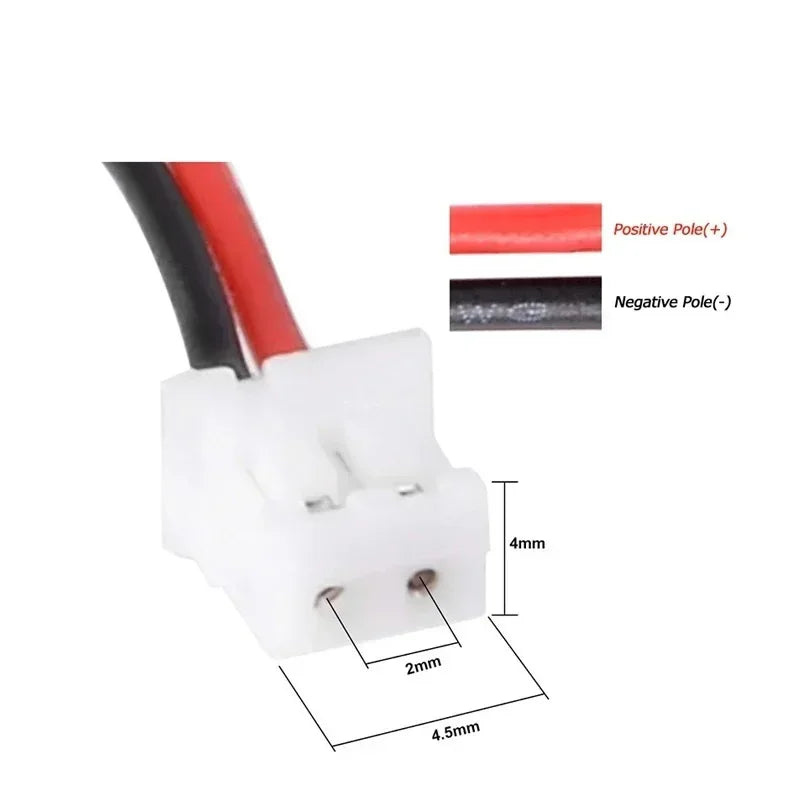

- PH 2.0mm 2-pin plug; connection line approximately 70mm
- Nominal Capacity: 3000mAh
- Combination method: 1S1P

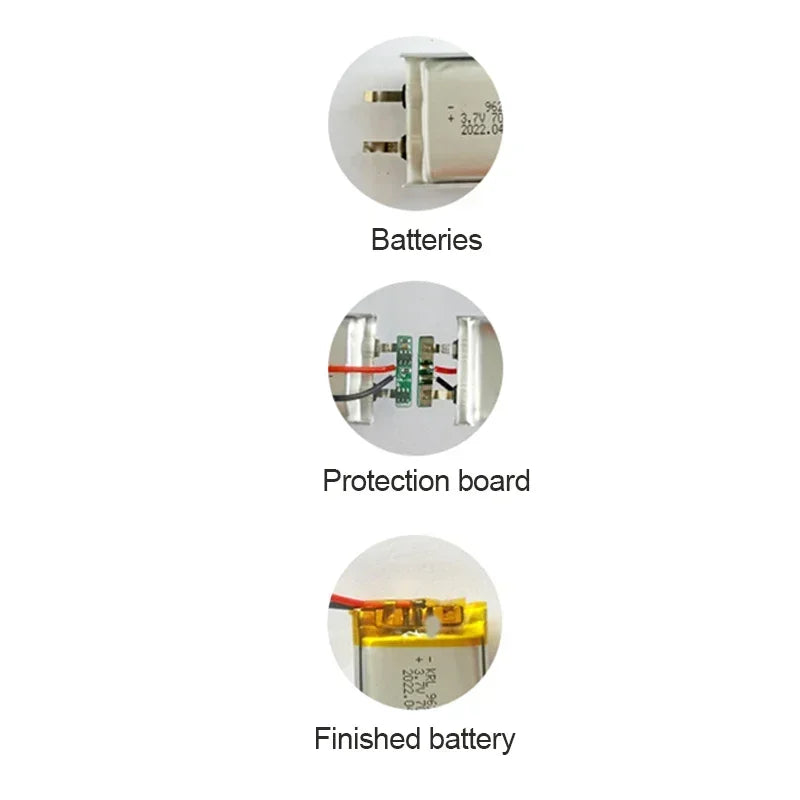

- With Protective board
- Charging voltage: 4.2V
- Charging current and discharging current: 0.5C
- Maximum continuous charging current: 1C; Maximum continuous discharge current: 1C
- Number of cycles: 500 times
- Monthly self discharge rate: 7uA
- Size: Pouch; Type: Li-Polymer; Material: Ternary lithium battery
- Certification: CE, RoHS, KC
- Origin: Mainland China
Specifications
| Brand Name | L7ADFJ |
|---|---|
| Type | Li-Polymer (Lipo Battery) |
| Size | Pouch |
| Combination method | 1S1P |
| Nominal Voltage | 3.7V |
| Charging Voltage | 4.2V |
| Discharge Voltage Range | 2.75V–4.2V |
| Nominal Capacity | 3000mAh |
| Charging/Discharging Current | 0.5C |
| Maximum Continuous Charging Current | 1C |
| Maximum Continuous Discharge Current | 1C |
| Charging Time | 1–1.5 hours |
| Monthly Self Discharge Rate | 7uA |
| Cycle Life | 500 times |
| Features | With Protective board |
| Material | Ternary lithium battery |
| Plug | PH 2.0mm 2-pin |
| Lead Length | Approximately 70mm |
| Model Number | Polymer lithium battery |
| Certification | CE, RoHS, KC |
| Set Type | Batteries Only |
| Battery Number | 1pcs |
| Origin | Mainland China |
| High-concerned Chemical | None |
Model Options
Battery manufacturer, welcome to customize and consult

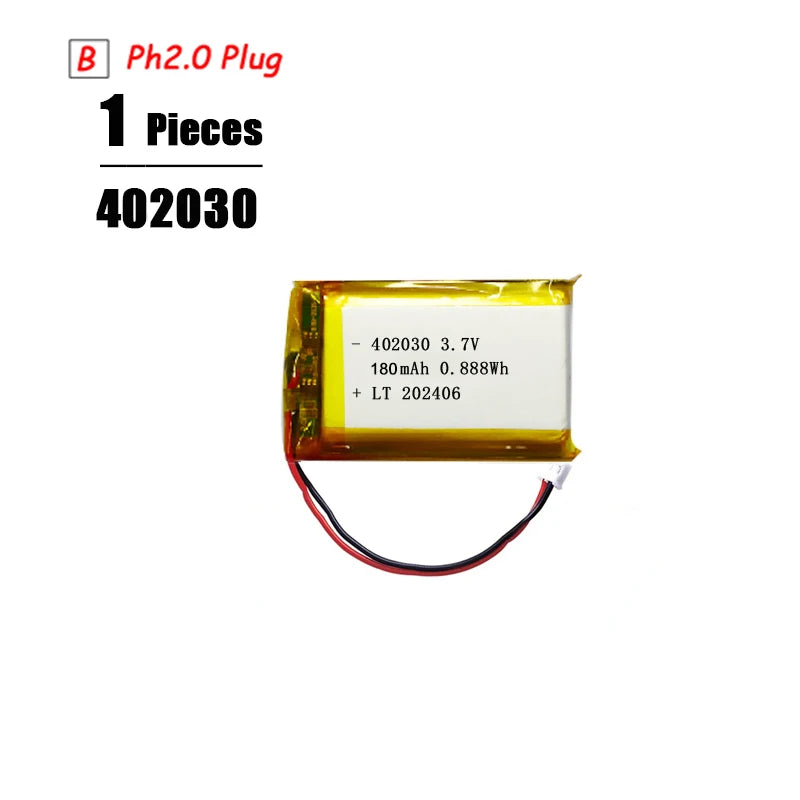

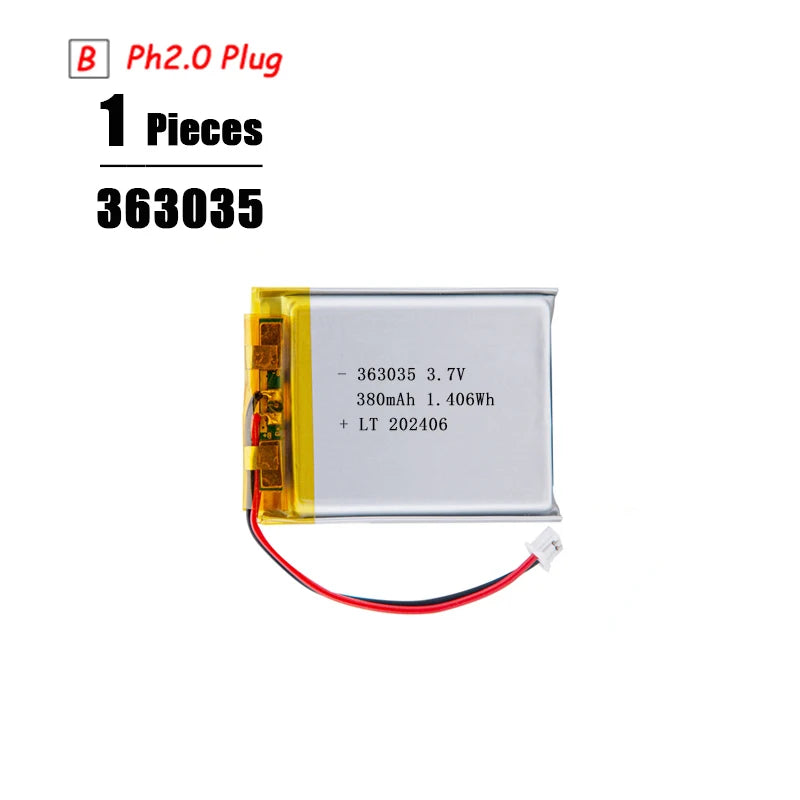

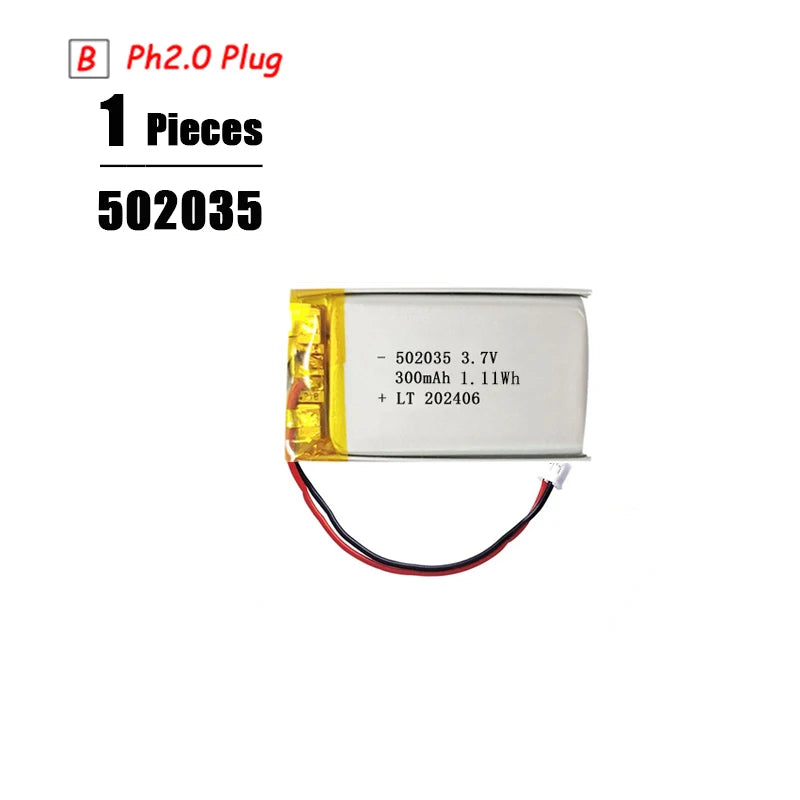

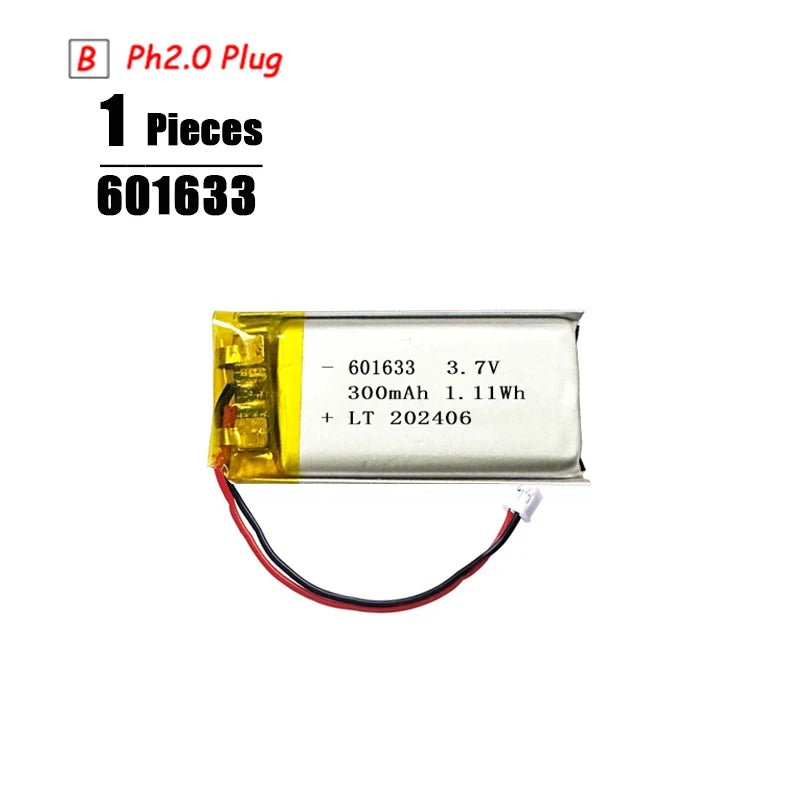

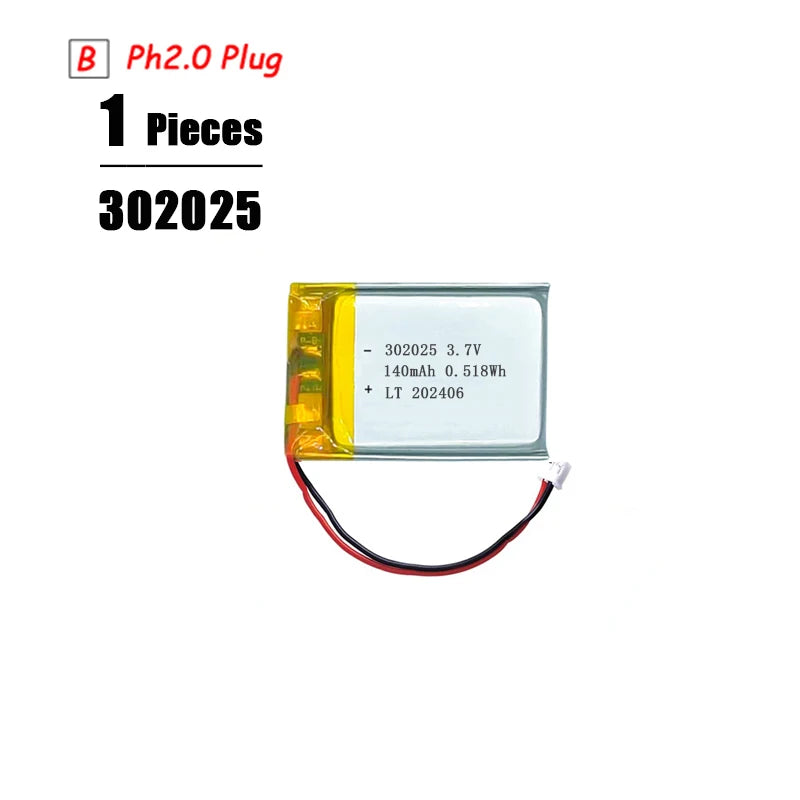

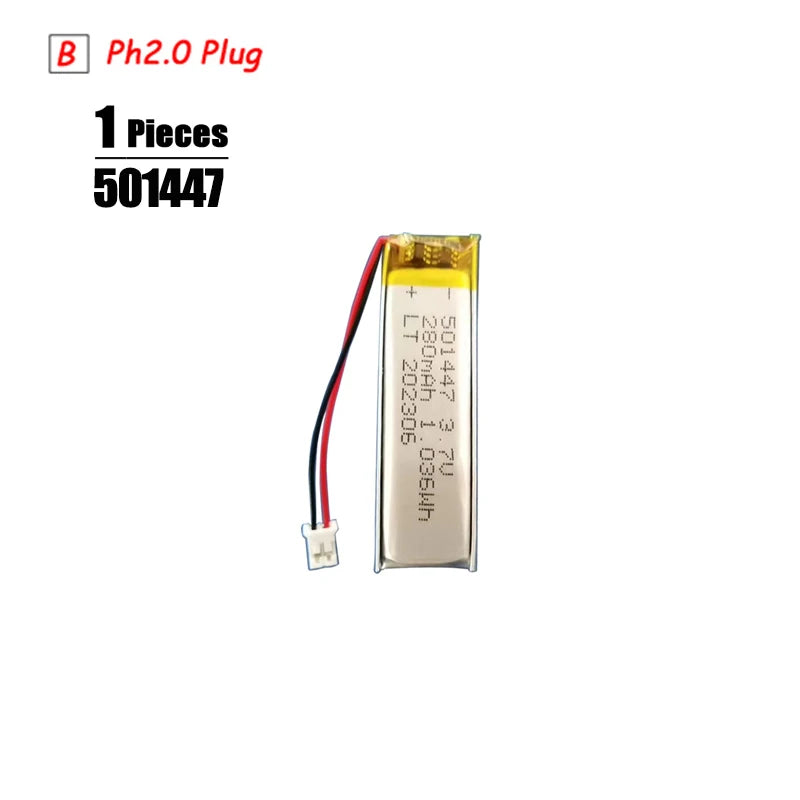

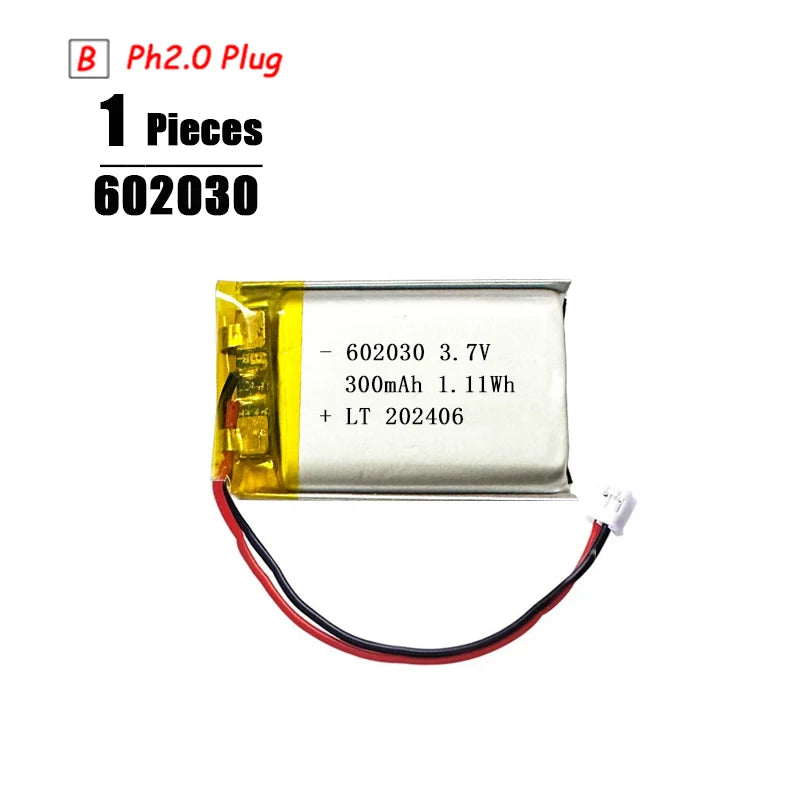

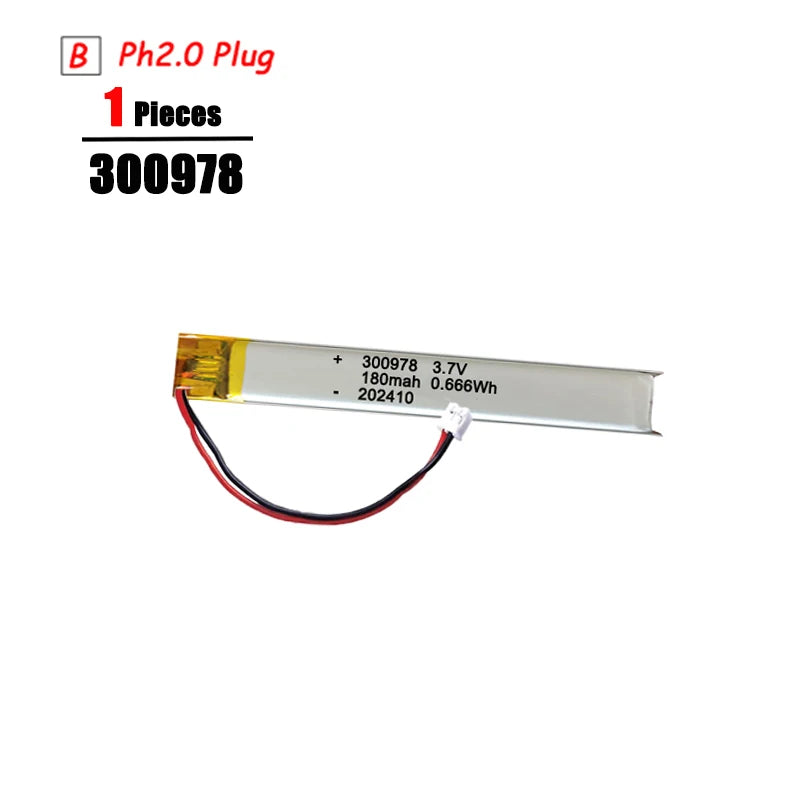

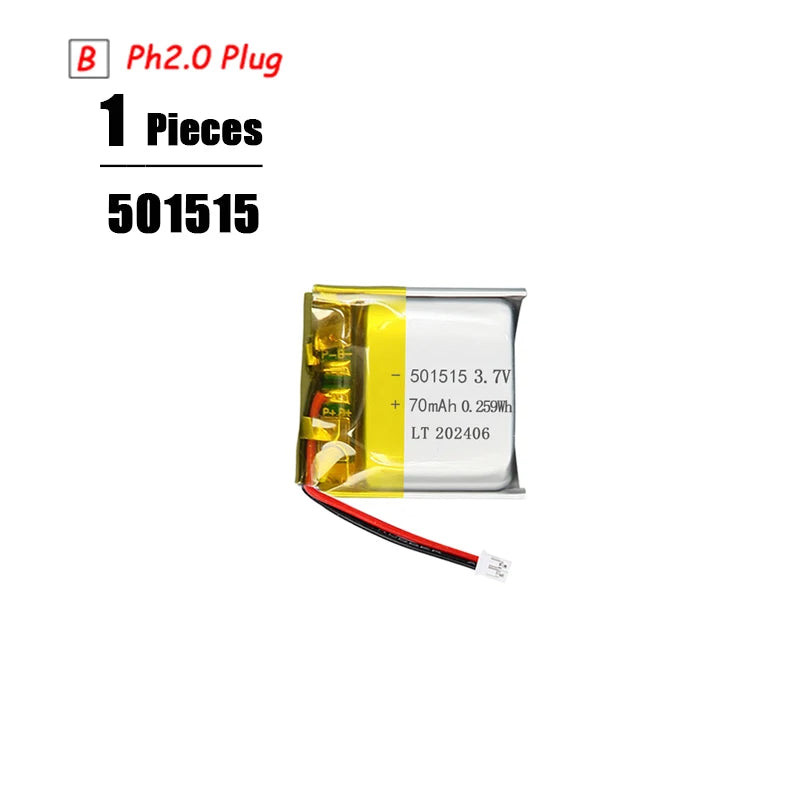

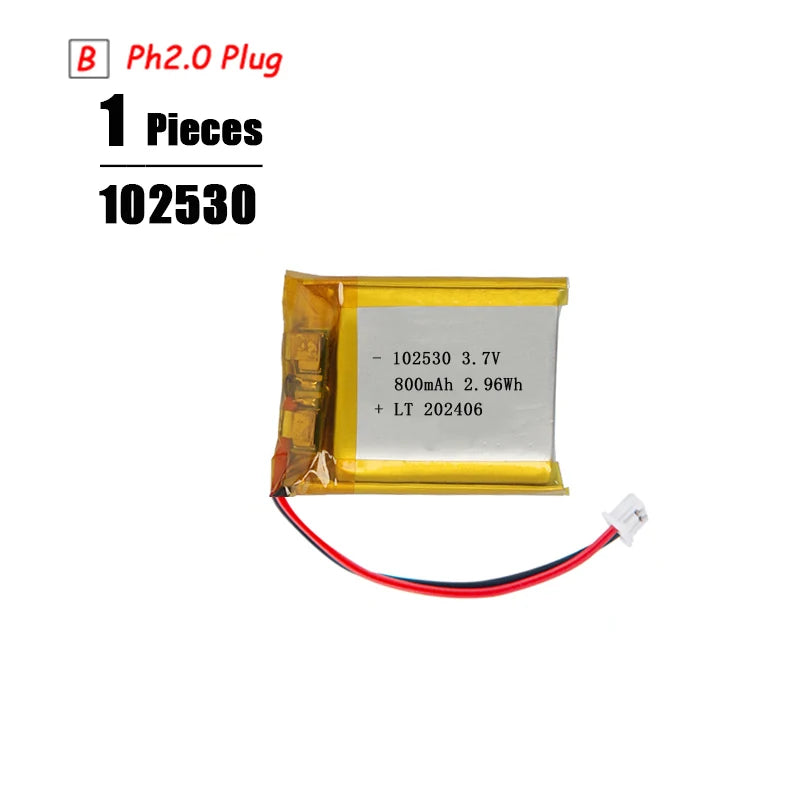

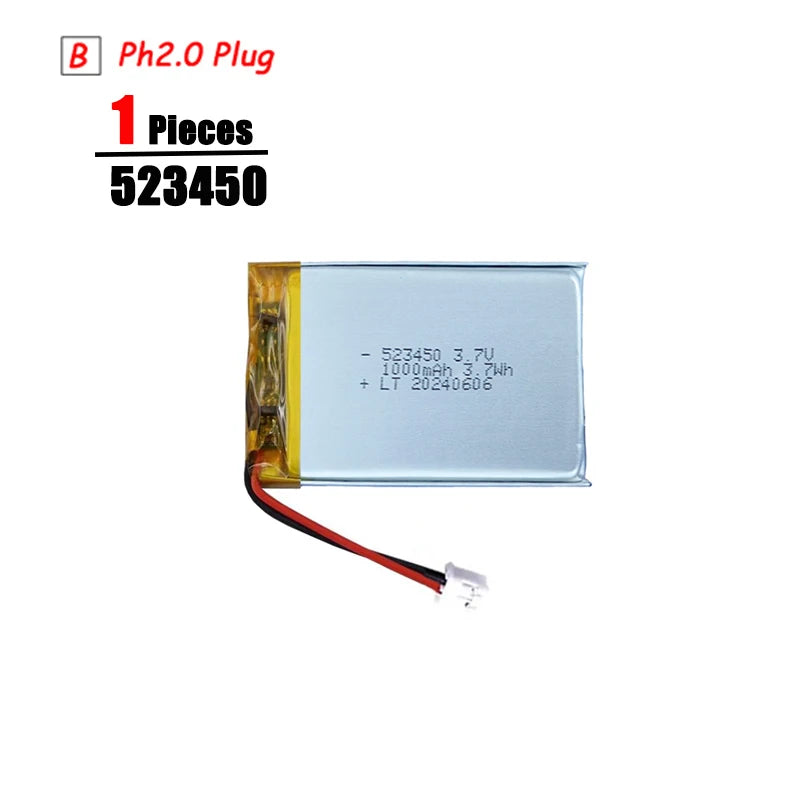

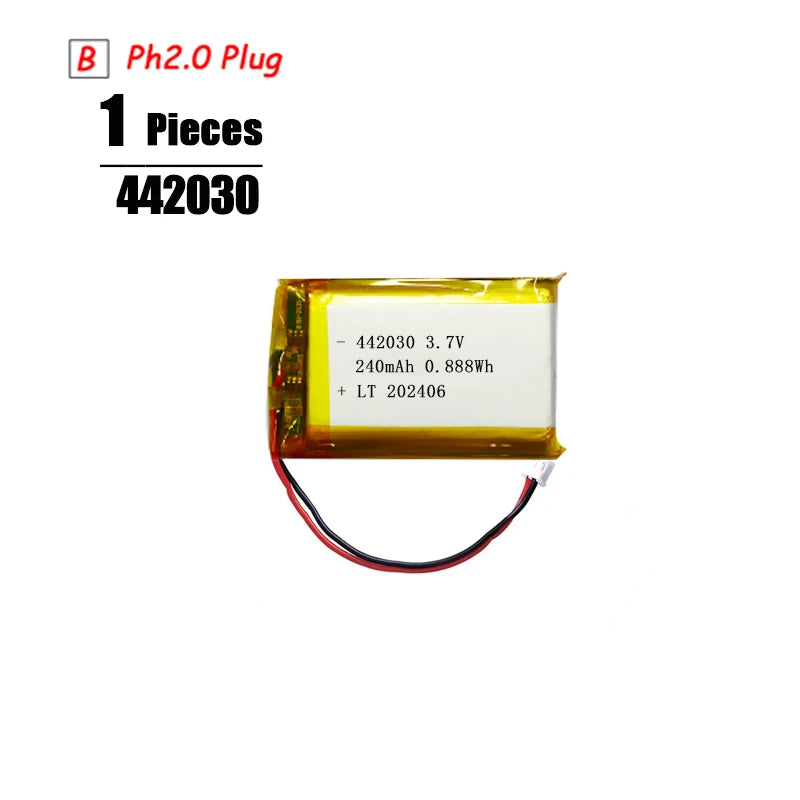

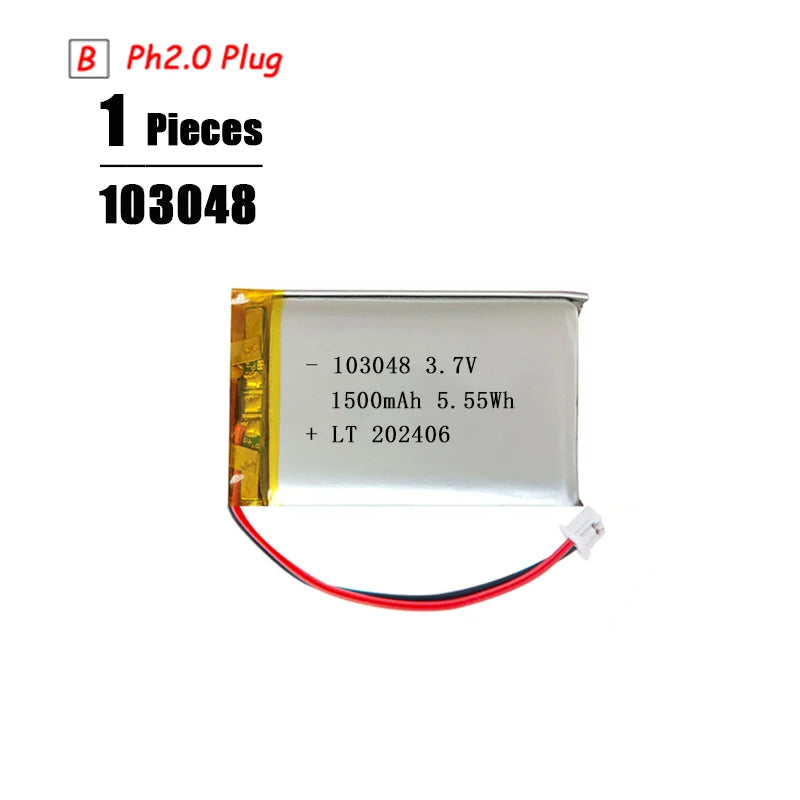

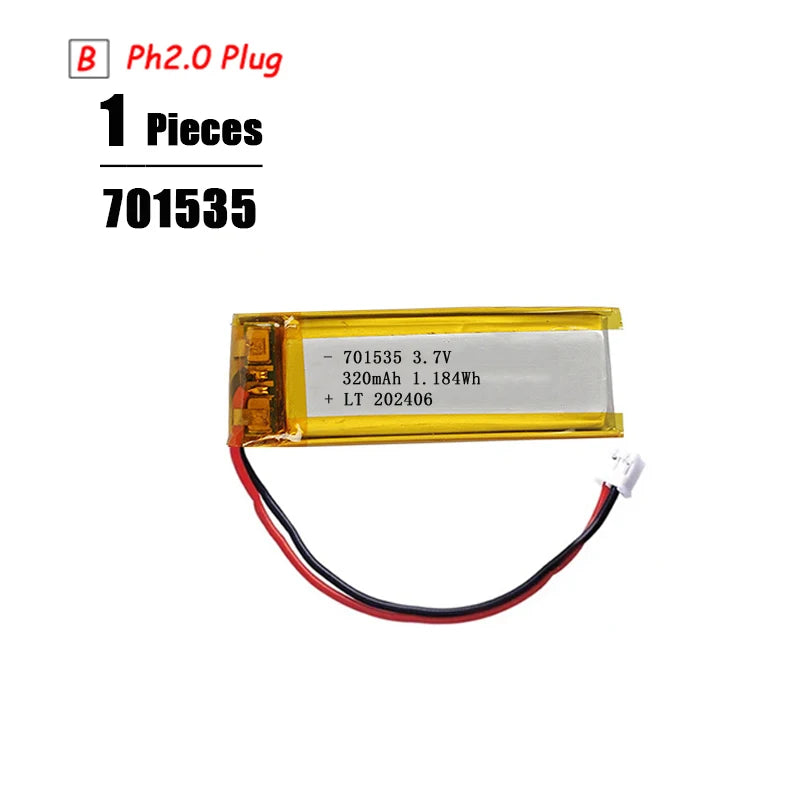

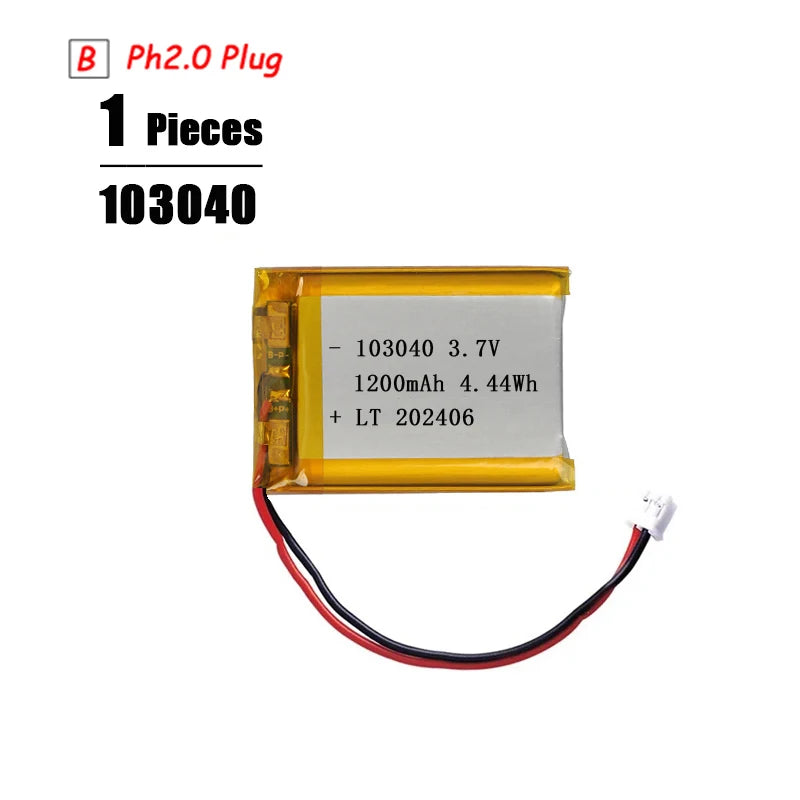

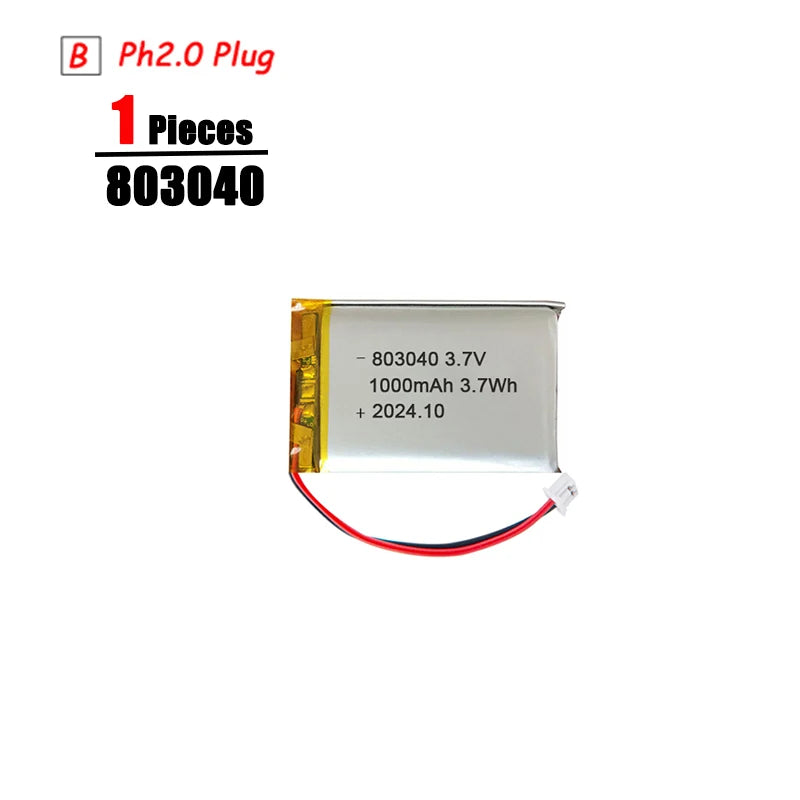

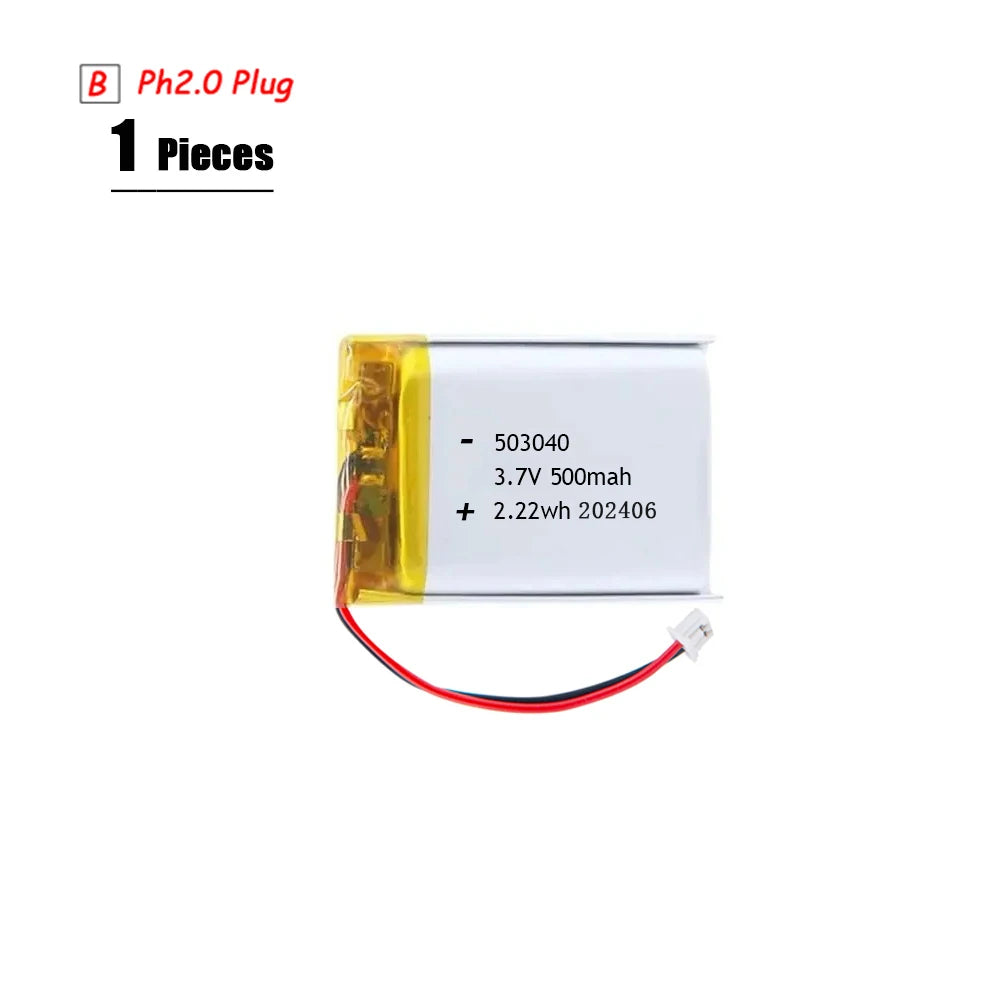

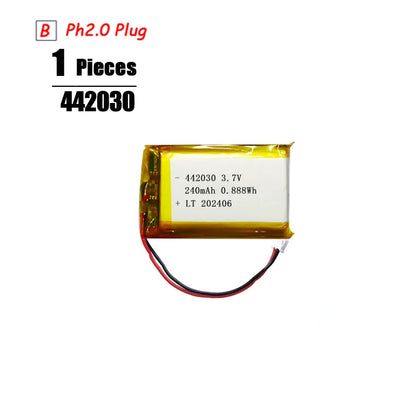

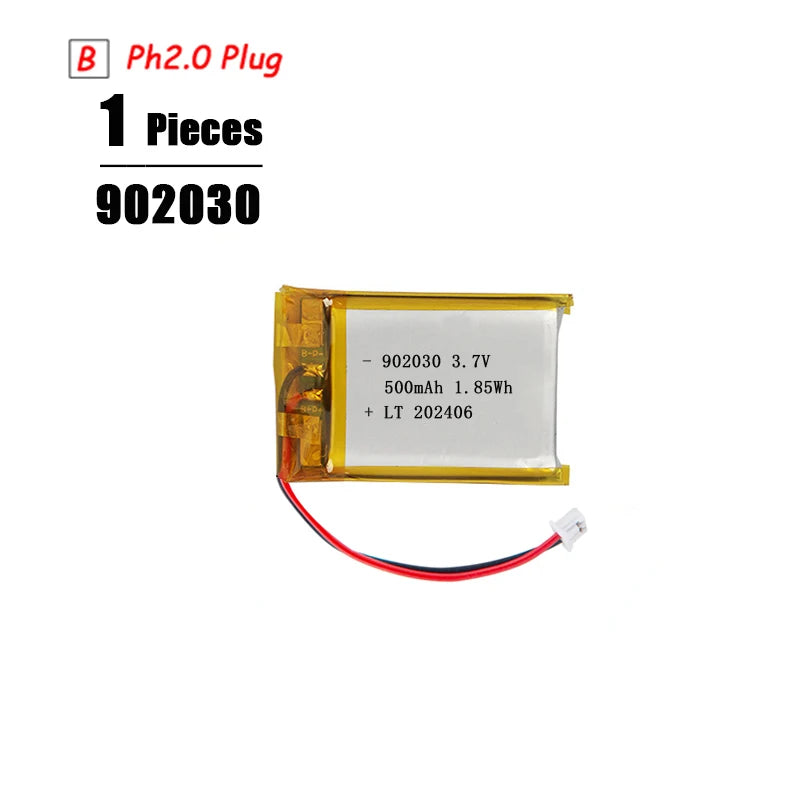

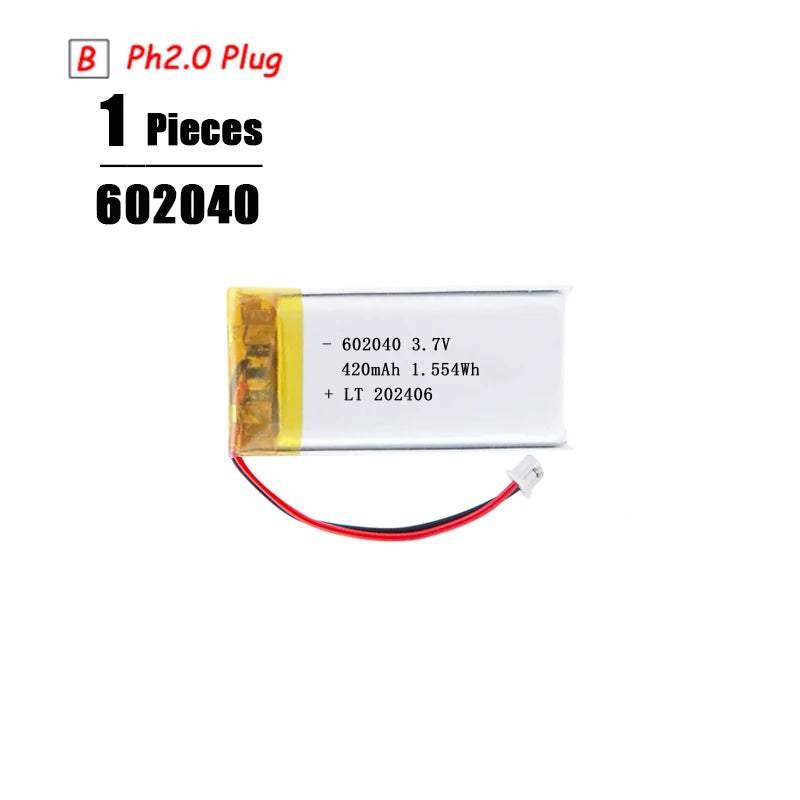

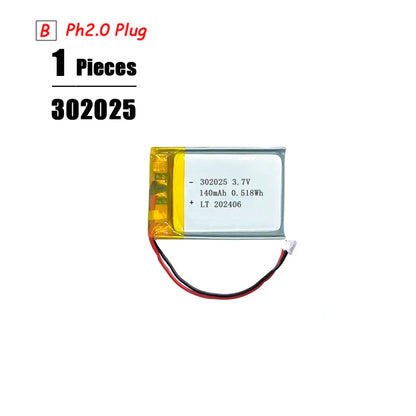

Models: 104060, 103048, 102530, 902030, 602040, 363035, 701535, 502035, 601633, 602030, 442030, 302025, 501515, 103450, 503040, 103040, 300978, 523450/503450, 803040, 503040, 402030
Applications
- Driving Recorder, Radio, Bluetooth Speaker
- Electric Toys, Msi Blueplayer, Mp5, Mp4
- Cameras, Digital Camera
- GPS Navigator, GPS Navigation Devices, GPS Locator
- Bluetooth Headset
- Humidifiers, Water Replenishing Device, Air Cleaner
- Digital Products, 3C Digital Products
- Smart Wearable Locator, Smart Lock
- Dog Trainer
- Medical Products, Medical Equipment
- POS Machine, Ordering Machine
- Communication Equipment
- LED Lighting Fixtures, Stage Lights, Intelligent Projection Light
- Intelligent Makeup Mirror
- Mosquito Repellent, Cosmetic Instrument
- Car Taillights
- Power Bank
- Intelligent Manhole Cover
(Manual measurement, there is a slight difference in product size)
Precautions for Battery Use
- For transportation safety, the battery will not be fully charged at the factory; fully charge before first use for stability and safety.
- Store the battery in a cool and dry place.
- Do not separate, extrude, or hit.
- Do not put the battery into water or fire.
- Keep the battery away from children.
About Shipment
- All packages will be sent out as soon as possible. Because the battery security check is strict, tracking information may be delayed 1–3 days; please be patient.
- To Brazilian buyers: Due to batteries being a special product, Brazilian buyers are required to pay their own customs duties, and it takes 20 days for the package to arrive at Brazilian customs.
- If you have any questions about logistics tracking information, please contact customer service.
After Sale
- Any quality problems resulting in non-functionality: a refund will be provided without any reason.
- If you need to return or refund for other reasons, please contact in advance for timely arrangements.
- Please do not hesitate to contact for any questions you may have.
What’s Included
- 1pcs L7ADFJ 3.7V Li-Polymer pouch Lipo Battery (Batteries Only)
Details

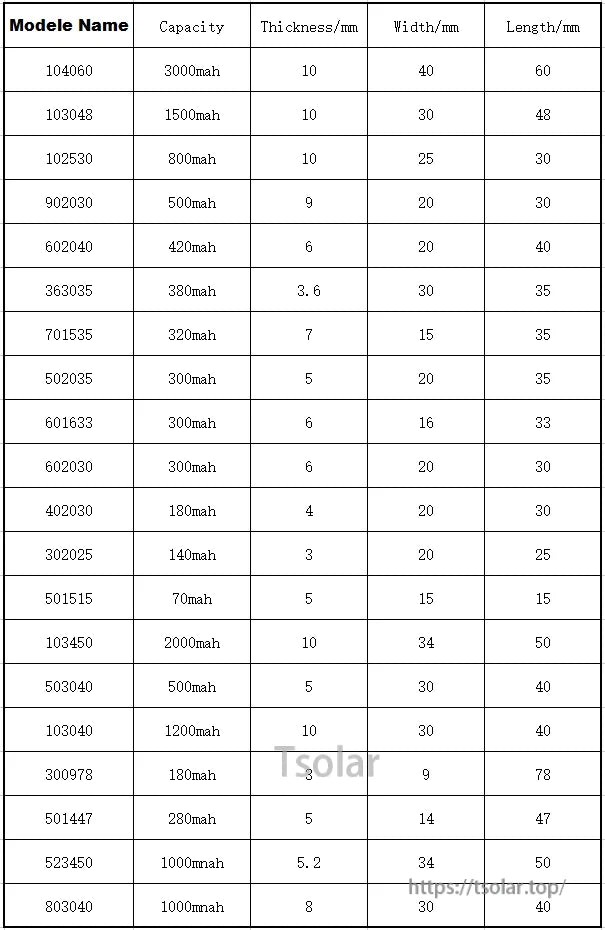

L7ADFJ 3.7V LiPo battery specifications include various models with capacities from 70mAh to 3000mAh, thicknesses from 3mm to 10mm, widths from 9mm to 40mm, and lengths from 15mm to 78mm.
Various 3.7V lithium polymer batteries are shown with capacities from 11mAh to 4400mAh and models including 2025, 3030, 4020, 5020, 5030, 5040, 6030, 6040, 7030, 7040, 8030, 9030, 10030, 10040, 10350, and 10050. Each has a yellow label listing voltage, capacity, model number, and date code, with red and black connecting wires. Arranged neatly on a wooden surface, the batteries vary in size and capacity, reflecting diverse applications.

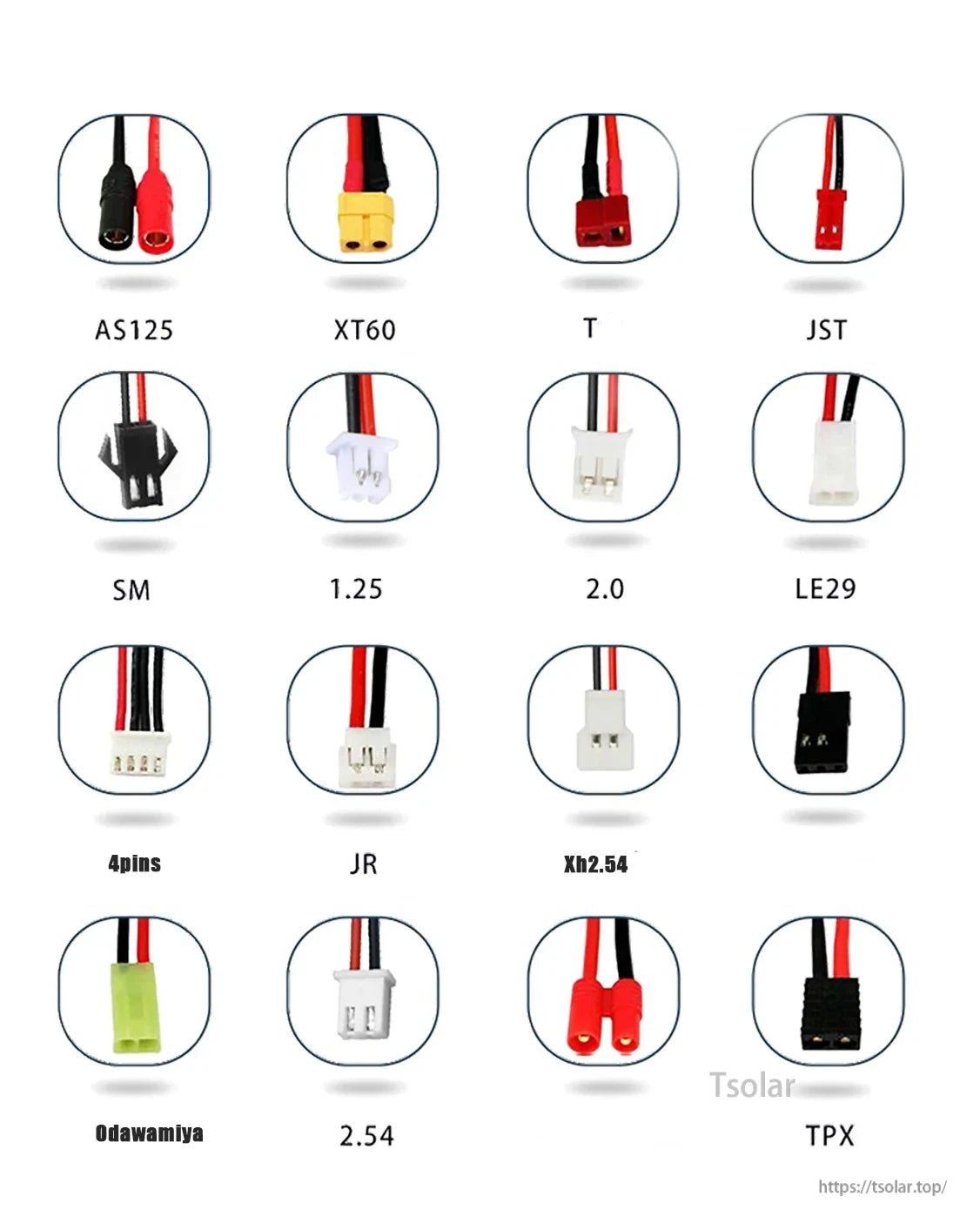

Various battery connector types including AS125, XT60, T, JST, SM, 1.25, 2.0, LE29, 4pins, JR, Xh2.54, Odawamiya, 2.54, TPX.
L7ADFJ 3.7V LiPo Battery for diverse electronic devices and gadgets

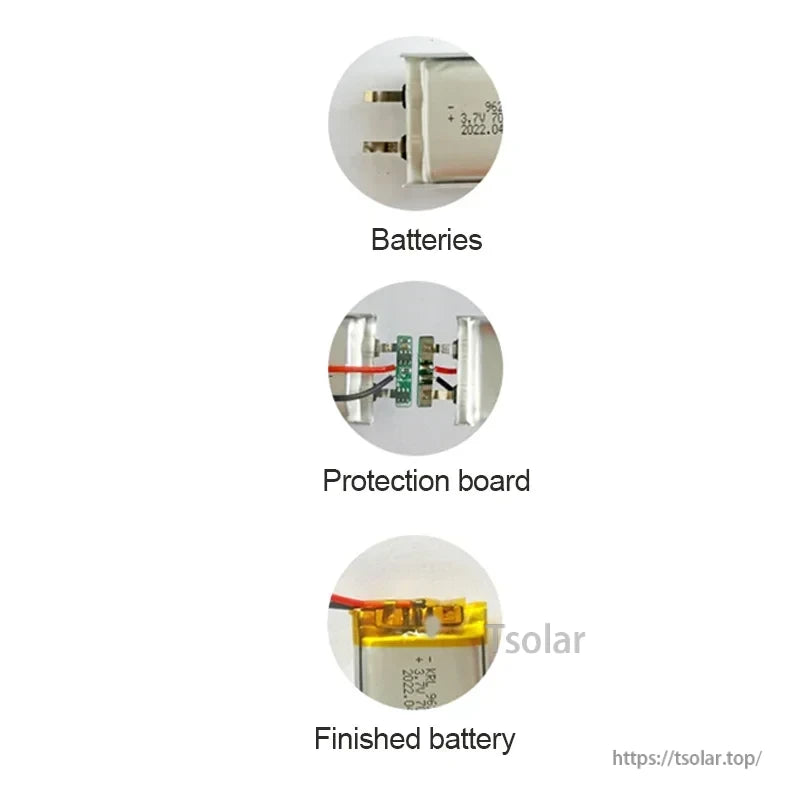

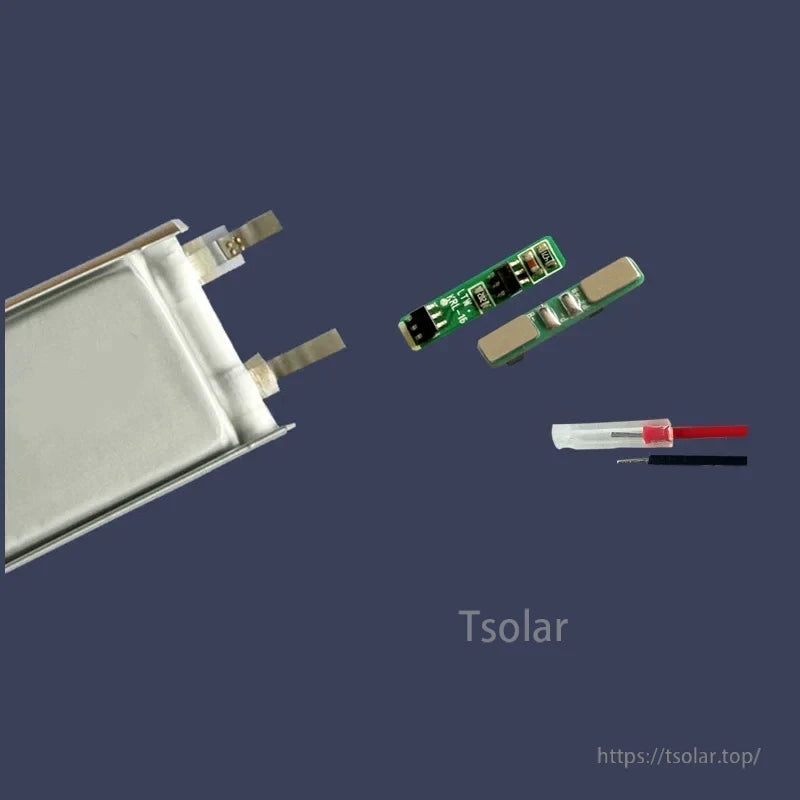

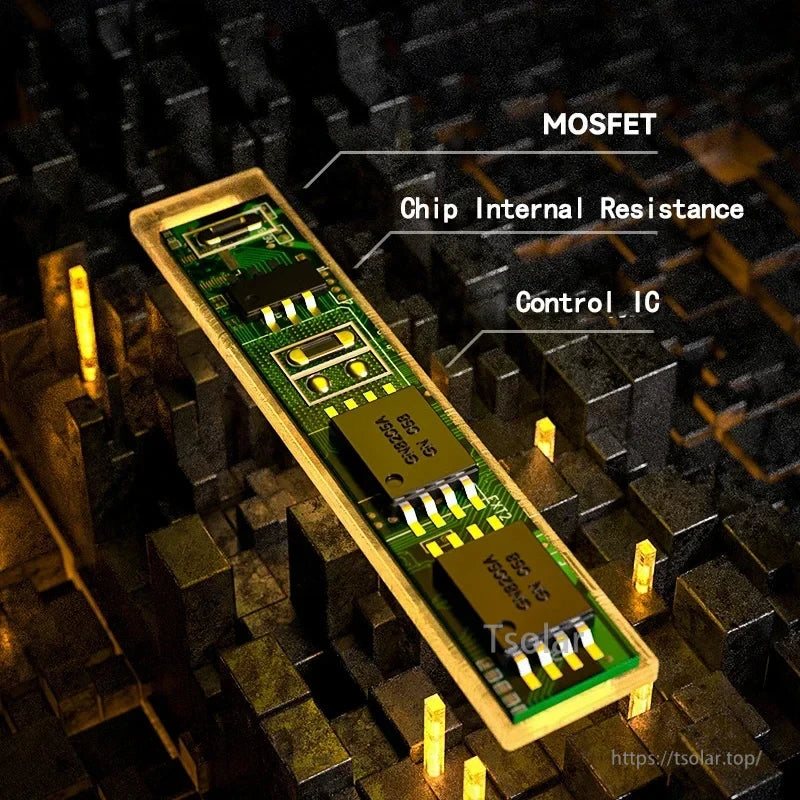

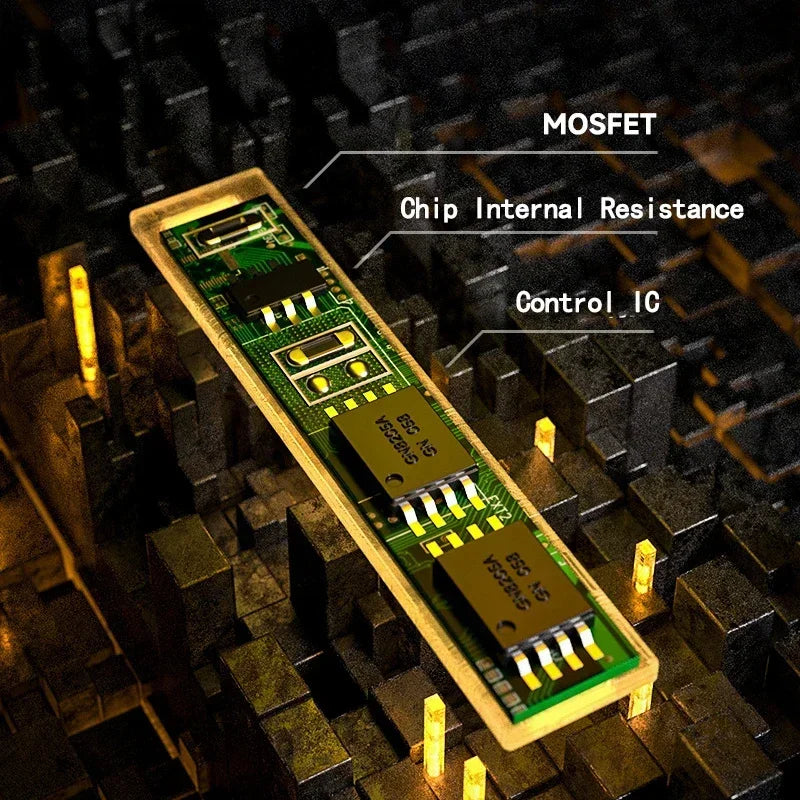

MOSFET, Chip Internal Resistance, Control IC, ESS MS VSC2015, 3.7V Lipo Battery Components

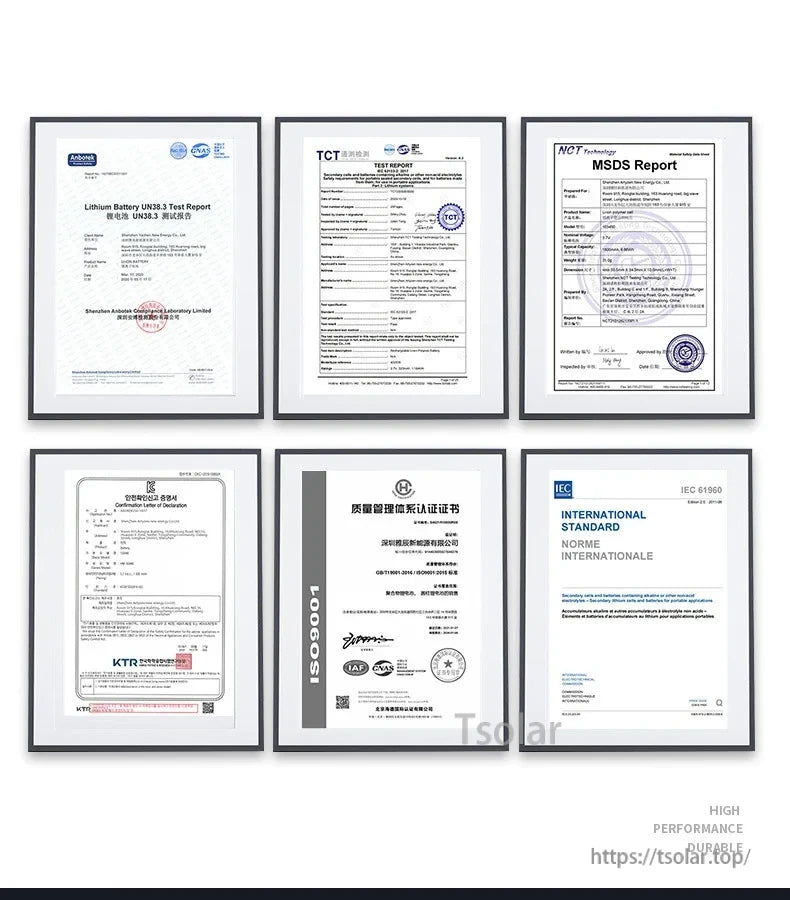

Lithium battery UN38.3 test report, TCT test report, MSDS report, KTR certification, ISO9001 quality management system certificate, IEC 61960 international standard. High performance, durable.
