Overview

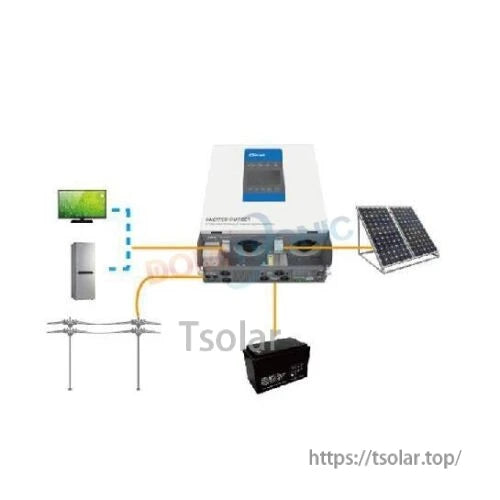

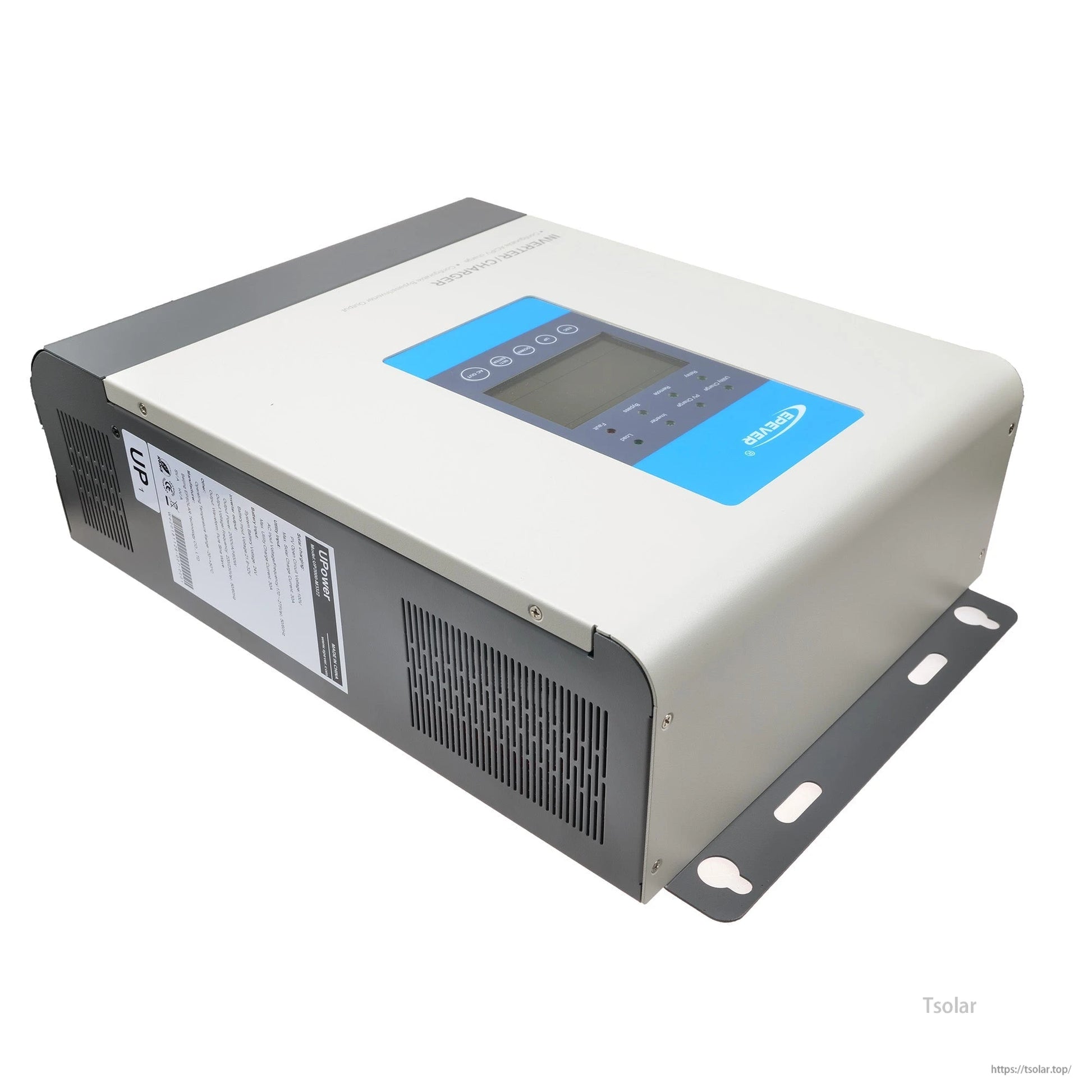

The EPEVER UPower series MPPT inverter/charger combines solar & utility charging with pure sine wave AC output. This 3000W-class inverter/charger supports DC 24V or 48V battery systems and outputs AC 220V/230V with 50Hz/60Hz auto selection. It offers flexible system configuration with multiple charging and output modes for different off-grid and backup power needs.
Models
- UP3000-M3322: 3000W, 24V, max PV input 100V, max PV charging current 30A, max PV input power 780W
- UP3000-M6322: 3000W, 24V, max PV input 150V, max PV charging current 60A, max PV input power 1500W
- UP3000-M2142: 3000W, 48V, max PV input 150V, max PV charging current 20A, max PV input power 1040W
- UP3000-M6142: 3000W, 48V, max PV input 150V, max PV charging current 60A, max PV input power 3000W
Charging & Output Modes
Two output modes
- Utility
- Battery
Four charging modes
- Solar priority
- Utility priority
- Utility & Solar
- Solar
Key Features
- Advanced SPWM technology with pure sine wave output
- Fully digitalized voltage and current double closed-loop control
- Advanced MPPT technology, with efficiency no less than 99.5%

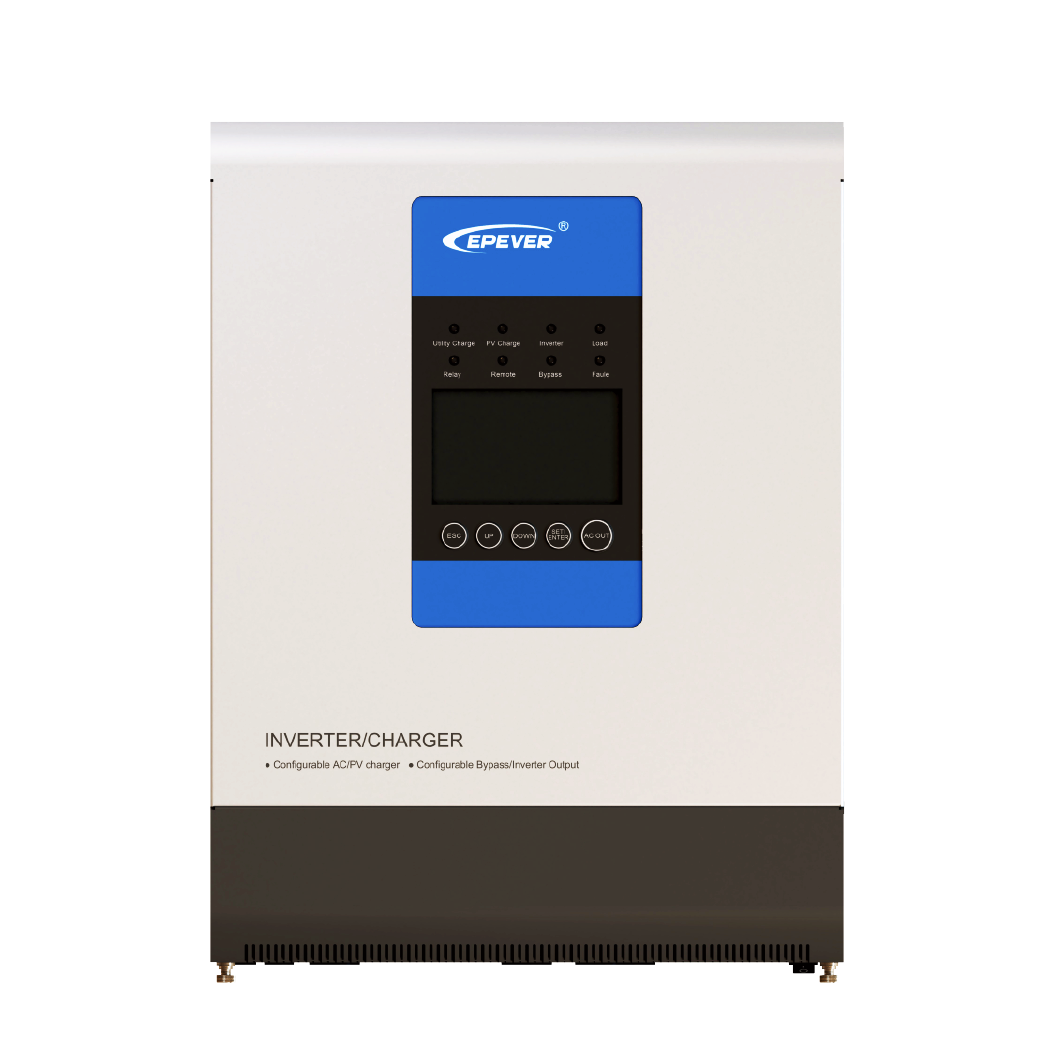

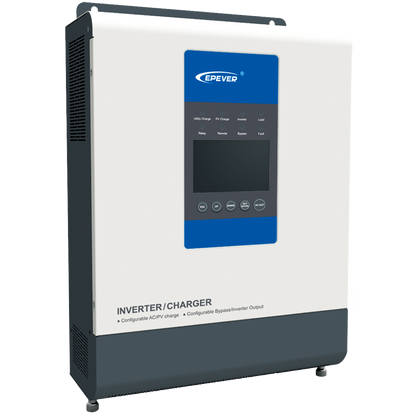

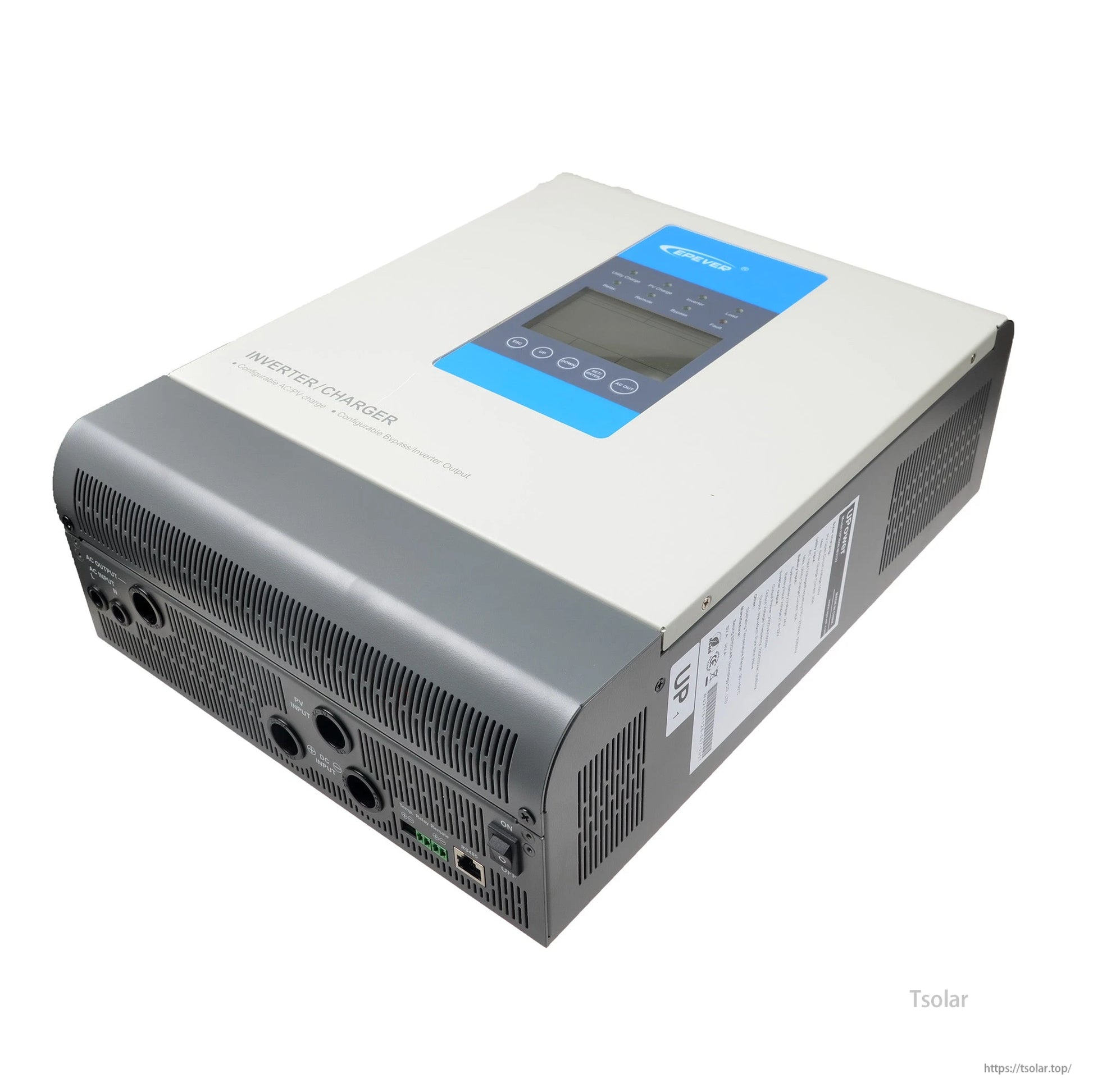

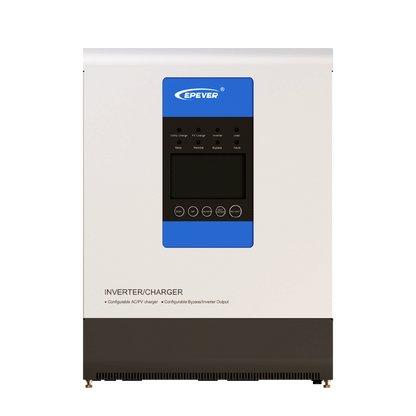

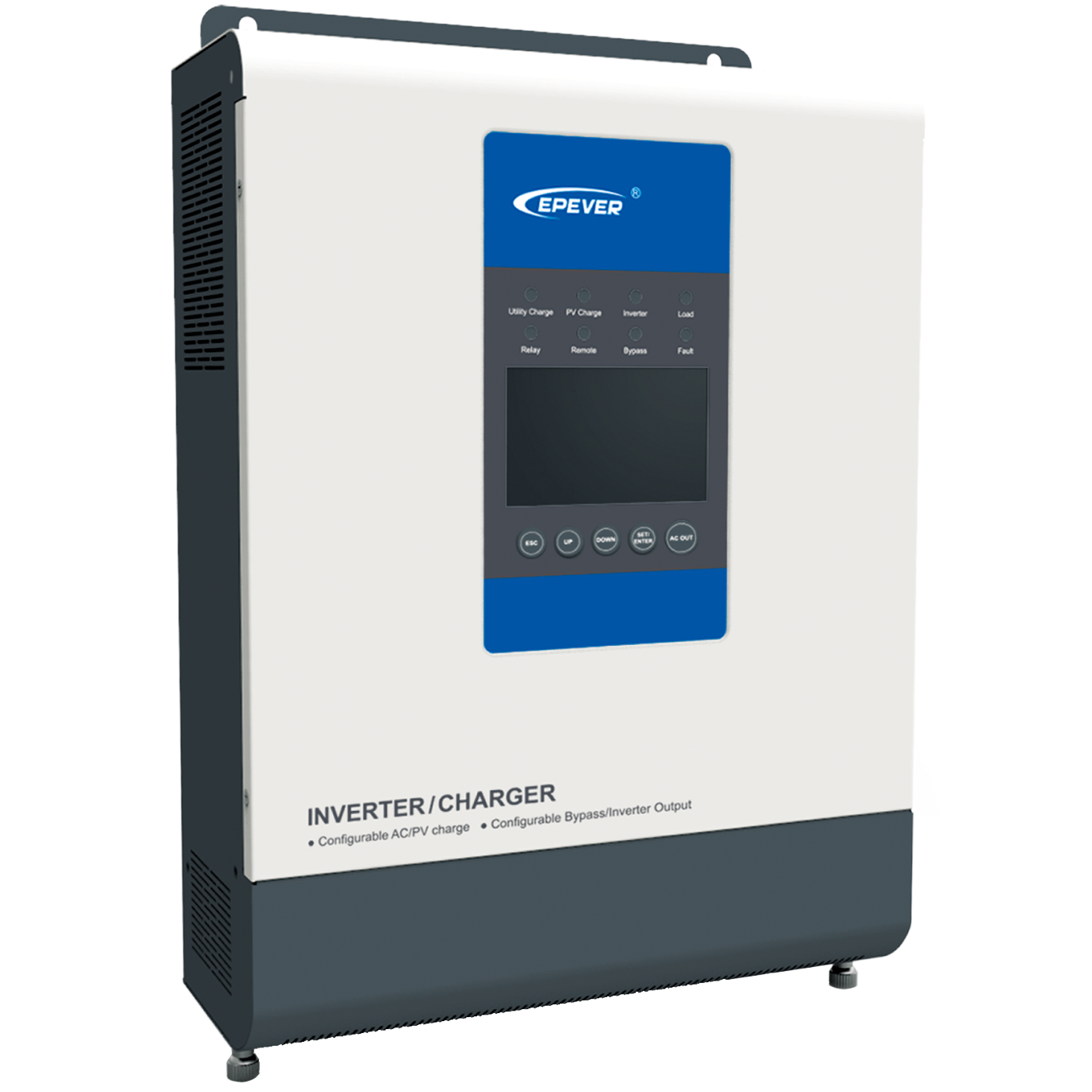

- LCD display for dynamic system running data and operating status
- Common interface and advanced interface (as provided by the series design)
- Multiple LED indicators for operating status

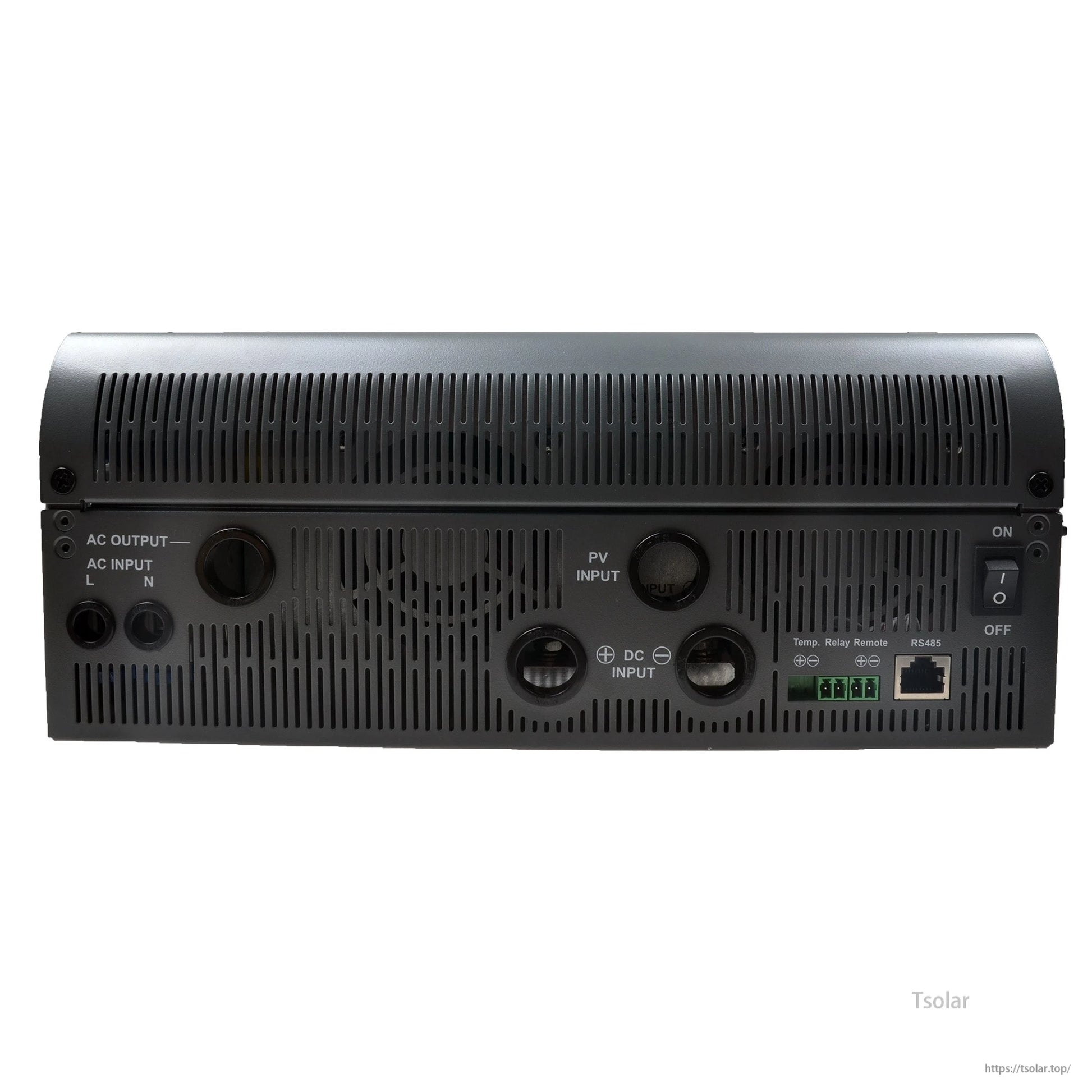

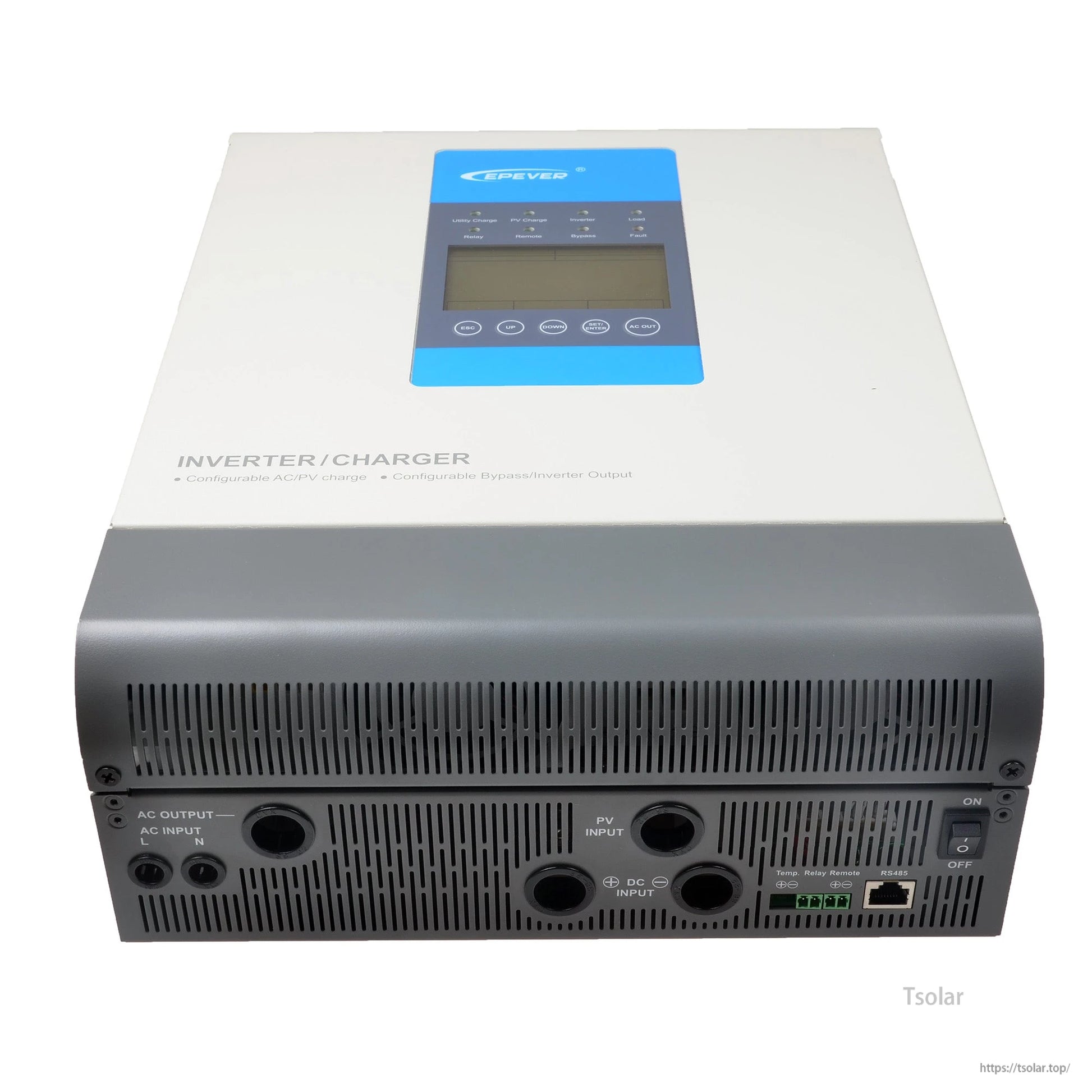

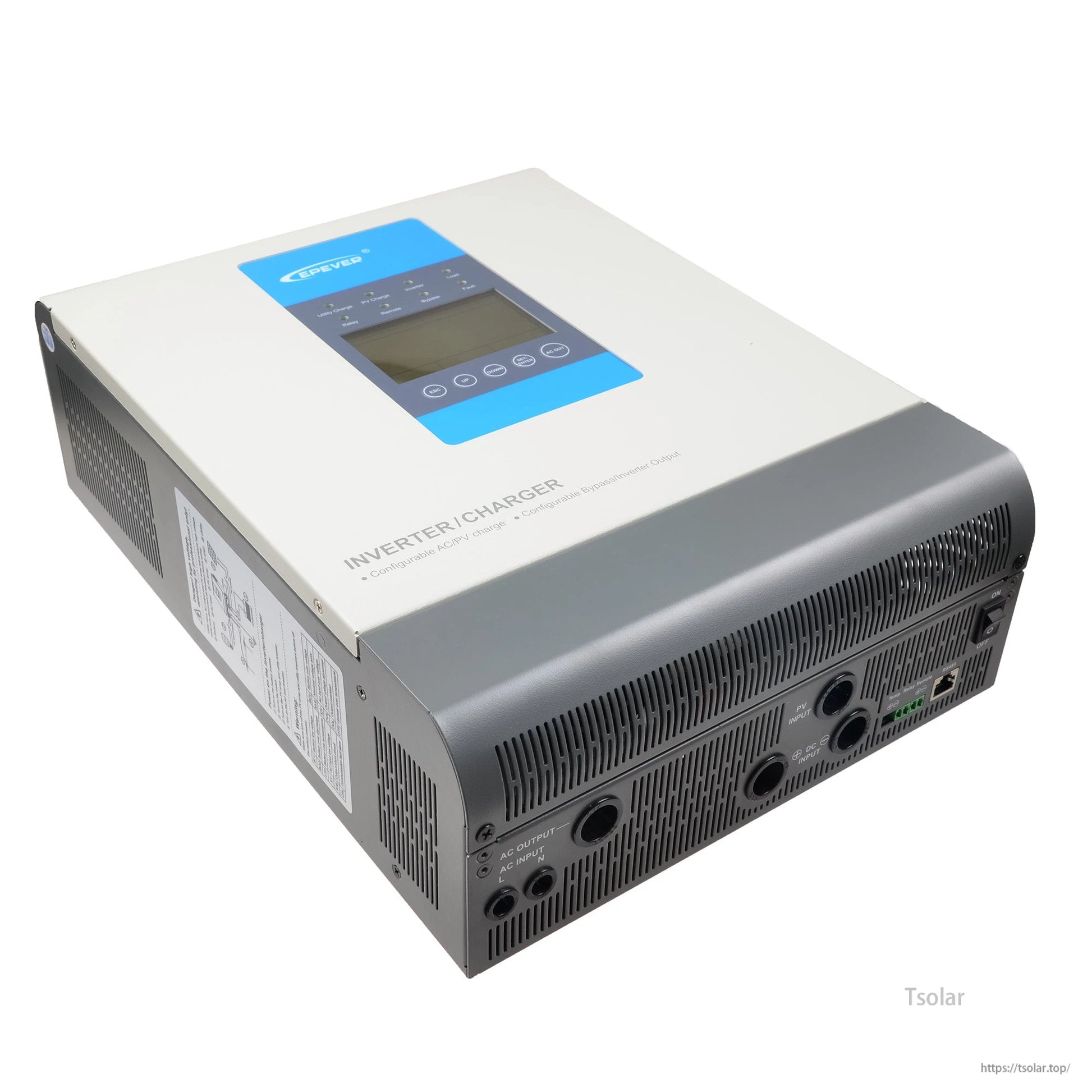

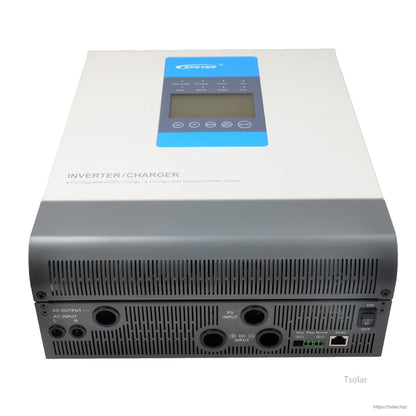

- 2P circuit breaker at the utility input end
- Independent control of AC output with AC OUT button
- Battery temperature compensation function
- Extensive electronic protection
For model selection, PV string voltage planning, and battery compatibility questions, contact https://tsolar.top/ or service@tsolar.top.
Protection Functions
- PV over current protection
- PV short circuit protection
- PV reverse polarity protection
- Night reverse charging protection
- Utility input overvoltage protection
- Battery overvoltage protection
- Utility input under voltage protection
- Battery over discharge protection
- Load short circuit protection
- Load overload protection
- Device overheating protection

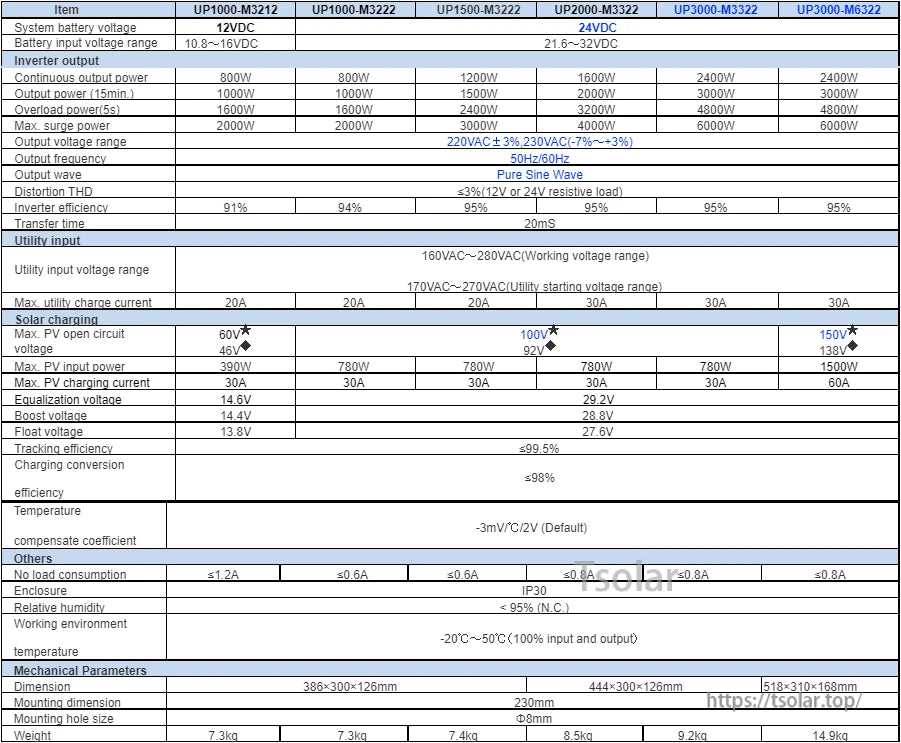

Specifications
UP3000-M3322 (24V)
| System battery voltage | 24VDC |
| Battery input voltage range | 21.6~32VDC |
| Continuous output power | 2400W |
| Output power (15min.) | 3000W |
| Overload power (5s) | 4800W |
| Max. surge power | 6000W |
| Output voltage range | 220VAC ±3%, 230VAC (-7%~+3%) |
| Output frequency | 50Hz/60Hz |
| Output wave | Pure Sine Wave |
| Distortion THD | <=3% (12V or 24V resistive load) |
| Inverter efficiency | 95% |
| Transfer time | 20mS |
| Utility input voltage range | 160VAC~280VAC (Working voltage range), 170VAC~270VAC (Utility starting voltage range) |
| Max. utility charge current | 30A |
| Max. PV open circuit voltage | 100V☆ / 92V◆ |
| Max. PV input power | 780W |
| Max. PV charging current | 30A |
| Equalization voltage | 29.2V |
| Boost voltage | 28.8V |
| Float voltage | 27.6V |
| Tracking efficiency | <=99.5% |
| Charging conversion efficiency | <=98% |
| Temperature compensate coefficient | -3mV/°C/2V (Default) |
| No load consumption | <=0.8A |
| Enclosure | IP30 |
| Relative humidity | <95% (N.C.) |
| Working environment temperature | -20°C~50°C (100% input and output) |
| Dimension | 518×310×168mm |
| Mounting dimension | 230mm |
| Mounting hole size | Φ8mm |
| Weight | 9.2kg |
UP3000-M6322 (24V)
| System battery voltage | 24VDC |
| Battery input voltage range | 21.6~32VDC |
| Continuous output power | 2400W |
| Output power (15min.) | 3000W |
| Overload power (5s) | 4800W |
| Max. surge power | 6000W |
| Output voltage range | 220VAC ±3%, 230VAC (-7%~+3%) |
| Output frequency | 50Hz/60Hz |
| Output wave | Pure Sine Wave |
| Distortion THD | <=3% (12V or 24V resistive load) |
| Inverter efficiency | 95% |
| Transfer time | 20mS |
| Utility input voltage range | 160VAC~280VAC (Working voltage range), 170VAC~270VAC (Utility starting voltage range) |
| Max. utility charge current | 30A |
| Max. PV open circuit voltage | 150V☆ / 138V◆ |
| Max. PV input power | 1500W |
| Max. PV charging current | 60A |
| Equalization voltage | 29.2V |
| Boost voltage | 28.8V |
| Float voltage | 27.6V |
| Tracking efficiency | <=99.5% |
| Charging conversion efficiency | <=98% |
| Temperature compensate coefficient | -3mV/°C/2V (Default) |
| No load consumption | <=0.8A |
| Enclosure | IP30 |
| Relative humidity | <95% (N.C.) |
| Working environment temperature | -20°C~50°C (100% input and output) |
| Dimension | 518×310×168mm |
| Mounting dimension | 230mm |
| Mounting hole size | Φ8mm |
| Weight | 14.9kg |

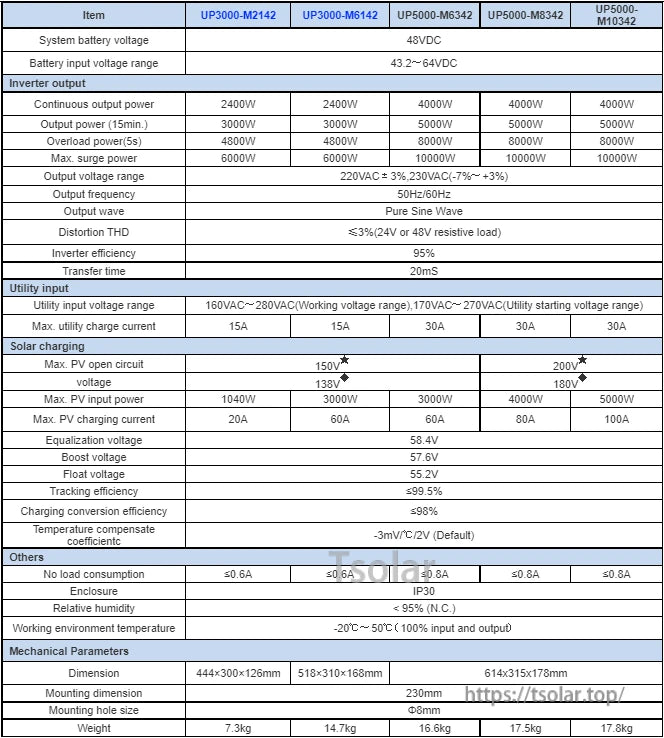

UP3000-M2142 (48V)
| System battery voltage | 48VDC |
| Battery input voltage range | 43.2~64VDC |
| Continuous output power | 2400W |
| Output power (15min.) | 3000W |
| Overload power (5s) | 4800W |
| Max. surge power | 6000W |
| Output voltage range | 220VAC ±3%, 230VAC (-7%~+3%) |
| Output frequency | 50Hz/60Hz |
| Output wave | Pure Sine Wave |
| Distortion THD | <=3% (24V or 48V resistive load) |
| Inverter efficiency | 95% |
| Transfer time | 20mS |
| Utility input voltage range | 160VAC~280VAC (Working voltage range), 170VAC~270VAC (Utility starting voltage range) |
| Max. utility charge current | 15A |
| Max. PV open circuit voltage | 150V☆ / 138V◆ |
| Max. PV input power | 1040W |
| Max. PV charging current | 20A |
| Equalization voltage | 58.4V |
| Boost voltage | 57.6V |
| Float voltage | 55.2V |
| Tracking efficiency | <=99.5% |
| Charging conversion efficiency | <=98% |
| Temperature compensate coefficient | -3mV/°C/2V (Default) |
| No load consumption | <=0.6A |
| Enclosure | IP30 |
| Relative humidity | <95% (N.C.) |
| Working environment temperature | -20°C~50°C (100% input and output) |
| Dimension | 444×300×126mm |
| Mounting dimension | 230mm |
| Mounting hole size | Φ8mm |
| Weight | 7.3kg |
UP3000-M6142 (48V)
| System battery voltage | 48VDC |
| Battery input voltage range | 43.2~64VDC |
| Continuous output power | 2400W |
| Output power (15min.) | 3000W |
| Overload power (5s) | 4800W |
| Max. surge power | 6000W |
| Output voltage range | 220VAC ±3%, 230VAC (-7%~+3%) |
| Output frequency | 50Hz/60Hz |
| Output wave | Pure Sine Wave |
| Distortion THD | <=3% (24V or 48V resistive load) |
| Inverter efficiency | 95% |
| Transfer time | 20mS |
| Utility input voltage range | 160VAC~280VAC (Working voltage range), 170VAC~270VAC (Utility starting voltage range) |
| Max. utility charge current | 15A |
| Max. PV open circuit voltage | 150V☆ / 138V◆ |
| Max. PV input power | 3000W |
| Max. PV charging current | 60A |
| Equalization voltage | 58.4V |
| Boost voltage | 57.6V |
| Float voltage | 55.2V |
| Tracking efficiency | <=99.5% |
| Charging conversion efficiency | <=98% |
| Temperature compensate coefficient | -3mV/°C/2V (Default) |
| No load consumption | <=0.6A |
| Enclosure | IP30 |
| Relative humidity | <95% (N.C.) |
| Working environment temperature | -20°C~50°C (100% input and output) |
| Dimension | 518×310×168mm |
| Mounting dimension | 230mm |
| Mounting hole size | Φ8mm |
| Weight | 14.7kg |
Video Demo
Details
EPEVER UPower MPPT inverter options cover 12V and 24V systems with pure sine wave output and up to 3000W continuous power.
The EPEVER UPower MPPT inverter uses a 48V battery system and provides pure sine wave 220VAC output with up to 3000W output power (1 minute) and >95% efficiency.
