Overview
This Lithium Polymer Battery (Model 4025100) is a 3.7V, 1000mAh cell designed for compact electronics. It features a 4/25/100mm (H*W*L) form factor and is supplied with a protection board, cable, terminals, and default PH-2.0P plug. Typical uses include Bluetooth voice recorders, E-books, smart furniture lighting, and emergency LED lights. CE certification and integrated protection functions are provided.
Key Features
- 3.7V Li-Polymer rechargeable battery with 1000mAh nominal capacity
- Integrated protection board: overcharge, overdischarge, overcurrent, short circuit
- Default delivery with PH-2.0P plug; battery plate + cable + terminals included
- Operating temperature: -20°C to 60°C; storage temperature: -10°C to 45°C
- Electrical parameters: charging voltage 4.2V; discharge voltage range 2.75V–4.2V; max charge/discharge current 1.5A; operating current 1A–1.5A
- Set Type: Batteries Only; Replacement Battery: Yes
- CE certified; High-concerned Chemical: None
- Polarity note: terminals may be assembled in either orientation; see Notes
Specifications
| Battery Type | Polymer Lithium Battery |
|---|---|
| Type | Li-Polymer |
| Name | 3.7V 1000mAh 4025100 Battery |
| Model Number | 4025100 |
| Mode | 402020 1000mAh battery |
| Rated Voltage | 3.7V |
| Capacity | 1000mAh |
| Nominal Capacity | 1000mAh |
| Size | 4/25/100mm (H*W*L) |
| Operating Temperature | -20°C~60°C |
| Storage Temperature | -10~45℃ |
| Maximum Charging Current | 1.5A |
| Maximum Discharge Current | 1.5A |
| Operating Current | 1A-1.5A |
| Discharge Voltage | 2.75V-4.2V |
| Charging Voltage | 4.2V |
| Certification | CE |
| High-concerned Chemical | None |
| Origin | Mainland China |
| Place of manufacture | China |
| Shelf life | 1 year |
| Set Type | Batteries Only |
| Replacement Battery | Yes |
| Protection function (devices) | camera, navigator, intelligent home appliances, |
| Protection function (electrical) | overcharge, overdischarge, overcurrent, short circuit |
| Battery specification | with battery plate + cable + terminals + battery cells |
| Default delivery | PH-2.0P plug |
What’s Included
- 4025100 3.7V 1000mAh Lithium Polymer Battery with protection board
- Pre-attached cable and terminals; default PH-2.0P plug
Applications
- Beauty products
- LED lights, emergency lights, sensor lights, LED cabinet lights
- Bluetooth voice recorders
- E-books
- Smart furniture and smart home lights
Notes
- If the device does not respond after connection, try swapping the red and black wires at the battery plug; red is positive and black is negative.

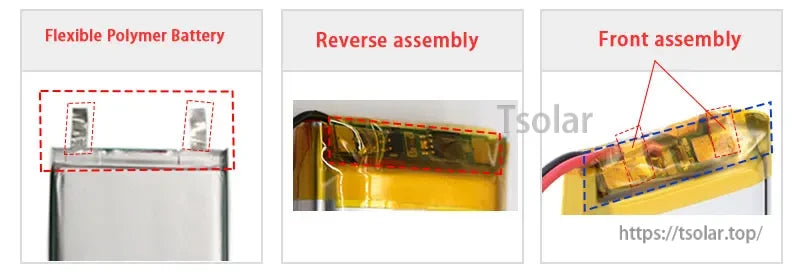

- Positive/negative lugs may be assembled in front or reverse orientation at random delivery; this does not affect product use.
Details
Lithium polymer battery with stable performance, secure, high-quality, and positive gel for reliable power.

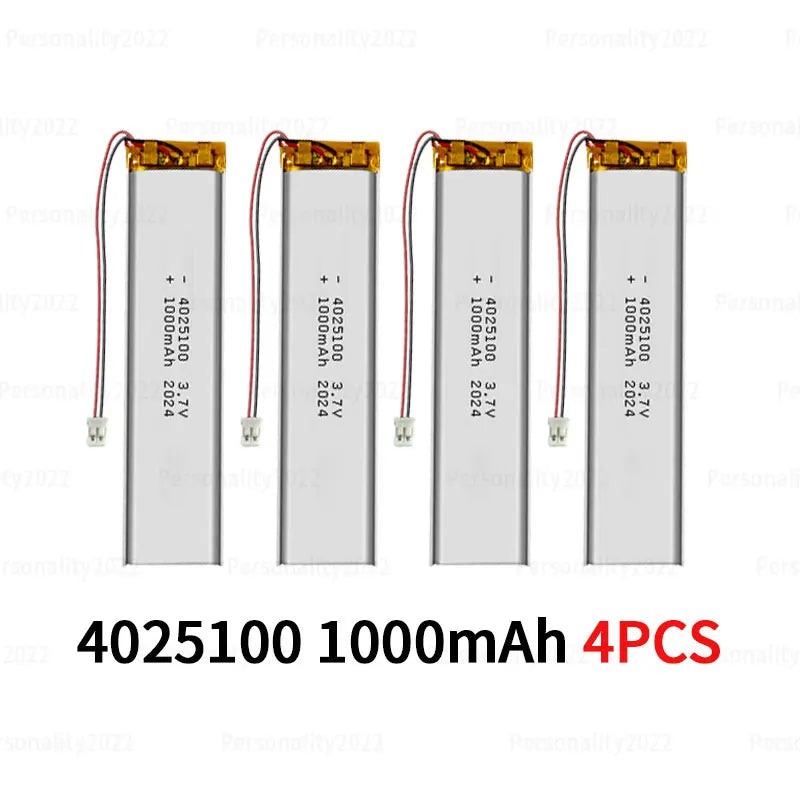

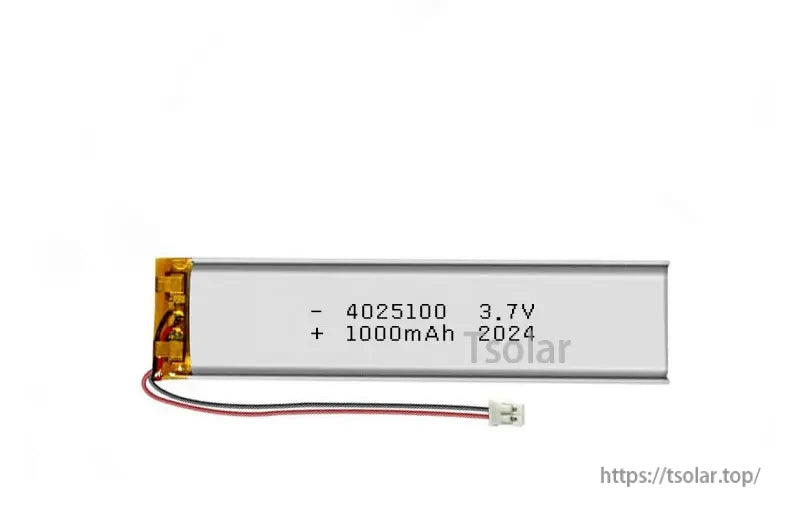

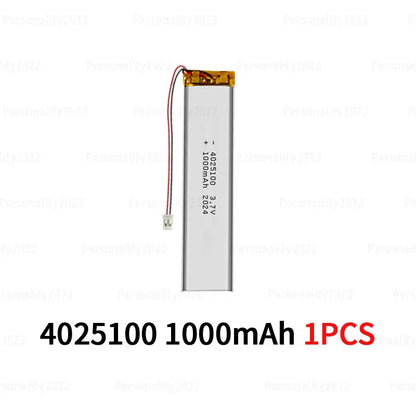

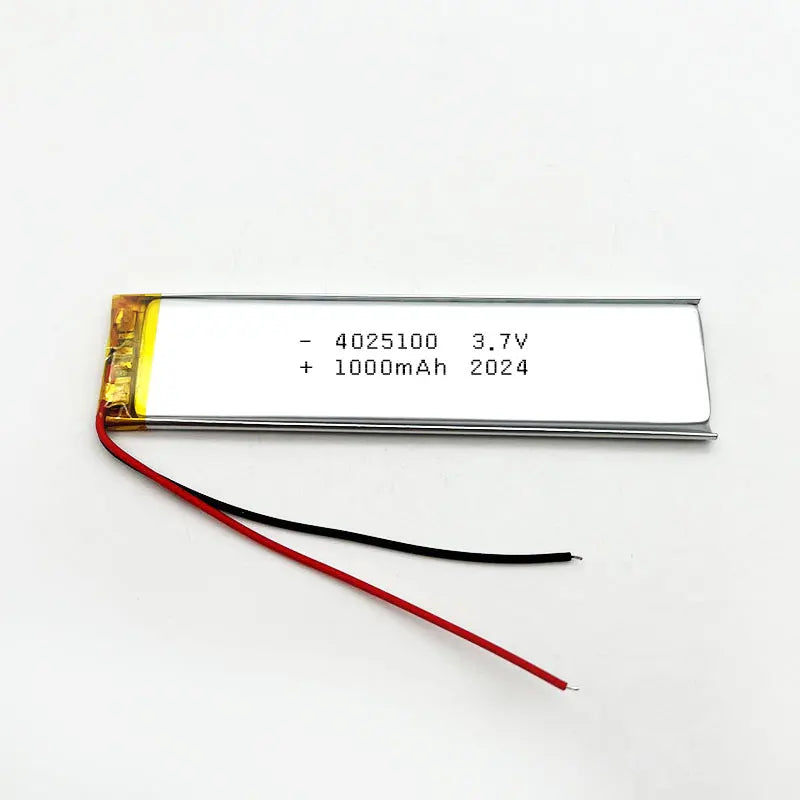

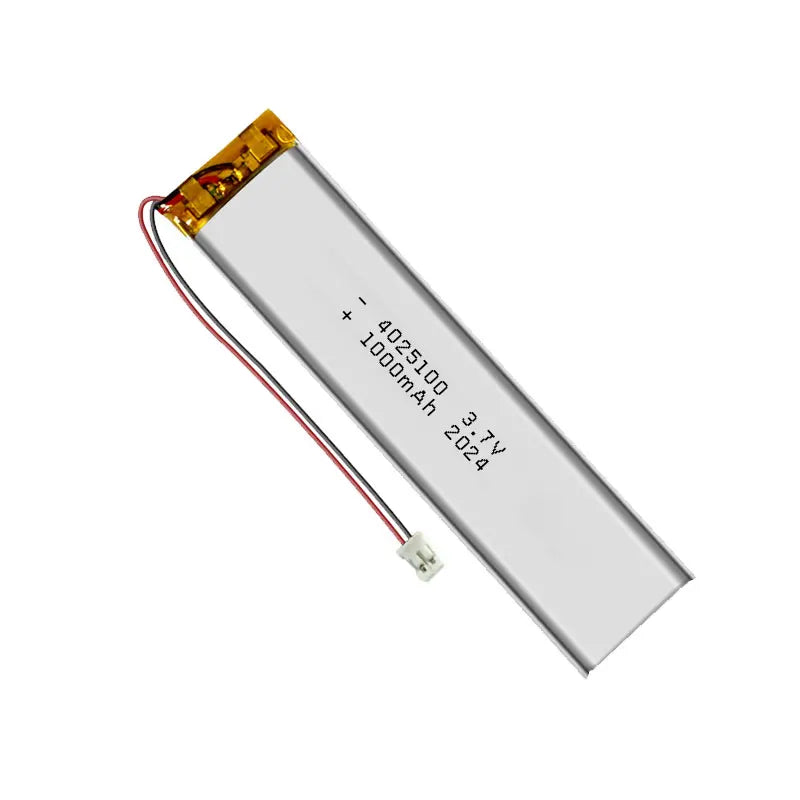

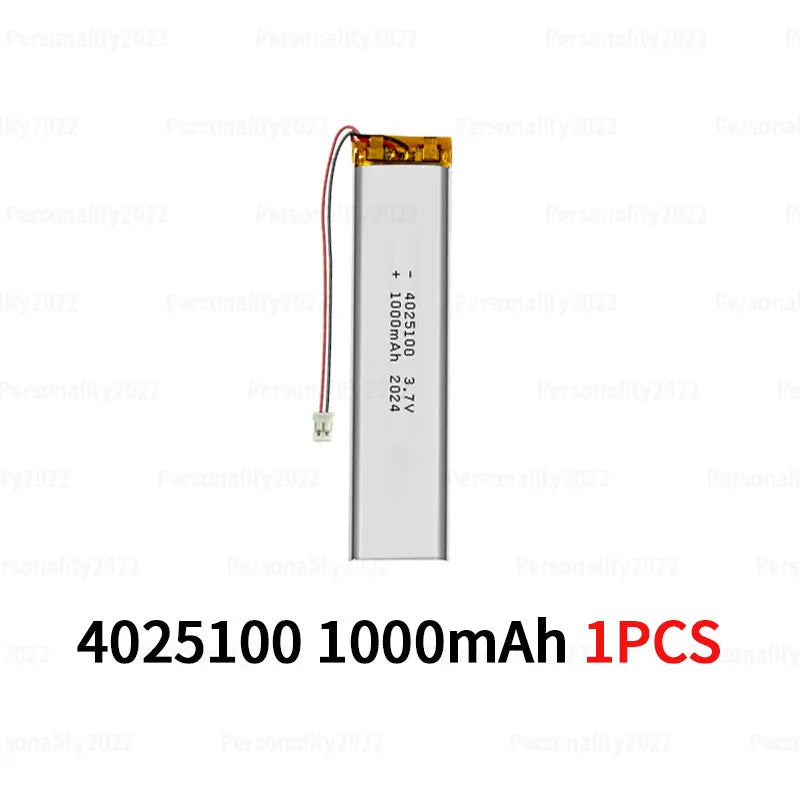

4025100 1000mAh 3.7V Lithium Polymer Battery with connector and wires

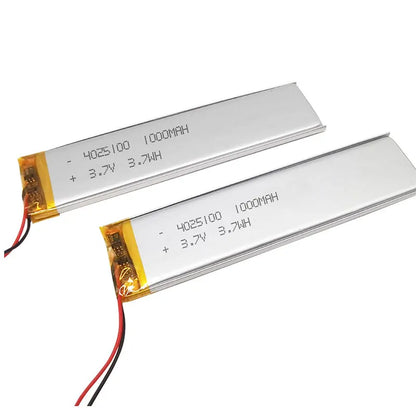

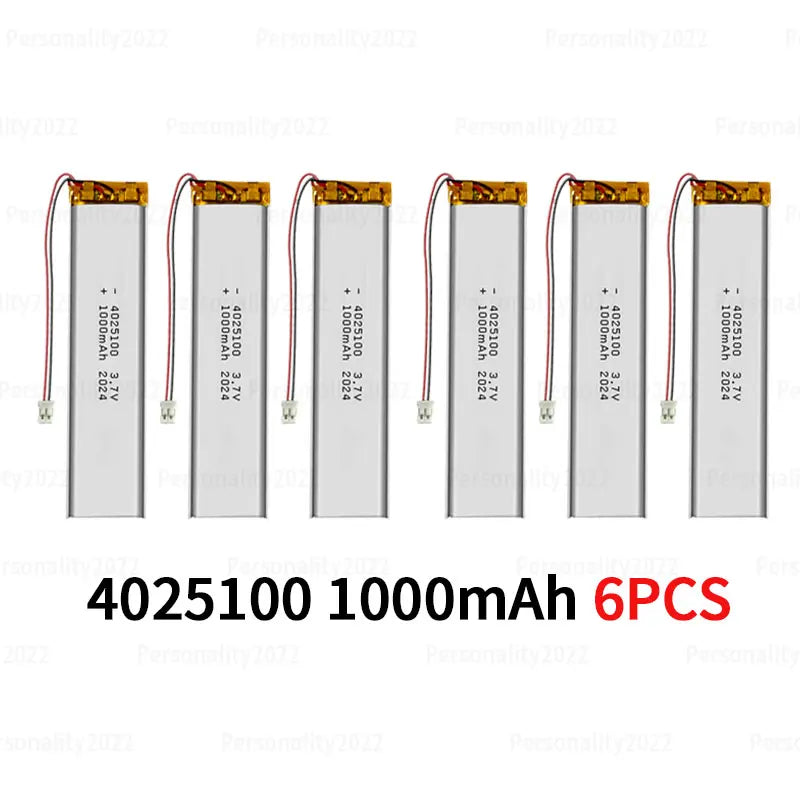

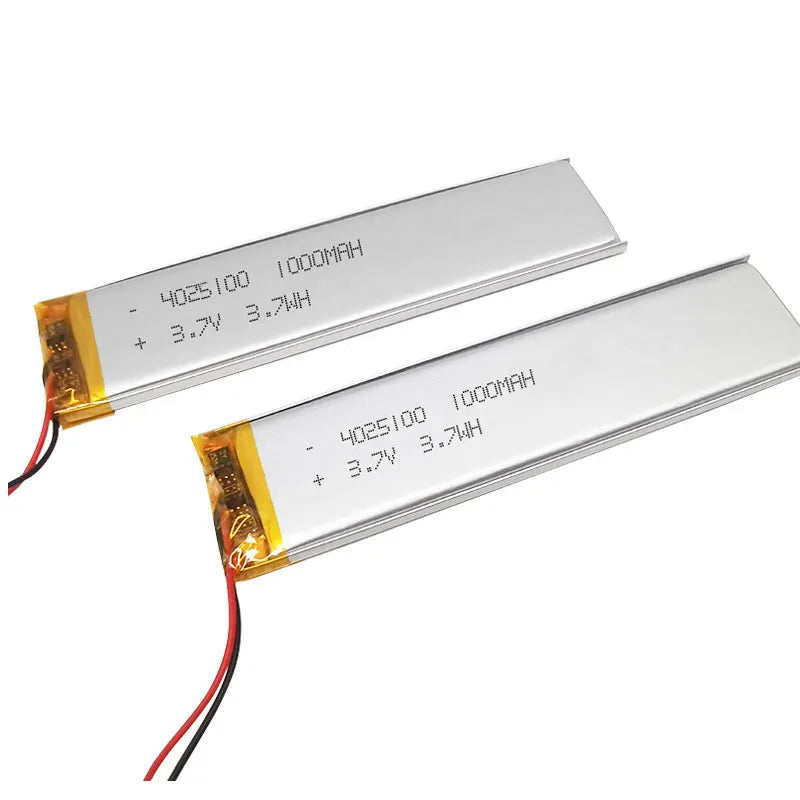

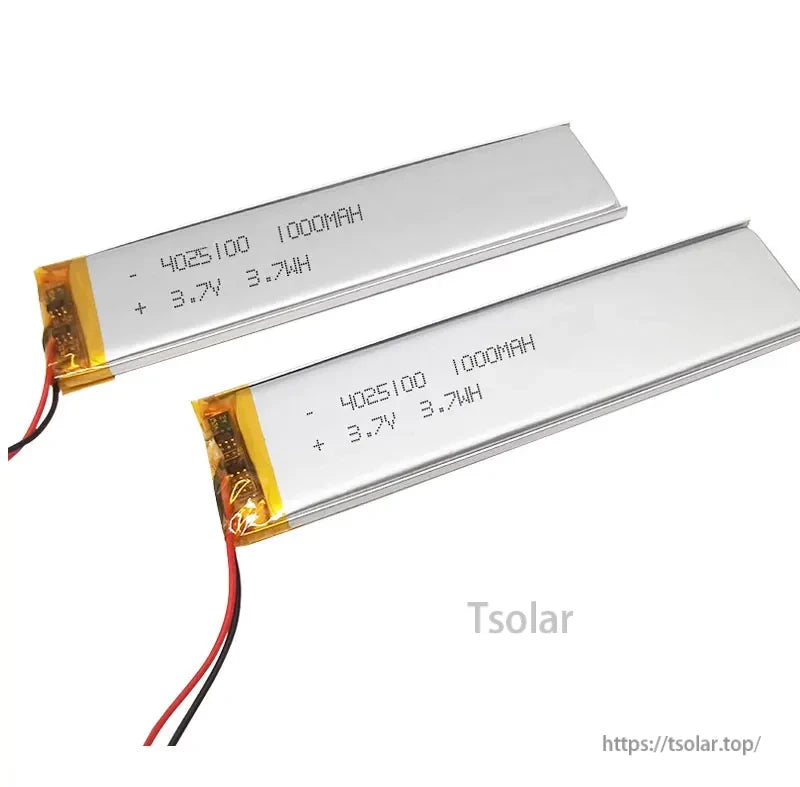

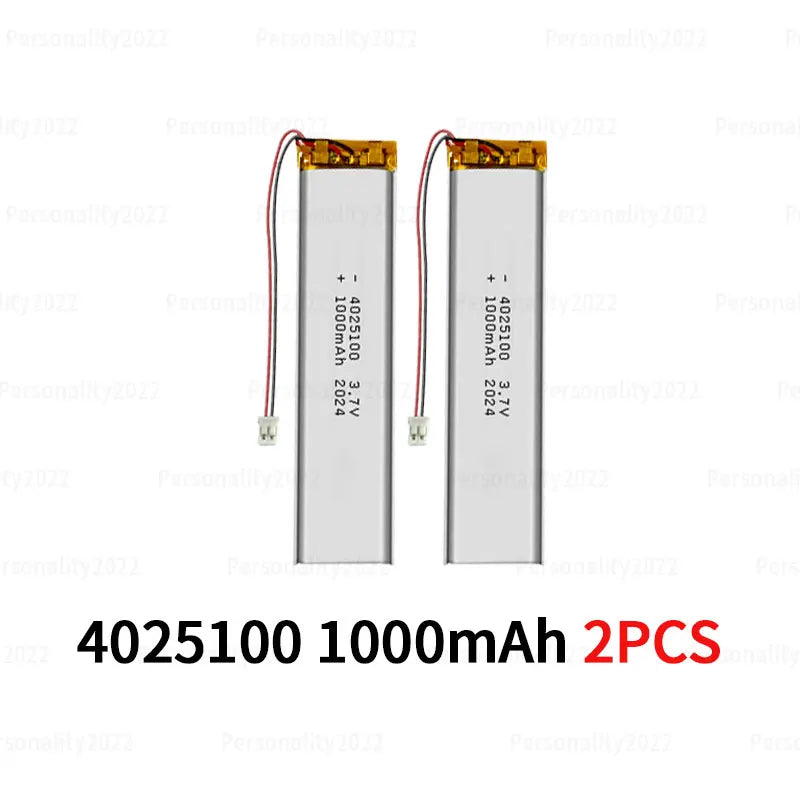

4025100 1000mAh 3.7V 3.7Wh lithium polymer battery, two units with red and black wires, silver casing, labeled with specifications.

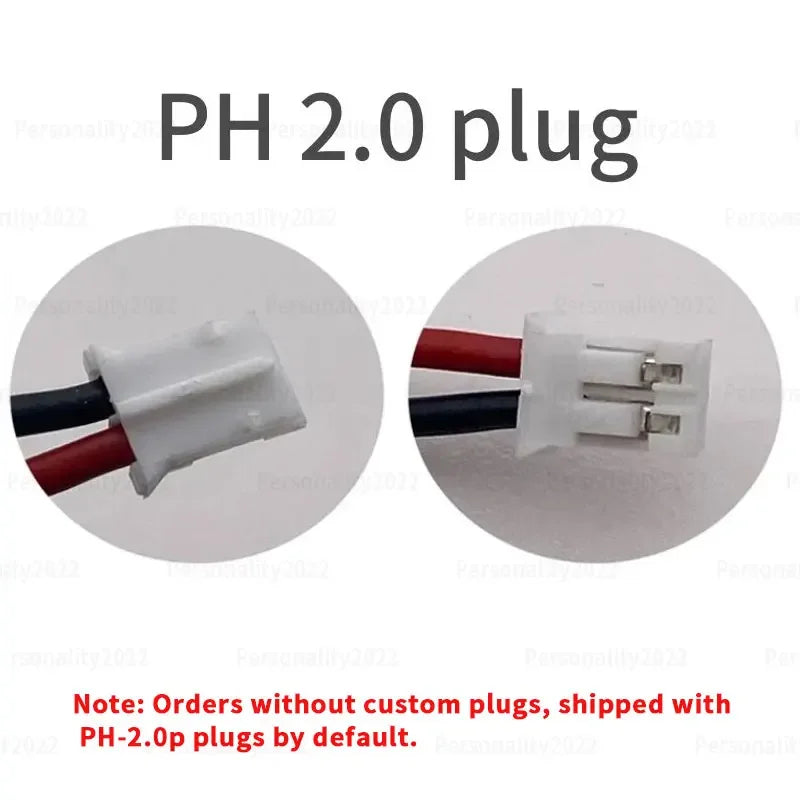

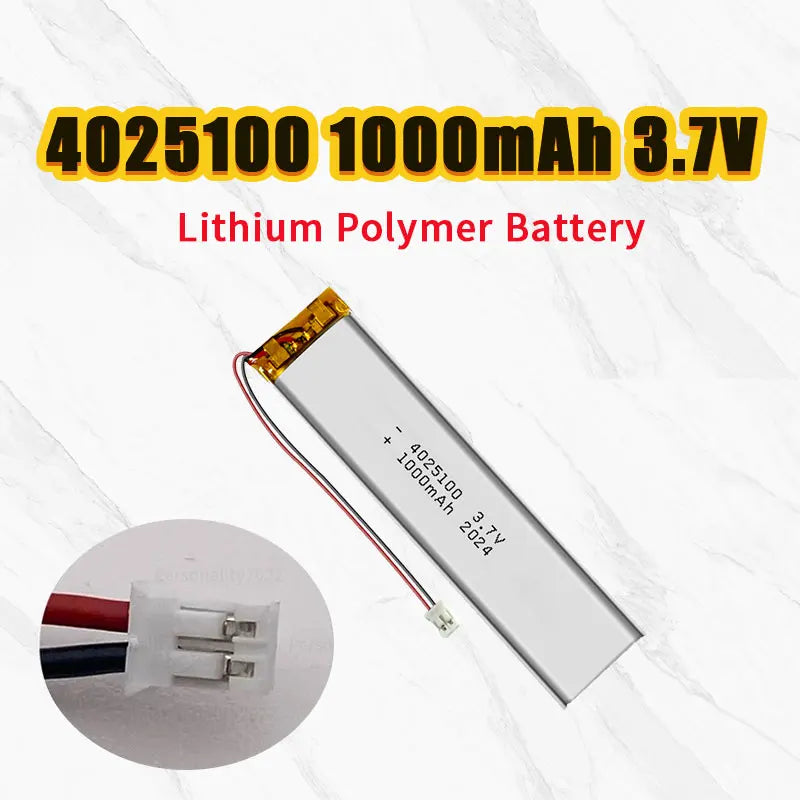

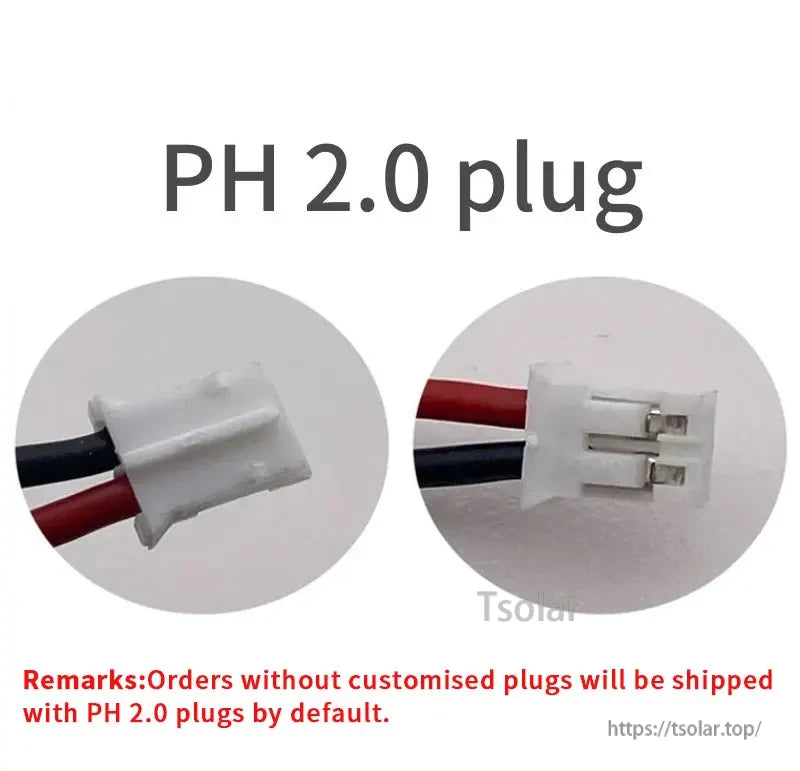

PH 2.0 plug; orders without custom plugs shipped with PH 2.0 plugs by default.

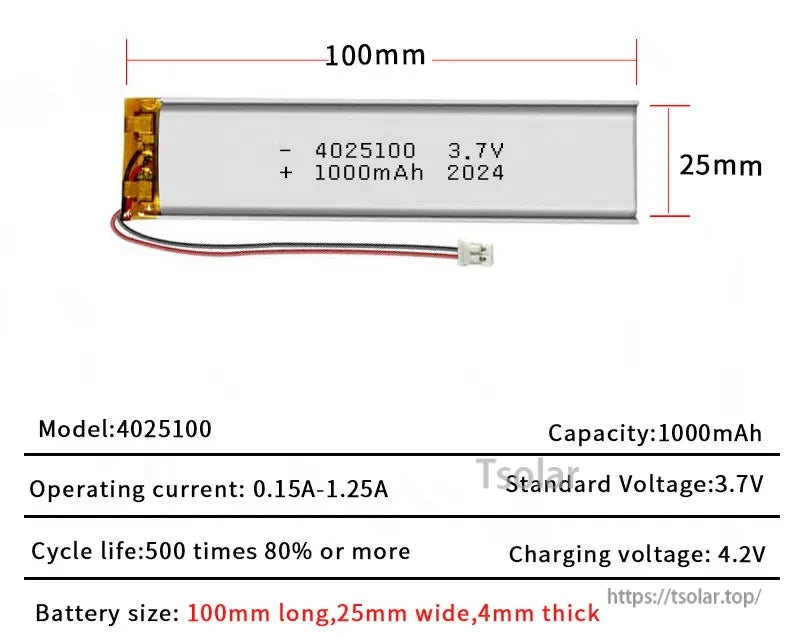

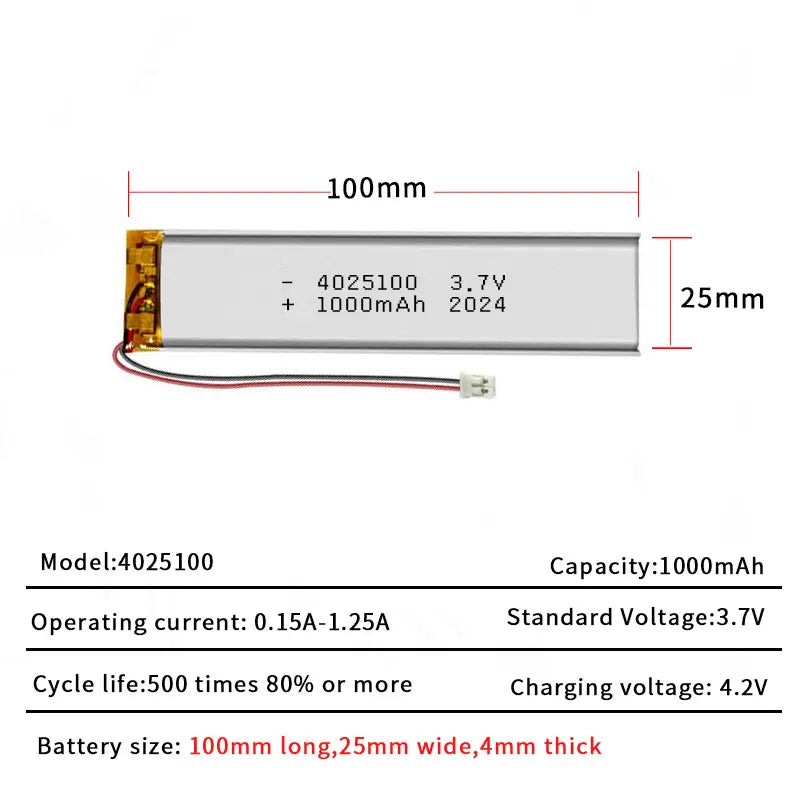

4025100 3.7V 1000mAh Li-Po battery, 100mm×25mm×4mm, 0.15A-1.25A current, 500 cycles at 80%, charge to 4.2V, standard voltage 3.7V.

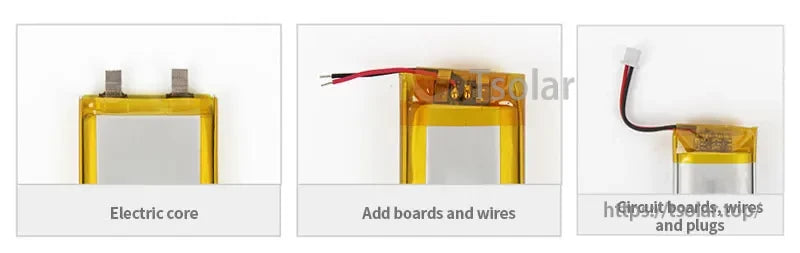

Electric core, add boards and wires, circuit boards, wires and plugs.

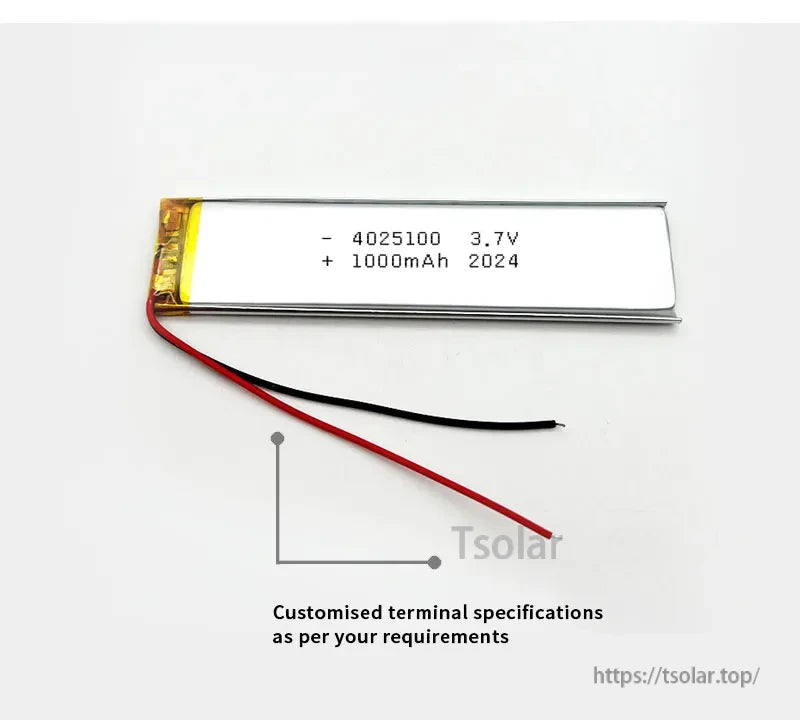

4025100 3.7V 1000mAh lithium polymer battery with customized terminal specifications.

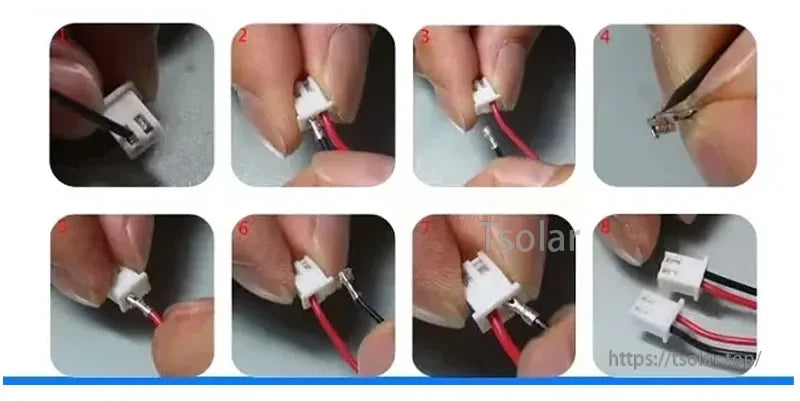

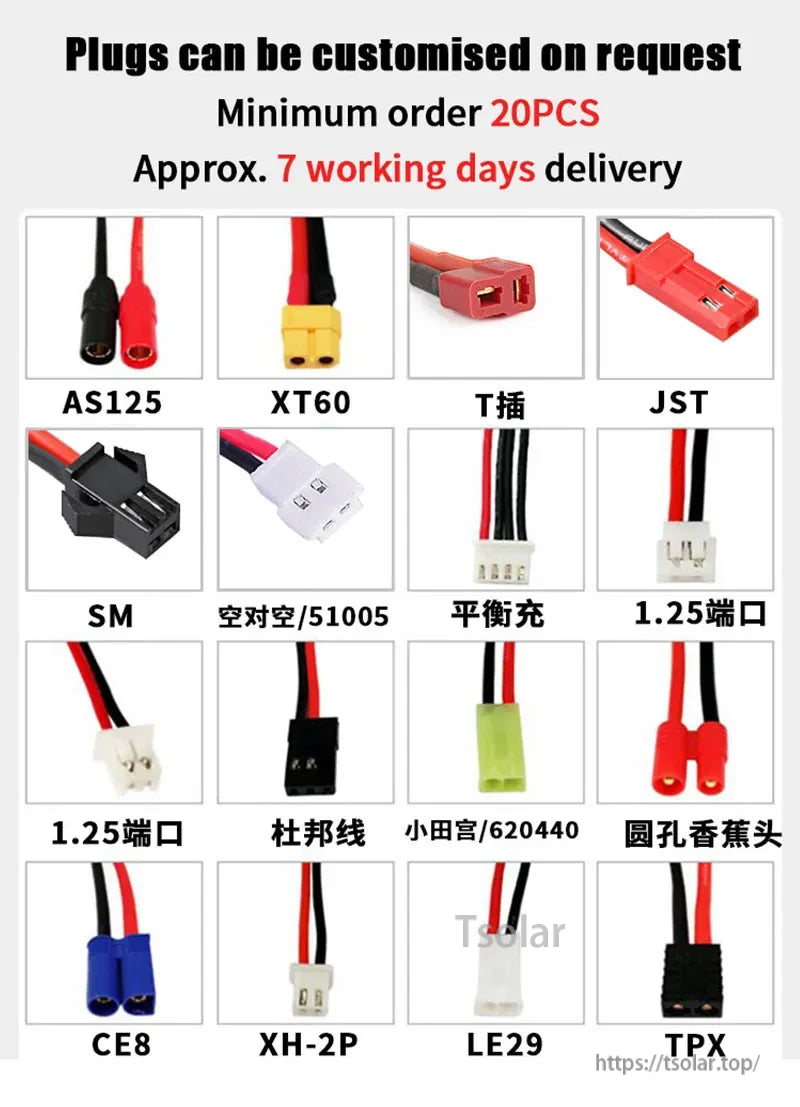

Various plug types available for customization, minimum order 20 pcs, delivery in approx. 7 working days. Includes AS125, XT60, T plug, JST, SM, 51005, balance charge, 1.25mm, Deans, 620440, banana plug, CE8, XH-2P, LE29, TPX.
Battery for beauty, toys, humidifier, massager, audio, camera, medical, tablet, stereo, mouse.
