Overview

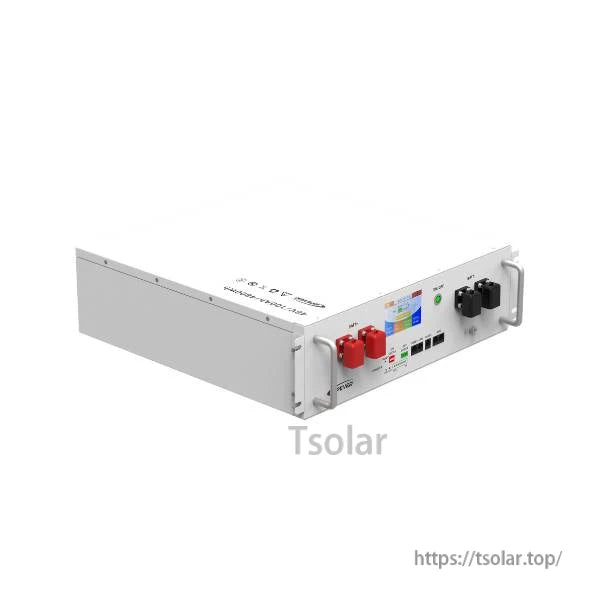

The EPEVER 48V 100Ah lithium battery is a rack-mounted LiFePO4 energy storage battery with front-panel LED+LCD monitoring and RS485 & Modbus communication for system integration. It is designed for solar battery banks, home battery backup, residential solar setups, RVs, camping, marine, and emergency power systems.
Key Features
- A-grade brand-new prismatic LiFePO4 cells
- Metal case for heat dissipation
- Rack-mounted style

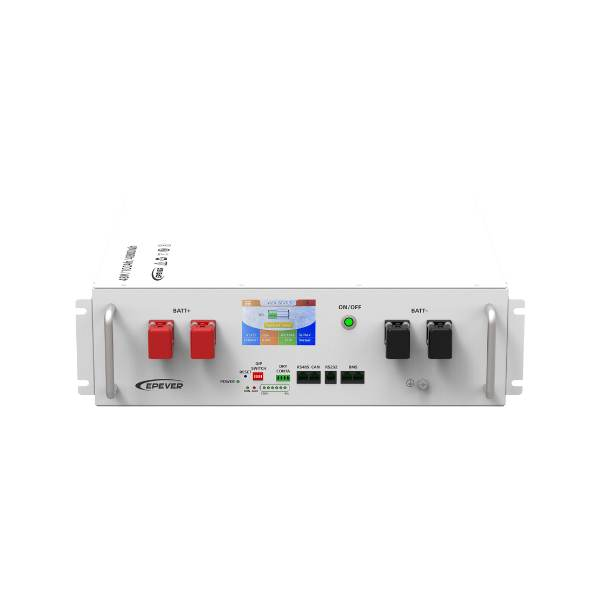

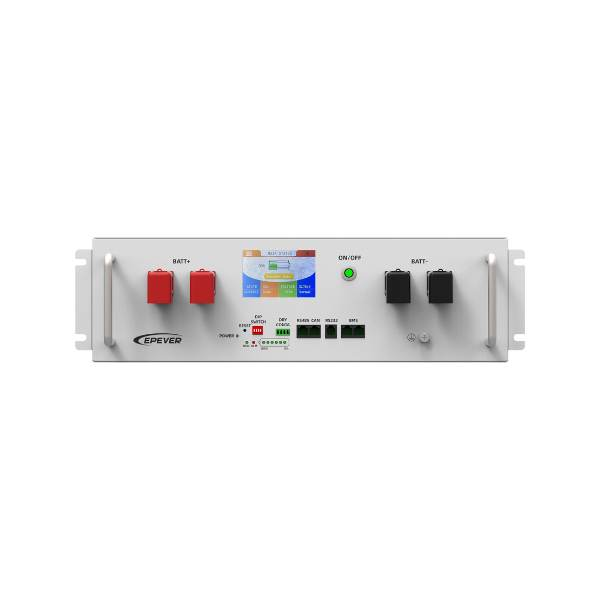

- LED+LCD display to monitor cell SOC, voltage, temperature, and alarm status
- Protection: overcharge, over-discharge, over temperature, low temperature, over current, and short circuit
- Up to 8 battery packs can be connected in parallel
- Certificates: UN38.3, MSDS, IEC62619
For compatibility questions (inverter/charger settings, parallel configuration, or communications wiring), contact support at service@tsolar.top or visit https://tsolar.top/.

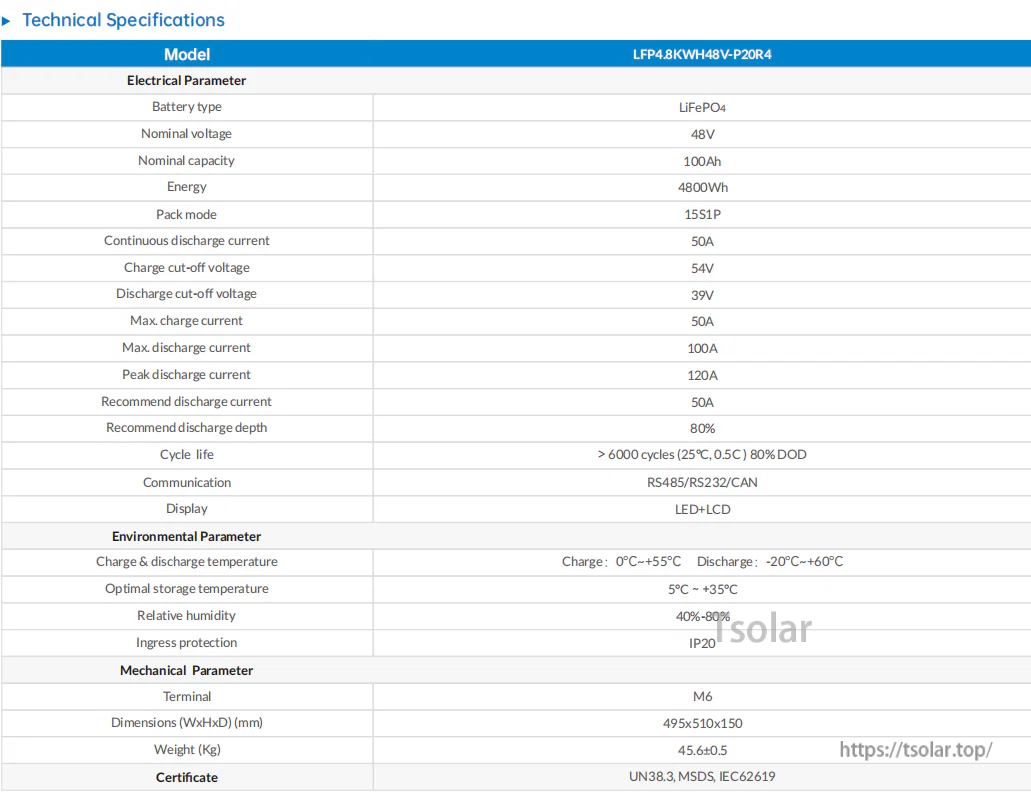

Specifications
| Model | LFP4.8KWH48V-P20R4 |
| Battery type | LiFePO4 |
| Nominal voltage | 48V |
| Nominal capacity | 100Ah |
| Energy | 4800Wh |
| Pack mode | 15S1P |
| Continuous discharge current | 50A |
| Charge cut-off voltage | 54V |
| Discharge cut-off voltage | 39V |
| Max. charge current | 50A |
| Max. discharge current | 100A |
| Peak discharge current | 120A |
| Recommend discharge current | 50A |
| Recommend discharge depth | 80% |
| Cycle life | > 6000 cycles (25°C, 0.5C) 80% DOD |
| Communication | RS485/RS232/CAN |
| Display | LED+LCD |
| Charge & discharge temperature | Charge: 0°C~+55°C; Discharge: -20°C~+60°C |
| Optimal storage temperature | 5°C~+35°C |
| Relative humidity | 40%~80% |
| Ingress protection | IP20 |
| Terminal | M6 |
| Dimensions (W x H x D) | 495 x 510 x 150 mm |
| Weight | 45.6±0.5 Kg |
| Certificate | UN38.3, MSDS, IEC62619 |
Applications
- Solar battery banks and residential solar energy storage
- Home battery backup and emergency power systems
- RV, camping, and marine power systems
- Residential and light commercial energy storage projects
Details
The EPEVER 48V 100Ah LiFePO4 battery is rated at 4800Wh and lists key limits like 54V charge cut-off, 39V discharge cut-off, and RS485/RS232/CAN communication.
