Overview

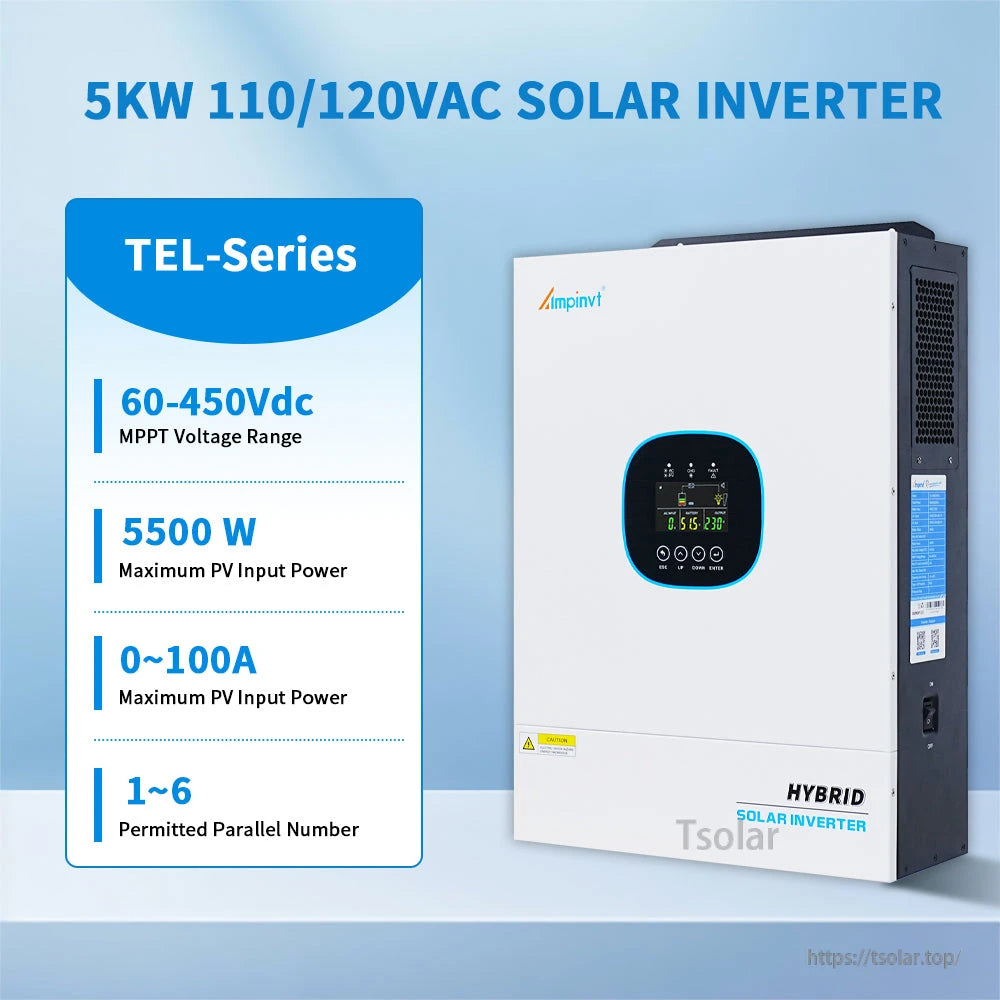

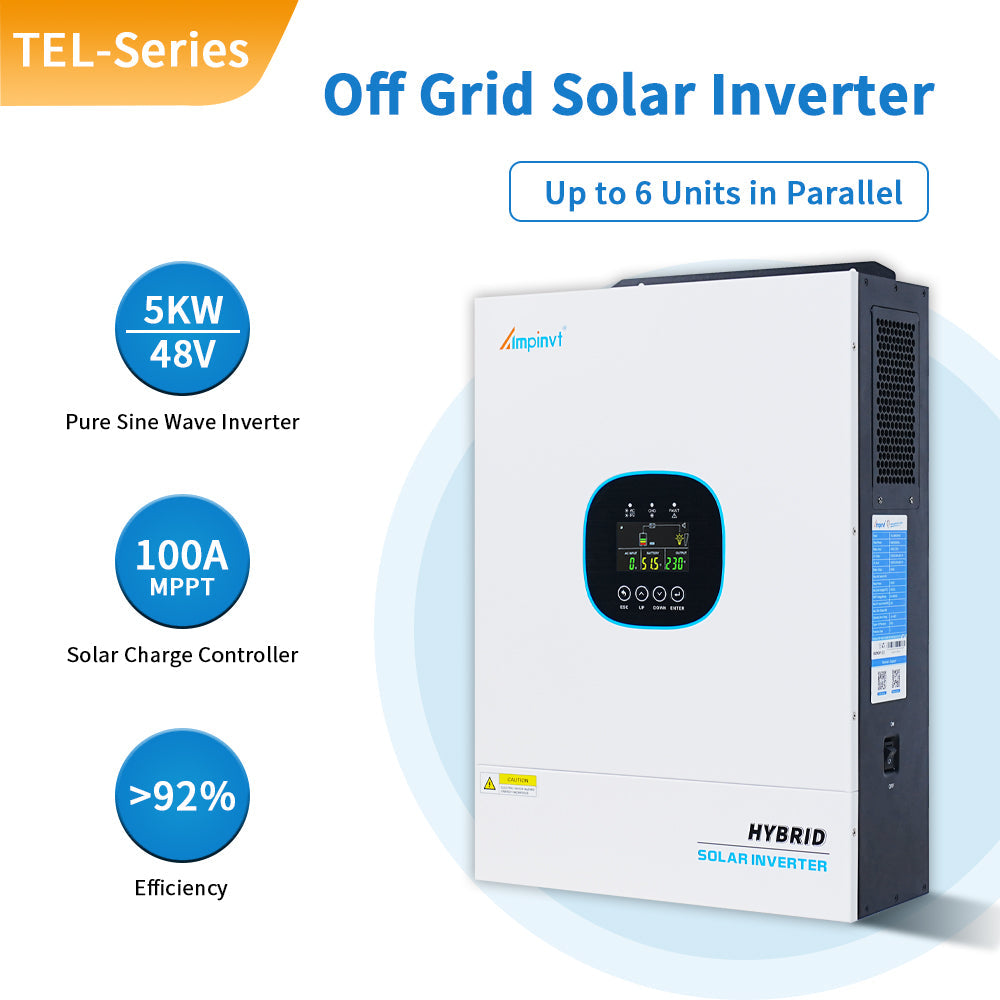

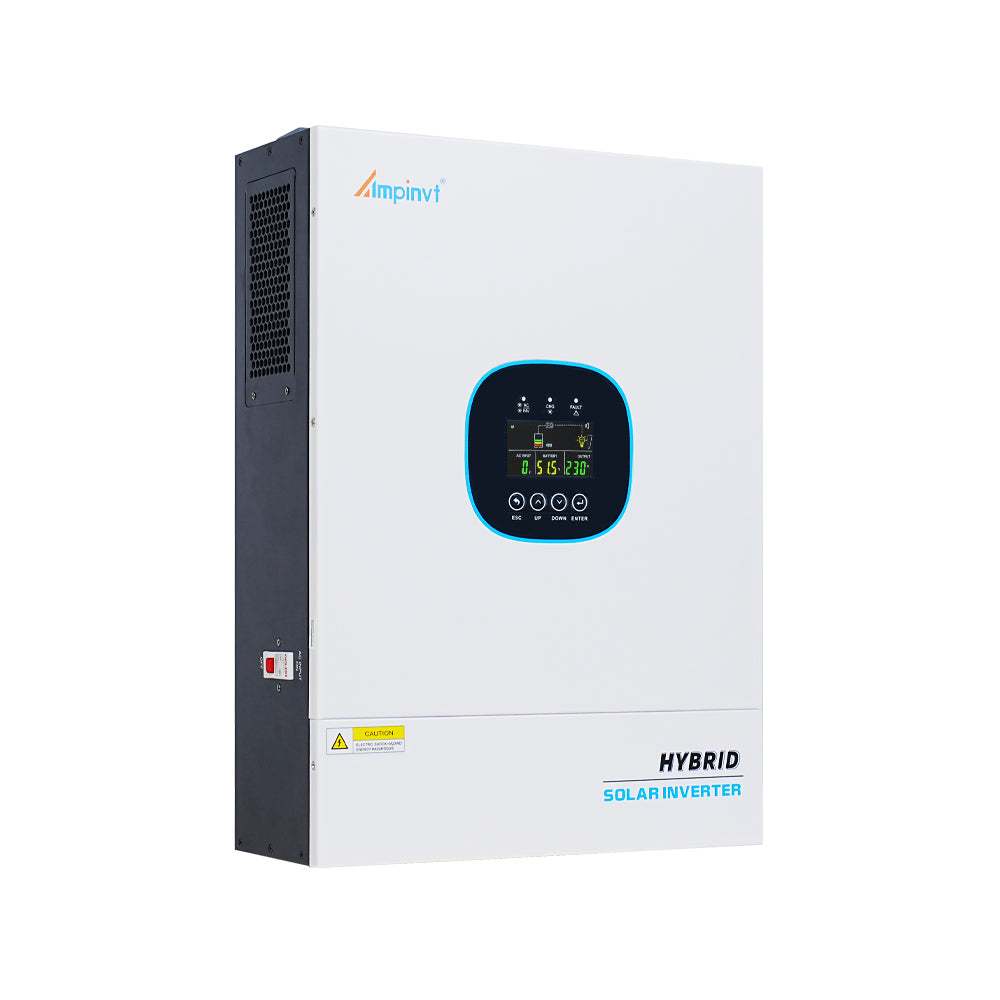

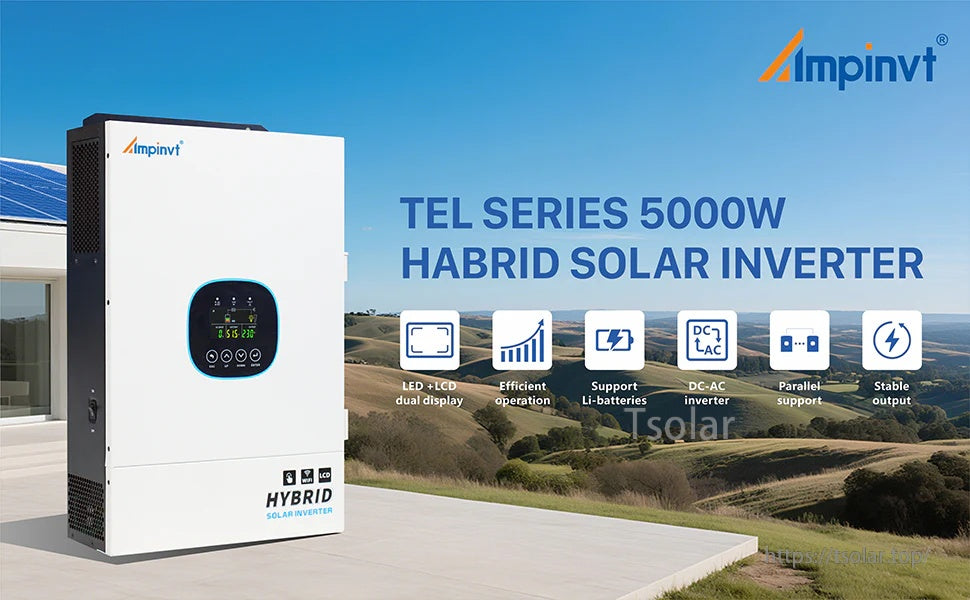

The Ampinvt TEL Series 5000W hybrid solar inverter charger is designed for a 48V battery system and provides pure sine wave AC output. It supports battery charging from solar power, AC utility power, or a generator, and it supports parallel expansion up to 6 units for single-phase, split-phase, or three-phase system configurations.
Key Features
- Pure sine wave output
- Power rating: 5000W continuous output power; 10000W peak output power
- 48V battery system only (battery required for operation)
- Parallel operation: supports up to 6 units in parallel connection

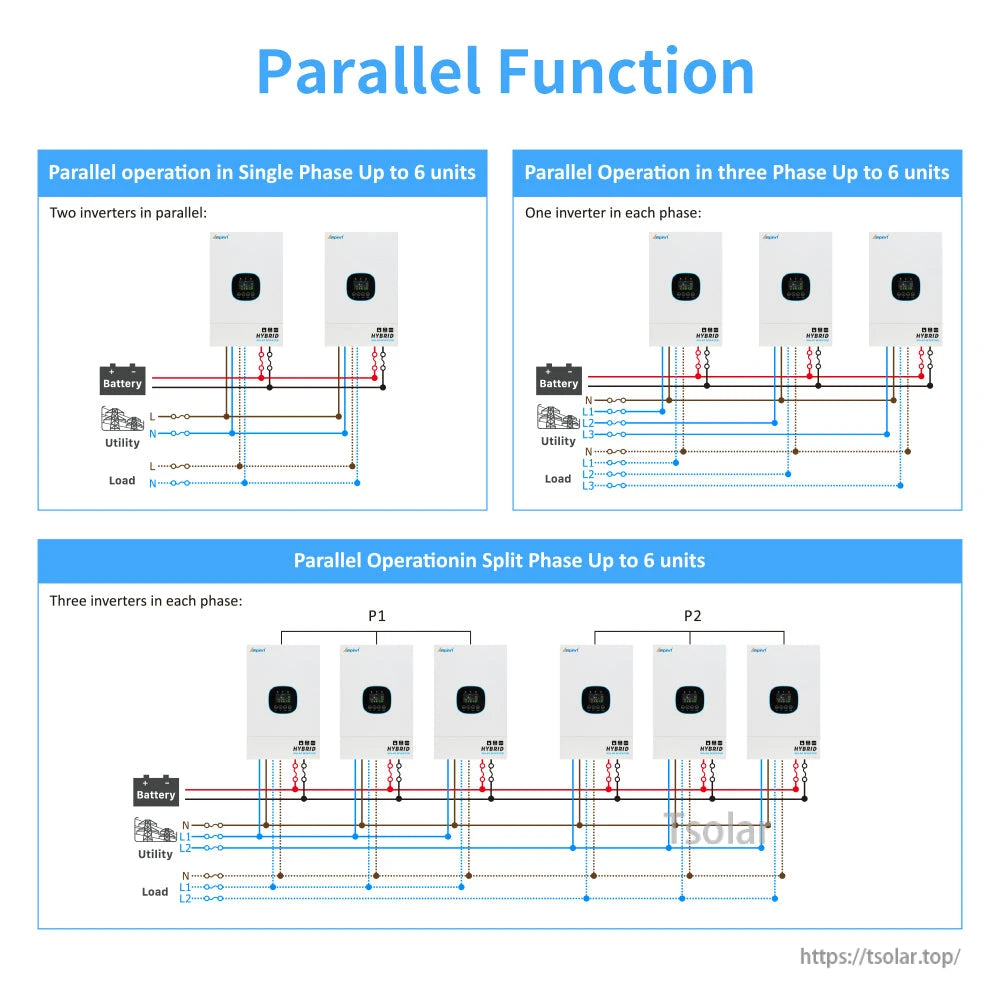

- Flexible output configurations (parallel system): single-phase, 120V/240V split-phase, or 208V three-phase (except for single-phase mode, parallel connection supports both 120V/240V split-phase and 208V three-phase output)
- Built-in MPPT solar charge controller: 100A
- Display & controls: LED indicators, LCD display, function keys; LED + LCD dual display

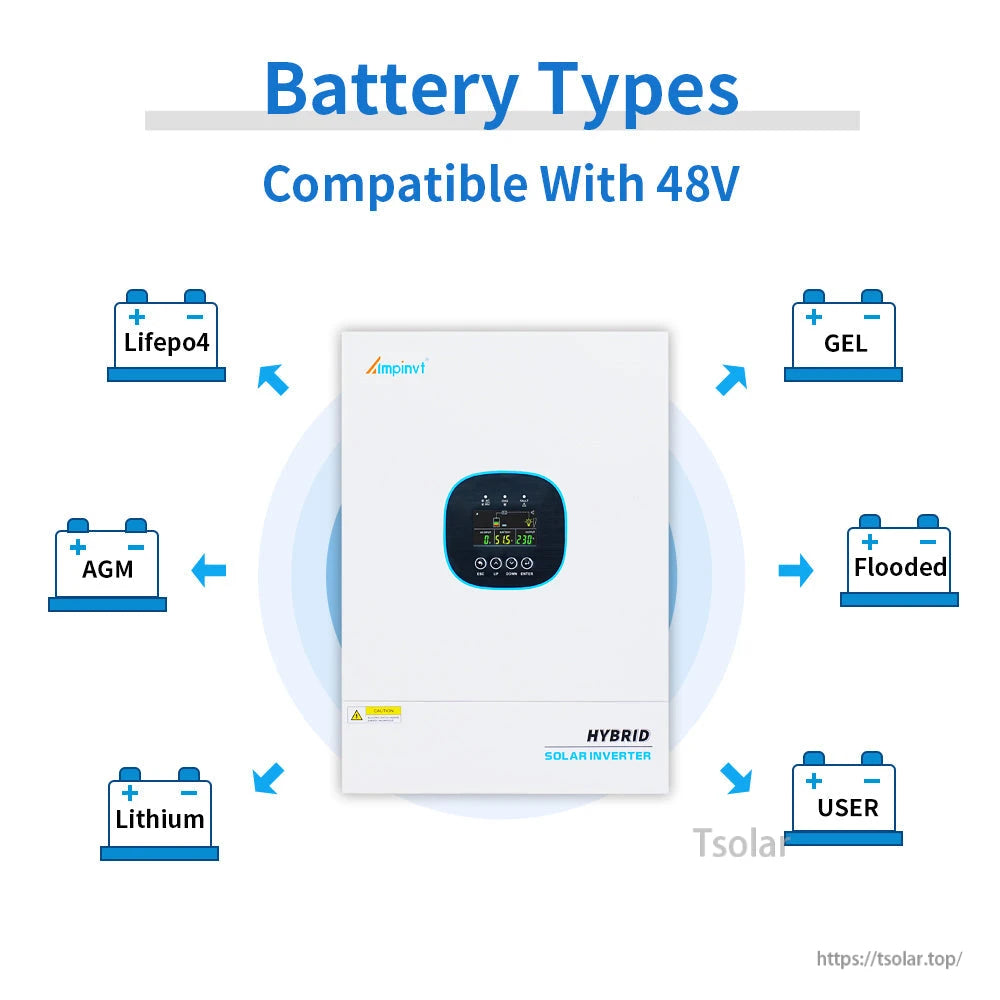

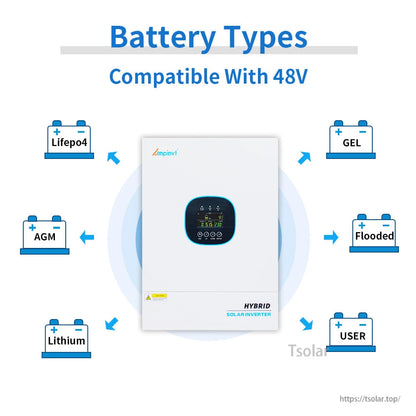

- Battery compatibility: compatibility with multiple battery types; supports Li-batteries
- Charging modes: multiple charging and output modes

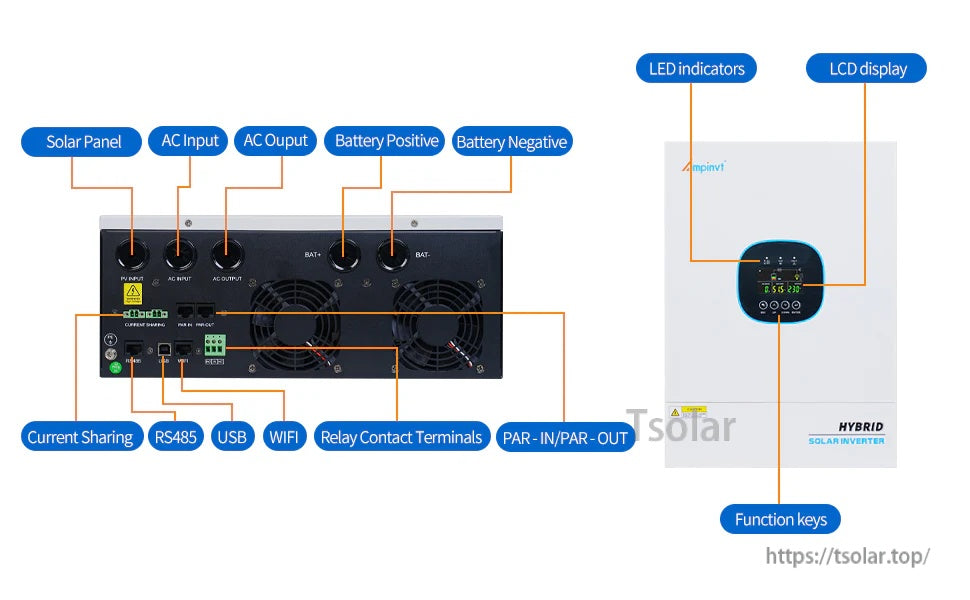

- Interfaces/terminals (as labeled): Solar Panel, AC Input, AC Output, Battery Positive, Battery Negative, Current Sharing, RS485, USB, WIFI, Relay Contact Terminals, PAR-IN/PAR-OUT
Four Charging Modes
- Hybrid Charging: Solar energy charges the battery preferentially; utility charges the battery at the same time when solar energy is insufficient.
- Only Solar Charging: Solar is the only charging source whether utility is available or not.
- PV Priority: Solar charges the battery as first priority; utility charges the battery when solar energy is not available.
- Utility Priority: Utility charges the battery preferentially; solar charges the battery only when utility is invalid.
Protection Features
- PV night reverse-current protection
- Mains input over/under voltage protection
- Battery over/low voltage protection
- Load output short circuit protection
- Charge short protection
- Overload protection
- Heat sink over temperature protection
- CAN communication loss protection
- Parallel connection error protection
Specifications
| Series | TEL Series |
| Type | Hybrid solar inverter |
| Continuous output power | 5000W |
| Peak output power | 10000W |
| Battery system voltage | 48V |
| MPPT solar charge controller | Built-in 100A MPPT |
| Parallel capability | Up to 6 units |

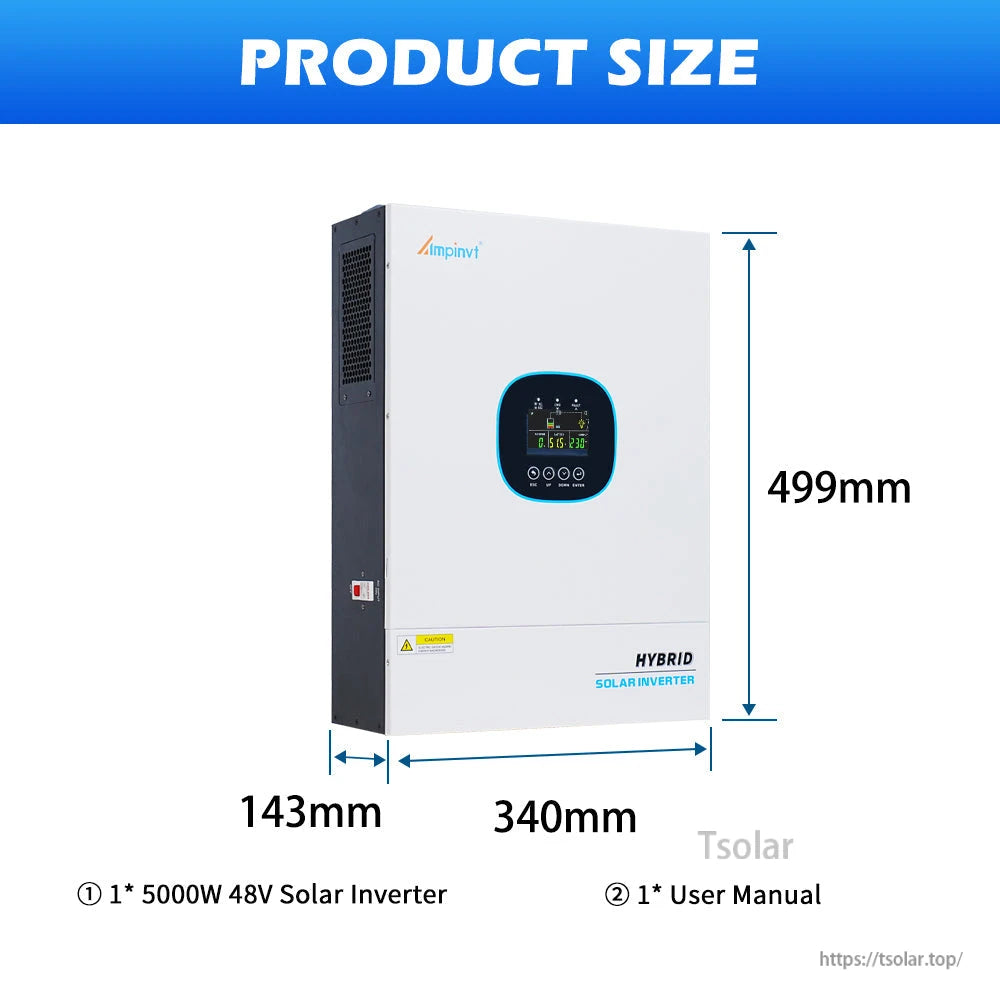

| Dimensions | 499mm x 340mm x 143mm |
What’s Included
- 1 x 5000W 48V Solar Inverter
- 1 x User Manual
Applications
- Residential, commercial, or industrial power systems requiring flexible single-phase, split-phase, or three-phase configurations (with parallel expansion)
- Loads with varying starting impulse currents (select inverter capacity based on equipment power, current, and load characteristics)
For pre-sales and technical support (system sizing, parallel configuration guidance, and compatibility questions), contact https://tsolar.top/ or email service@tsolar.top.
Details
The TEL Series combines pure sine wave output with a built-in 100A MPPT controller and scalable parallel operation.
Clear terminal labeling and a front LCD/keys make setup and monitoring straightforward for solar, utility, and battery inputs.

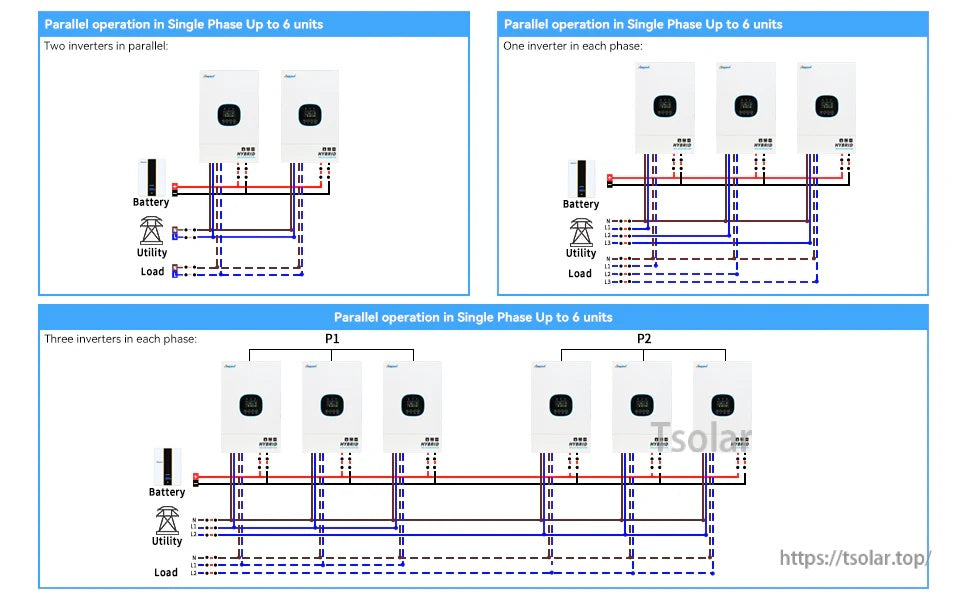

Parallel cabling supports expansion up to six units for higher system capacity and flexible configurations.
Plan your install with a 499 × 340 × 143 mm enclosure; package includes the inverter and user manual.
