Overview

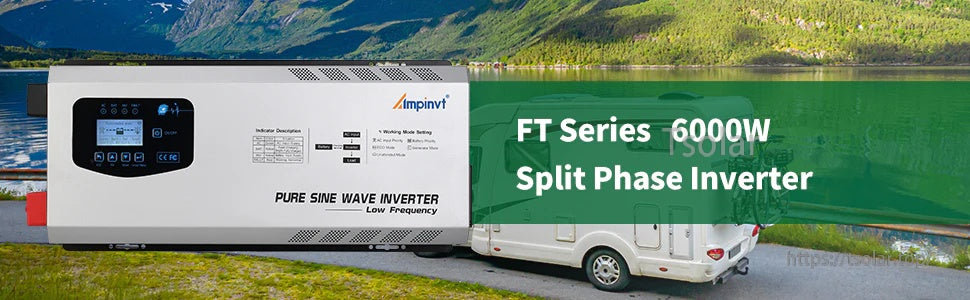

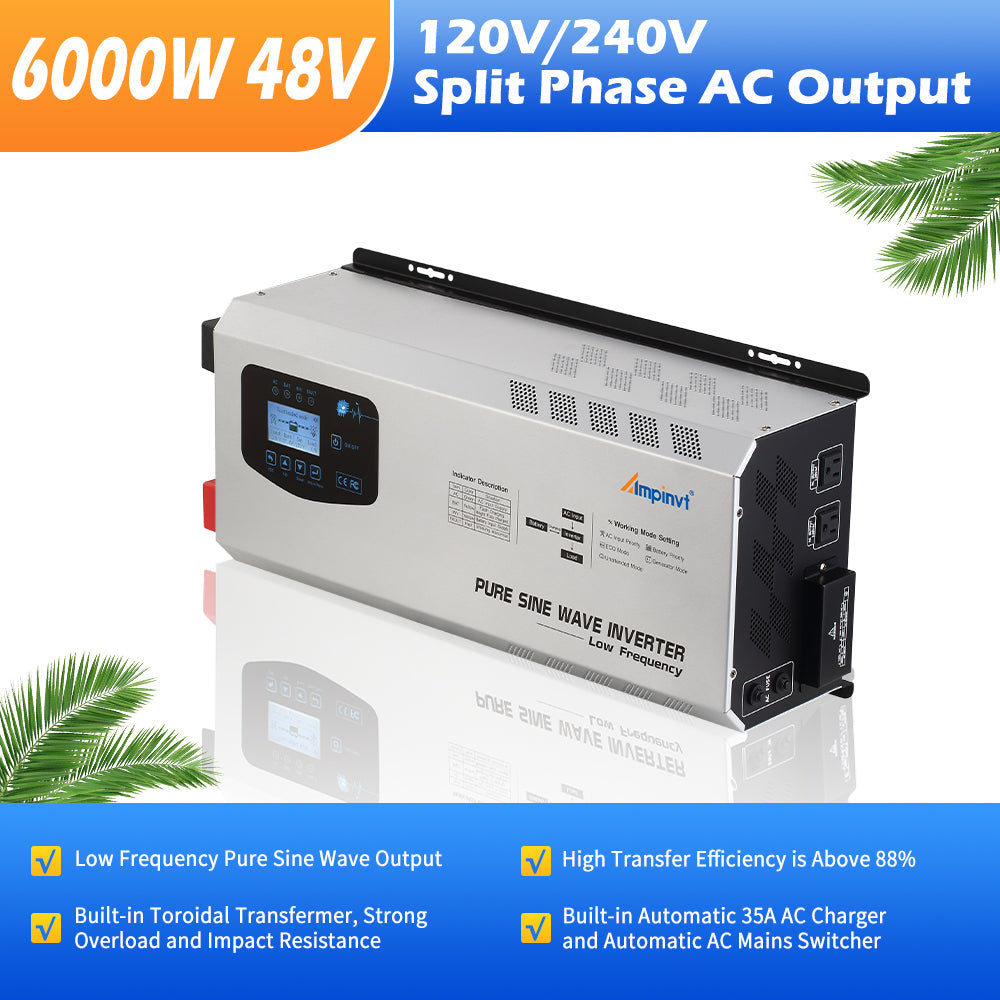

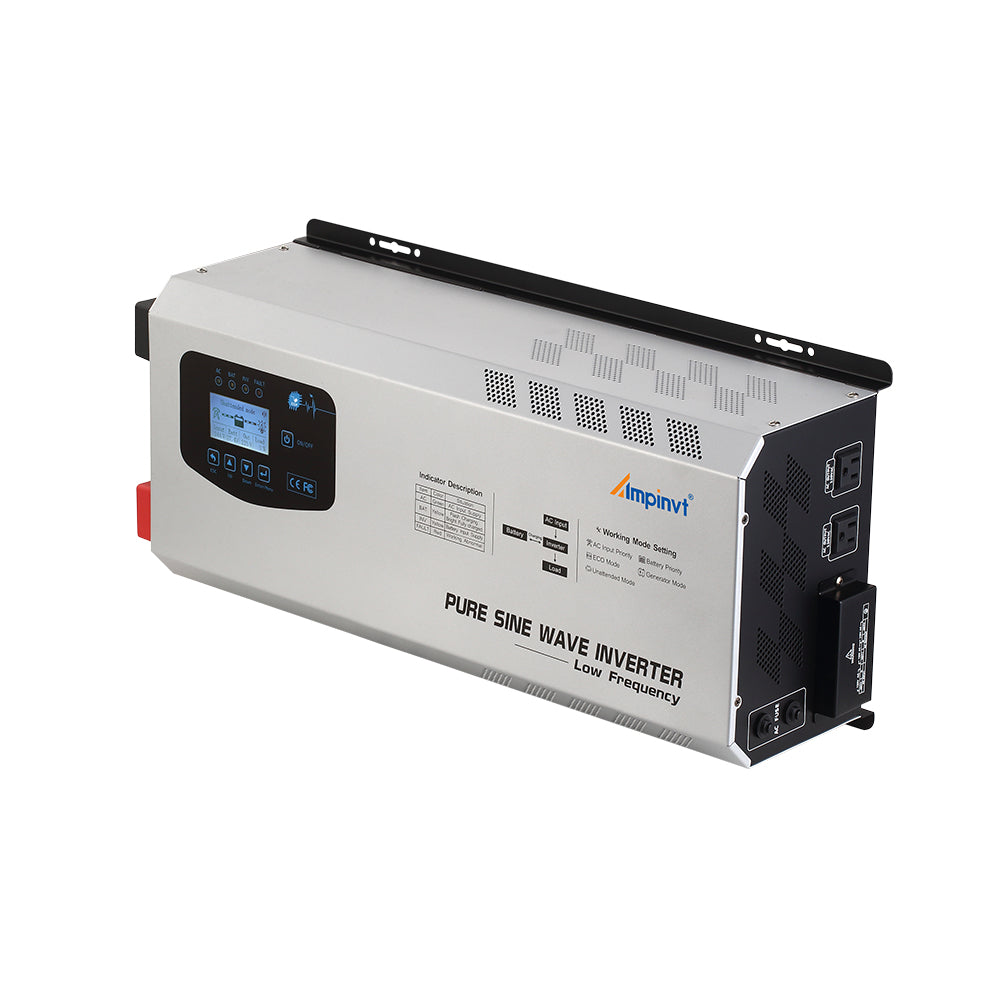

The Ampinvt FT Series 6000W split phase pure sine wave inverter (low frequency) is a 48V battery-system power inverter with a built-in AC charger. It provides split-phase AC output for 120V and 240V loads, and can charge the battery bank when AC power is connected to the inverter.
Key Features
- Pure sine wave inverter (low frequency)
- Rated output power: 6000W continuous
- Peak output power: 18000W
- 48V battery system only: can ONLY work with a 48V battery system
- No parallel operation: inverter cannot support connection in parallel
- Battery-first requirement: inverter MUST have a battery, and the battery MUST be connected first
- Front panel interface: LED indicators, LCD display, function keys
- Connections/ports shown: Battery Positive, Battery Negative, Remote Control, AC Input, AC Output, AC Fuse
Working Modes
1. AC/Line priority mode - always uses AC power as the priority input, provides AC output, and automatically charges the battery.
2. Battery priority mode - priority is given to battery power supply. After low voltage protection, it transfers to market power supply. When the battery is full, it transfers back to battery power.
3. ECO Mode - Load < 10%: automatic sleep and stop output; Load > 10%: automatic boot back to normal inversion.
4. Generator mode - uses an unstable 240V generator connected to the inverter AC input; through the inverter AVR regulator, it automatically matches 60HZ municipal frequency and regulates output voltage within the normal operating range.
5. Unattended Mode - when the battery is low voltage, the inverter enters standby (power saving state). When the battery restores the voltage value set by the user (such as solar charging), the inverter restores normal output for fully automatic operation.
Specifications
| Series | FT Series |
| Inverter type | Split phase pure sine wave inverter (low frequency) |
| Continuous output power | 6000W |
| Peak output power | 18000W |
| Battery system | 48V only |
| AC input (label shown) | 240V (Generator/AC input referenced) |
| AC output (connection diagram) | 120V AC (with split-phase wiring: Hot1+N = 120V; Hot2+N = 120V; Hot1+Hot2 = 240V) |

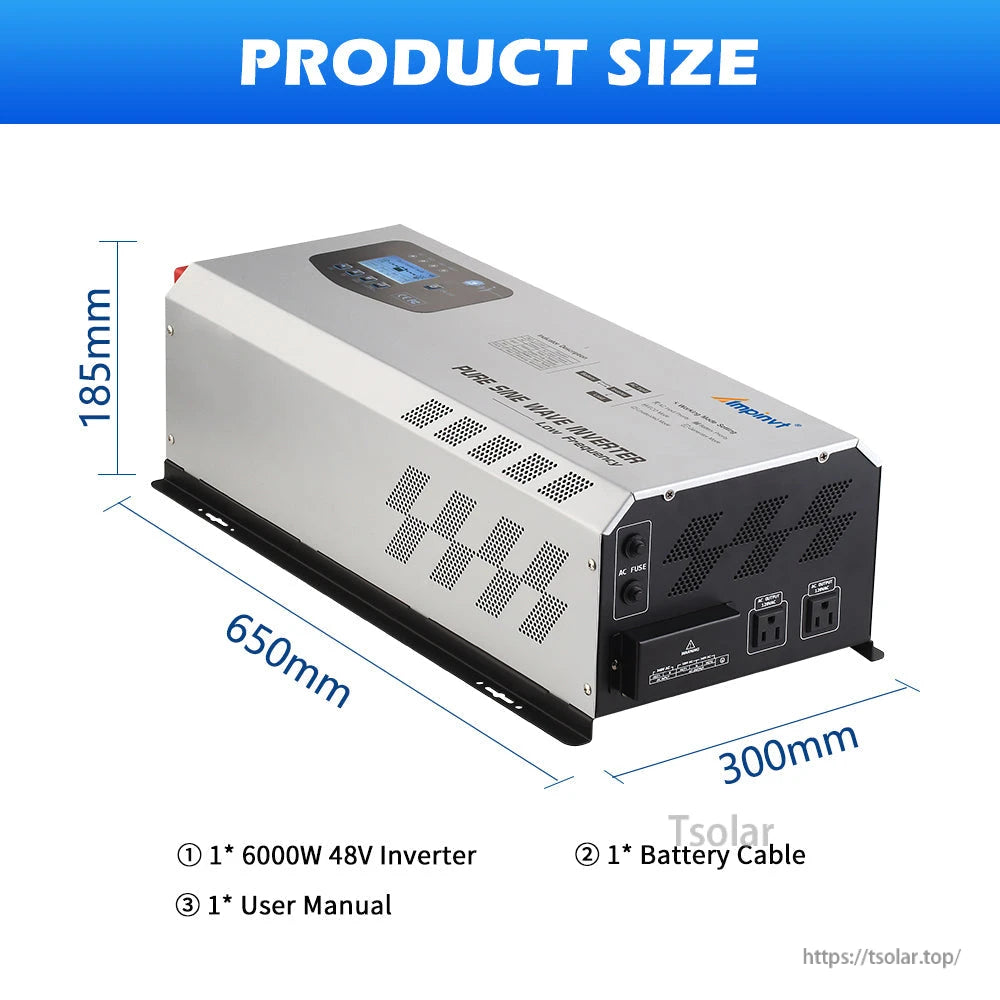

| Dimensions | 650mm x 300mm x 185mm |
| Parallel capability | Not supported |
What’s Included
- 1 x 6000W 48V Inverter
- 1 x Battery Cable
- 1 x User Manual

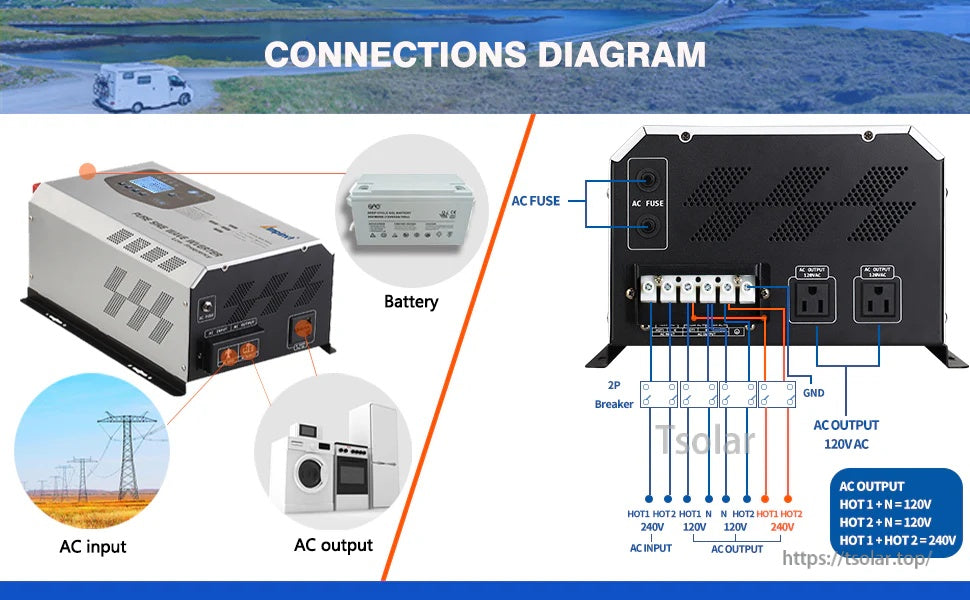

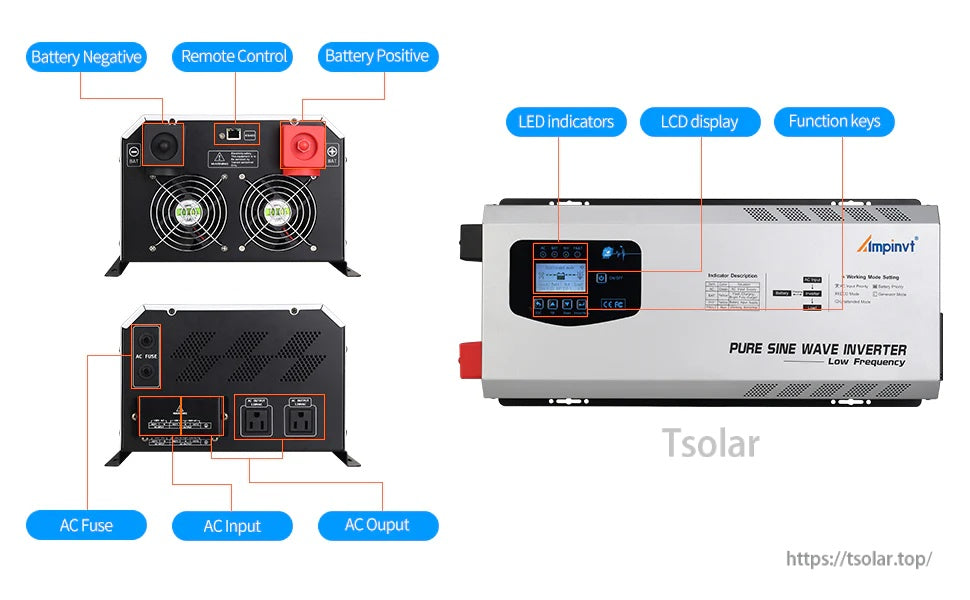

Connections (Diagram Labels)
- Battery Positive / Battery Negative

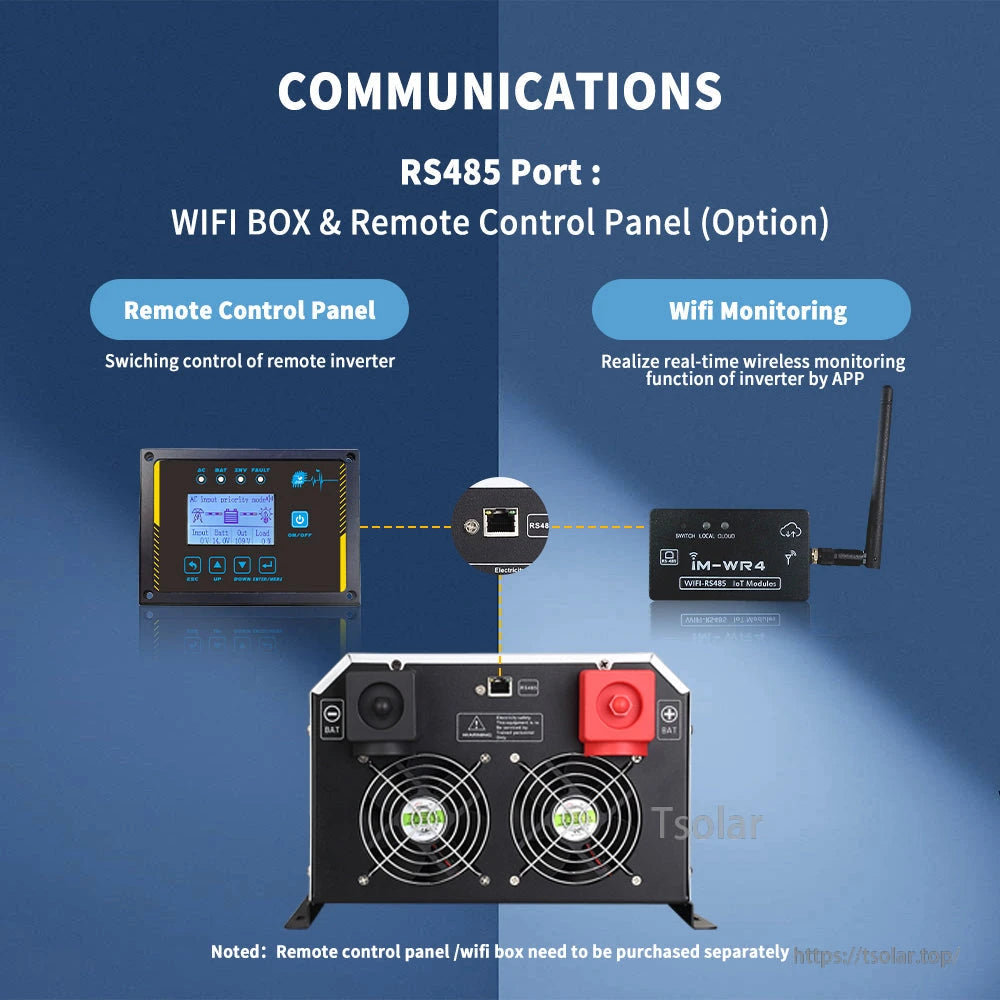

- Remote Control
- AC Input
- AC Output
- AC Fuse
- 2P Breaker, GND (shown in wiring diagram)
Applications
- Split-phase 120V/240V inverter power for household and workshop loads

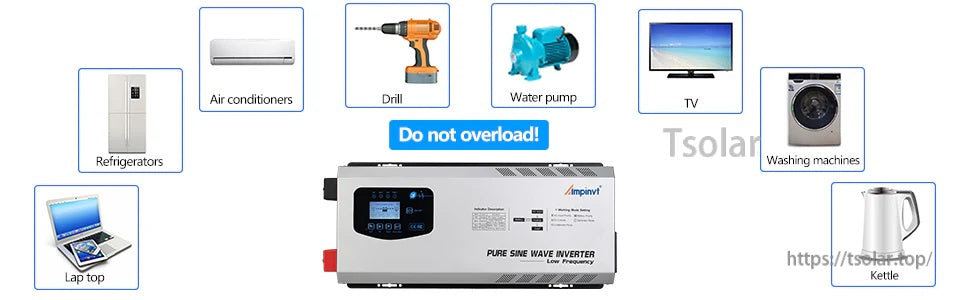

- Typical loads shown: air conditioners, refrigerators, drill, water pump, TV, washing machines, laptop, kettle
Note: Different types of loads have different starting impulse currents; select the appropriate inverter model based on actual equipment power, current, and load characteristics.
For product selection and installation support, contact customer service at https://tsolar.top/ or email service@tsolar.top.
Details
Power a 48V battery system with split-phase 120V/240V pure sine wave output, plus built-in AC charging when shore or generator power is available.
Clear labeling on the case helps speed up installation and day-to-day monitoring from the LCD screen and function keys.
Split-phase wiring supports 120V loads from either hot leg to neutral, and 240V loads across Hot1 and Hot2.
Confirm fit before mounting and keep the included battery cable and manual handy for initial setup.
