Overview

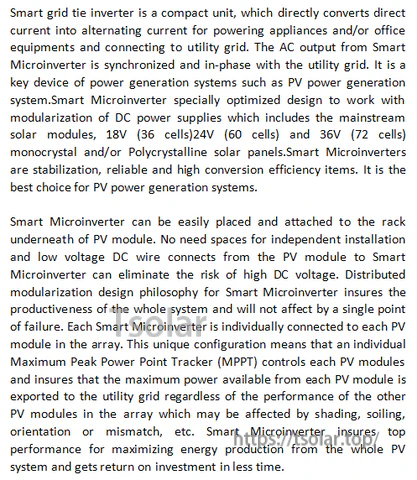

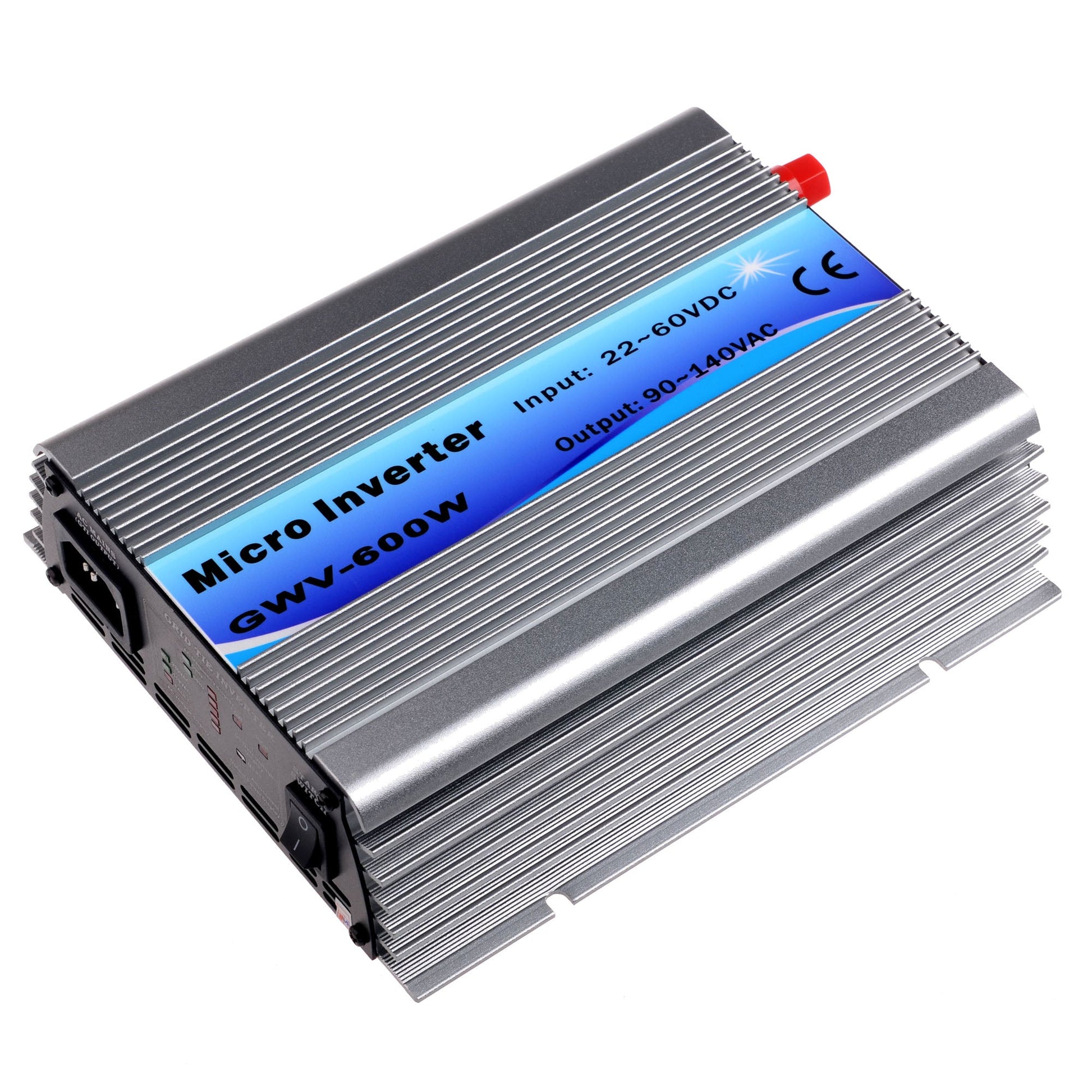

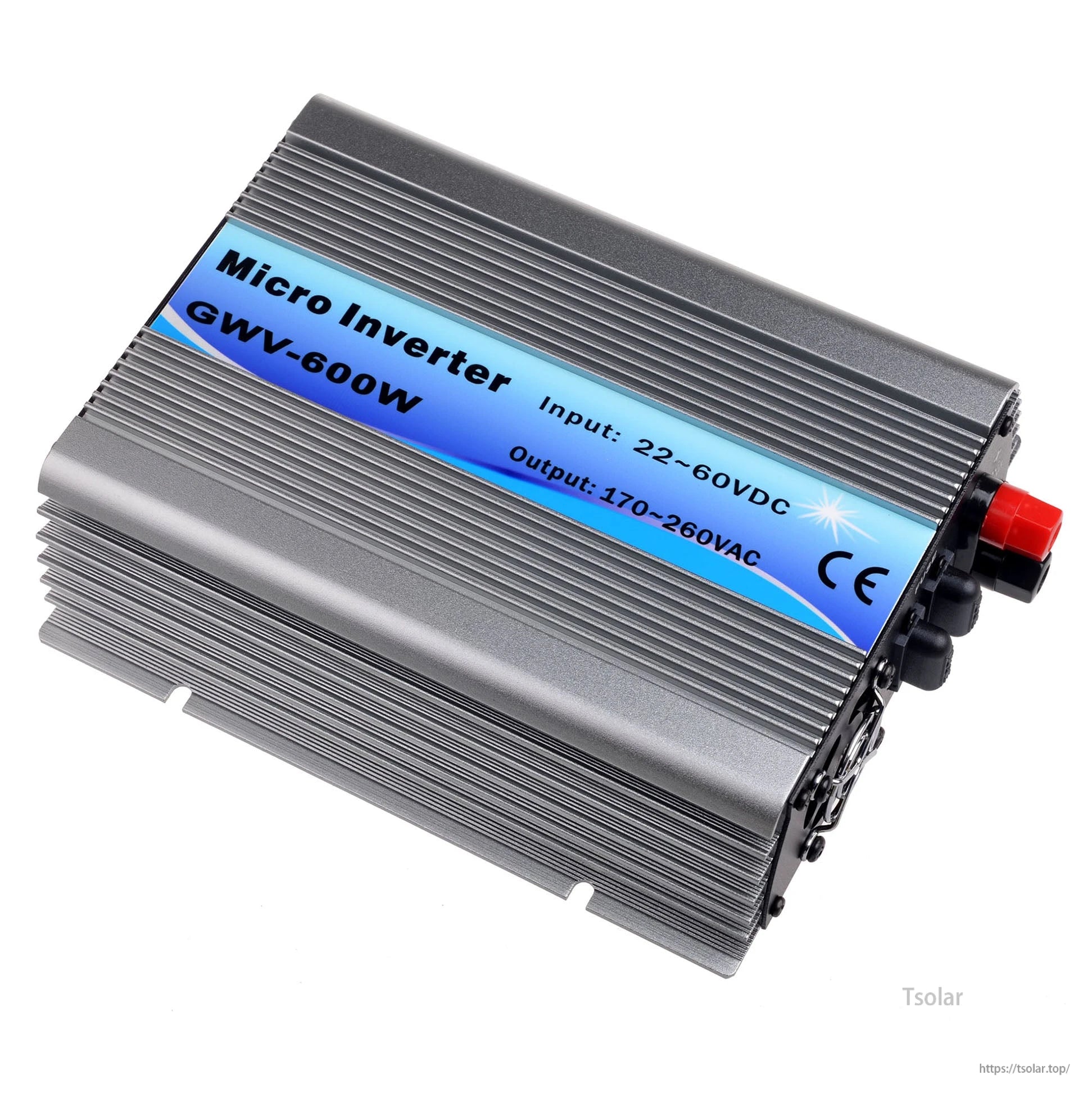

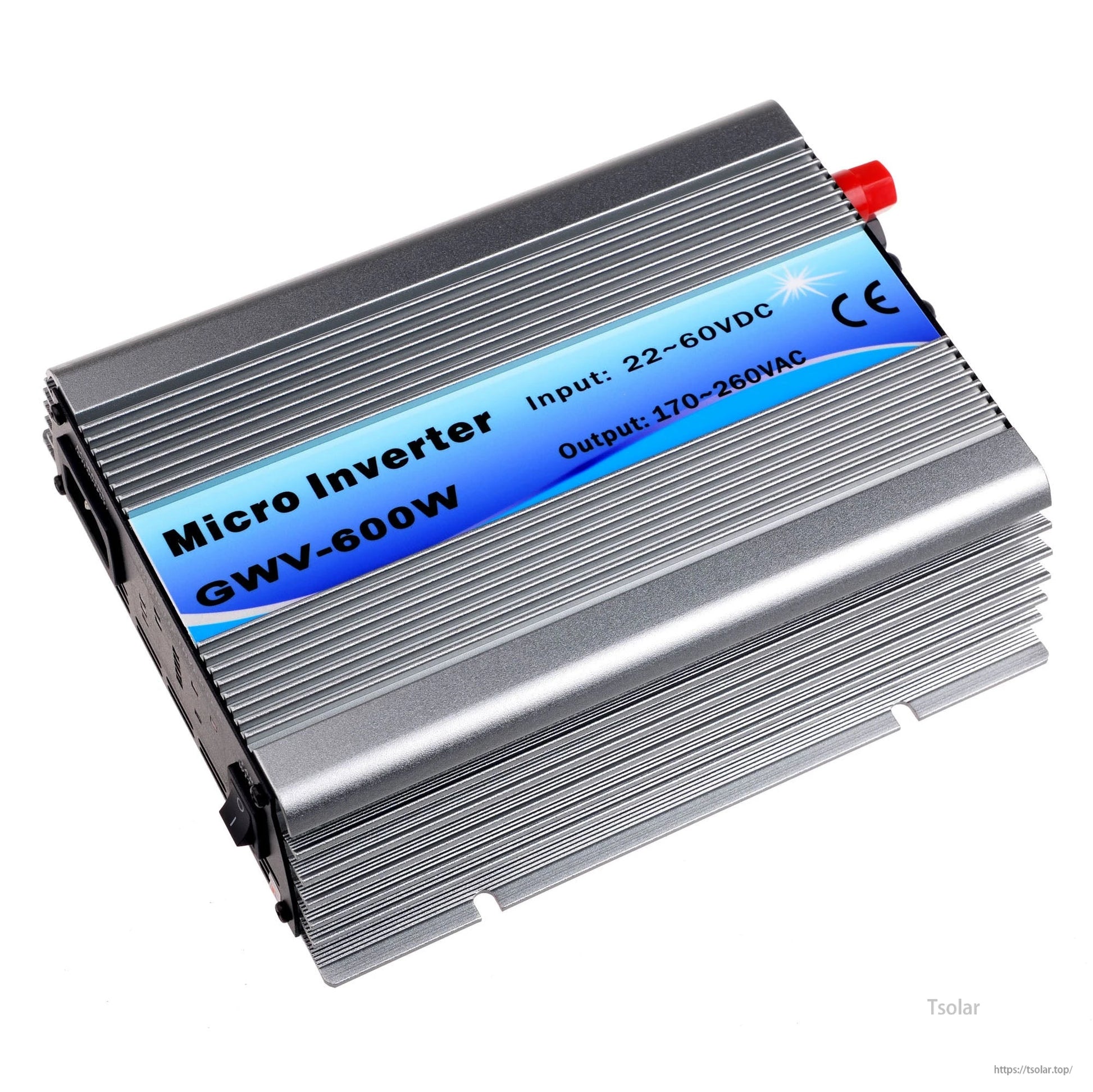

This grid tie inverter converts DC power from a solar panel into AC power for connection to the utility grid. The AC output is synchronized and in-phase with the utility grid, supporting PV power generation for appliances and/or office equipment.
Recommended for direct solar panel input only; it cannot be used with a battery or wind power source.
Key Features
- Pure sine wave inverter output

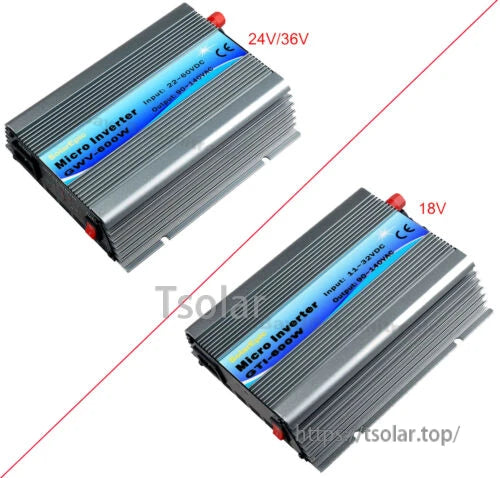

- Designed for common PV module voltages: 18V (36 cells), 24V (60 cells), and 36V (72 cells)
- Works with monocrystalline and/or polycrystalline solar panels
- Distributed, module-level design concept described with an individual MPPT per PV module connection

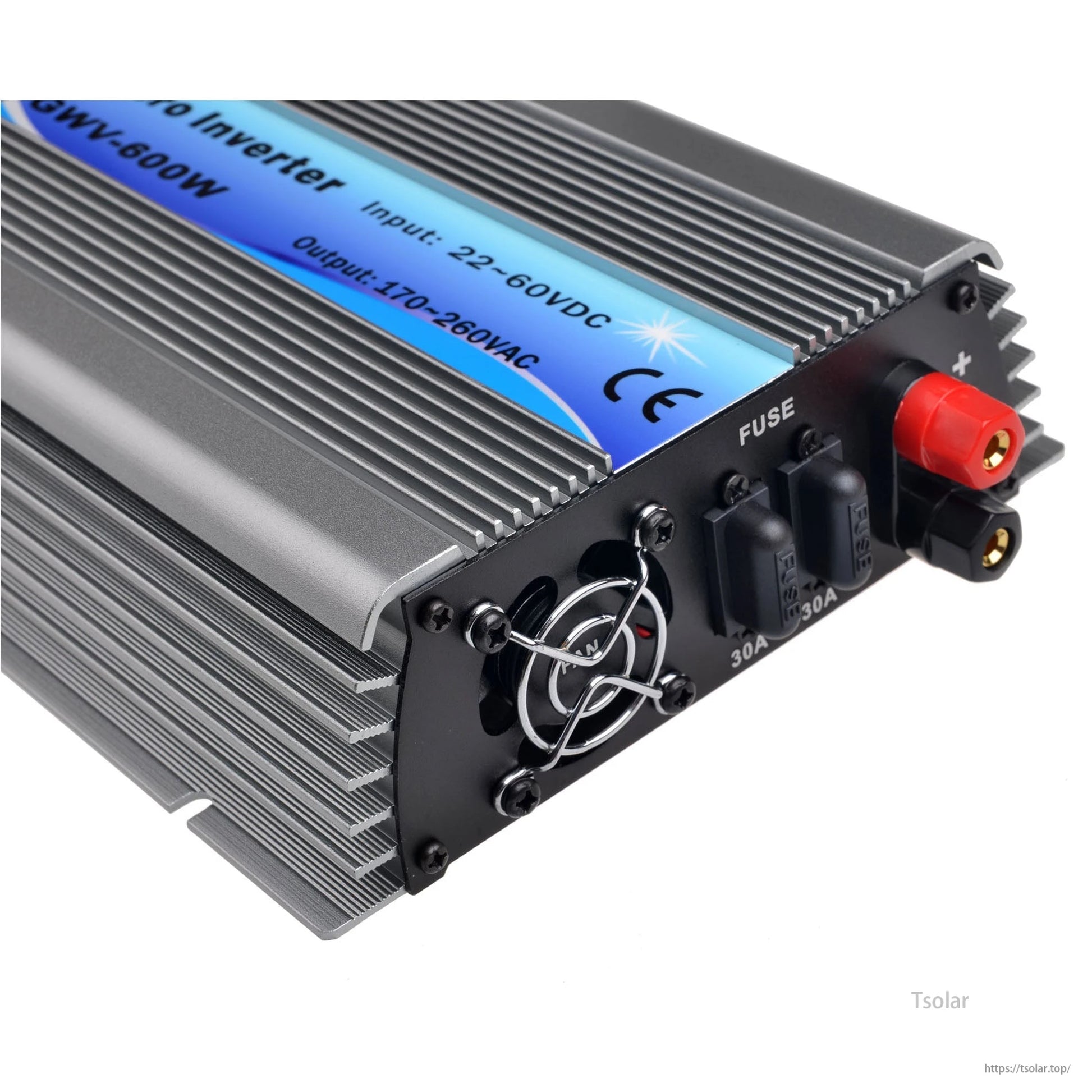

- Low-voltage DC connection from PV module to inverter to reduce high DC voltage risk
Specifications
| Rated Power | 600W |
| AC Output Voltage | 110V |
| Waveform | Pure sine wave |
| Supported PV Module Inputs | 18V (36 cells) / 24V (60 cells) / 36V (72 cells) |
| Supported Panel Types | Monocrystalline and/or polycrystalline |

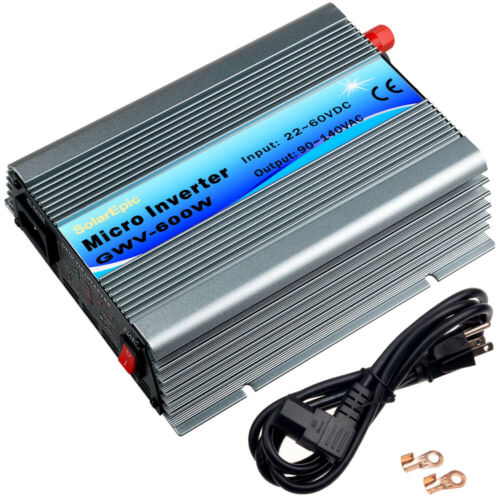

What’s Included
- 1 x Solar Inverter
- 1 x User's Manaul
- 1 x AC Cord
Applications
- Grid-connected PV power generation (feed into residential grid via a two-way AC meter)
- Home or office loads when connected through a utility-grid system
For compatibility questions (panel voltage/cell count, grid connection setup), contact https://tsolar.top/ or service@tsolar.top.
Details

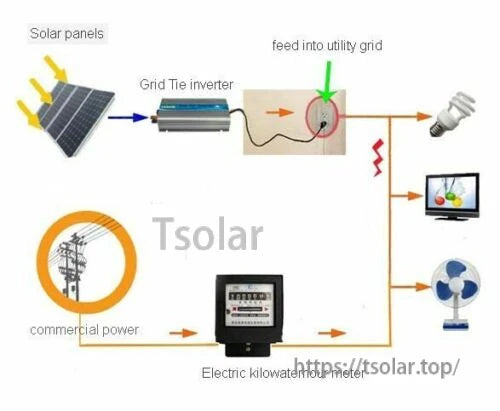

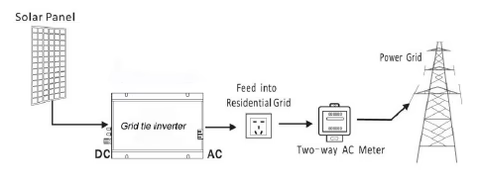

A grid-tie inverter connects a solar panel’s DC output to the residential AC grid through a two-way AC meter for net metering.
The 600W grid-tie microinverter description notes DC-to-AC conversion synchronized with the utility grid and MPPT control for PV modules.
