Overview
The Ampinvt 1200W DC 24V pure sine wave power inverter with charger is an off-grid inverter charger designed for a 24V battery system and 120VAC AC output. It supports UPS-style backup by switching between AC input and battery power, and it can charge the battery bank when AC power is connected.
Key Features
- Pure sine wave output (low frequency design)
- Continuous output power: 1200W; peak power: 3600W
- Battery system: 24V only (not for 12V/48V systems)
- AC output: 120VAC
- Built-in AC charger: automatic 15A; adjustable charging current: 0–15A
- Automatic AC mains switcher
- Transfer efficiency: above 88%
- Built-in toroidal transformer (strong overload and impact resistance)
- Battery temperature sensor protection
- Interface & controls: LCD display, LED indicators, function keys
- Terminals/ports (labeled): AC input, AC output, battery positive (BAT+), battery negative (BAT-), AC fuse, remote control port
- Parallel operation: not supported (cannot connect in parallel)
- Connection order: battery must be connected first
Five Working Modes
- AC Priority Mode – AC input (utility power/city grid) supplies the AC output (appliances/load) first and charges the battery at the same time. Charging stops automatically when the battery is fully charged. If AC input is unavailable, it switches to battery power supply.
- Battery Priority Mode – Battery supplies the AC output (appliances/load). When battery voltage reaches the low-voltage limit, it switches to AC input supply if AC input is available; otherwise it shuts down. When battery voltage returns to the restore setting, it switches back to battery supply.
- ECO Mode – Similar to AC priority mode. When AC input is off, it enters standby when the appliance load is under 5% of inverter capacity. It cycles between on and standby to detect when the load exceeds 5%, then returns to inverting status.
- Generator Mode – For generator input; connects generator power to the inverter AC input through the inverter AVR regulator, automatically matches 50Hz/60Hz frequency, and regulates output voltage within the normal operating range.
- Unattended Mode – Similar to AC priority mode. When AC input is off and battery voltage is too low, it shuts down AC output and enters standby. Once the battery is charged back to the restore voltage point, it restarts AC output. When AC input returns, it also restarts AC output.
Specifications
| Brand | Ampinvt |
| Series | HT-Series |
| Inverter type | Pure sine wave inverter (off-grid inverter charger) |
| Continuous output power | 1200W |
| Peak power | 3600W |
| Battery voltage | 24 VDC (24V battery system only) |
| AC output voltage | 120 VAC |
| Built-in AC charger | Automatic 15A |
| Charging current adjustment | 0–15A |
| Transfer efficiency | Above 88% |
| AC output max | 10A |
| Supported battery types (24V) | AGM, USER, LI, FLD, SLD, GEL |
| Display/indicators | LCD display; LED indicators |
| Labeled connections | AC input; AC output; BAT+; BAT-; AC fuse; remote control port |
| Parallel capability | Not supported |
| Dimensions (as labeled) | 310mm x 290mm x 137mm |
What’s Included
- 1 x 1200W 24V Inverter
- 1 x Battery Cable
- 1 x User Manual
Applications
- Outdoor RV application
- Household appliance backup/off-grid power
- Commercial office power support
- Communication base station power support
For product selection and technical support, contact customer service at https://tsolar.top/ or service@tsolar.top.
Details

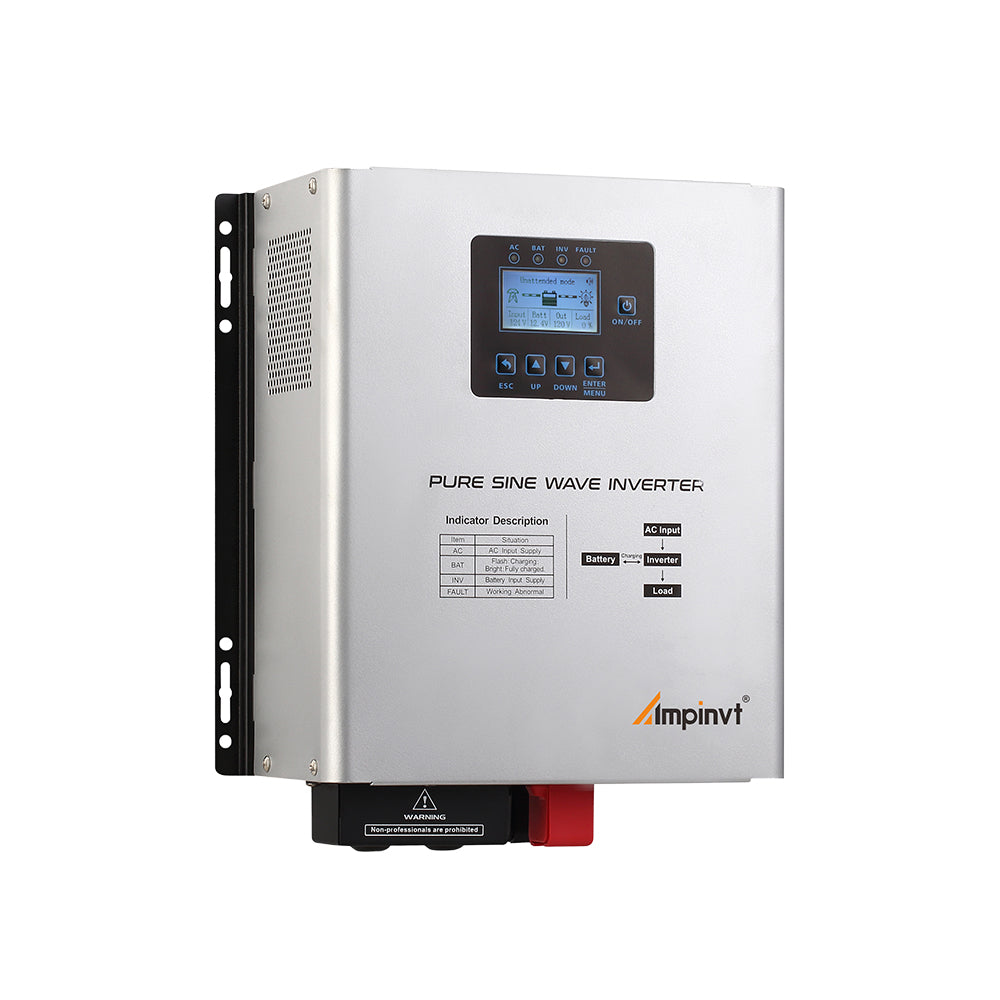

Ampinvt’s pure sine wave off-grid inverter features a front LCD control panel for monitoring and basic settings.

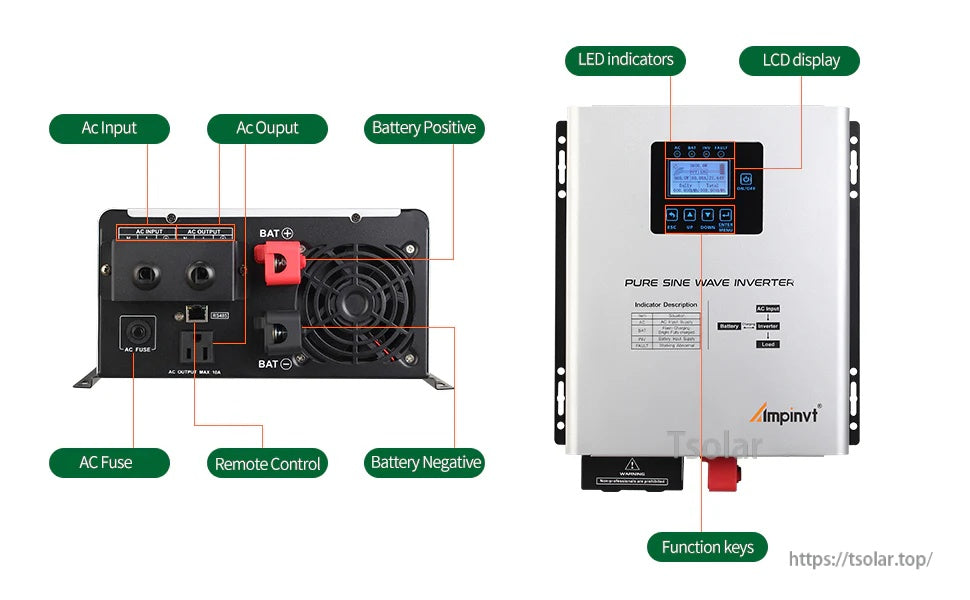

Ampinvt HT-Series inverter charger features labeled AC input/output ports, battery positive/negative terminals, and an LCD with function keys for basic status checks.

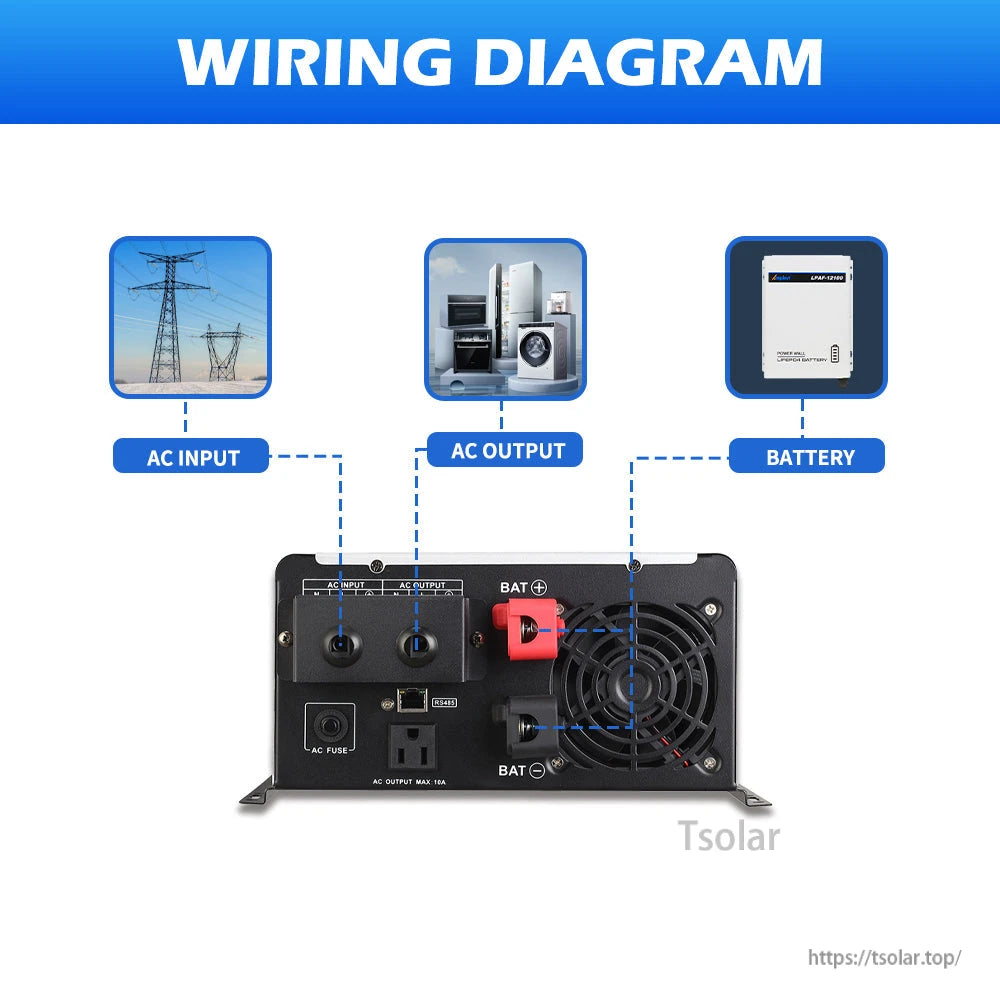

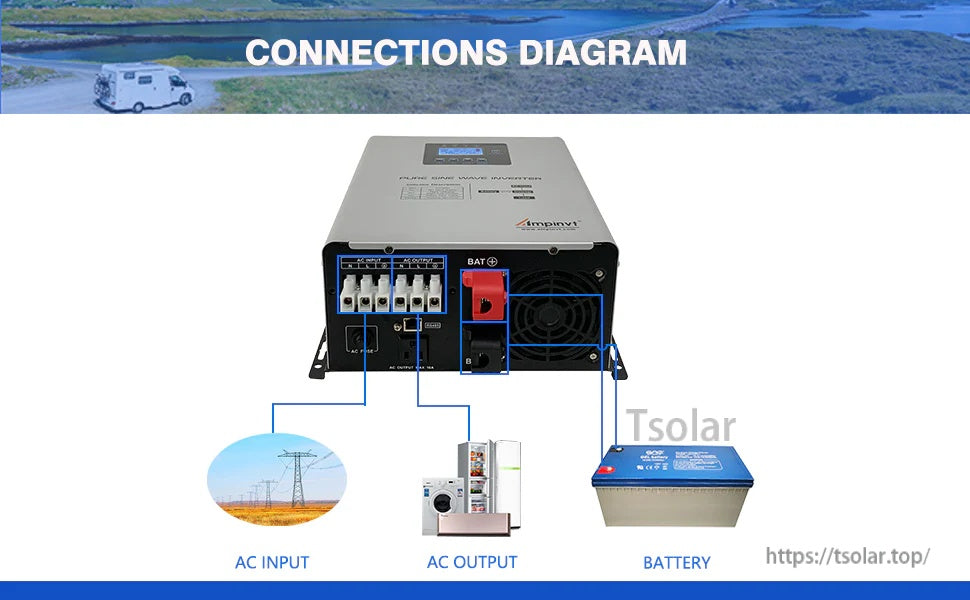

The Ampinvt 24V inverter charger uses clearly labeled AC input, AC output, and battery connections to simplify wiring.

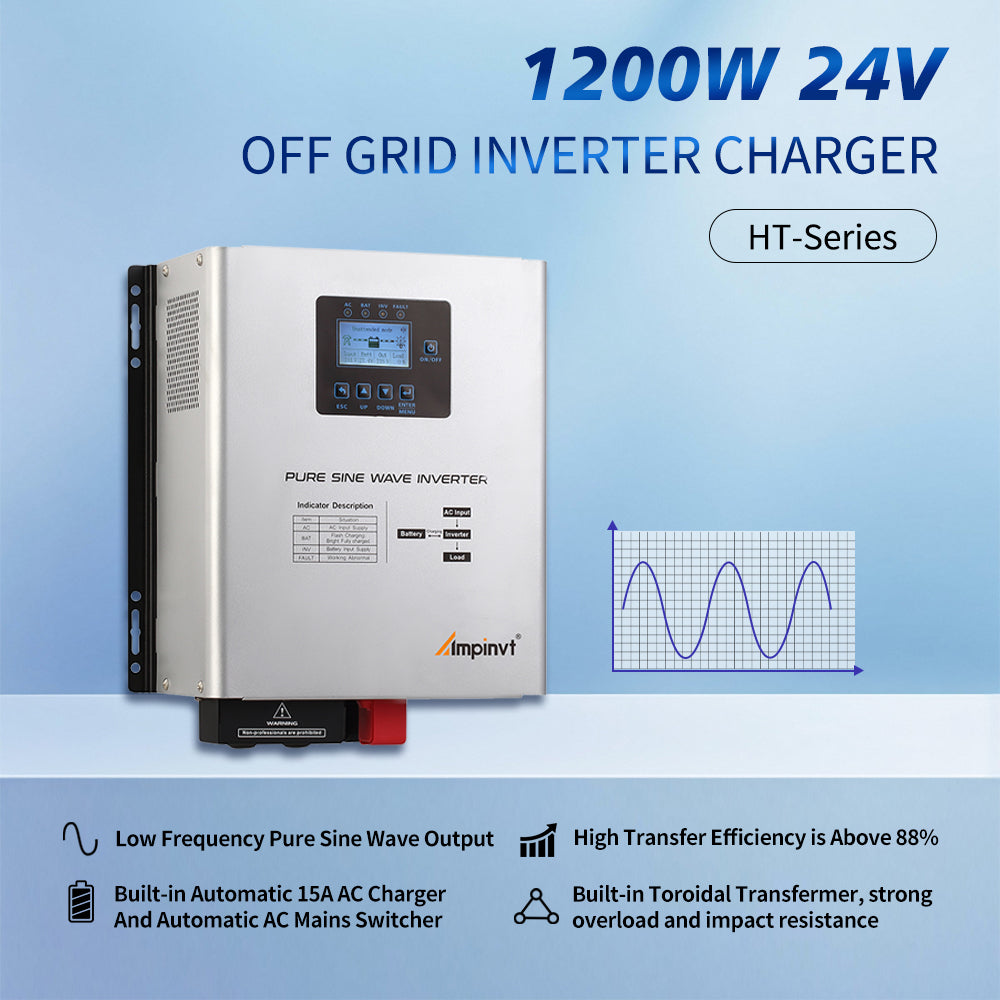

The Ampinvt HT-Series 1200W 24V off-grid inverter charger provides pure sine wave output and includes an automatic 15A AC charger with AC mains switching.

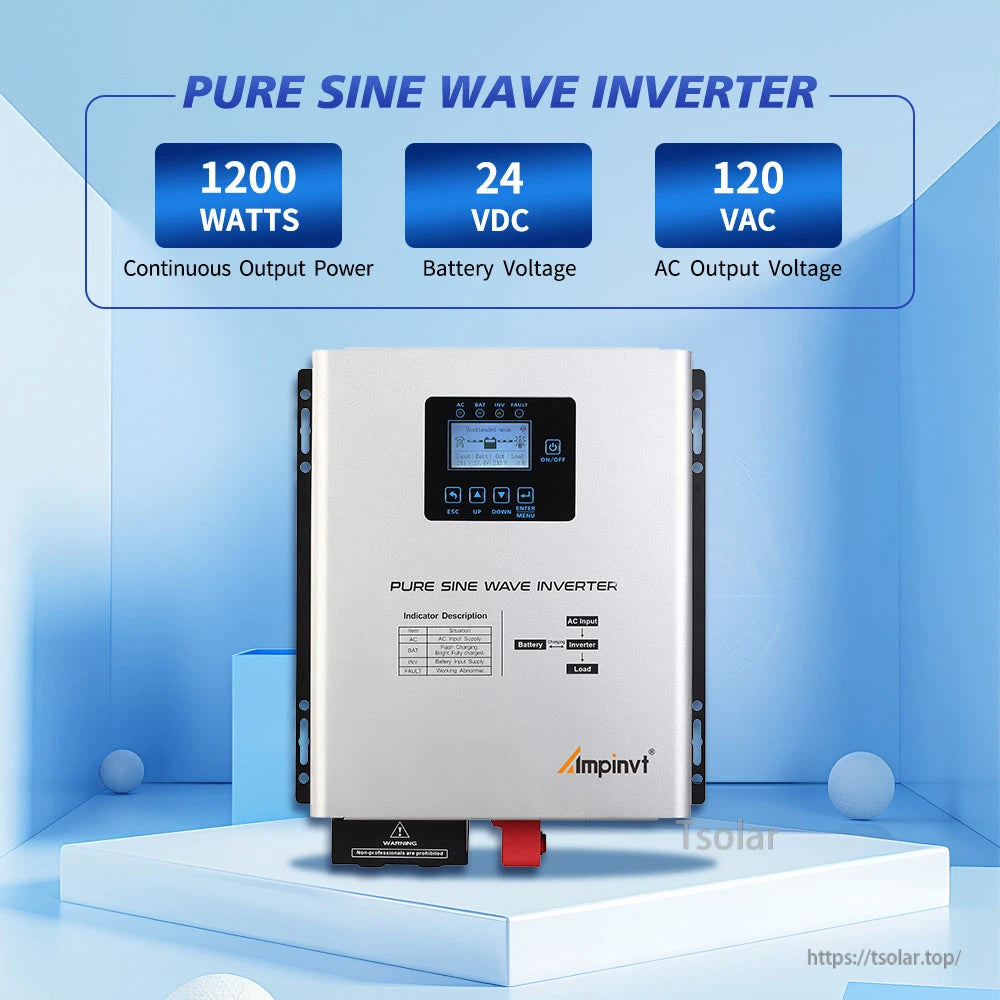

Ampinvt’s pure sine wave inverter provides 1200W continuous power from a 24VDC battery with 120VAC output and an easy-to-read front LCD.

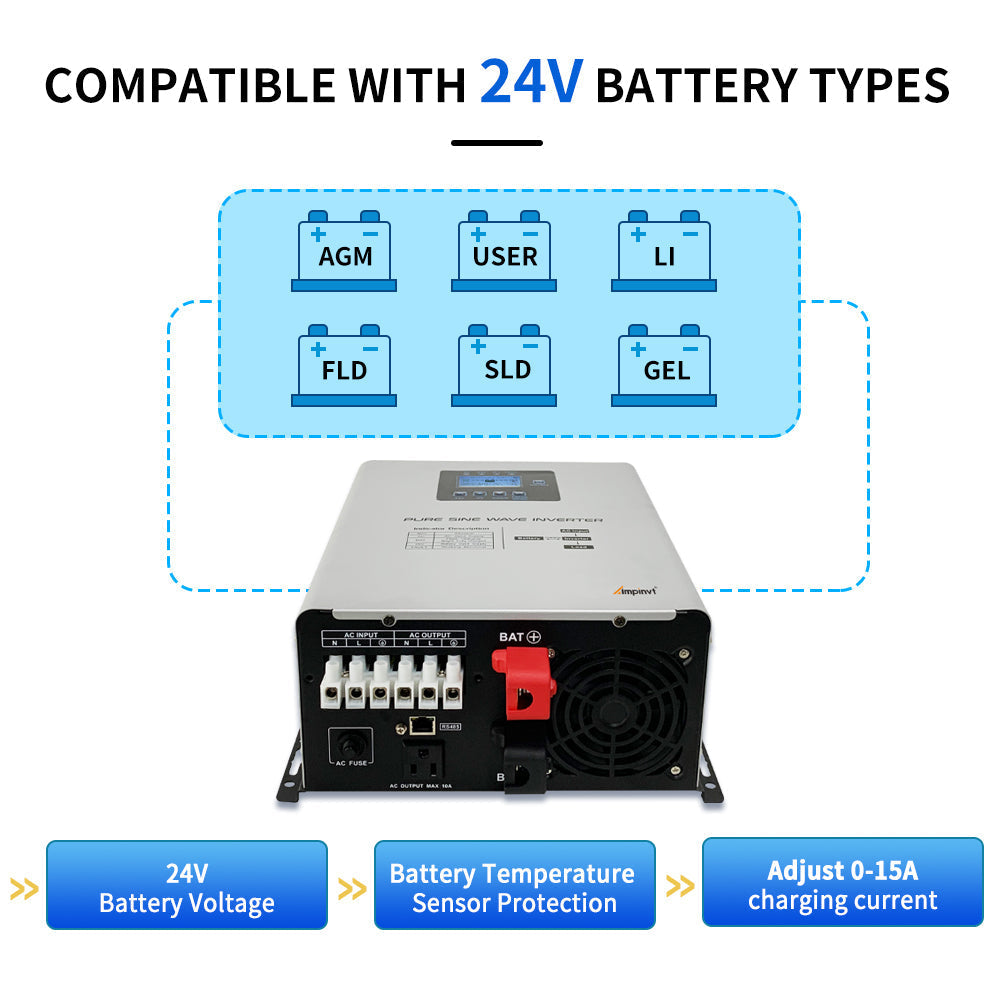

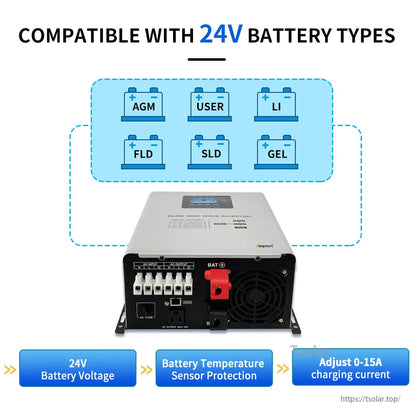

The 24V inverter charger supports AGM, gel, lithium and other 24V battery profiles, with adjustable 0–15A charging current and battery temperature sensor protection.
The 24V pure sine wave inverter charger is suited for RV power setups, household solar systems, commercial offices, and communication base stations.

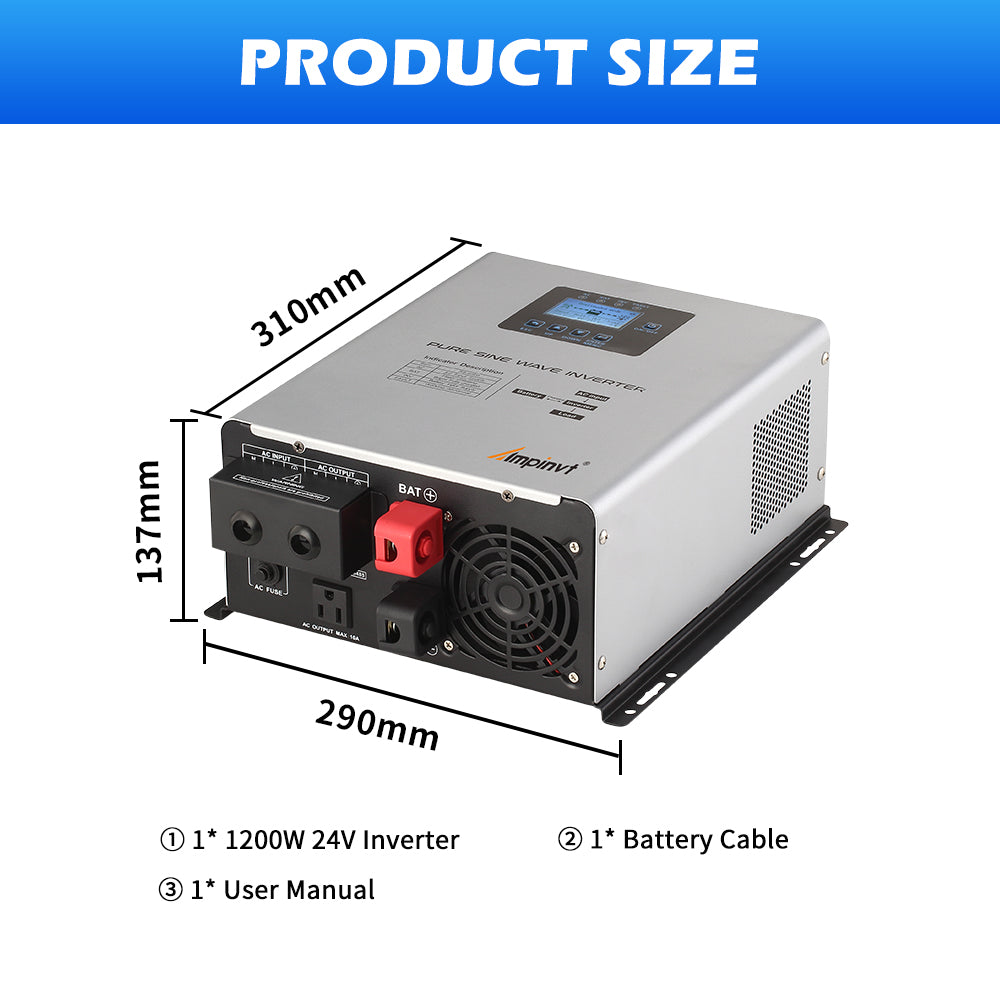

The compact metal housing measures about 310 x 290 x 137 mm and includes AC input/output ports, battery terminals, a battery cable, and a user manual.
