Ampinvt 5000W DC 24V Split Phase Pure Sine wave Inverter with AC Charger

Overview

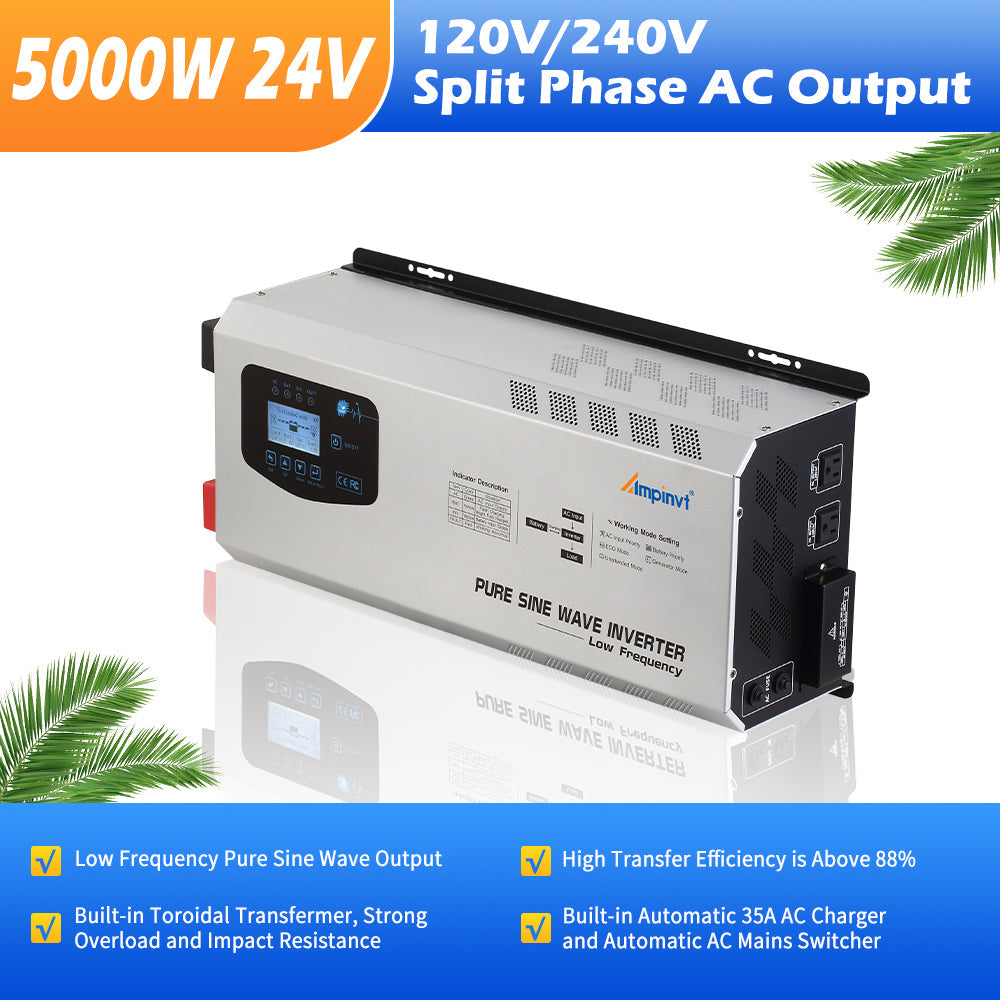

The Ampinvt FT Series 5000W 24V split phase pure sine wave inverter with AC charger is designed for 24V battery systems and provides split-phase AC output for 120V/240V loads. It supports multiple working modes for different power-source priorities and can charge the battery bank when AC power is connected to the inverter.

Key Features

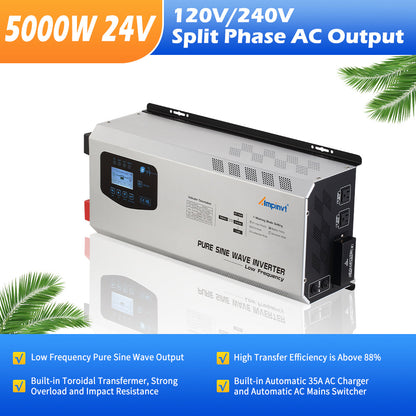

• Pure sine wave inverter (low frequency)
• Continuous / peak output power: 5000W continuous, 15000W peak
• Battery system voltage: 24V only
• AC charging: charges the battery bank when AC power is connected

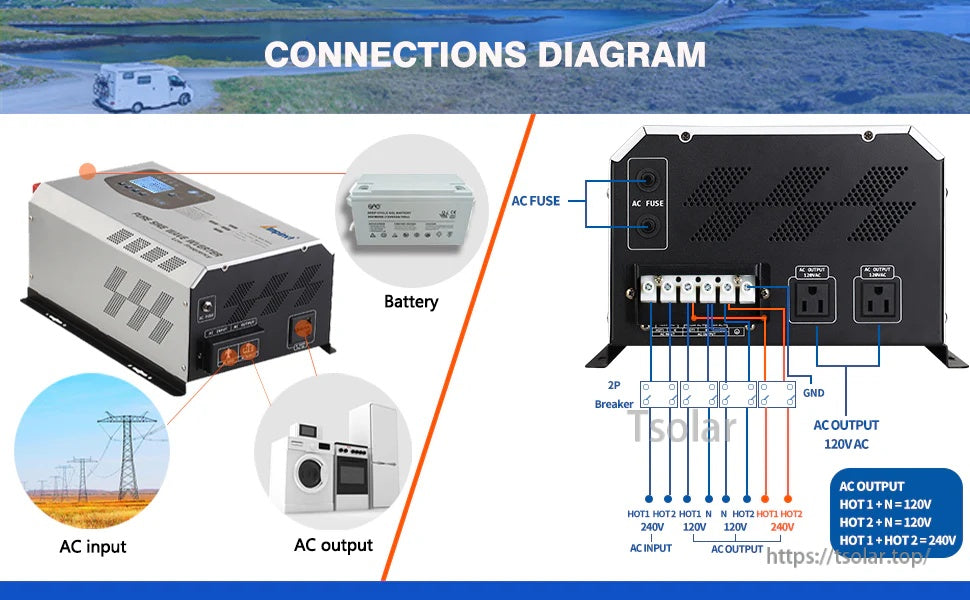

• Split-phase output wiring support: Hot1 + N = 120V, Hot2 + N = 120V, Hot1 + Hot2 = 240V
• User interface: LCD display, LED indicators, function keys

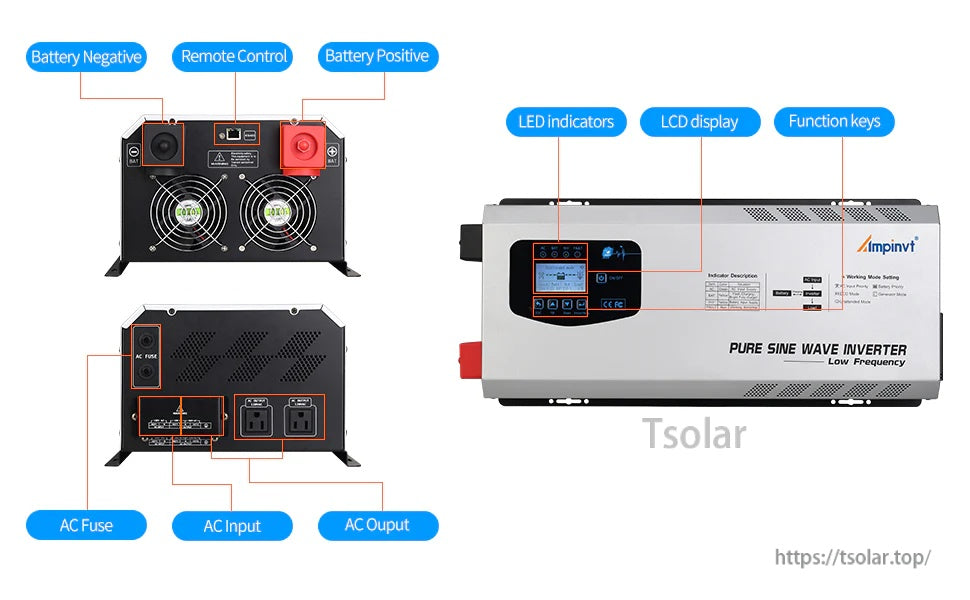

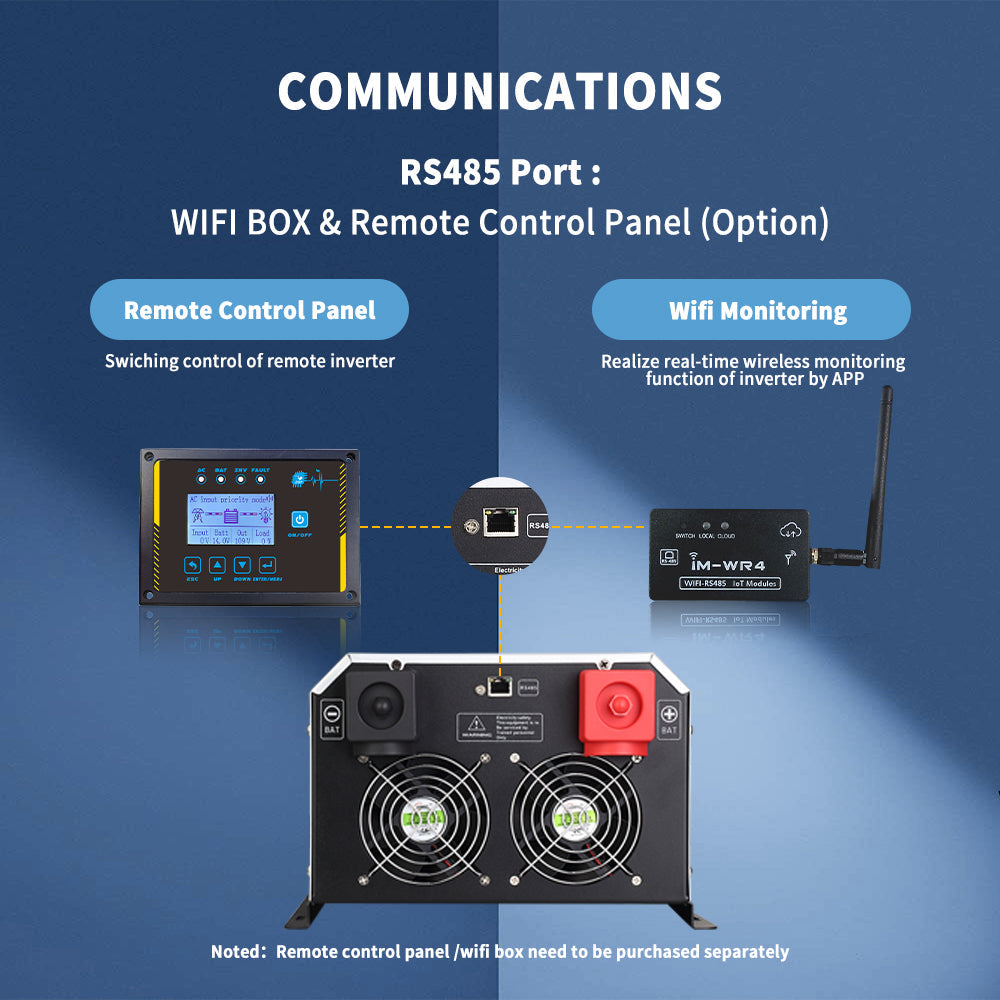

• Ports / terminals labeled on unit: Battery Positive, Battery Negative, Remote Control, AC Fuse, AC Input, AC Output
• Parallel operation: not supported
• Battery requirement: battery must be connected first; inverter must have a battery

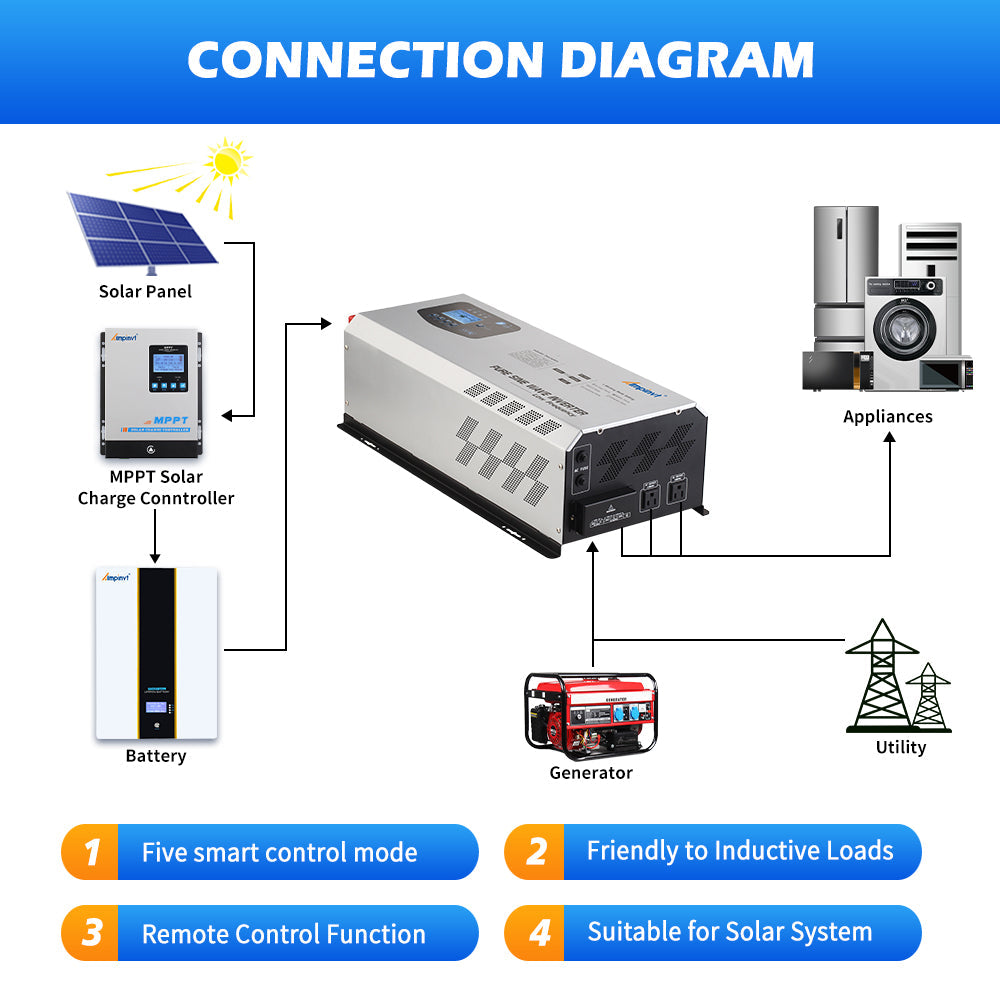

Five Working Modes

1. AC/Line priority mode — uses AC power as the priority input, provides AC output, and automatically charges the battery.
2. Battery priority mode — prioritizes battery power supply; after low-voltage protection it transfers to utility power; when the battery is full it transfers back to battery power.
3. ECO Mode — load < 10%: automatic sleep and stop output; load > 10%: automatic start back to normal inversion.
4. Generator mode — accepts unstable generator 240V AC input; through the inverter AVR regulator it automatically matches 60Hz municipal frequency and regulates output voltage within the normal operating range.
5. Unattended Mode — when the battery is low voltage the inverter enters standby (power saving); when the battery voltage recovers to a user-set value (for example via solar charging), the inverter restores normal output for unattended automatic operation.

Note: Different types of loads have different starting impulse currents. Select the appropriate inverter model according to actual equipment power, current, and load characteristics.

Specifications

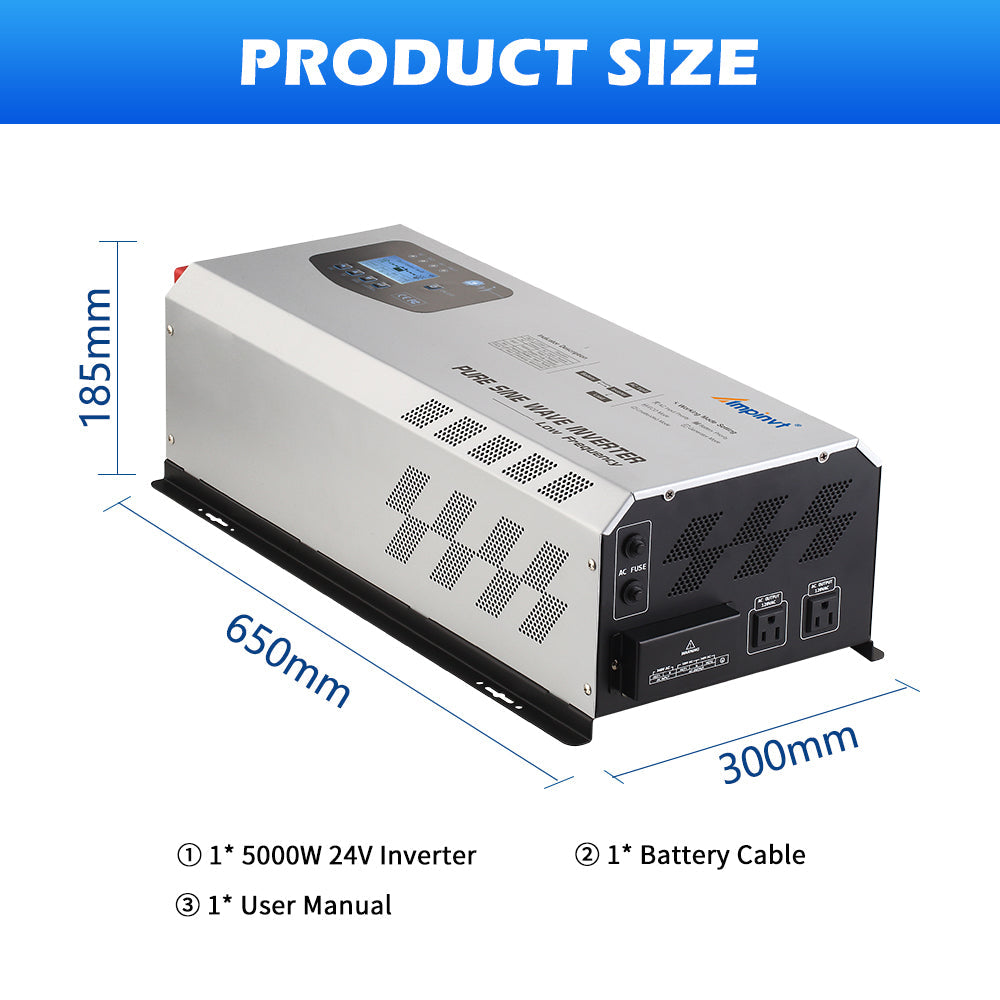

What’s Included

• 1 x 5000W 24V Inverter
• 1 x Battery Cable
• 1 x User Manual

Applications

• House
• RV
• Office
• Boat

Typical loads referenced include refrigerators, air conditioners, drills, water pumps, TVs, washing machines, kettles, and laptops. Do not overload.

For installation and product selection assistance, contact customer support at https://tsolar.top/ or service@tsolar.top.
