Overview

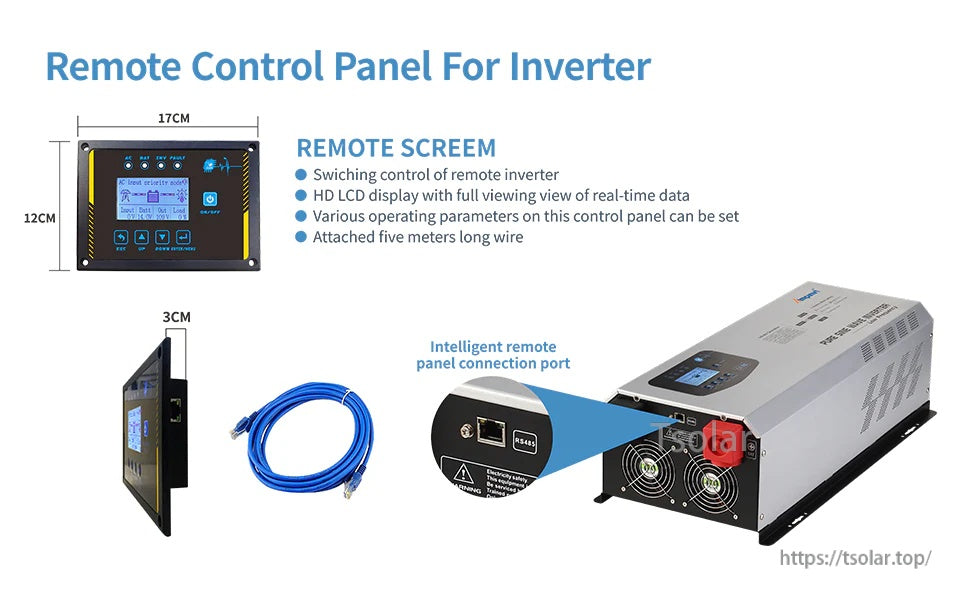

This Remote Control Panel for Inverter is an HD LCD remote screen designed for switching control of a remote inverter, real-time data viewing, and parameter setting. It connects through an intelligent remote panel connection port labeled RS485.
Key Features
- Switching control of remote inverter

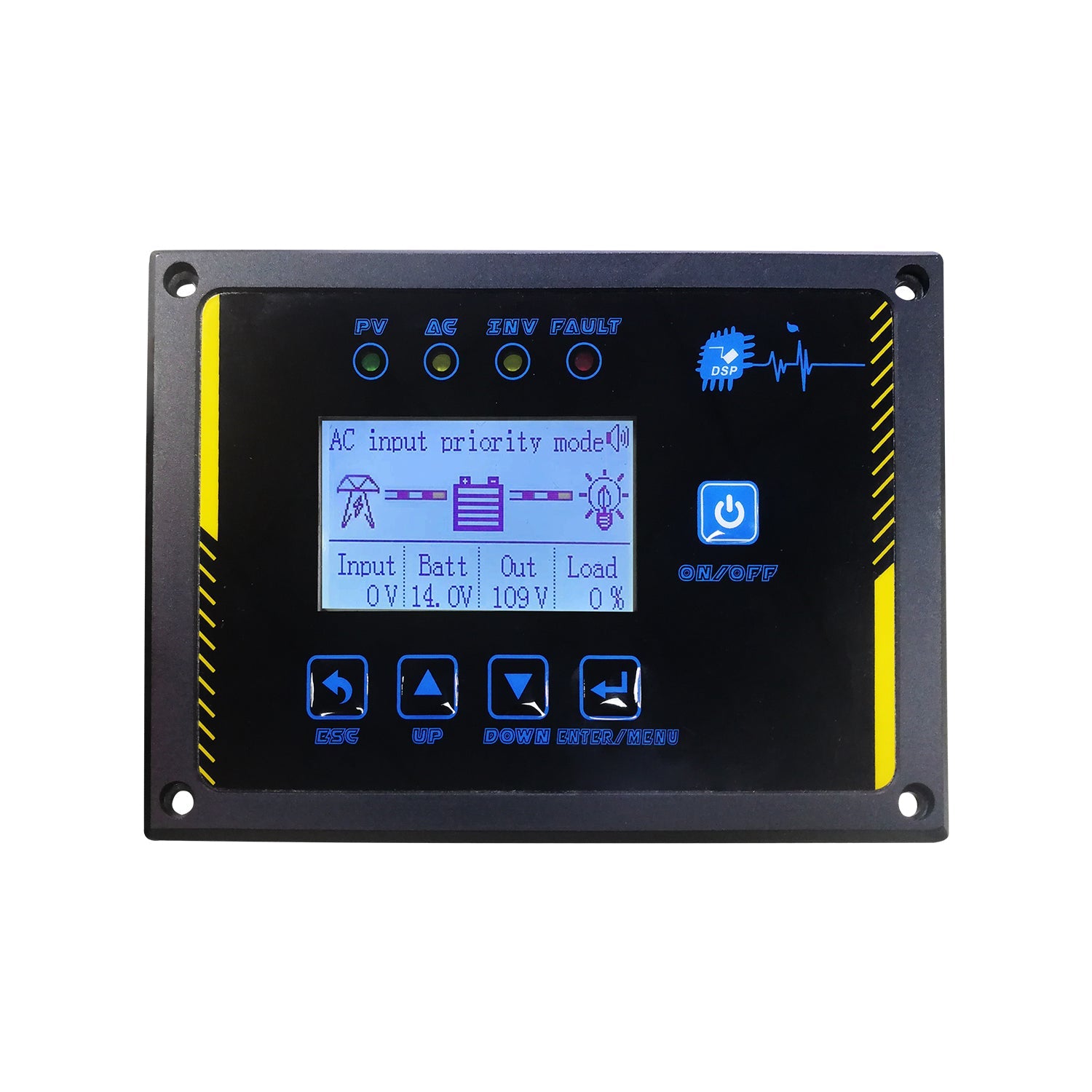

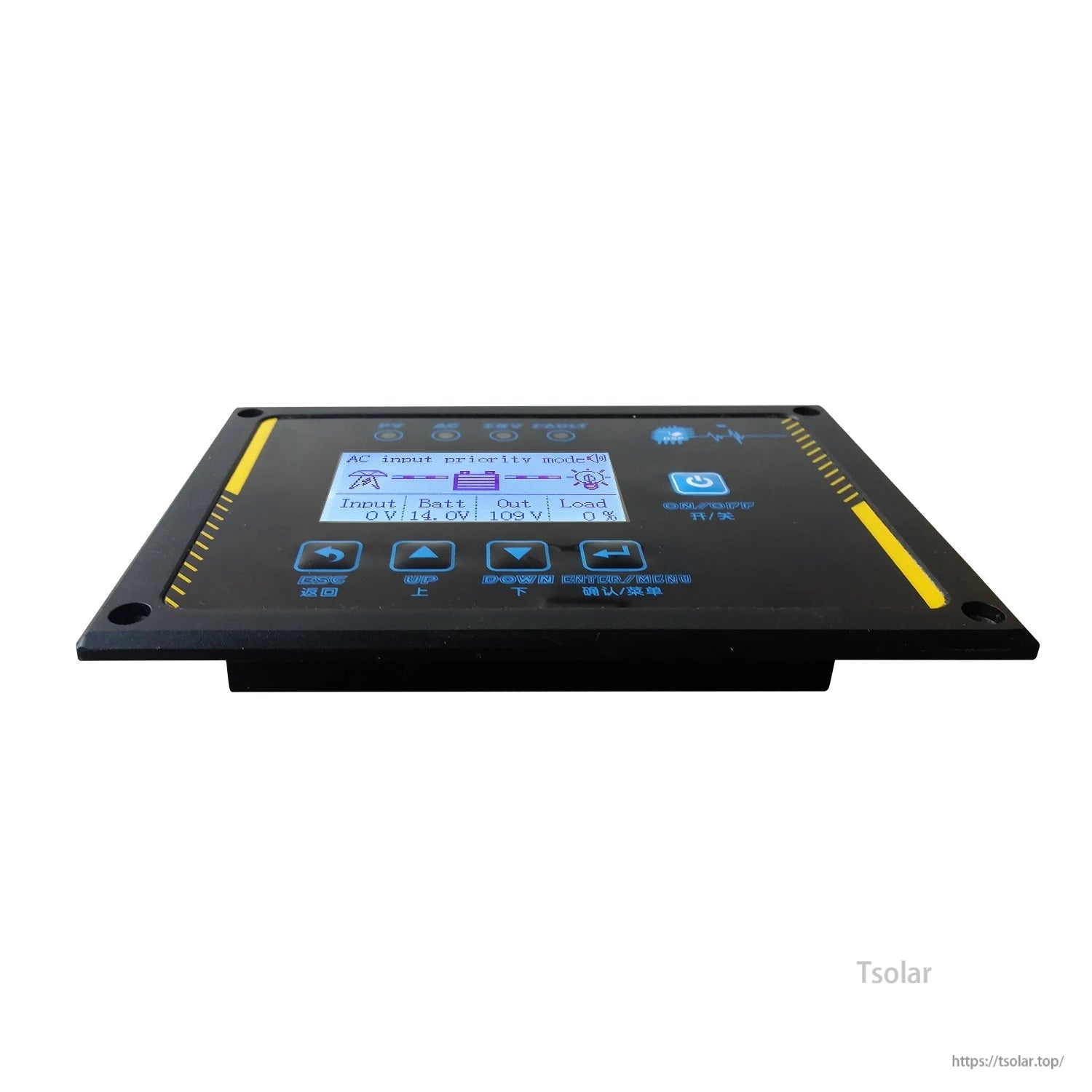

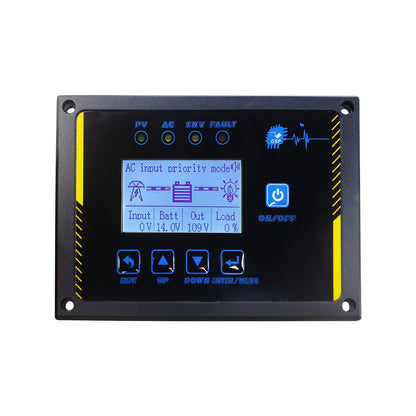

- HD LCD display with full viewing view of real-time data
- Various operating parameters on this control panel can be set
- Attached five meters long wire
Specifications
| Product type | Remote control panel (remote screen) for inverter |

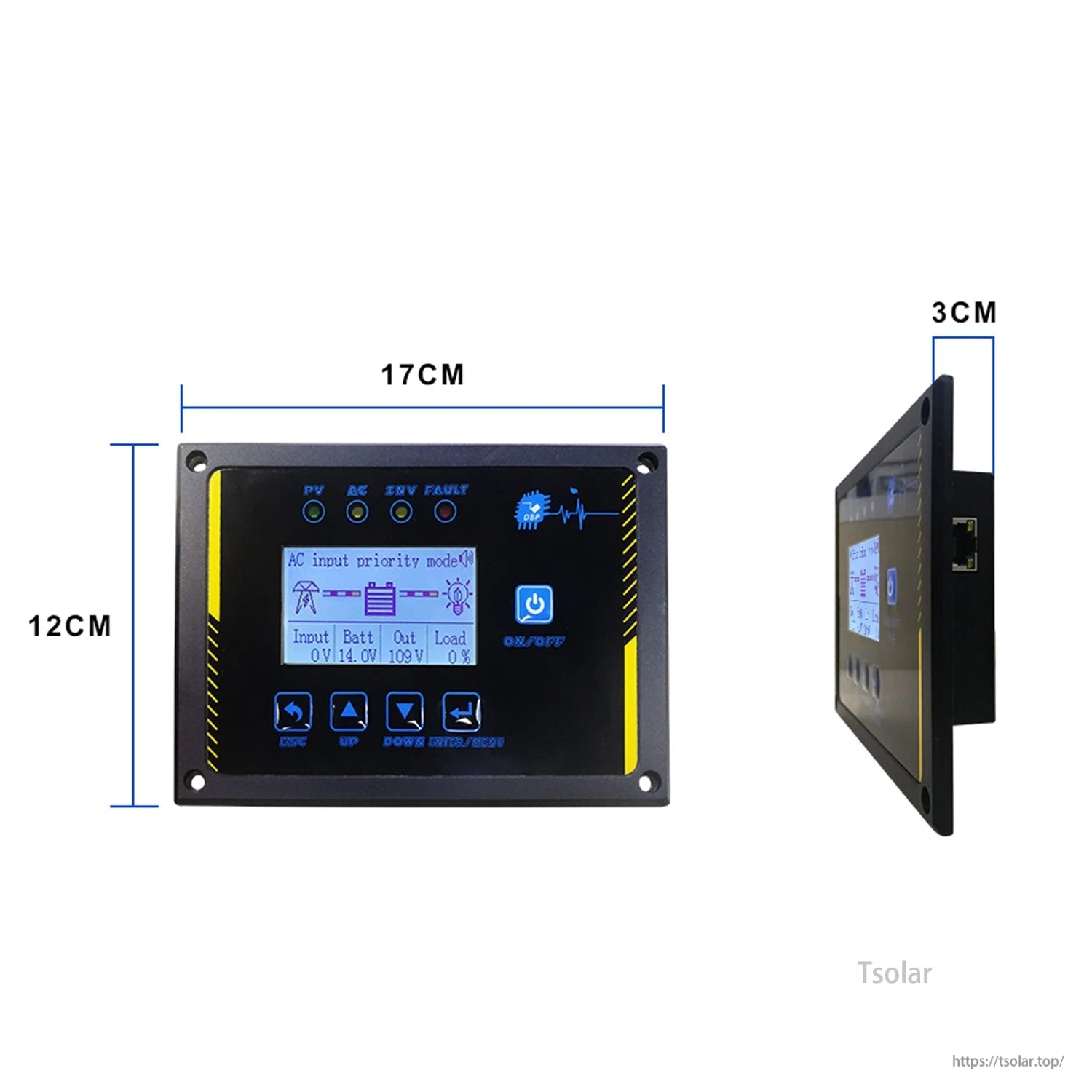

| Front size | 17CM x 12CM |

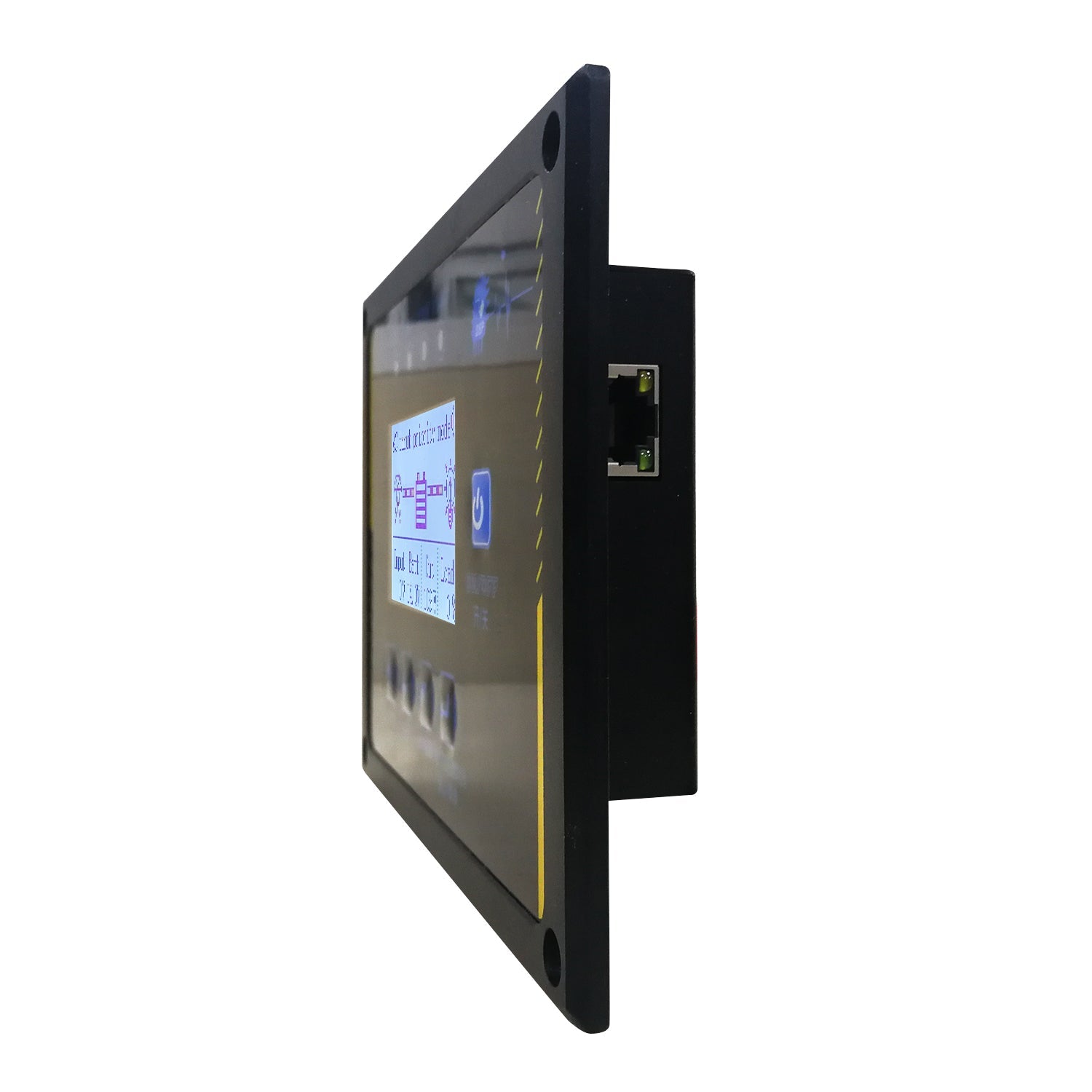

| Panel thickness | 3CM |
| Connection port label | RS485 |
| Cable length | Five meters |

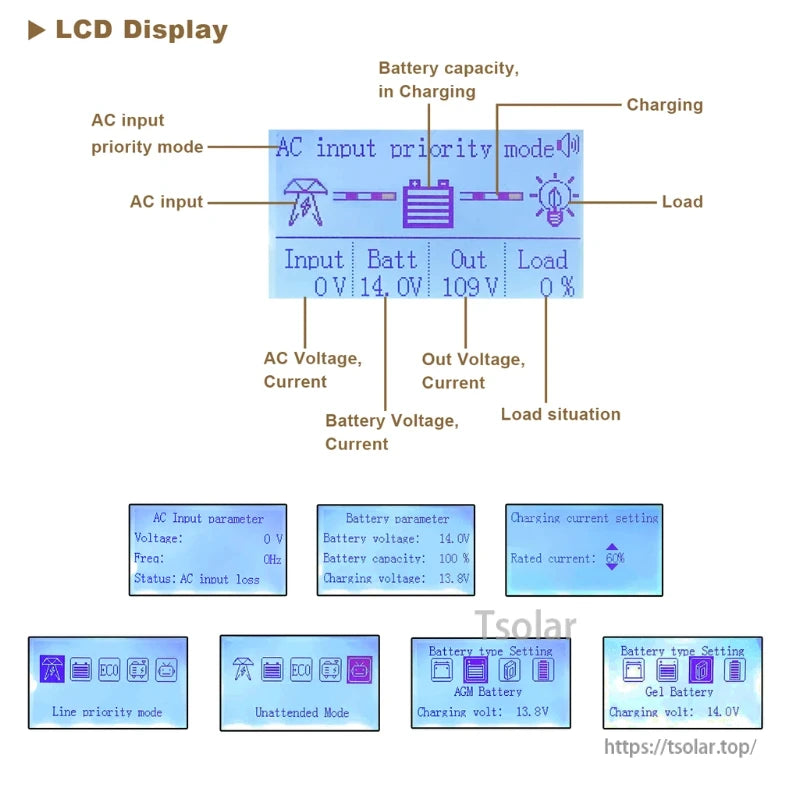

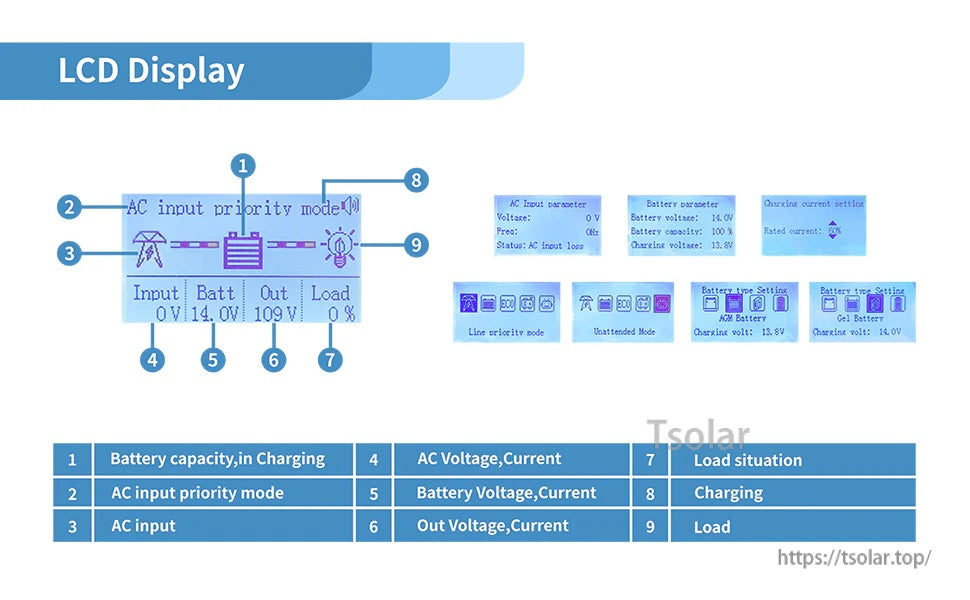

LCD Display Indicators
The LCD interface indicates the following items (as numbered on the display):
| 1 | Battery capacity, in Charging |
| 2 | AC input priority mode |
| 3 | AC input |
| 4 | AC Voltage, Current |
| 5 | Battery Voltage, Current |
| 6 | Out Voltage, Current |
| 7 | Load situation |
| 8 | Charging |
| 9 | Load |
What’s Included
- Remote control panel (LCD remote screen)
- 5-meter connection cable
For compatibility questions before purchase, contact customer support at service@tsolar.top.
Details
Get switching control, live status readouts, and basic parameter settings from a 17 × 12 cm HD LCD remote panel using the RS485 connection and included 5 m cable.
