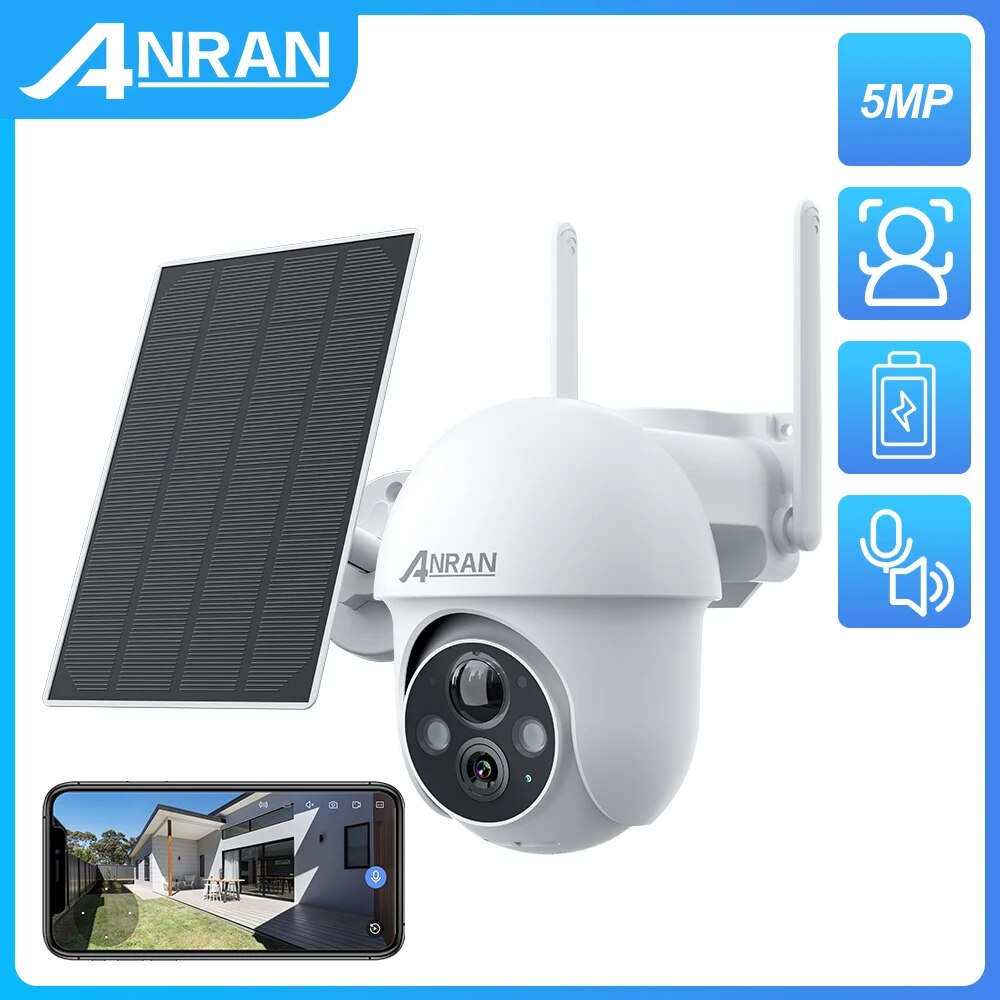

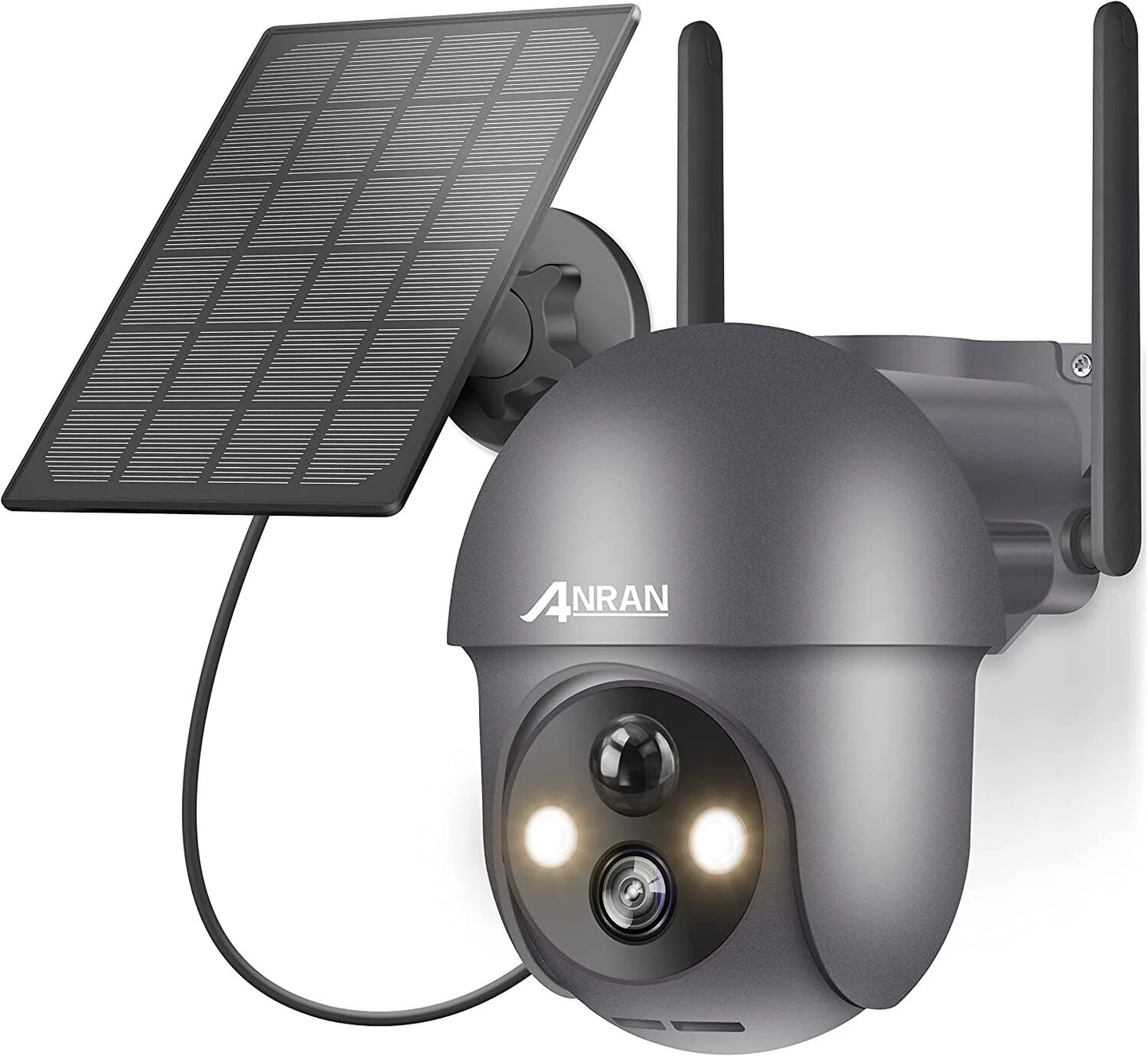

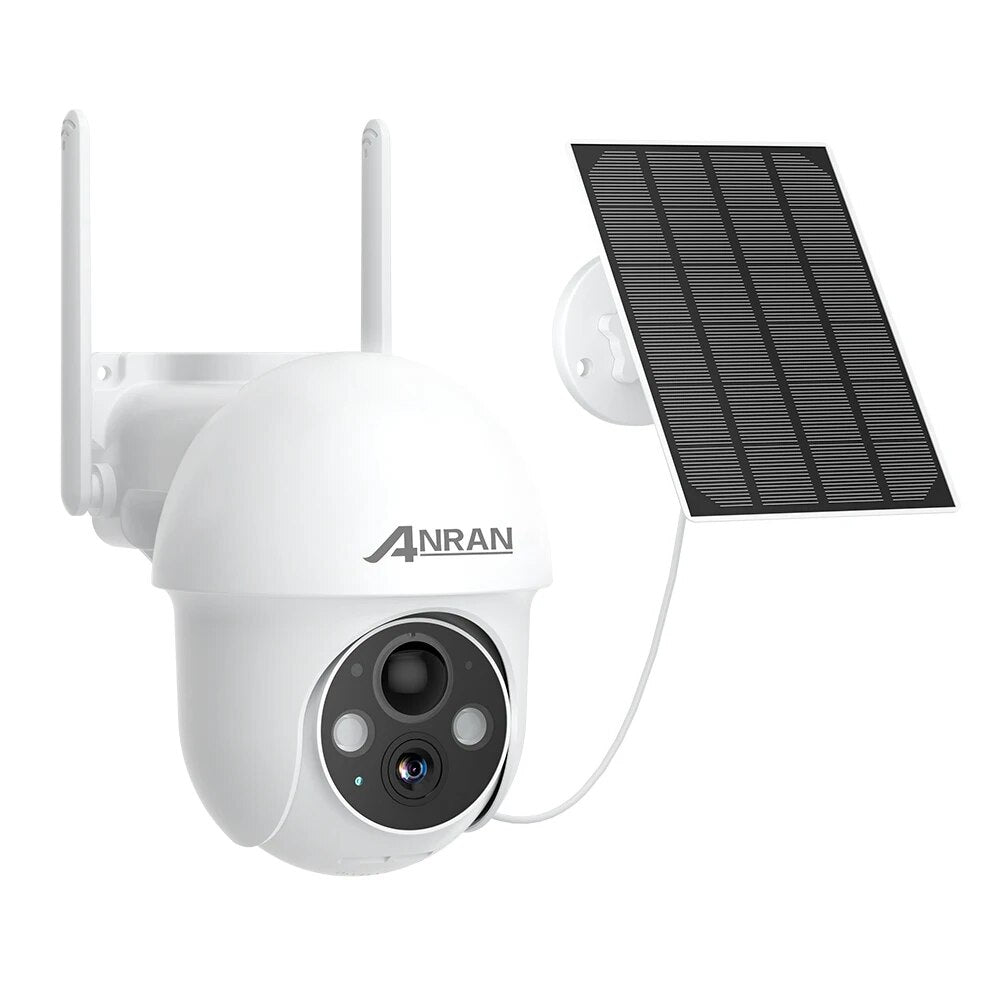

ANRAN Q1 Max 5MP Solar Camera Specifications



Feature	Specification
APP Name	ANRAN
Image Resolution	2560*1920 (5MP)
Lens	3.6mm
Day and Night Vision	10M Range
Motion Detection	Supported, with Alarm Tone Function
WiFi Connection	Supported (2.4GHz)
Night Vision	Infrared and Color Night Vision Supported
Digital Zoom	4X
Humanoid Detection	PIR Humanoid Detection Supported
Audio	Two-Way Audio Supported
Pan & Tilt	Pan 355° / Tilt 90°
Storage	TF Card Support, Max 128 GB
Weatherproof Level	IP66
Image Sensor	Sony
Power Supply	Input: DC 5V-1A, Output: 100-240V

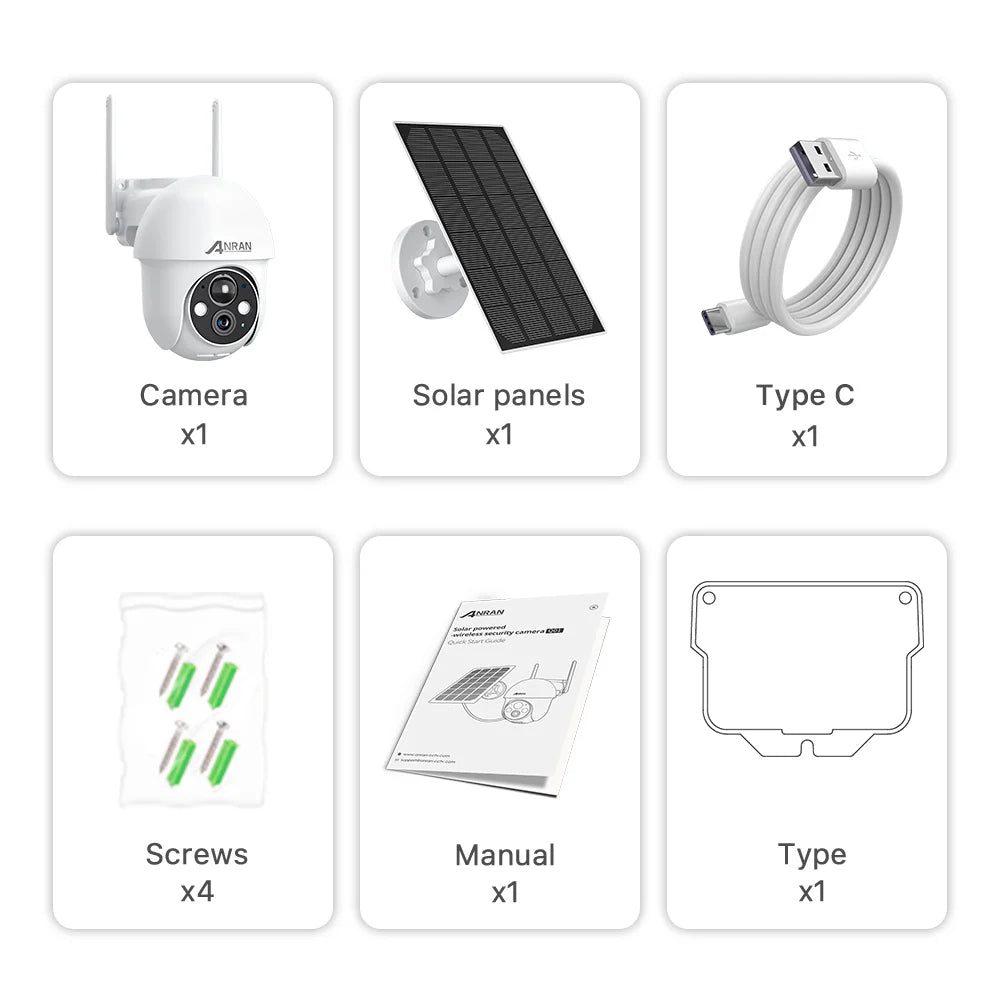

What's in the box

• Security Camera *1
• Solar Panel *1
• Screw Pack *1
• USB Cable *1
• User Manual *1



ANRAN Q1 Max 5MP Solar Camera Features

5MP HD Clarity & Complete 360° Coverage: Equipped with a 5MP PTZ solar camera, this device captures wide panoramic shots, 355° horizontally and 140° vertically, along with 4X digital zoom (no optical zoom) to ensure extensive area coverage without any blind spots. Experience everything in sharp 5MP HD, enhanced by superior IR night vision and 2.5K Color night vision through four powerful spotlights for an all-encompassing, intuitive surveillance.

Self-Sustaining Solar Power & Fully Wireless: This entirely wireless security camera can be placed freely, indoors or outdoors, thanks to its solar-powered design. With a 9600mAh battery and high-efficiency solar panels, it offers 365 days of uninterrupted solar power, eliminating the hassle of frequent recharging. (Supports 2.4 GHz WiFi only, does not support 5G WiFi)

Advanced PIR Motion Detection & Interactive Two-Way Audio: The camera's sensitive PIR motion sensor distinguishes between people, pets, vehicles, and packages, with customizable alarm settings and sensitivity adjustments to reduce false alerts. Built-in speaker and microphone allow for real-time conversations with visitors or family members.

Shared Access & Durable IP66 Weatherproof Design: This camera supports multi-user access, letting you and others view and playback footage on the App, fostering collective home security. It operates effectively in temperatures ranging from 14 F to 122 F, and its IP66 rating ensures resilience in any weather condition.

Comprehensive Warranty & Support: ANRAN is committed to delivering the highest quality outdoor solar cameras, featuring the latest technology and surprising extras like Alexa compatibility and dual storage options. It comes with lifetime technical support, local phone service, a 1-year warranty, and a 90-day return policy, ensuring your satisfaction and peace of mind. (Note: Compatible with 2.4GHz WiFi ONLY.)





5MP 2560x1920 Ultra HD Quality

Dive into the unmatched clarity of 1920P Full HD video. Powered by a sophisticated 5MP (megapixel) image sensor, This ANRAN Q1 Max Solar Battery Camera promises to provide exceptionally high-quality video footage characterized by remarkable clarity and intricate detail.

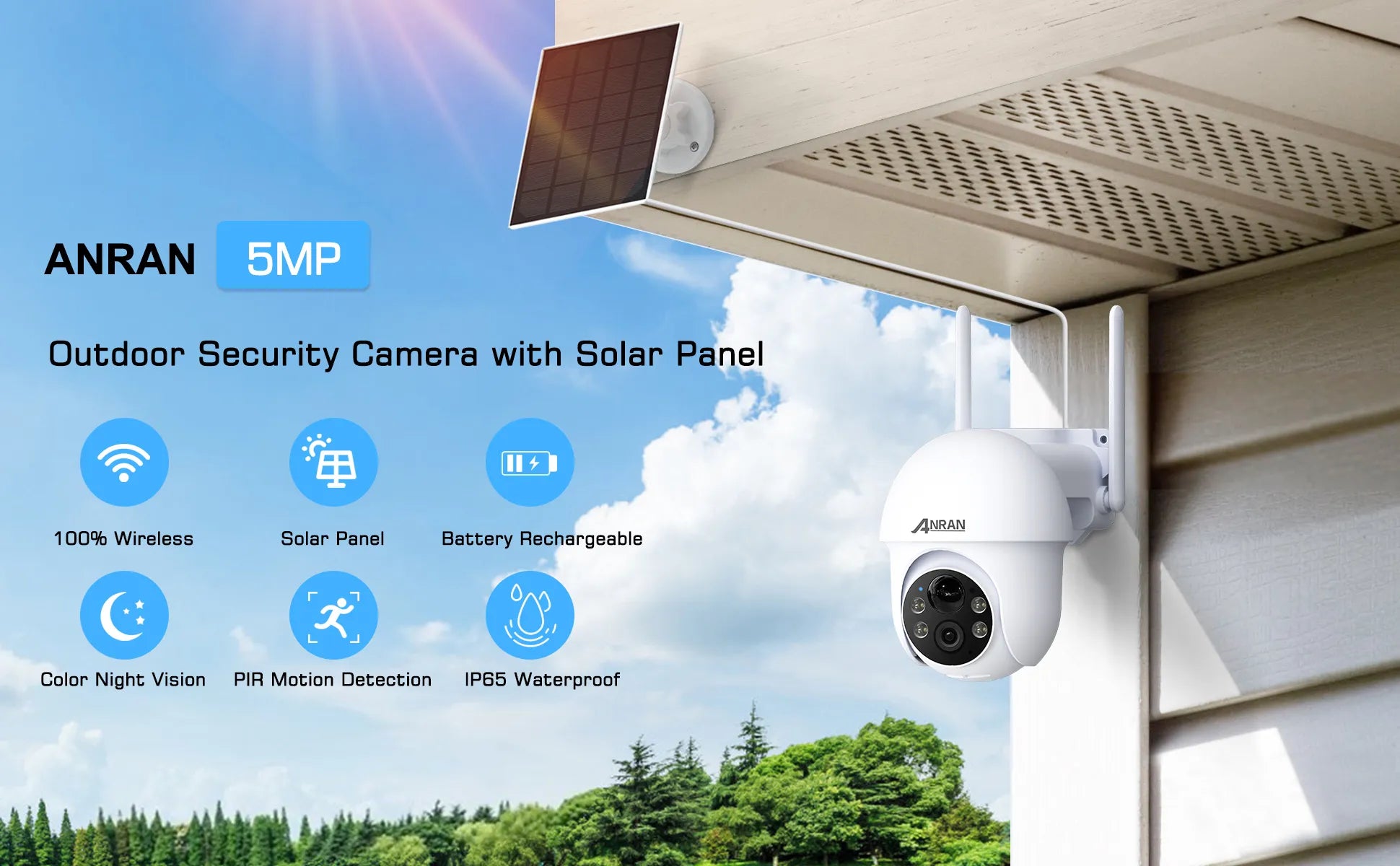

Solar Panel Compatibility: 365 Day Non-Stop Power

Enhance your wire-free security system with our solar panel, designed to power your camera while significantly extending battery life. The anran solar panel is fully water-resistant and can be easily mounted near the camera or in a separate location, using the provided screw holes. For optimal performance, ensure the solar panel is placed in an area that receives ample direct sunlight, avoiding covered or shaded spots.

The camera operates on a durable, long-lasting battery, ensuring reliable power. Through the ANRAN app, we'll notify you when the battery level is low, minimizing the need for frequent recharging. Experience the convenience of a 365-day battery lifespan with just a single charge, keeping your security seamless and uninterrupted.

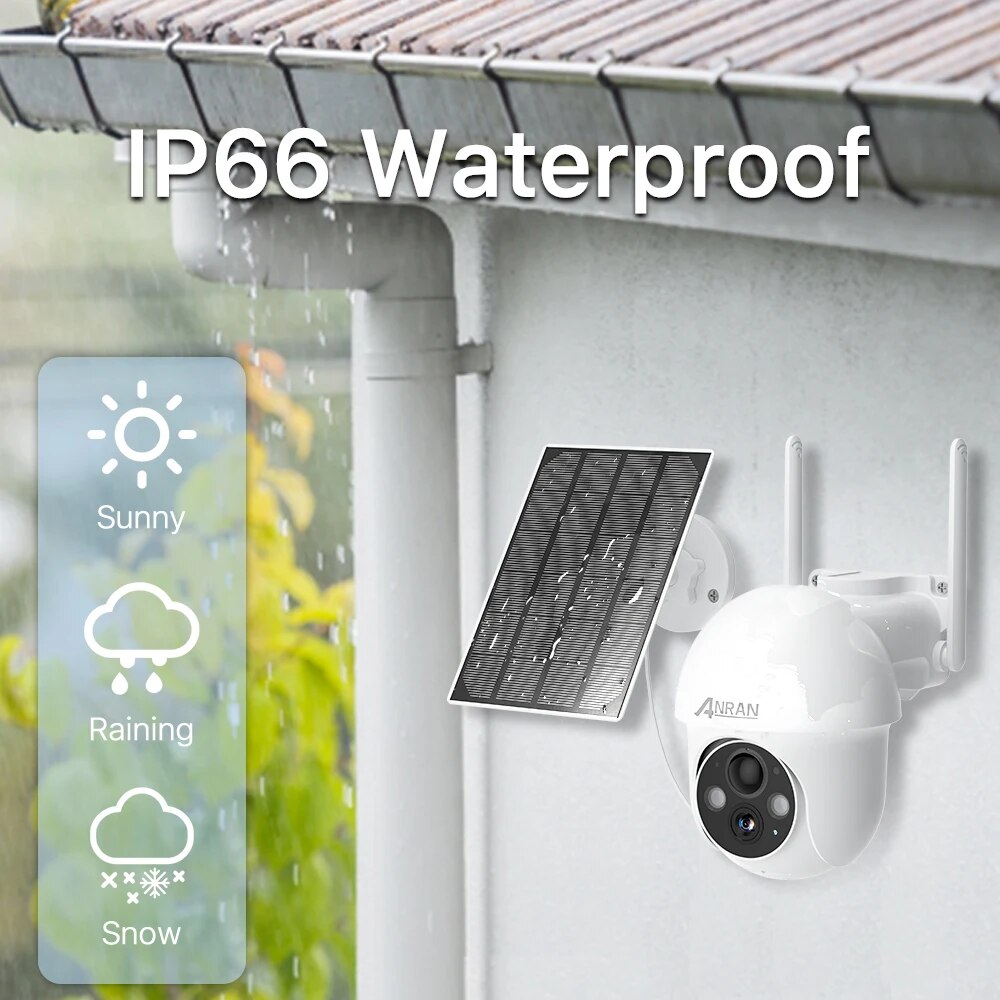

IP66 Waterproof Certification

Designed for resilience, this wire-free anran security camera is rigorously tested for outdoor durability. It's engineered to withstand extreme weather conditions without freezing in temperatures below zero or failing in sweltering heat. Capable of operating in a wide temperature range, from as low as -22°F (-30°C) to as high as 122°F (50°C), this camera ensures continuous operation in any climate. Thanks to its IP66 rating, it's fully weatherproof, guaranteeing protection against rain, snow, and dust, maintaining vigilance in all environmental conditions.

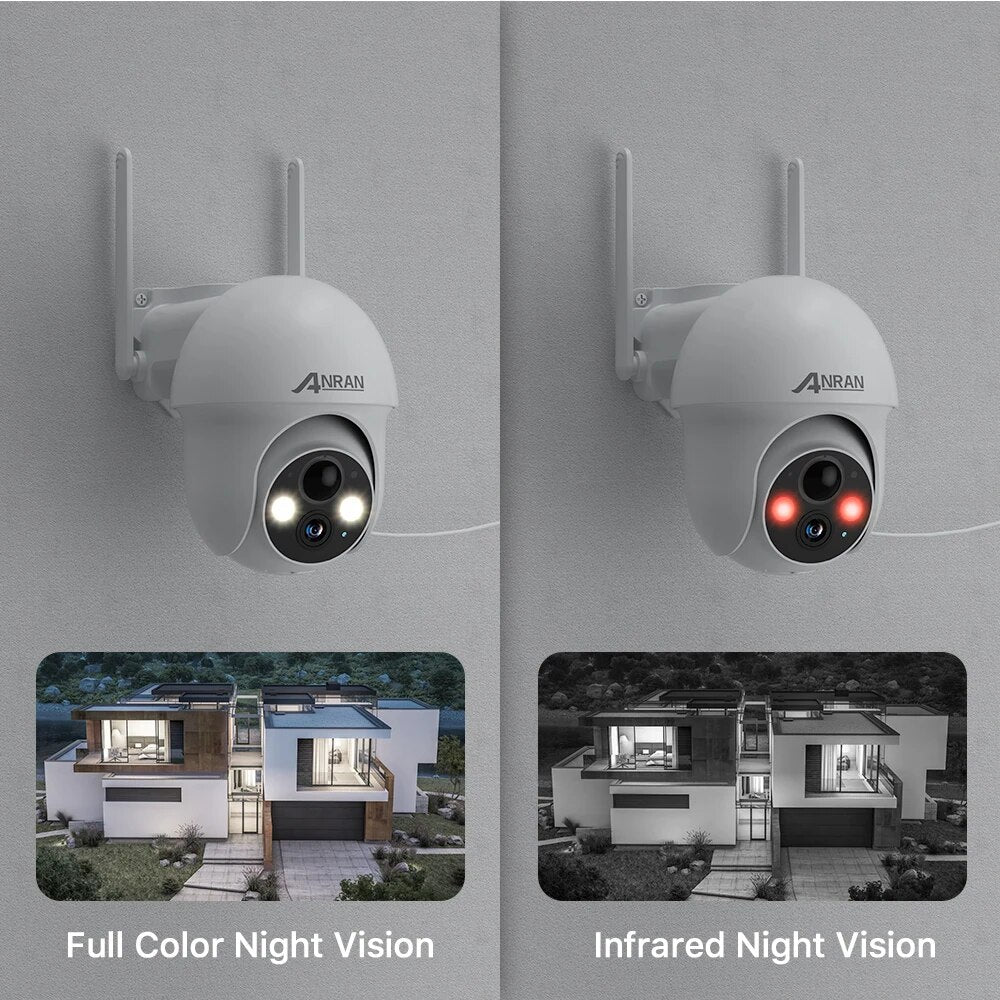

IR & Color Night Vision Technology

Equipped with groundbreaking Color Night Vision™ (CNV) technology, anran camera delivers vivid, full-color video footage at night, utilizing external light sources near the camera to enhance visibility. CNV technology not only enriches the video with color for detailed observation (such as the color of clothing or vehicles) but also amplifies contrast, making it simpler to detect and recognize people and objects under low-light conditions.

Motion Detection & Instant Alerts

This anran security camera remains vigilant whether you're away or at home, sending instant alert notifications to your phone the moment any movement is detected within its monitoring area. This ensures your home's safety is always upheld. Wherever you are, rest assured that this camera serves as a steadfast protector of your home.

Real-Time Home Security Alerts:

• Equipped with a spotlight and siren, it actively deters unwelcome visitors during the night.
• Features PIR motion detection technology for precise alerts.
• The camera shines a spotlight on detected movements, enhancing visibility.
• A loud siren can be triggered to scare off intruders.
• Receive instant notifications on your phone to stay informed of any activity, no matter the time or place.

Through the ANRAN app, you'll get real-time motion alarms, ensuring you're always in the loop and your home is protected around the clock.

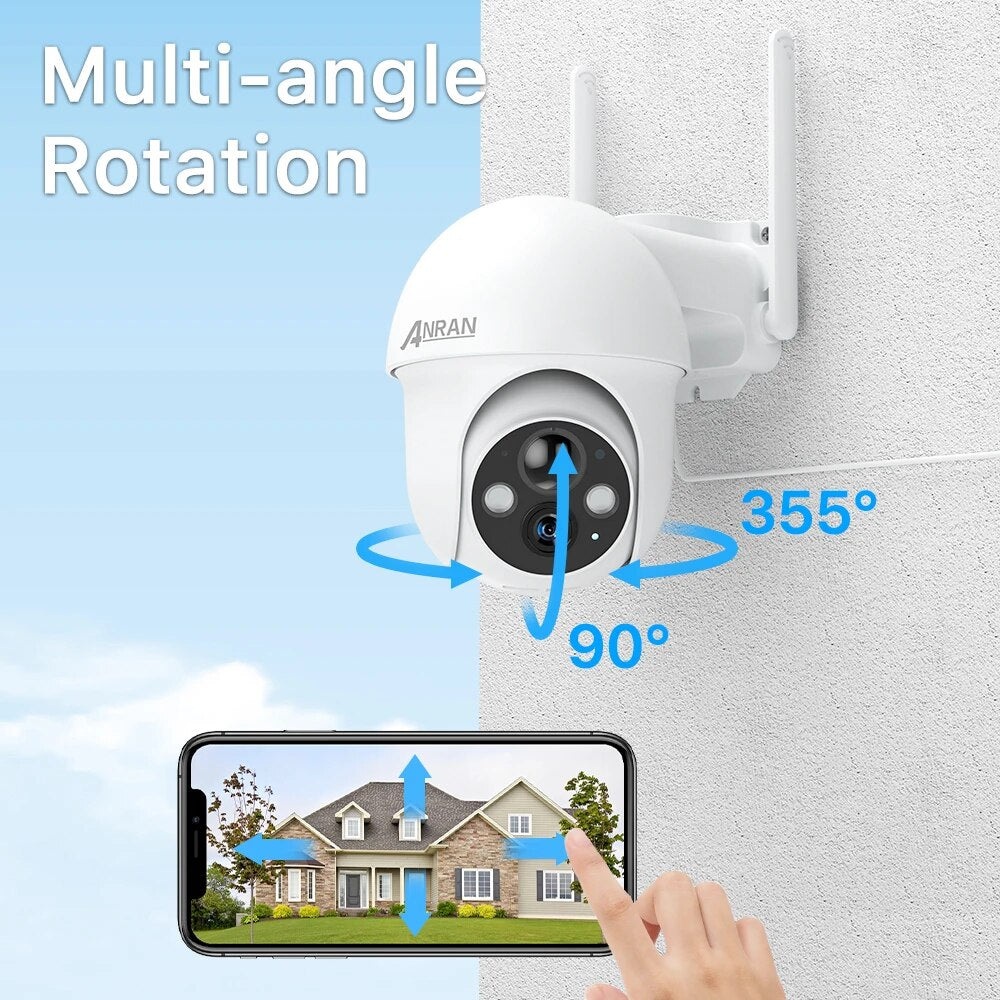

Multi-Angle Rotation for Comprehensive Coverage

Enjoy a sweeping panoramic view of your surroundings with a smooth 355-degree horizontal pan and a 90-degree vertical tilt. This extensive range of motion allows you to cover every corner of the room seamlessly. Direct the camera's movements effortlessly through your phone, ensuring you can always see exactly what you wish to monitor.

Two-Way Audio Feature

The Anran wireless camera comes equipped with an integrated speaker and microphone, enabling you to listen in on home activities. This feature allows you to communicate with your pets, like talking to your cat or engaging in playful interactions, even when you're away from home.

Integration with Alexa

ANRAN Q1 Max is designed to seamlessly work with Alexa, allowing for hands-free voice control. Easily manage your camera's features and functionalities through voice commands, enhancing your smart home experience.

PIR Motion Detection with Customizable Sensitivity

Featuring advanced Passive Infrared (PIR) motion detection, this device accurately senses movement by detecting heat signatures. The detection sensitivity can be adjusted to suit your specific needs, minimizing false alarms and ensuring you're alerted to genuine activity.

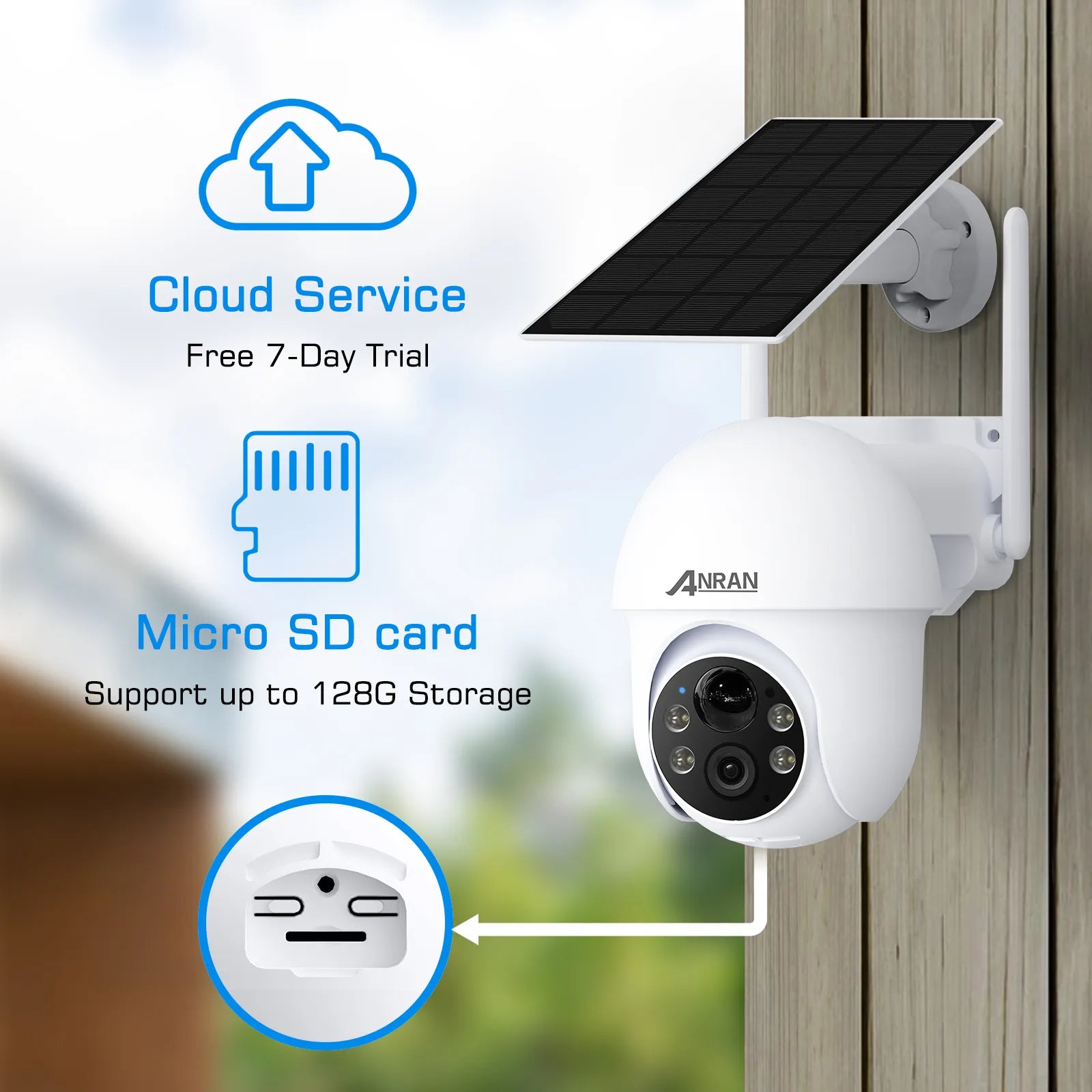

Dual Video Storage Options for Enhanced Security

• Local SD Card Storage: Secure your motion-detected events locally with micro SD card storage (card not included). ANRAN Q1 Max supports micro SD cards up to 128GB, ensuring ample space for all your surveillance footage without the need for constant monitoring or data transfer.

• ANRAN Cloud Storage: Benefit from the added security of encrypted cloud service storage. This option ensures that your motion-triggered recordings are safely stored away. Enjoy the convenience of permanent access to 6-second free videos, providing a reliable backup and easy access to crucial footage.

Share Camera & Video With Family and Freinds Any Where

You can share surveillance videos with family and friends, allowing them to view live and recorded video clips on their mobile devices, no matter where they are. By granting them access, they can efficiently review crucial footage, such as moments when motion is detected, with key segments automatically edited for quick viewing.

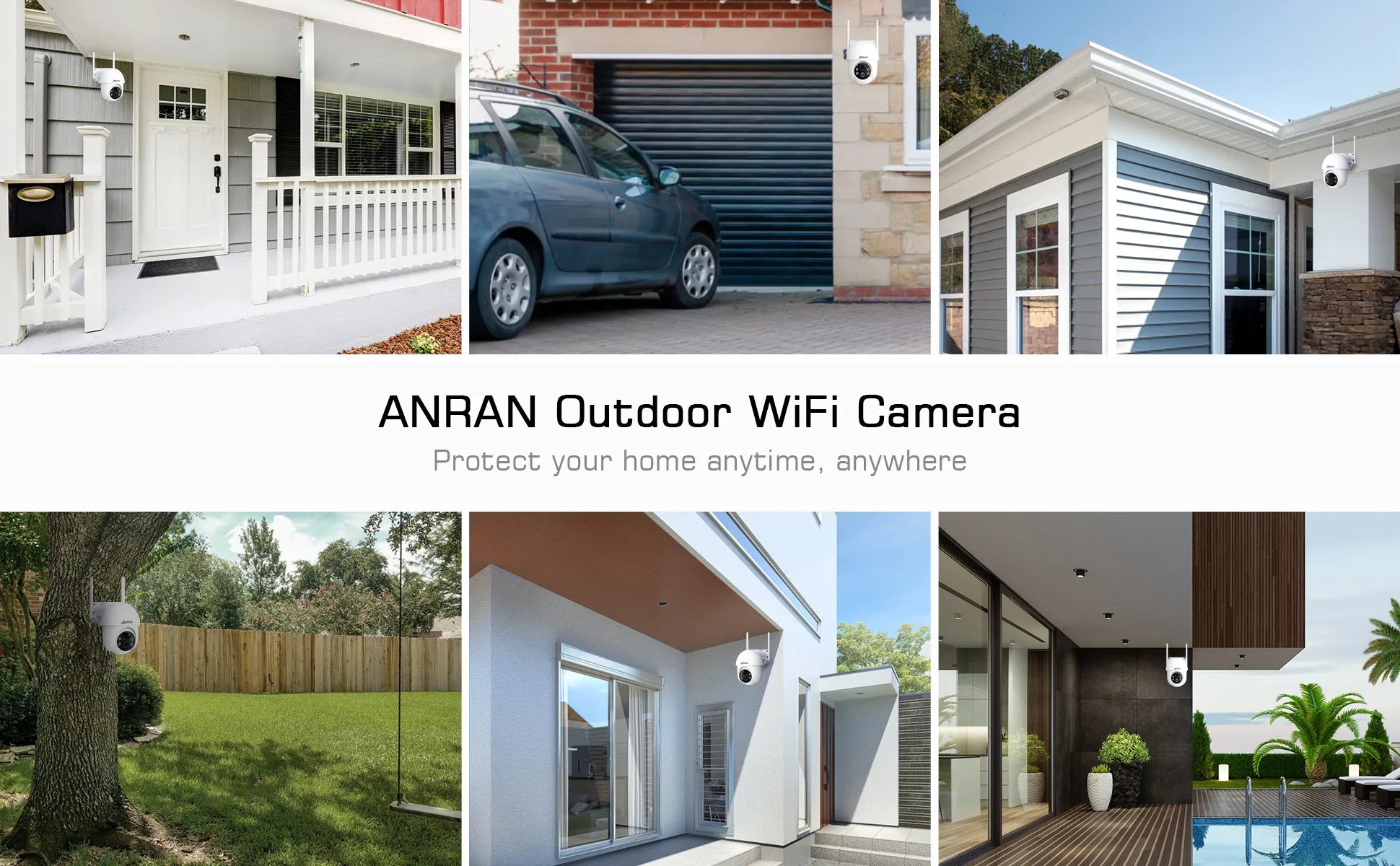

ANRAN Outdoor Security Camera Protect Your Home Anywhere, Anytime

The ANRAN outdoor security camera is designed for versatile multi-scenario monitoring. It's suitable for a variety of locations, including the front door, yard, woods, swimming pool, garage, kitchen, and warehouse, ensuring comprehensive coverage wherever you need it.

ANRAN APP: Remote Viewing Capability

Stay informed and connected, even when you're away, with the complimentary app. It enables you to receive instant notifications and access live or recorded footage directly on your phone, ensuring peace of mind no matter where you are.

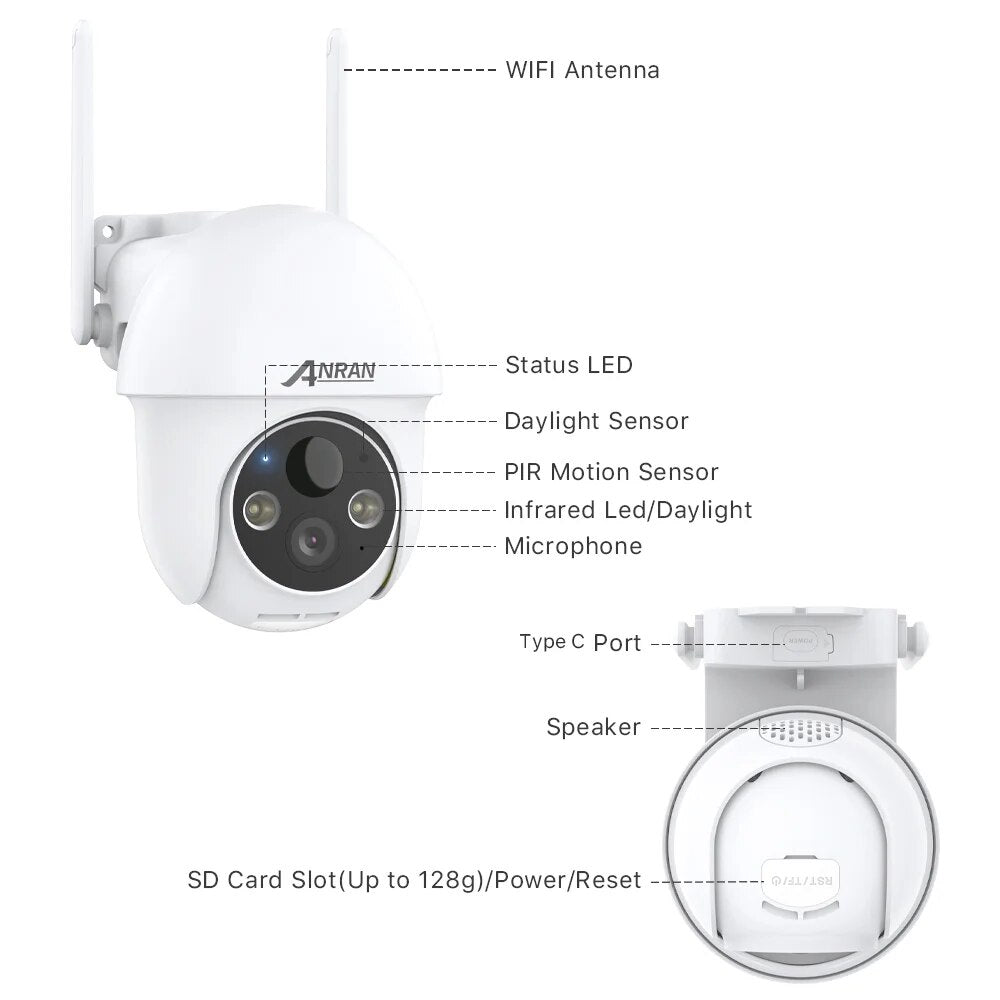

In the camera's schematic, the components are identified as follows:

• WIFI Antenna: Ensures a stable and strong wireless connection for seamless video transmission.
• Status LED: Indicates the camera's operational status.
• Daylight Sensor: Detects the level of ambient light to switch between day and night modes automatically.
• PIR Motion Sensor: Sensitive to heat, it detects human movement to trigger alerts.
• Infrared LED/Daylight: Provides night vision capabilities for clear images in low light conditions.
• Microphone: Captures audio, enabling sound recording and two-way communication.
• Type C Port: For charging the camera and possibly data transfer.
• Speaker: Allows for two-way audio communication between the camera and your mobile device.
• SD Card Slot (Up to 128g)/Power/Reset: Supports local video storage on an SD card, provides power input, and includes a reset function for troubleshooting.

WIFI Antenna FANRAN Status LED Daylight Sensor PIR Motion Sensor Infrared Led/Daylight Microphone Type € Port Speaker SD Card Slot(Up to 128g)/Power/Reset @filtis



FAQ

FAQs on Solar Camera Compatibility and Use

Does the solar camera work with 5G WiFi?

• This 5MP solar-powered outdoor camera is designed for 2.4g WiFi networks, similar to the majority of cameras available today.

How can I connect it to a 5G WiFi router?

1. Look up instructional videos on YouTube to learn how to configure your router for both 2.4g and 5g signals, then connect the camera to the 2.4g network.
2. Alternatively, you could contact your internet service provider for assistance in splitting your router's signal into 2.4g and 5g bands and then connect using the 2.4g network.

How can I share access to the camera?

• You can easily share your home security camera with family members by logging into another account on the App and sharing the camera either by scanning a QR code or entering their account number.

Where is the best place to install the camera?

• Thanks to its IP65 waterproof rating, this wireless outdoor WiFi camera is perfectly suited for a wide range of locations, both indoors and outdoors. Ideal settings include homes, offices, garages, and warehouses, offering dependable security regardless of the weather.

Is an SD card included, and what type should I use?

• The camera does not come with an SD card included. You will need to purchase one separately, ensuring it adheres to the following specifications:
  • Capacity: Between 8-128GB
  • Speed: Class 10
  • Format: FAT32
