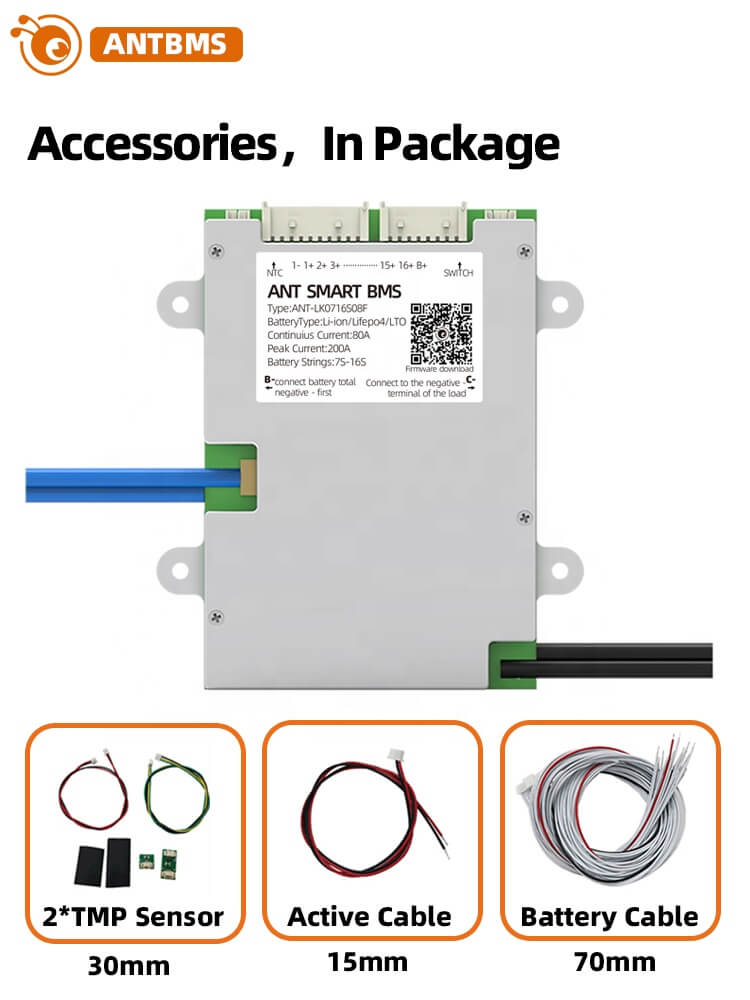

  • In-package accessories for smart BMS: 2× TMP sensors, active cable, and battery balance cable
  • Comparison chart of 7S–16S BMS sizes for 380A, 230A, 170A, and 130A versions

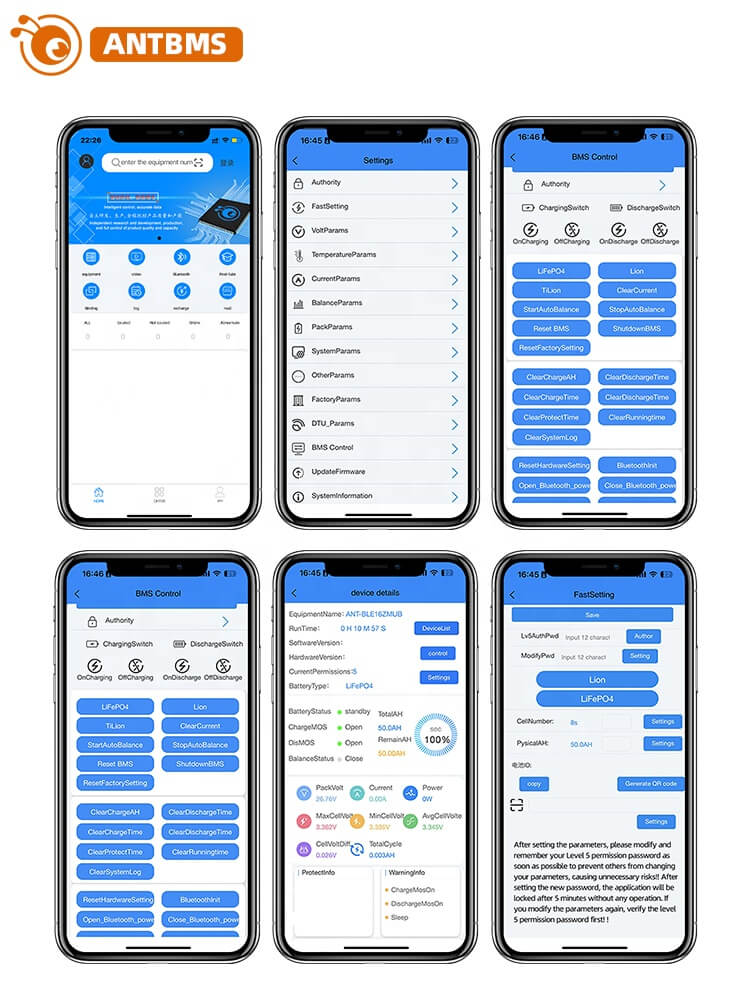

  • Smart BMS mobile app screenshots showing settings, BMS control, device data, and balancing screens
1 11

ANT BMS

ANTBMS Smart BMS 7S-16S 24V-60V Battery Protection Board for LiFePO4/Li-ion/LTO, 40A-420A

ANTBMS Smart BMS 7S-16S 24V-60V Battery Protection Board for LiFePO4/Li-ion/LTO, 40A-420A

$58.97 USD
$58.97 USD
Sale Sold out
Shipping calculated at checkout.
Current
View full details

Overview

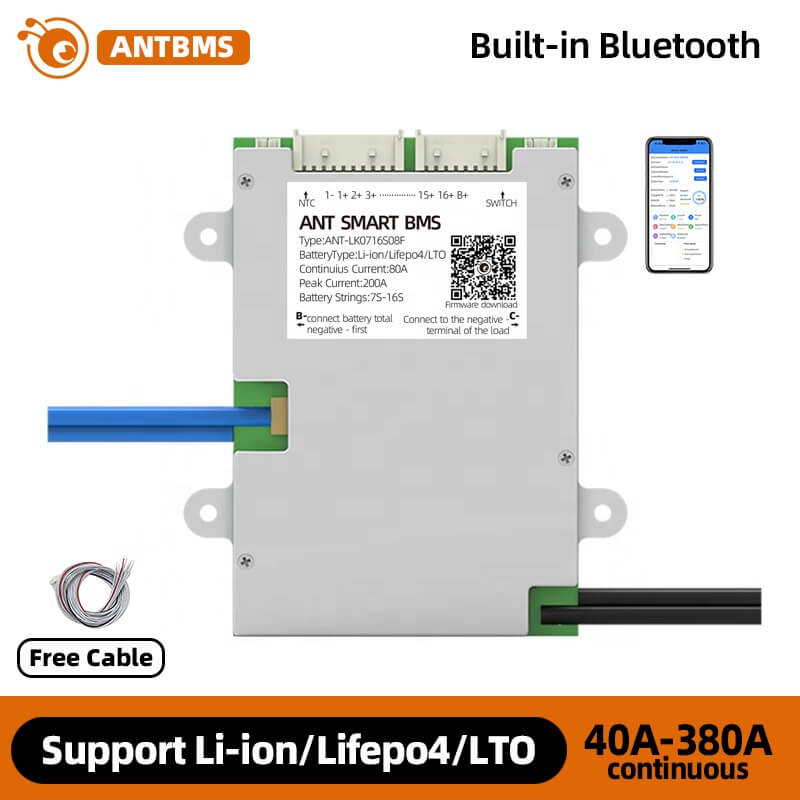

ANTBMS Smart BMS battery protection board for 7S to 16S battery packs (24V-60V class), suitable for Li-ion, LiFePO4 and LTO. The system supports built-in Bluetooth for Android/iOS monitoring and provides protection and cell monitoring functions for multi-series battery packs.

Key Features

  • Battery strings: 7S to 16S
  • Battery types: Li-ion / LiFePO4 / LTO
  • Power supply mode: battery pack self-powered and 20-80V DC input
  • Bluetooth: built-in, supports Android / iOS phone
  • Balancing: 100mA passive balance
  • Protections / detection: short circuit protection; supports single cell voltage dropout detection
  • Wiring method: same port

For customization requirements (including RS485/CAN/Modbus options mentioned for customized configurations, and positioning-hole customization on some versions), support is available via https://tsolar.top/ or service@tsolar.top.

Specifications

Electrical & Measurement

Number of battery strings 7S to 16S
Power supply mode The battery pack is self-powered and 20-80V DC input
Single cell voltage detection range 0-5V
Single cell voltage detection error <20mV over full operating range; typical error value <10mV
Single cell voltage dropout detection Support
Balance current 100mA (passive balance)
Total voltage detection range 0-100V
Total voltage detection accuracy <0.5% FSR (FSR = full scale)
Current sense shunt range -150A to 300A
Current sense shunt error <0.5% FSR
SoC estimation accuracy Error <8% (operating conditions)
Battery remaining capacity Error range is less than 8%
Total Cycle AH cumulative value Half of the charge/discharge value
Operating power consumption <5mA (without communication) / 15mA (485/CAN)
Standby power consumption <2mA
Short circuit protection Support
Bluetooth function Bluetooth built-in; support for Android / iOS phone

Temperature

Temperature detection -40 to 125°C
Operating temperature -40 to 85°C
Storing temperature -40 to 95°C

Current Ratings (Options Listed)

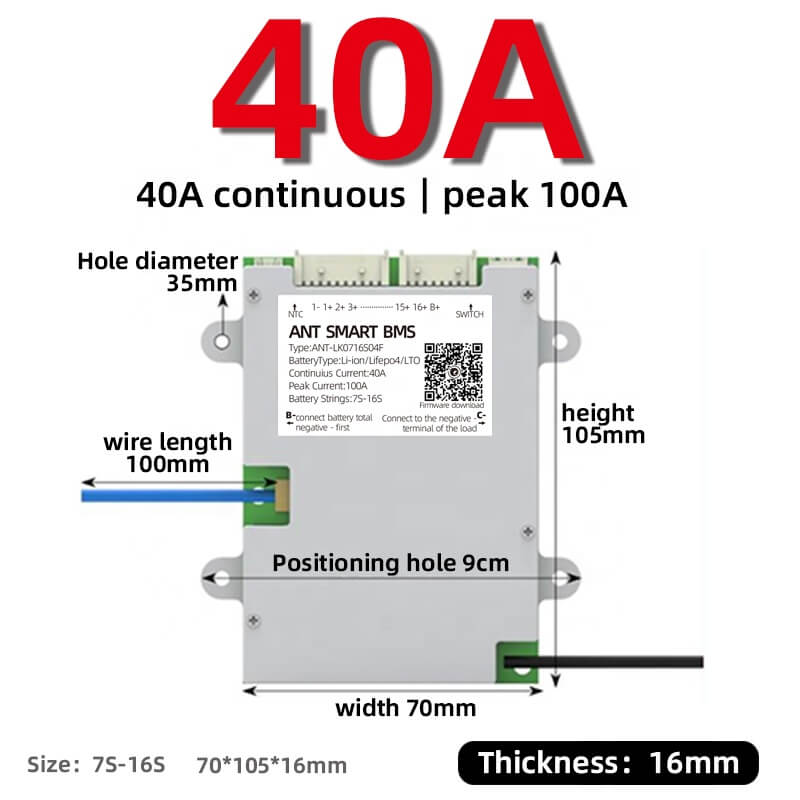

  • 40A continuous; maximum discharge current 100A (Peak max 10 Seconds)
  • 80A continuous; maximum discharge current 200A (Peak max 10 Seconds)
  • 110A continuous; maximum discharge current 275A (Peak max 10 Seconds)
  • 130A continuous; maximum discharge current 325A (Peak max 10 Seconds)
  • 170A continuous; maximum discharge current 425A (Peak max 10 Seconds)
  • 220A continuous; maximum discharge current 550A (Peak max 10 Seconds)
  • 400A continuous; maximum discharge current 1000A (Peak max 10 Seconds)
  • 420A continuous; maximum discharge current 1050A (Peak max 10 Seconds)
  • 230A continuous; peak 575A
  • 380A continuous; peak 950A

Mechanical (Dimensions Shown for Specific Versions)

Note: The data tolerance range is ±1mm.

Version Dimensions Additional notes

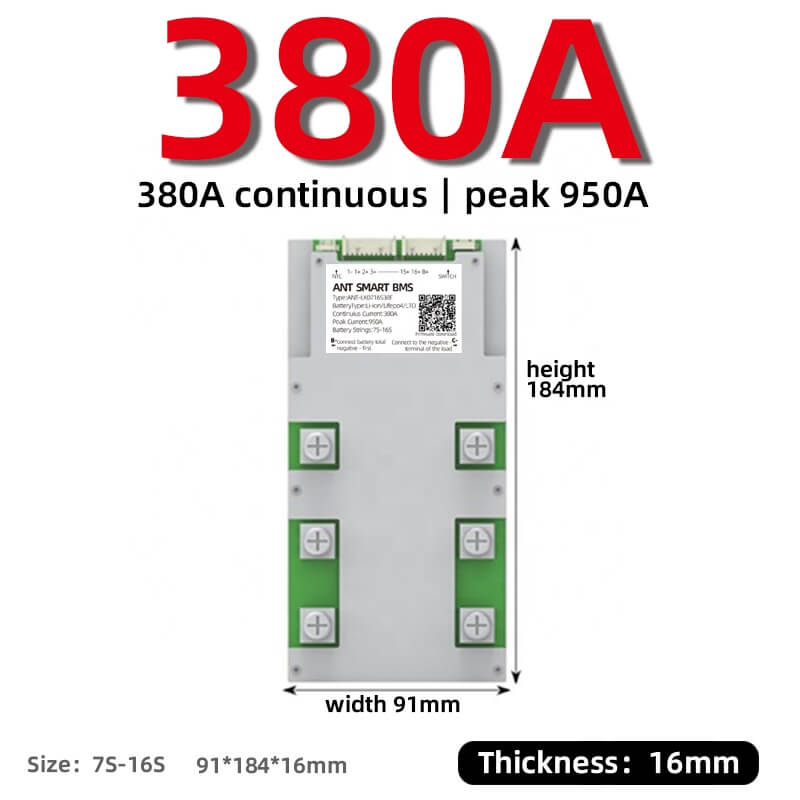

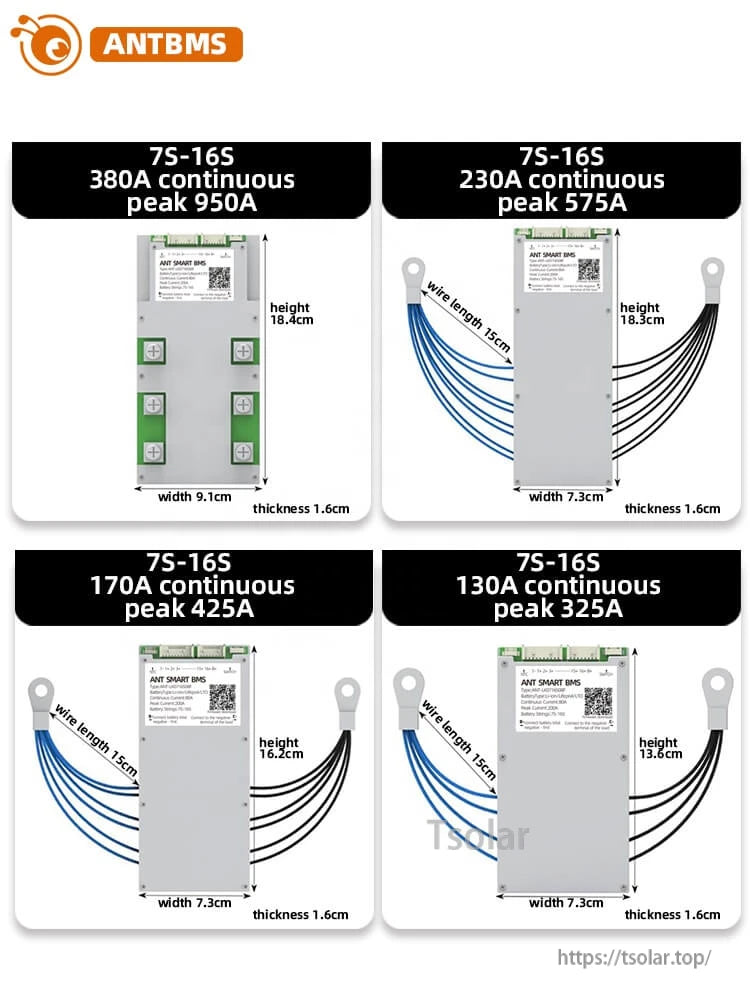

7S-16S 380A continuous (peak 950A) Height 18.4cm; Width 9.1cm; Thickness 1.6cm -
7S-16S 230A continuous (peak 575A) Height 18.3cm; Width 7.3cm; Thickness 1.6cm Wire length 15cm

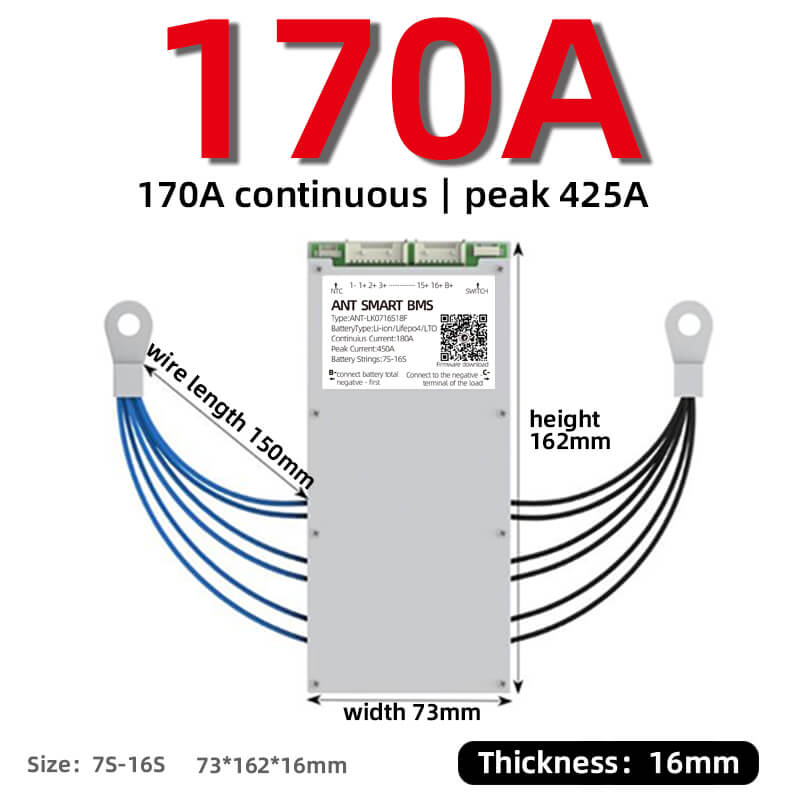

7S-16S 170A continuous (peak 425A) Height 16.2cm; Width 7.3cm; Thickness 1.6cm Wire length 15cm

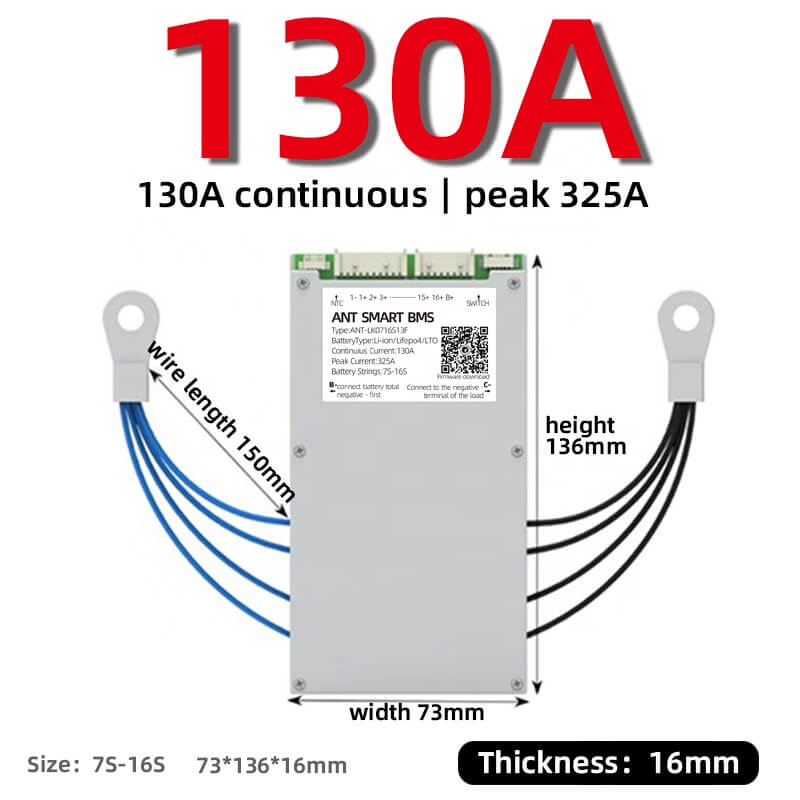

7S-16S 130A continuous (peak 325A) Height 13.6cm; Width 7.3cm; Thickness 1.6cm Wire length 15cm

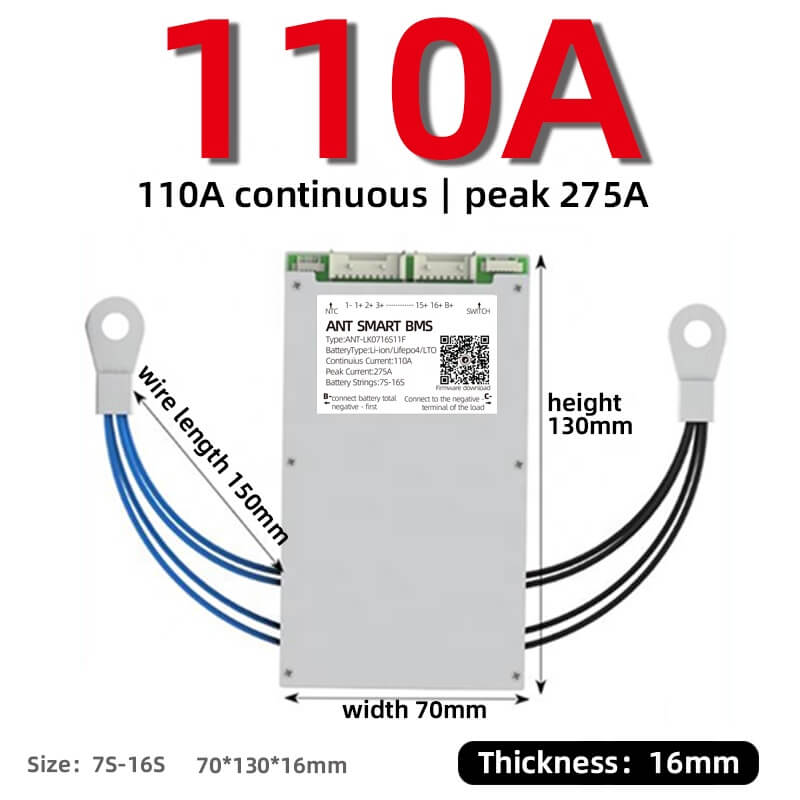

7S-16S 110A continuous (peak 275A) Height 13cm; Width 7cm; Thickness 1.6cm Wire length 15cm

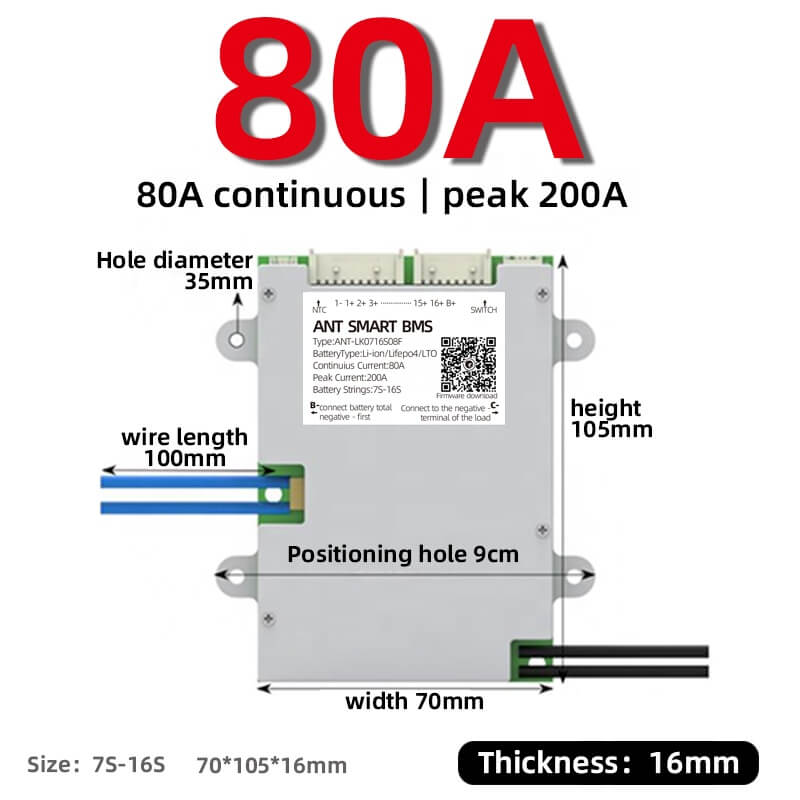

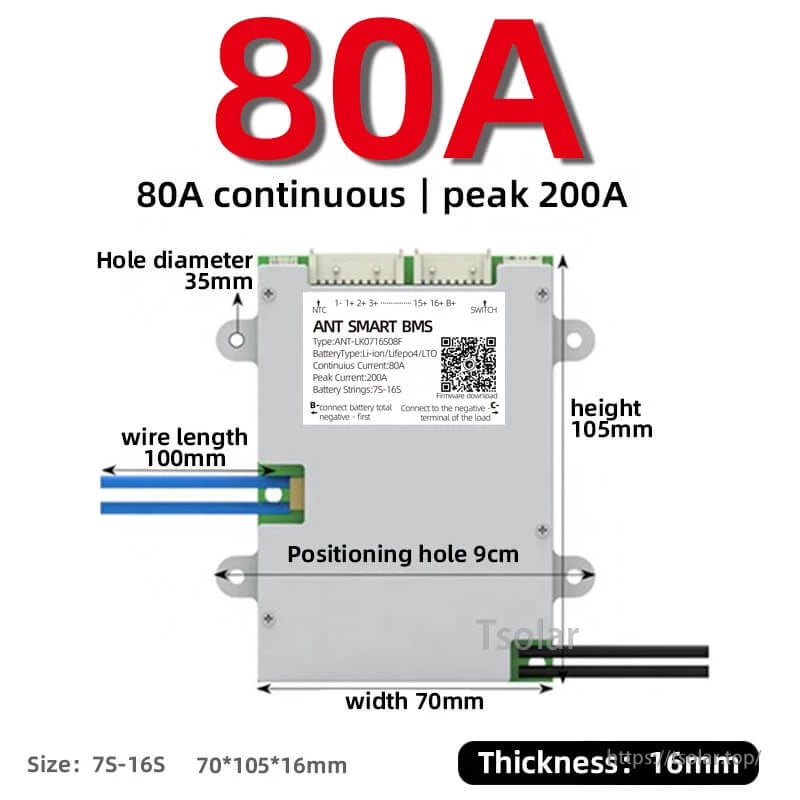

7S-16S 80A continuous (peak 200A) Height 10.5cm; Width 7cm; Thickness 1.6cm Wire length 10cm; Hole diameter 3.5cm; Positioning hole 9cm

Markings Observed

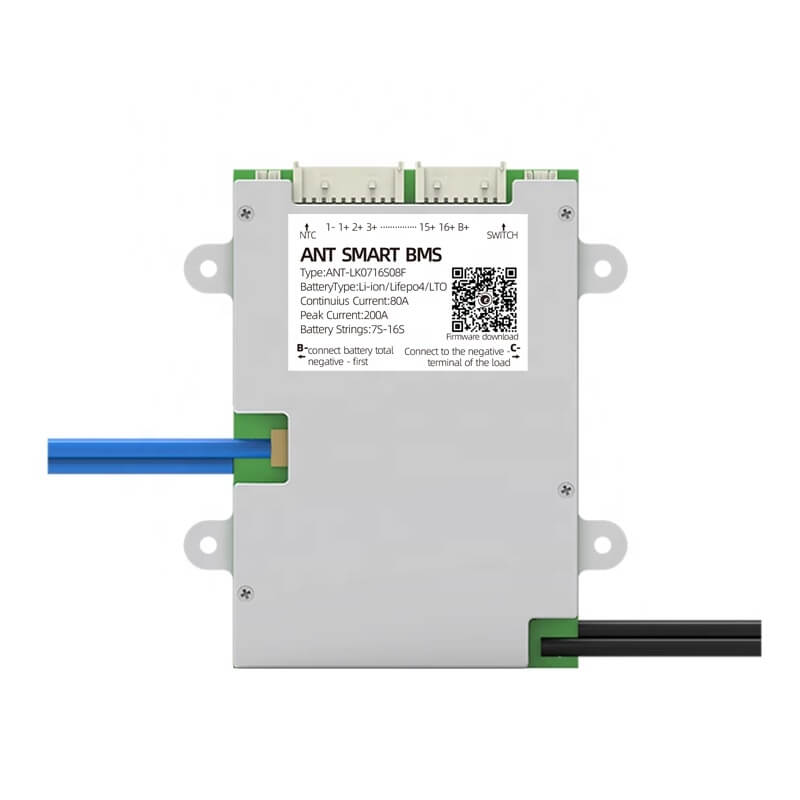

  • Label example: ANT SMART BMS
  • Type shown on label: ANT-LK0716S08F
  • BatteryType shown on label: Li-ion/Lifepo4/LTO
  • Label example ratings shown: Continuous Current: 80A; Peak Current: 200A; Battery Strings: 7S-16S
  • Terminal markings shown include NTC and SWITCH

Applications

  • 7S-16S LiFePO4 / Li-ion / LTO battery packs requiring smart monitoring (Bluetooth) and protection
  • Energy storage and DC battery systems in the 24V-60V class (depending on pack configuration)

Details

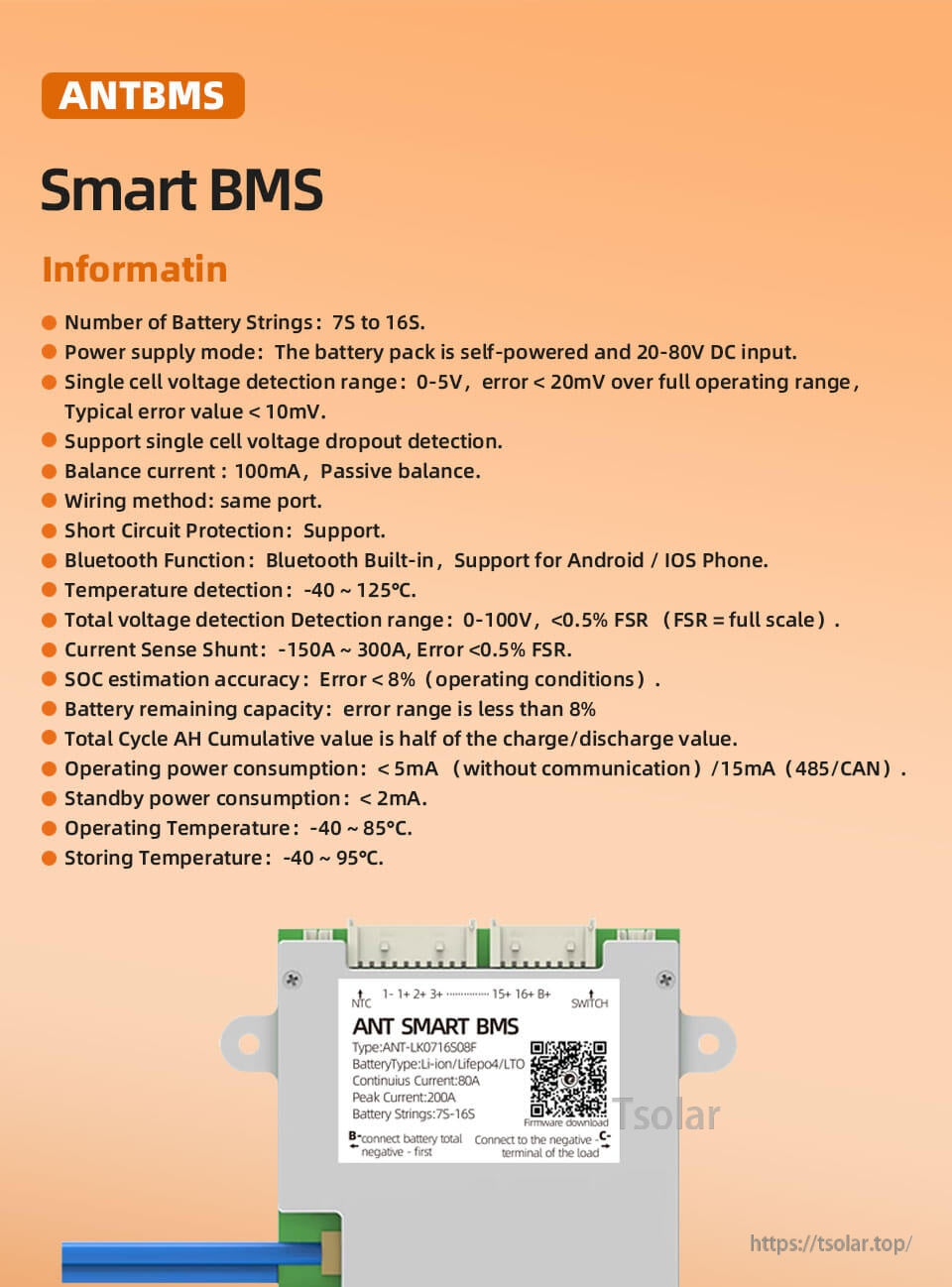

ANTBMS Smart BMS overview with key features for 7S–16S packs and Bluetooth monitoringANTBMS complete specifications page noting 7S–16S support and RS485/CAN/Modbus customization option

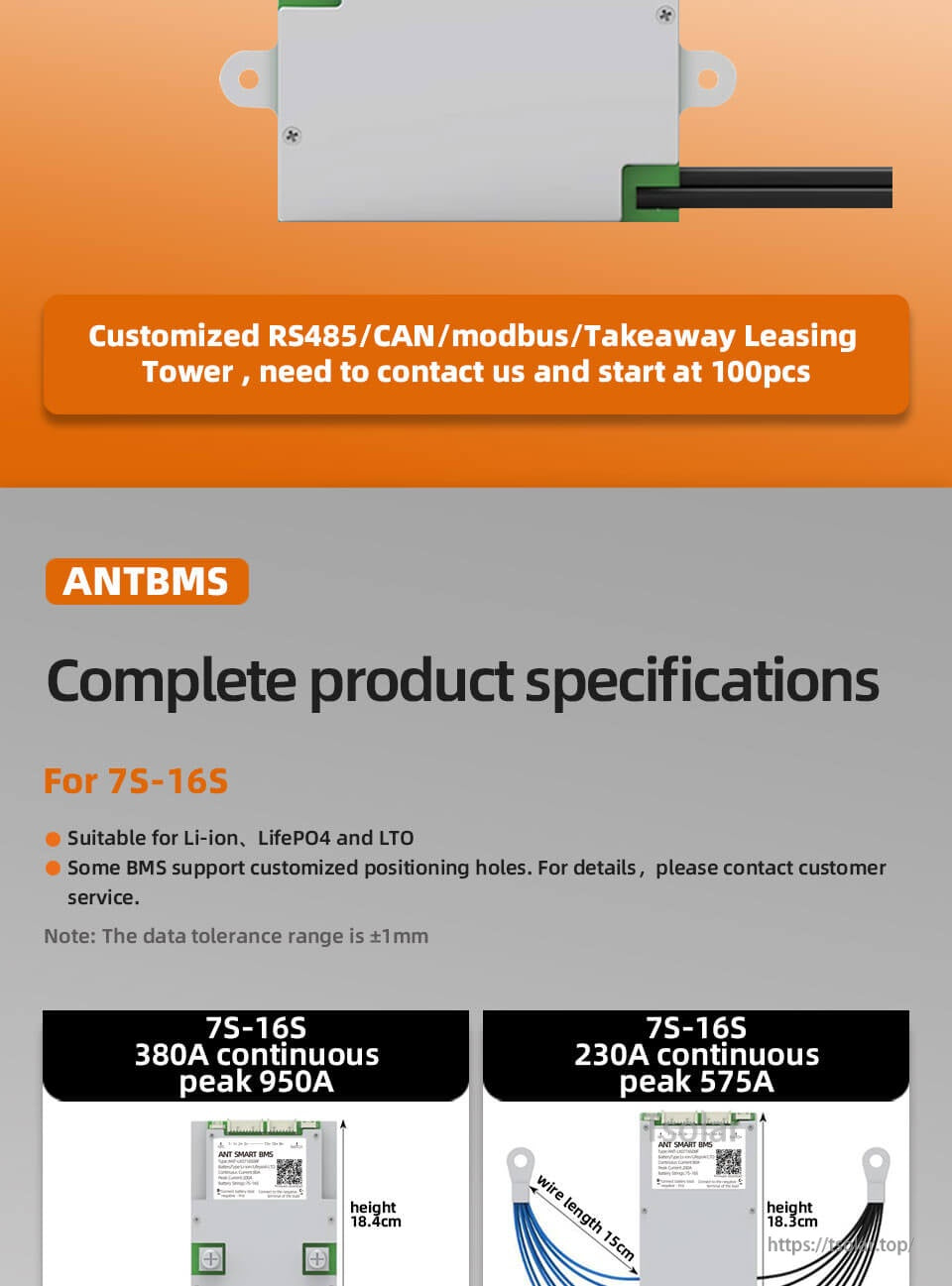

Optional RS485/CAN/Modbus configurations and positioning-hole customization are available for compatible 7S–16S builds.

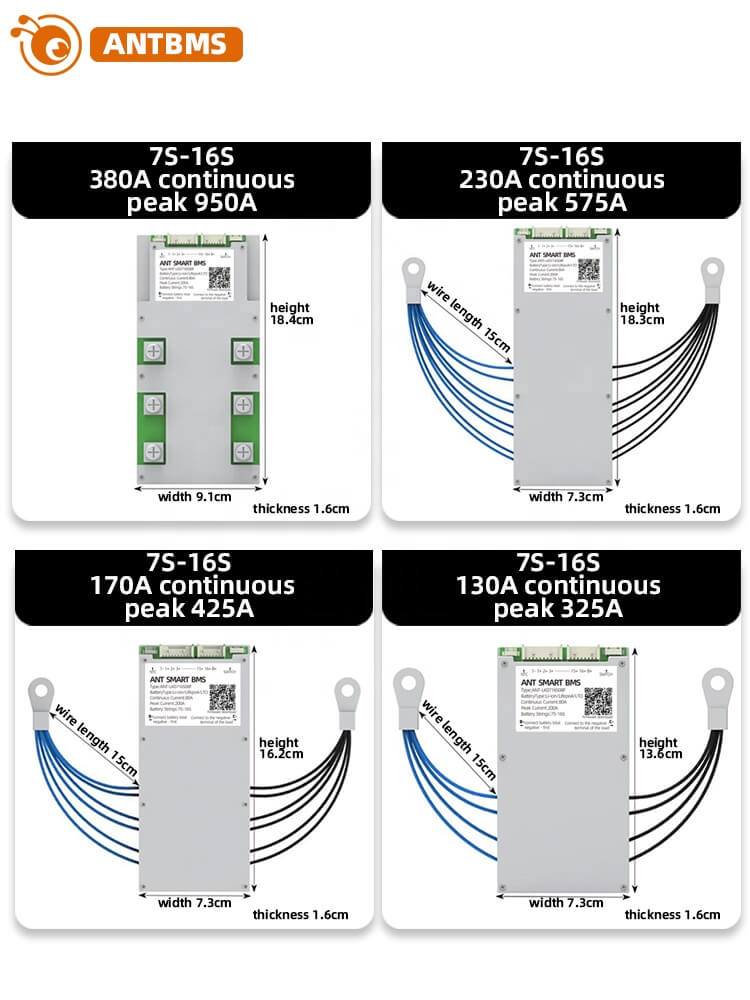

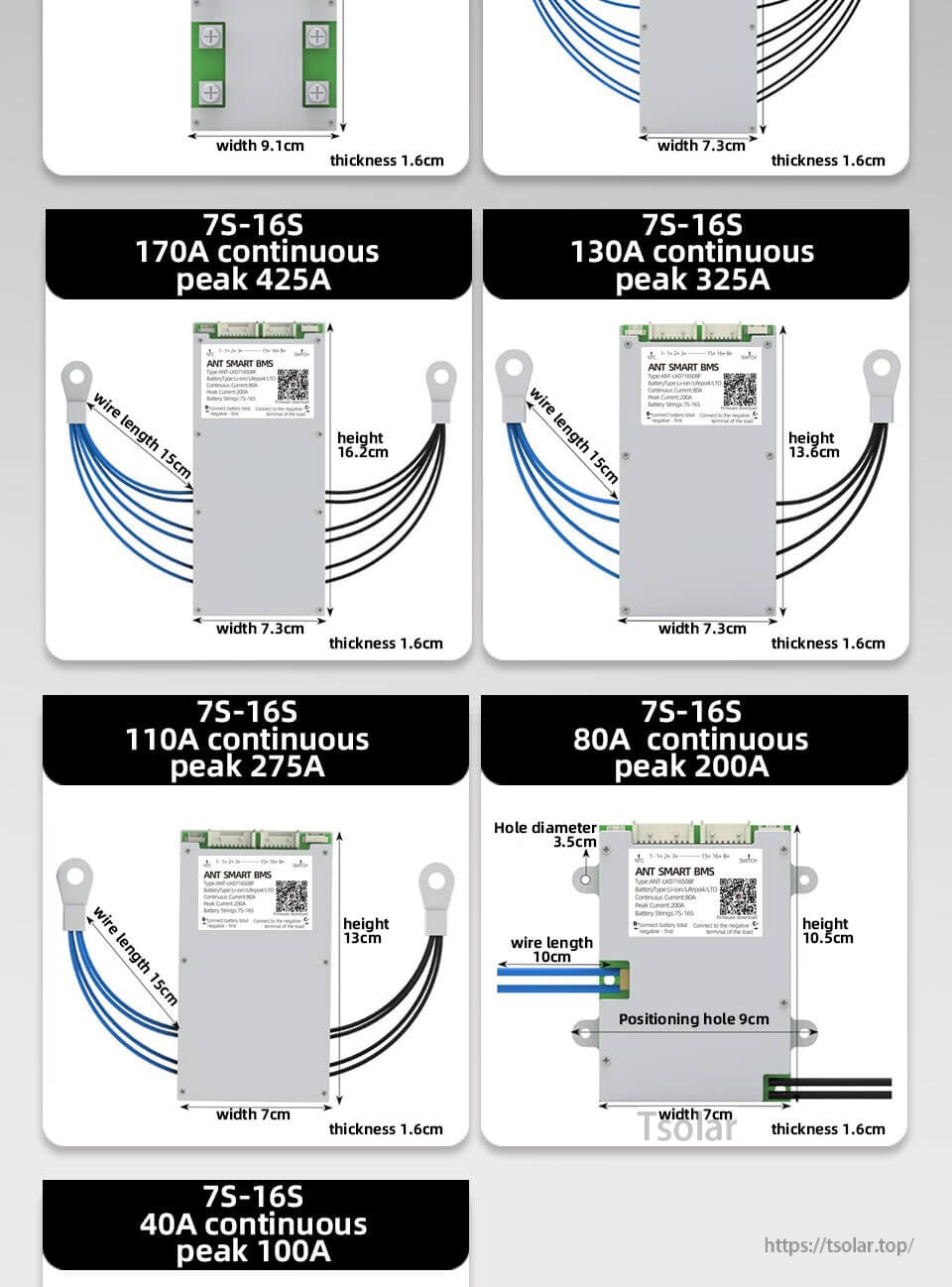

7S–16S Smart BMS current rating options chart (40A to 380A continuous) with dimensions and leads

Choose the continuous/peak current version that matches your application; size and lead details vary by model.
