Aptos 440W Solar Panel Overview
The Aptos 440W Solar Panel (DNA-120-BF10-440W) is a high-efficiency bifacial module designed for both residential and commercial applications. Engineered in Silicon Valley, this panel utilizes advanced selective emitter PERC technology with thin film layers to improve heat tolerance, increase photon capture, and minimize resistive loss. With a rated power output of 440W and a cell efficiency of 20.39%, this panel is optimized for superior performance and durability in various environmental conditions.
Aptos 440W bifacial Solar Panel Key Features
- Advanced Technology: Patented DNA™ technology enhances power performance and module efficiency.
- Maximum Panel Density: Split cell technology with 10 ultra-thin busbars reduces resistance and increases photon capture.
- Durable Design: Resilient in extreme weather with up to 5400 Pa snow load and 5400 Pa wind load.
- Aesthetic Design: Bifacial backsheet and black frame offer a sleek and modern appearance.
- Warranty: Industry-leading 30-year linear warranty ensures long-term reliability and performance.
Aptos 440 Watt Solar Panel Specs
Electrical and Mechanical Specifications
| Parameter | Value |
|---|---|
| Length | 74.9 in (1903 mm) |
| Width | 44.6 in (1134 mm) |
| Rated Power Output | 440 W |
| Voltage (VOC) | 41.11 V |
| Maximum String Voltage | 1000 V |
| Number of Cells | 120 |
| Cell Type | Monocrystalline |
| Rated Efficiency | 20.39% |
| Connector Type | MC4 or MC4 compatible |
| Backsheet Color | Bifacial |
| Frame Color | Black |

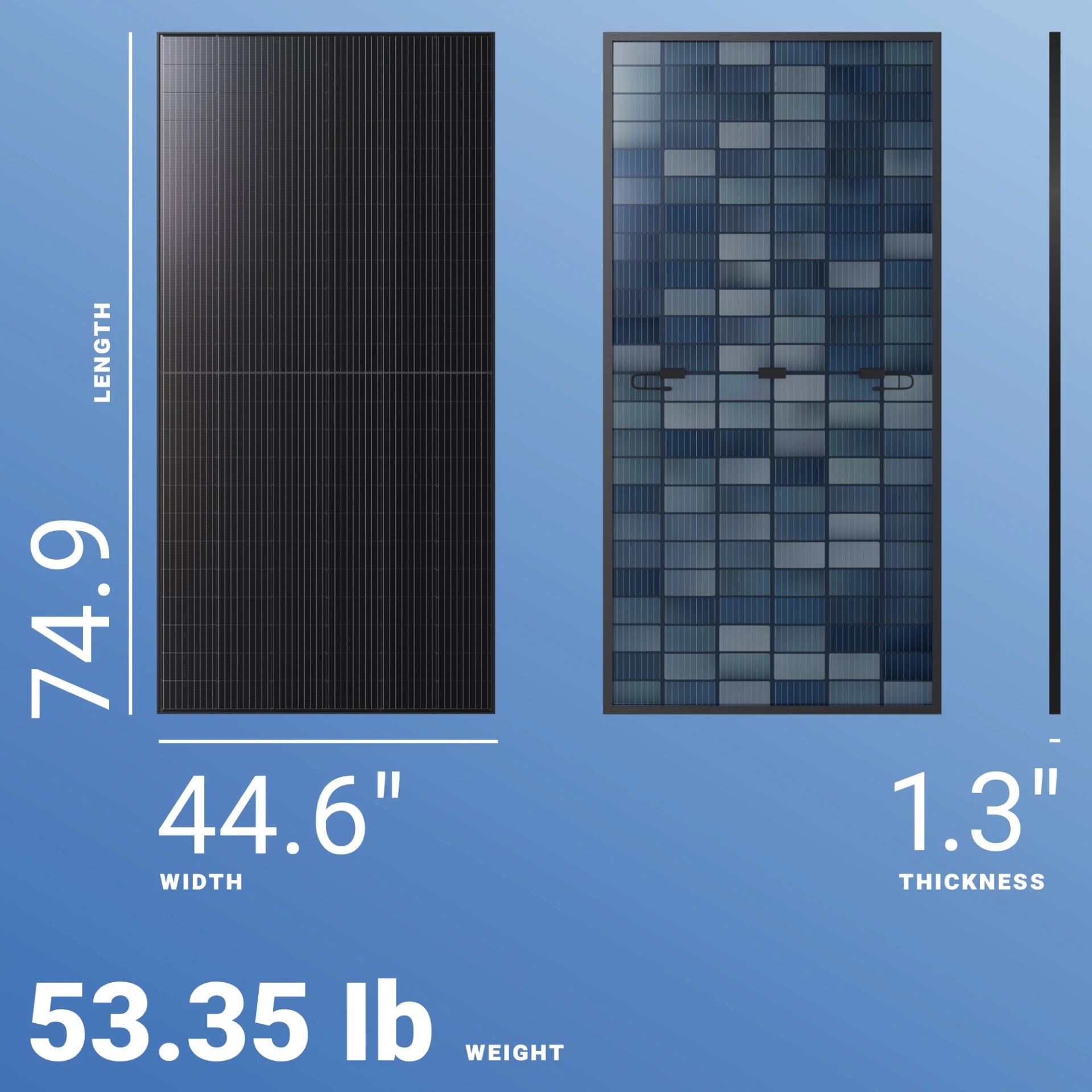

| Dimensions (LxWxH) | 74.9 x 44.6 x 1.3 in (1903 x 1134 x 35 mm) |
| Weight | 53.35 lbs (24.2 kg) |
| Operating Temperature Range | −40°F to +185°F |
| Pallet Quantity | 31 |
| Manufacturer | Aptos Solar |
| Manufacturer Part # | DNA-120-BF10-440W |
| Warranty | 30 years linear warranty |
| Delivery Time | 5-7 business days |
Performance Under Environmental Conditions
| Parameter | Value |
|---|---|
| Temperature Coefficient (Pmax) | -0.35%/°C |
| Temperature Coefficient (Voc) | -0.28%/°C |
| Temperature Coefficient (Isc) | +0.048%/°C |
| Normal Operating Cell Temperature (NOCT) | 45±2°C |
| Maximum Load Capacity | 5400 Pa snow load, 5400 Pa wind load |
| Fire Performance | Class C/Type 1 |
Application Scope
- Residential: Ideal for home installations with its high efficiency and sleek aesthetics.
- Commercial: Suitable for commercial solar energy systems, providing reliable performance and durability.
- Boats and RVs: Perfect for off-grid applications, ensuring consistent power output.
- Grid-Tie and Off-Grid: Compatible with both grid-tied and off-grid systems for enhanced energy production.
Reliability and Degradation Resistance
Aptos guarantees limited degradation over 30 years. The panel's performance will degrade by a maximum of 1% in the first year and only by a maximum of 0.40% annually thereafter. After 30 years, the panel will still retain at least 87.8% of its original capacity.
Bifacial Output-Rear Side Power Gain
| Rear Side Power Gain (%) | Maximum Power (Pmax) | Module Efficiency (STC) |
|---|---|---|
| 5% | 462 W | 21.41% |
| 10% | 467 W | 21.65% |
| 15% | 506 W | 23.17% |
| 20% | 528 W | 23.98% |
| 25% | 550 W | 25.49% |
Certifications
- Standards: IEC 61730, UL 61730, IEC 61215, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018.
- Fire Rating: Class C/Type 1.
Packaging
| Packaging Unit | Quantity |
|---|---|
| Modules per Pallet | 31 |
| Pallets per 40ft Container | 24 |
| Modules per 40ft Container | 744 |
| Pallet Dimensions | 1938 x 1130 x 1264 mm |
| Pallet Weight | 766 kg |
The Aptos 440W Solar Panel (DNA-120-BF10-440W) integrates advanced technology and a robust design, making it a reliable and efficient choice for various solar energy applications. This high-performance panel ensures long-term durability and efficiency, backed by comprehensive warranties and certifications.

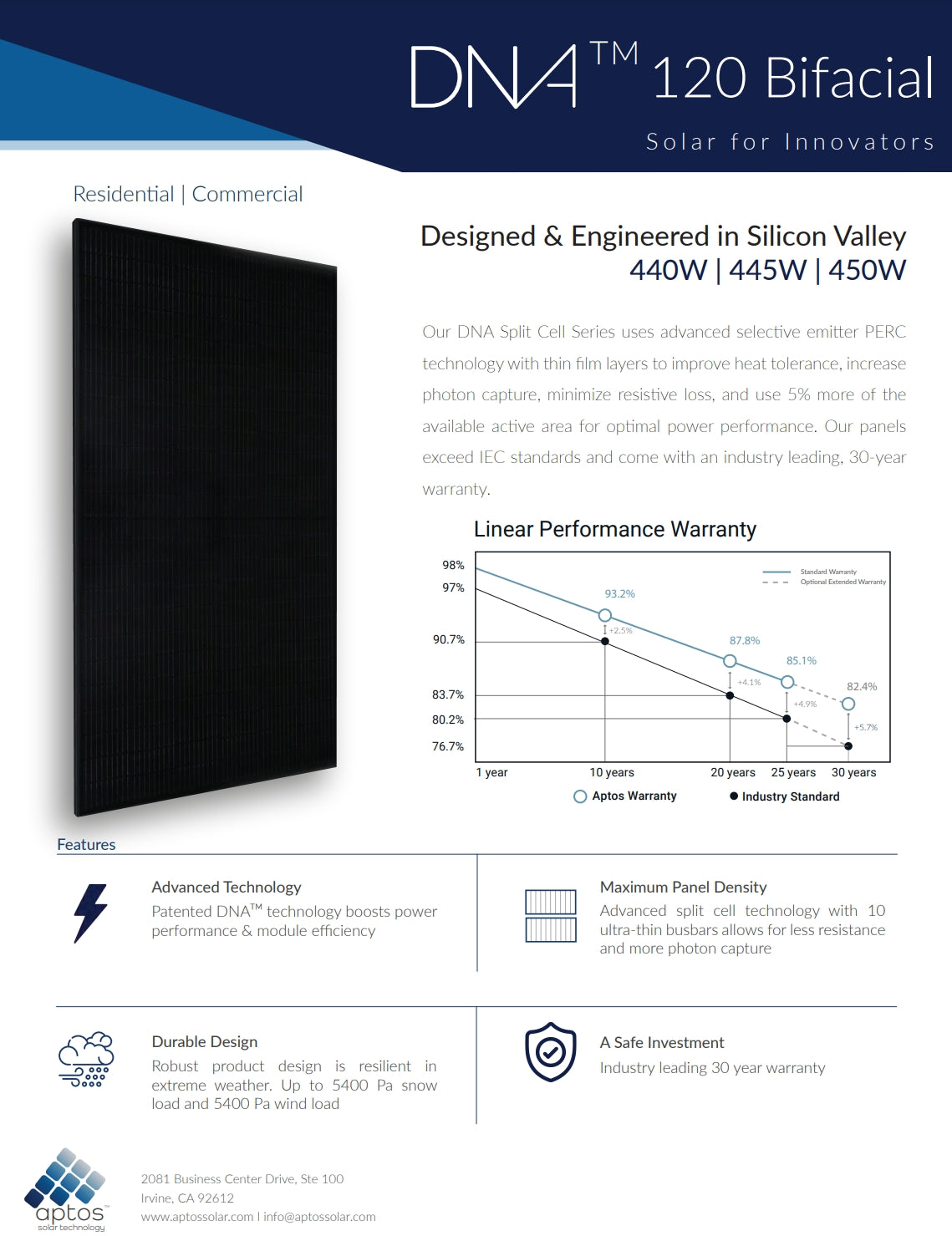

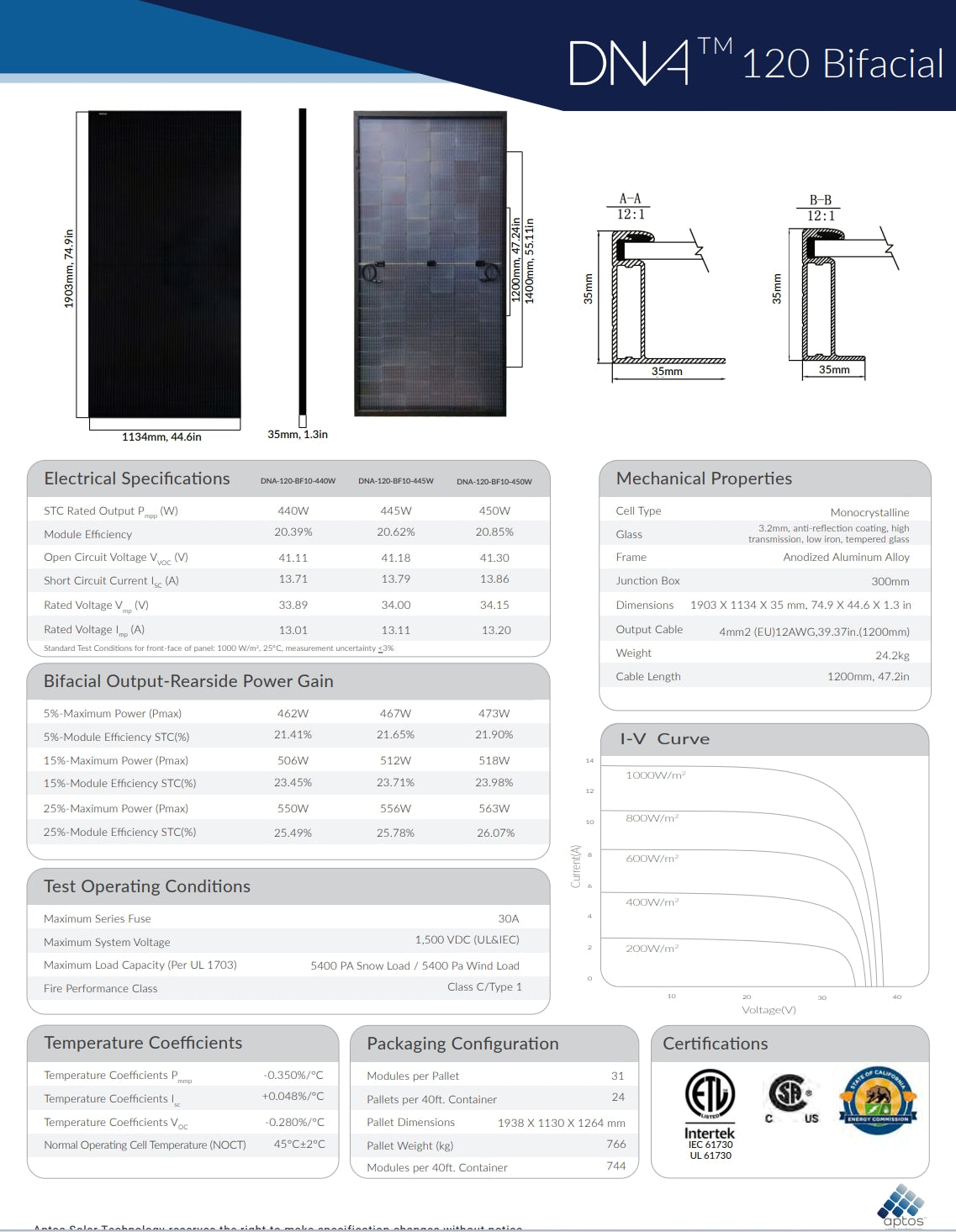

Aptos 440W Datasheet
Introducing Aptos 440W Solar Panel, designed for innovators and featuring advanced technology including split cell series with PERC technology, thin film layers, and optimized power performance. This high-performance panel exceeds IEC standards, comes with a 30-year warranty, and features robust design with extreme weather resistance up to 5400 Pa snow load and wind load.
Aptos 440W Solar Panel: 20.395% module efficiency, 440W STC rated output power, monocrystalline cell type, 3.2mm tempered glass with anti-reflection coating, anodized aluminum alloy frame, open circuit voltage of 41.11V, and short circuit current of 13.71A. The panel measures 1903 x 1134 x 35 mm, weighs 24.2kg, and has a bifacial output-rear side power gain. Maximum power is 462W with 21.41% STC module efficiency. Operating conditions include 800W/m² for I-V curve testing and maximum series voltage of 500VDC. Fire performance classification is Class C/Type Voltage, while temperature coefficients are 0.35056%/°C for modules per pallet and +0.048%/°C for pallets per container.
Enjoy long-term savings with our Aptos 440W Solar Panel, which can save you up to 70% on electricity bills monthly and payback itself in 7 years. It's designed for autonomous operation in extreme weather conditions and certified for low-light and high-temperature performance. Plus, it's a planet-friendly choice supported by government incentives.

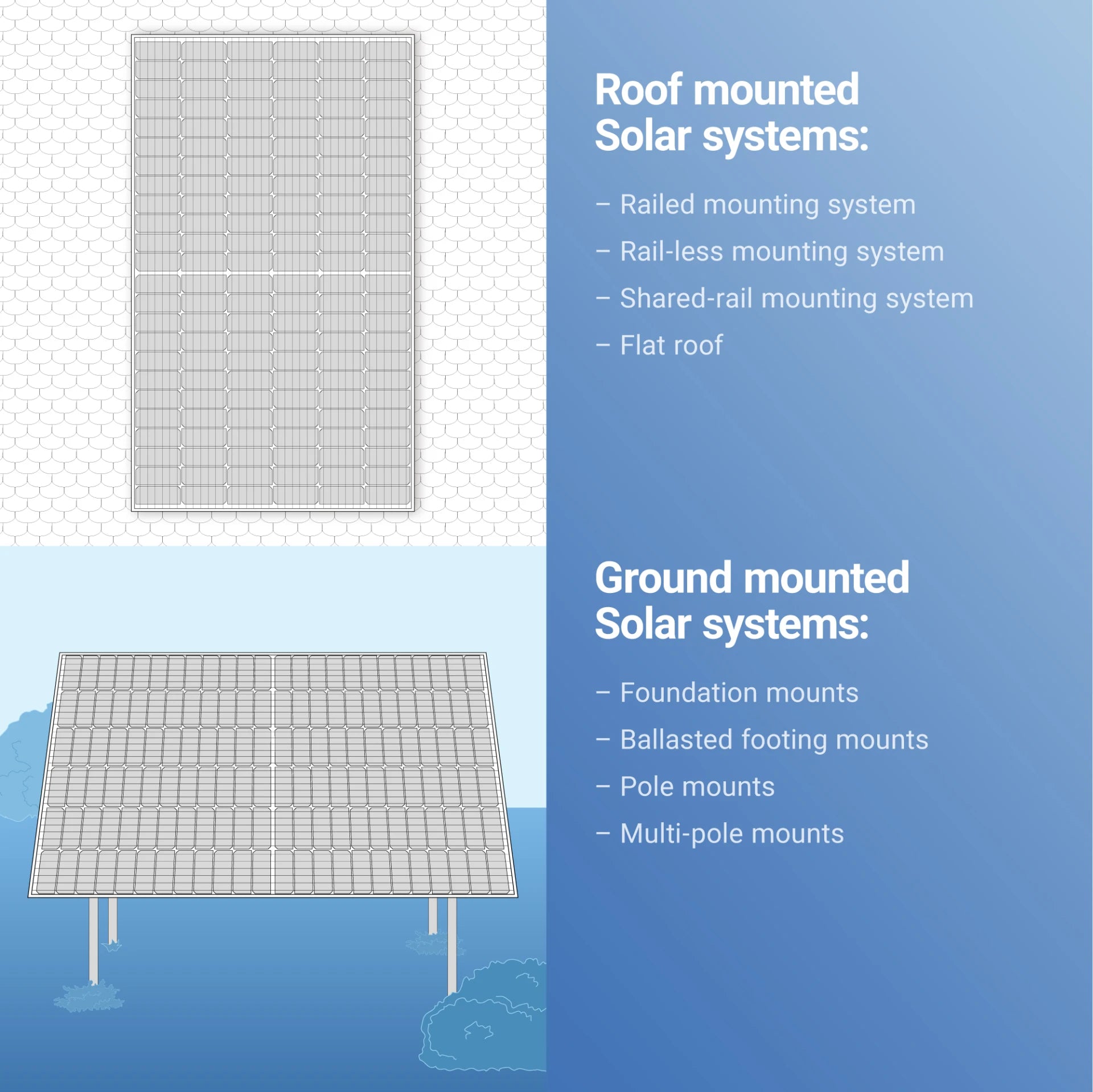

Designed for various installations, Aptos 440W solar panel supports roof-mounted and ground-mounted systems, including railed, rail-less, shared-rail, and flat-roof options, as well as foundation, ballasted footing, pole, and multi-pole mounts.

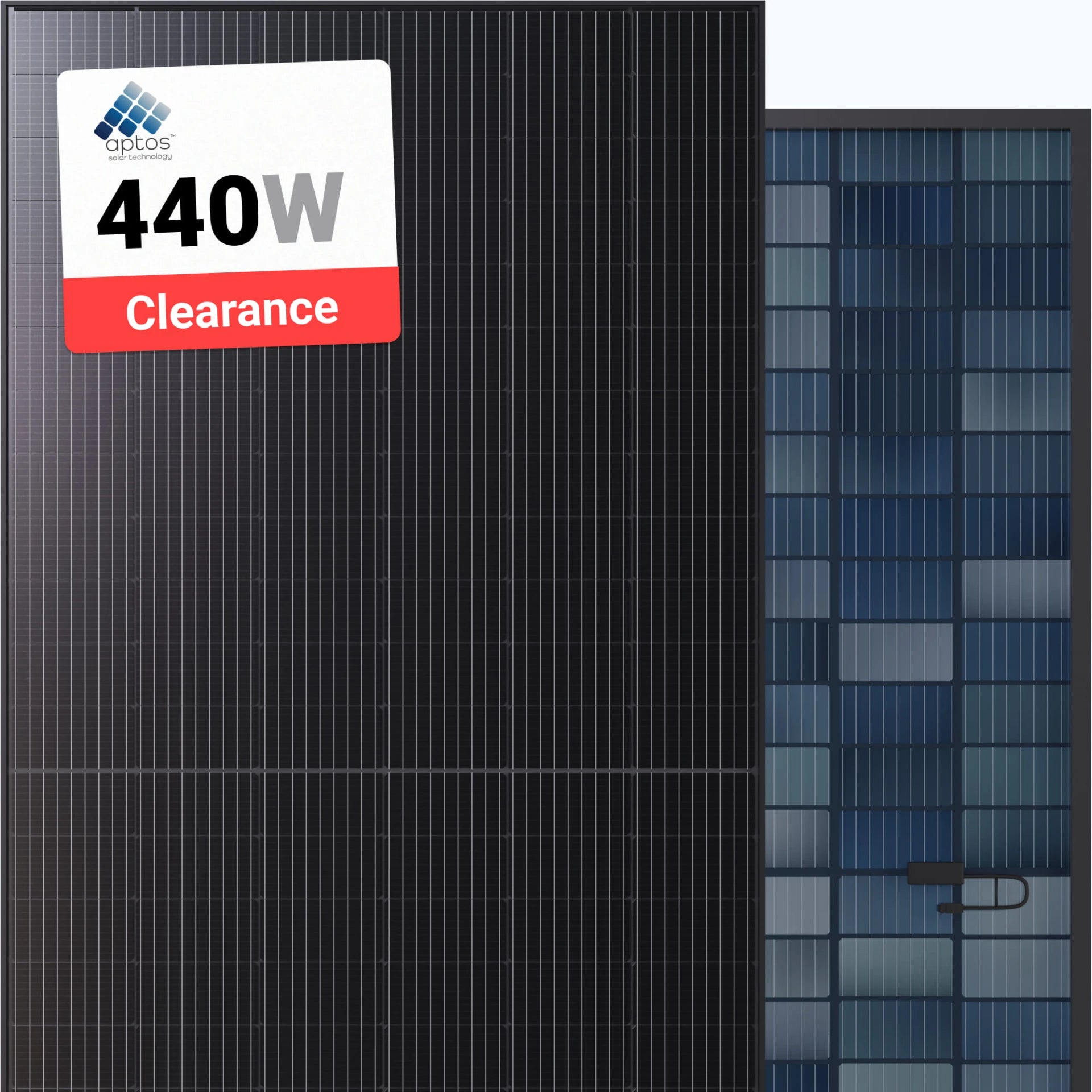

APTOS 440W Solar Panel featuring advanced technology for efficient energy generation.
