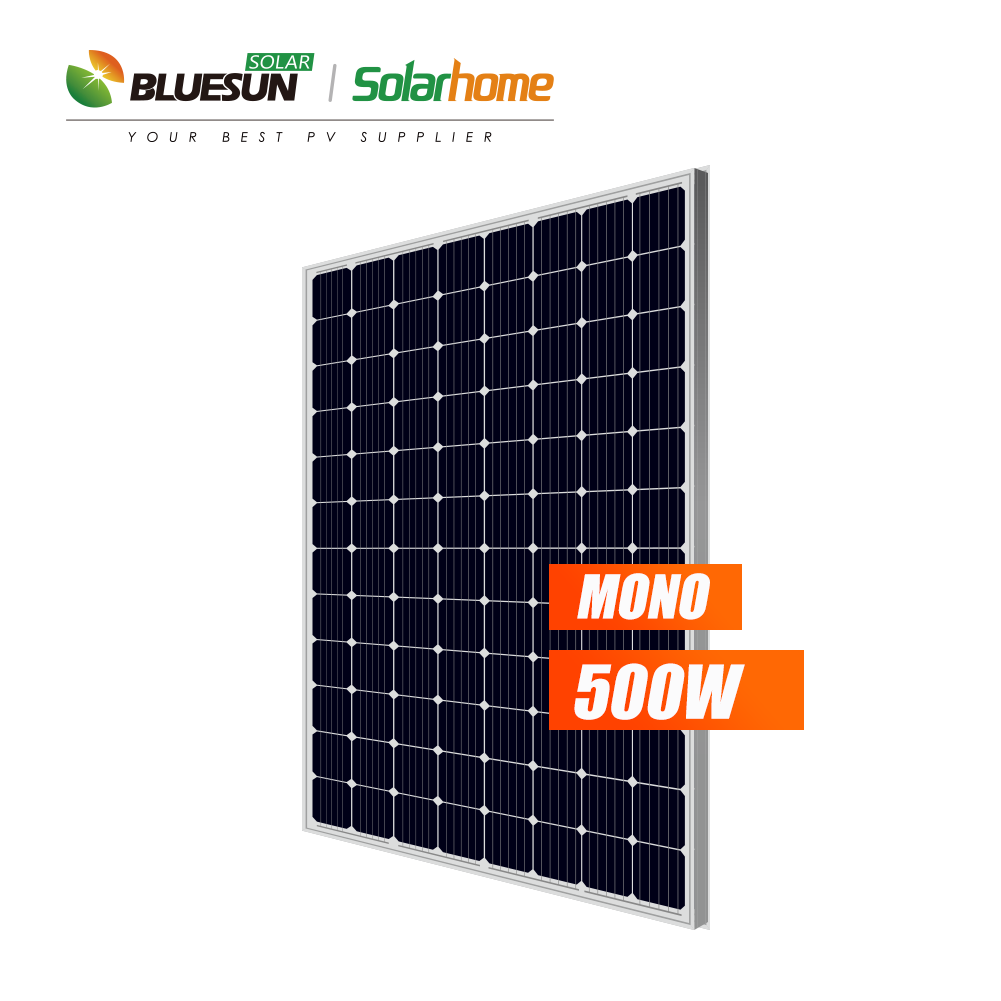

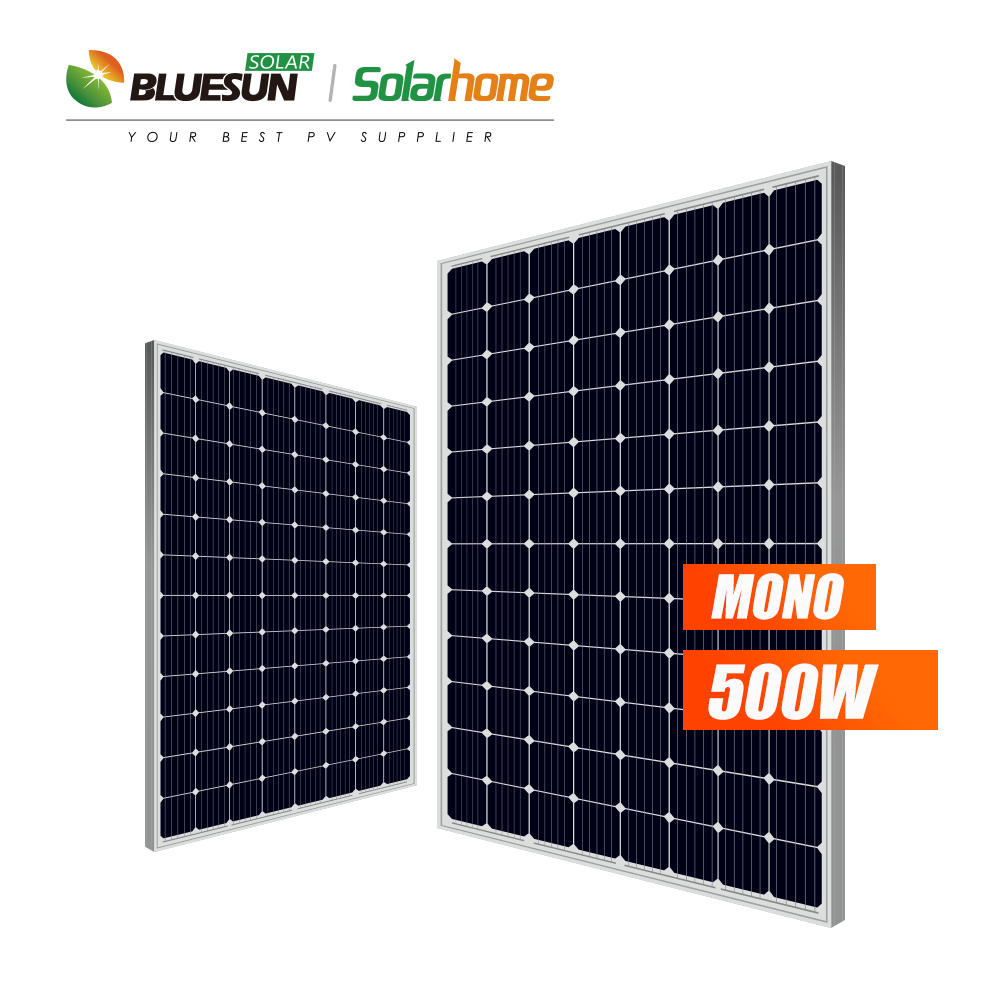

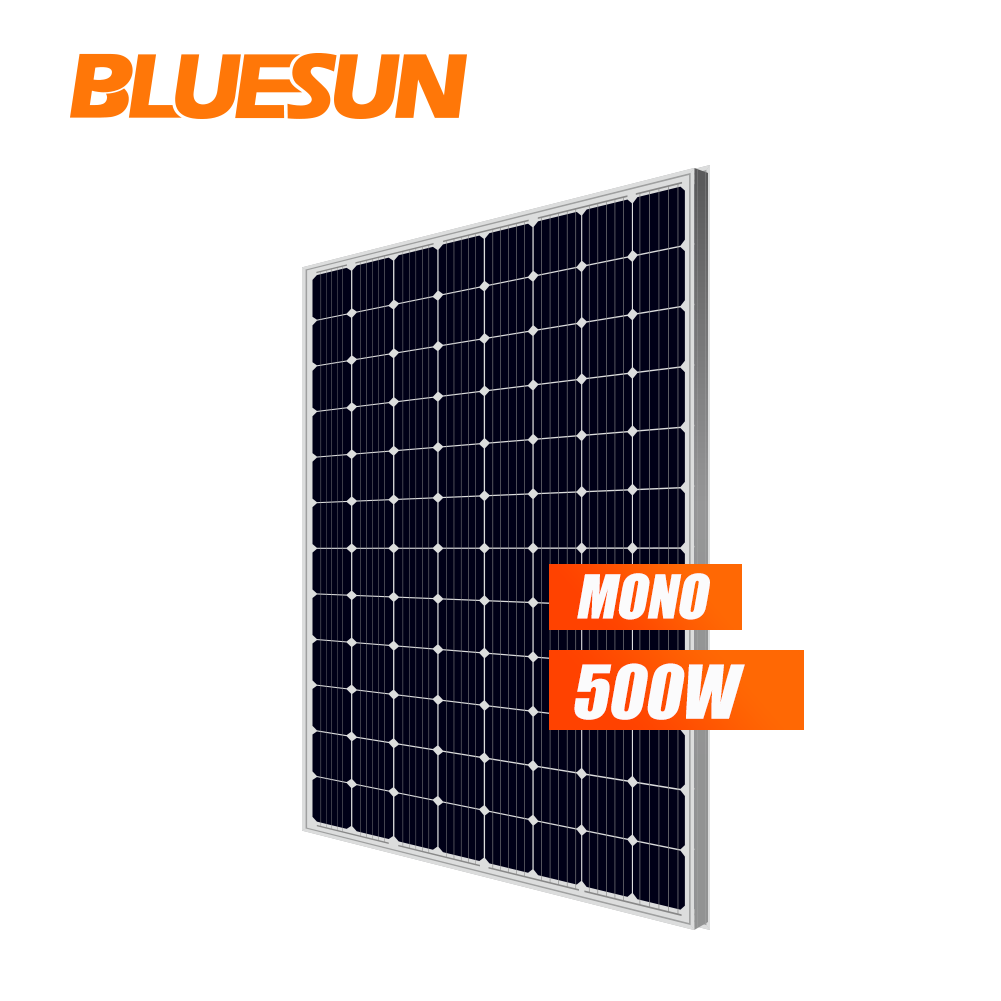

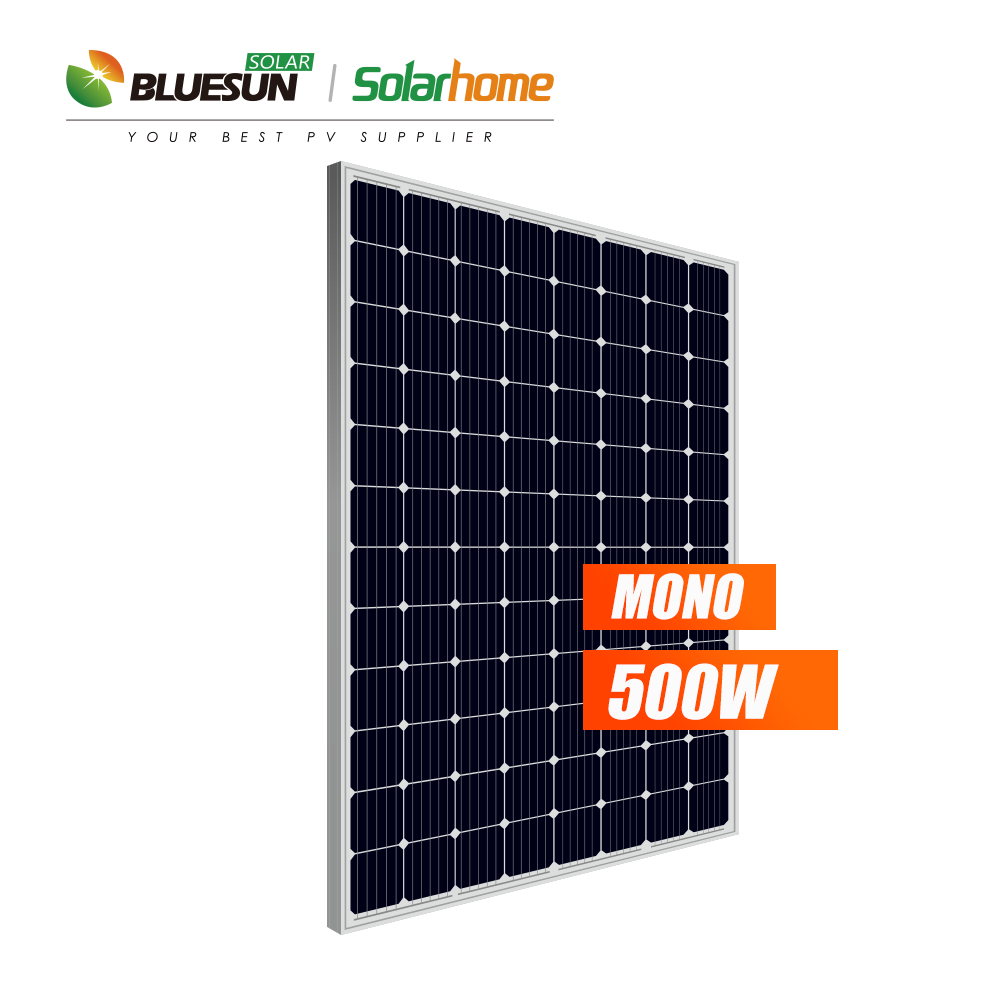

Bluesun 500W Monocrystalline Solar Panel (BSM500M-96)
The Bluesun BSM500M-96 is a high-performance monocrystalline solar panel designed to deliver efficient and reliable energy generation for both residential and commercial solar projects. Featuring a peak power output of 500 watts, this panel utilizes 96 monocrystalline cells with an efficiency of 19.51%. Its robust design includes a durable anodized aluminum frame and anti-reflective glass, ensuring it can withstand harsh weather conditions, such as heavy snow loads of up to 5400 Pa and wind pressures of 2400 Pa. The panel operates with a maximum system voltage of 1500V, making it suitable for large-scale installations, and comes with a 25-year performance warranty, guaranteeing at least 80% of the initial power output over time.
Bluesun 500 Watt Solar Panel Key Features:
- Peak Power Output: 500W
- Efficiency: 19.51%
- Maximum Power Voltage (Vmp): 48.63V
- Maximum Power Current (Imp): 10.28A
- Maximum System Voltage: 1500V
- Durability: Withstands up to 5400 Pa snow load and 2400 Pa wind pressure.
- Warranty: 25-year performance warranty with 10-year product warranty.
Technical Specifications:
| Parameter | BSM500M-96 Specification |
|---|---|
| Peak Power Pmax (W): | 500 |
| Power Output Tolerance (W): | 0 ~ +5 |
| Maximum Power Voltage Vmp (V): | 48.63 |
| Maximum Power Current Imp (A): | 10.28 |
| Open Circuit Voltage Voc (V): | 59.01 |
| Short Circuit Current Isc (A): | 10.87 |
| Module Efficiency (%): | 19.51 |
| Temperature Coefficient of Isc: | +0.058%/°C |
| Temperature Coefficient of Voc: | -0.330%/°C |
| Temperature Coefficient of Pmax: | -0.410%/°C |
| Dimensions (mm): | 1956 × 1310 × 35/45 |
| Weight: | 56.2 lbs (25.5 kg) |
| Maximum System Voltage: | 1500V |
| Operating Temperature: | -40°C ~ +85°C |
| Certification: | TUV, CE, ISO |
| Warranty: | 10-year product warranty, 25-year performance warranty |
Durability and Design:
- Advanced Glass Technology: The panel uses anti-reflective glass to increase light transmittance by up to 2%, enhancing the overall efficiency by 2%. The glass is also self-cleaning, reducing dust accumulation and ensuring longer-lasting performance.
- Monocrystalline Solar Cells: The BSM500M-96 uses high-efficiency monocrystalline PERC cells that ensure maximum energy output even under low-light conditions. The cells are color sorted to ensure a consistent aesthetic appearance across the entire array.
- Robust Frame Construction: The panel features a durable anodized aluminum frame, available in both silver and black. This robust design improves structural strength, extending the module’s service life, even in extreme conditions.
- Optimized for Installation: The panel design allows for easy installation, reducing transportation and installation costs by up to 4%. Its compatibility with various mounting systems makes it versatile for any installation project.
Bluesun 500W Datasheet
Electrical Performance Table:
| Module | BSM450M-96 | BSM460M-96 | BSM470M-96 | BSM480M-96 | BSM490M-96 | BSM500M-96 |
|---|---|---|---|---|---|---|
| Peak Power Pmax (W) | 450 | 460 | 470 | 480 | 490 | 500 |
| Max Power Voltage Vmp (V) | 47.87 | 48.01 | 48.25 | 48.35 | 48.45 | 48.63 |
| Max Power Current Imp (A) | 9.40 | 9.59 | 9.74 | 9.93 | 10.12 | 10.28 |
| Open Circuit Voltage Voc (V) | 58.57 | 58.75 | 58.82 | 58.89 | 58.95 | 59.01 |
| Short Circuit Current Isc (A) | 9.73 | 9.78 | 9.90 | 10.04 | 10.67 | 10.87 |
| Module Efficiency (%) | 17.56 | 17.95 | 18.34 | 18.73 | 19.12 | 19.51 |
Packaging and Transport:
- Each pallet contains 23 panels, reducing transportation costs by up to 4% and installation costs by 2.5%.
- Panel Dimensions: 1956×1310×35/45 mm
- Shipping Weight: 56.2 lbs (25.5 kg)
This enhanced Bluesun 500W solar panel is ideal for installations requiring high efficiency, robust durability, and long-lasting energy output, making it perfect for both off-grid and grid-tied solar systems.

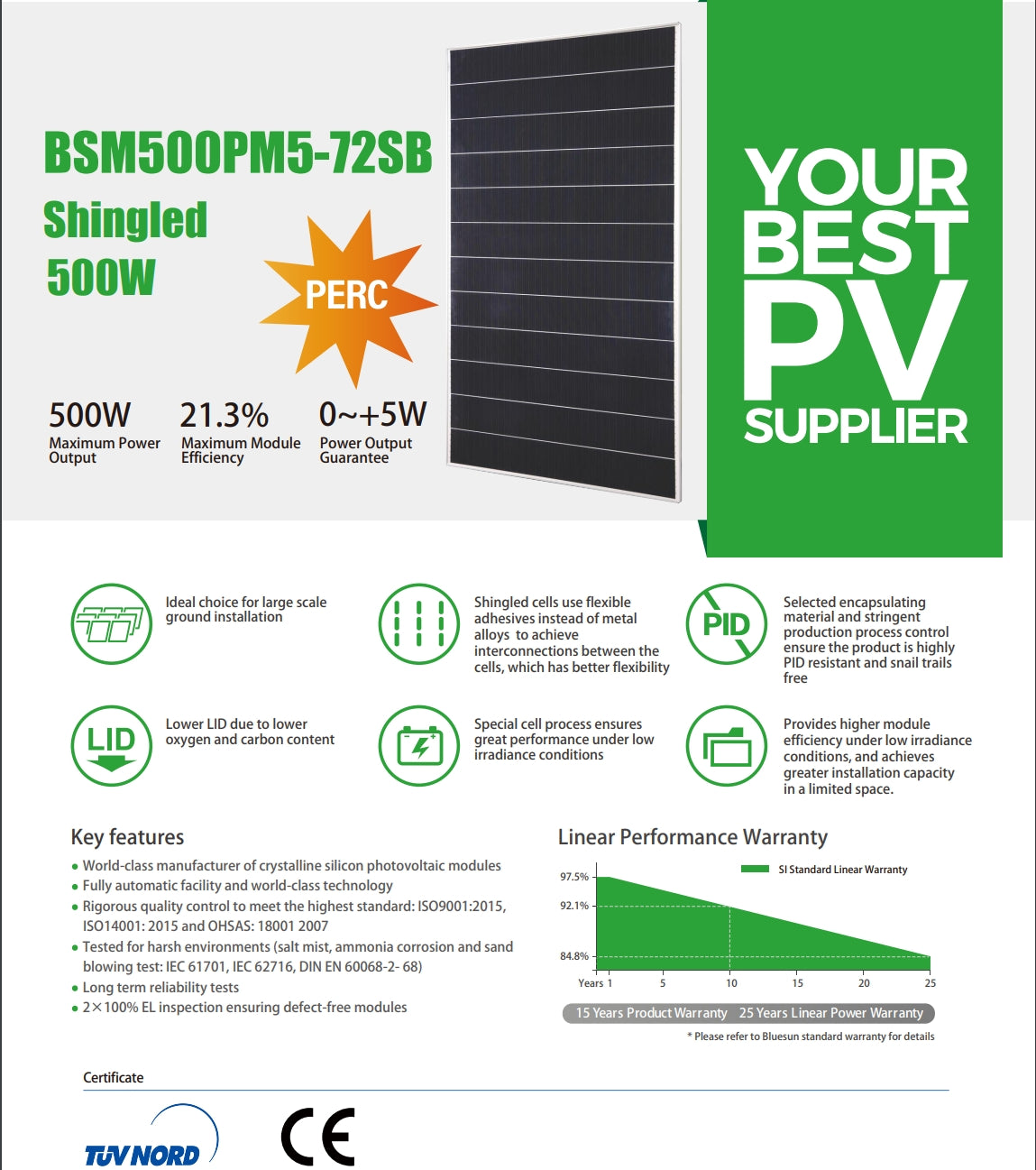

Bluesun 500W Solar Panel: High-Efficiency Shingled Cells with Maximum Power Output. Ideal choice for large-scale installations, our shingled cells use flexible encapsulating materials instead of metal or alloys to achieve PID production process control and ensure high-quality modules. The product features a lower LID due to lower oxygen and carbon content, providing great performance under low irradiance conditions. Key features include linear performance warranty, world-class manufacturing, rigorous quality control, and testing for harsh environments.

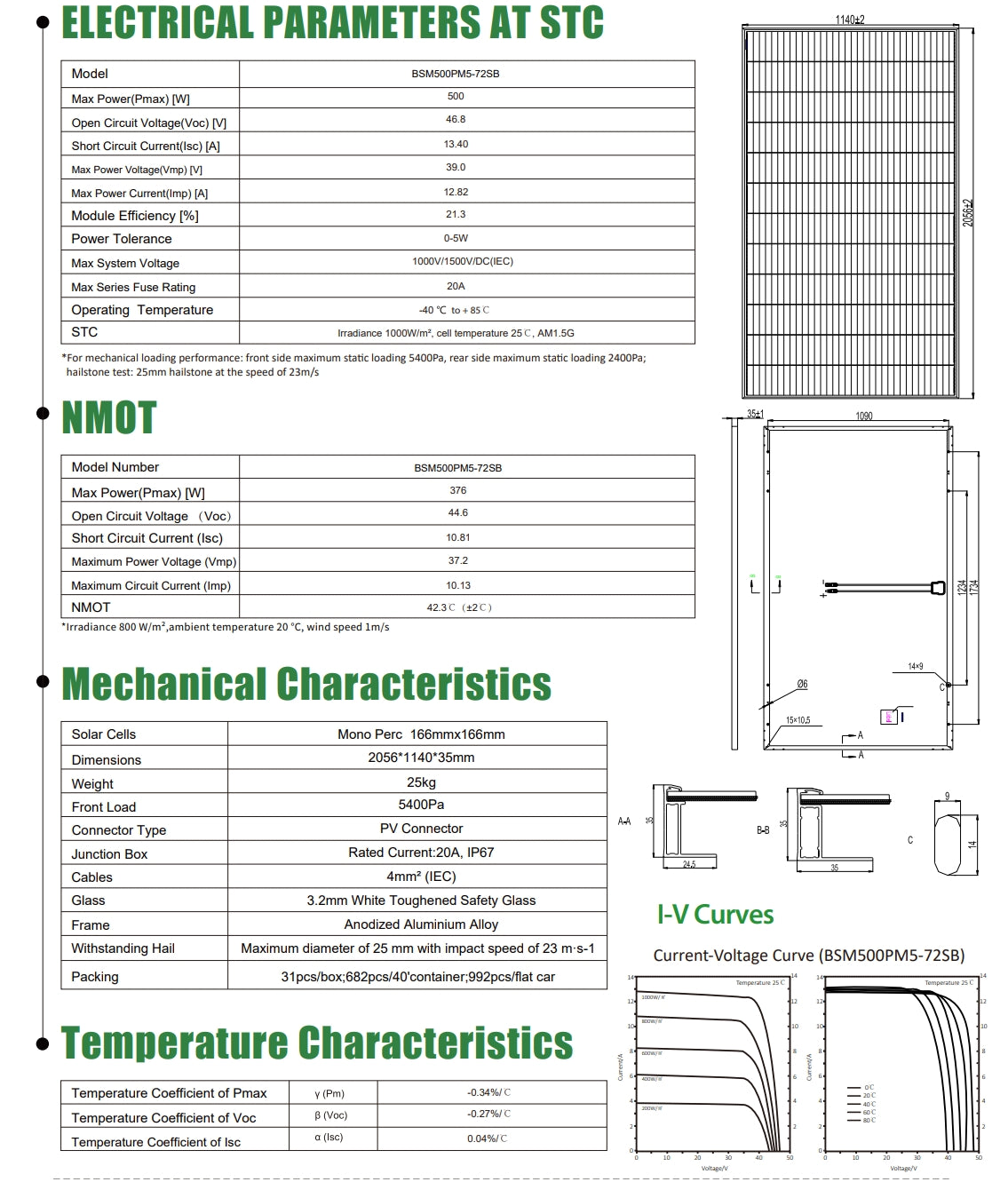

Electrical Parameters at STC: Max Power (Pmax): 500W Open Circuit Voltage (Voc): 46.8V Short Circuit Current (Isc): 13.40A Max Power Voltage (Vm): 39.0V Max Power Current (Imp): 12.82A Module Efficiency: 21.3% Power Tolerance: 0-3% Mechanical Characteristics: Dimensions: 2056*1140*35mm Weight: 25kg Front Load: 5400Pa Connector Type: PV Connector Junction Box Rated Current: 20A IP67 Cables: 4mm² (IEC) Glass: 3.2mm White Toughened Safety Glass Temperature Characteristics: Temperature Coefficient of Pmax (Pm): 0.349%/°C Temperature Coefficient of Voc (Voc): 0.2790%/°C Temperature Coefficient of Isc (Isc): 0.0490%/°C
