Bluesun 700 Watt Solar Panel Overview
The Bluesun N-Type 700Watt Solar Panel Bifacial 210 Cell 700w Solar PV Module (Item NO.: BSM700PMB6-70SDC) is designed for maximum efficiency and durability. This advanced solar panel features N-Type Monocrystalline 210mm solar cells, ensuring superior performance and reliability.
Bluesun 700W Solar Panel Key Features:

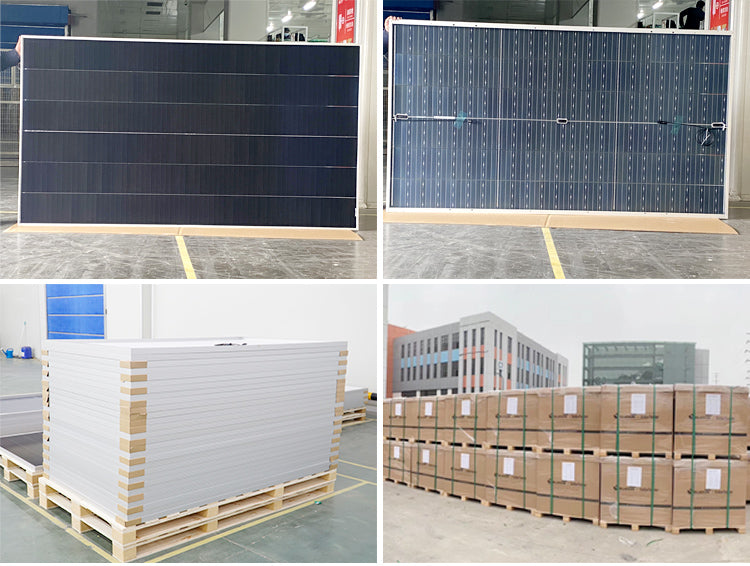

- High Efficiency: With a power range of 675W-700W, this solar panel provides high output for both residential and commercial applications.

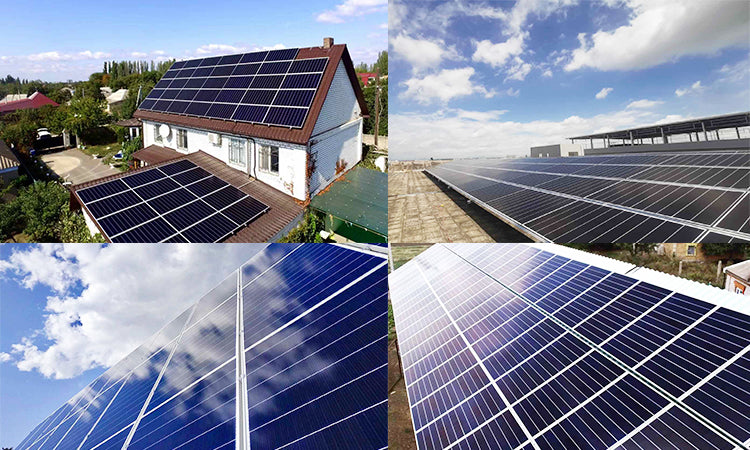

- Bifacial Technology: Utilizes both sides of the panel to capture sunlight, significantly boosting energy generation.
- Compact Design: Measuring 2355x1303x35mm, this panel is designed for easy installation in various environments.
- Durable Build: Certified by TUV and CE, ensuring compliance with international standards and robustness in harsh conditions.
- Quick Availability: With a lead time of just 10 days, you can quickly receive and install these panels.
- Flexible Payment Options: Available with T/T and L/C payment terms.
- Long-term Warranty: Comes with a 15-year warranty, providing peace of mind and long-term reliability.
Bluesun 700W Solar Panel Specifications:
| Parameter | Description |
|---|---|
| Item NO. | BSM700PMB6-70SDC |
| Solar Cell | N-Type Monocrystalline 210mm |
| Number of Cells | 408 (68*6) |
| Power Range | 675W-700W |
| Size | 2355x1303x35mm |
| Certificate | TUV, CE |
| Lead Time | 10 Days |
| Payment | T/T, L/C |
| Warranty | 15 Years |
Detailed Electrical Specifications:
| Model Type | BSM675P MB6-70SDC | BSM680P MB6-70SDC | BSM685P MB6-70SDC | BSM690P MB6-70SDC | BSM695P MB6-70SDC | BSM700P MB6-70SDC |
|---|---|---|---|---|---|---|
| Maximum Power (Pmax/W) | 675 | 680 | 685 | 690 | 695 | 700 |
| Operating Voltage (Vmp/V) | 39.20 | 39.30 | 39.40 | 39.50 | 39.60 | 39.60 |
| Operating Current (Imp/A) | 17.23 | 17.32 | 17.41 | 17.49 | 17.57 | 17.68 |
| Open-Circuit Voltage (Voc/V) | 47.20 | 47.30 | 47.40 | 47.50 | 47.60 | 47.70 |
| Short-Circuit Current (Isc/A) | 18.32 | 18.41 | 18.50 | 18.58 | 18.68 | 18.78 |
| Module Efficiency (%) | 21.90 | 22.10 | 22.30 | 22.50 | 22.60 | 22.81 |

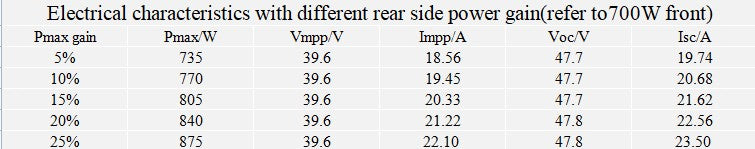

Electrical Characteristics with Different Rear Side Power Gain (refer to 700W front):
| Pmax Gain (%) | Pmax/W | Vmp/V | Imp/A | Voc/V | Isc/A |
|---|---|---|---|---|---|
| 5 | 735 | 39.6 | 18.56 | 47.7 | 19.74 |
| 10 | 770 | 39.6 | 19.45 | 47.7 | 20.68 |
| 15 | 805 | 39.6 | 20.33 | 47.7 | 21.62 |
| 20 | 840 | 39.6 | 21.22 | 47.8 | 22.56 |
| 25 | 875 | 39.6 | 22.10 | 47.8 | 23.50 |
Invest in the Bluesun N-Type 700Watt Solar Panel for a sustainable, efficient, and reliable solar energy solution. Whether you are enhancing your home’s energy efficiency or powering a large-scale commercial project, this panel delivers exceptional performance and value.

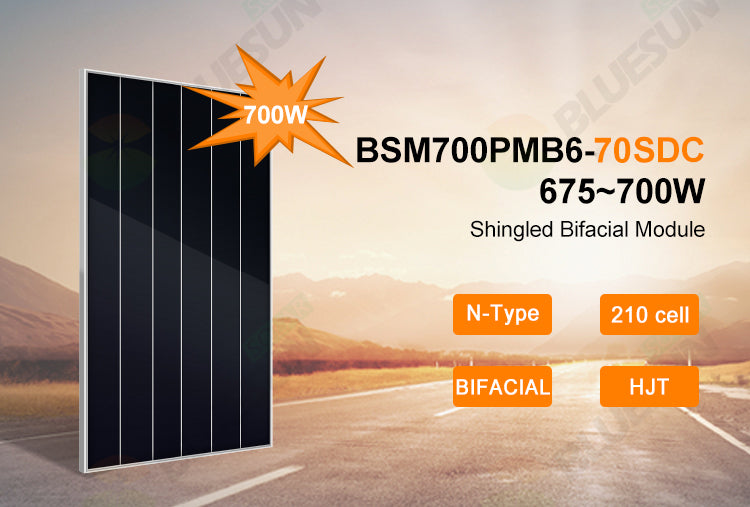

Bluesun 700W Solar Panel: 3-piece shingled bifacial module with 210mm cells, N-type HJT technology and a power output of 675-700 watts.

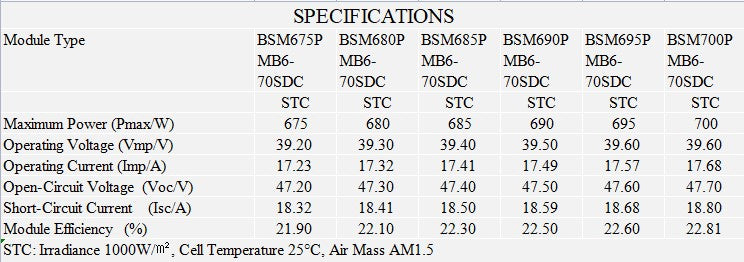

Specifications include module types BSM67SP to MB6-7OSDC, with maximum power output of 700W, operating voltage and current of 39.60V and 17.68A respectively, circuit voltage of 47.70V, short-circuit current of 18.80A, and module efficiency ranging from 21.90% to 22.81%, under standard test conditions (STC) with a distance of 1000Wm^2, cell temperature at 25°C, and air mass AM1.5 voltage open-circuit.

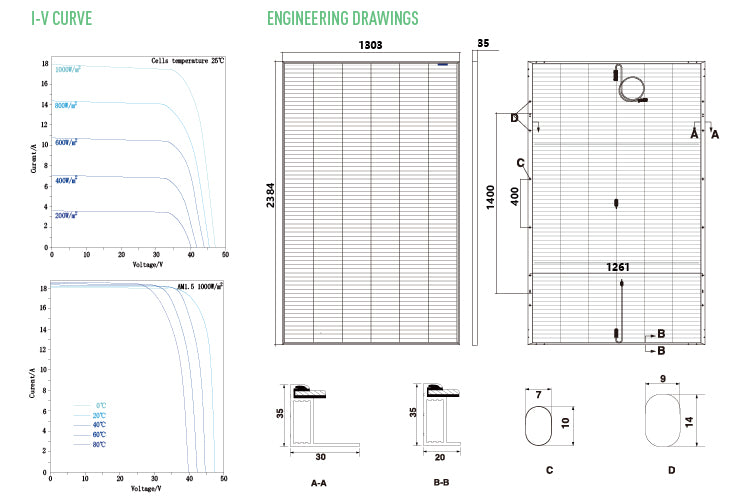

The I-V Curve Engineering Drawings are included for a comprehensive understanding, featuring specifications such as 1303Kt, Coe 403, and 6”8Mun
Bluesun presents a 700W solar panel at international exhibitions including Solar Power International in Salt Lake City, USA, PV EXPO THE GREEN EXPO in Mexico, Intersolar in Munich, Germany, and others.
