Overview

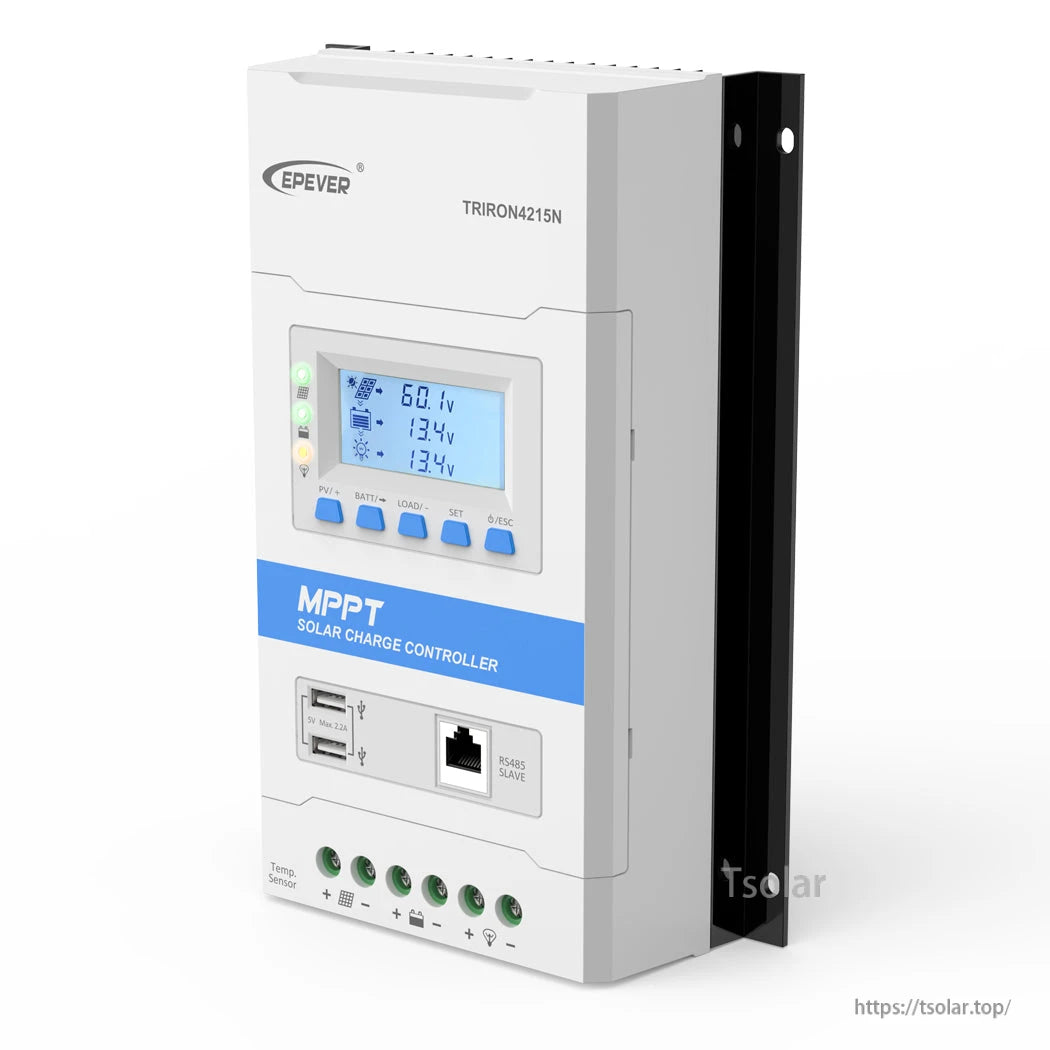

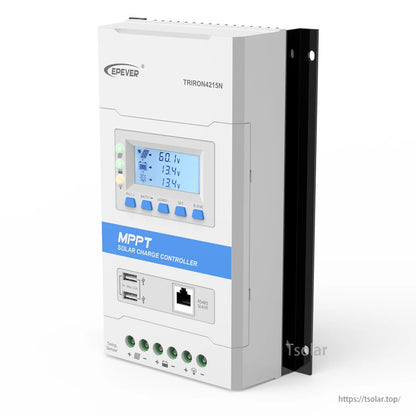

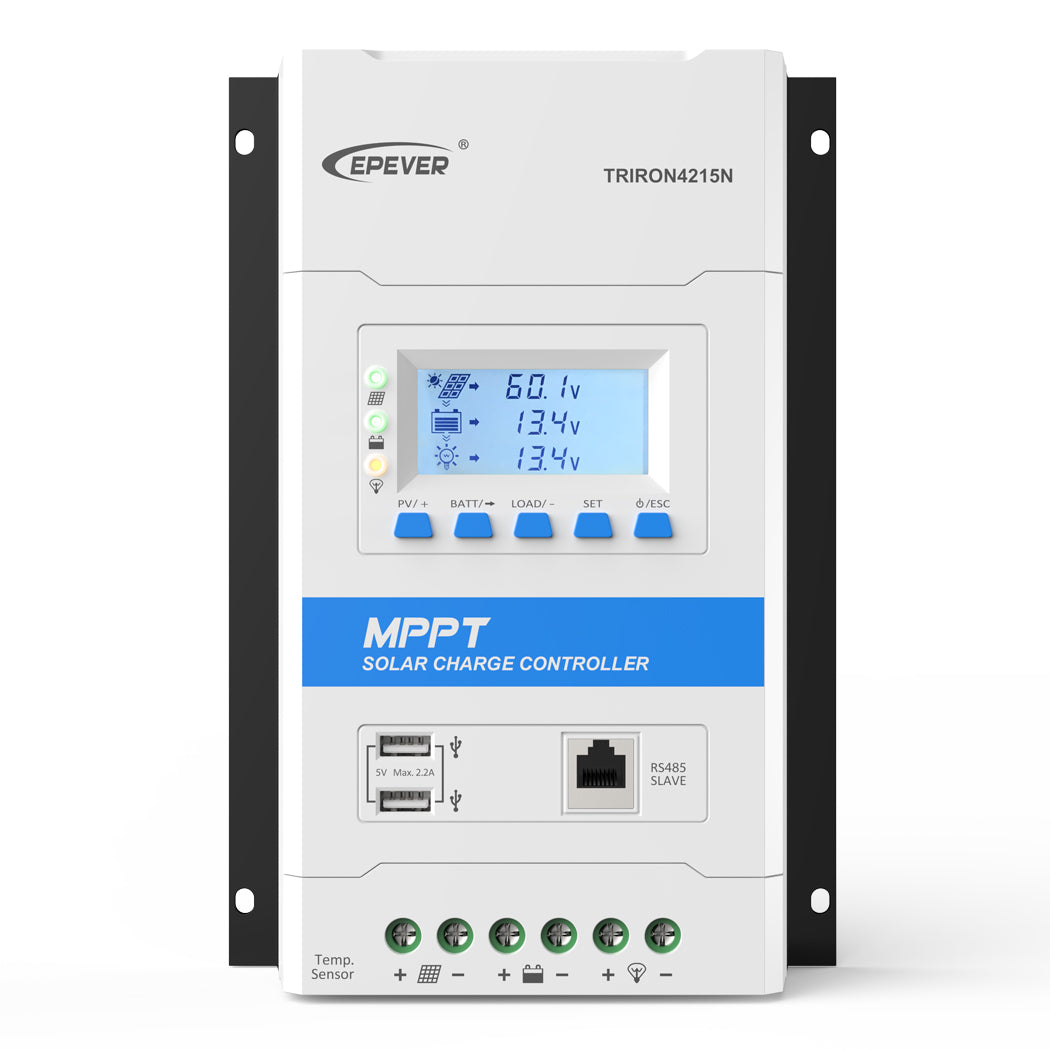

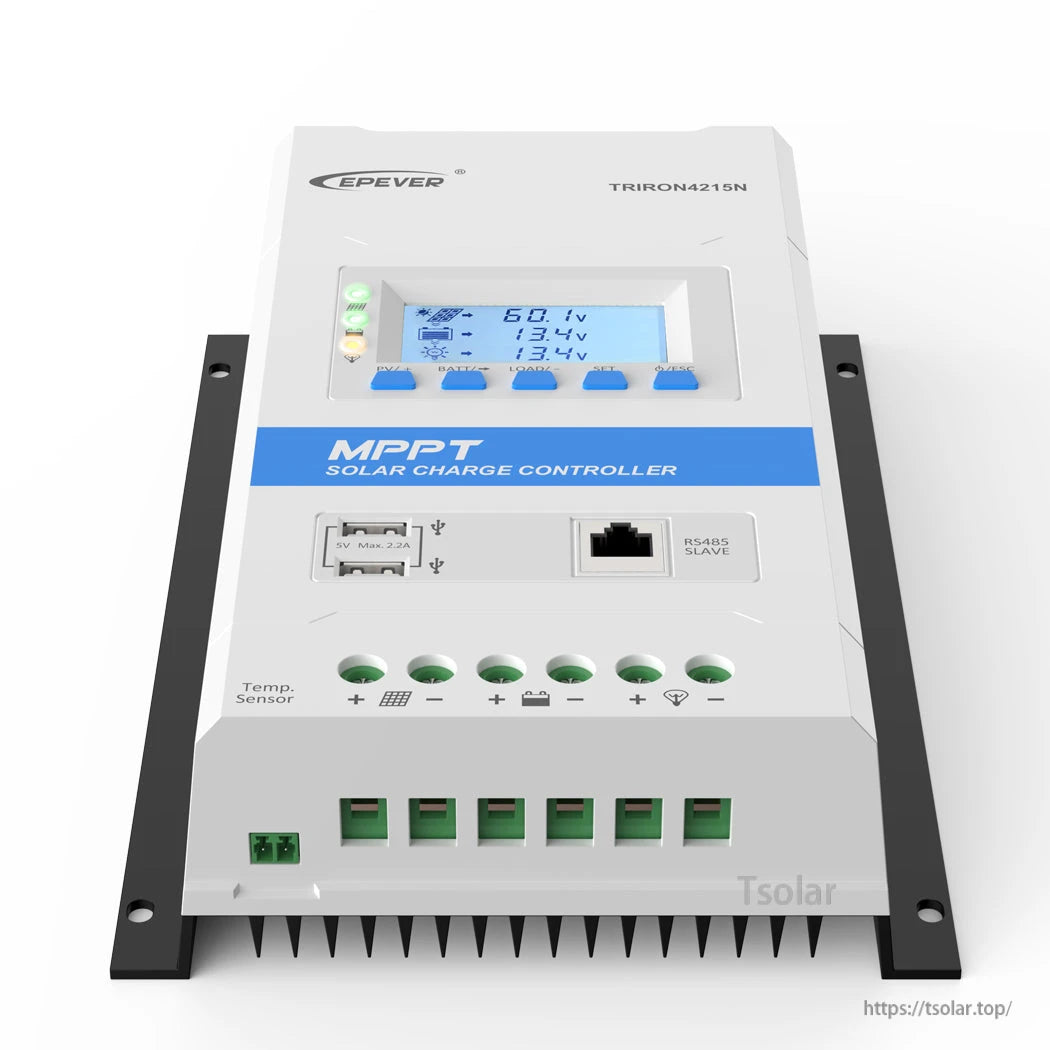

The Epever TRIRON series is a modular MPPT solar charge controller (battery charger/regulator) designed around a main unit (Power Module) TRIRON-N that can be integrated with different display and interface modules to meet a variety of functional requirements. The controller can automatically identify and load the drivers of various modules.

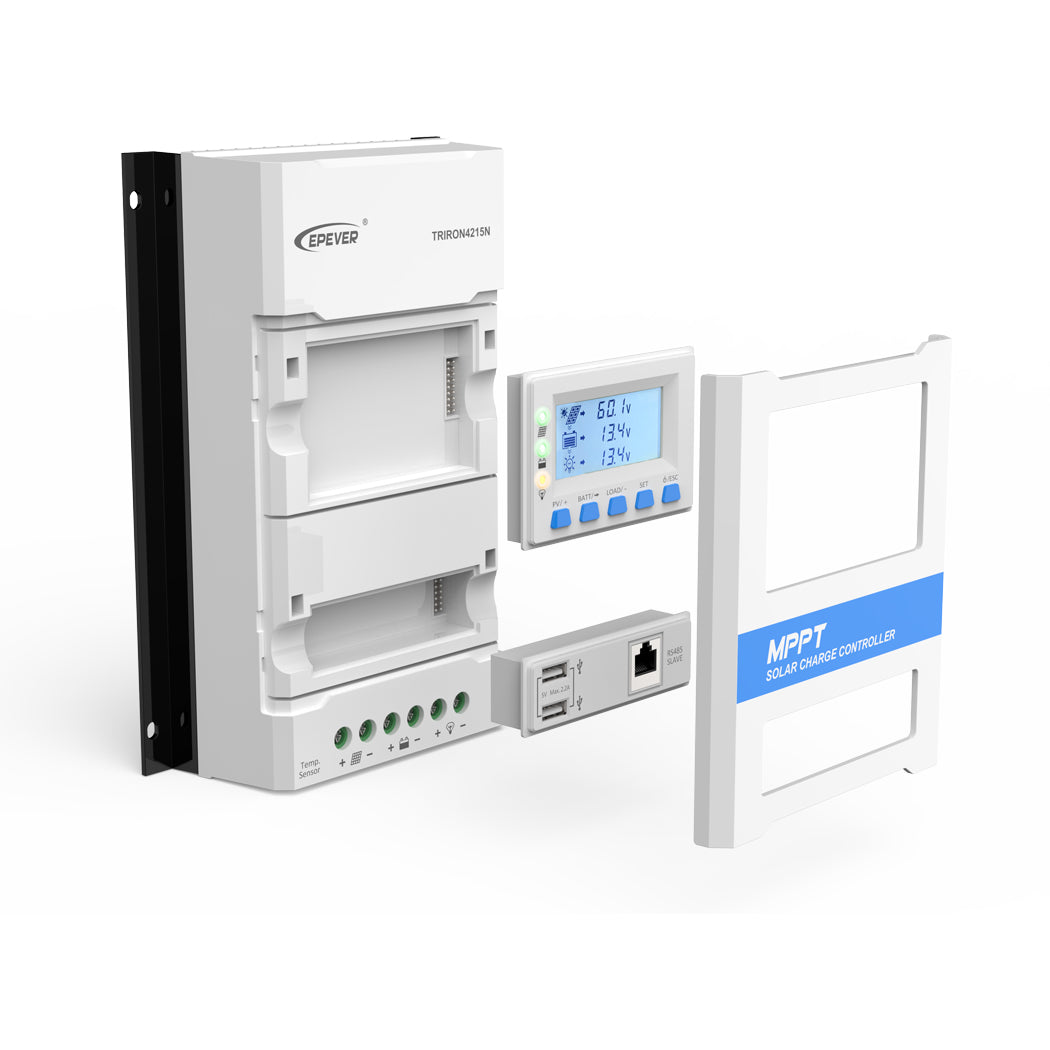

Available modules include three display modules: Basic 1 (DB1), Standard 1 (DS1) and Standard 2 (DS2); and four interface modules: USB COM Slave (UCS), Relay COM Slave (RCS), Relay COM Master (RCM) and Dual USB1 (USB1). Users can choose any combination of these modules according to their needs.
Key Features
- Automatically identify and load the drivers of various modules
- Supports hot swapping function without any damage for each module
- Modular design for easy combination and replacement
- Advanced MPPT control algorithm to minimize maximum power point loss rate and loss time
- Advanced MPPT technology, with efficiency no less than 99.5%
- Maximum conversion efficiency of 98%
- Ultra-fast tracking speed and guaranteed tracking efficiency
- Automatic limitation of charging power and current
- Wide MPP operating voltage range
- Multiple load work modes
- Compatible with lead-acid and lithium-ion batteries
- Battery temperature compensation function
- Real-time energy statistics function
- Overheating power reduction function
- LCD and indicators to display operating data and status of the system
- User-friendly buttons for convenient operation
- Master and slave RS485 communication modules design, reading the load or inverter operating data
- Control the inverter switch through the relay interface
- Provides 5VDC power through the dual USB output interface to charge electronic devices
For product selection and module compatibility assistance, contact support at https://tsolar.top/ or service@tsolar.top.
Software
- PC software
- Mobile app (Android system)
Specifications
Electrical Parameters
| Model | System voltage | Max. PV open circuit voltage | Rated charge/discharge current |
|---|---|---|---|
| TRIRON1206N | 12/24VDC | 60V | 10A |
| TRIRON2206N | 12/24VDC | 60V | 20A |
| TRIRON1210N | 12/24VDC | 100V | 10A |
| TRIRON2210N | 12/24VDC | 100V | 20A |
| TRIRON3210N | 12/24VDC | 100V | 30A |
| TRIRON4210N | 12/24VDC | 100V | 40A |
| TRIRON4215N | 12/24VDC | 150V | 40A |
