Overview

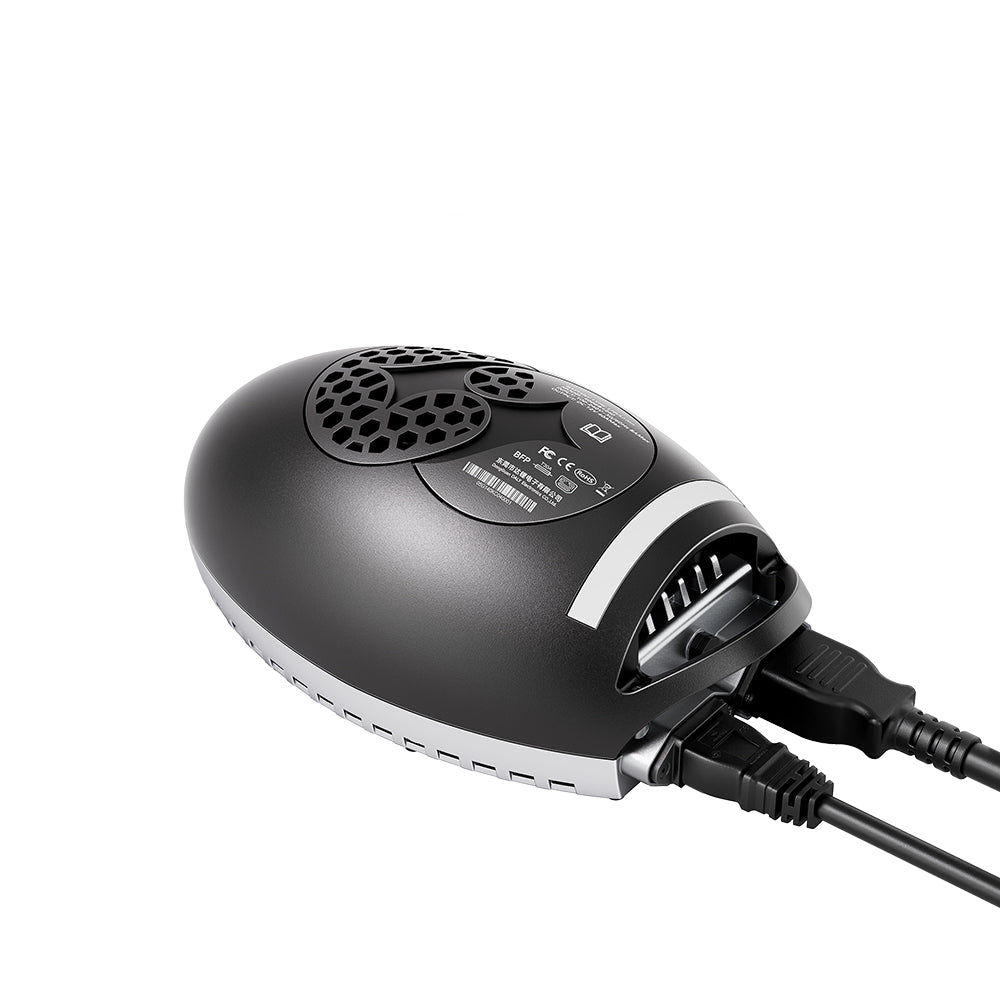

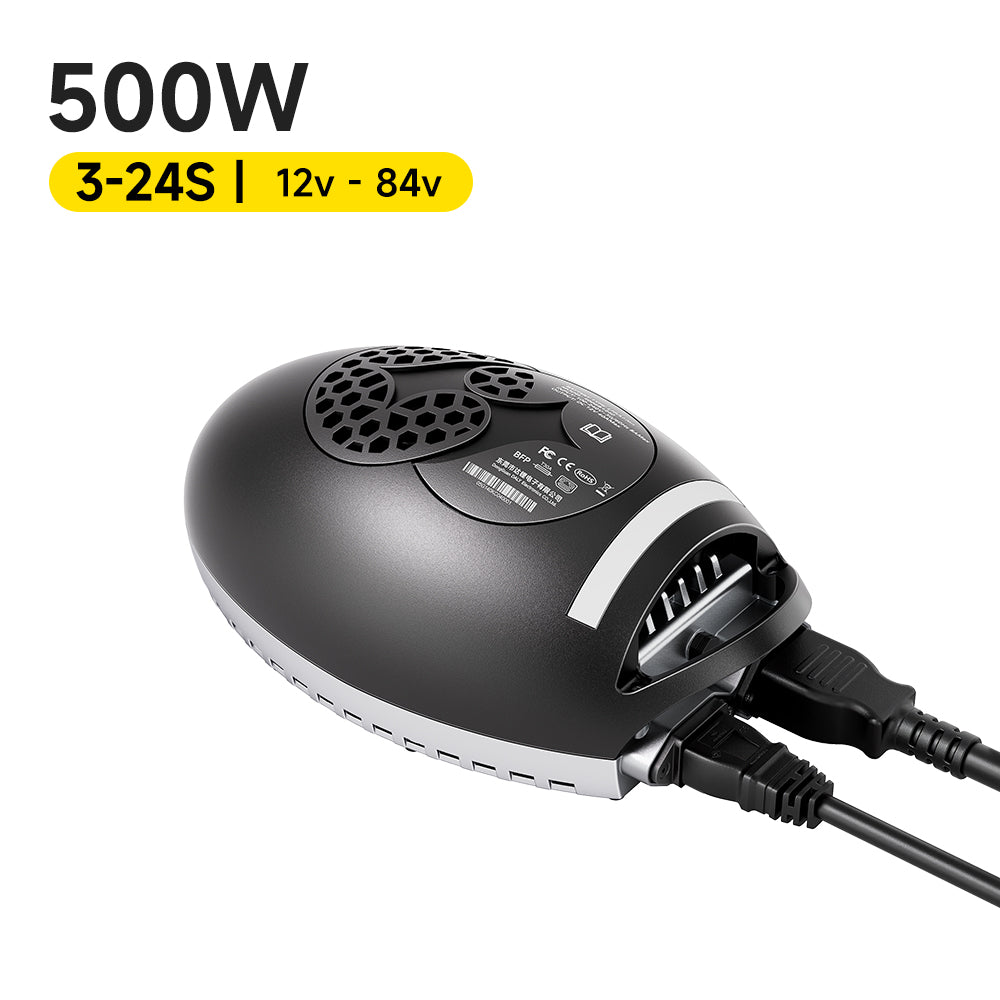

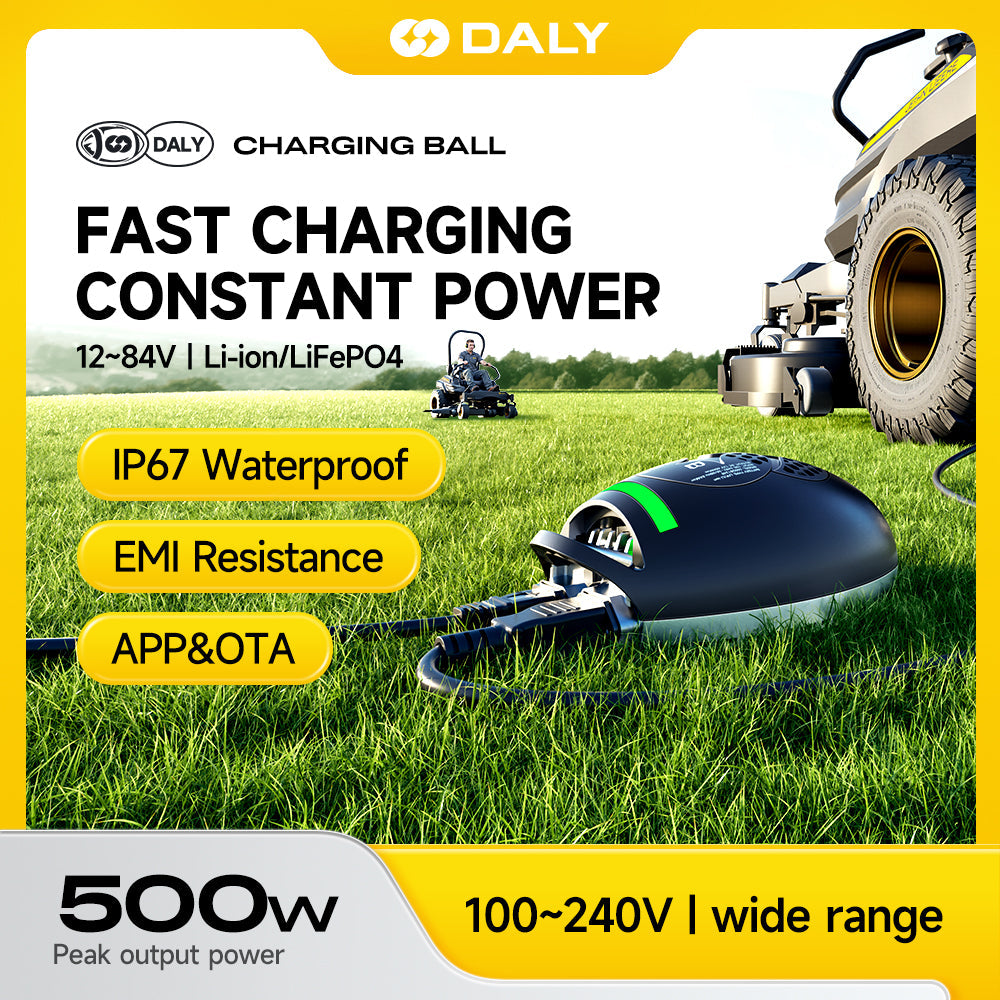

The Daly High Power Supply 500W battery charger is designed for lithium battery packs (Li-ion and LiFePO4/LFP) with selectable configurations covering 12V, 24V, 36V, 48V, 60V, 72V, and 84V systems. It offers option variants from 5A up to 40A and features an IP67 waterproof rating for demanding environments.
Key Features
- Rated power: 500W
- Charge current options: 5A to 40A (model/variant dependent)
- Battery chemistry options: Li-ion and LiFePO4 (LFP)
- Voltage system options: 12V / 24V / 36V / 48V / 60V / 72V / 84V (variant dependent)

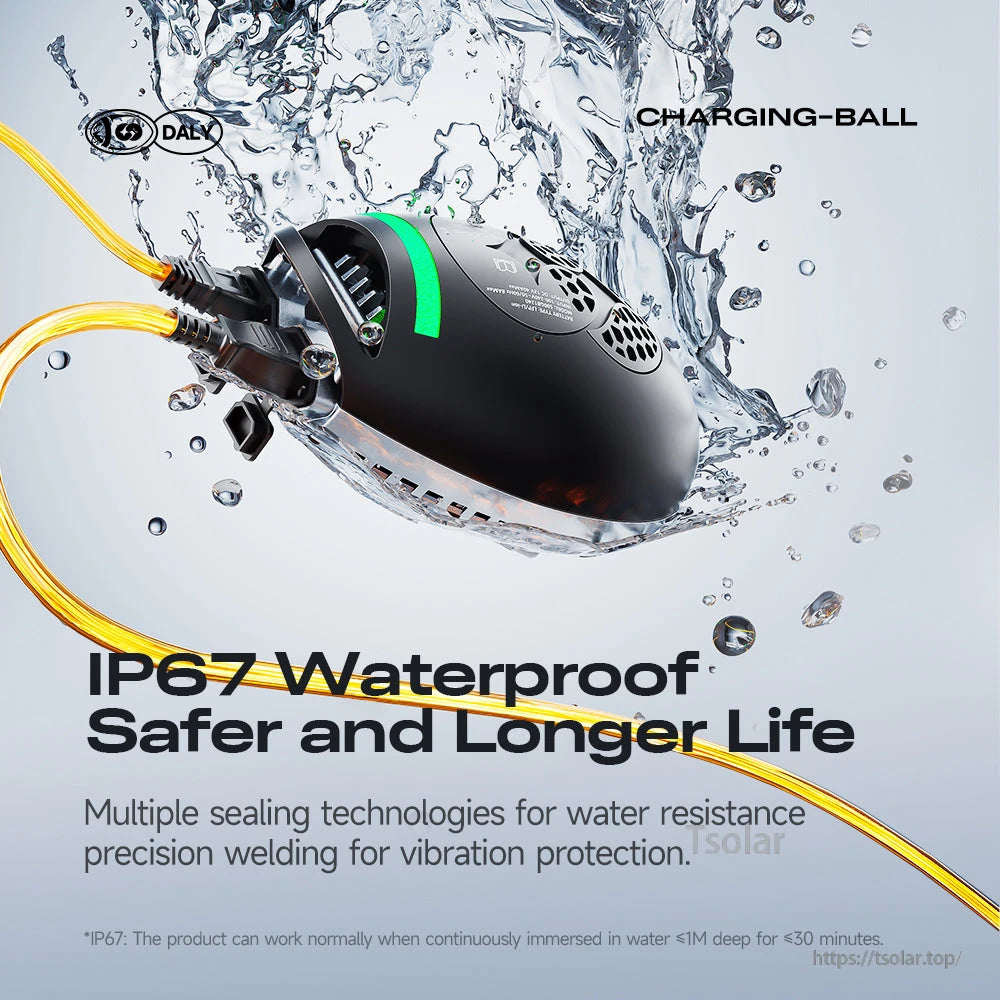

- IP67 waterproof charger housing

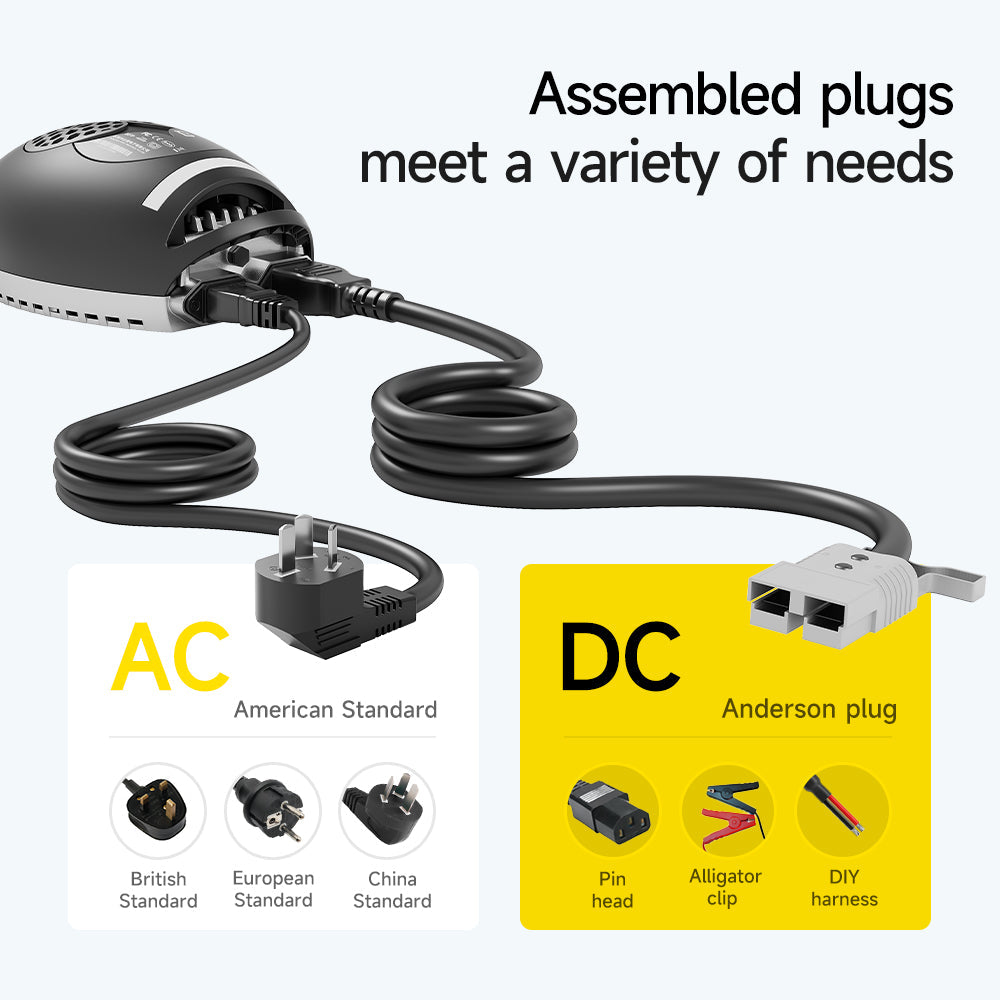

- DC connector option: Anderson Plug
- AC plug options: US / EU / UK / AU / JP
Specifications
| Brand | Daly |
| Product Type | Lithium battery charger (high power supply charger) |
| Rated Power | 500W |
| Charge Current Range | 5A-40A (option dependent) |
| Supported Battery Types | Li-ion, LiFePO4 (LFP) |
| Supported Voltage Systems | 12V / 24V / 36V / 48V / 60V / 72V / 84V (option dependent) |
| Waterproof Rating | IP67 |
| DC Connector | Anderson Plug |
| AC Plug Options | US Plug / EU Plug / UK Plug / AU Plug / JP Plug |
| Available Battery Type Options (as selectable variants) | Li-ion 3S 12V 40A; LFP 4S 12V 40A; Li-ion 6S 24V 20A; Li-ion 7S 24V 20A; LFP 8S 24V 20A; Li-ion 10S 36V 15A; LFP 12S 36V 15A; Li-ion 13S 48V 10A; Li-ion 14S 48V 10A; LFP 15S 48V 10A; LFP 16S 48V 10A; Li-ion 16S 60V 10A; Li-ion 17S 60V 10A; LFP 20S 60V 10A; Li-ion 20S 72V 5A; Li-ion 21S 72V 5A; LFP 24S 72V 5A; Li-ion 24S 84V 5A |
Applications
- Charging Li-ion and LiFePO4 battery packs in 12V-84V systems (select the correct variant for the battery series and required current)
- Installations requiring a waterproof (IP67) charger enclosure
For help selecting the correct charger variant (chemistry/series/current, AC plug type, and Anderson output), contact customer support at https://tsolar.top/ or service@tsolar.top.
