Overview
The DALY Charging Ball is a lithium battery charger designed for Li-ion and LiFePO4 (LFP) battery packs. This 500W charger supports a 12~84V range, offers true constant power operation with 100~240V wide-voltage input, and includes built-in BT+APP for status monitoring and OTA upgrades. Variant options cover 60V battery configurations such as NMC 16S/17S and LFP 20S (10A), and select versions are listed with an Anderson output interface.
For selection help (chemistry/series, plug standard, and connector), contact https://tsolar.top/ or email service@tsolar.top.
Key Features
- Rated power: 500W
- Battery voltage range: 12~84V
- Battery chemistry support: Li-ion / LiFePO4
- AC input: 100~240V wide voltage input, globally compatible (examples shown: 110V / 220V / 230V)
- Built-in BT+APP: monitor status / OTA upgrades
- Protection & monitoring: stable current; current detection, short-circuit detection, temperature detection, voltage detection; real-time monitoring 1000 times/s
- Ingress protection: IP67 waterproof
- Electrical protection: lightning protection; 3000V (as stated)
- Efficiency: >= 93% high efficiency
- Battery recovery: undervoltage activation (rescue over-discharged batteries)
- Safety: reverse connection protection
- System linkage: linked with DALY BMS (dual intelligence, dual safety)
- Construction: die-cast aluminum sealing; vibration & EMI resistant
- Durability design: isolated air duct design; dust, moisture & salt-fog resistant
- Mounting/placement: easy carry; fixed installation; flat placement; hooked hanging (fixed installation and hooks need to be customized)
Specifications
| Brand | DALY |
| Series/Name | Charging Ball |
| Rated Power | 500W |
| Battery Voltage Range | 12~84V |
| Battery Chemistry | Li-ion / LiFePO4 |
| AC Input Voltage | 100~240V |
| Efficiency | >= 93% |
| Waterproof Rating | IP67 |
| Real-time Monitoring | 1000 times/s |
| App Connectivity | Built-in BT+APP |
| Additional Protection (as stated) | Lightning protection; 3000V |
Applications
- Outdoor adventure
- Personal mobility
- Light-duty operations
- Smart warehousing
- Ride-on mower
- Cleaning vehicle
- Forklift
- Electric tricycle
- E-motorcycle
- Electric scooter
- Hoverboard
- ATV
- Also listed for: golf carts, AGV
Options (Variant Selection)

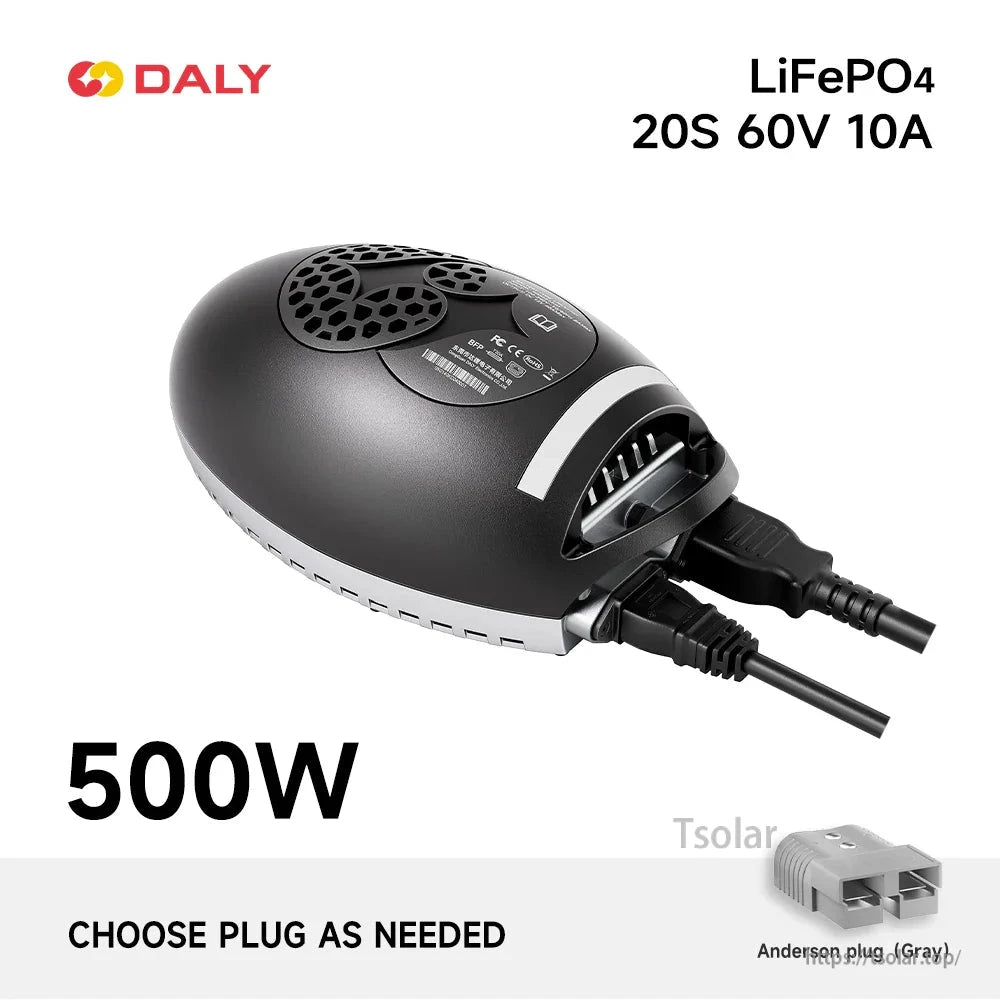

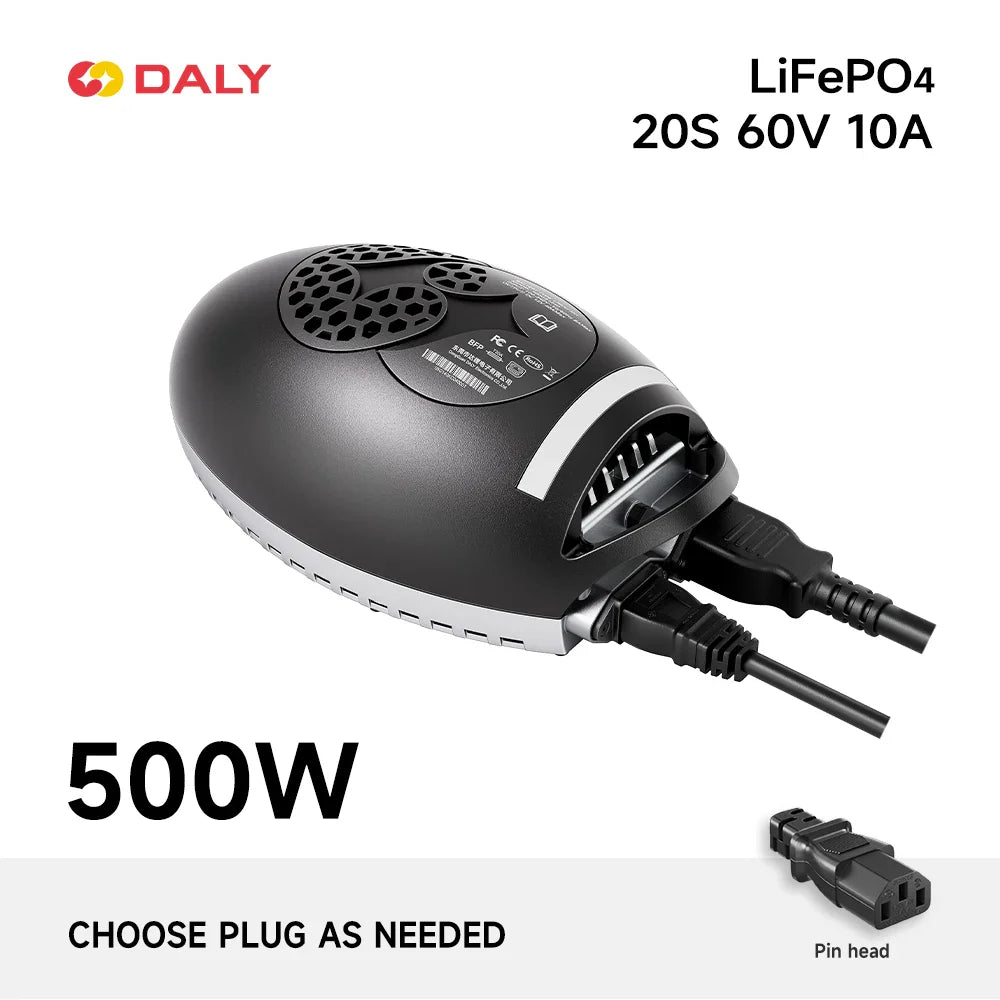

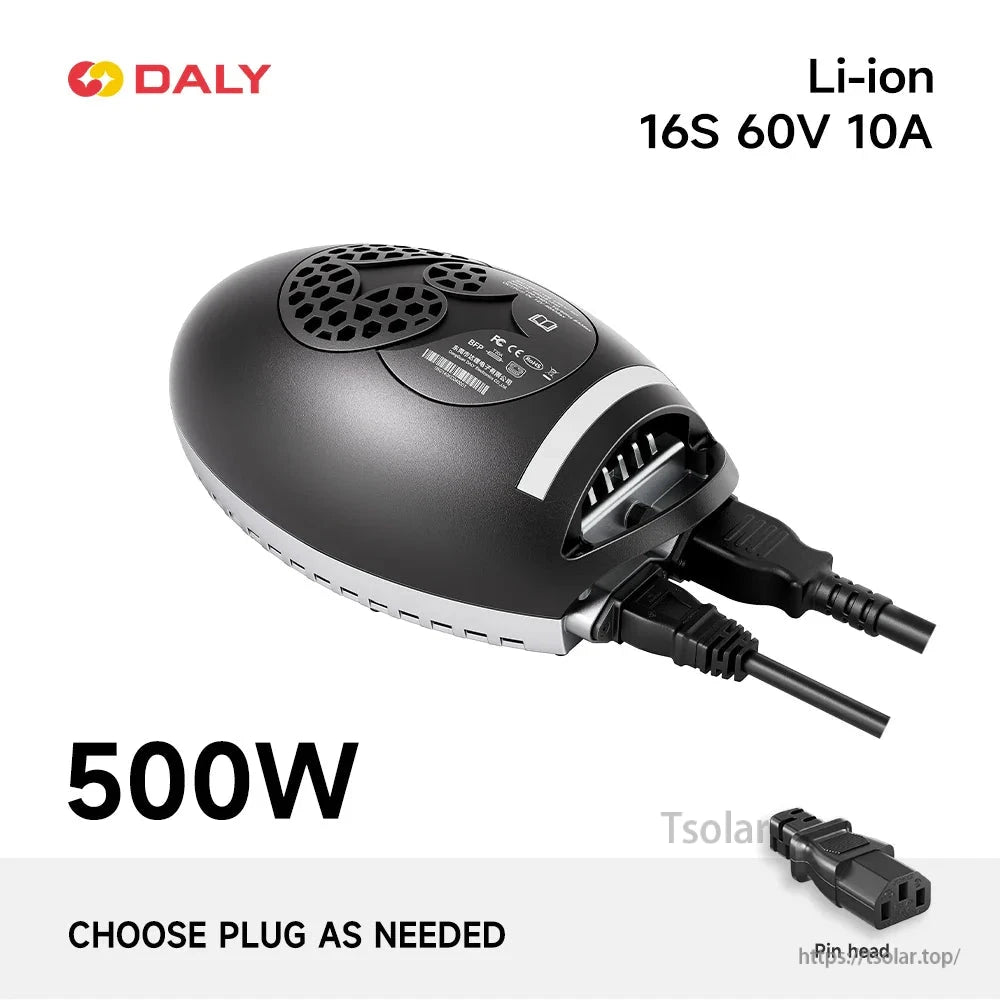

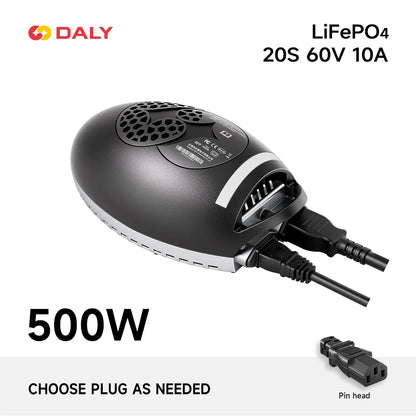

- Battery type/configuration options (10A, 60V variants): NMC 16S 60V; NMC 17S 60V; LFP 20S 60V (options labeled A/B/C/D)
- Socket Standard: US / EU / UK
Details

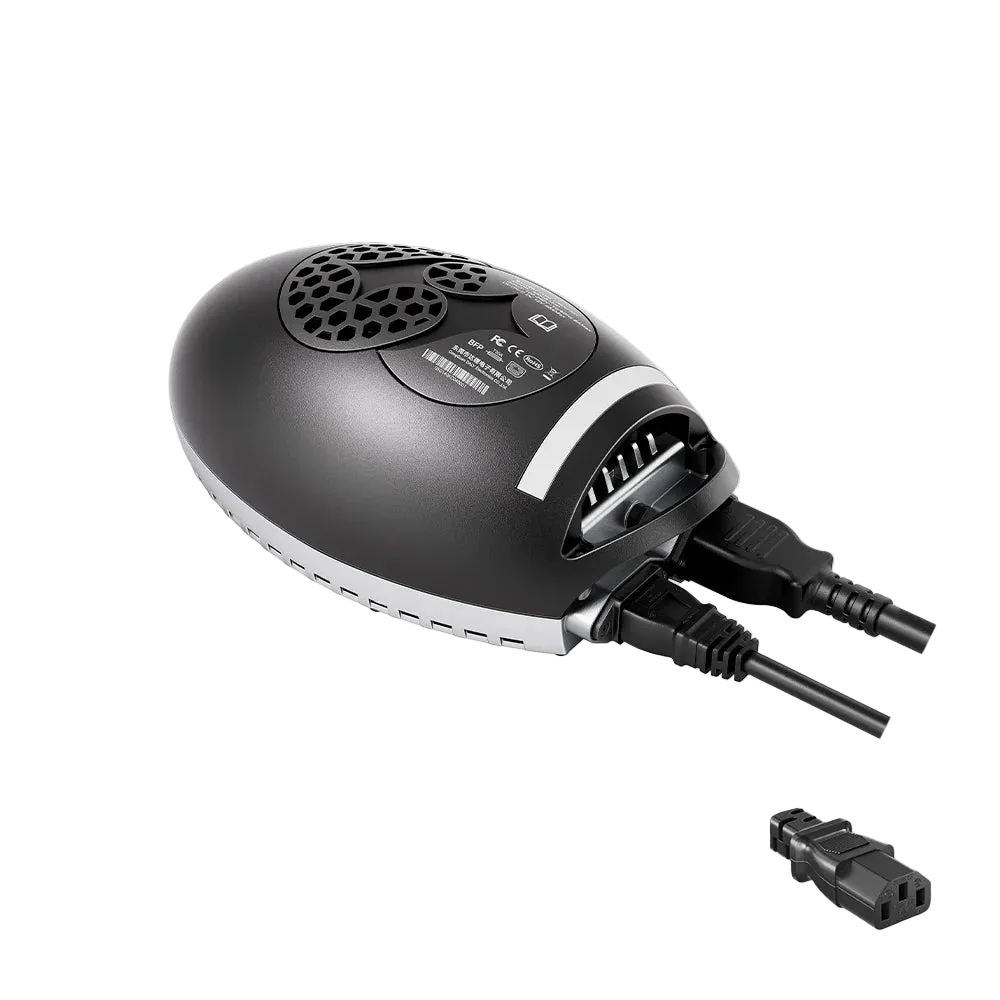

A compact 500W charger built for Li-ion and LiFePO4 battery packs across a wide 12–84V range.
Designed for outdoor adventure, personal mobility, light-duty operations, and smart warehousing equipment.
The Charging Ball series pairs a modern, easy-to-carry form factor with high-power charging performance.
A streamlined housing helps the charger fit cleanly into both worksite and recreational setups.
One charger platform supports both Li-ion and LiFePO4 (LFP) chemistries, depending on the selected variant.
An integrated internal layout supports stable output in a compact enclosure.
Built-in Bluetooth + app monitoring adds live status checks and OTA upgrades, alongside wide-voltage AC input.
Protection features include reverse connection protection, undervoltage activation for recovery, and high efficiency (≥93%).
Carry it by hand for mobile use, or set it up for fixed installation when a dedicated charging spot is preferred.
Flexible placement options help keep cables tidy, including flat placement or hanging setups (customization may be required).
A 500W-rated design supports demanding charging tasks without adding bulky hardware.
Works across common electric equipment, from ride-on mowers and cleaning machines to electric tricycles.
Suitable for both industrial vehicles like forklifts and off-road applications such as ATVs.
Choose the correct battery series and connector option to match the pack being charged.
Wide-voltage 100–240V AC input supports global power standards while maintaining constant output power.

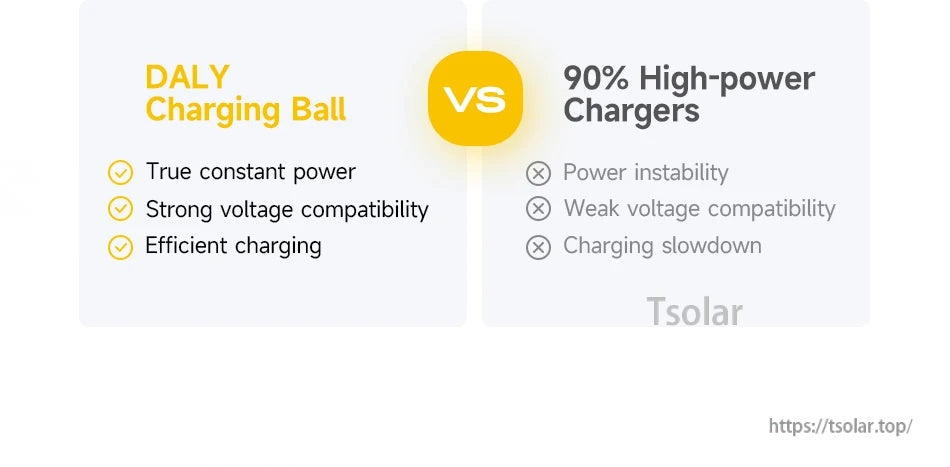

True constant power operation helps reduce power instability and charging slowdowns across varying input voltages.

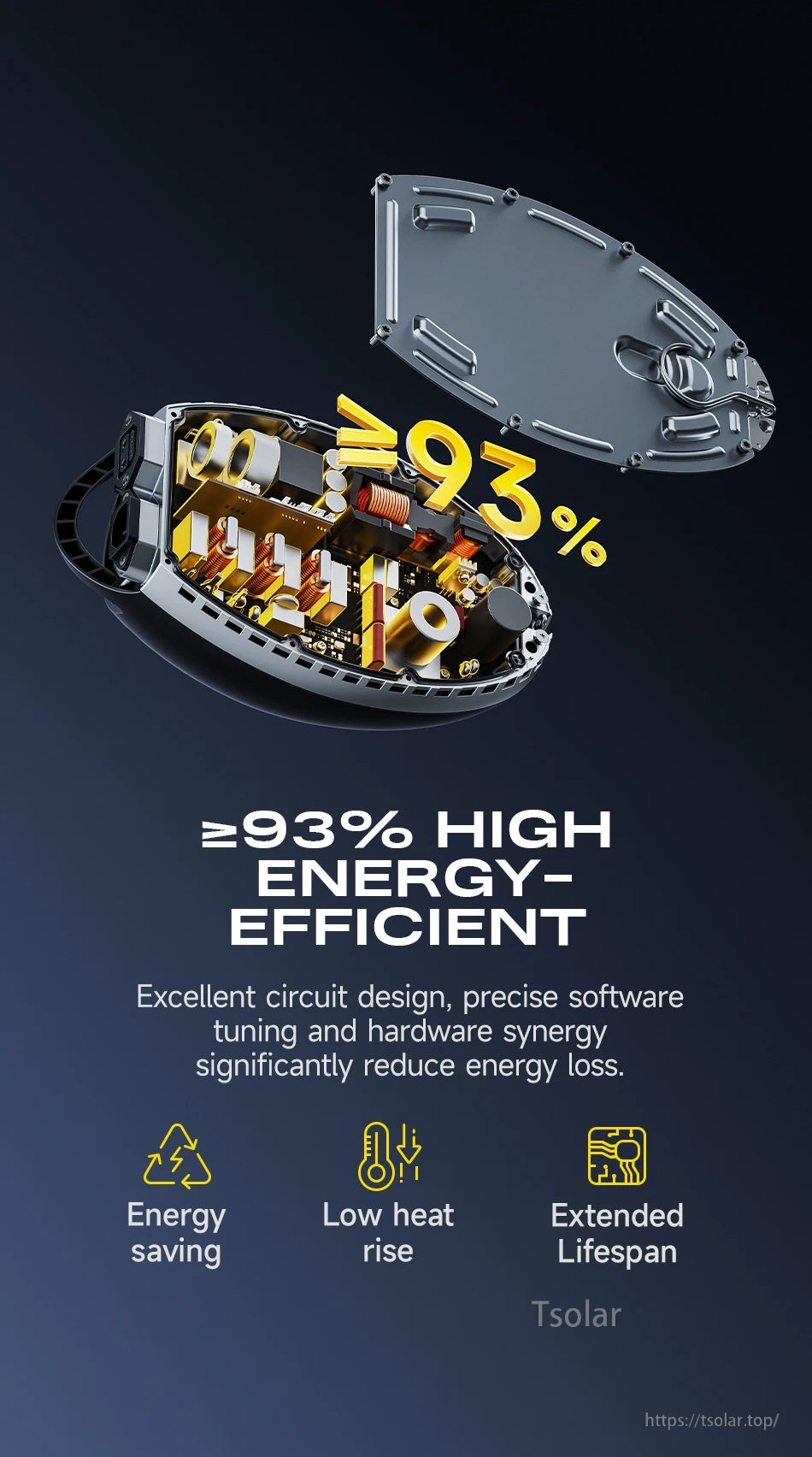

High efficiency (≥93%) helps cut energy loss and manage heat for longer-term reliability.
Smart interaction features support everyday charging management through connected monitoring options.
Built-in Bluetooth and the companion app let you monitor charging status, view voltage/current/power alarms, and adjust charging current.
DALY Charging Ball charging connects to compatible DALY BMS setups for coordinated charging control.

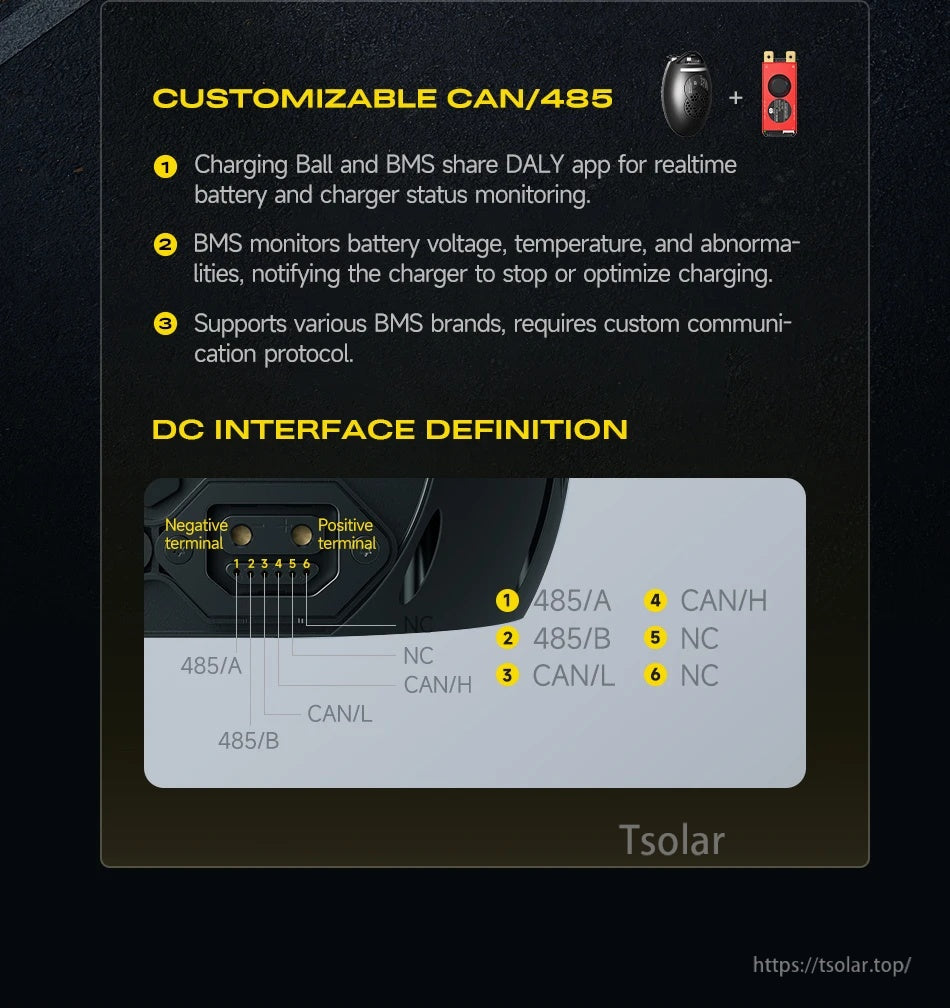

The DALY Charging Ball charger uses a DC interface with positive/negative terminals plus a 6-pin CAN/485 communication port (485/A, 485/B, CAN/L, CAN/H).

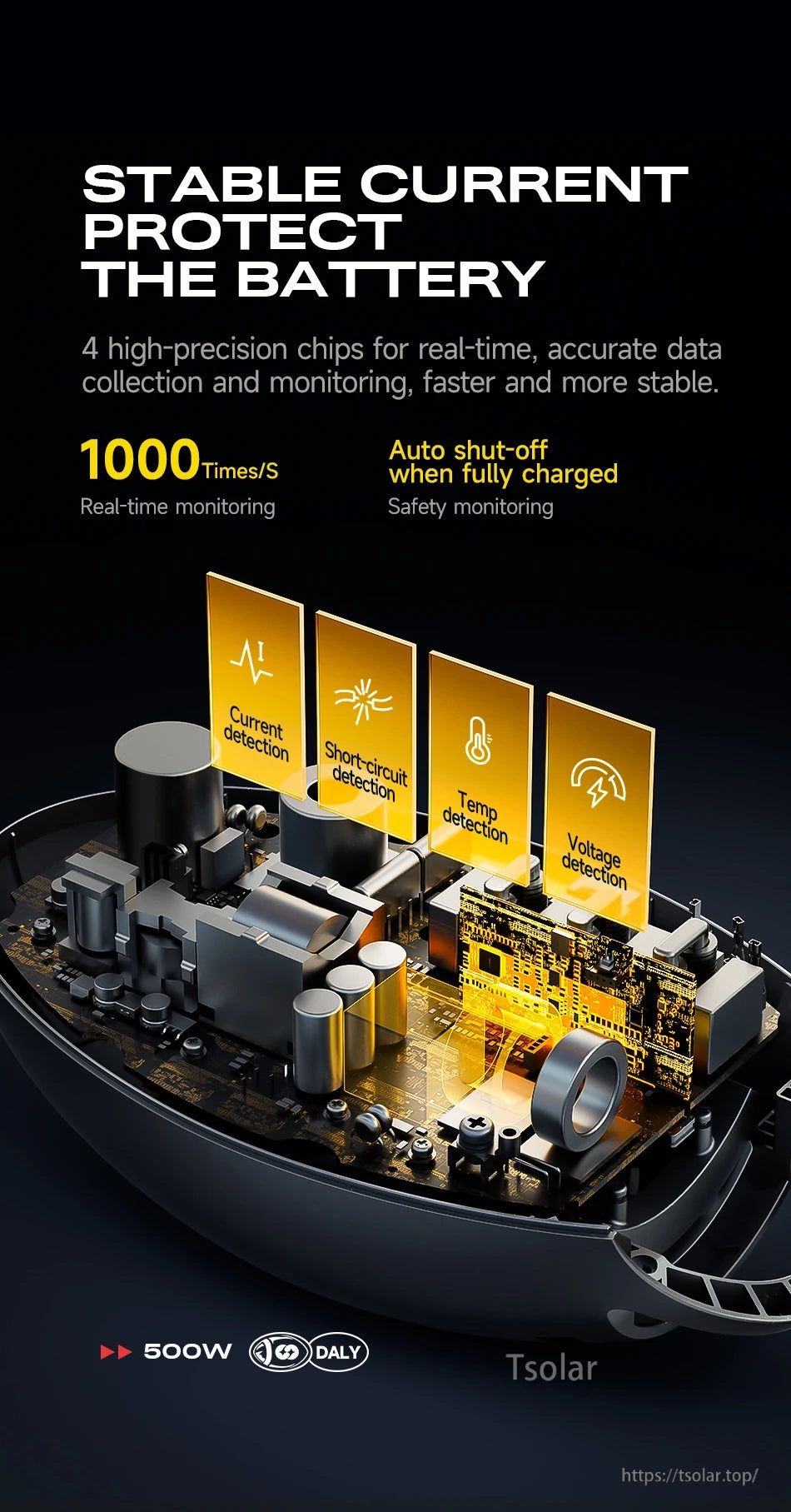

DALY’s 500W charging ball design emphasizes stable current control with monitoring for current, voltage, temperature, and short-circuit conditions.

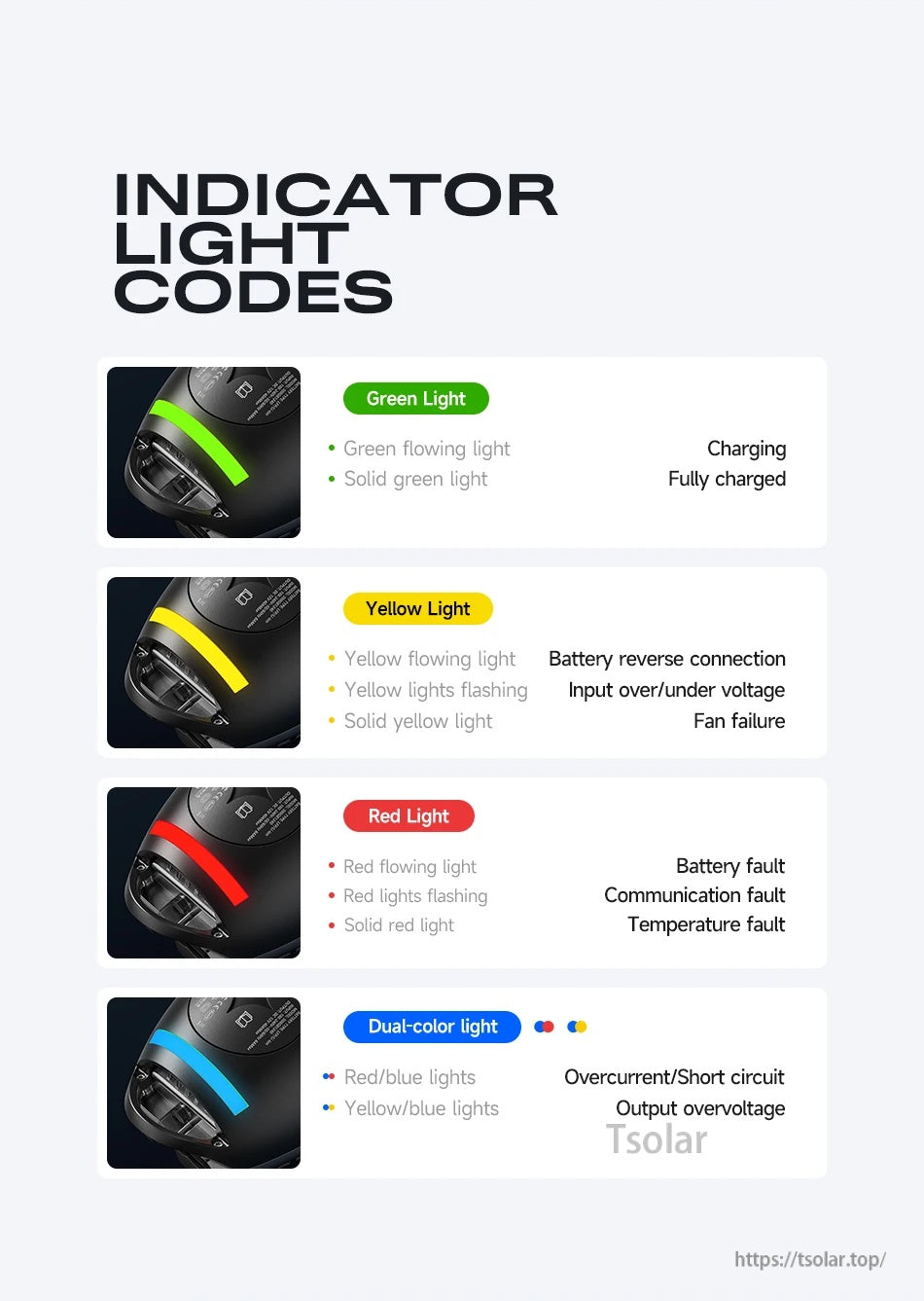

The DALY Charging Ball charger uses color-coded indicator lights to signal charging, full charge, and common fault conditions like reverse connection or overvoltage.

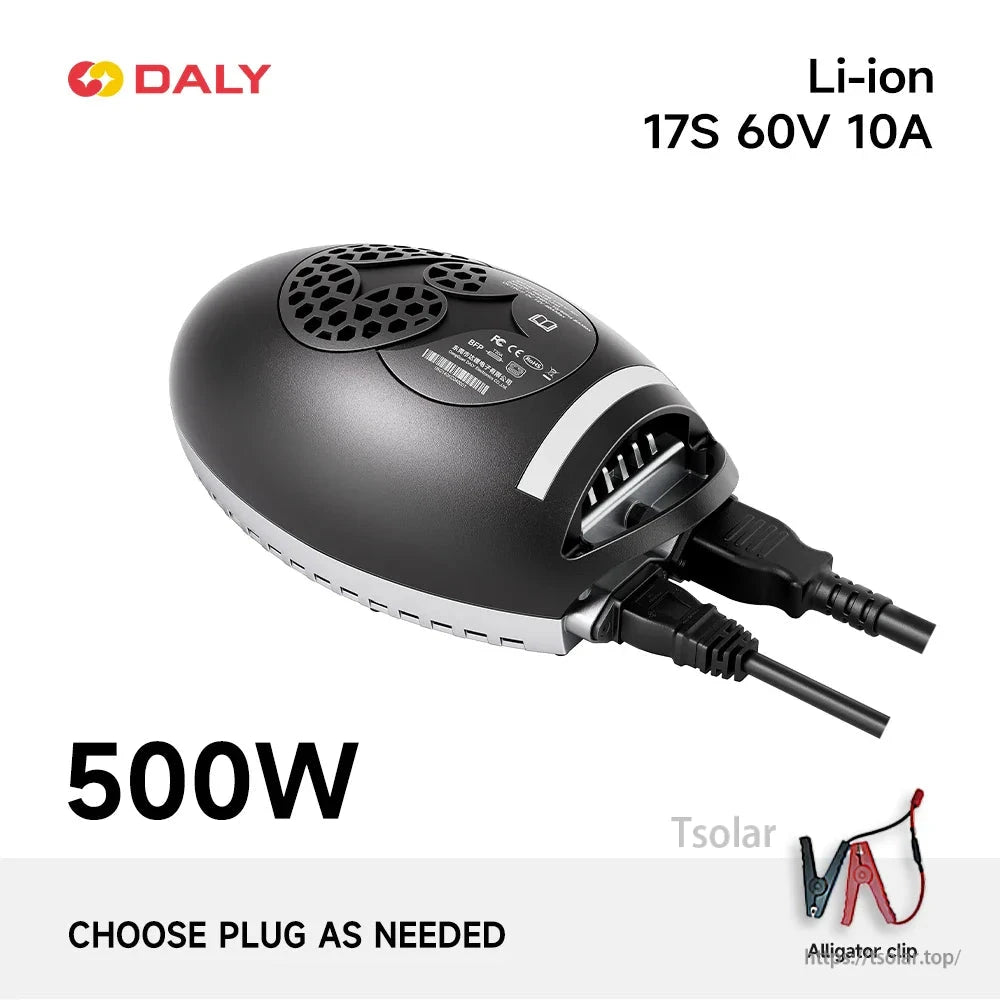

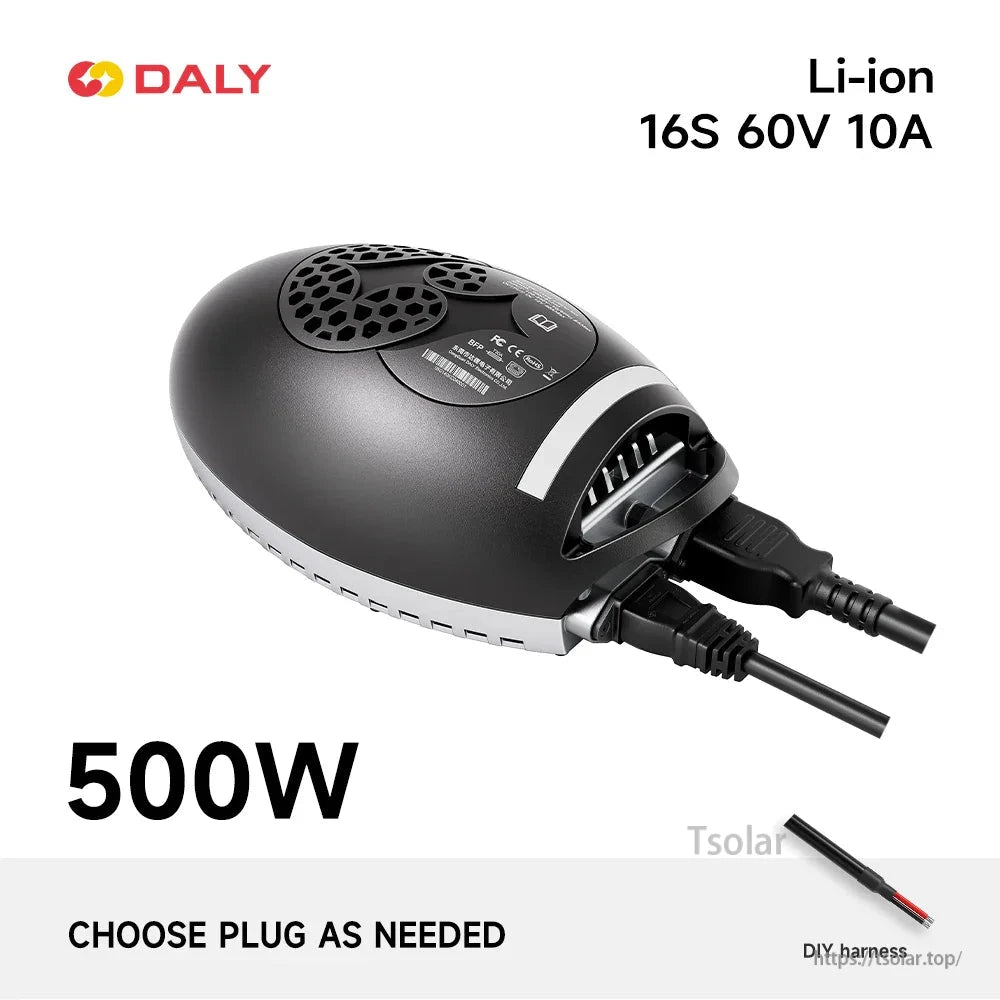

DALY’s 500W charging-ball charger supports 12V–84V Li-ion and LiFePO4 battery packs in a compact housing.
The DALY charging ball charger features an IP67 waterproof housing designed to handle wet, outdoor charging conditions.

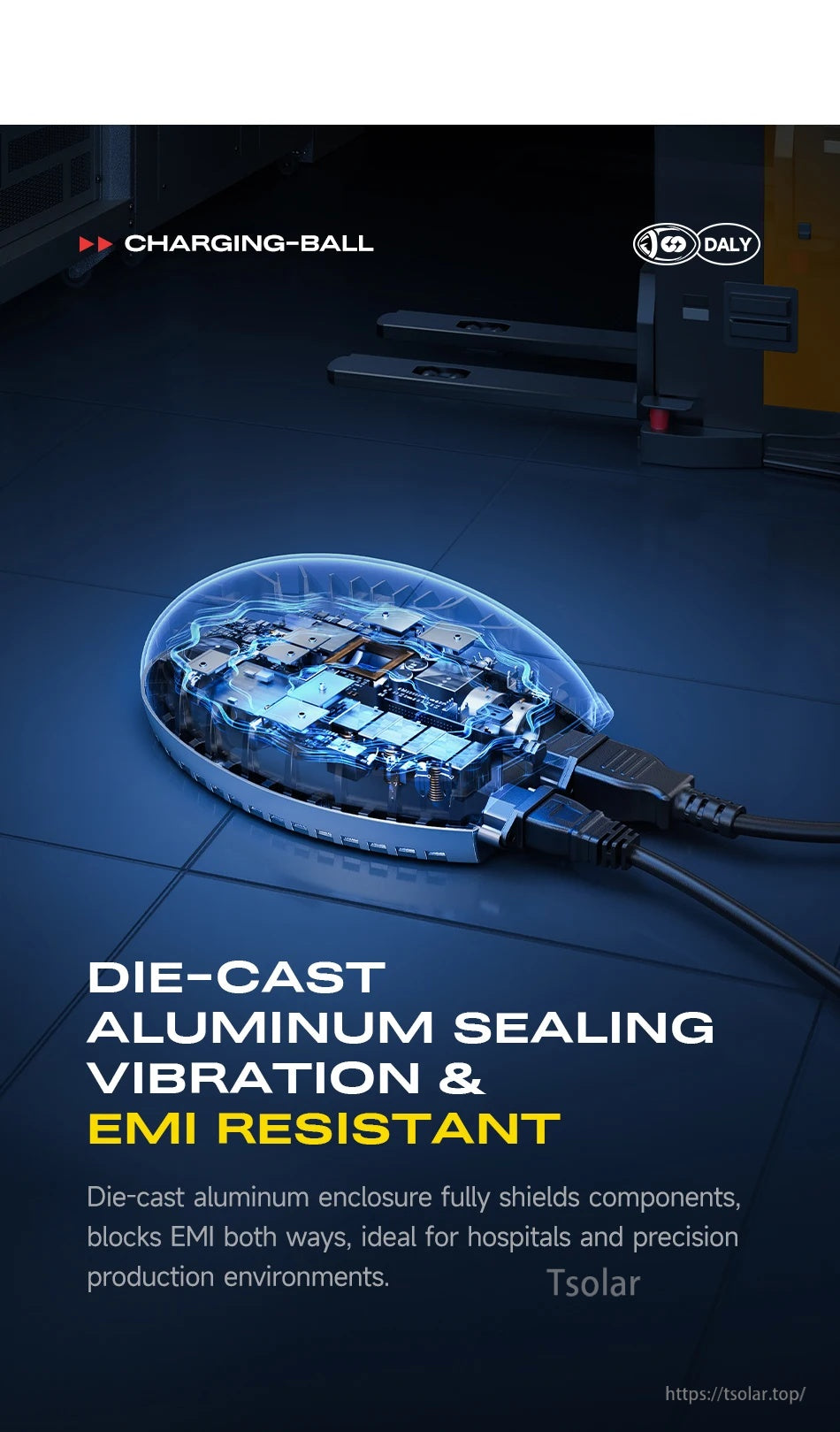

The DALY Charging-Ball charger uses a sealed die-cast aluminum housing designed to help resist vibration and reduce EMI interference.

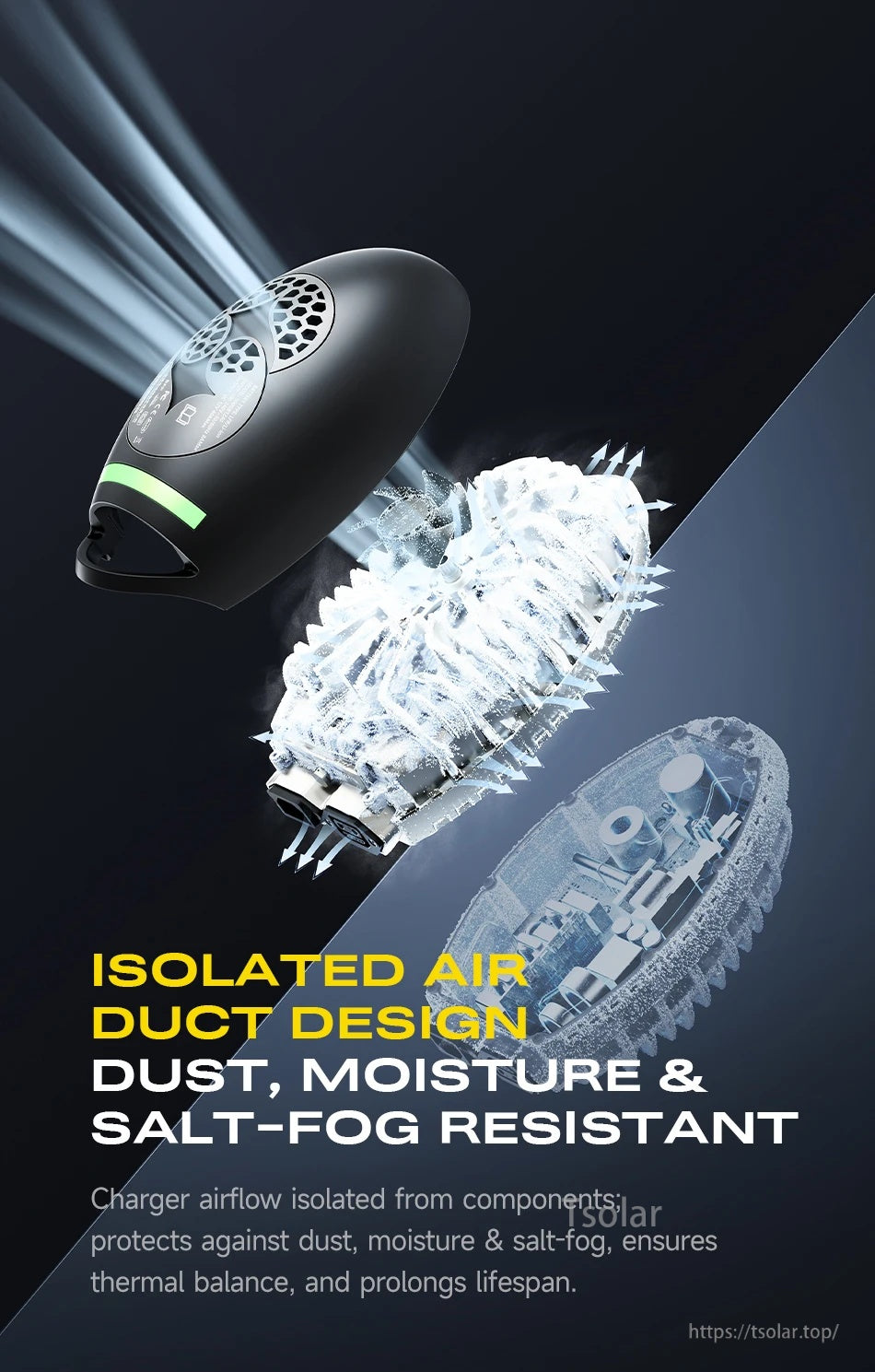

An isolated air duct design helps separate airflow from internal components for added protection against dust, moisture, and salt-fog.

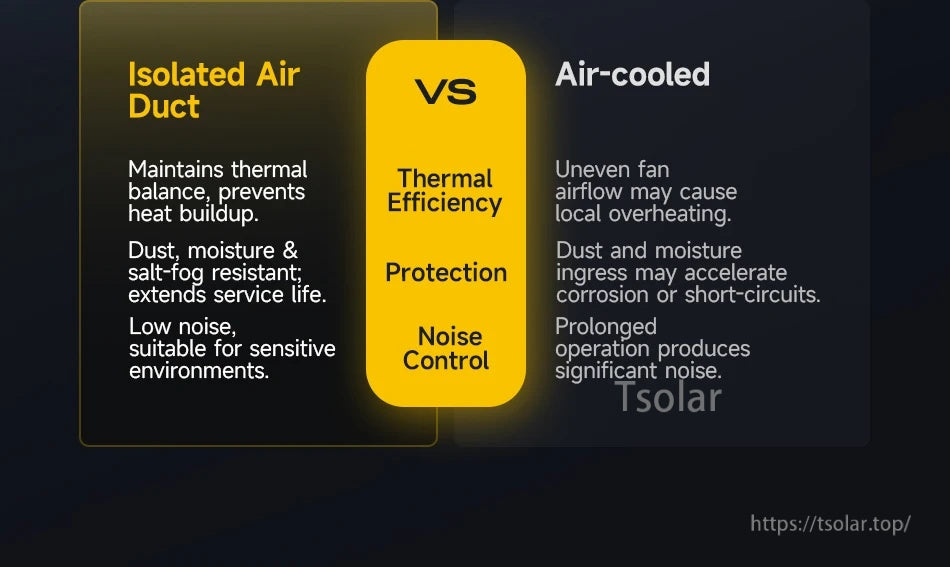

An isolated air-duct cooling design is presented as helping maintain thermal balance while reducing dust and moisture ingress and operating noise.

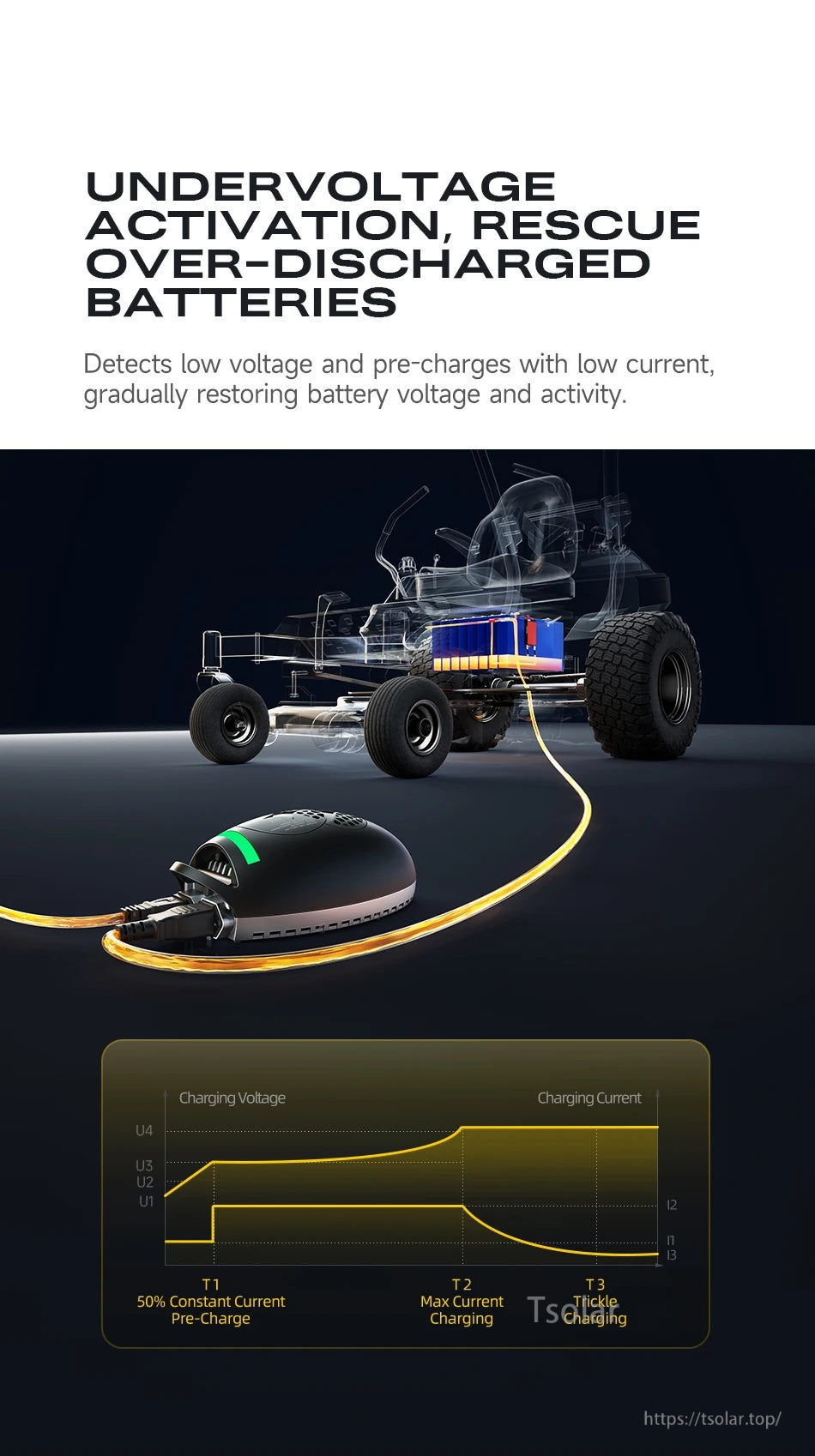

The DALY Charging Ball charger supports undervoltage activation by detecting low battery voltage and pre-charging with low current before resuming normal charging.

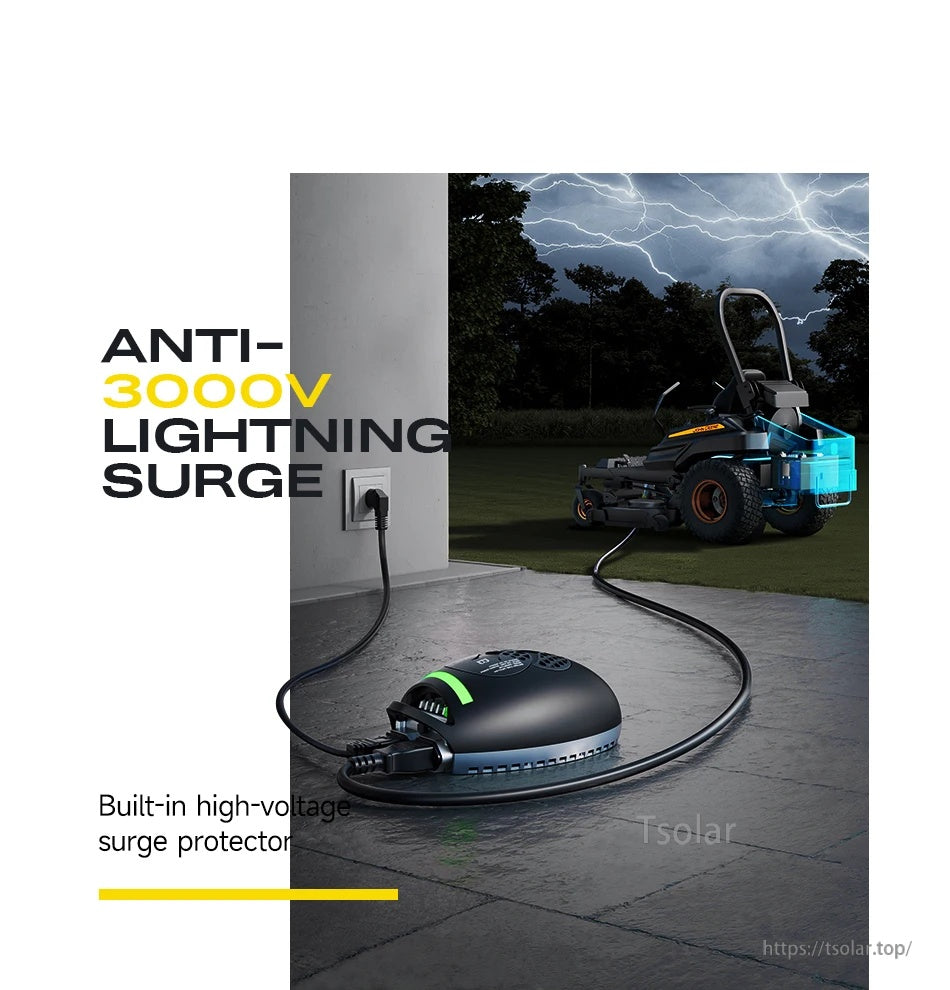

The DALY charging ball connects between the wall outlet and your equipment to provide built-in 3000V lightning surge protection while charging.

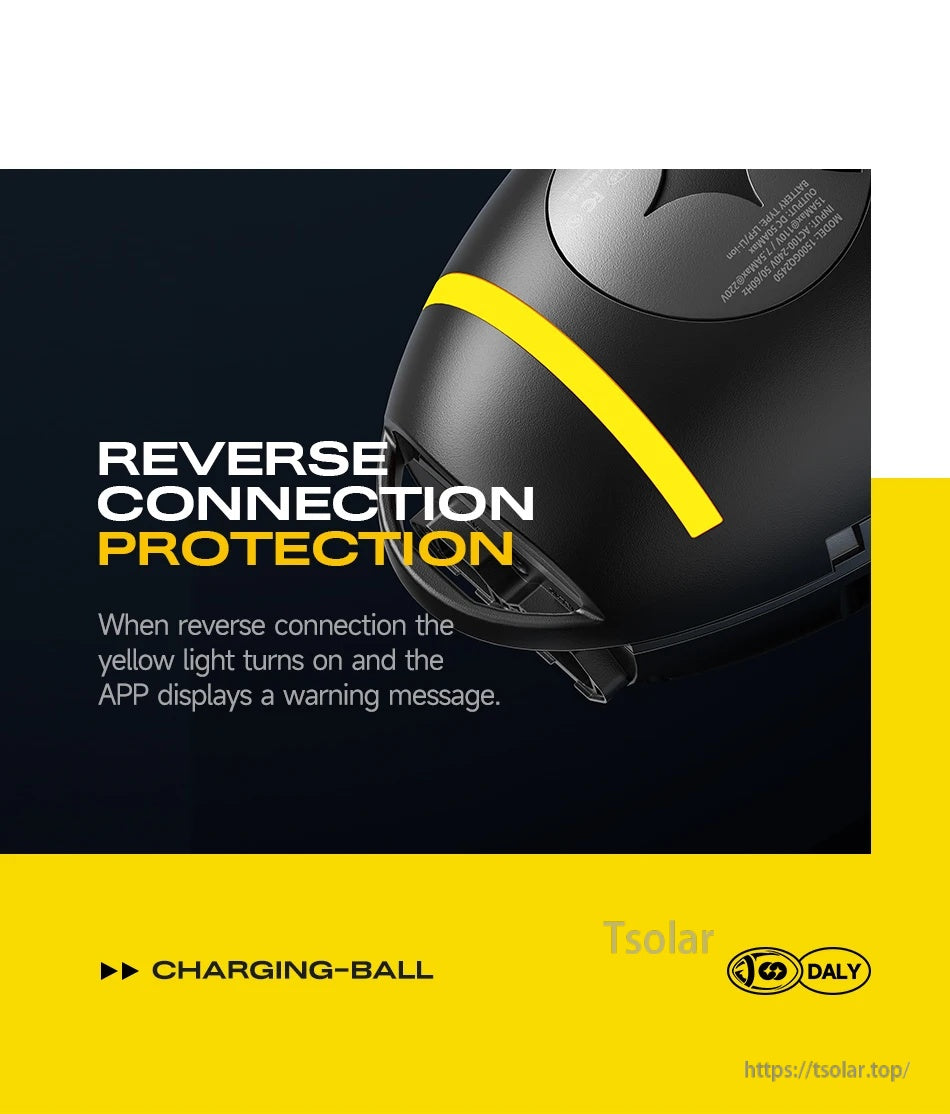

Reverse connection protection triggers a yellow indicator light and an in-app warning if the charger is wired backwards.

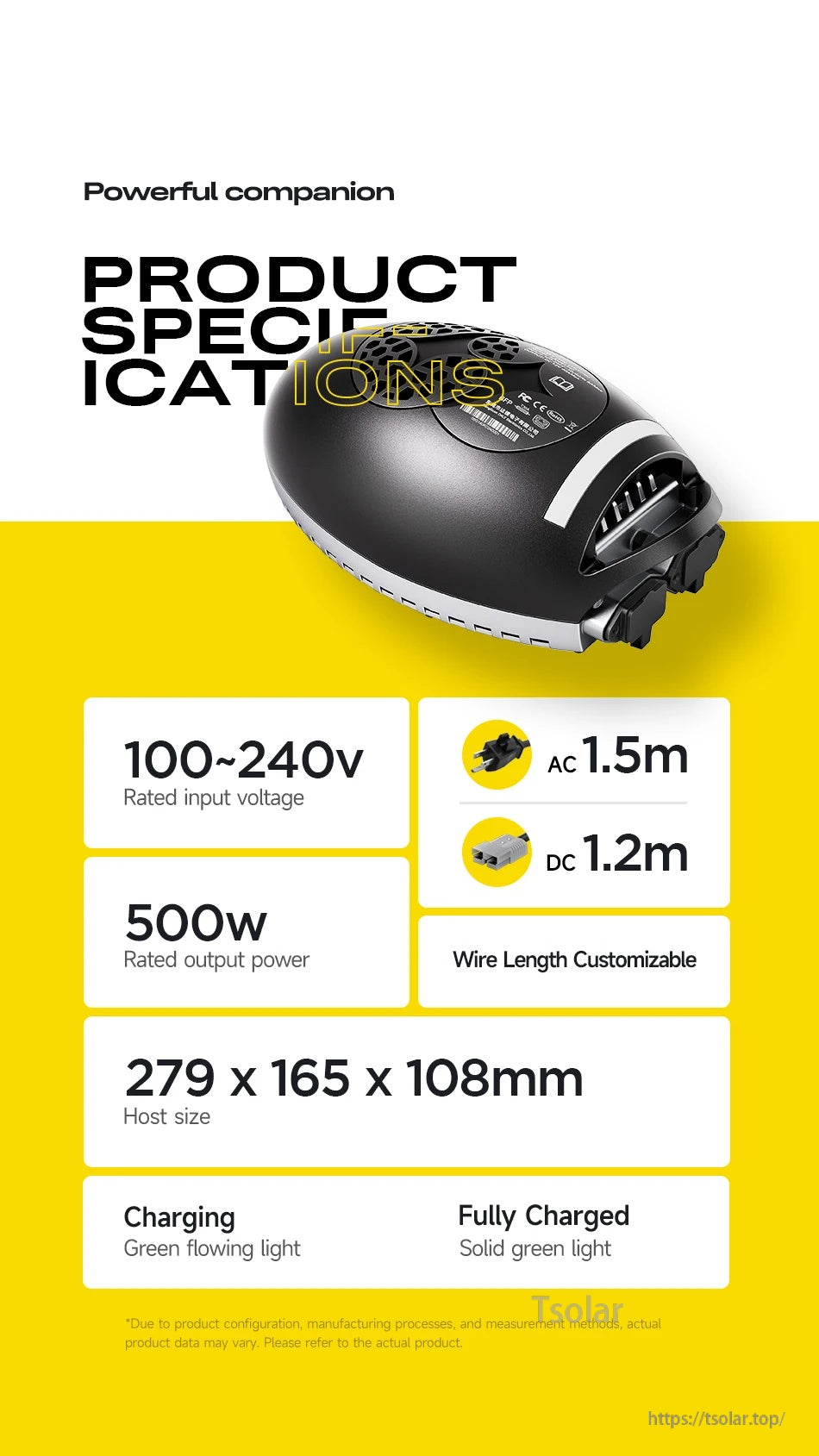

The DALY charging ball lithium battery charger delivers 500W output with 100–240V input, 1.5m AC and 1.2m DC leads, and green status lighting.

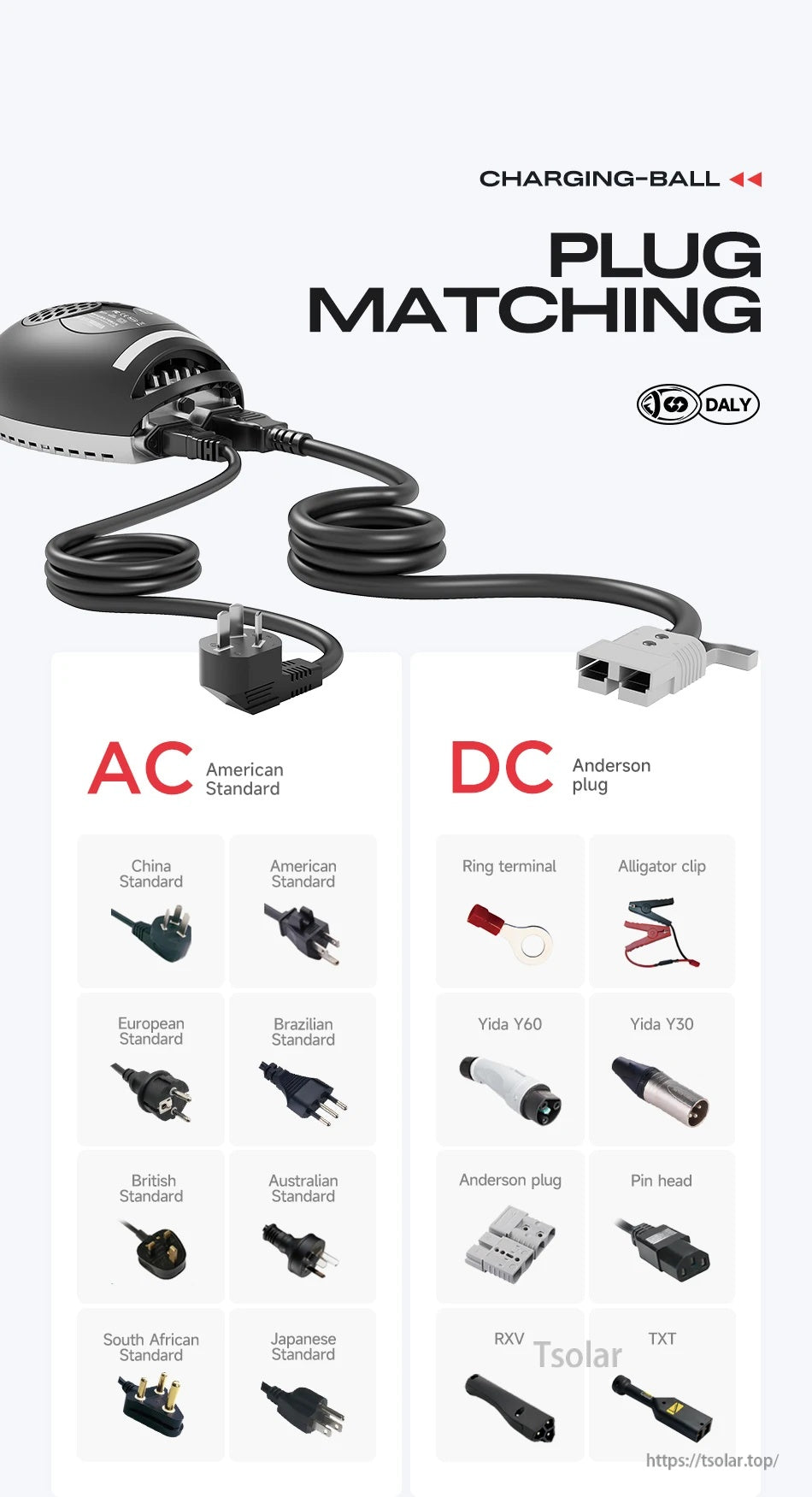

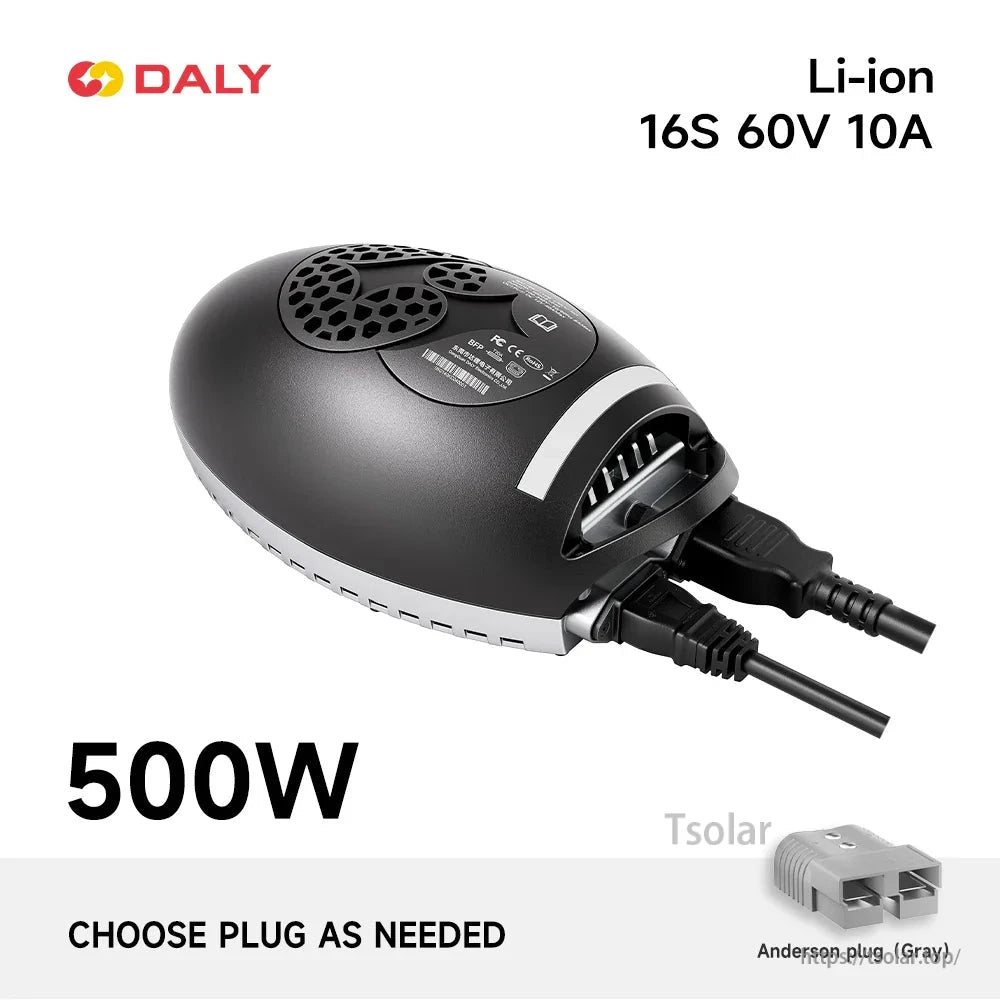

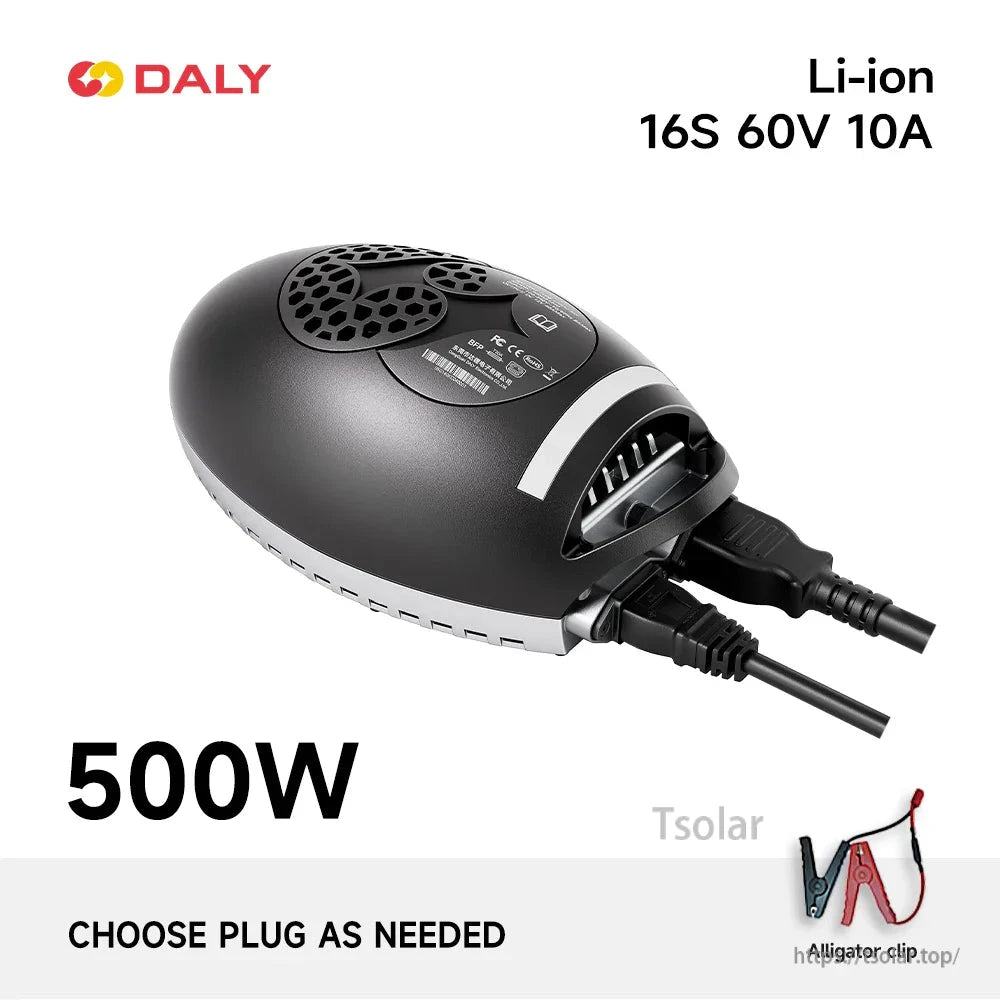

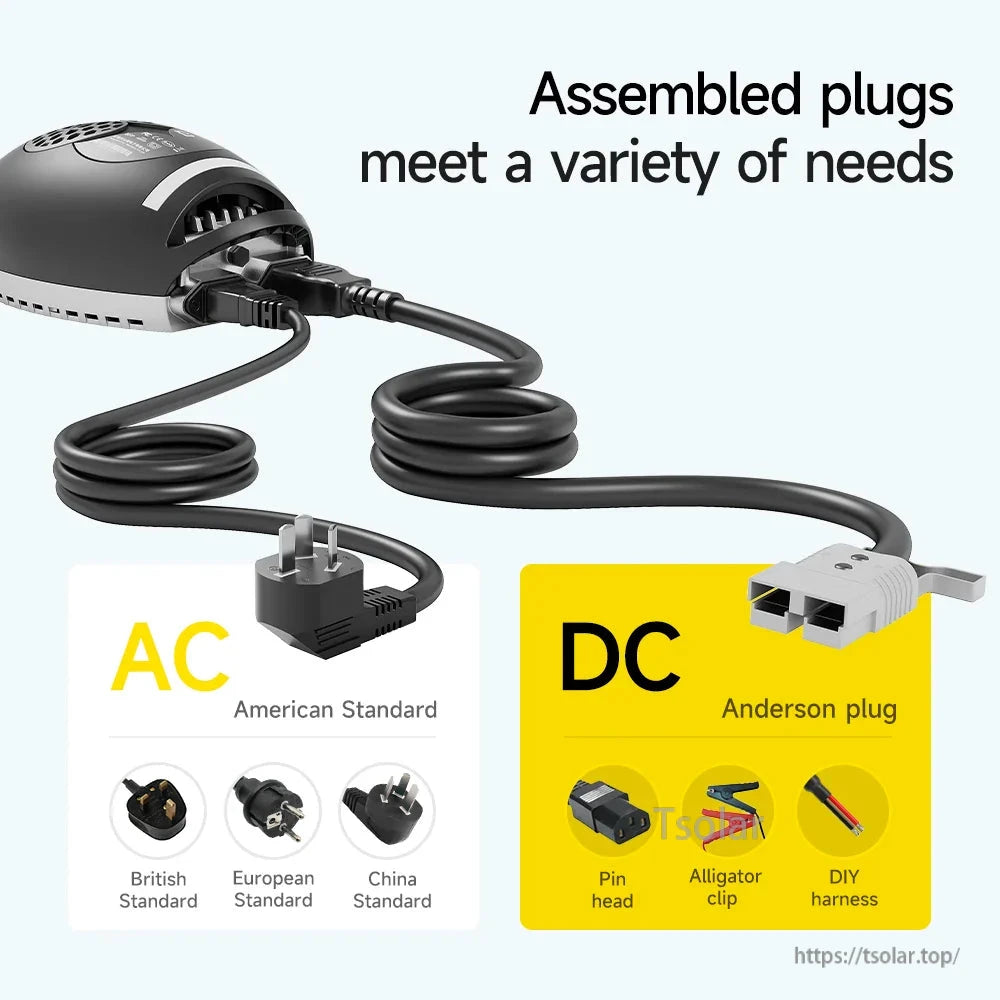

DALY Charging-Ball 500W lithium battery charger supports multiple AC power plug styles and DC output connectors such as an Anderson plug.

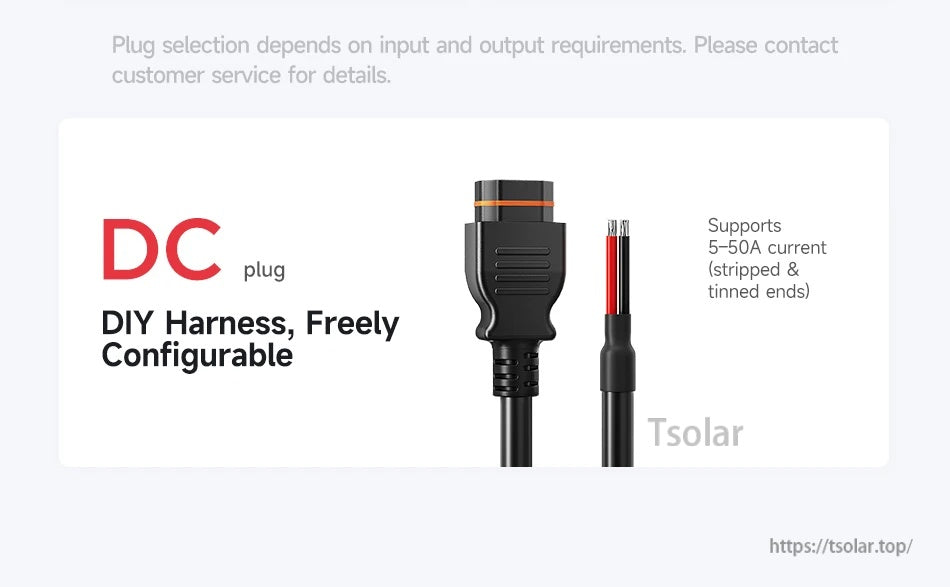

The DC plug DIY harness provides freely configurable wiring and supports 5–50A connections with stripped and tinned leads.

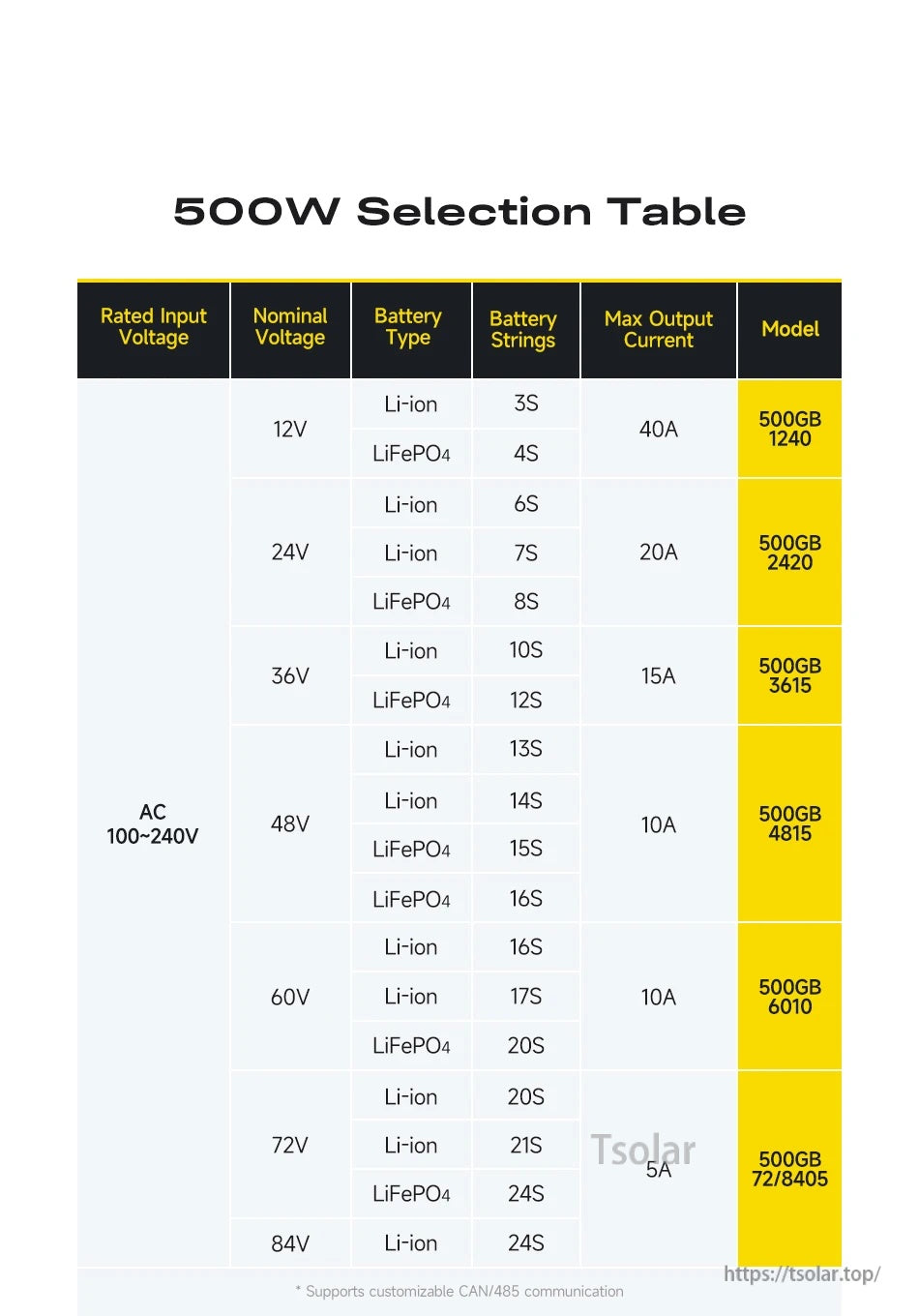

The 500W DALY charger selection table lists supported nominal voltages from 12V to 84V with Li-ion/LiFePO4 string counts, max output current, and model numbers.

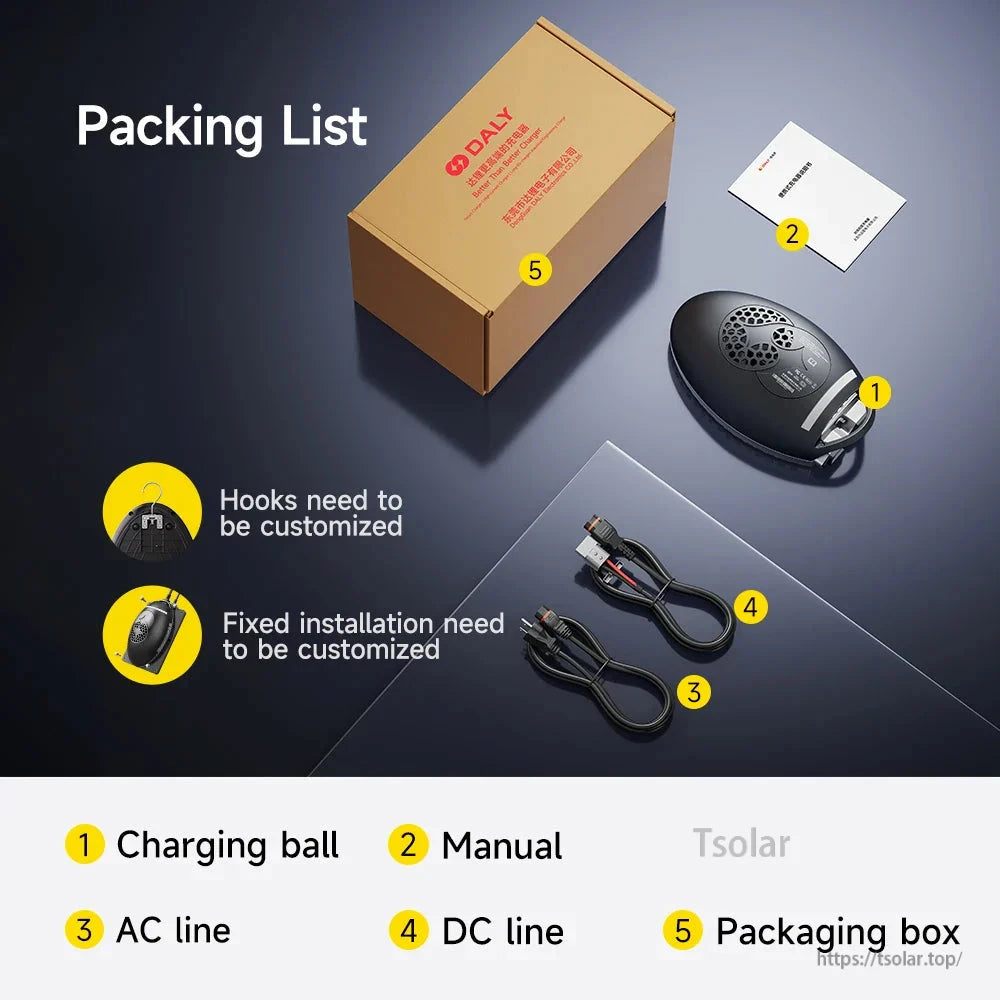

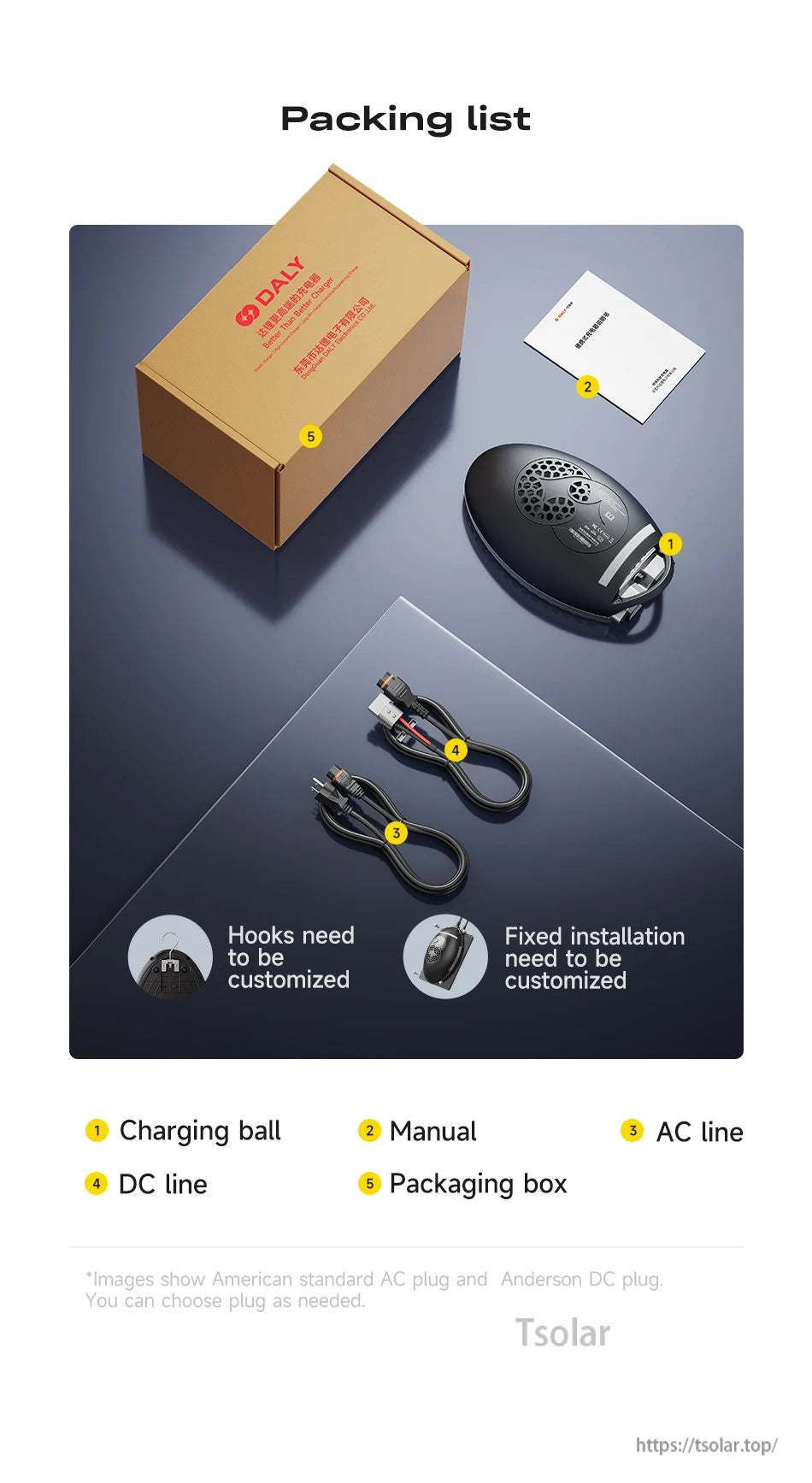

The DALY charging ball lithium battery charger comes with a manual, AC power cord, DC output cable, and a packaging box for easy setup.
The DALY lithium battery charger supports 100–240V wide-voltage input and lists built-in BT+APP monitoring, IP67 waterproofing, and reverse-connection protection.
Delivery is stated as shipping within 3–7 days after ordering, with a one-year warranty noted under normal use.
