Overview
DALY “Charging Ball” is a lithium battery charger designed for Li-ion (NMC) and LiFePO4 (LFP) battery packs. This charger series is offered in 24V / 20A variants for NMC 6S, NMC 7S, and LFP 8S (selection depends on the option chosen), with a rated 500W design and wide-range 100~240V AC input for global use.
Key Features
- Power rating: 500W
- Battery chemistry support: Li-ion / LiFePO4
- Output range shown: 12~84V (product series)
- Wide voltage input: 100~240V; “true constant power”
- Built-in BT + APP: monitor status / OTA upgrades
- Stable current with battery protection and real-time monitoring: 1000 Times/s
- Protection monitoring items shown: current detection, short-circuit detection, temperature detection, voltage detection
- IP67 waterproof
- Lightning protection (text shown)
- Die-cast aluminum sealing; vibration & EMI resistant
- Isolated air duct design; dust, moisture & salt-fog resistant
- High efficiency: >= 93%
- Undervoltage activation (rescue over-discharged batteries)
- Reverse connection protection (safe and reliable)
- Can be linked with DALY BMS (dual intelligence, dual safety)
- Portable design (easy carry)
- Placement/installation methods shown: fixed installation, flat placement, hooked hanging (fixed installation and hooks need to be customized)
Specifications
| Brand | DALY |
| Series/Name shown | Charging Ball / Tech-Chic Charger |
| Rated power | 500W |
| AC input | 100~240V |
| Supported battery types | Li-ion / LiFePO4 |
| Output range shown (series) | 12~84V |
| Efficiency | >= 93% |
| Waterproof rating | IP67 |
| Monitoring rate shown | 1000 Times/s (real-time monitoring) |
| App connectivity | Built-in BT + APP; monitor status / OTA upgrades |
| Insulation/withstand text shown | 3000V |
Options (Select Variant)

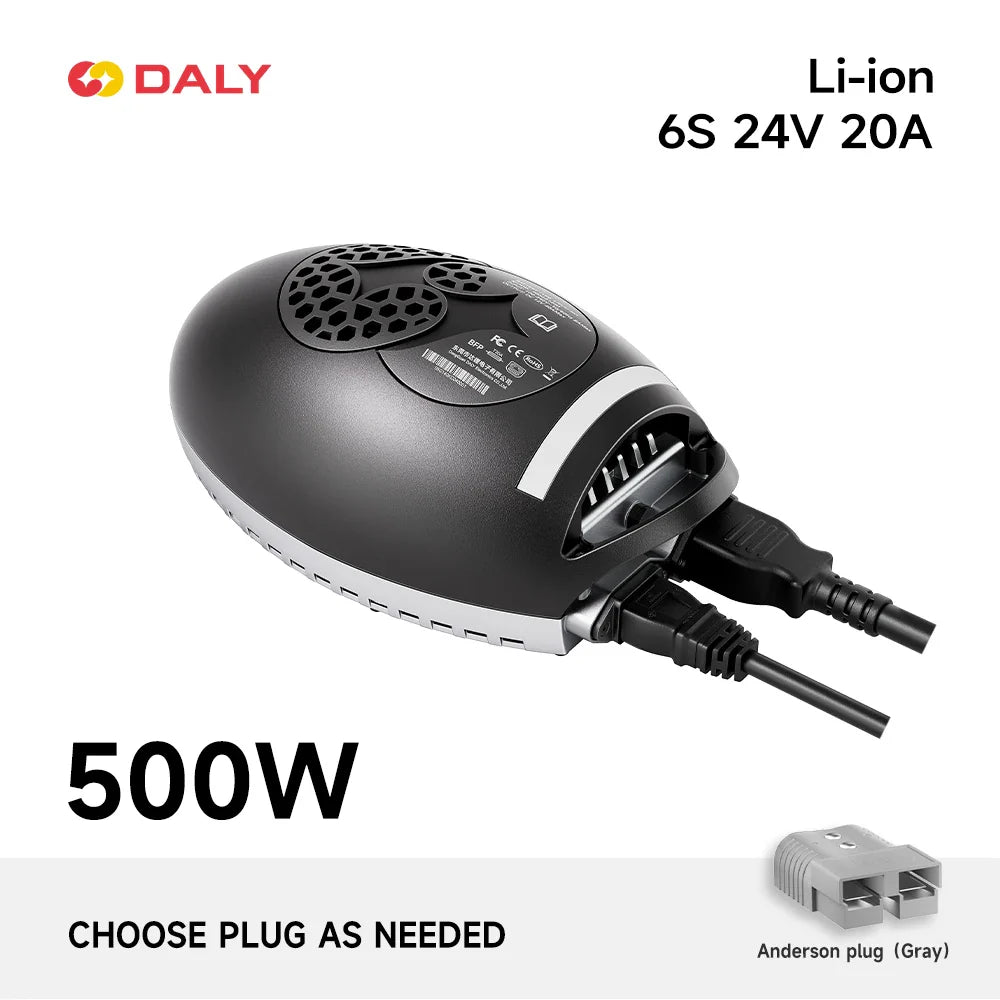

- NMC 6S 24V 20A (A / B / C / D)
- NMC 7S 24V 20A (B / C)

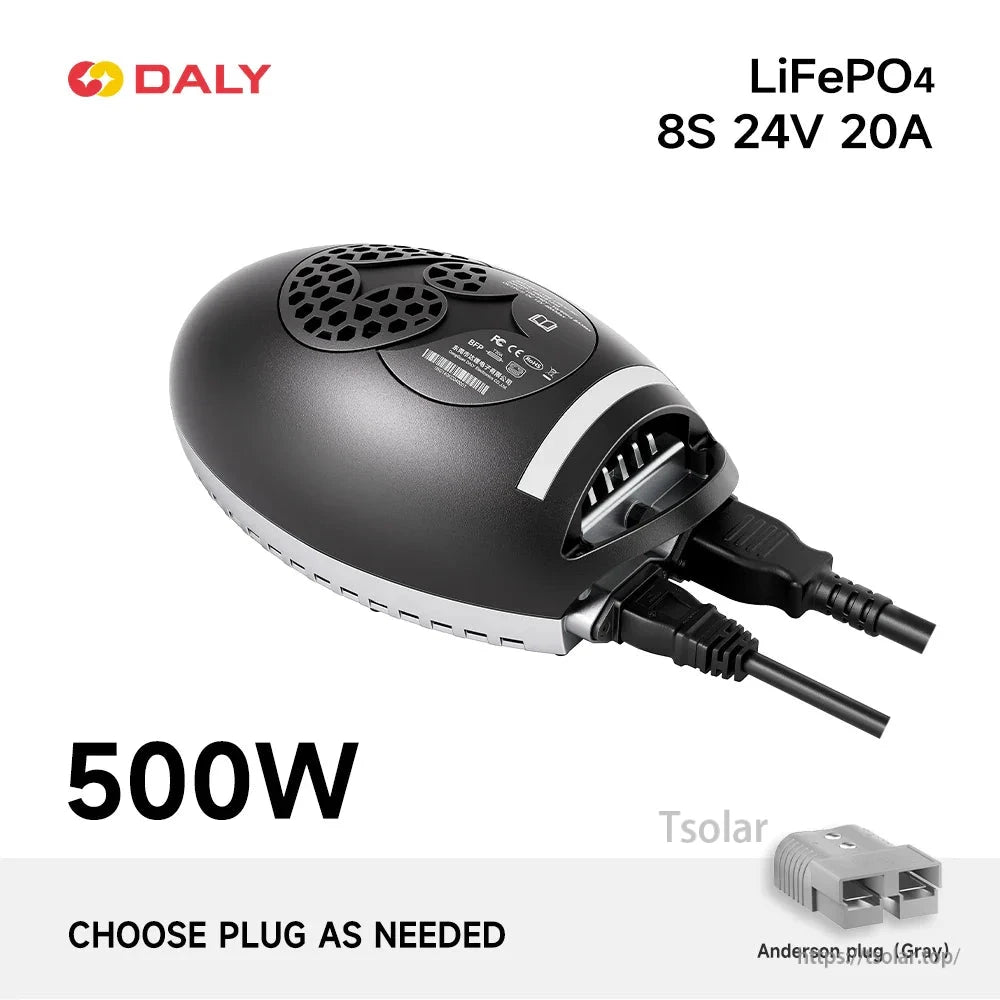

- LFP 8S 24V 20A (A / B / C / D)
- Socket standard: US / EU / UK
Applications
- Ride-on mower
- Cleaning vehicle
- Forklift
- Electric tricycle
- E-motorcycle
- Electric scooter
- Hoverboard
- ATV
For selection support (NMC 6S/7S or LFP 8S), socket standard, and after-sales assistance, contact https://tsolar.top/.
Details

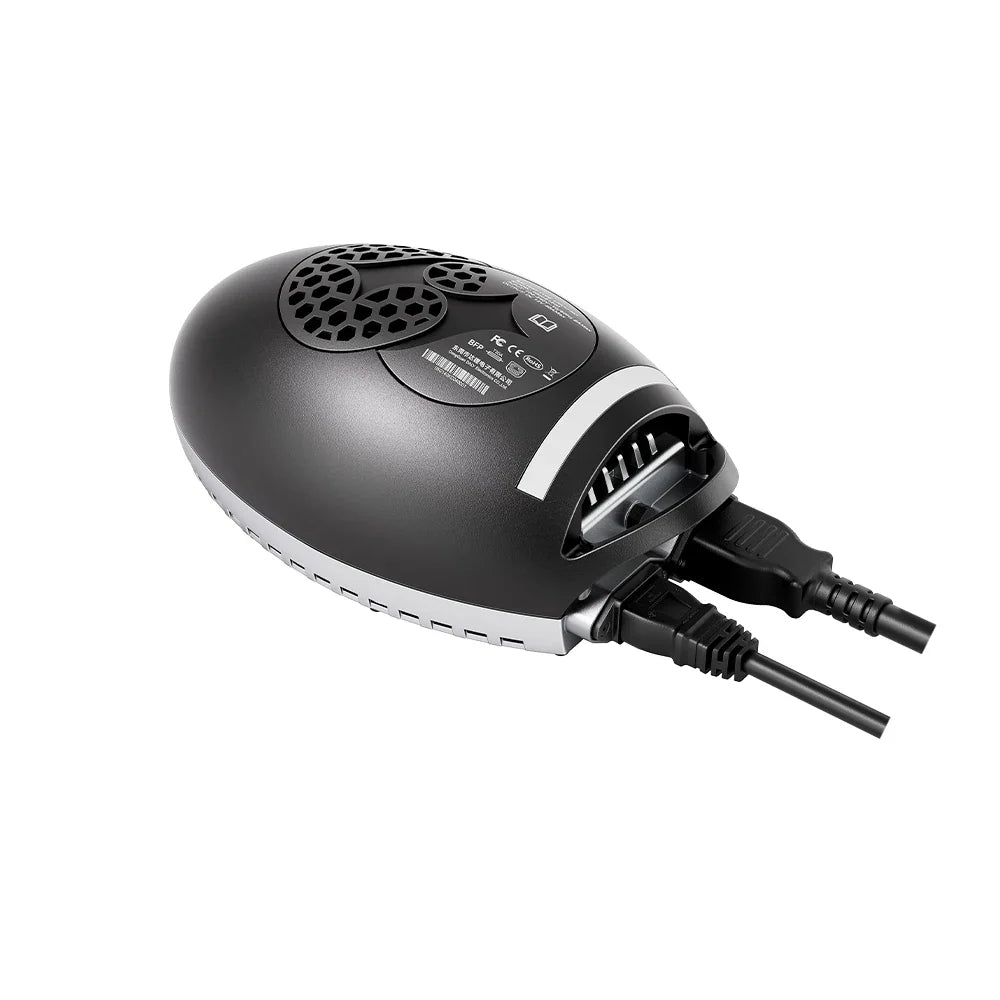

DALY “Charging Ball” combines a compact, rugged housing with 500W output for 24V lithium battery packs.
A practical fit for personal mobility and light-duty equipment such as mowers, cleaning vehicles, forklifts, and e-trikes.
Designed with an American-football-inspired form factor for an easy-to-carry “charging ball” profile.
The Charging Ball series supports Li-ion and LiFePO4 charging across a wide 12–84V output range (variant dependent).
Built-in Bluetooth and app support let you monitor charging status and manage updates, with 100–240V global input.
Die-cast aluminum sealing and multiple protection features help support reliable charging in demanding environments.

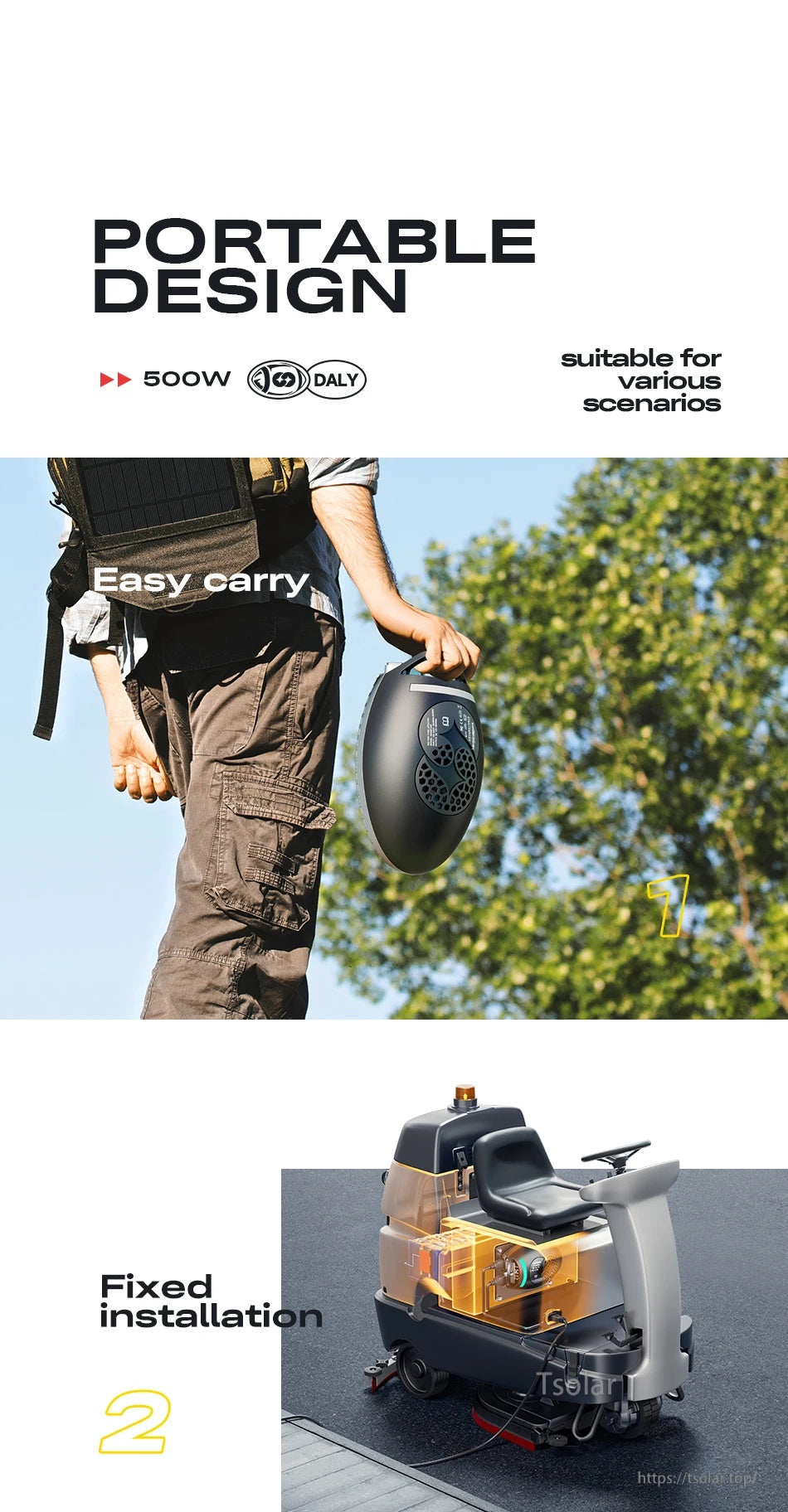

Portable enough to carry on the go, with options for fixed installation in equipment bays.

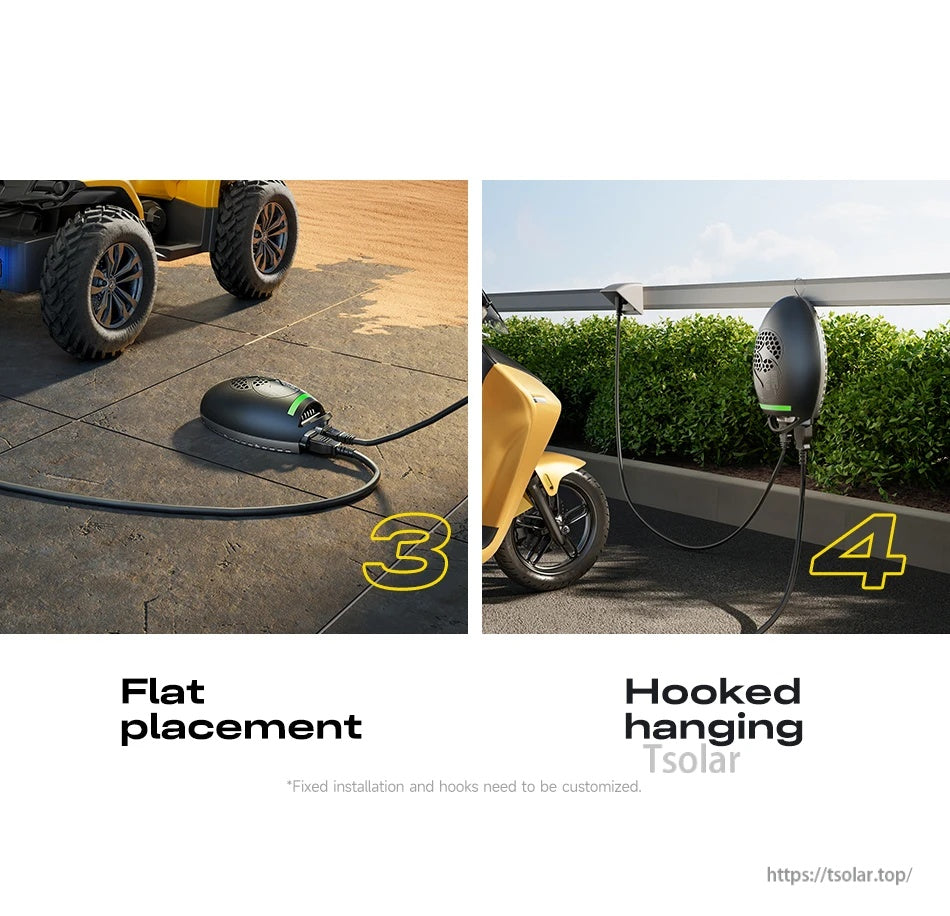

Flexible placement options include flat placement or hooked hanging (customization may be required).
From yard equipment to commercial cleaning machines, the same compact charger format adapts to varied use cases.
Wide-range 100–240V AC input supports global use while maintaining consistent charging output.

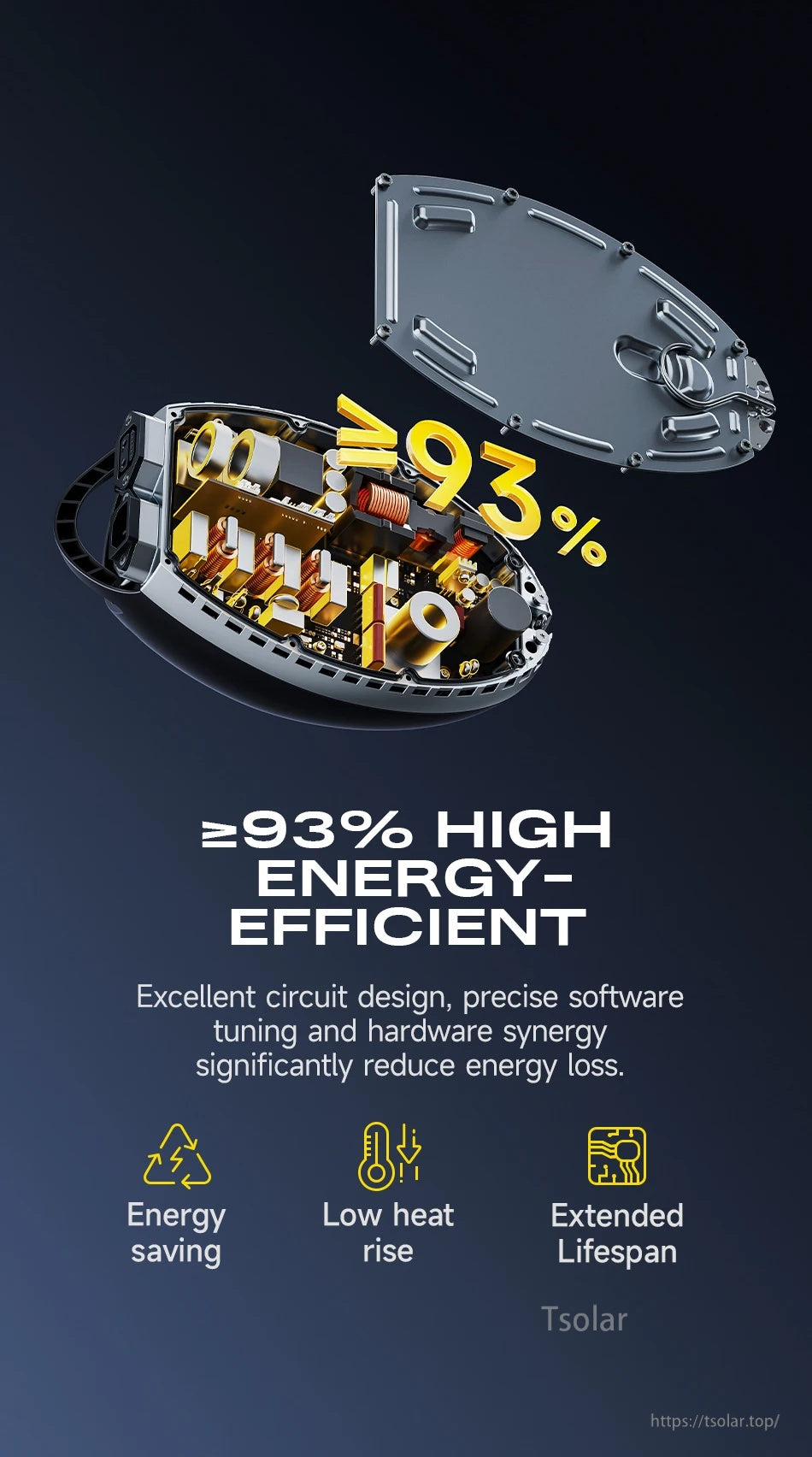

High efficiency (≥93%) helps reduce heat rise and energy loss during charging.
Built-in Bluetooth and the companion app let you check charging status and set charging current, with OTA updates supported.

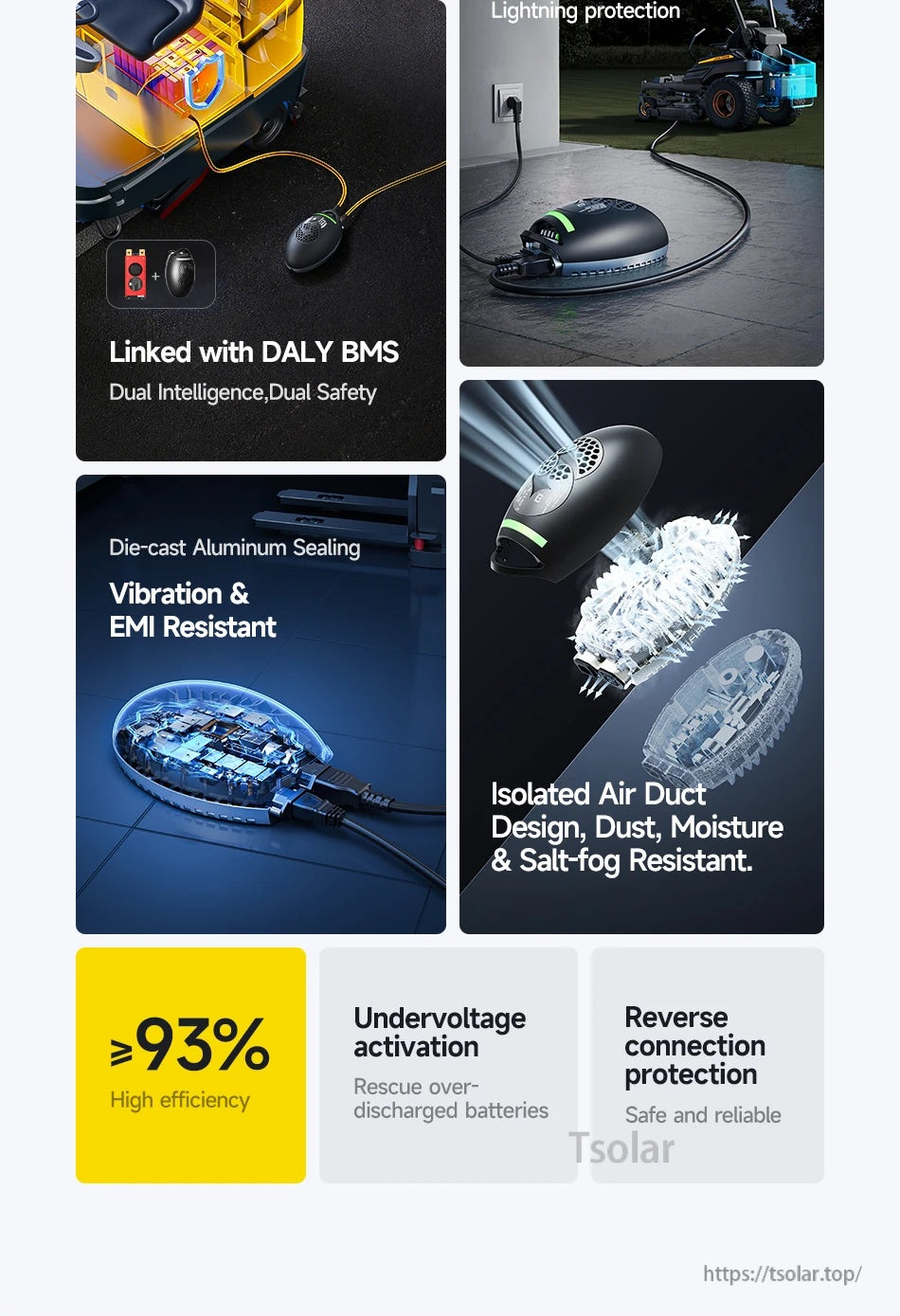

The DALY charging ball connects with a DALY BMS to support controlled, safety-focused lithium battery charging for equipment packs.

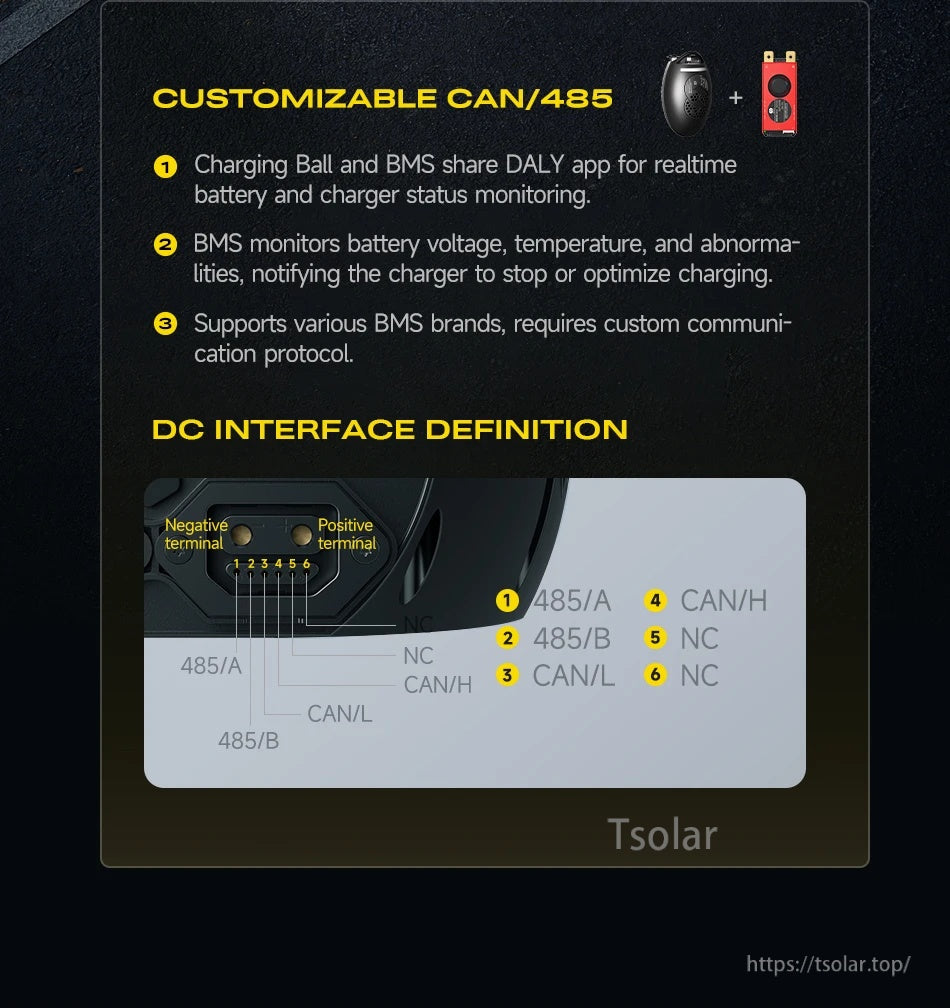

The DC interface labels the positive/negative terminals and the 6-pin CAN/485 connections (485A, 485B, CAN-L, CAN-H) for straightforward wiring to a compatible BMS.

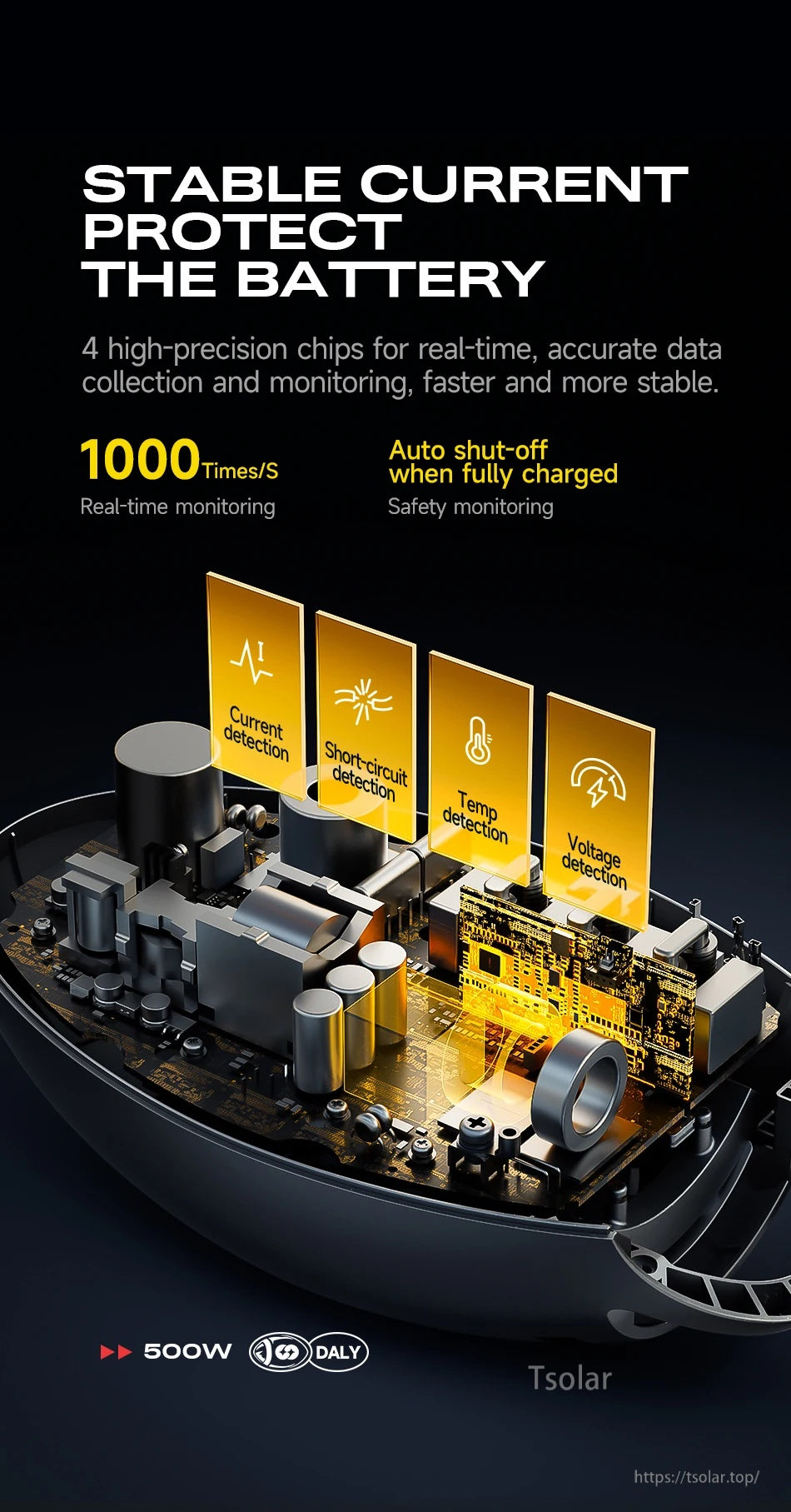

The DALY 500W charger is designed with real-time monitoring and auto shut-off when fully charged for safer charging control.

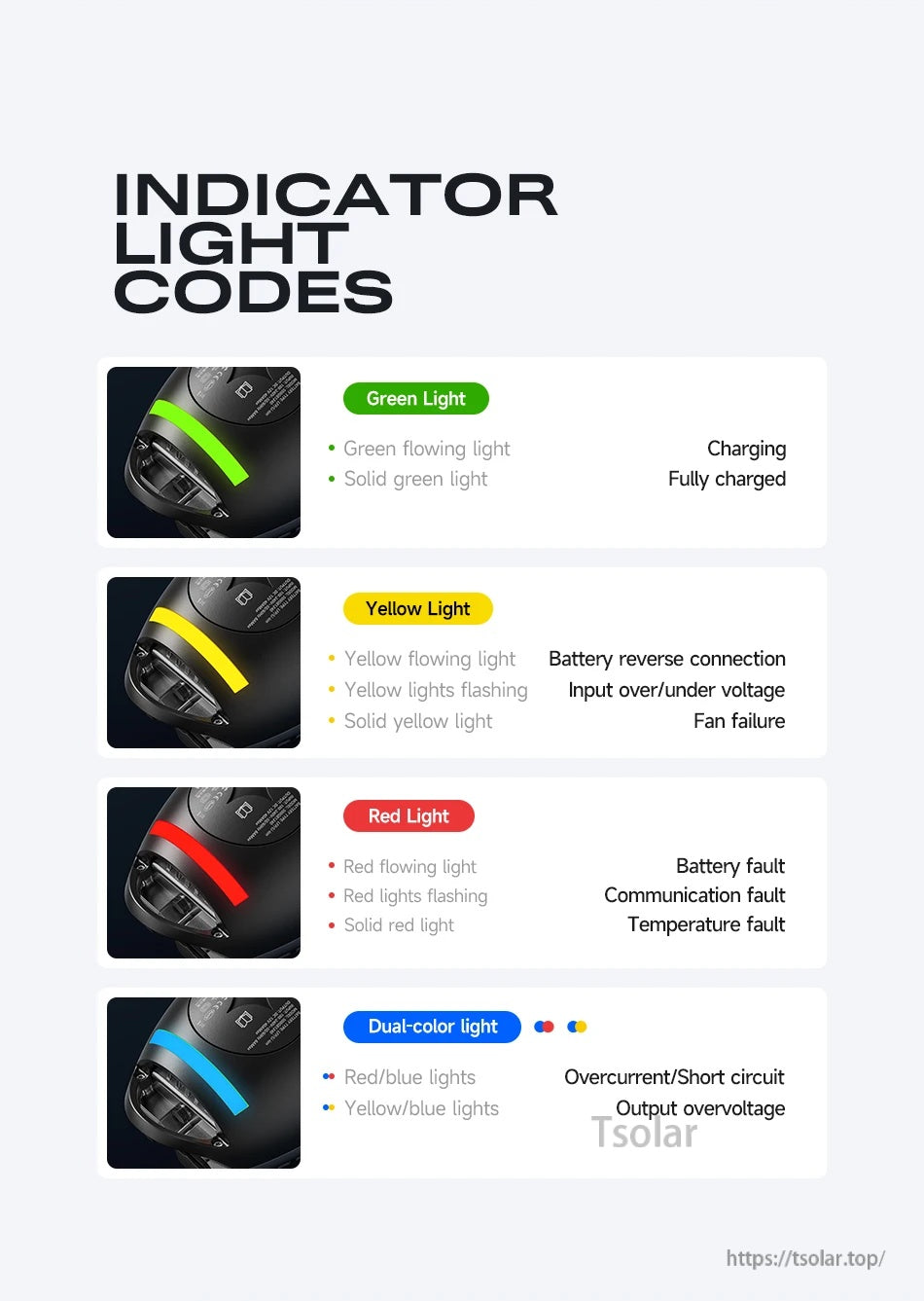

The Charging Ball’s LED indicator codes use green, yellow, red, and dual-color lights to signal charging status and common fault conditions.
The DALY charging ball charger is labeled 500W and supports 12V–84V Li-ion or LiFePO4 battery charging.

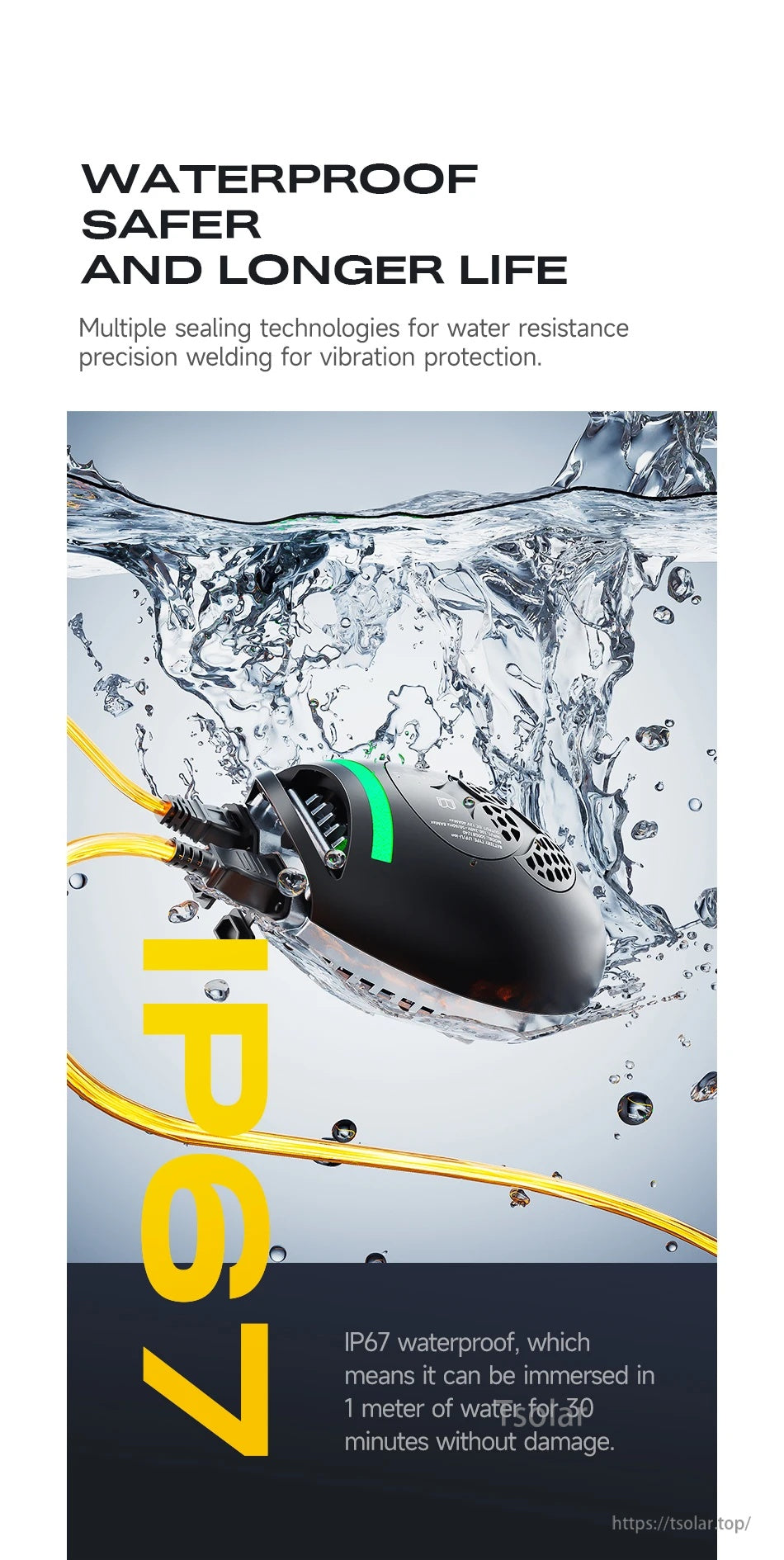

The DALY charging ball charger uses an IP67 waterproof design rated for immersion up to 1 meter for 30 minutes.

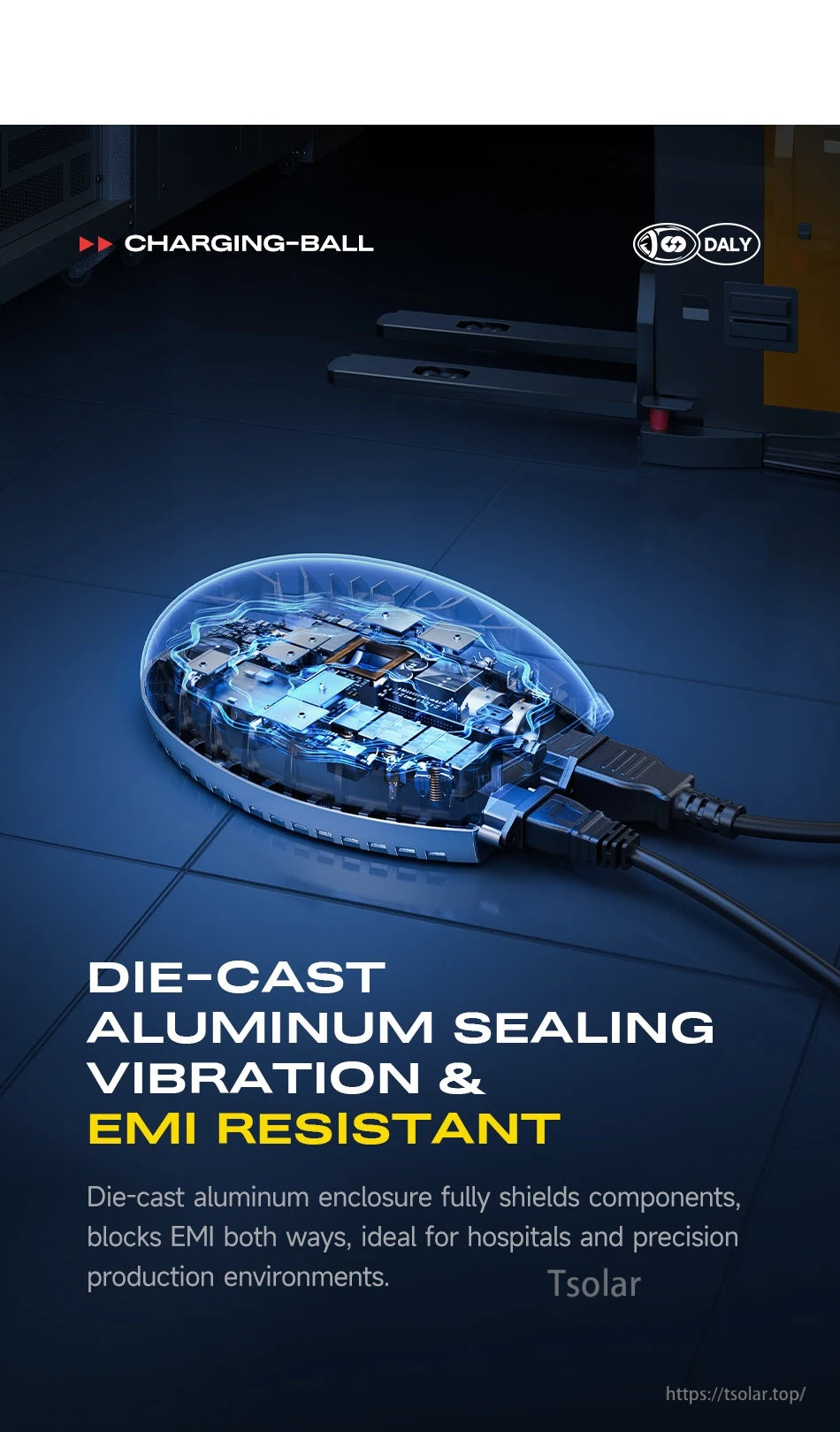

The DALY Charging-Ball charger uses a die-cast aluminum sealed enclosure designed to help resist vibration and reduce EMI interference.

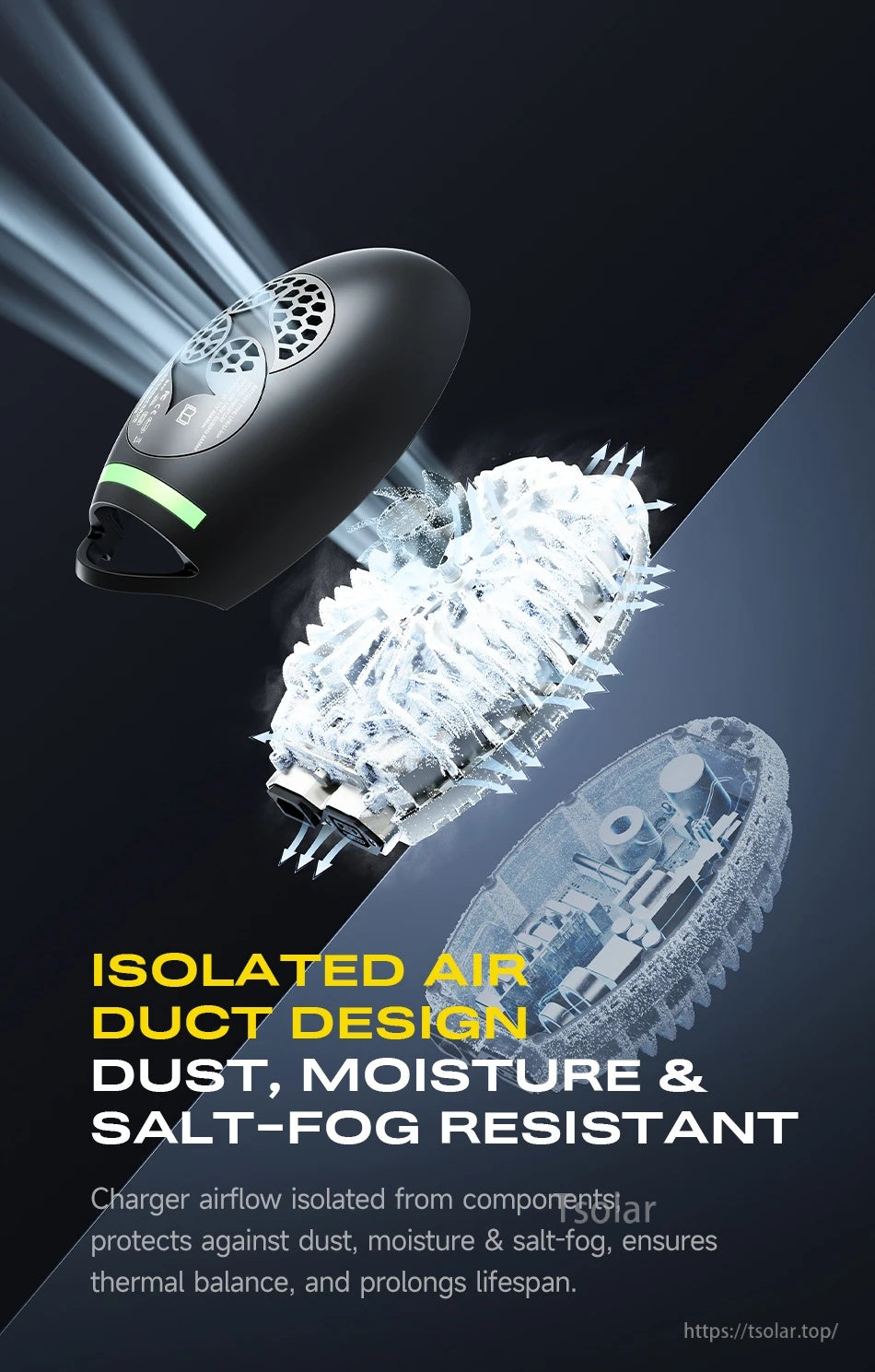

The DALY Charging Ball charger uses an isolated air-duct airflow design to help protect internal components from dust, moisture, and salt-fog.

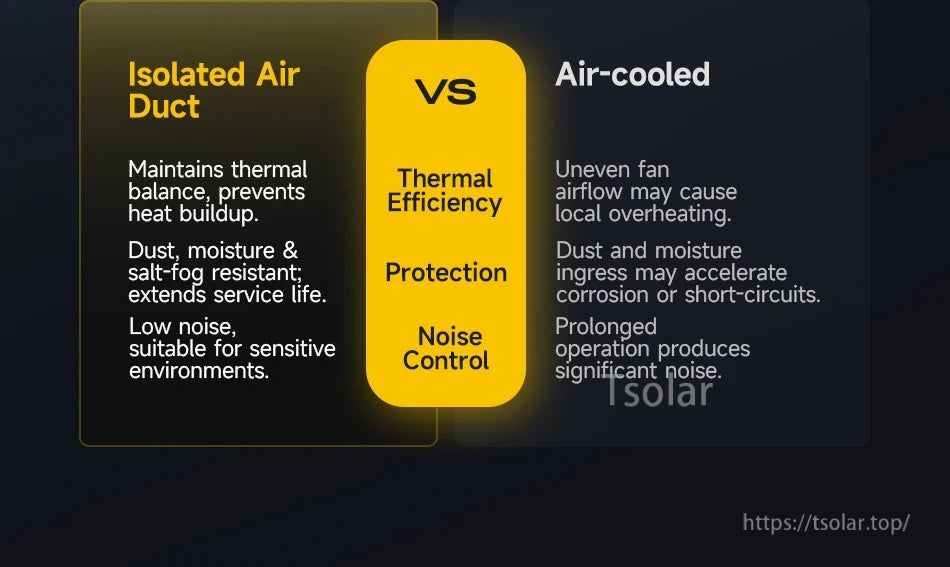

An isolated air-duct cooling design is presented as helping maintain thermal balance, resist dust and moisture, and reduce operating noise compared with air-cooled airflow.

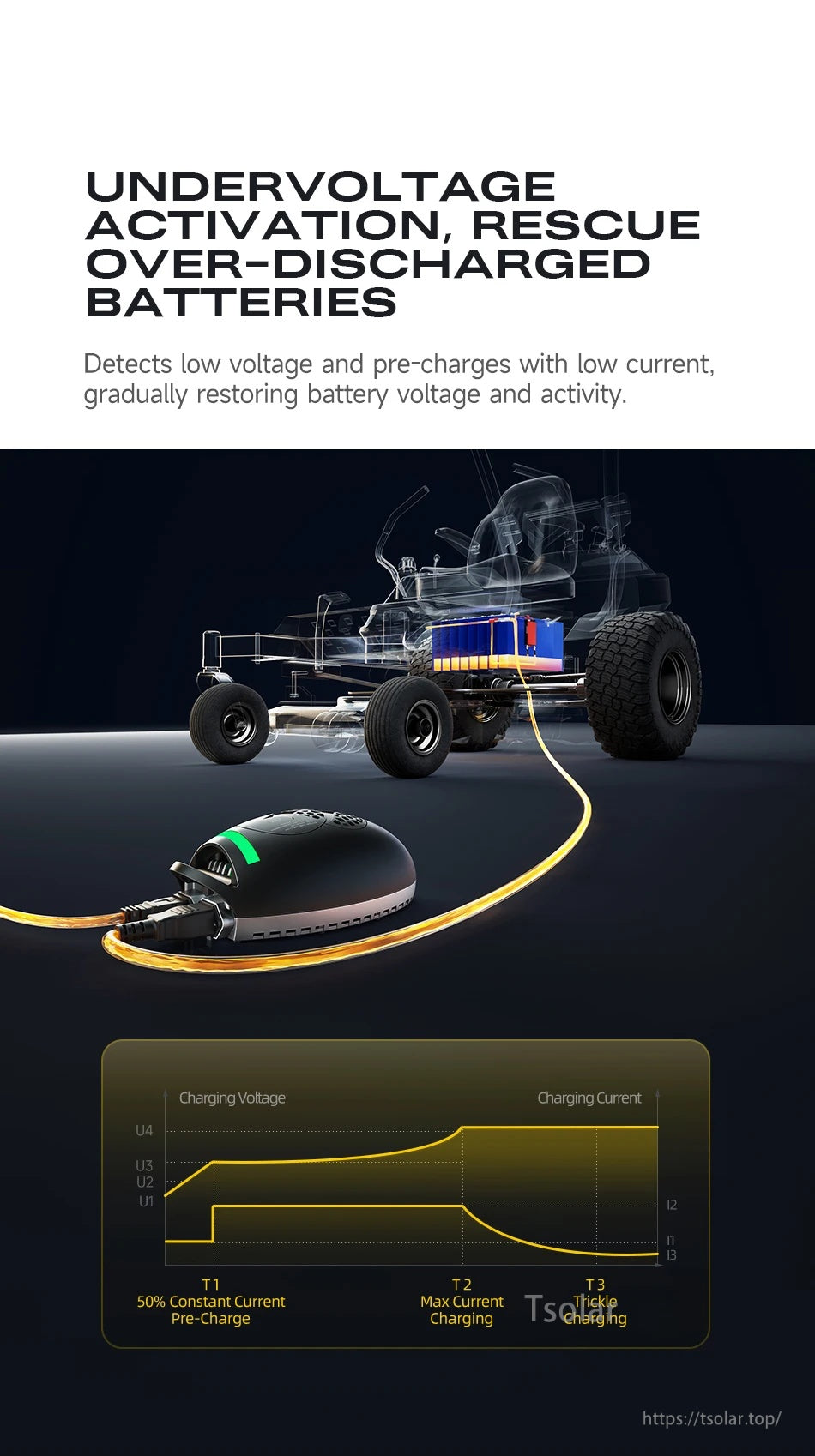

The DALY charging ball charger supports undervoltage activation with a low-current pre-charge, then transitions to max-current and trickle charging.
Built-in high-voltage surge protection is designed to help shield the charger and connected battery during power spikes.

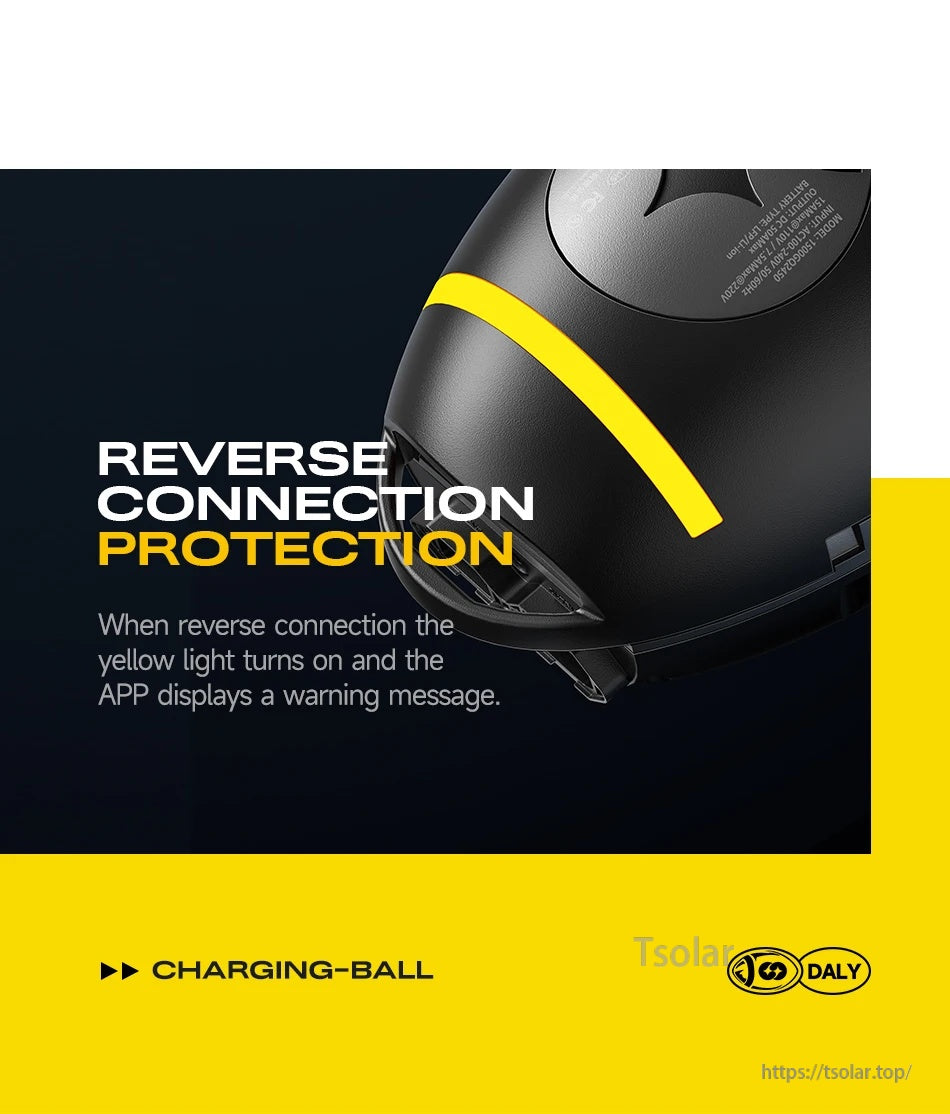

Reverse-connection protection triggers the yellow indicator and an app warning to help prevent wiring mistakes during charging.

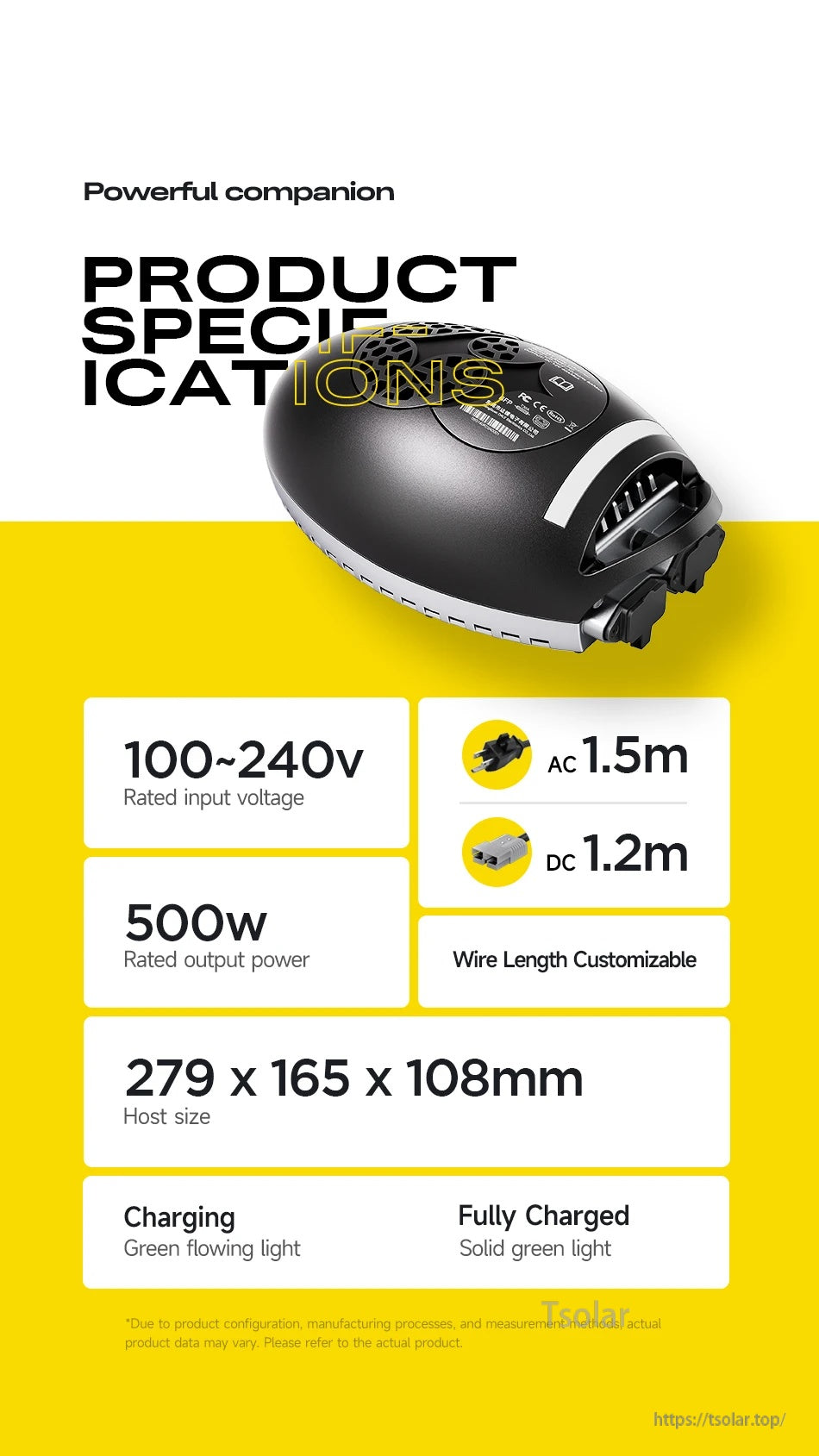

The DALY 500W charger uses a 100–240V rated input and includes 1.5m AC and 1.2m DC cables, with charging and full indicators shown by green lights.

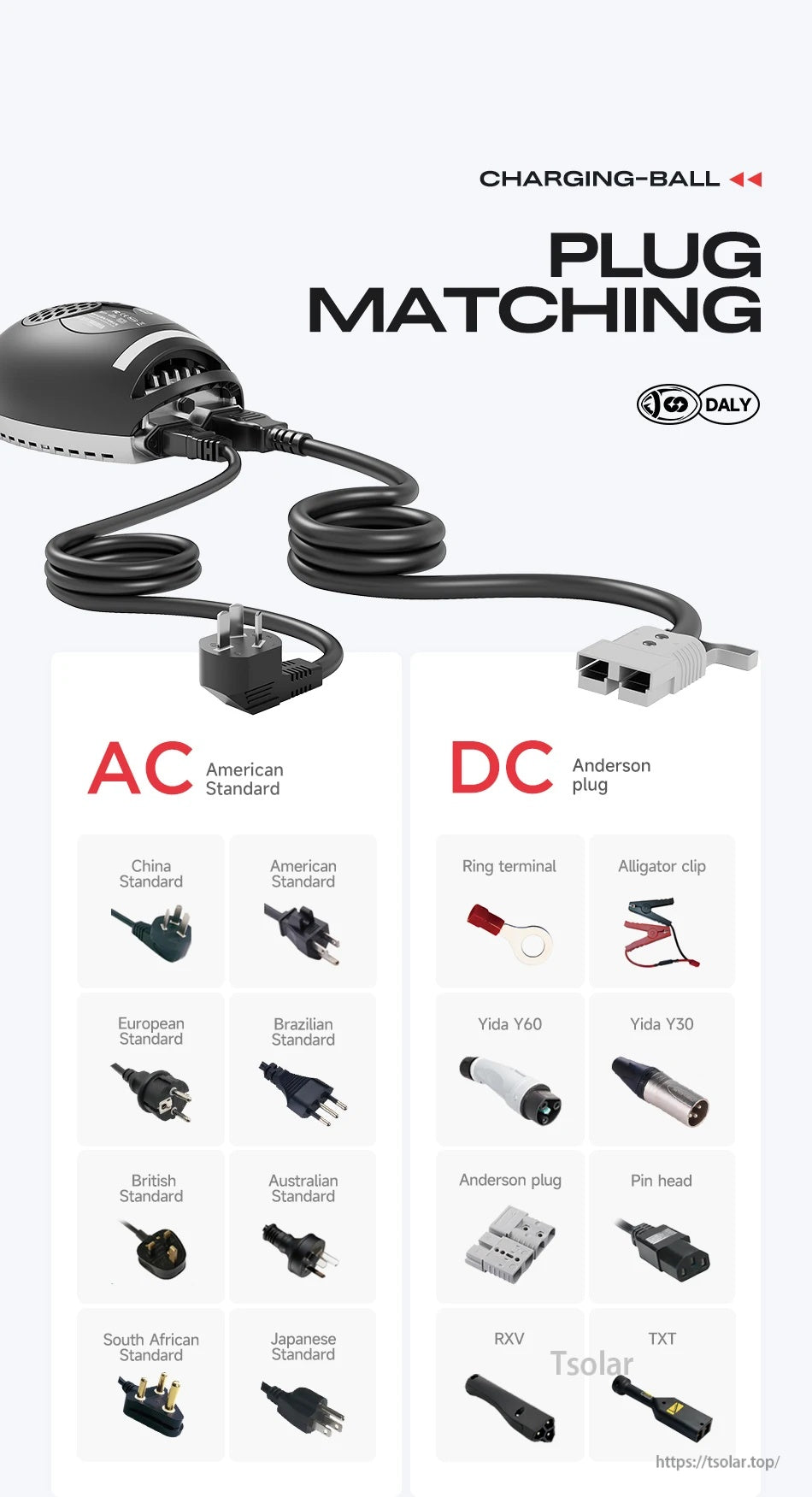

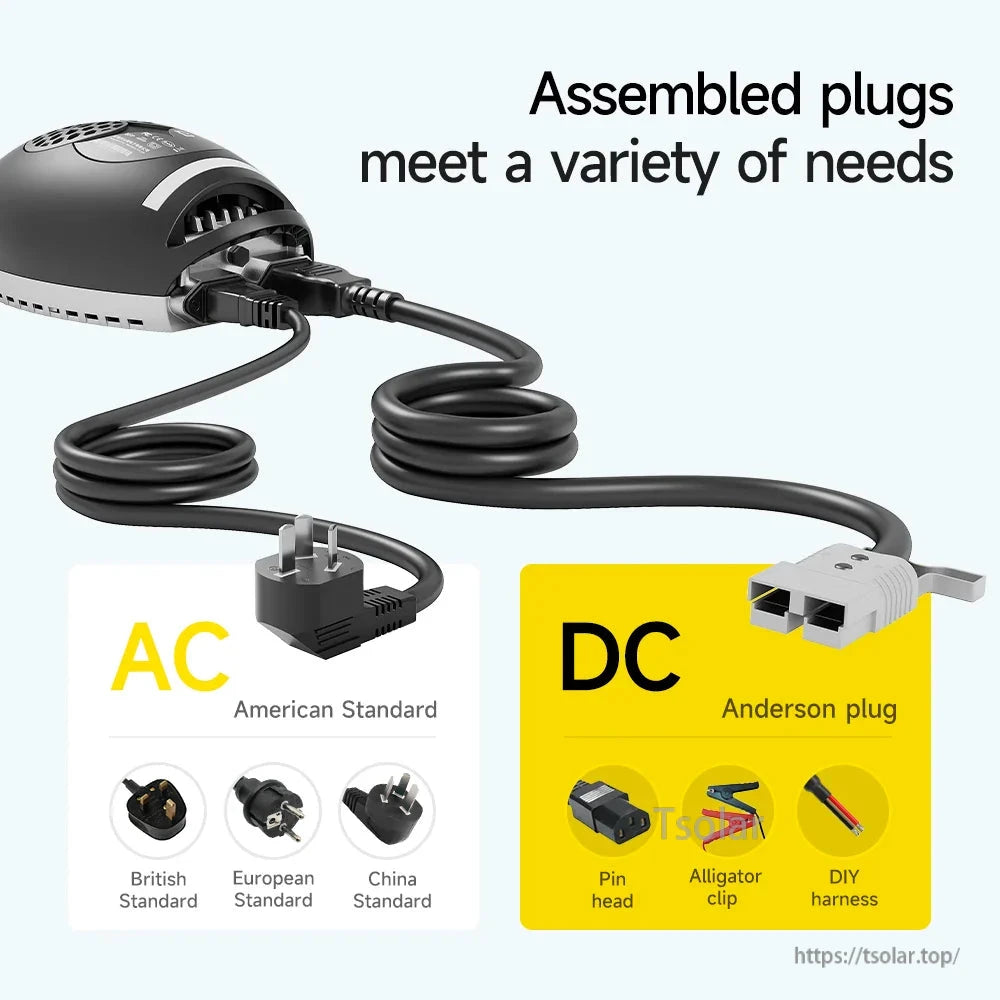

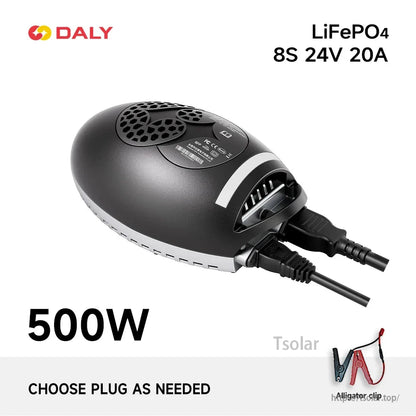

DALY Charging Ball charger cabling supports multiple AC power plug standards and DC output connector types, including Anderson.

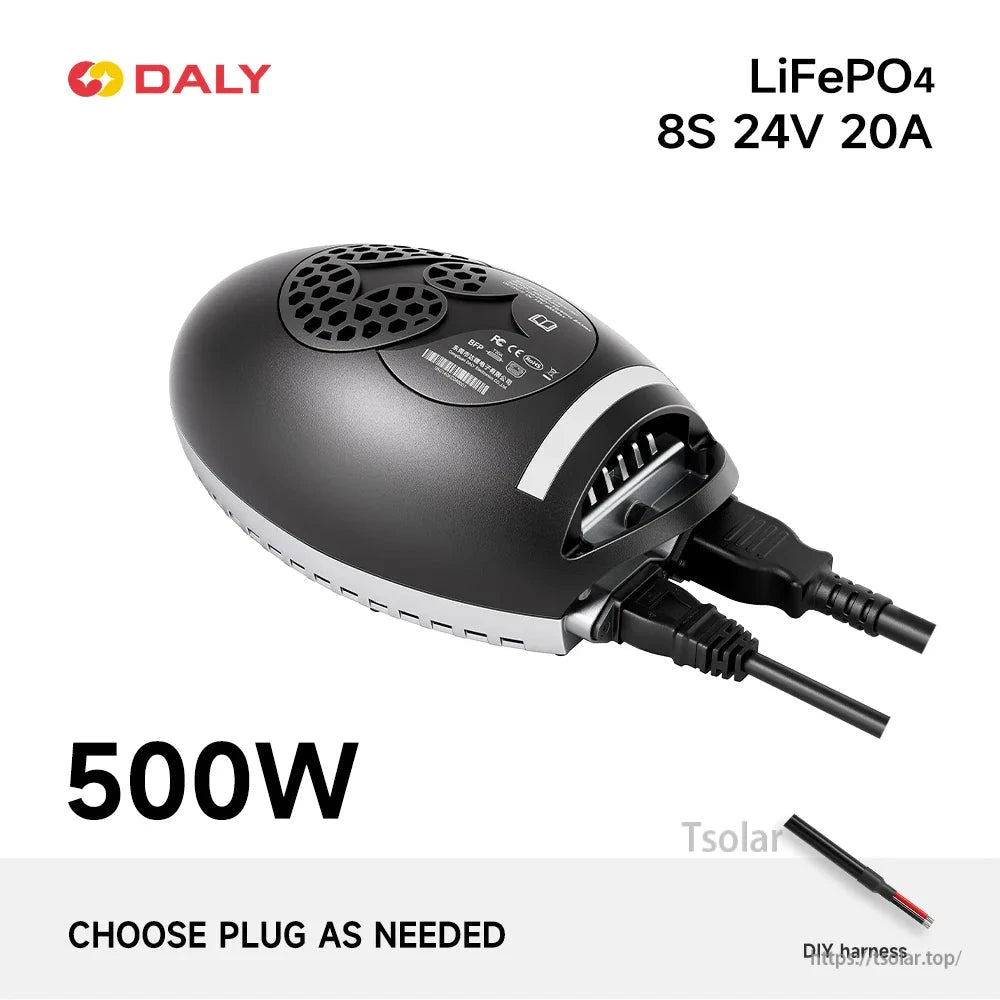

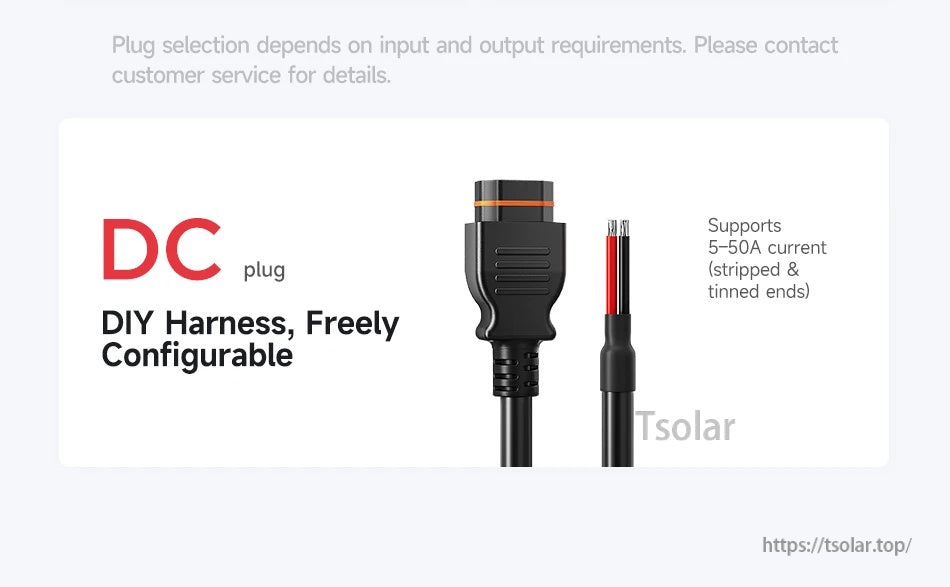

The DC plug DIY harness includes stripped and tinned leads for flexible wiring and supports 5–50A current connections.

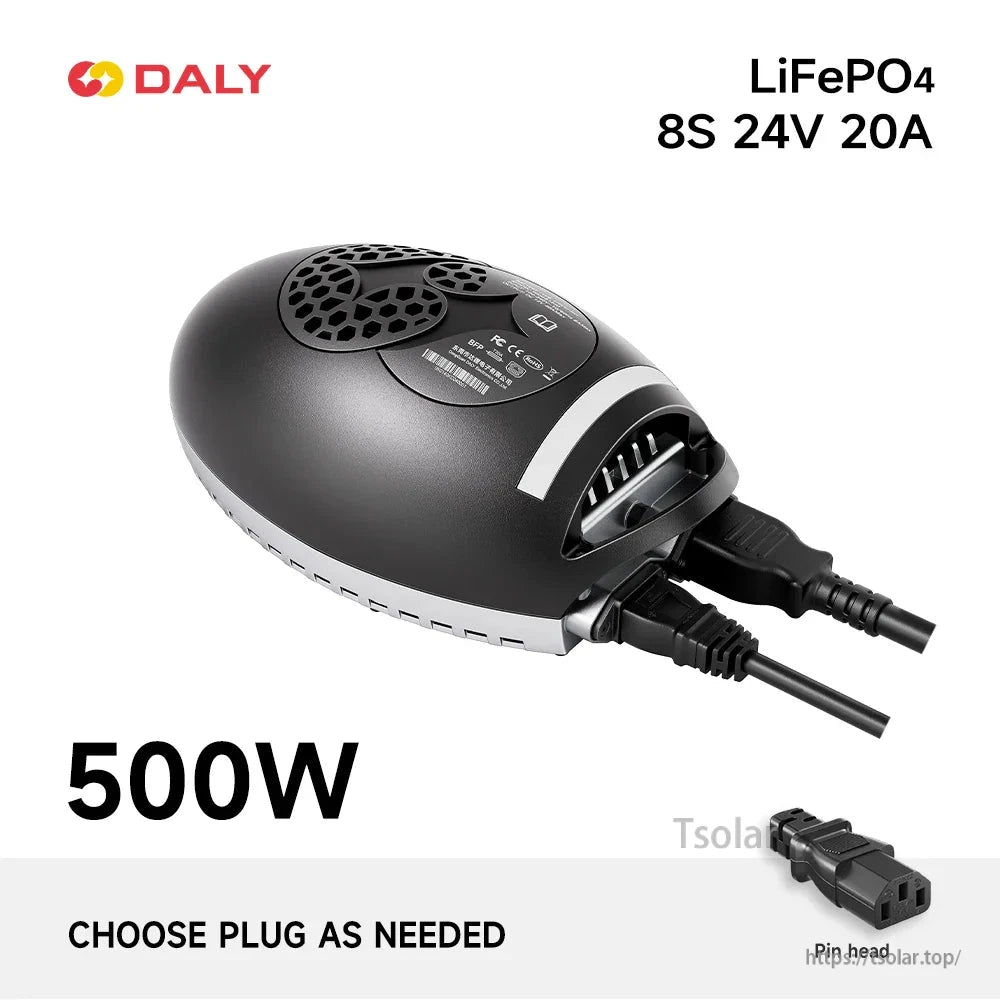

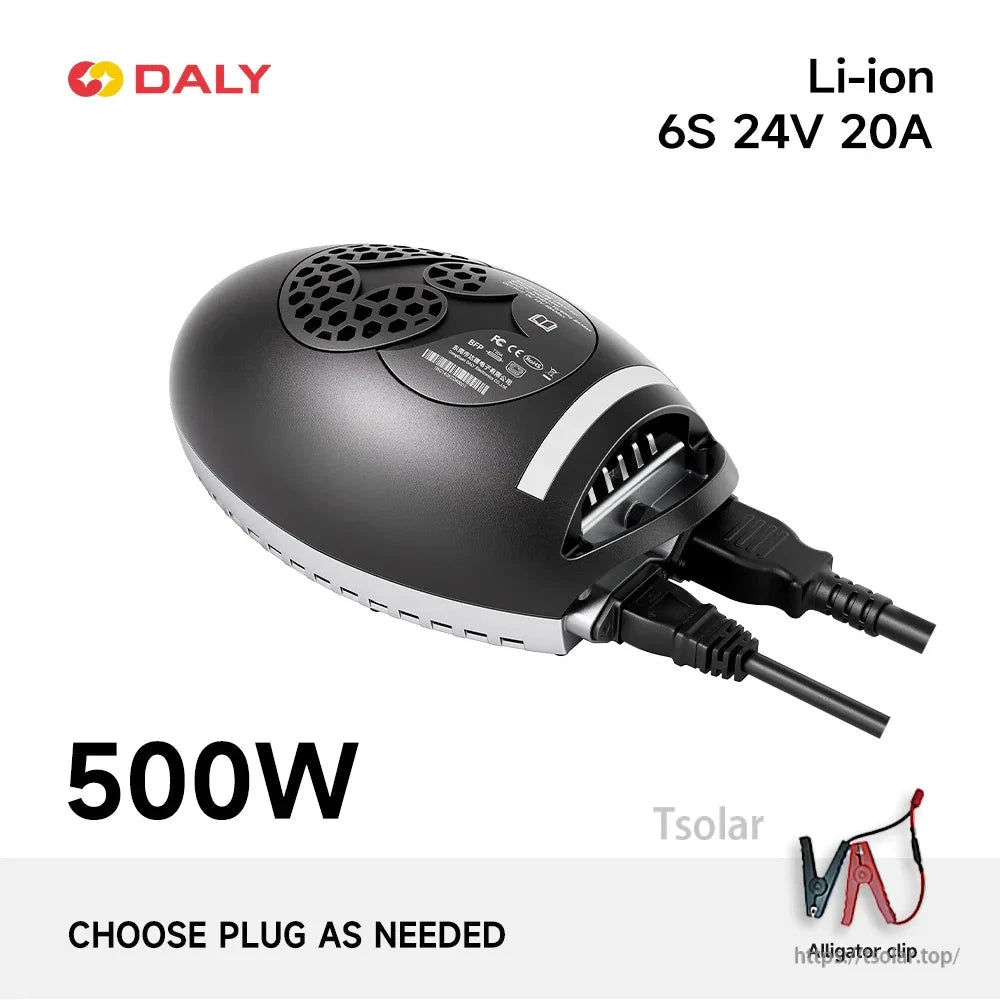

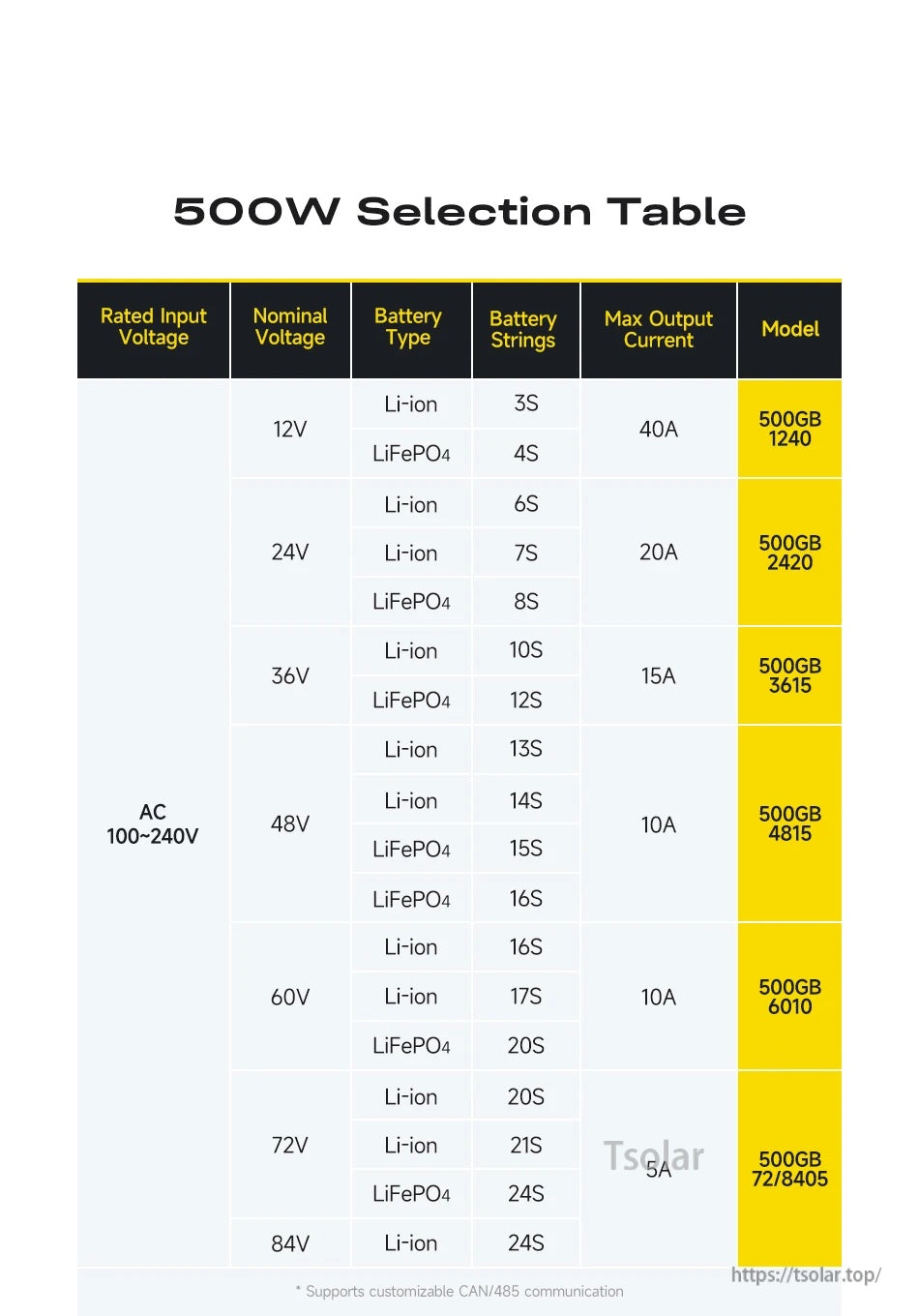

For 24V battery packs, the 500W selection table lists Li-ion 6S/7S or LiFePO4 8S configurations with up to 20A output (model 500GB2420).

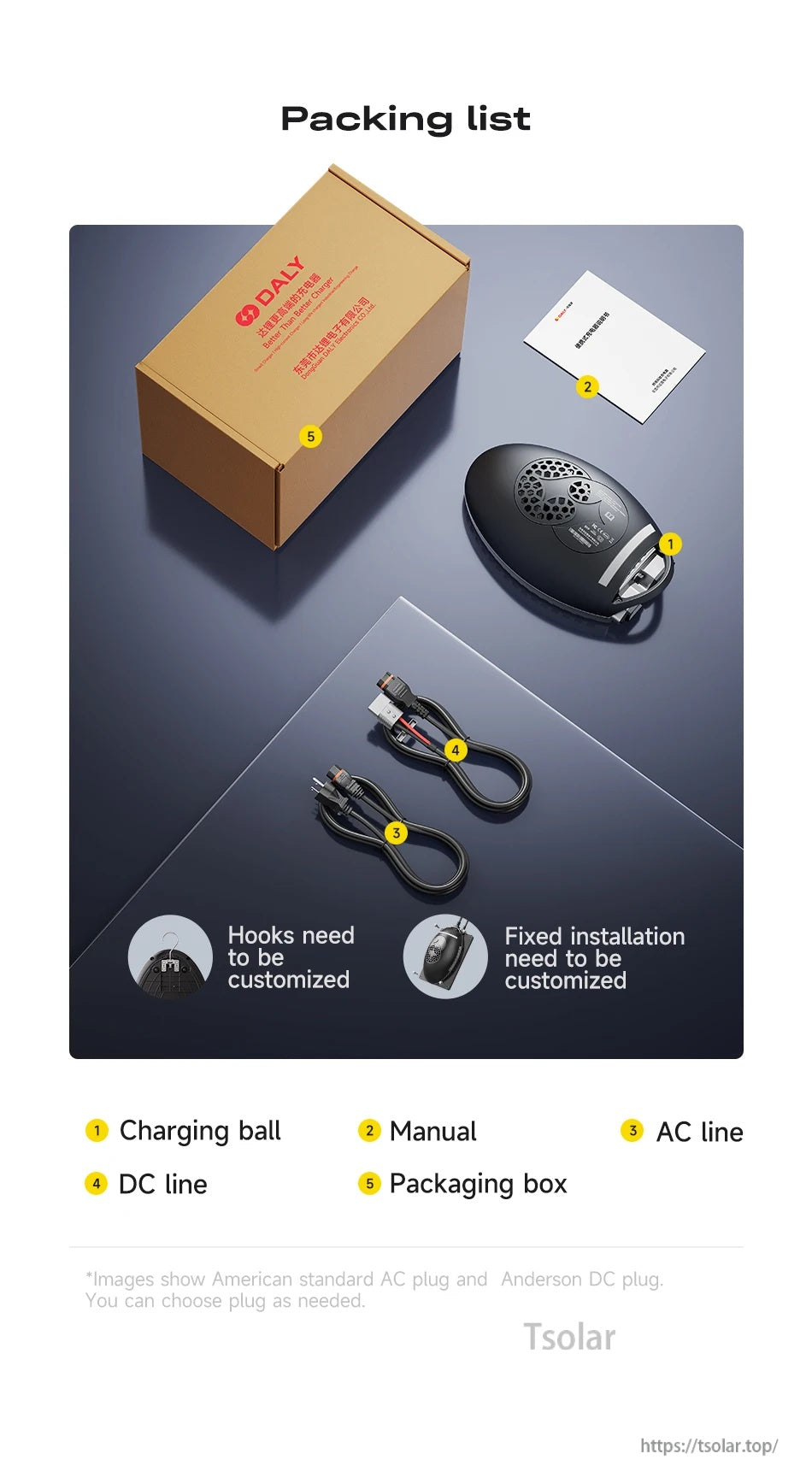

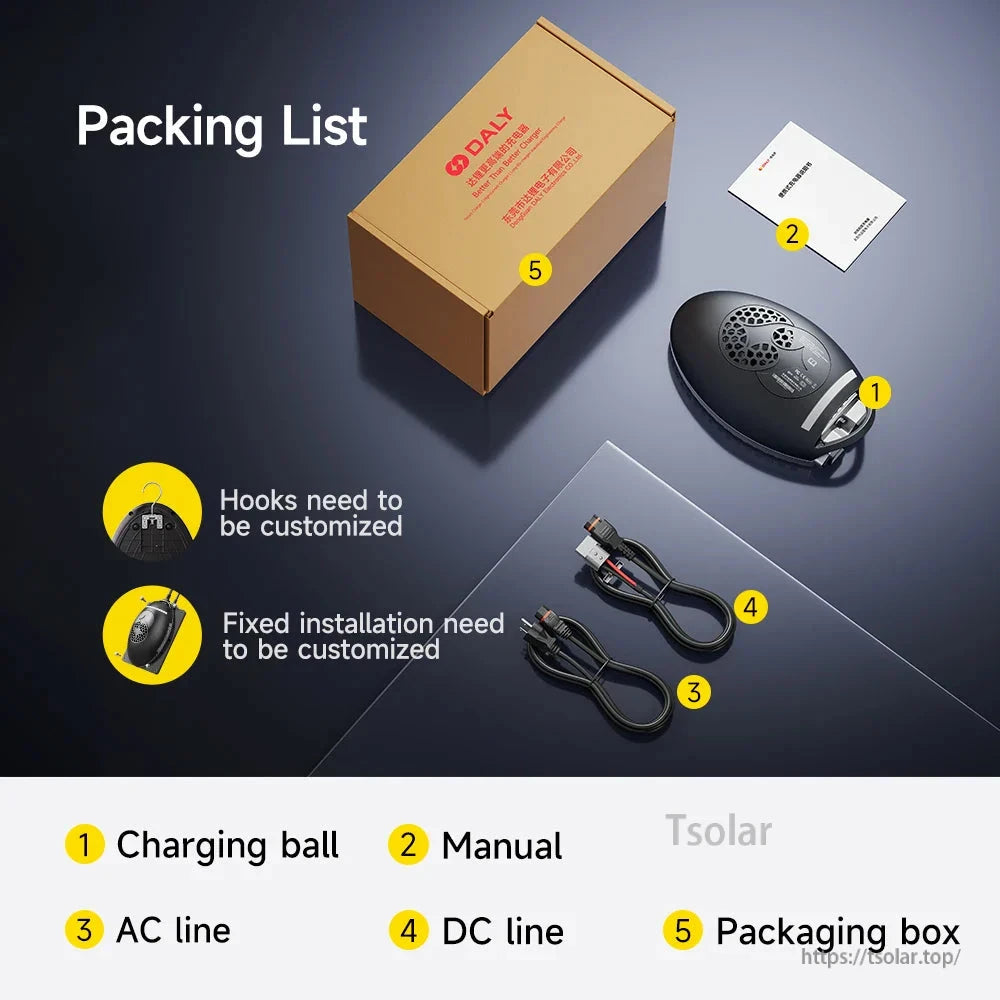

The DALY charging ball charger comes with a manual, AC line, DC line, and packaging box for straightforward setup.
This DALY lithium battery charger lists 100–240V wide-voltage input, built-in BT+APP monitoring, IP67 waterproofing, and reverse connection protection.

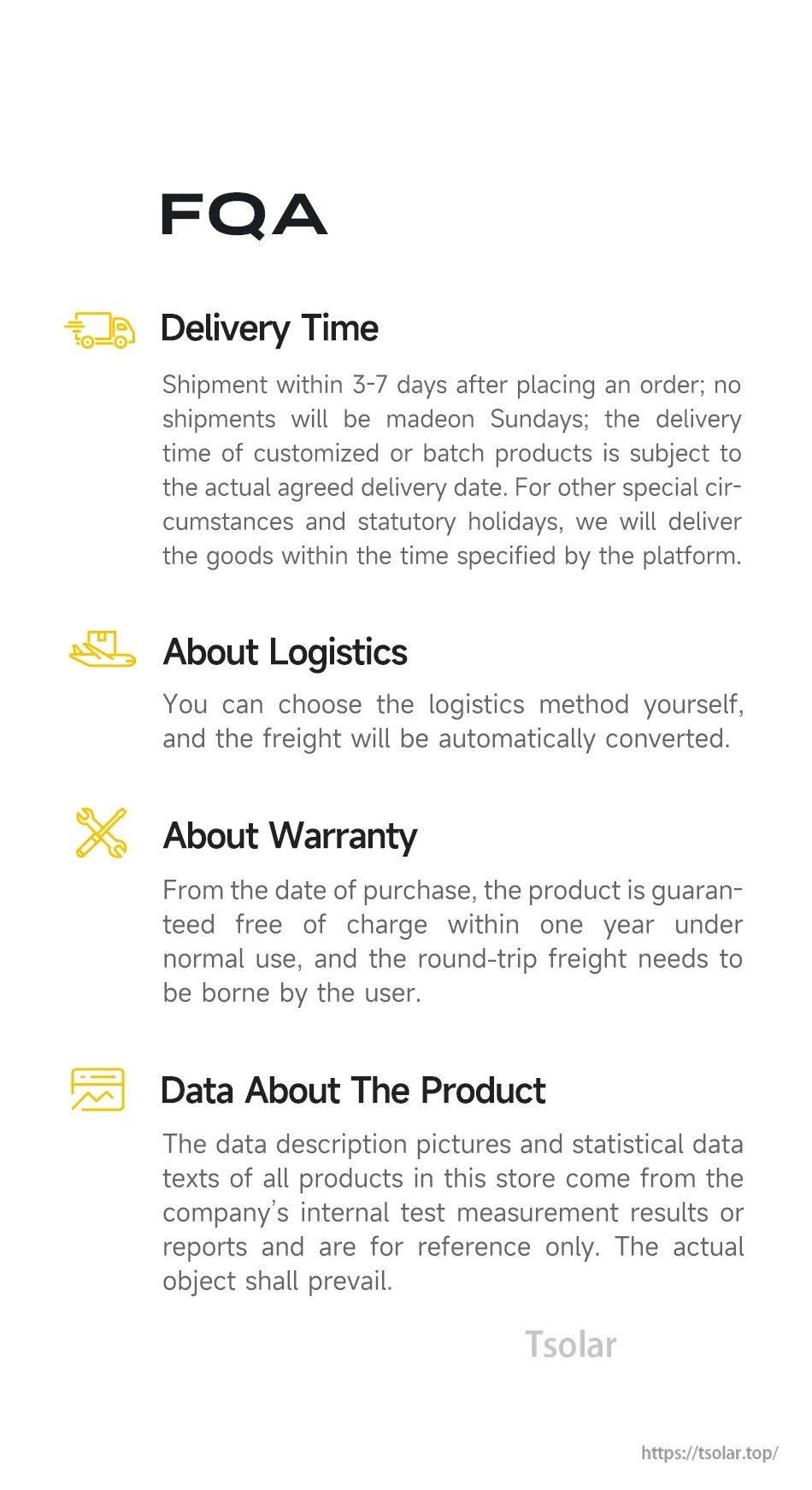

The FAQ outlines delivery timing, logistics options, warranty terms, and general notes about product data.
