Overview

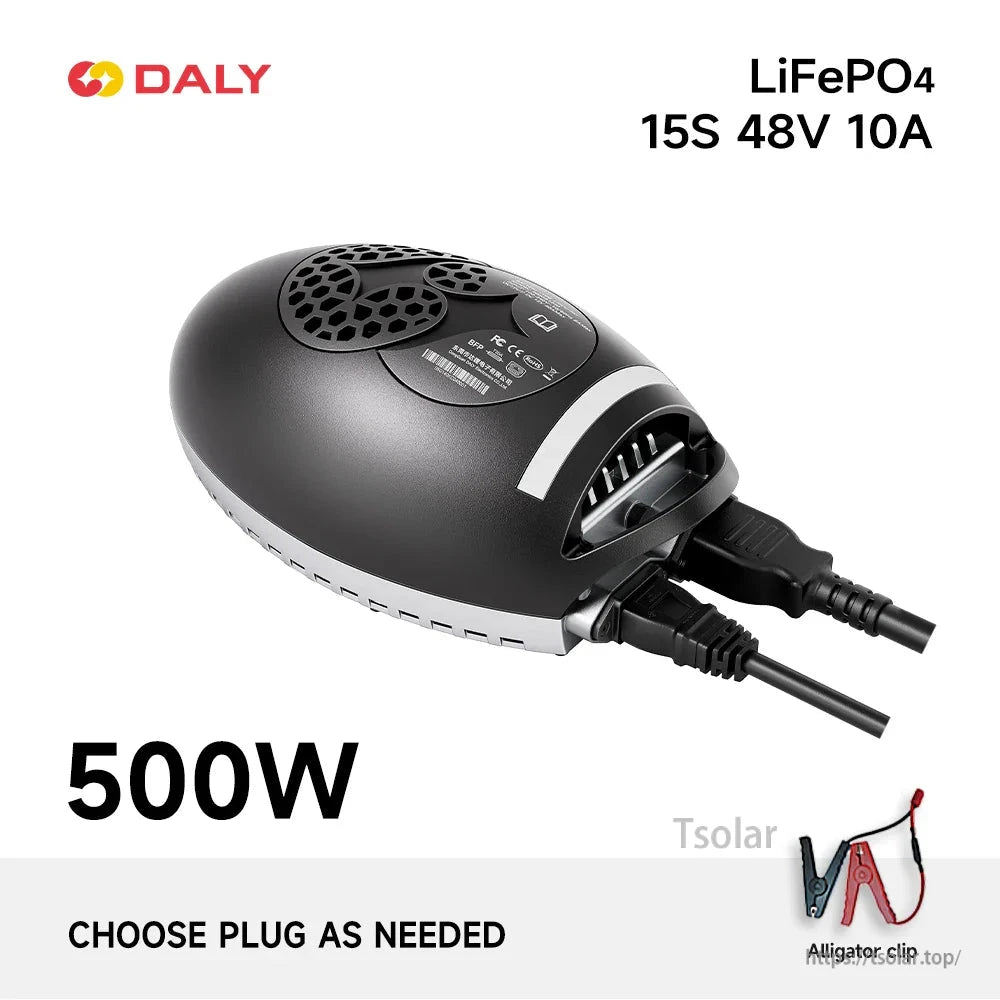

The DALY “Charging Ball” is a lithium battery charger designed for Li-ion/LiFePO4 batteries, rated at 500W and commonly offered in 48V 10A configurations for 15S/16S packs. It supports a wide DC output range (12~84V) and wide AC input (100~240V) for global use. Variants are available with different plug/cable options such as Anderson plug and alligator clip, and AC socket standards (US/EU/UK).
Key Features
- Power rating: 500W
- Battery chemistry support: Li-ion / LiFePO4
- Wide AC input: 100~240V (constant power output stated)
- Built-in BT + APP: monitor status / OTA upgrades
- Protection & monitoring: stable current; current detection; short-circuit detection; temperature detection; voltage detection
- Real-time monitoring: 1000 times/s
- IP rating: IP67 waterproof
- Lightning protection: 3000V
- Linked with DALY BMS: dual intelligence, dual safety
- Construction notes: die-cast aluminum sealing; vibration & EMI resistant; isolated air duct design; dust, moisture & salt-fog resistant
- Efficiency: >= 93% (high efficiency)
- Undervoltage activation: rescue over-discharged batteries
- Reverse connection protection: safe and reliable
Specifications
| Brand | DALY |
| Series/Name | Charging Ball / Tech-Chic Charger |
| Rated power | 500W |
| AC input voltage | 100~240V |
| DC output voltage range | 12~84V |
| Supported battery chemistries | Li-ion / LiFePO4 |

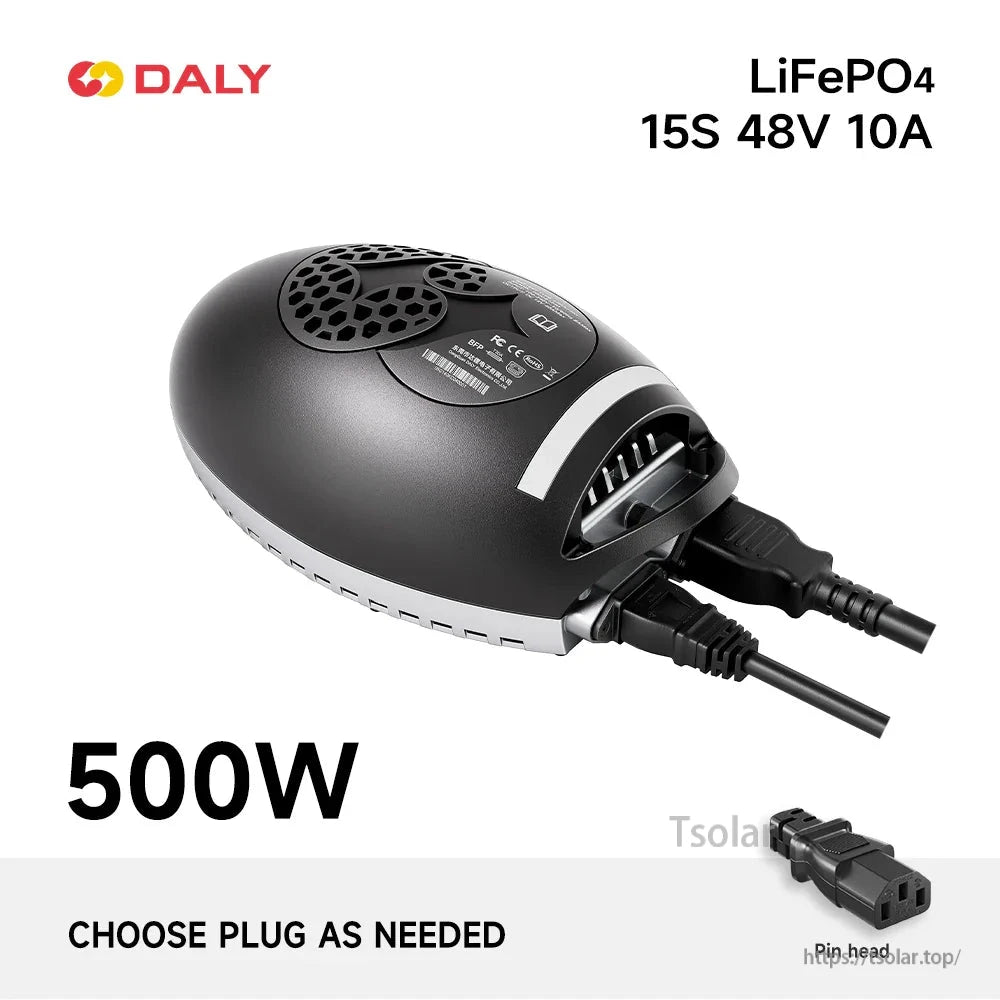

| Typical configuration options | LFP 15S 48V 10A; LFP 16S 48V 10A |
| App connectivity | Built-in BT + APP (monitor status / OTA upgrades) |
| Waterproof rating | IP67 |
| Lightning protection | 3000V |
| Efficiency | >= 93% |
| Monitoring frequency | 1000 times/s (real-time monitoring) |
| AC socket standard options | US / EU / UK |
Applications
- Outdoor adventure
- Personal mobility
- Light-duty operations
- Smart warehousing
- Ride-on mower
- Cleaning vehicle
- Forklift
- Electric tricycle
- E-motorcycle
- Electric scooter
- Hoverboard
- ATV
Installation & Use Notes
- Portable design: easy carry
- Placement methods shown: fixed installation, flat placement, hooked hanging
- Note: fixed installation and hooks need to be customized.
For pre-sales selection help (15S vs 16S, 48V 10A variants, and US/EU/UK socket standard) and after-sales support, contact https://tsolar.top/ or email service@tsolar.top.
Details

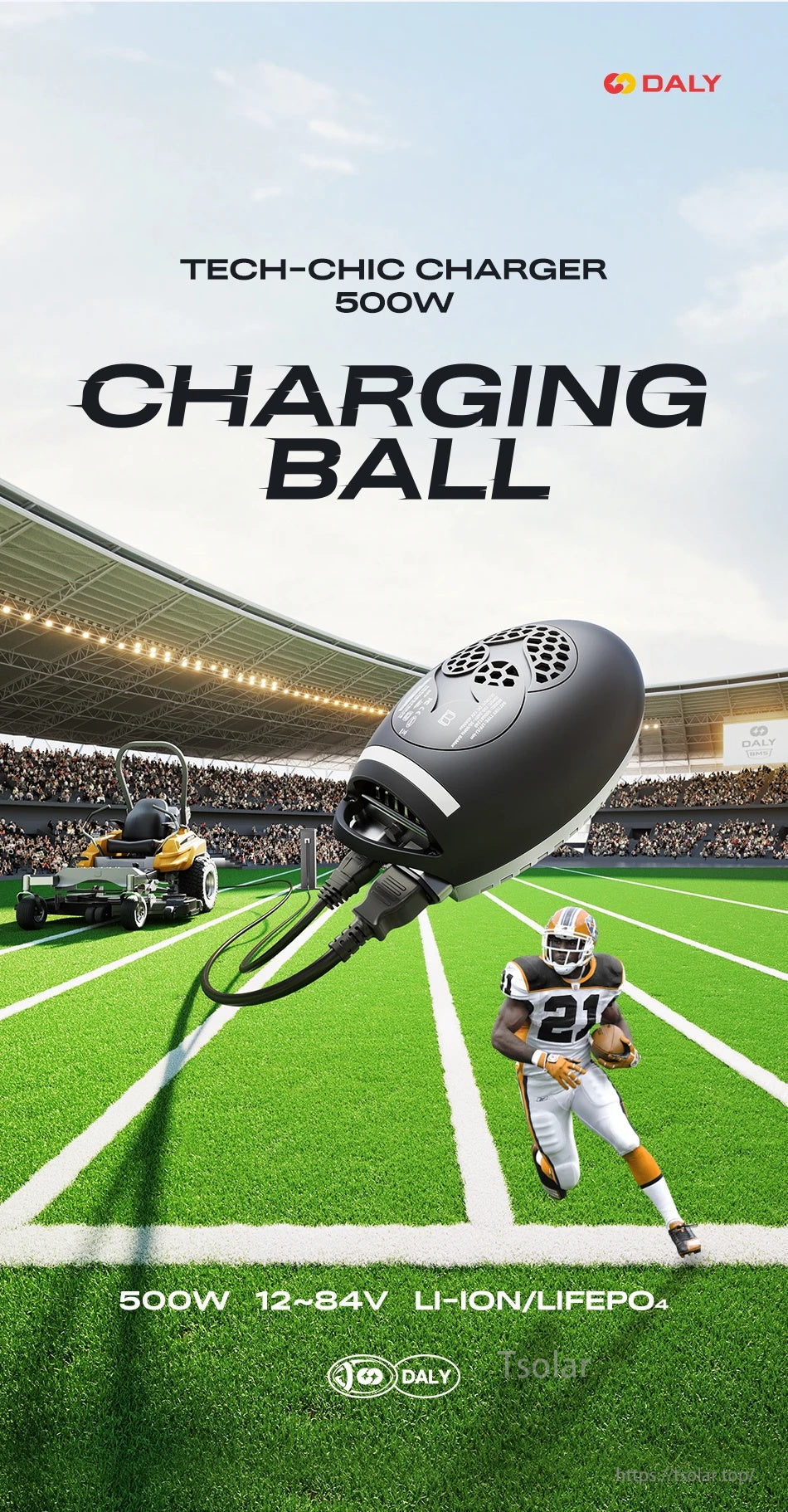

A compact 500W “Charging Ball” charger built for Li-ion and LiFePO4 batteries, with a wide 12–84V DC output range.
Designed for a wide range of light electric vehicles and equipment, from scooters and trikes to forklifts and ride-on mowers.
DALY’s streamlined “Charging Ball” form factor keeps charging power portable and easy to handle.
Skip captions for brand-only banners to keep the page focused on specs and buying details.
Supports both Li-ion and LiFePO4 chemistries across a broad voltage range, helpful when configuring different pack setups.
Internal layout emphasizes a compact, sealed design intended for demanding environments.
Built-in Bluetooth + app support enables status monitoring and OTA upgrades, alongside IP67 waterproof protection.
Die-cast aluminum sealing and an isolated air-duct structure are paired with efficiency rated at ≥93%.
The carry-handle design makes it easy to move between charging locations in the field or workshop.

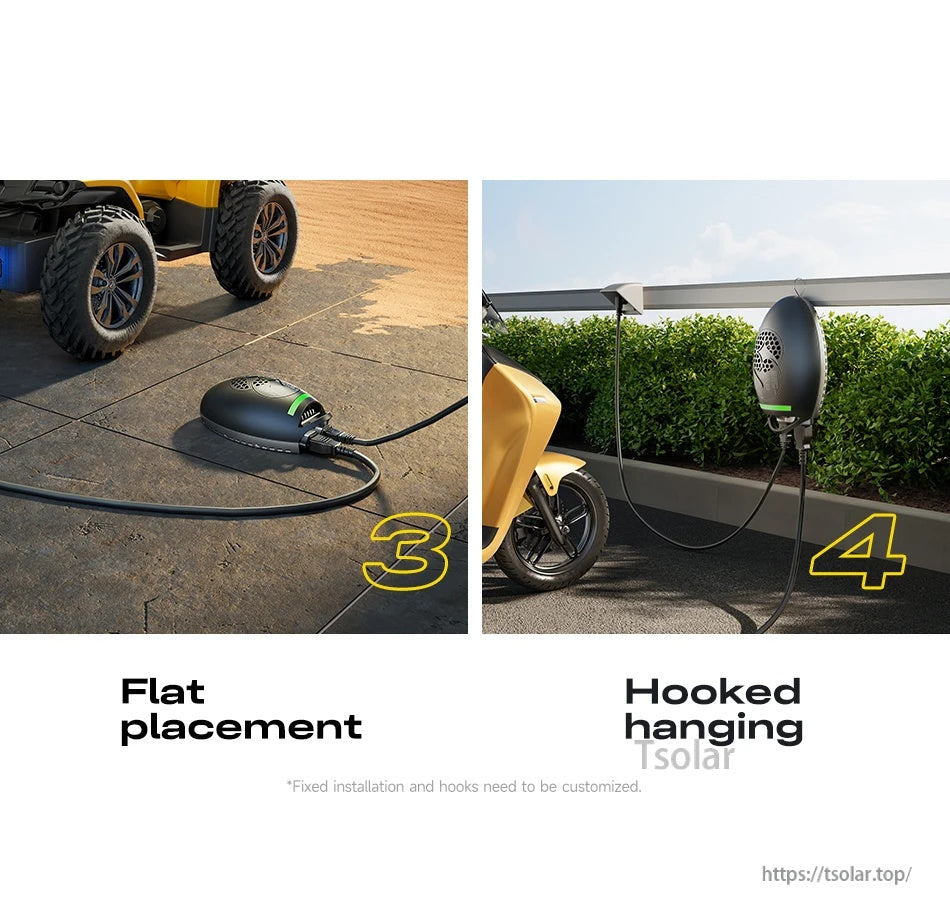

Flexible placement options include flat placement or hooked hanging (fixed mounts and hooks may require customization).
Skip captions for repeated marketing headers where the surrounding text already covers specifications.
Suitable for everyday charging across common use cases like cleaning vehicles, electric tricycles, and ride-on mowers.
Skip captions for additional use-case panels if earlier captions already explain the application range.
Skip captions for repeated banner slides to reduce redundancy on the product page.
Wide-range 100–240V AC input supports global use while maintaining constant power output.
Skip captions for comparison graphics unless you want to position against competitors in the main body copy.

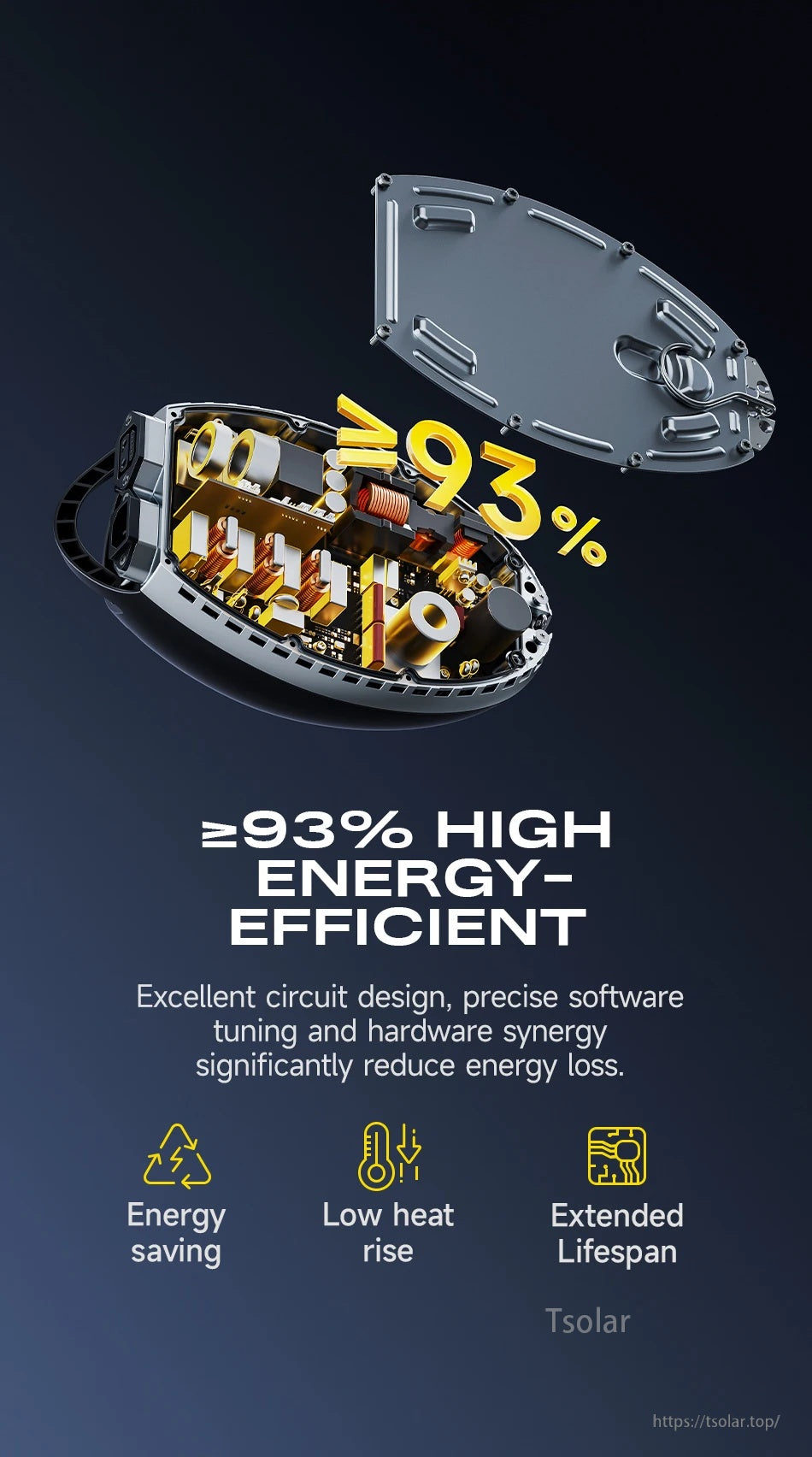

High-efficiency operation helps reduce energy loss and manage heat during charging.
Skip captions for final banner-style slides to keep the page from reading like a brochure carousel.

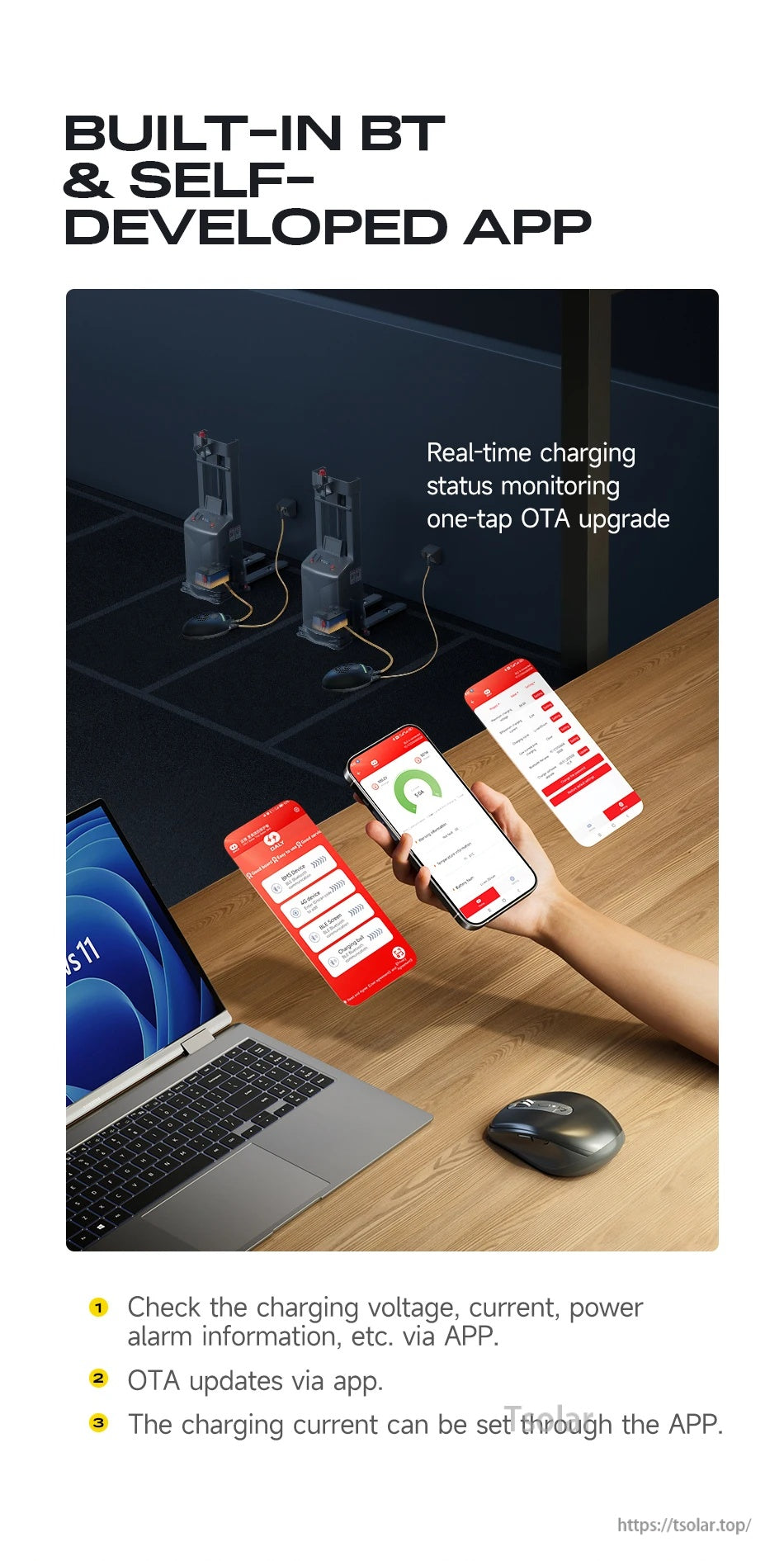

Built-in Bluetooth and the companion app let you monitor charging status, view alarms, and adjust charging current from your phone.
Linking the charger with a DALY BMS supports coordinated battery management during charging.

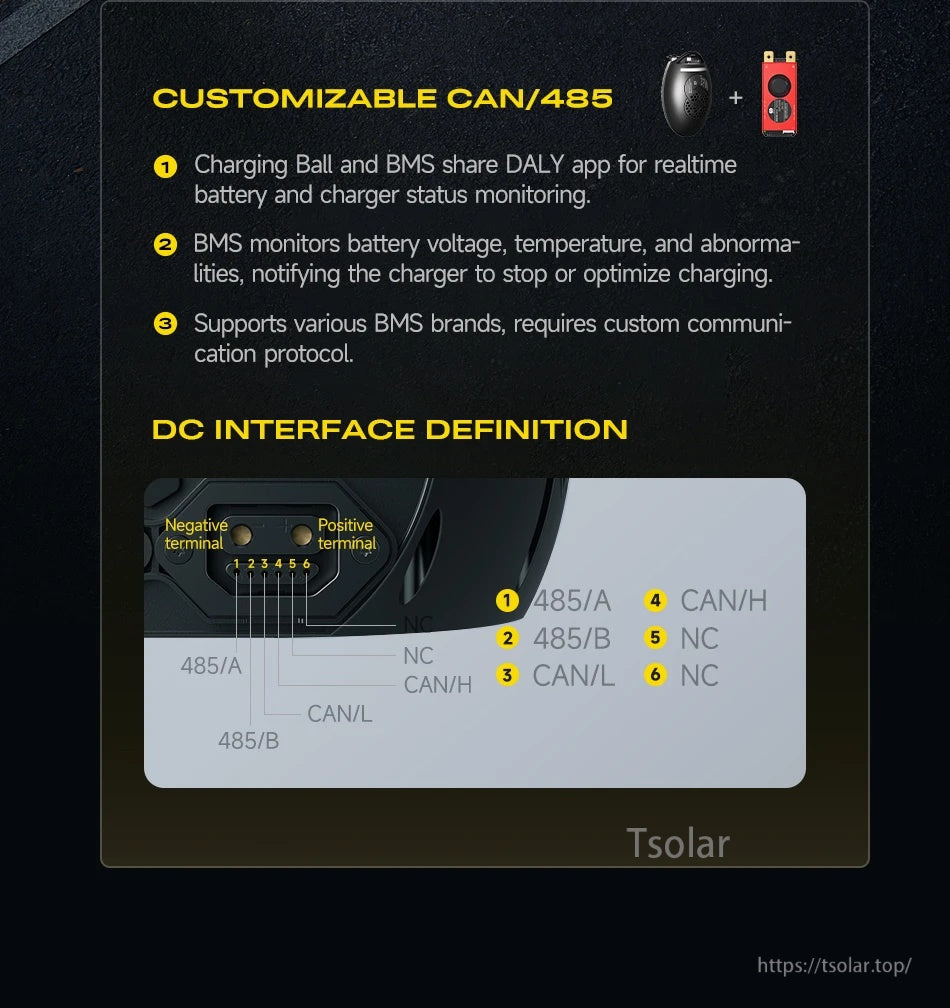

The charger’s DC connector includes labeled positive/negative terminals plus CAN/485 communication pins (485/A, 485/B, CAN/L, CAN/H) for BMS integration.

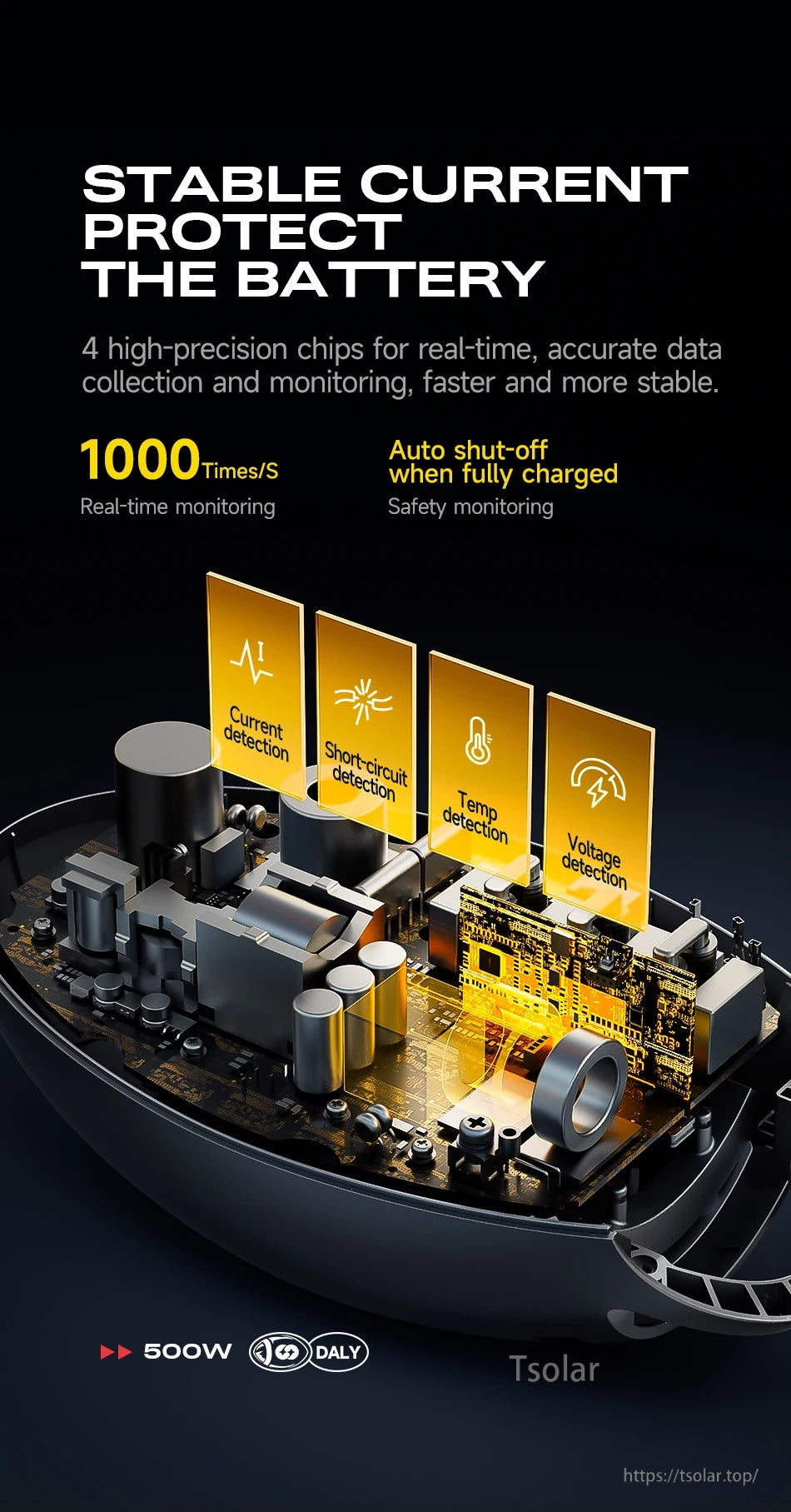

The DALY charger is designed for stable current charging with real-time monitoring and auto shut-off when fully charged.

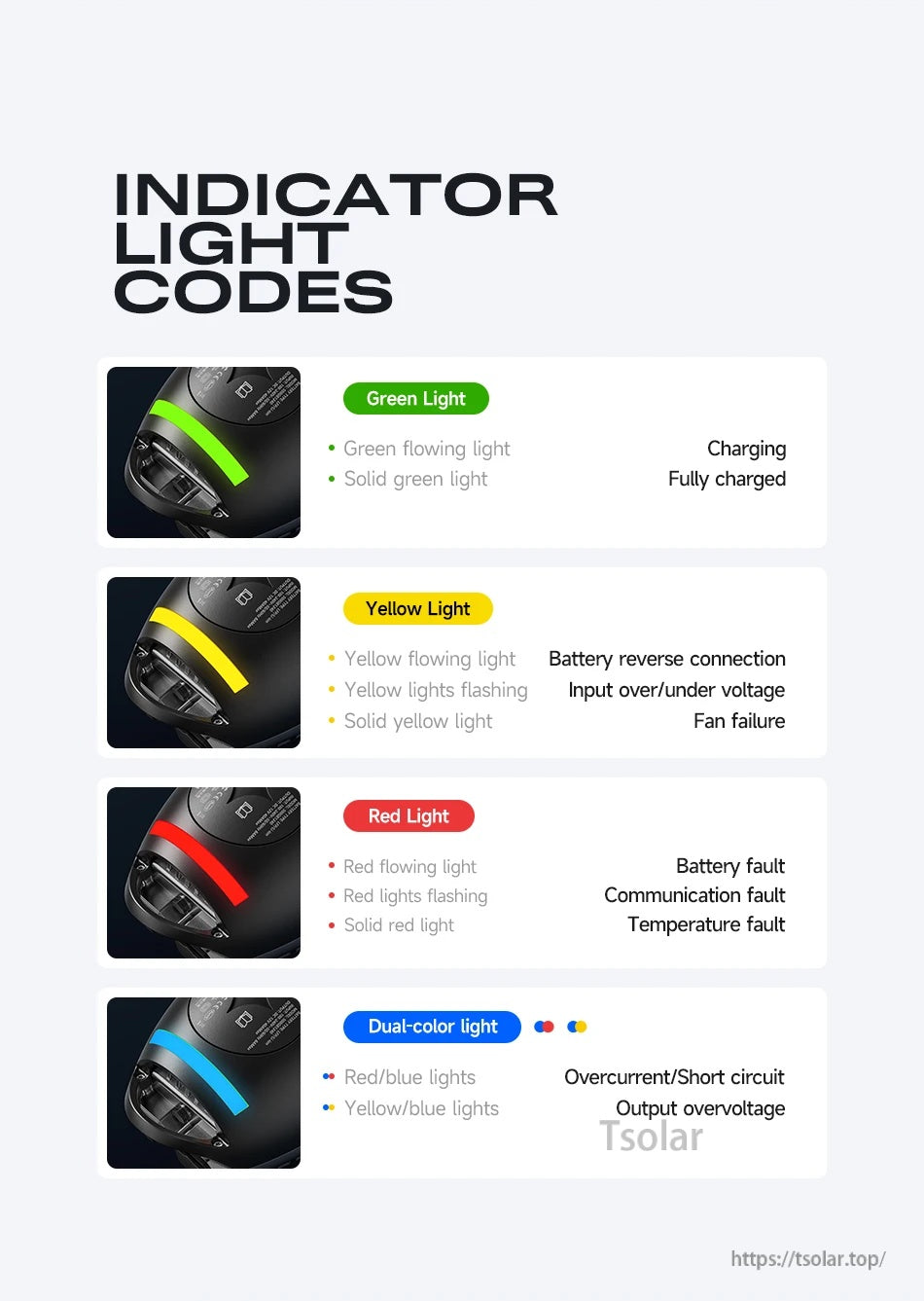

DALY 48V charger indicator lights use green, yellow, red, and dual-color codes to signal charging status and common faults.
The DALY 500W Li-ion/LiFePO4 charger supports a wide 12V–84V battery voltage range in a compact housing.

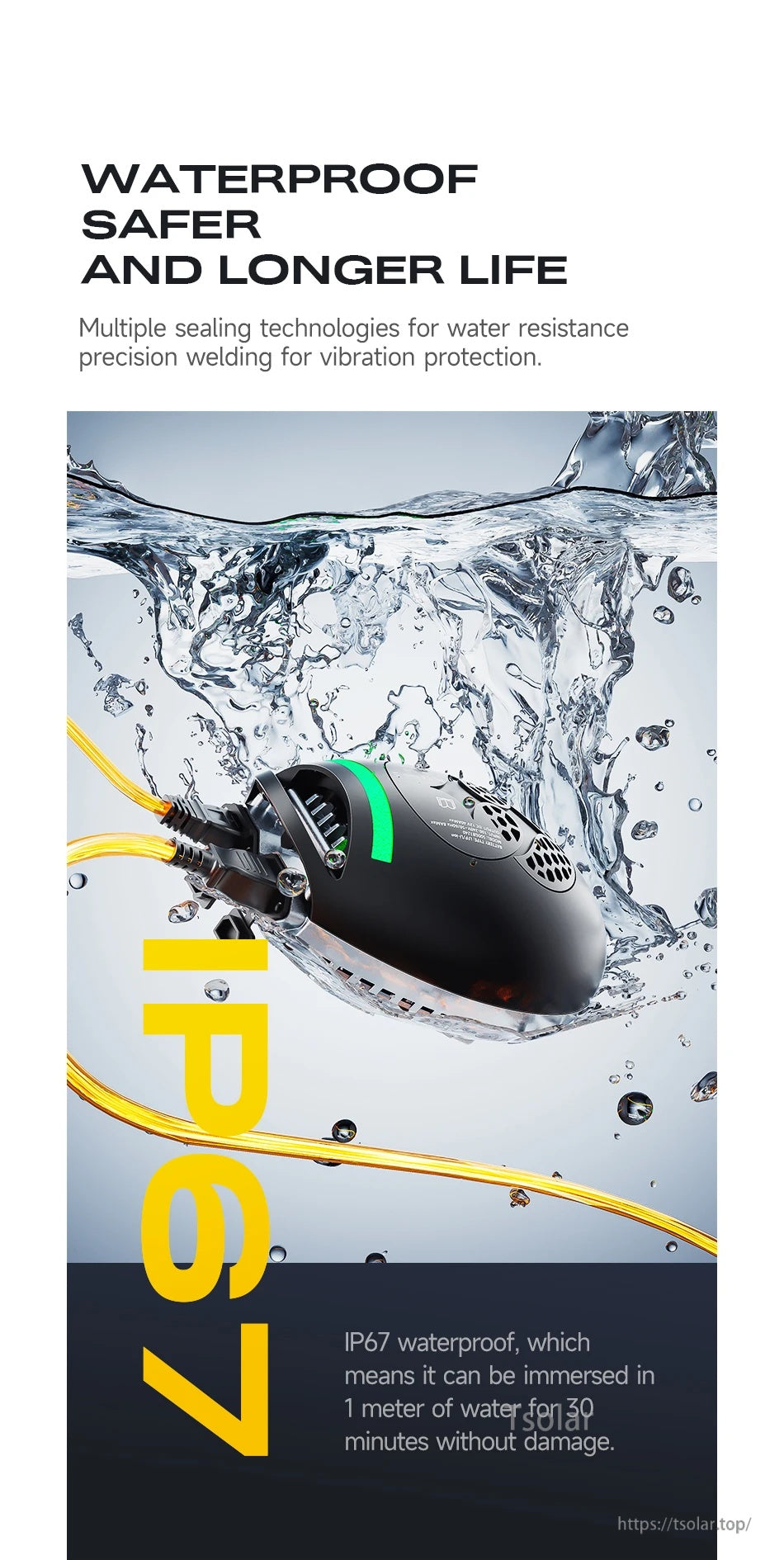

The charger’s IP67-rated waterproof design is described as suitable for immersion in up to 1 meter of water for 30 minutes.
The DALY 48V charger uses a die-cast aluminum sealed enclosure designed for vibration resistance and EMI shielding.

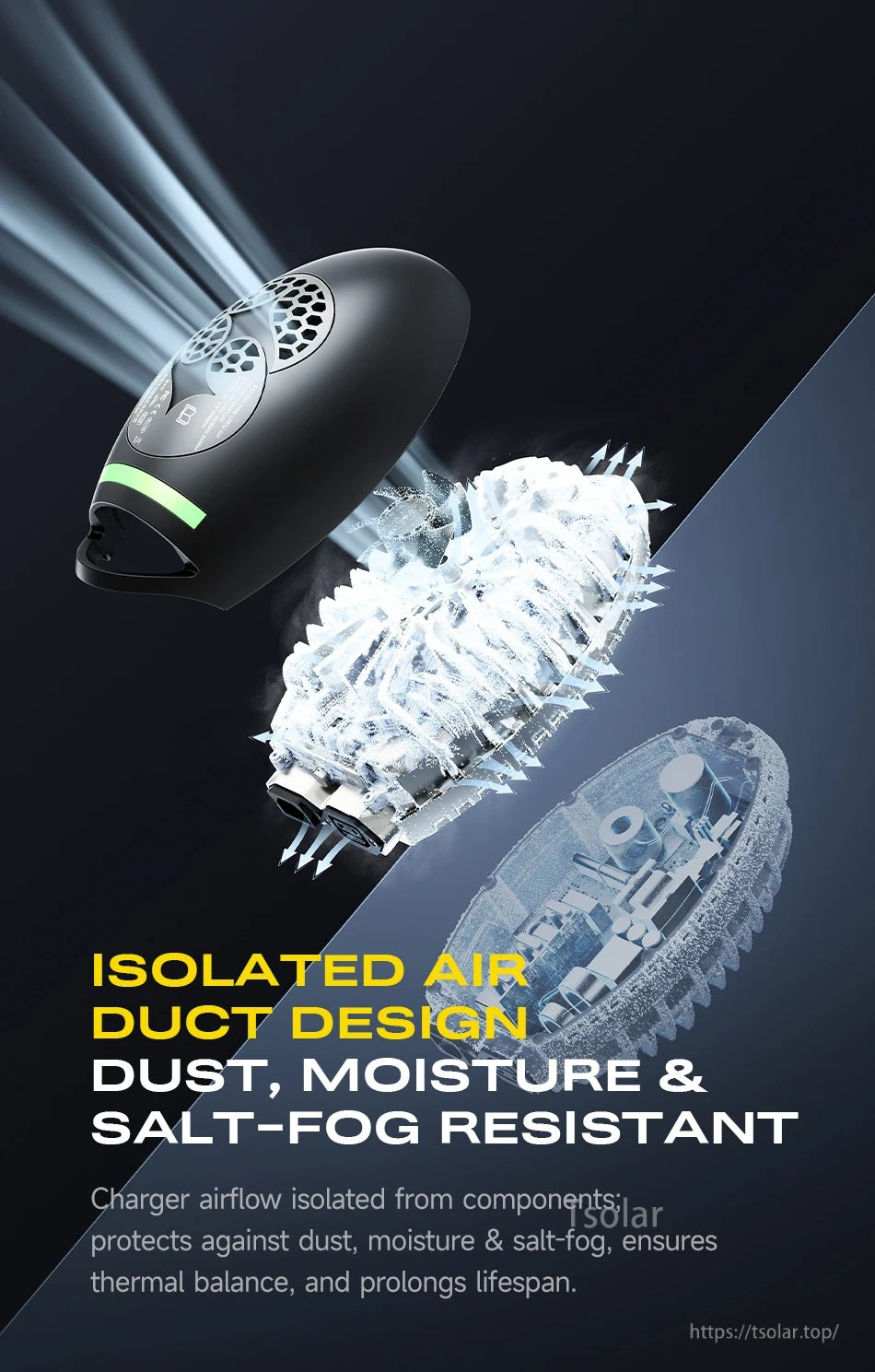

The DALY 48V battery charger uses an isolated air duct design to help protect internal components from dust, moisture, and salt-fog while maintaining thermal balance.

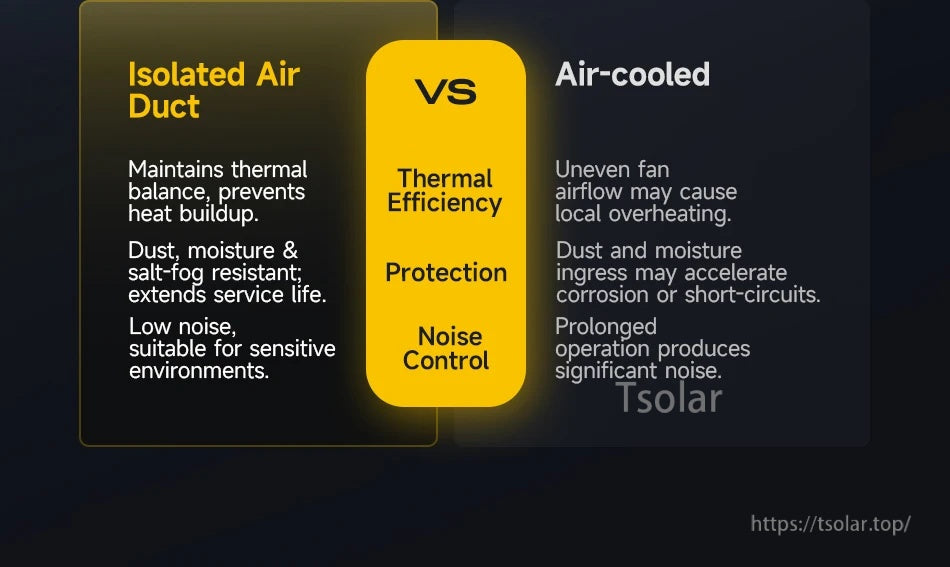

An isolated air duct cooling design helps maintain thermal balance while reducing dust and moisture exposure and operating noise.

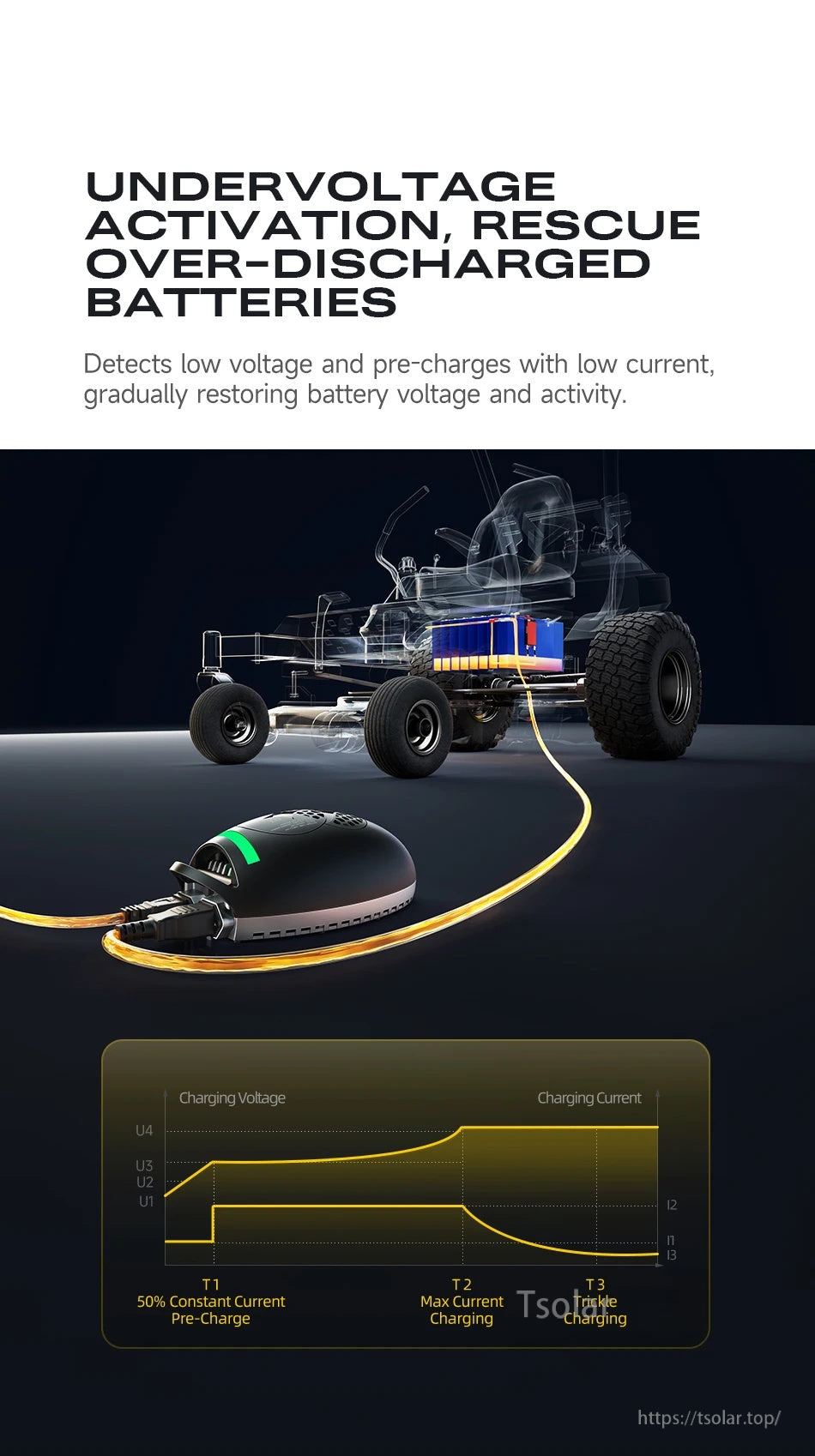

Undervoltage activation starts with a low-current pre-charge to help restore an over-discharged battery before normal charging continues.
The built-in high-voltage surge protection is designed to help guard connected equipment against lightning-related voltage spikes.
Reverse connection protection helps prevent wiring mistakes by triggering a yellow warning light and an app alert.

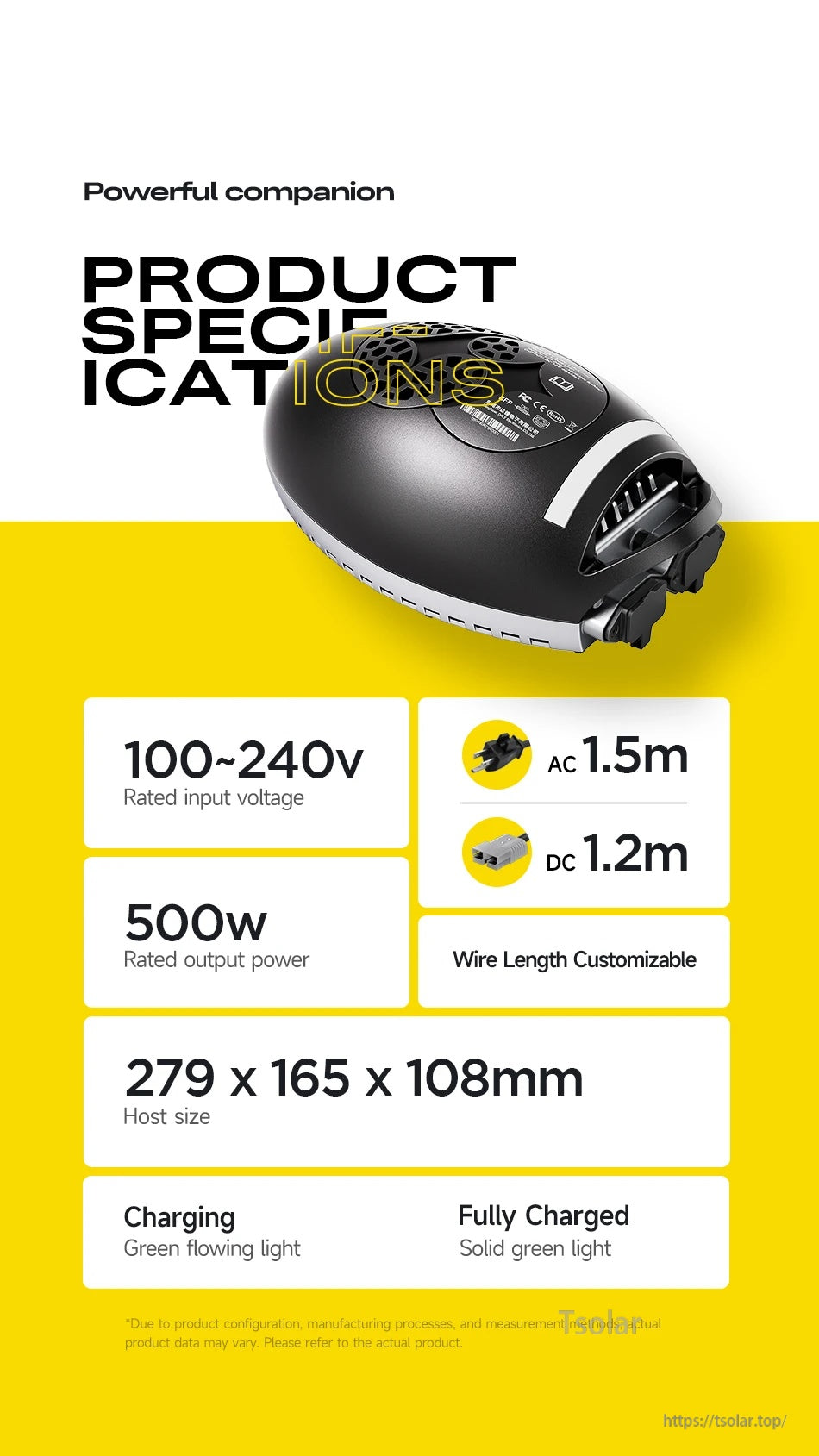

The charger supports 100–240V input, provides 500W rated output, and uses green light status indicators for charging and full.

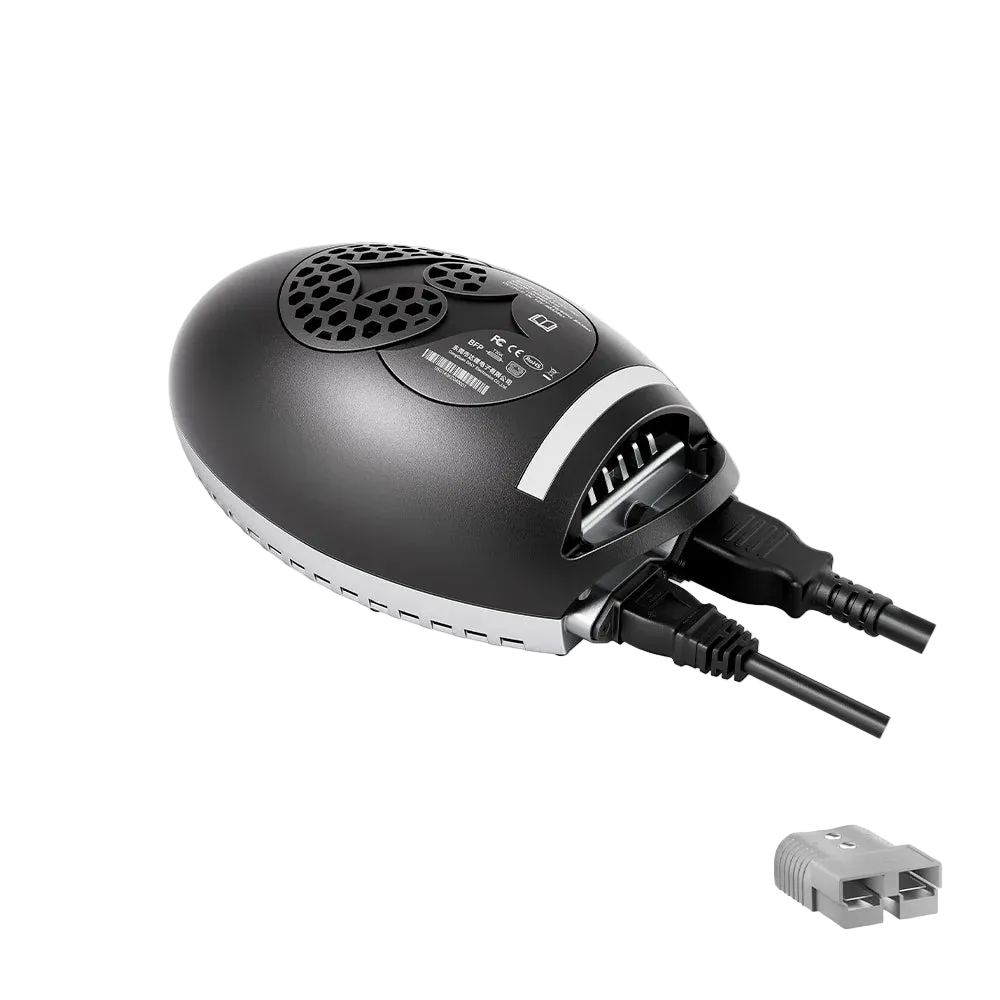

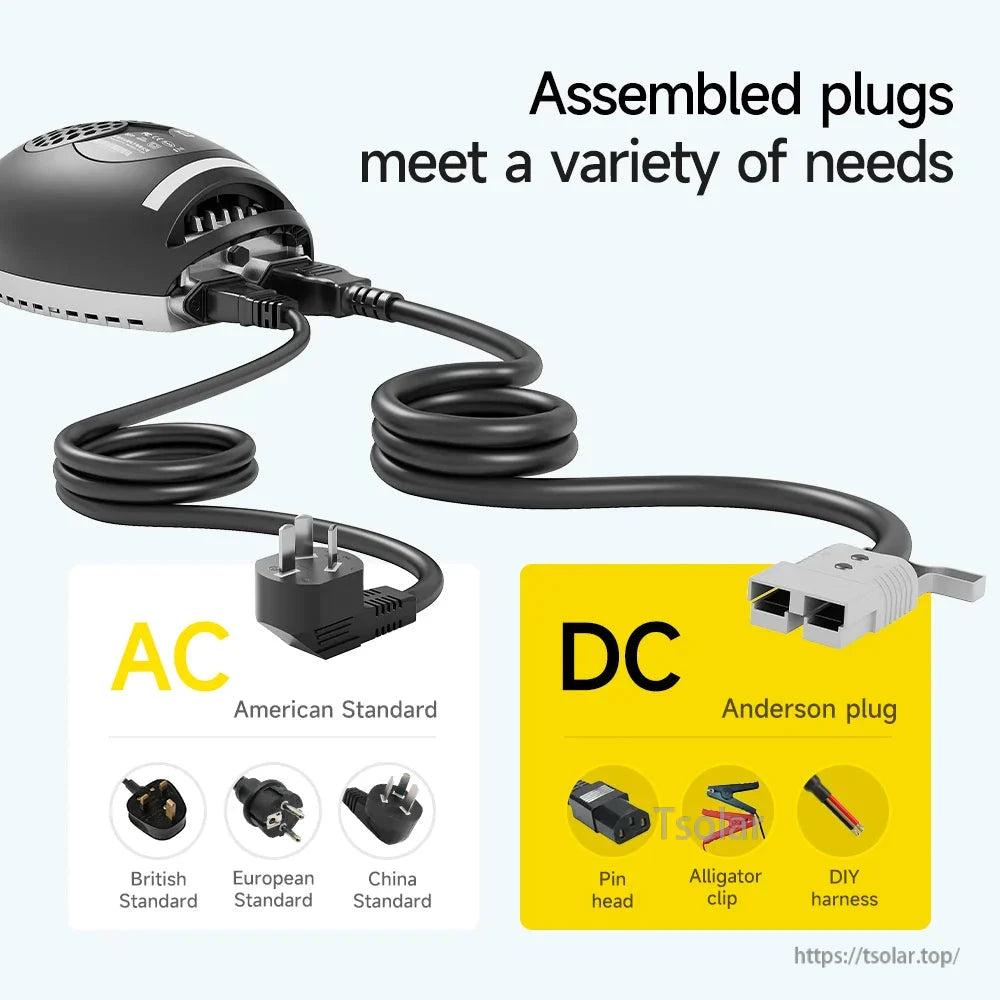

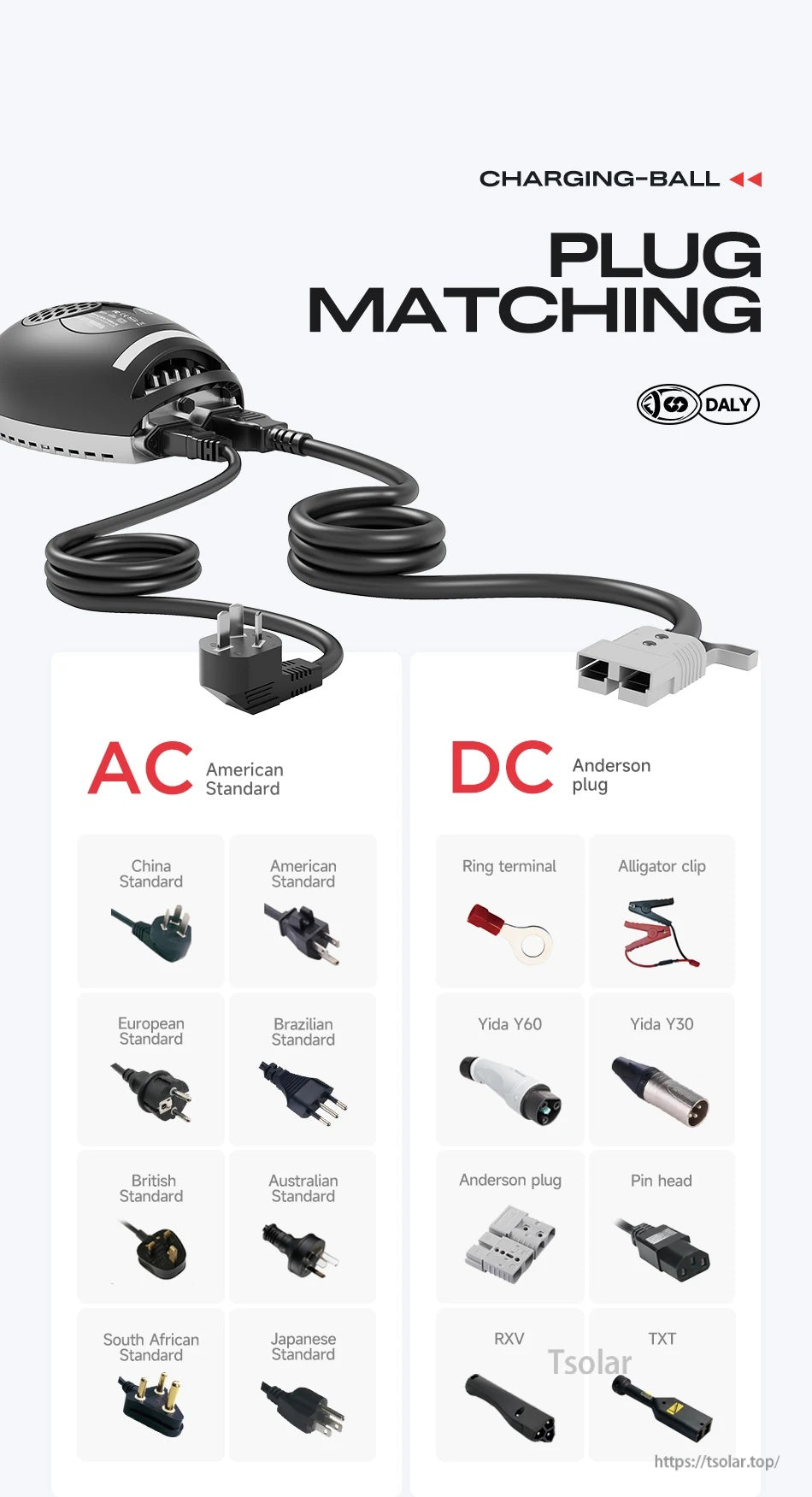

DALY 48V battery charger wiring can be matched with multiple AC power plug standards and DC connector types, including an Anderson plug.

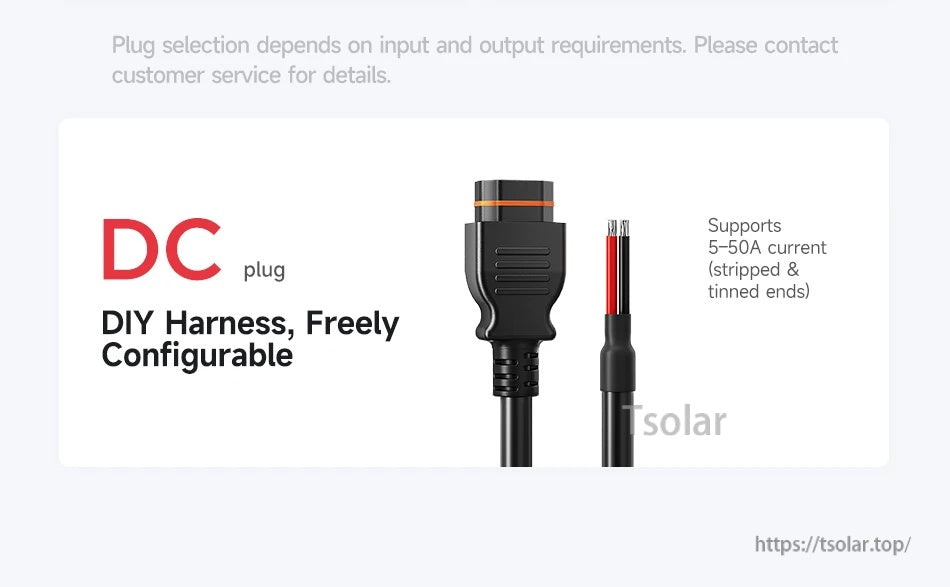

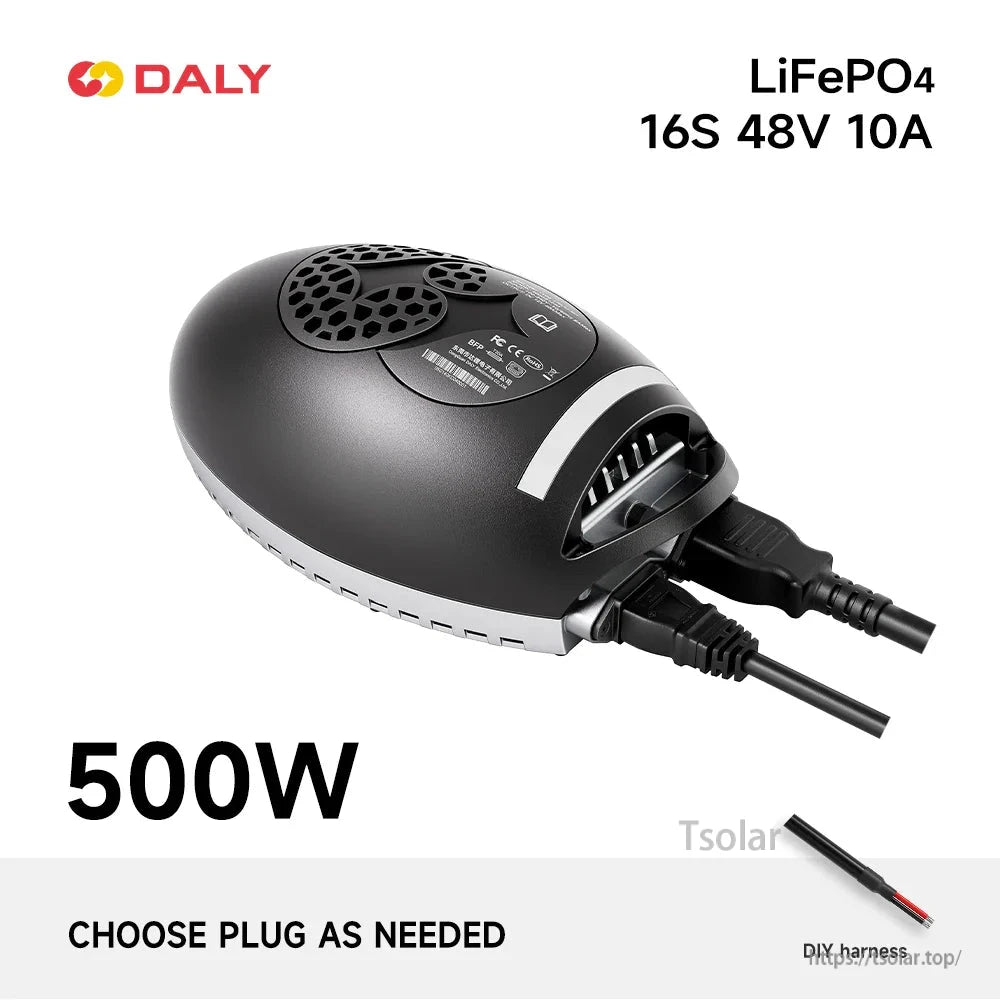

The charger’s DC plug uses a configurable DIY harness with stripped and tinned wire ends, supporting 5–50A current.

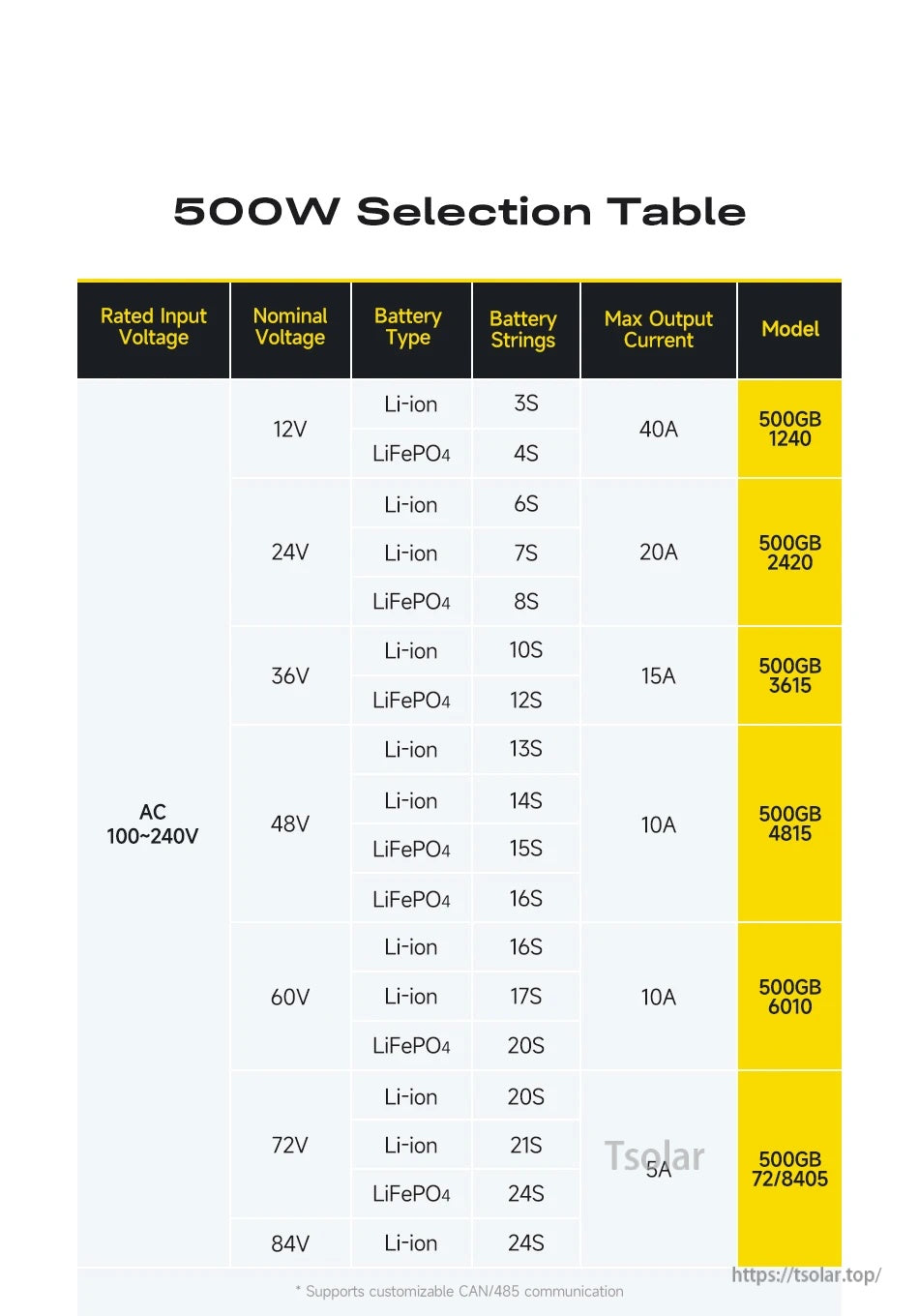

The 500W DALY charger lineup includes a 48V, 10A option for Li-ion (13S/14S) and LiFePO4 (15S/16S) battery packs.

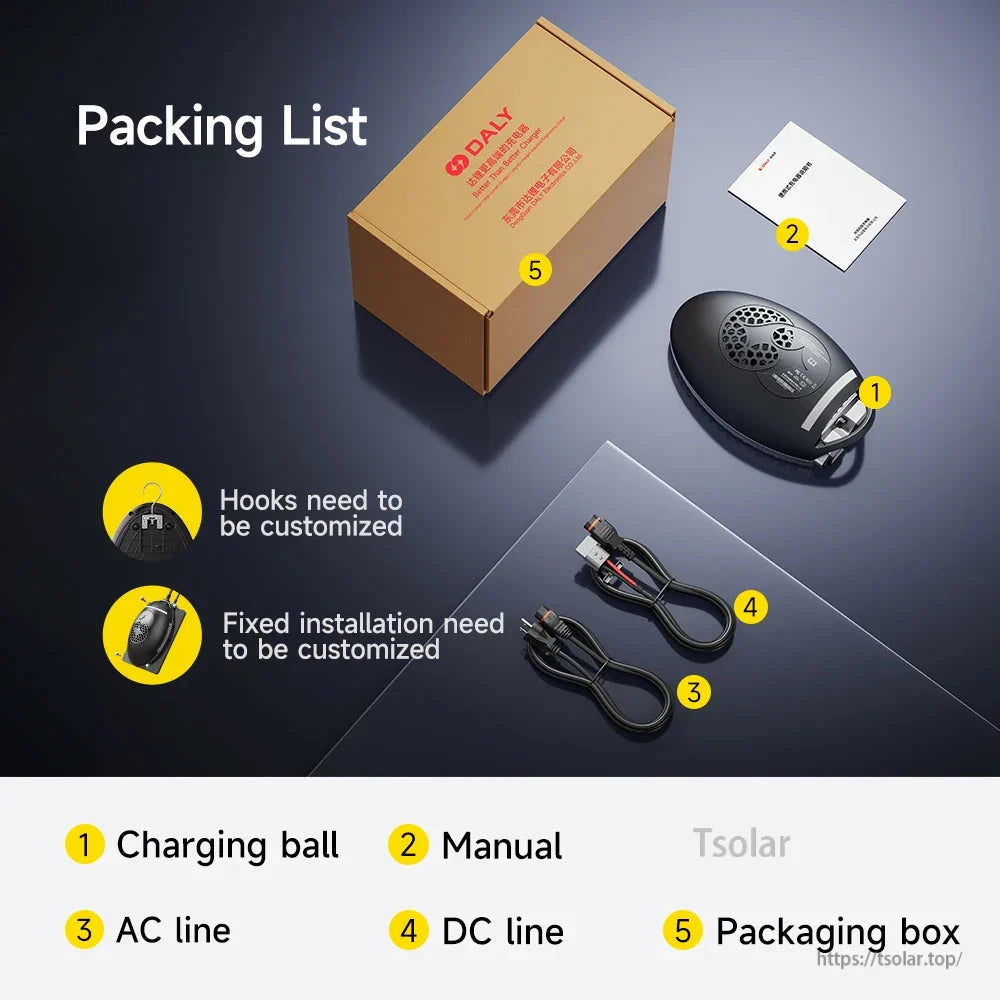

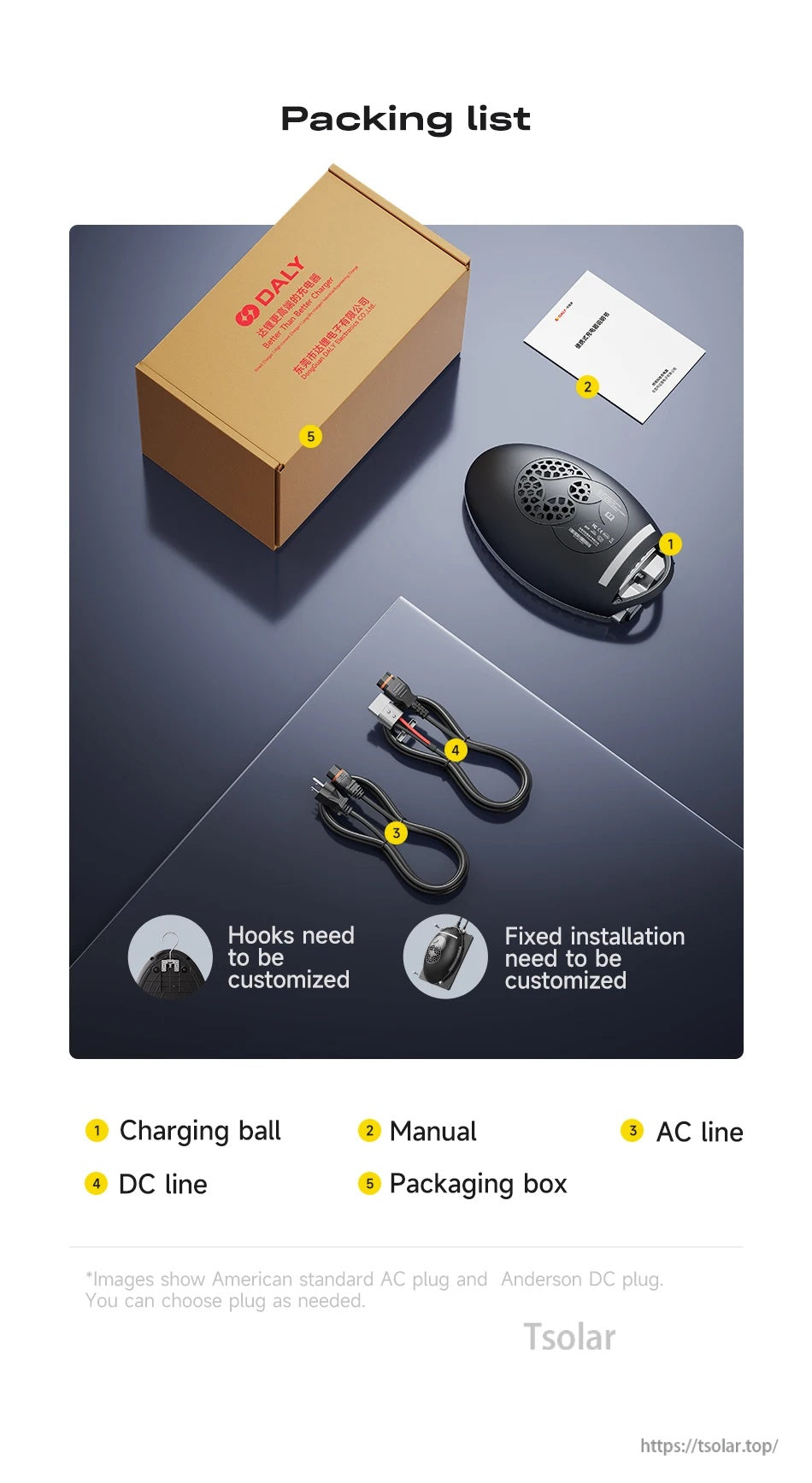

The DALY 48V 10A charger package includes the charger unit, user manual, AC power cord, DC output cable, and packaging box.

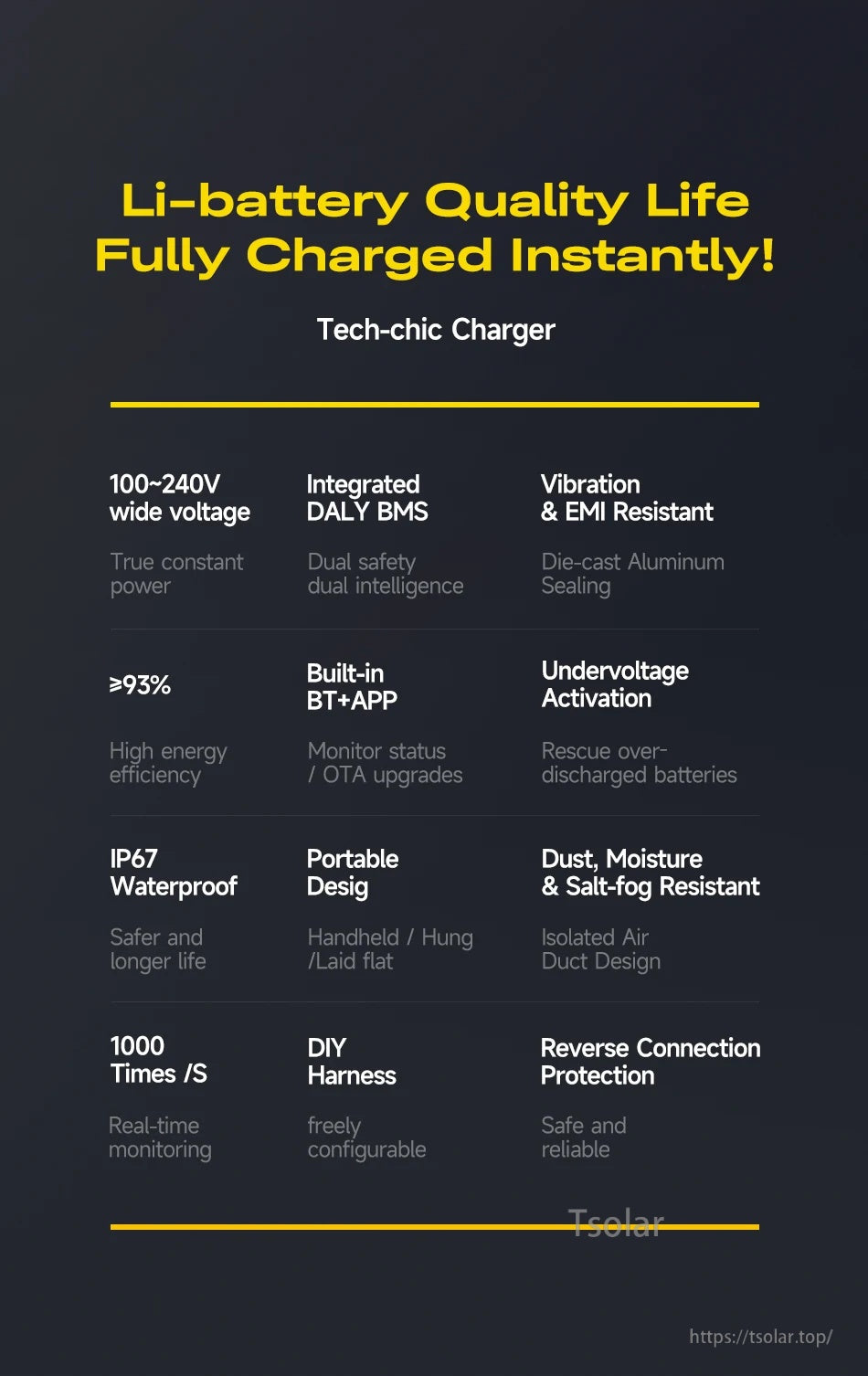

The DALY 48V charger lists 100–240V wide-voltage input, built-in BT+APP monitoring, IP67 waterproofing, and reverse connection protection.

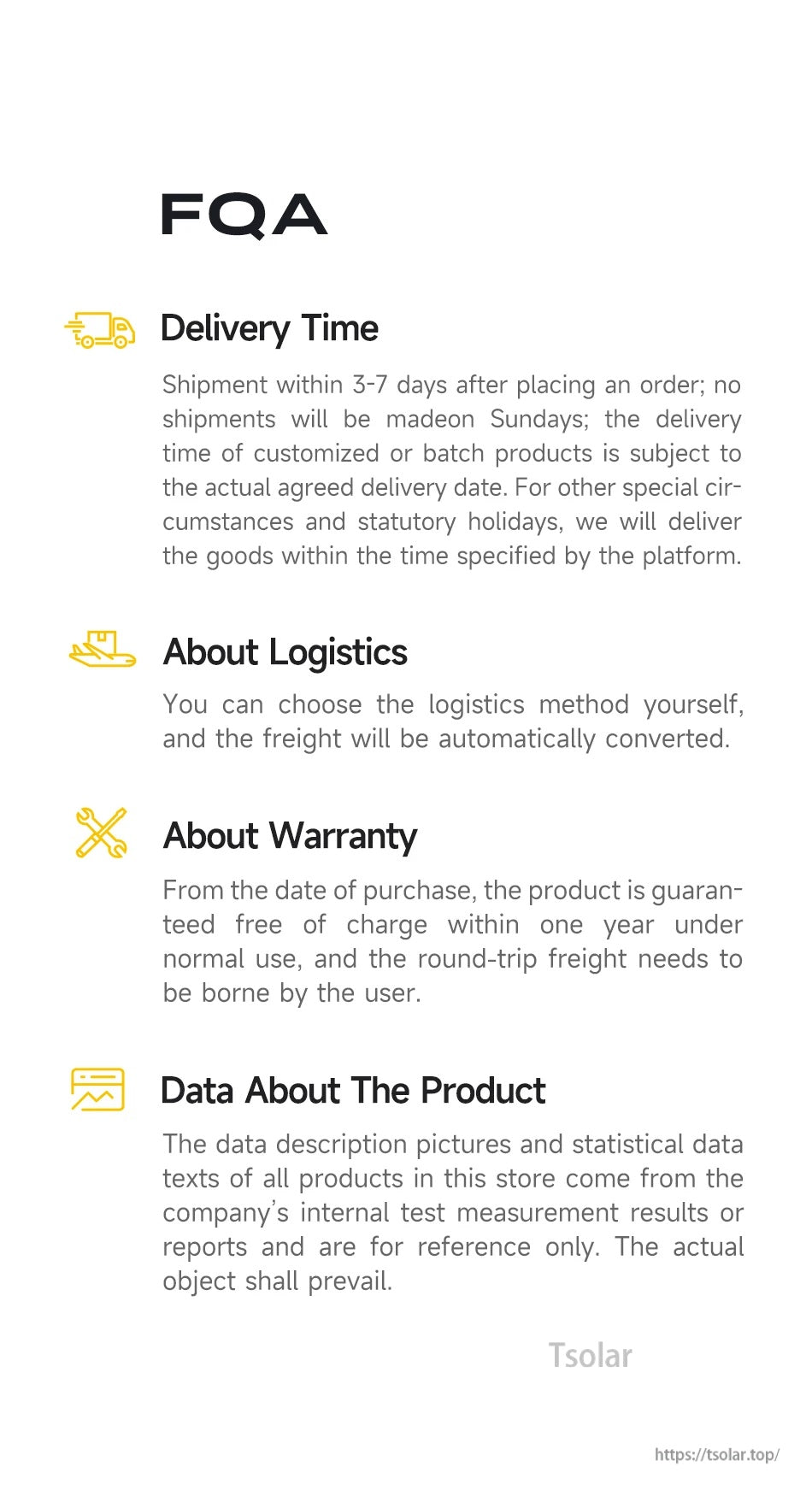

Delivery is noted as shipping within 3–7 days after ordering (with no shipments on Sundays), and the warranty statement lists one year under normal use.
