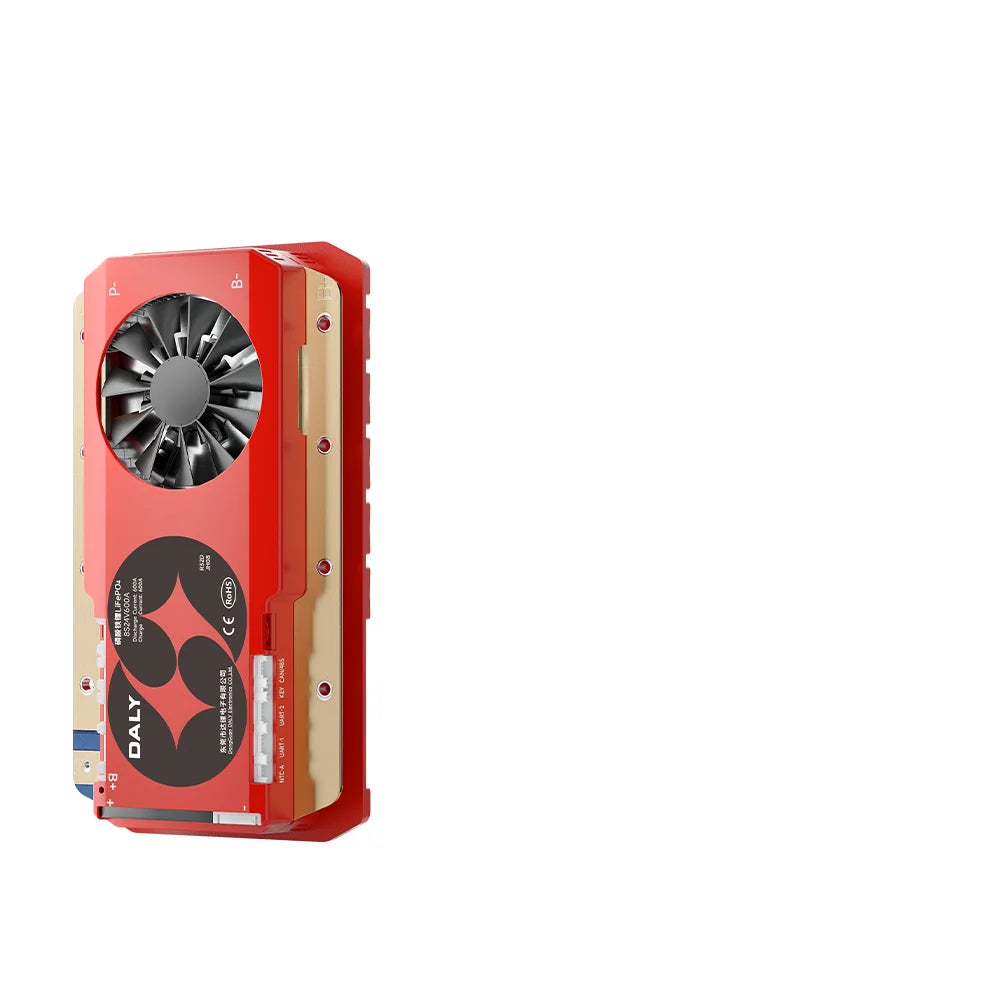

Overview

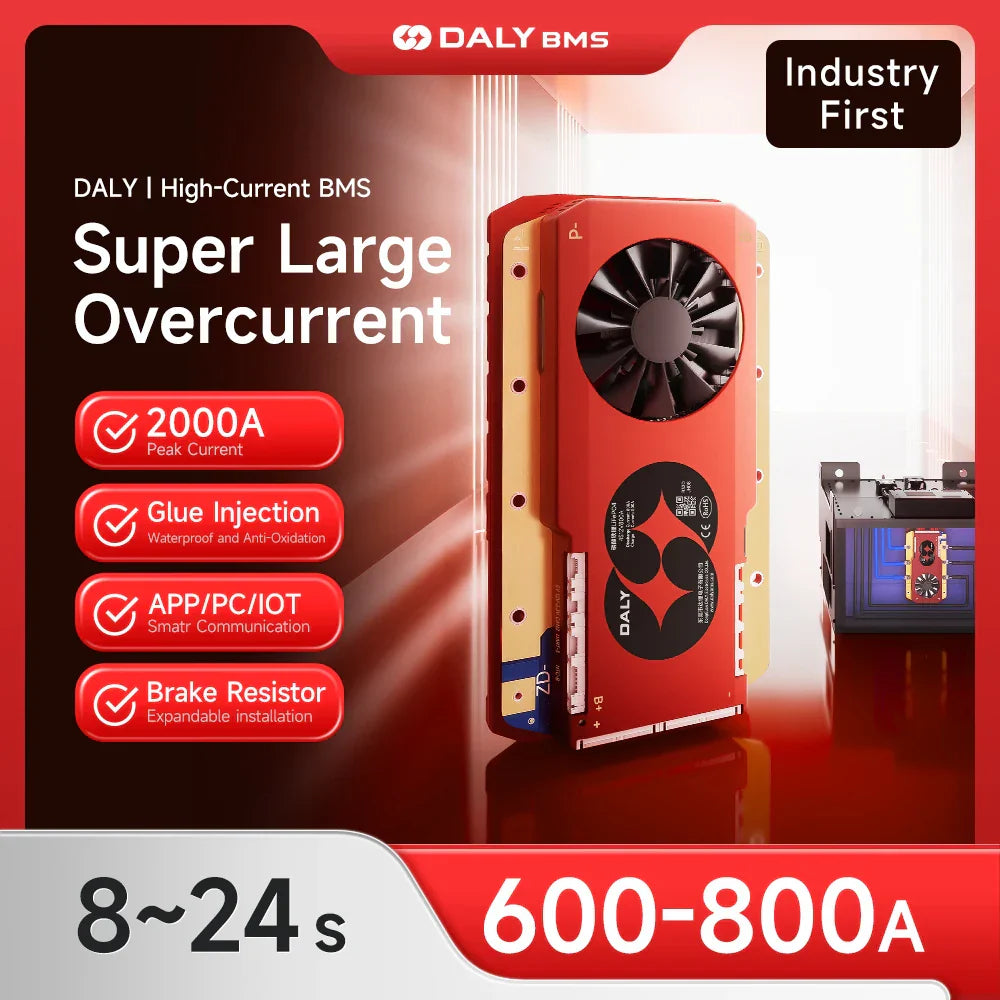

DALY High-Current BMS is a smart battery management system (BMS) designed for lithium battery packs, supporting Li-ion and LiFePO4 (also listed: LTO). It is offered in continuous current options of 600–800A and supports 8–24S configurations (selection varies by option). Smart communication is supported via APP/PC/IoT, with communication lines listed as UART/RS485/CAN. An optional brake resistor interface is shown for surge current handling during braking.
Key Features
- High current platform: Continuous current 600–800A; peak current 2000A (also listed: 2000A peak current can be sustained for 10 seconds at 26°C, tested in DALY’s laboratory, for reference only).
- Overcurrent capability: “Extreme overcurrent (5s)” listed as 10000A.
- Smart connectivity: APP smart control and parameter management; PC “upper computer” engineering settings; communication lines: UART/RS485/CAN.
- Protection & balancing: Passive balancing function with balancing current 100±30mA; adjustable activation thresholds listed for LiFePO4 / Li-ion / LTO.
- Construction & cooling: Multi-duct cooling structure + high-speed fan; wavy aluminum alloy heat sink; thick copper plates mentioned; “Glue injection” listed as waterproof and anti-oxidation.
- Brake resistor support: “Brake resistor (optional)” shown; protection board integrates brake resistor control logic (brake resistor module needs to be installed separately by the user).
Specifications
| Supported battery types (listed) | Li-ion / LiFePO4 / LTO |
| Supported series count (listed) | 8–24S |
| Continuous current (options) | 600A / 800A |
| Charging current | 600A | 800A |
| Discharge current | 600A | 800A |
| Overcurrent protection | 900A | 1200A |
| Peak current (listed) | 2000A (also listed: sustainable for 10 seconds at 26°C, for reference only) |
| Extreme overcurrent (listed) | 10000A (5s) |
| Charging voltage | LiFePO4: N×3.65V | Li-ion: N×4.2V | LTO: N×2.8V |
| Main circuit conduction internal resistance | <20mΩ |
| Passive balancing function | Yes |
| Balancing activation voltage (adjustable) | LiFePO4: 3.4V | Li-ion: 4V | LTO: 2V |
| Balancing activation voltage difference (adjustable) | ≥20mV |
| Balancing current | 100±30mA |
| Overcharge protection (cell) activation voltage (adjustable) | LiFePO4: 4.25±0.05V | Li-ion: 3.75±0.05V | LTO: 2.75±0.05V |
| Overcharge protection delay | 1±0.8S |
| Overcharge recovery voltage (adjustable) | LiFePO4: 4.15±0.05V | Li-ion: 3.65±0.05V | LTO: 2.7±0.05V |
| Over-discharge protection (cell) activation voltage (adjustable) | LiFePO4: 2.6±0.05V | Li-ion: 2.1±0.05V | LTO: 1.7±0.05V |
| Over-discharge protection delay | 1±0.8S |
| Over-discharge recovery voltage (adjustable) | LiFePO4: 2.7±0.05V | Li-ion: 2.2±0.05V | LTO: 1.75±0.05V |
| Charging temperature protection (high temperature) | 75°C |
| Charging temperature protection recovery (listed) | -40°C |
| Discharge temperature (high temperature) | 75°C |
| Discharge temperature recovery (listed) | -35°C |
| Communication (listed) | APP/PC/IoT; UART/RS485/CAN |

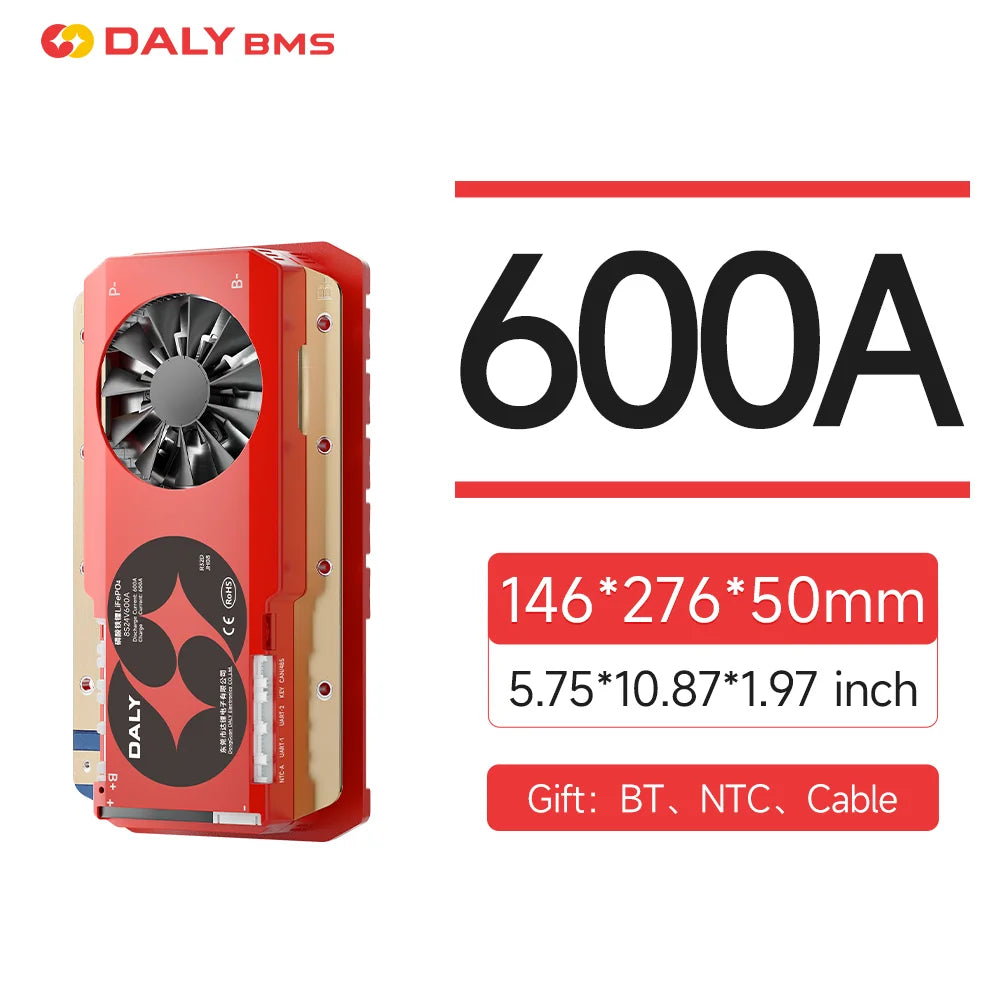

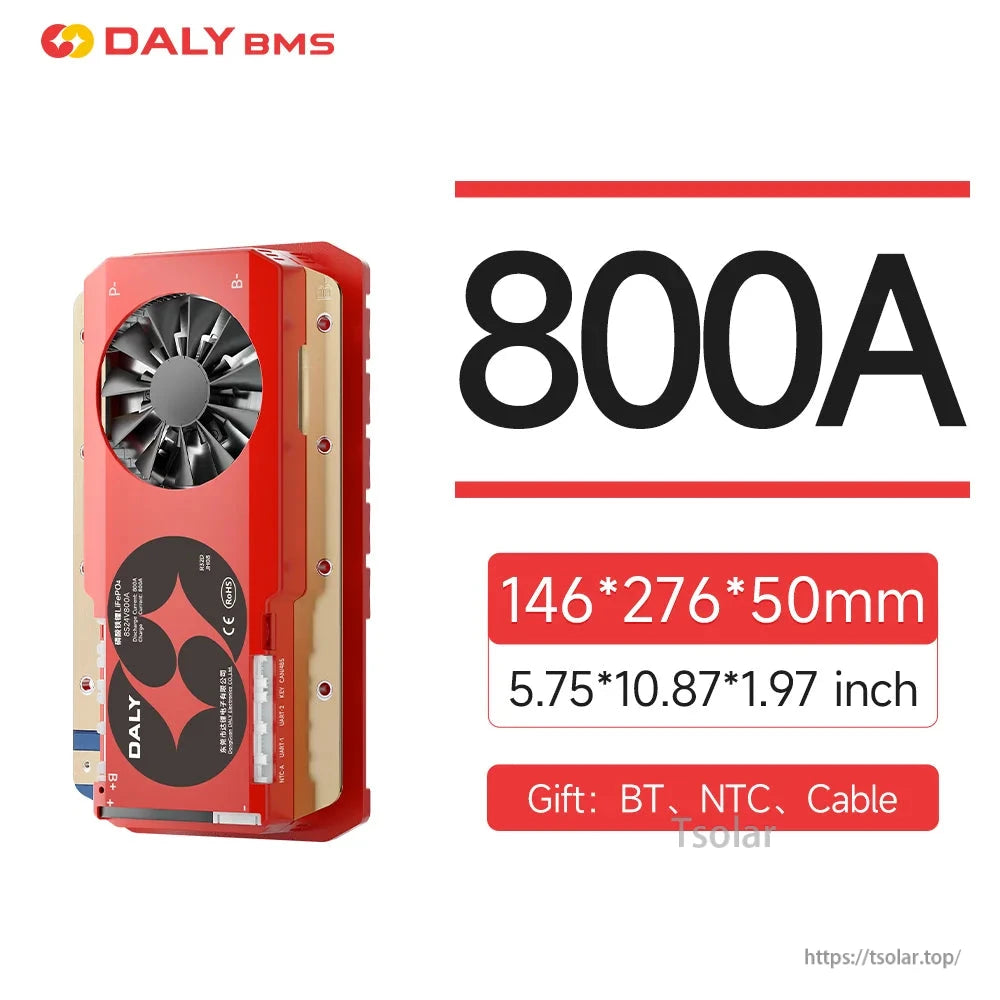

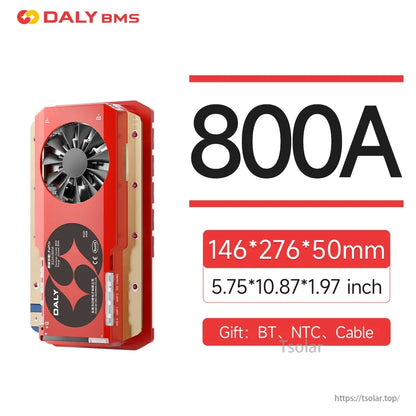

| Product size (listed) | 278*145*51mm |
| Net weight (listed) | ≈2.5Kg |

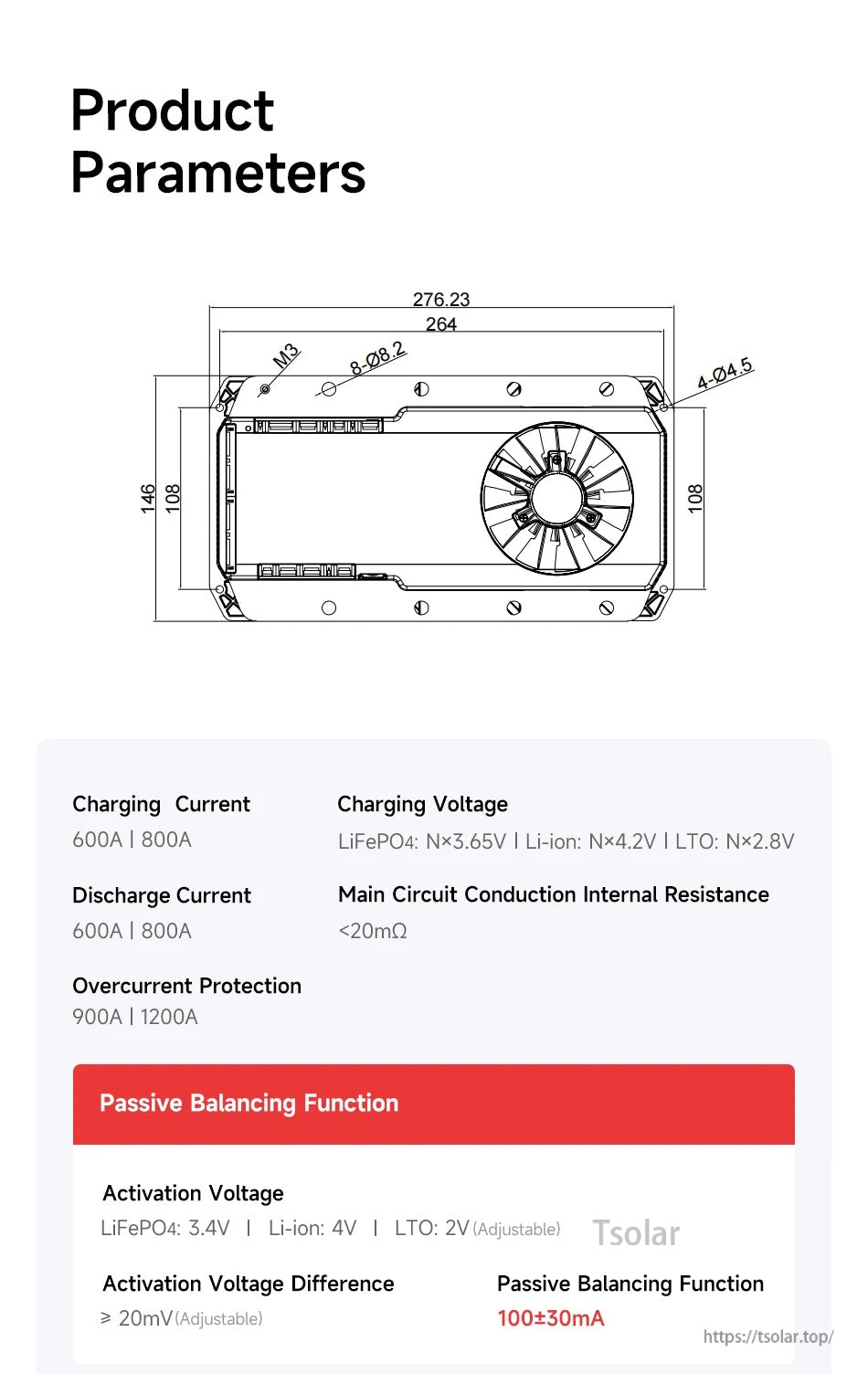

| Mechanical drawing dimensions (listed) | 276.23; 264; 146; 108; 108 (units not specified in the drawing) |
| Hole / thread notes (listed) | M3; 8-Φ8.2; 4-Φ4.5 |
Option selections (Shopify variants): Battery: LifePO4 8S 24V; Li-ion 10S 36V; LifePO4 12S 36V; Li-ion 13S 48V; Li-ion 14S 48V; LifePO4 15S 48V; LifePO4 16S 48V; Li-ion 16S 60V; Li-ion 17S 60V; LifePO4 20S 60V; Li-ion 20S 72V; Li-ion 21S 72V; LifePO4 24S 72V. Current: 600A BT; 800A BT.
For selection guidance and after-sales support, contact https://tsolar.top/ or email service@tsolar.top.

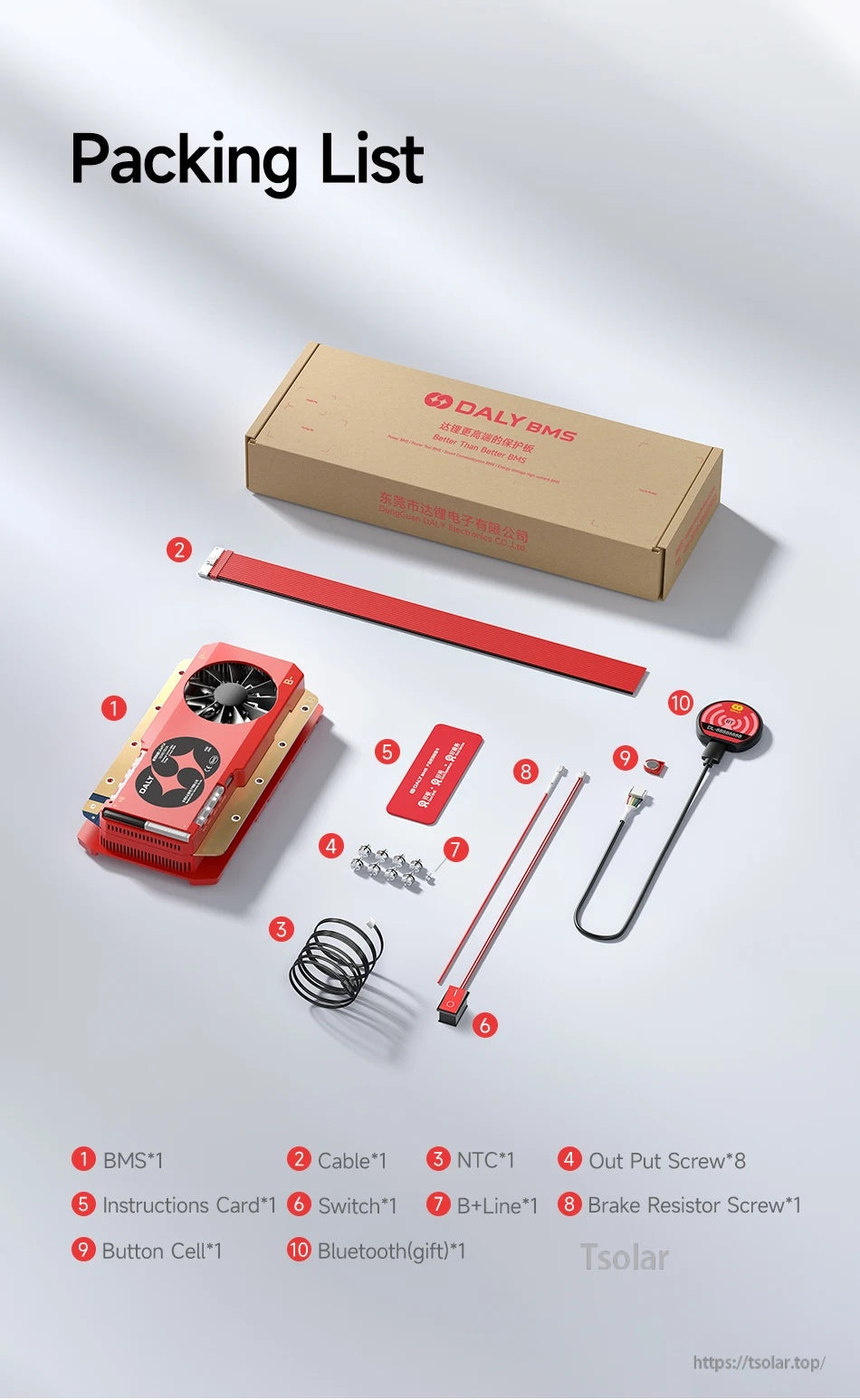

What’s Included
- BMS*1
- Cable*1
- NTC*1
- Out Put Screw*8
- Instructions Card*1
- Switch*1
- B+Line*1
- Brake Resistor Screw*1
- Button Cell*1
- Bluetooth(gift)*1
Applications
- High-current lithium battery scenarios (examples listed): large forklifts; large sightseeing vehicles
Notes (listed): The above data is based on normal temperature tests conducted by DALY laboratories and is for reference only.
Details
DALY focuses on long-term R&D and large-scale production capacity to support demanding high-current battery applications.

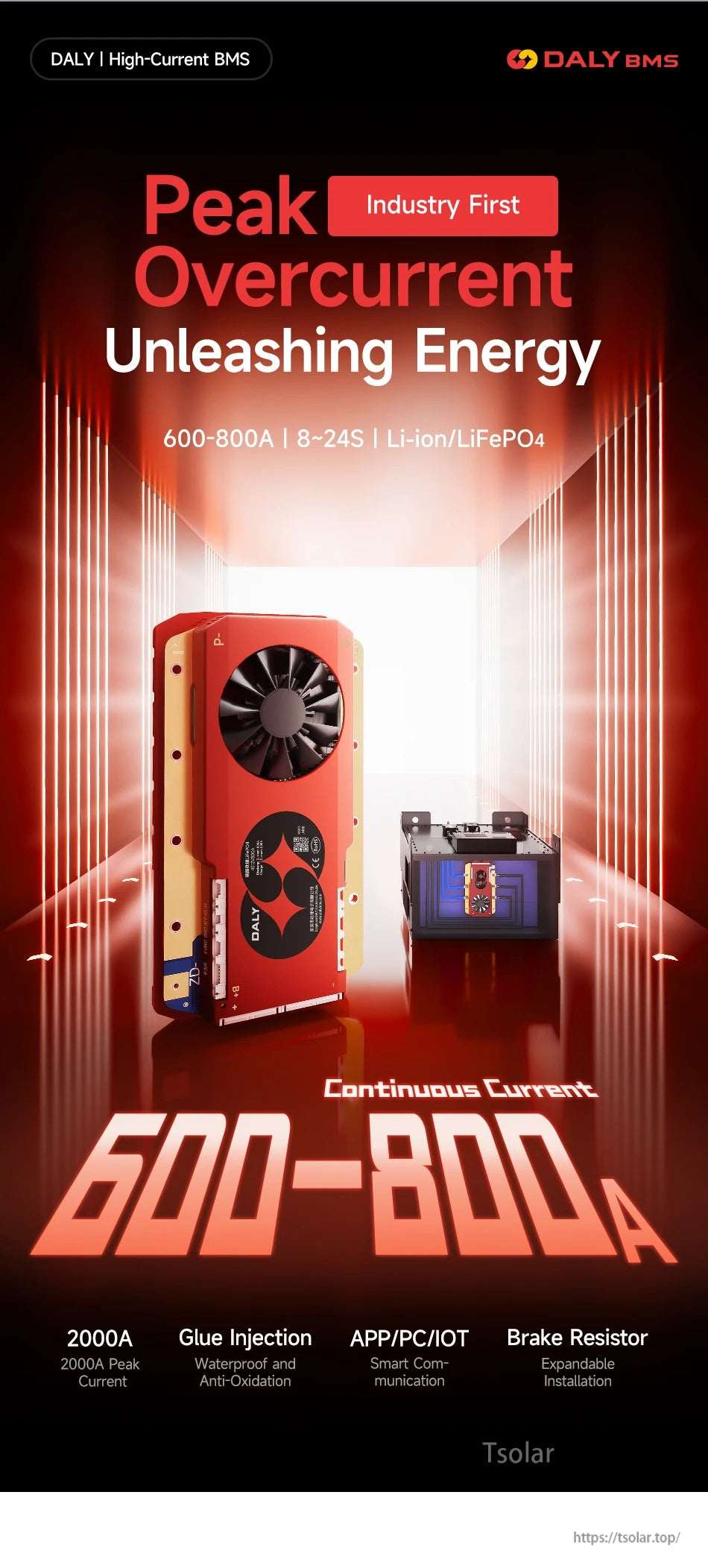

Choose 600A or 800A continuous current options for 8–24S lithium battery packs, with smart communication support for monitoring and tuning.

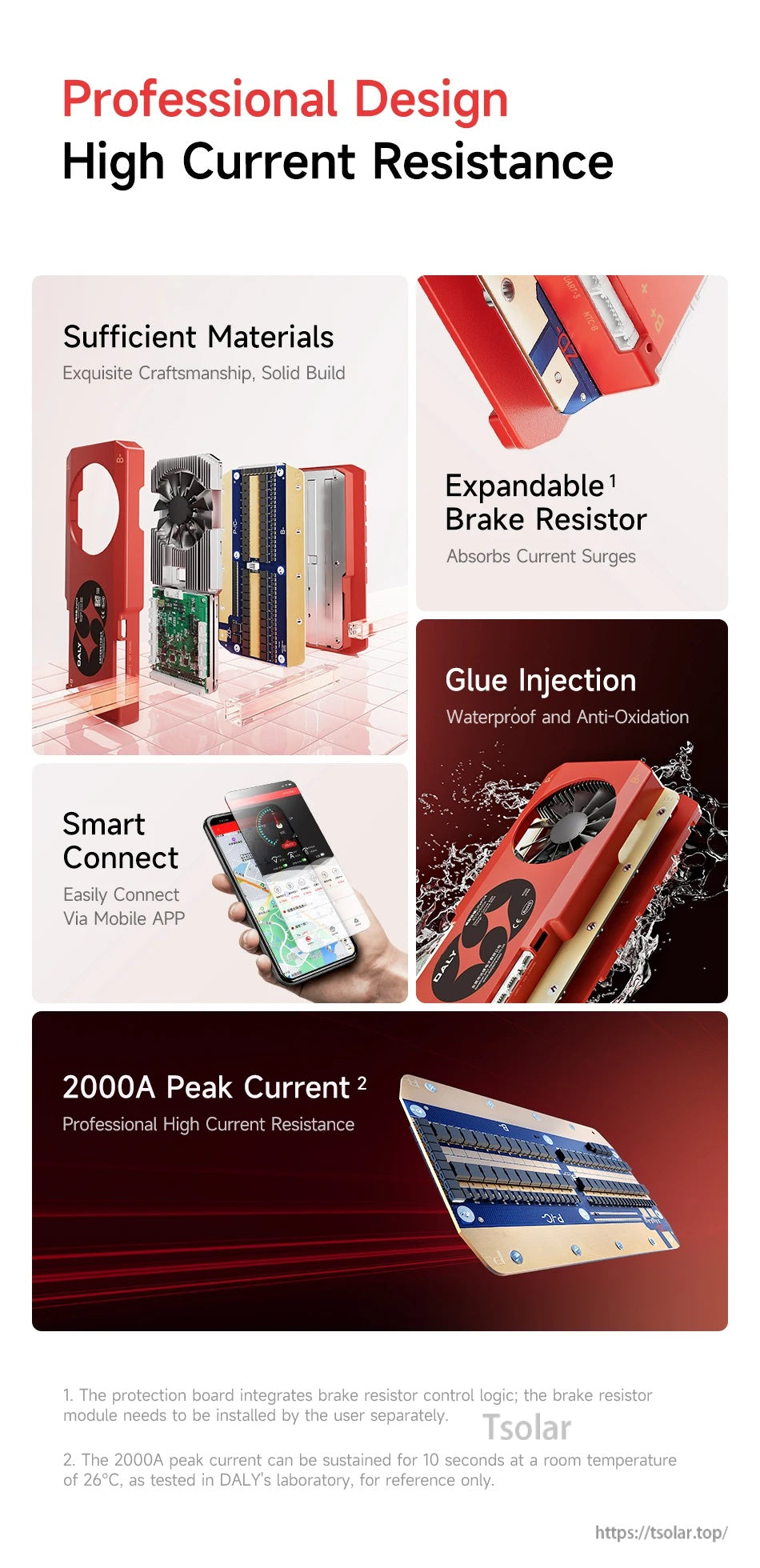

A modular internal layout combines smart connectivity with optional brake-resistor control and a sealed, glue-injection construction.
Key specifications are summarized for quick selection, including charging/discharge current, overcurrent protection, and passive balancing settings.

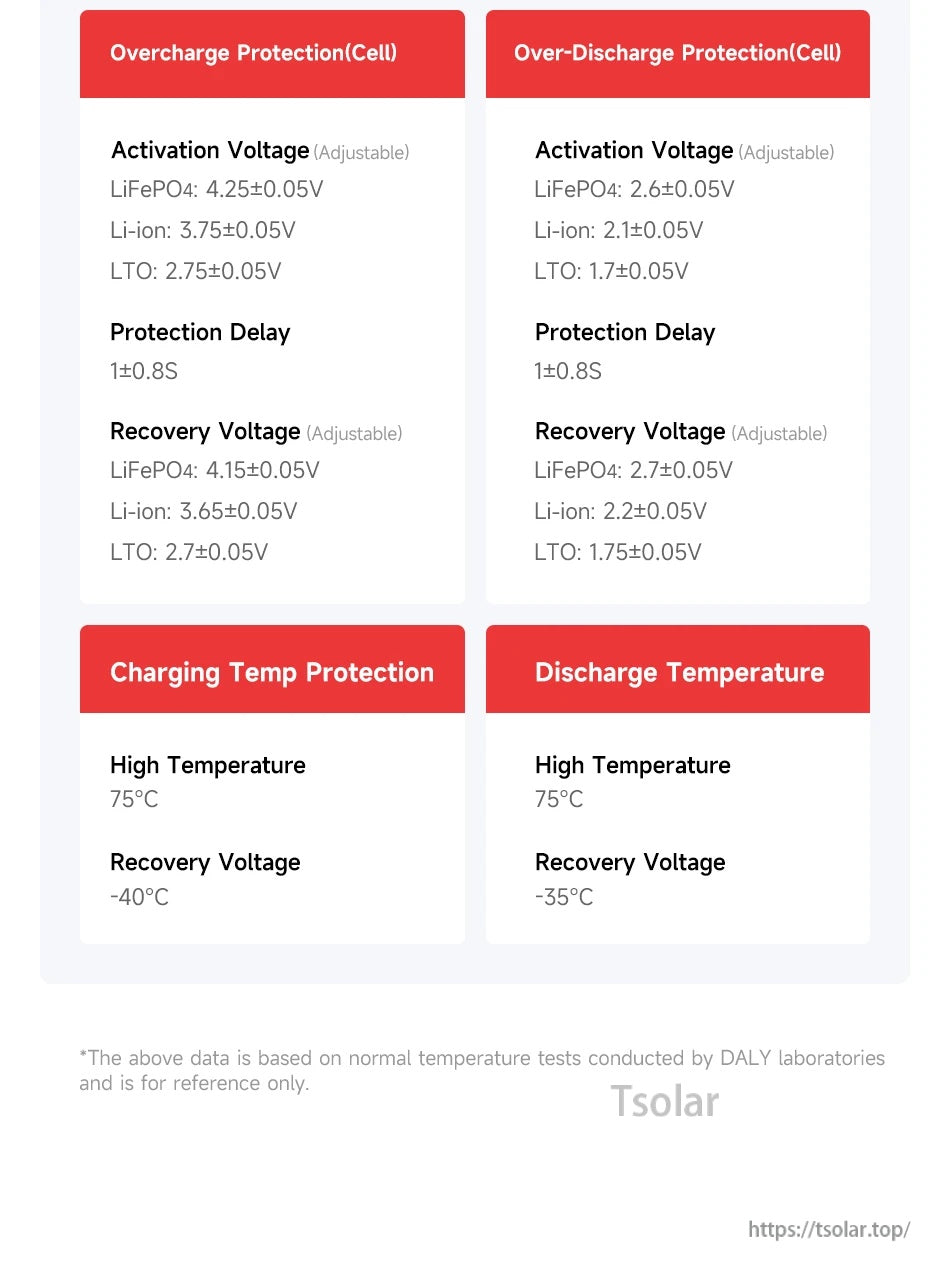

Cell protection thresholds and temperature limits are configurable by chemistry, helping tailor behavior to Li-ion, LiFePO4, or LTO packs.

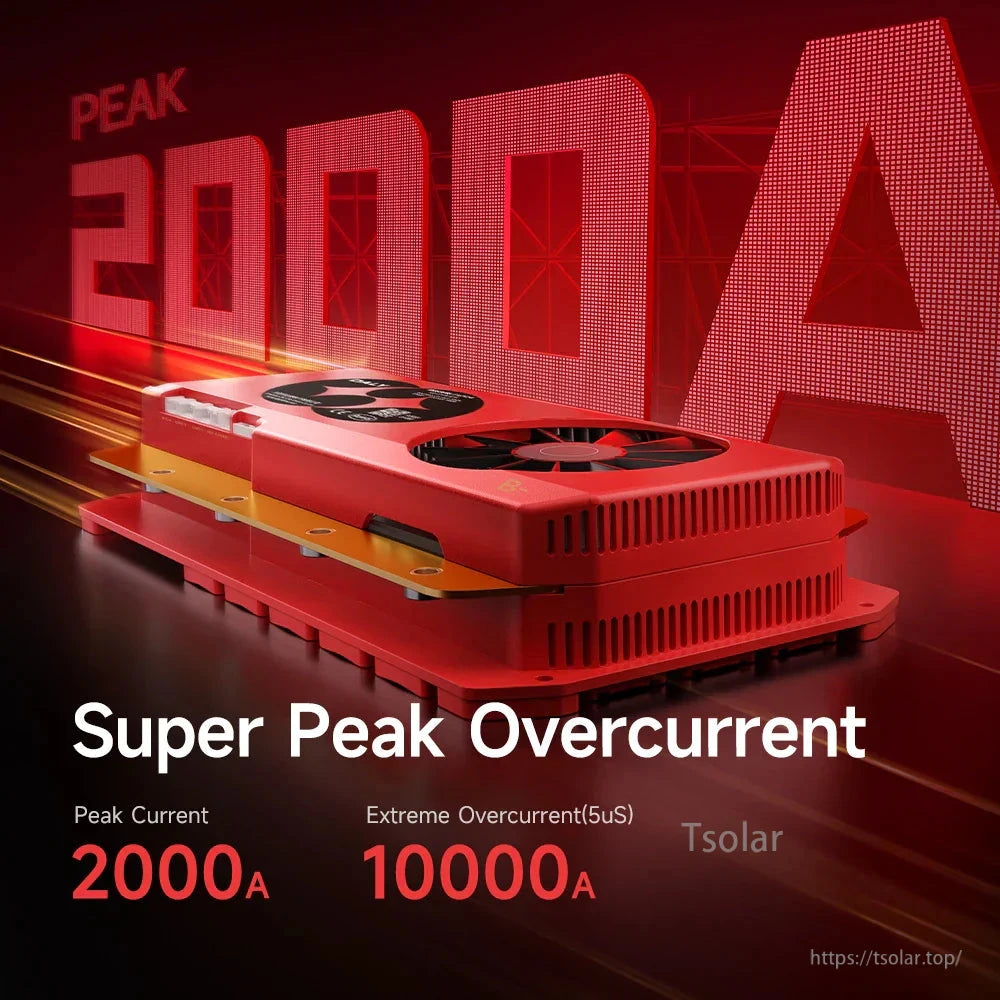

High surge handling supports demanding loads with peak and short-duration extreme overcurrent capabilities.

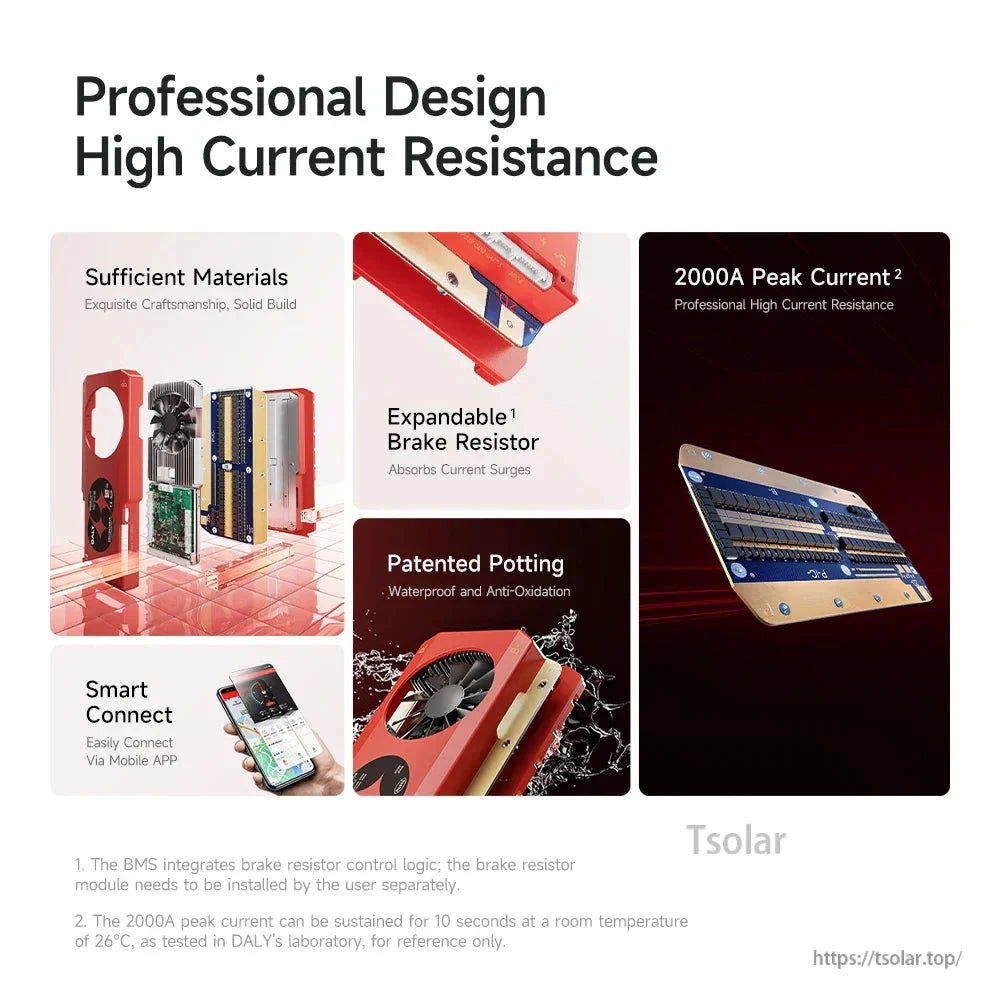

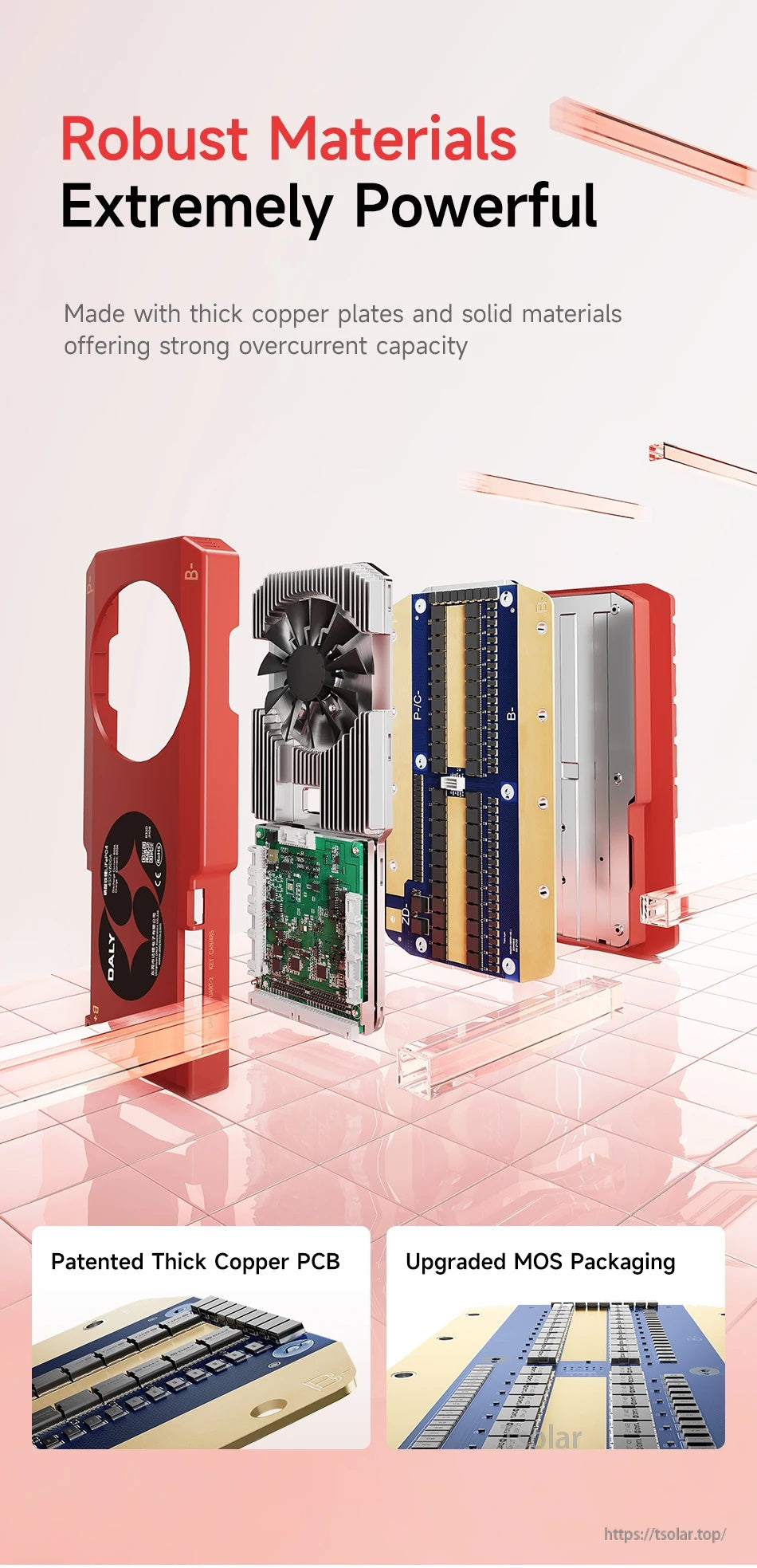

Thick copper conductors and reinforced power components are used to support ultra-high current flow with lower losses.
A practical fit for heavy-duty traction and industrial vehicles where sustained current and reliability matter most.

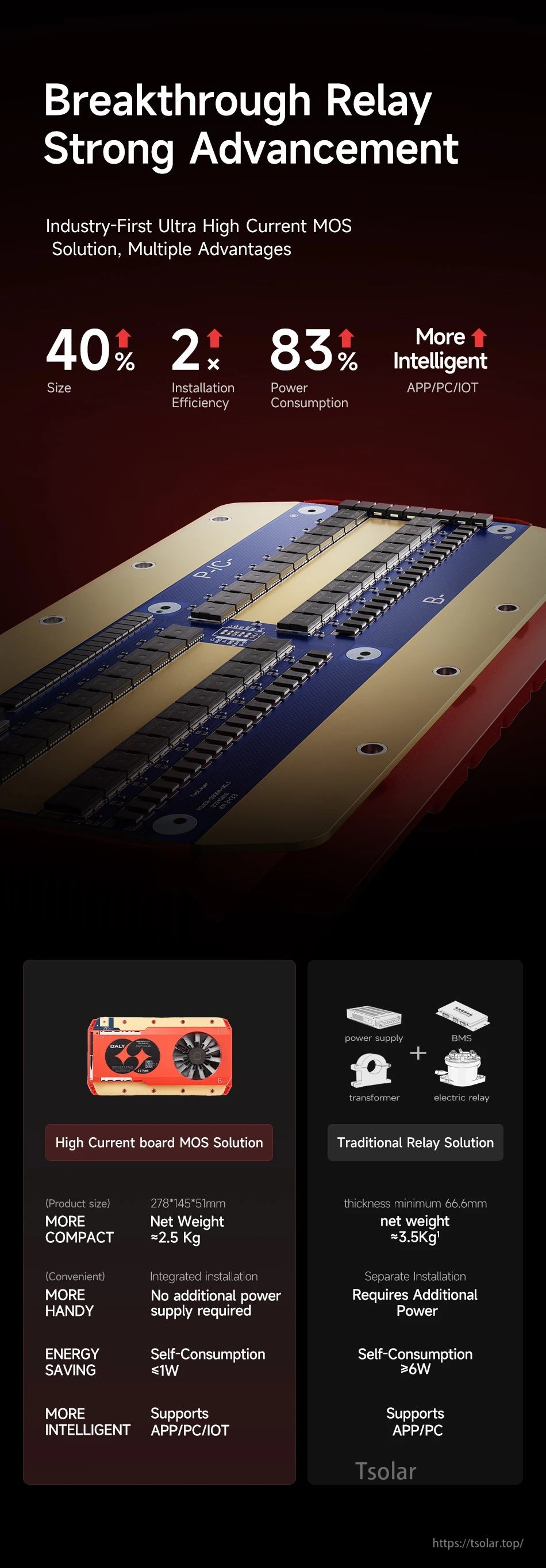

A compact MOS-based design reduces extra hardware needs while keeping system configuration accessible through smart tools.

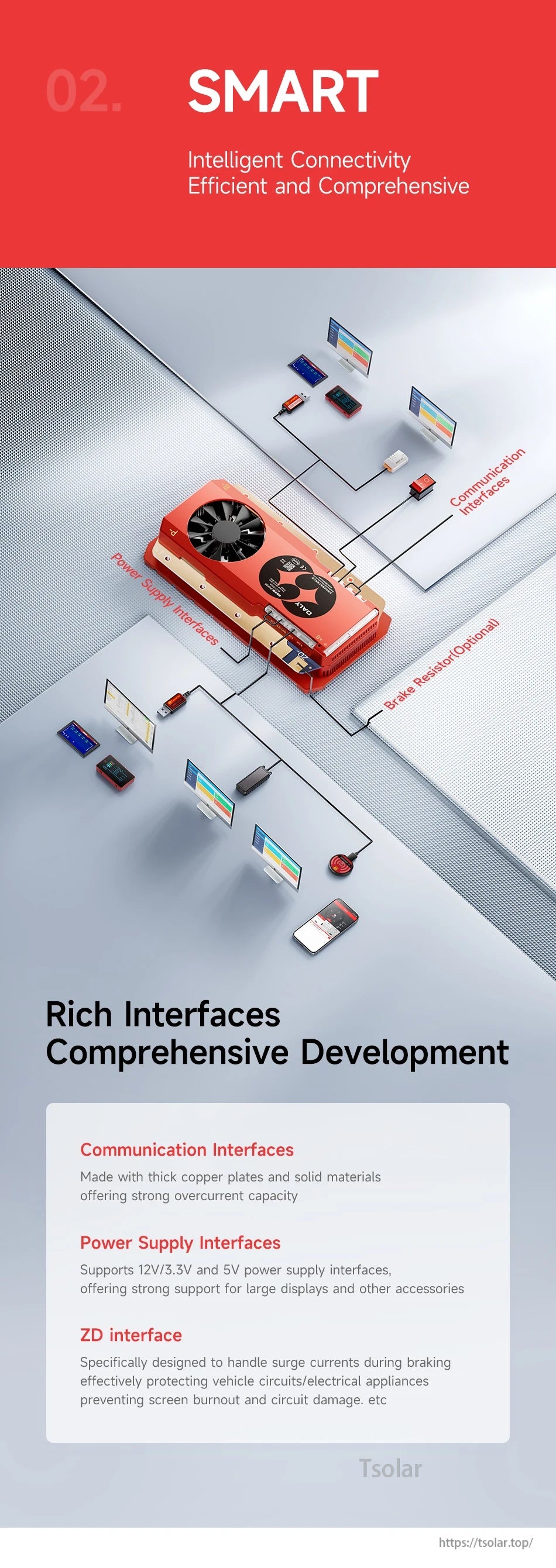

Multiple interfaces simplify integration with displays, controllers, and optional braking energy absorption hardware.

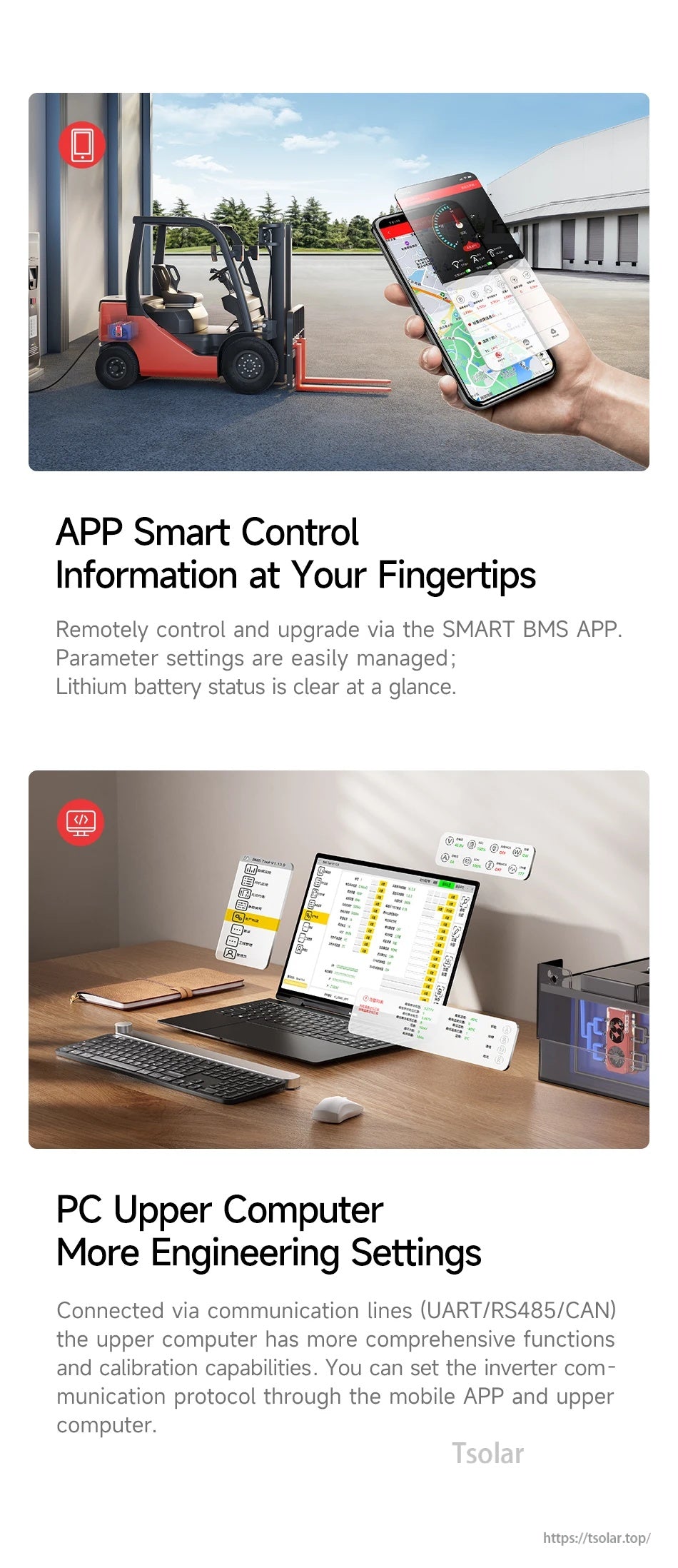

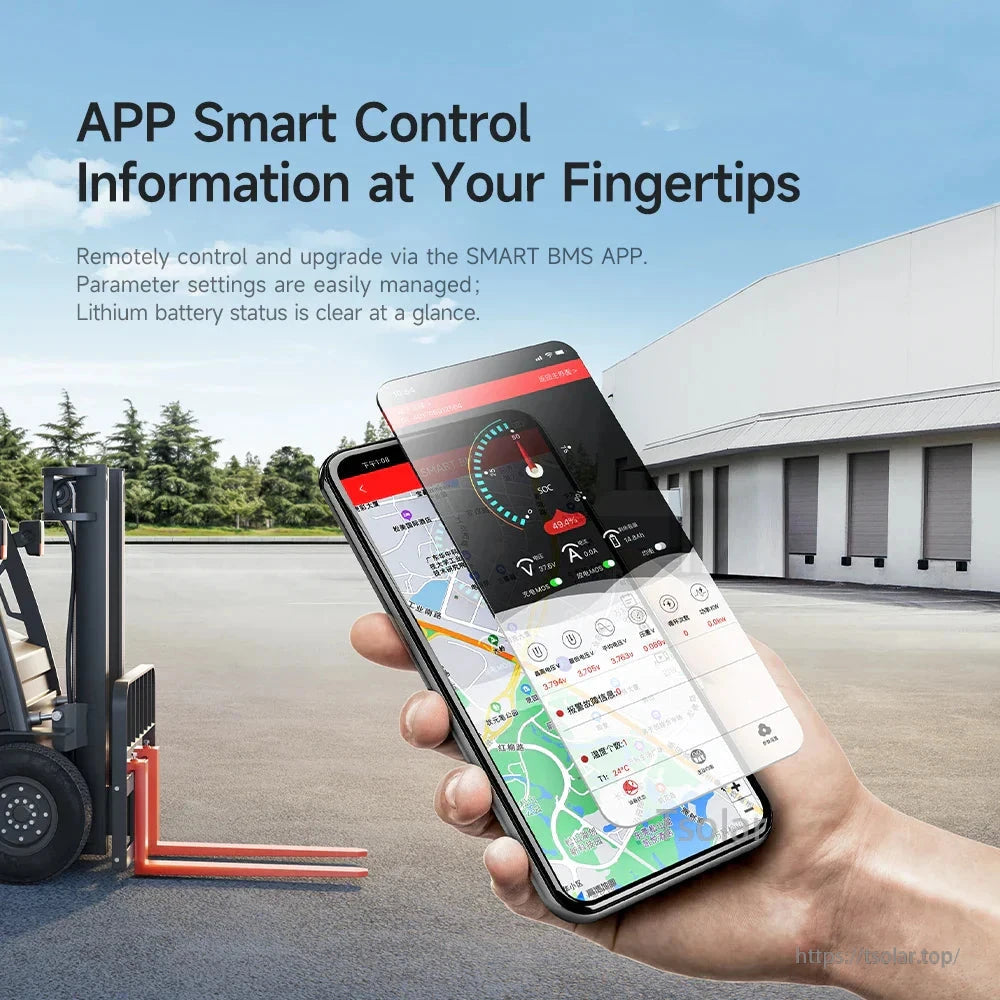

Manage parameters from a mobile app or PC software, with UART/RS485/CAN communication options depending on configuration.

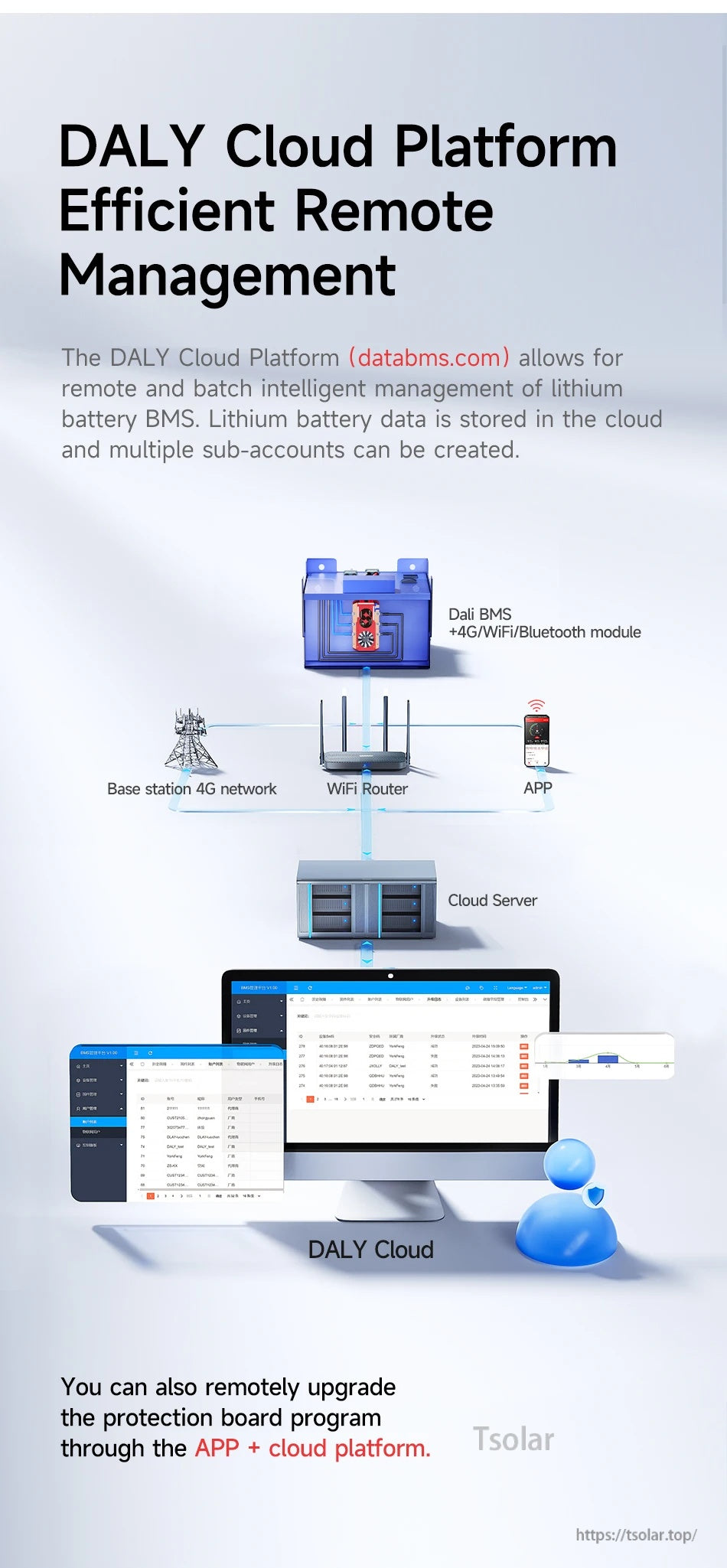

Remote management via DALY Cloud supports centralized monitoring and batch management when paired with a wireless communication module.

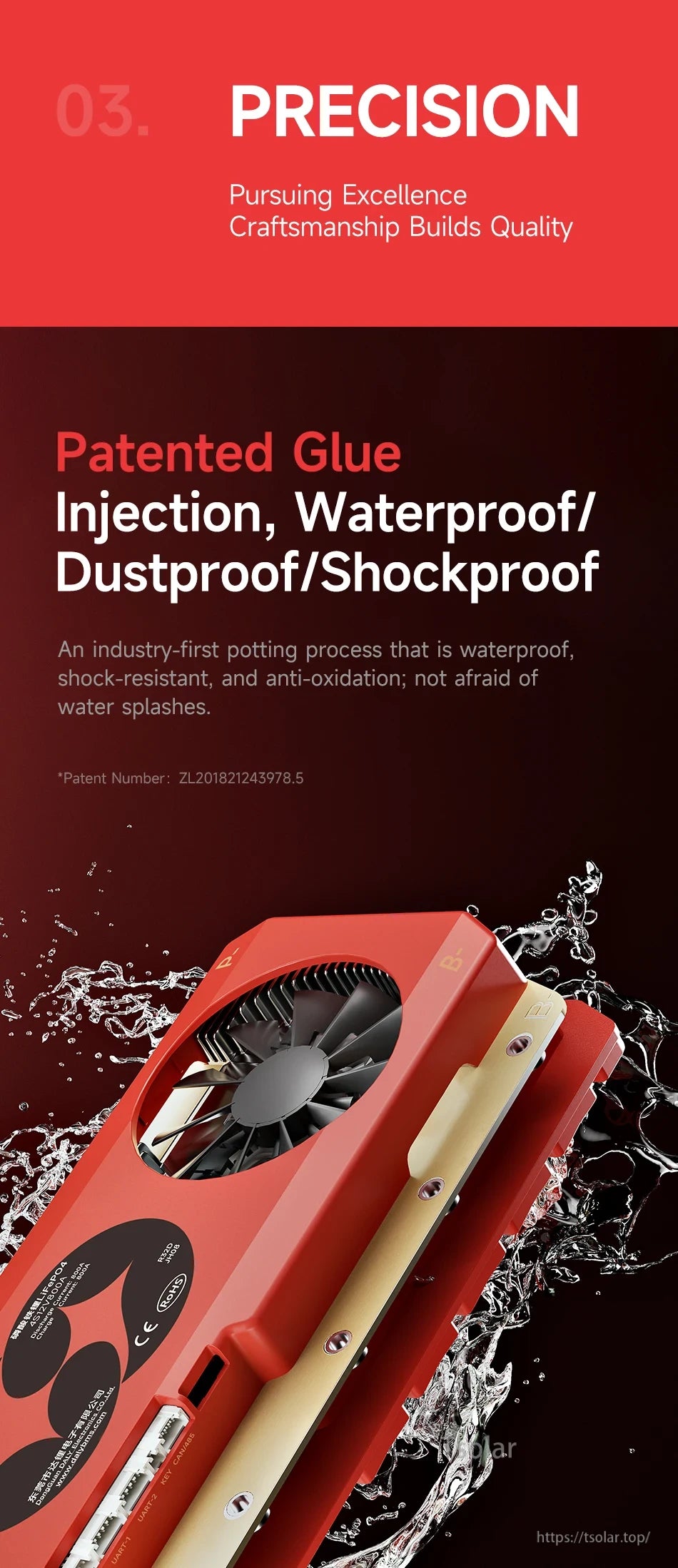

Glue-injection potting helps protect internal electronics against splashes, dust, vibration, and oxidation in tougher environments.

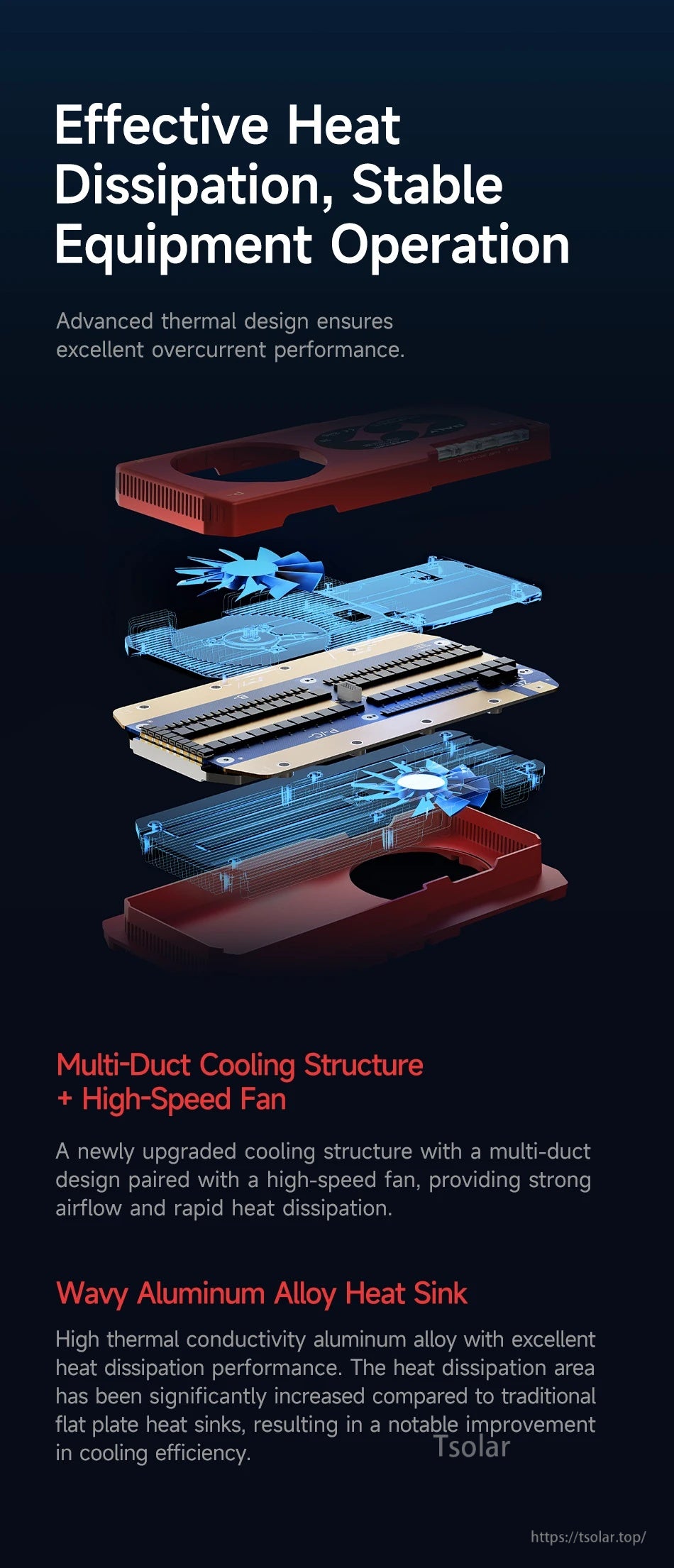

Active fan cooling and an aluminum heat sink help move heat away efficiently during high-current charge and discharge.
Included accessories support installation and basic connectivity; confirm the exact bundle contents for the selected option.

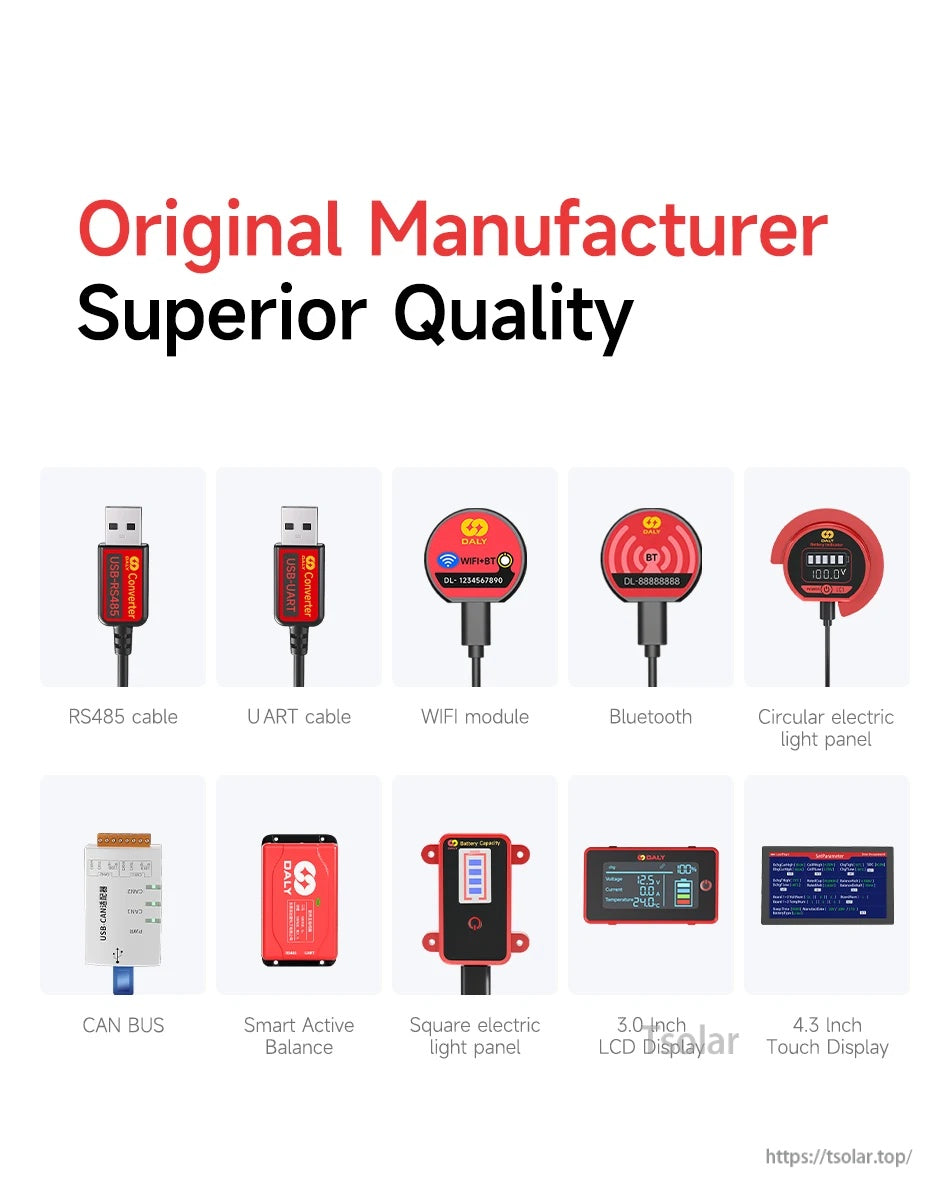

Expand system monitoring with optional communication cables, wireless modules, and display panels based on your build requirements.

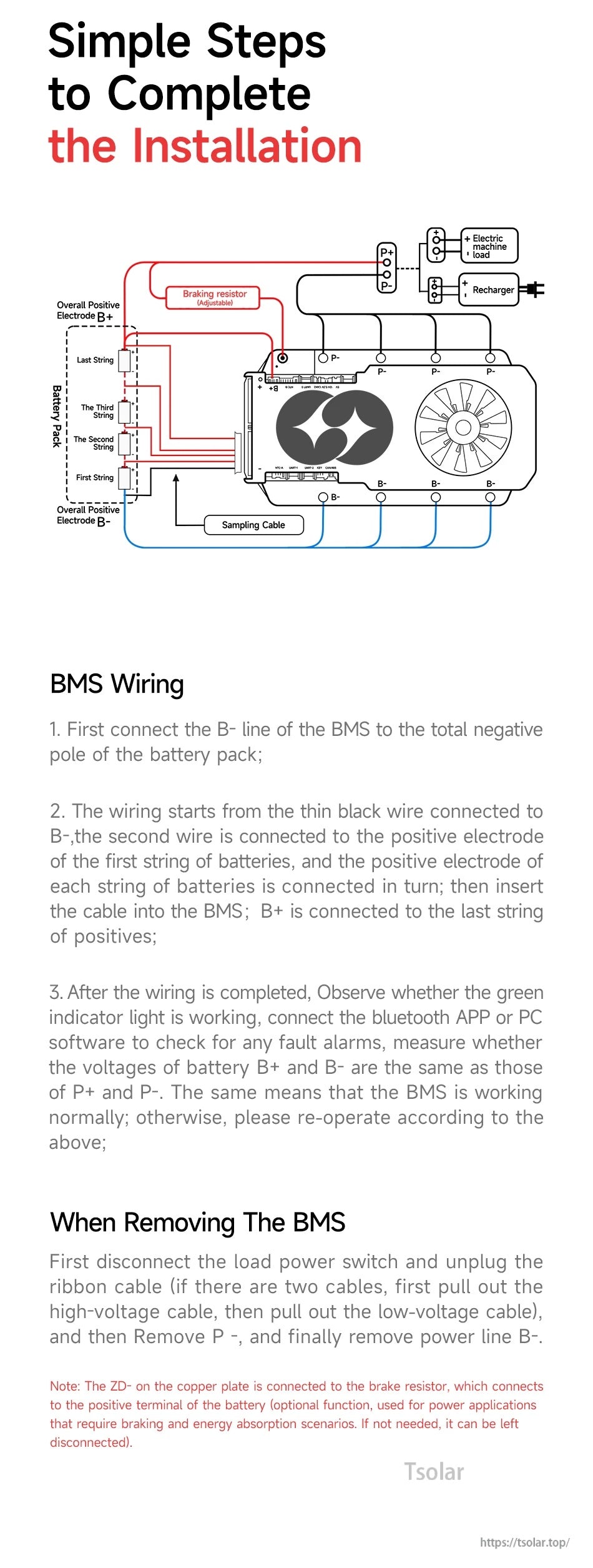

Follow the recommended sampling-wire order and terminal connections to complete installation and enable optional brake-resistor functionality.
Engineering teams and test facilities support continual improvements in high-current BMS design and validation.
DALY uses an intelligent production base and hands-on quality control during BMS manufacturing.

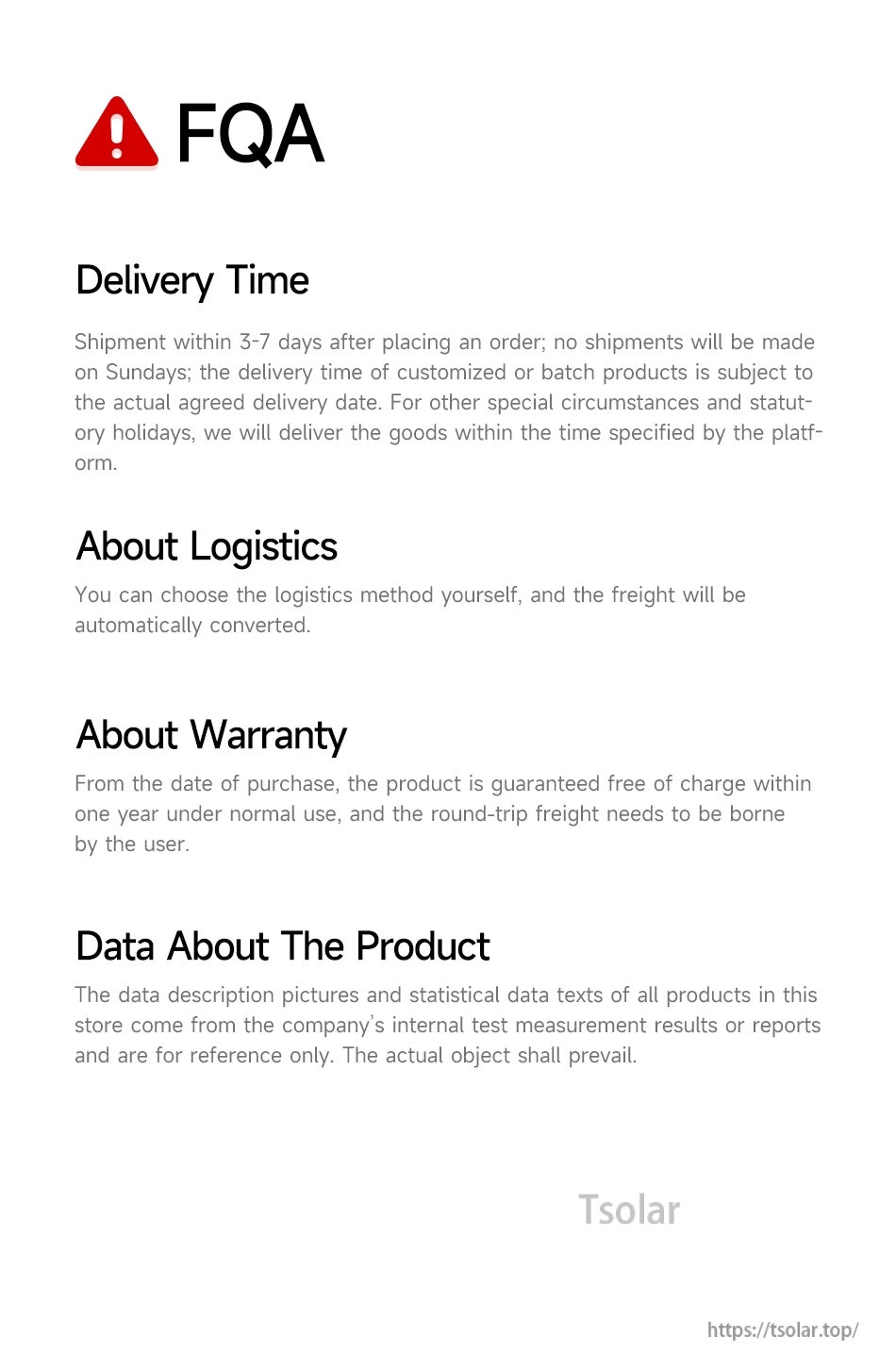

Orders typically ship within 3–7 days after purchase, with no shipments on Sundays, and the product includes a one-year warranty under normal use.
