Overview

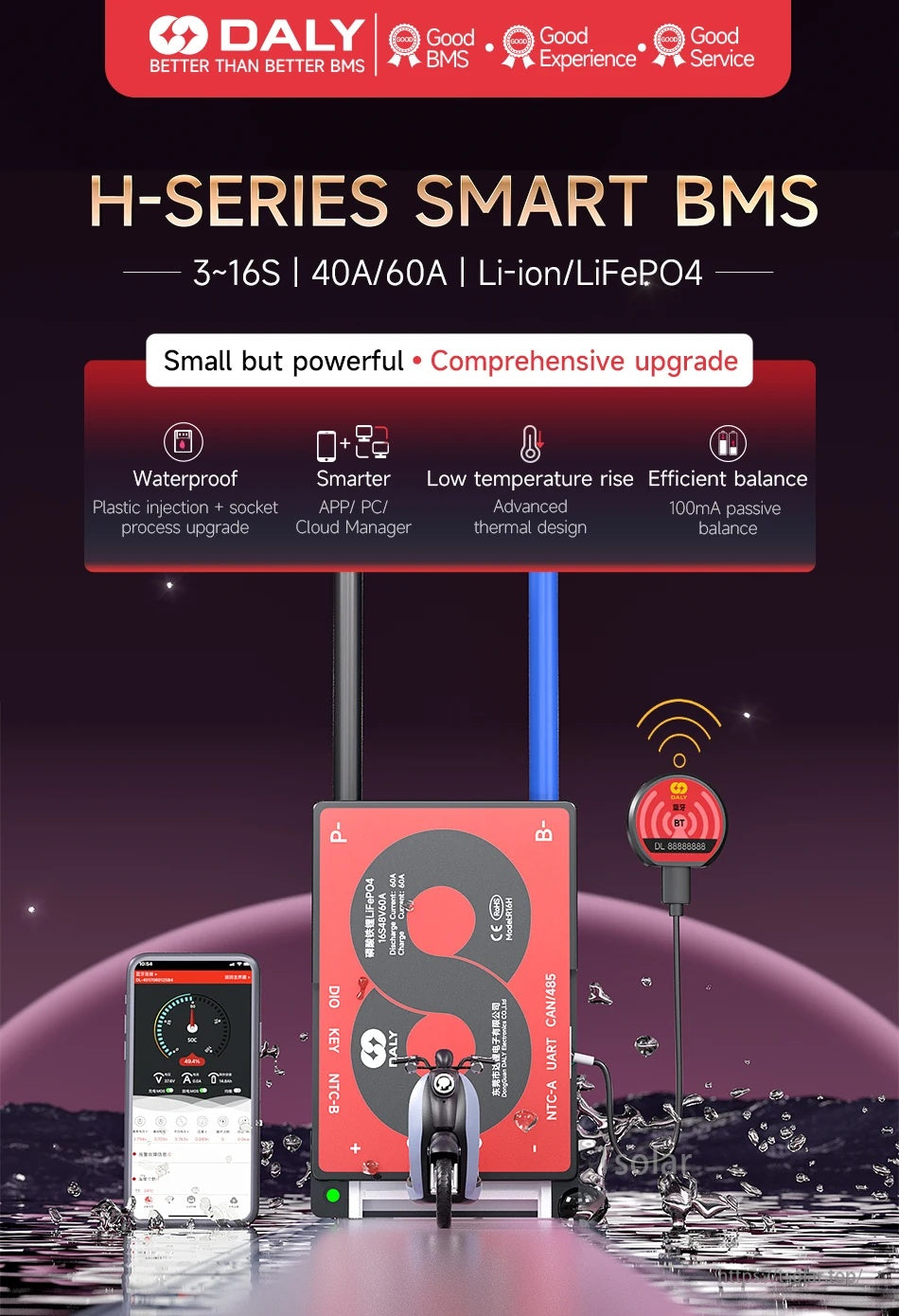

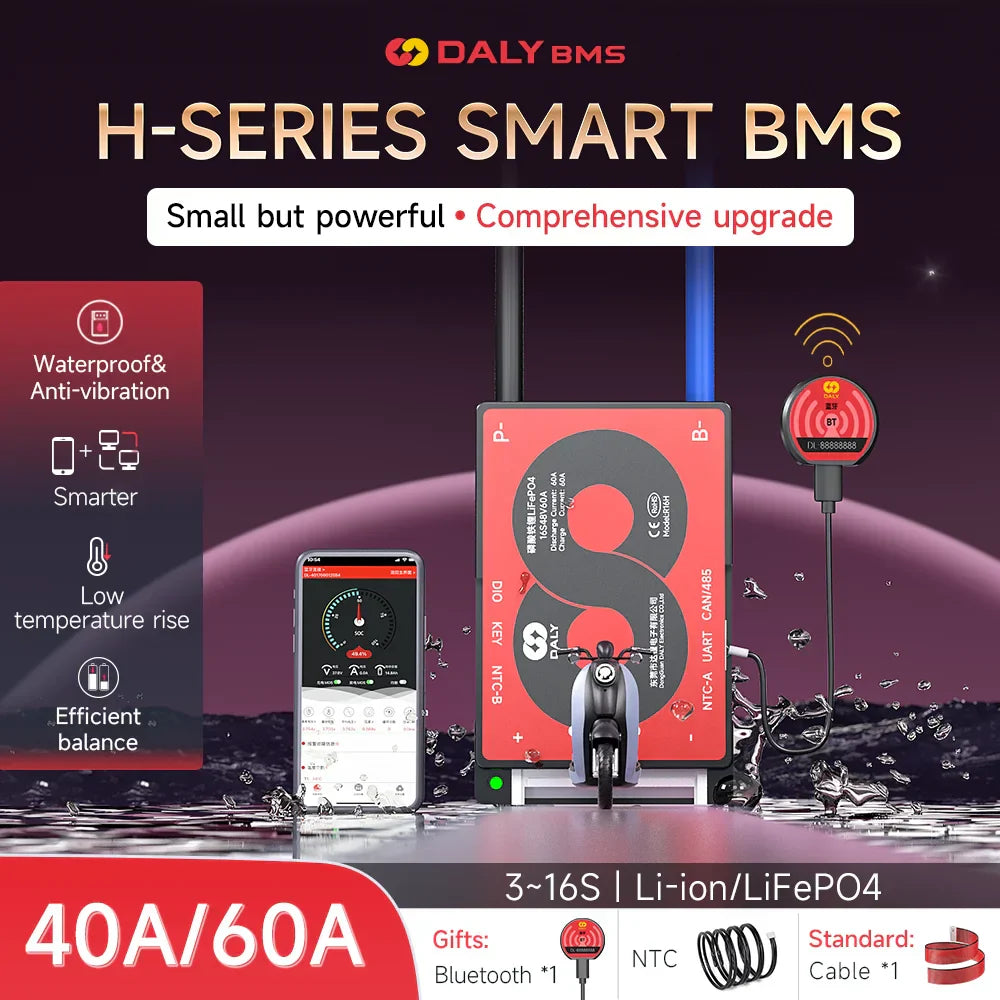

Daly SMART H SERIES Smart BMS for lithium battery packs, supporting Li-ion/LiFePO4 and 3–16S configurations with 40A or 60A versions. This BMS is designed for comprehensive protection, intelligent monitoring, and passive balancing for a range of lithium battery applications.
Please pay attention: This version BMS cannot be used with old accessories together. They are incompatible.
Key Features
- Supported battery types: Li-ion / LiFePO4
- Supported series count: 3–16S

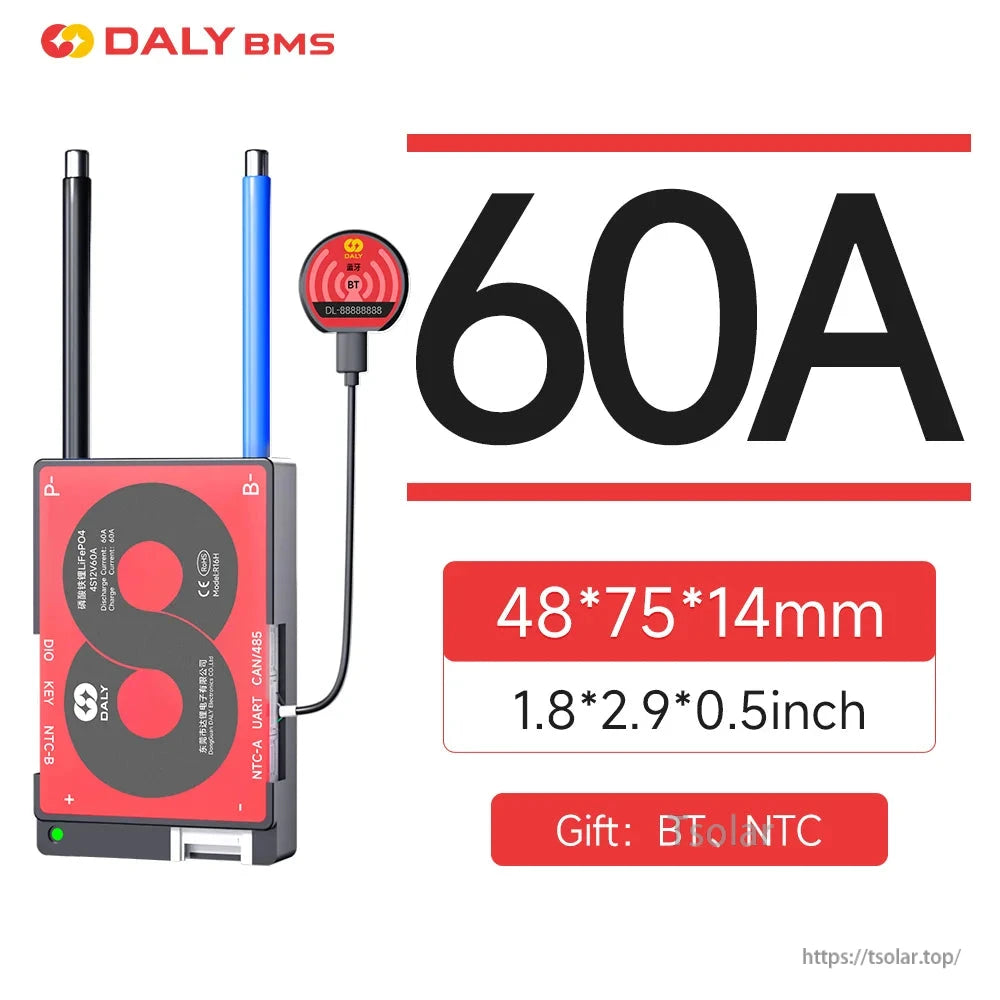

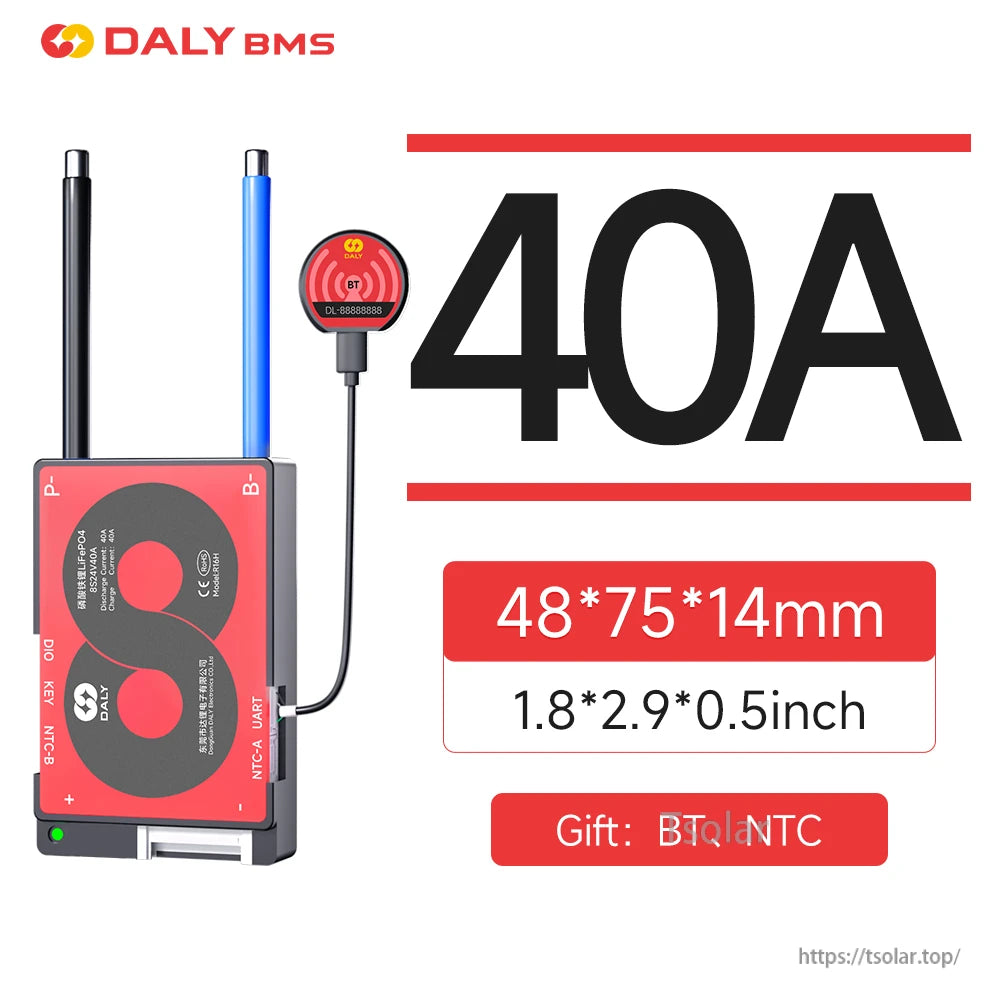

- Current versions: 40A / 60A
- Communication interfaces: CAN, RS485, UART
- Smart monitoring options: APP / PC / Cloud Manager
- Balancing: 100mA passive balance (passive equalization function: 100±30mA)
- Design notes shown: Waterproof (plastic injection + socket process upgrade), low temperature rise (advanced thermal design)
- APP notes shown: Supports iOS and Android systems; supports 7 languages; supports local remote monitoring

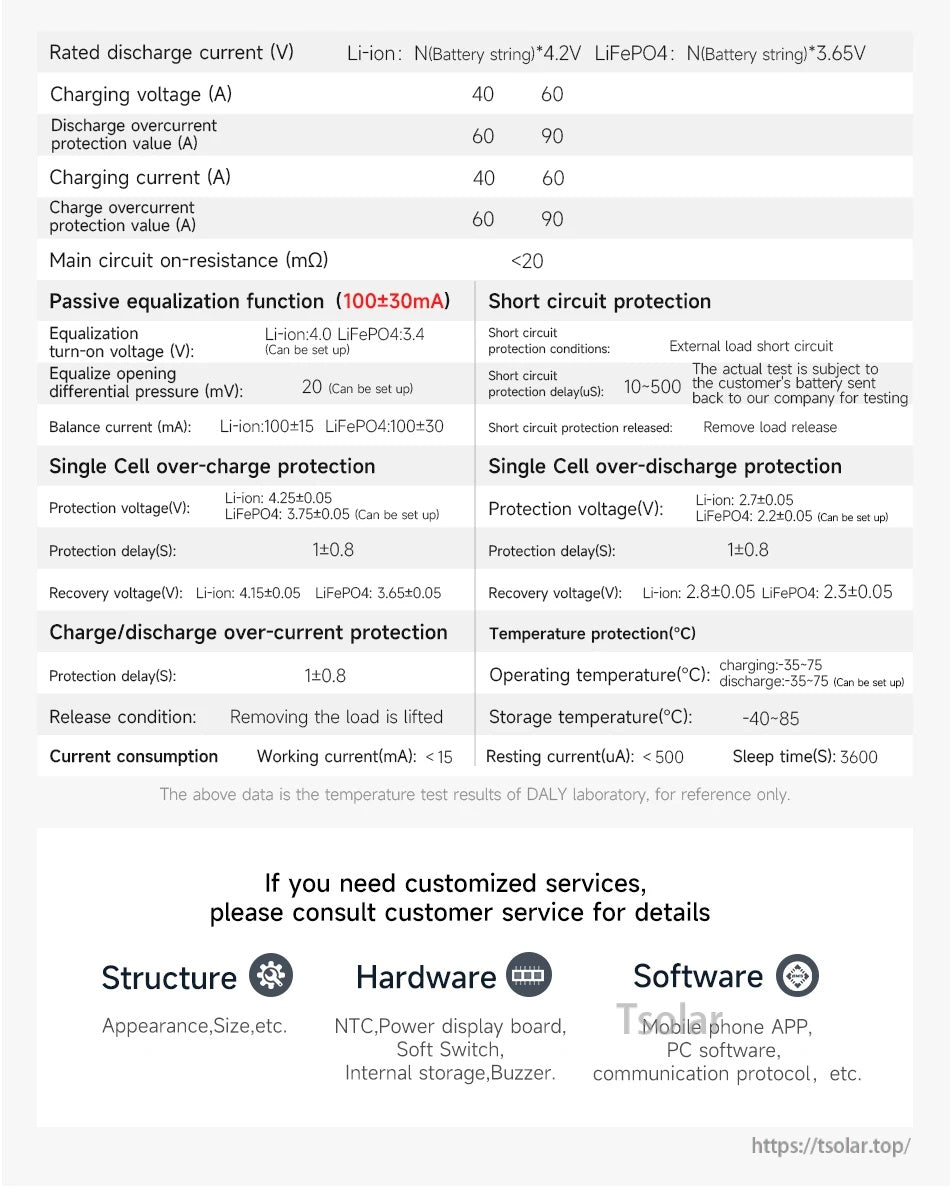

Specifications
| Product series | H-Series Smart BMS |
| Supported chemistry | Li-ion / LiFePO4 |
| Series range | 3–16S |
| Rated discharge voltage (V) | Li-ion: N(Battery string) * 4.2V; LiFePO4: N(Battery string) * 3.65V |
| Charging voltage (A) | 40 / 60 |
| Discharge overcurrent protection value (A) | 60 / 90 |
| Charging current (A) | 40 / 60 |
| Charge overcurrent protection value (A) | 60 / 90 |
| Main circuit on-resistance (mΩ) | < 20 |
| Passive equalization function | 100±30mA |
| Equalization turn-on voltage (V) | Li-ion: 4.0; LiFePO4: 3.4 (can be set up) |
| Equalize opening differential pressure (mV) | 20 (can be set up) |
| Balance current (mA) | Li-ion: 100±15; LiFePO4: 100±30 |
| Single cell over-charge protection voltage (V) | Li-ion: 4.25±0.05; LiFePO4: 3.75±0.05 (can be set up) |
| Single cell over-charge protection delay (S) | 1±0.8 |
| Over-charge recovery voltage (V) | Li-ion: 4.15±0.05; LiFePO4: 3.65±0.05 |
| Single cell over-discharge protection voltage (V) | Li-ion: 2.7±0.05; LiFePO4: 2.2±0.05 (can be set up) |
| Single cell over-discharge protection delay (S) | 1±0.8 |
| Over-discharge recovery voltage (V) | Li-ion: 2.8±0.05; LiFePO4: 2.3±0.05 |
| Charge/discharge over-current protection delay (S) | 1±0.8 |
| Charge/discharge over-current release condition | Removing the load is lifted |
| Short circuit protection conditions | External load short circuit |
| Short circuit protection delay (uS) | 10–500 |
| Short circuit protection released | Remove load release |
| Operating temperature (°C) | Charging: -35–75; Discharge: -35–75 (can be set up) |
| Storage temperature (°C) | -40–85 |
| Working current (mA) | < 15 |
| Resting current (uA) | < 500 |
| Sleep time (S) | 3600 |
| Cable spec | 24AWG, 300–450mm (actual length based on actual object); dimensional data tolerance range: +0.5mm |
| Dimensions | 75mm x 48mm x 14mm |
| Lead length shown | 160mm |
Applications
- Prismatic cell battery packs
- Cylindrical cell battery packs
- Pouch cell battery packs
- Electric bikes
- Electric two-wheelers
- Electric tricycles
- Electric wheelchairs
- AGV
- Robots
- Portable power supplies
- Lead-to-lithium battery conversions
- Rental battery swap systems
For H-series BMS accessories and compatibility questions (this version is incompatible with old accessories), contact customer support at https://tsolar.top/ or service@tsolar.top before ordering.
Details
Monitor a 3–16S lithium battery pack in real time with smart protection, waterproof housing, and 100mA passive balancing.

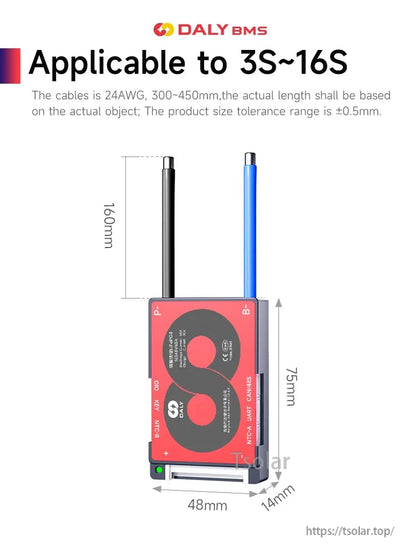

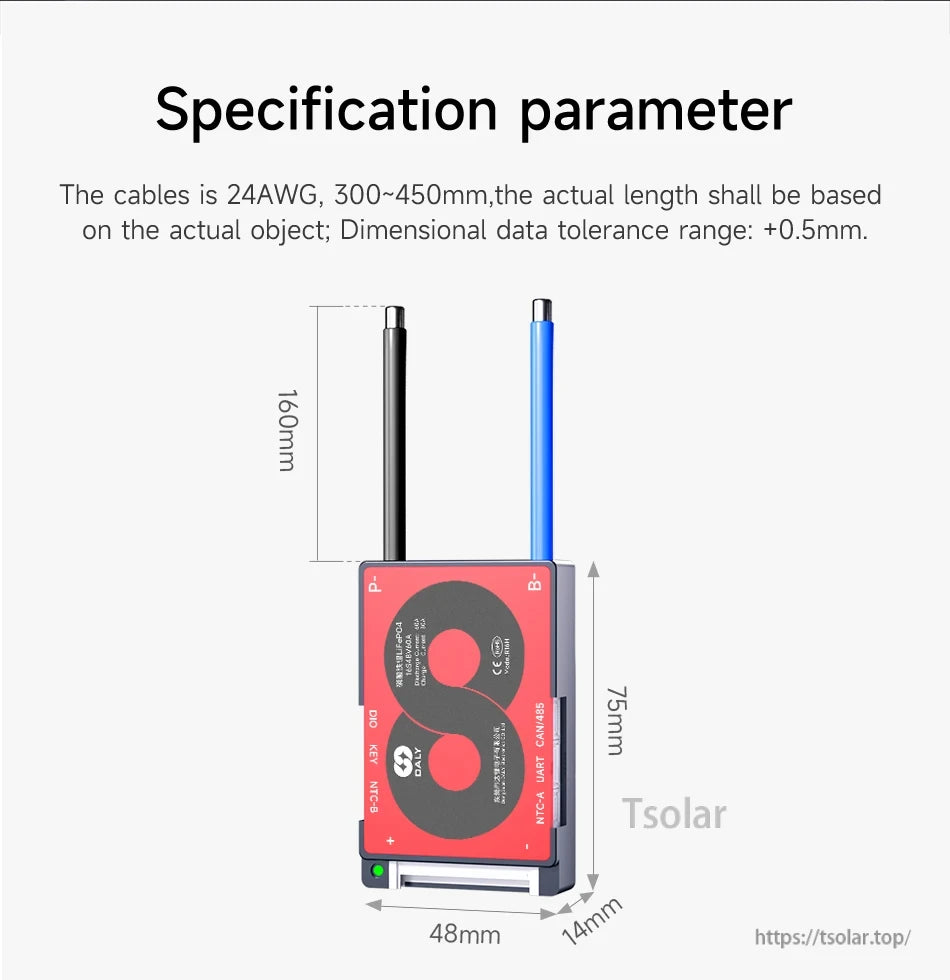

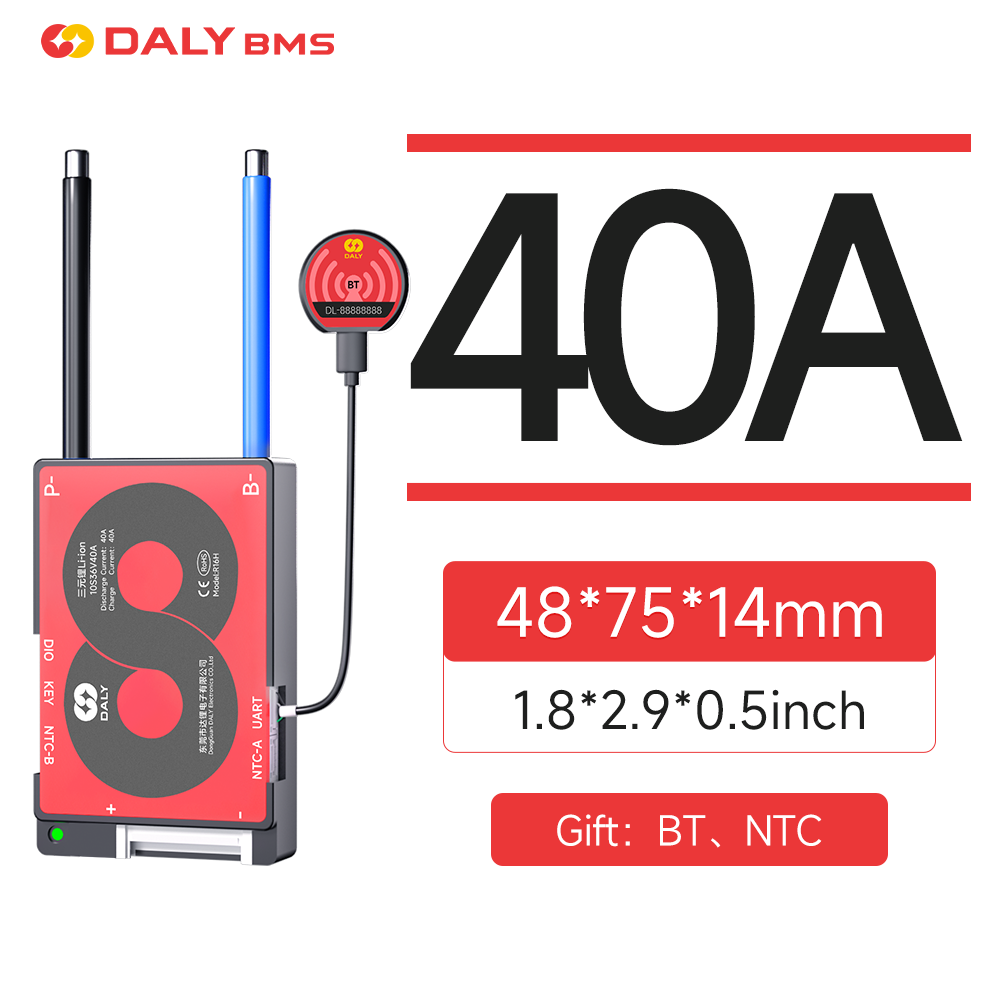

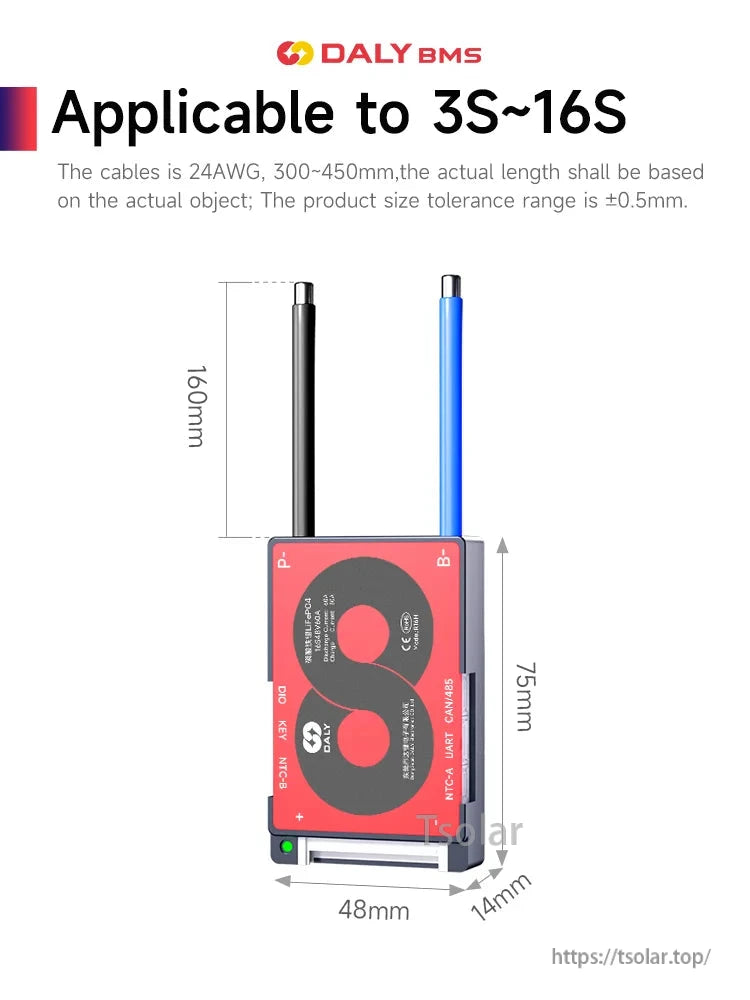

A compact 75×48×14mm footprint helps save space in custom battery packs; cable length is typically 300–450mm (24AWG).
Key electrical and protection parameters are summarized for quick selection between the 40A and 60A versions.

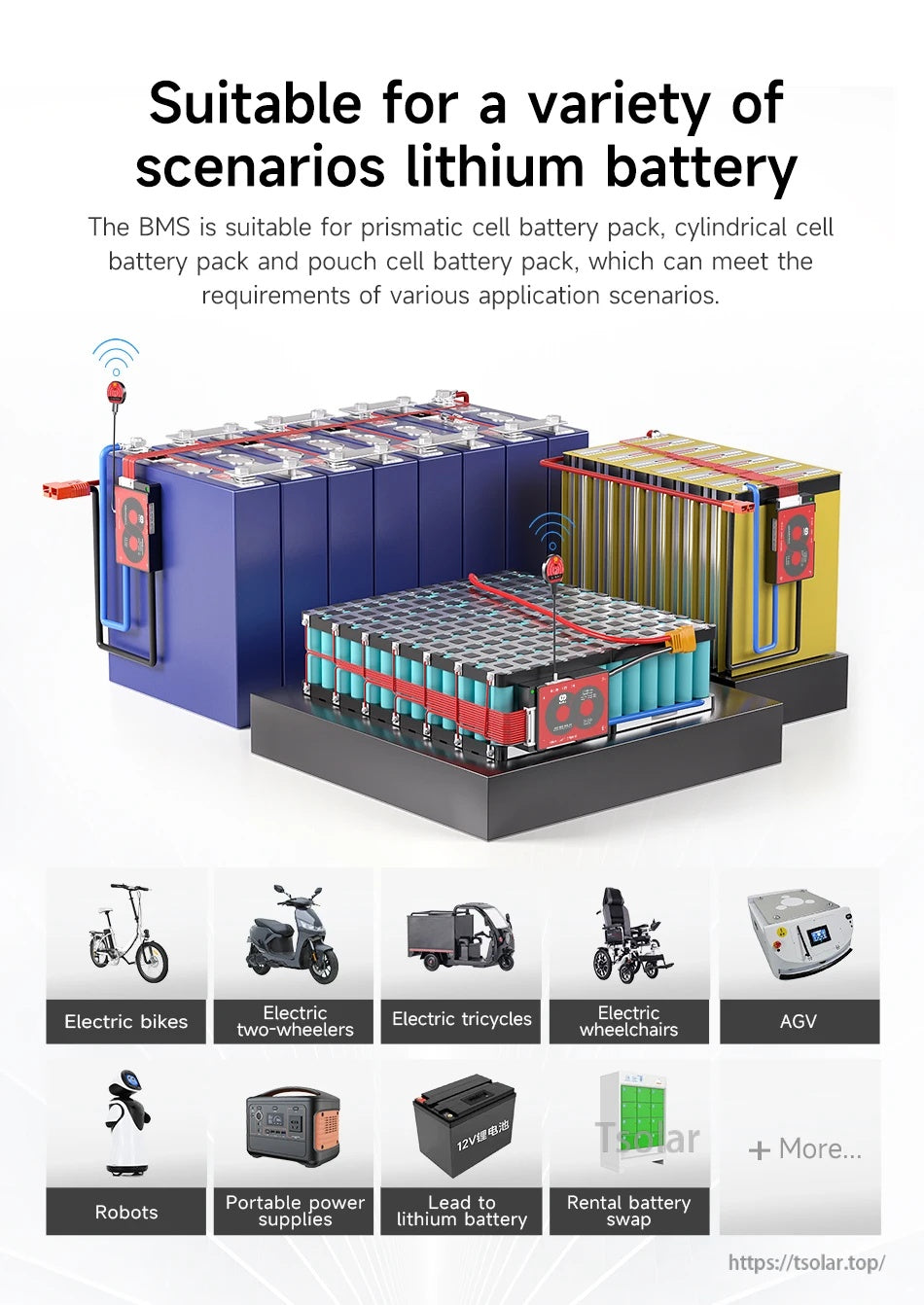

Suitable for common lithium pack formats—prismatic, cylindrical, or pouch—in applications like e-bikes, portable power, and AGVs.

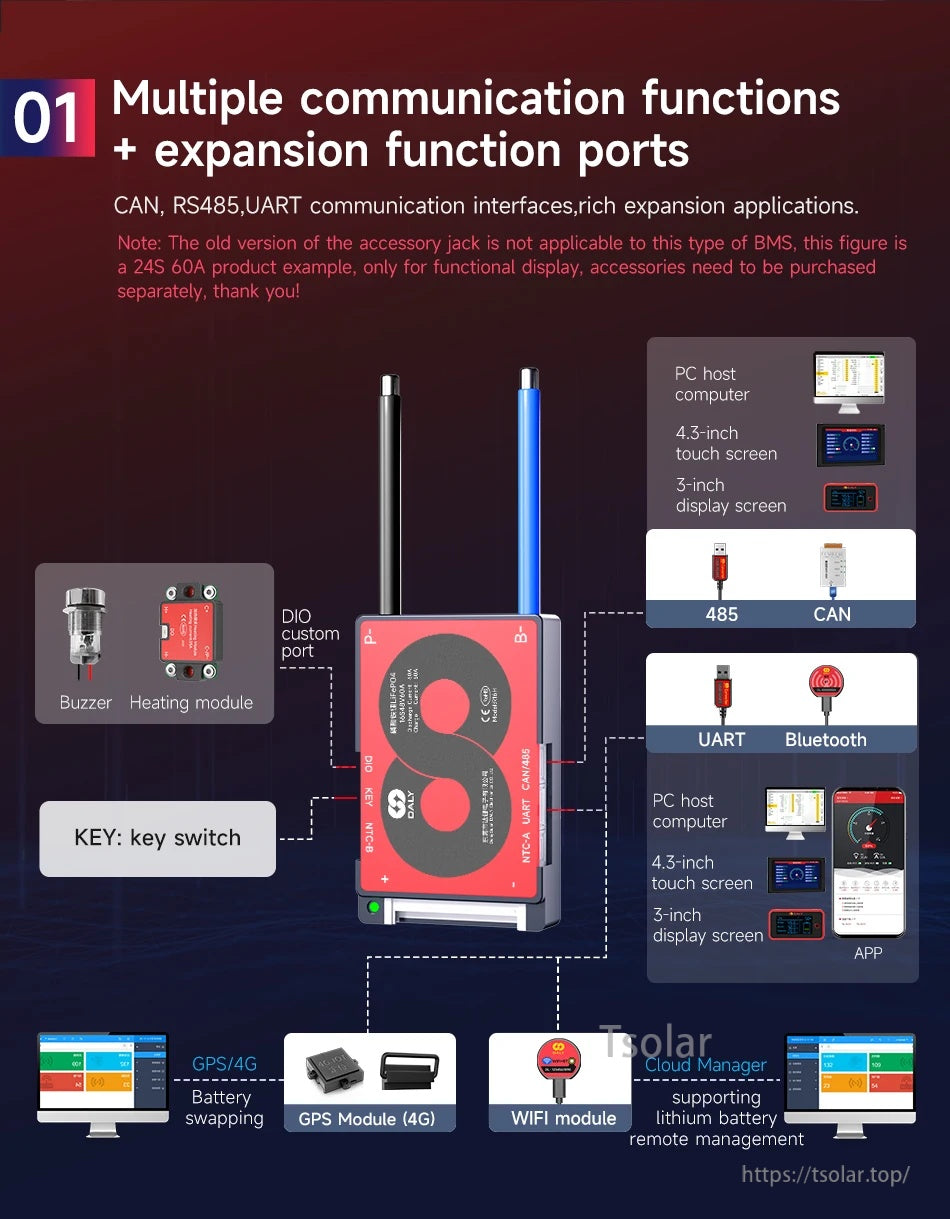

Multiple communication options (CAN, RS485, UART) support integrations such as Bluetooth, WiFi/4G modules, and PC tools—accessories may be purchased separately.

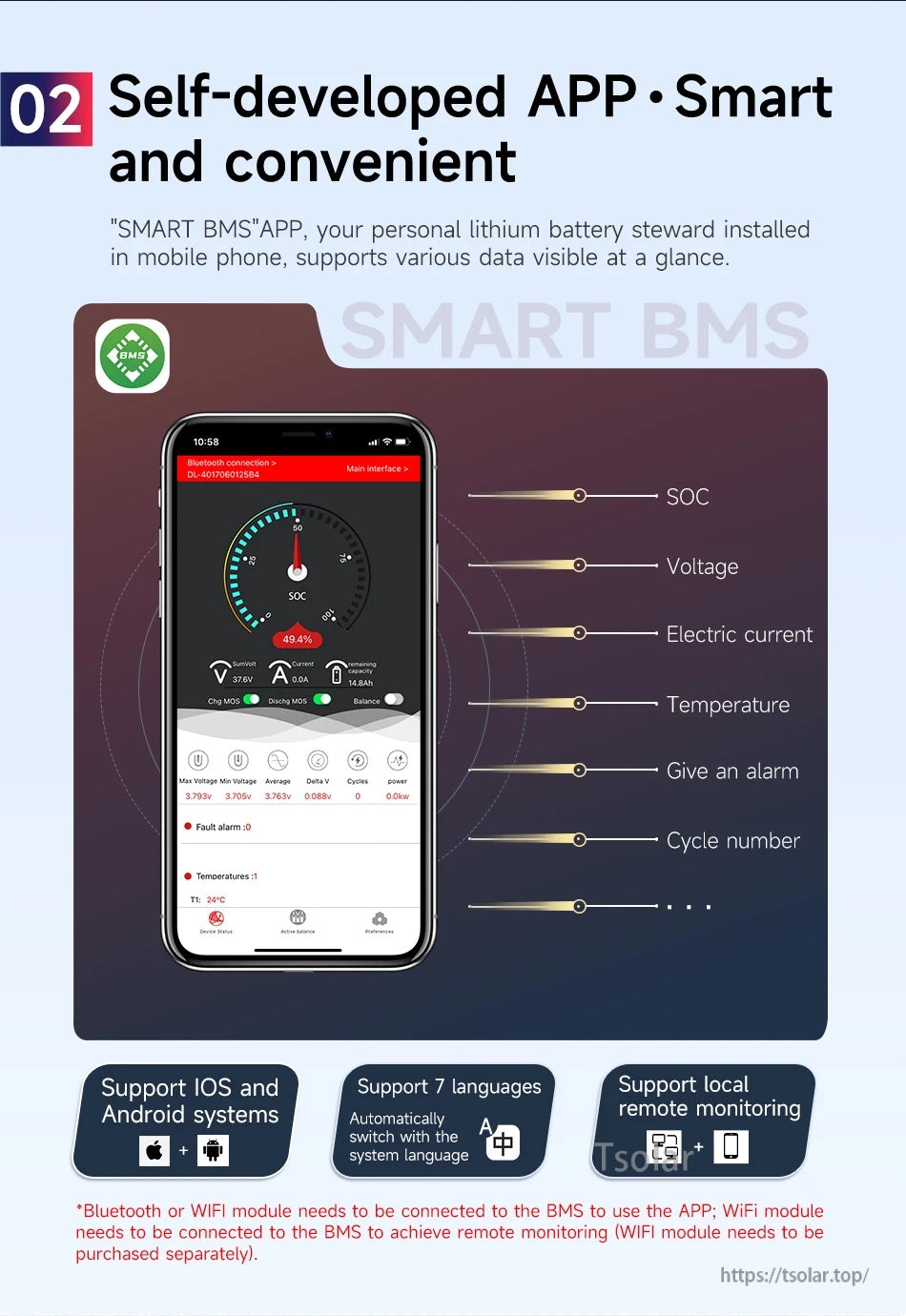

The SMART BMS app for iOS and Android displays SOC, voltage, current, temperature, alarms, and cycle data at a glance.

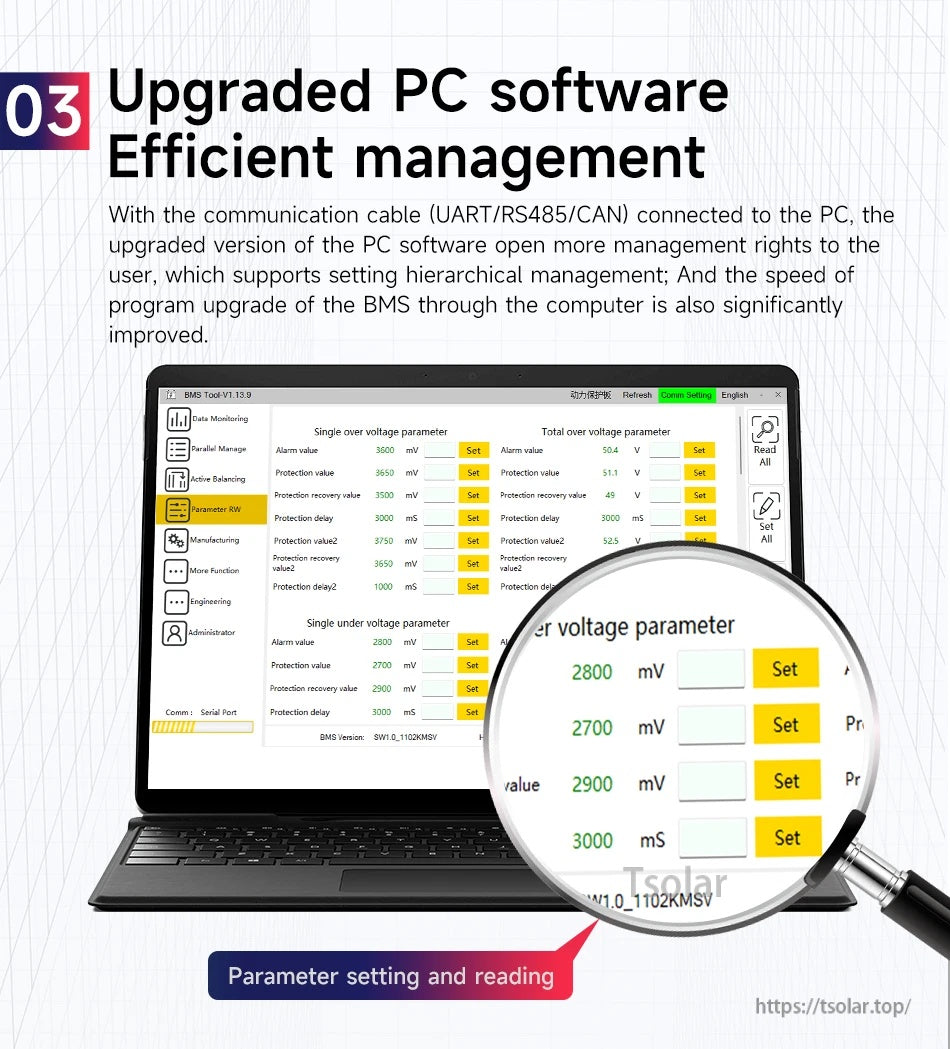

Use the PC software to read data and adjust key parameters when connected via UART/RS485/CAN.

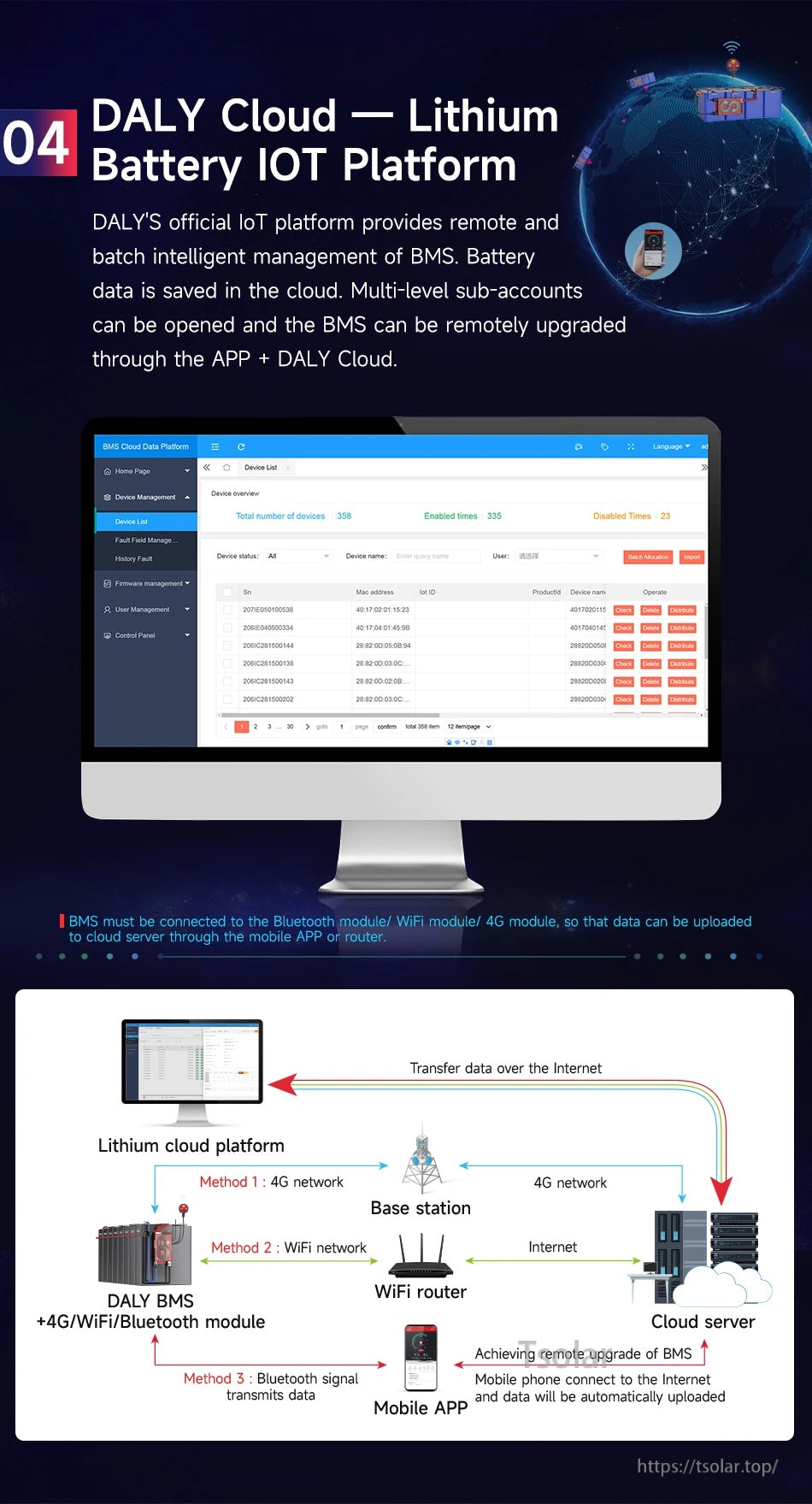

Daly Cloud enables remote fleet management and data logging when the BMS is connected through Bluetooth, WiFi, or 4G.

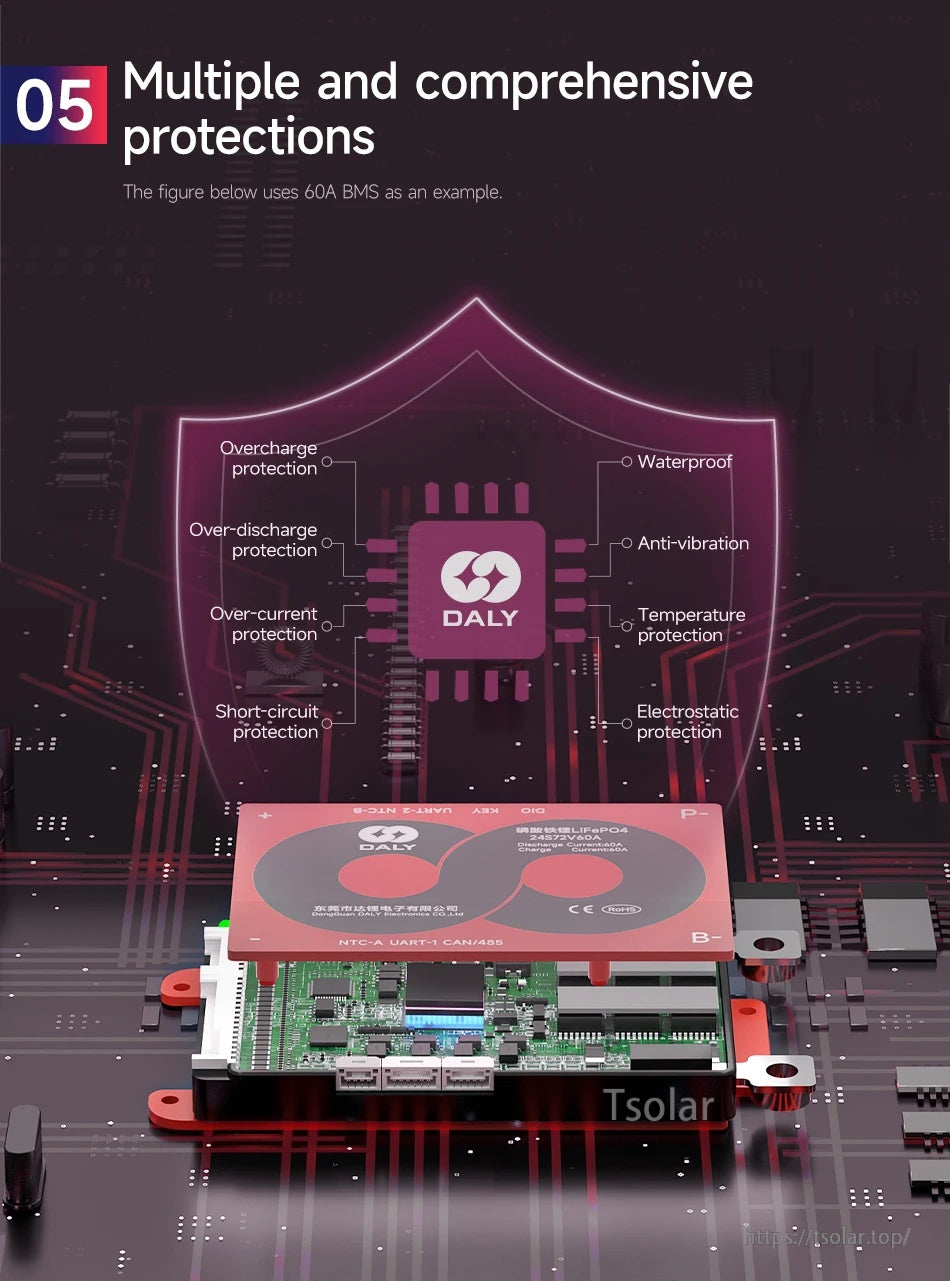

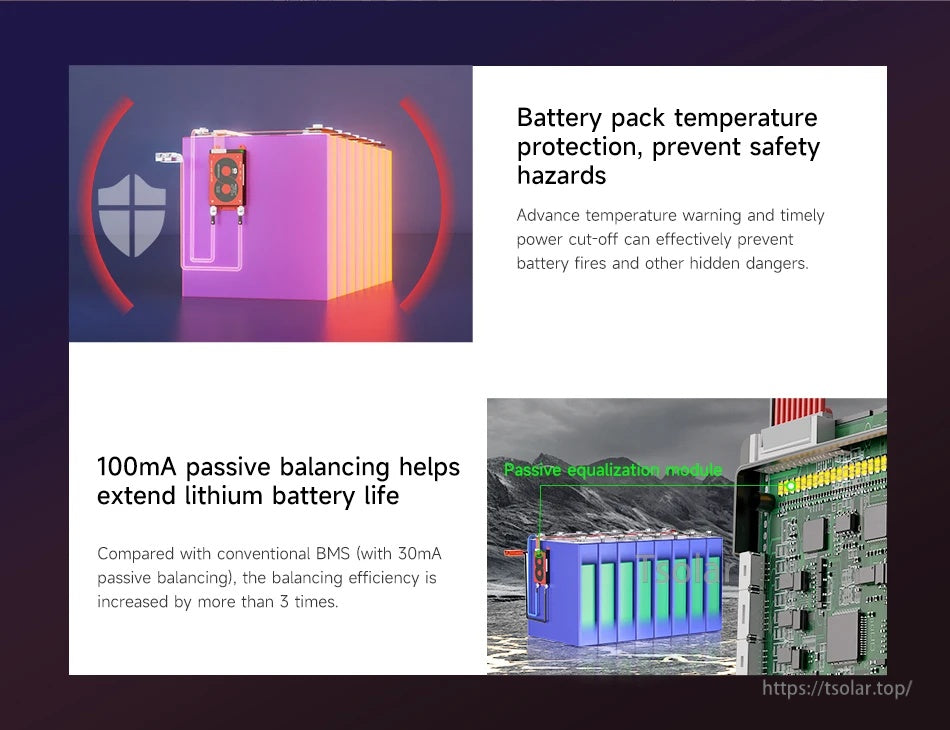

Built-in temperature protection and 100mA passive balancing help improve safety and keep cell voltages more consistent.

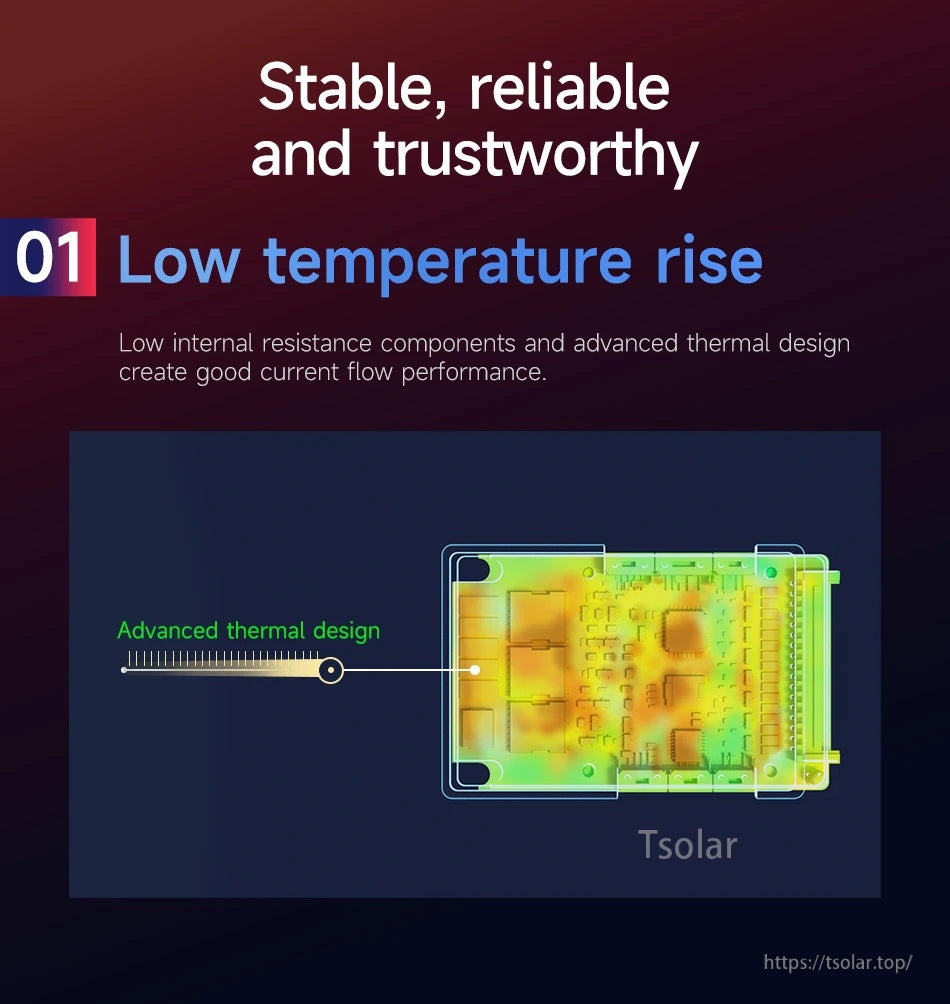

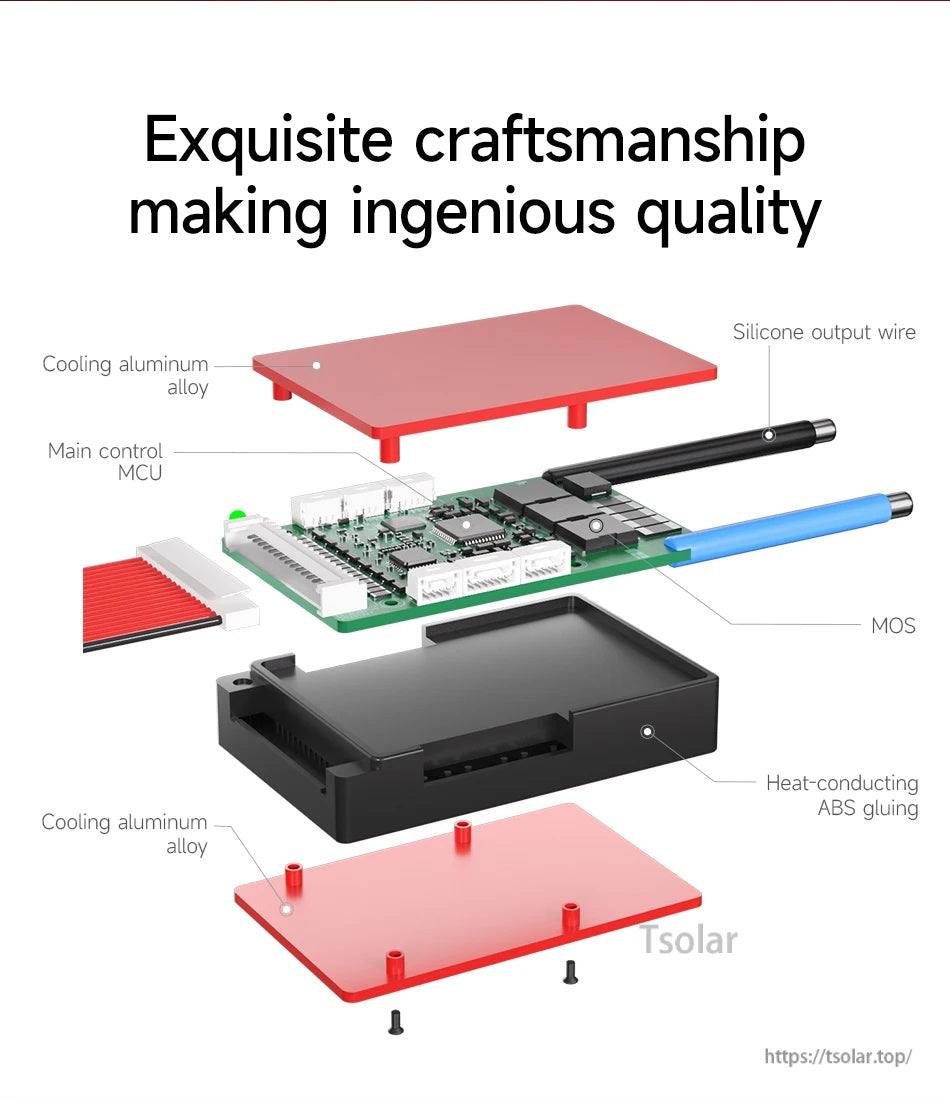

Advanced thermal design is intended to reduce temperature rise during charge and discharge.

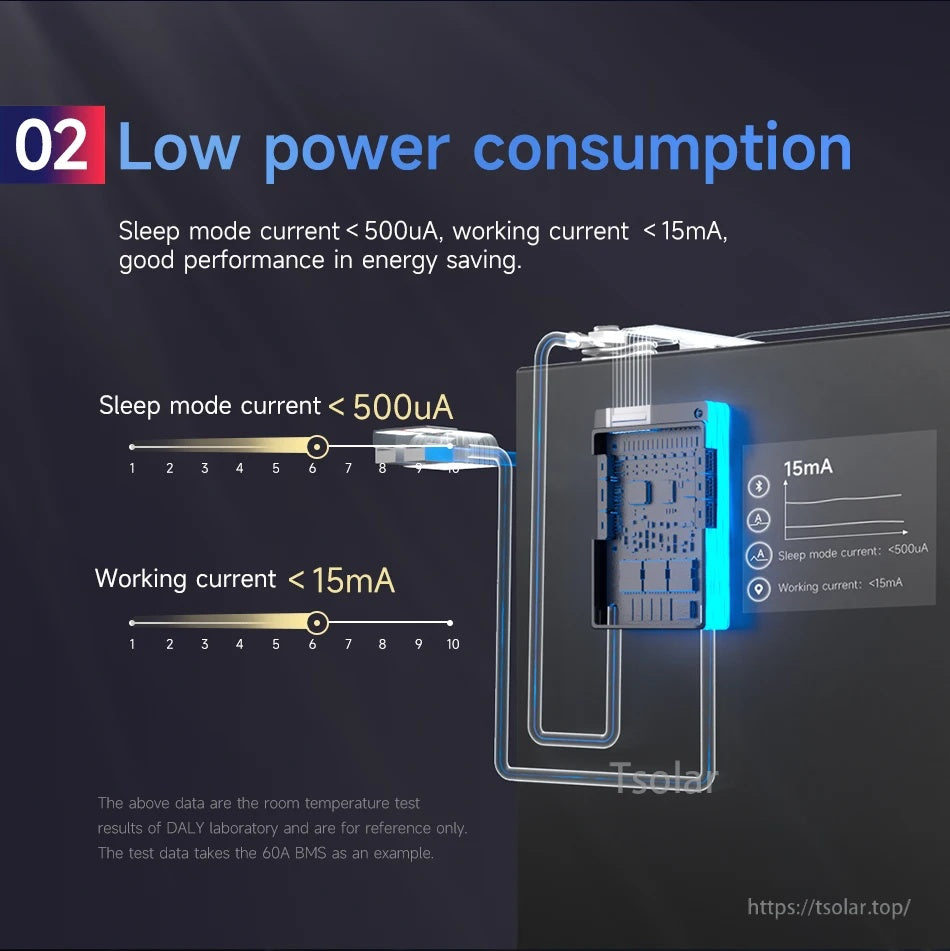

Low standby draw helps reduce battery drain, with sleep current under 500µA and working current under 15mA.

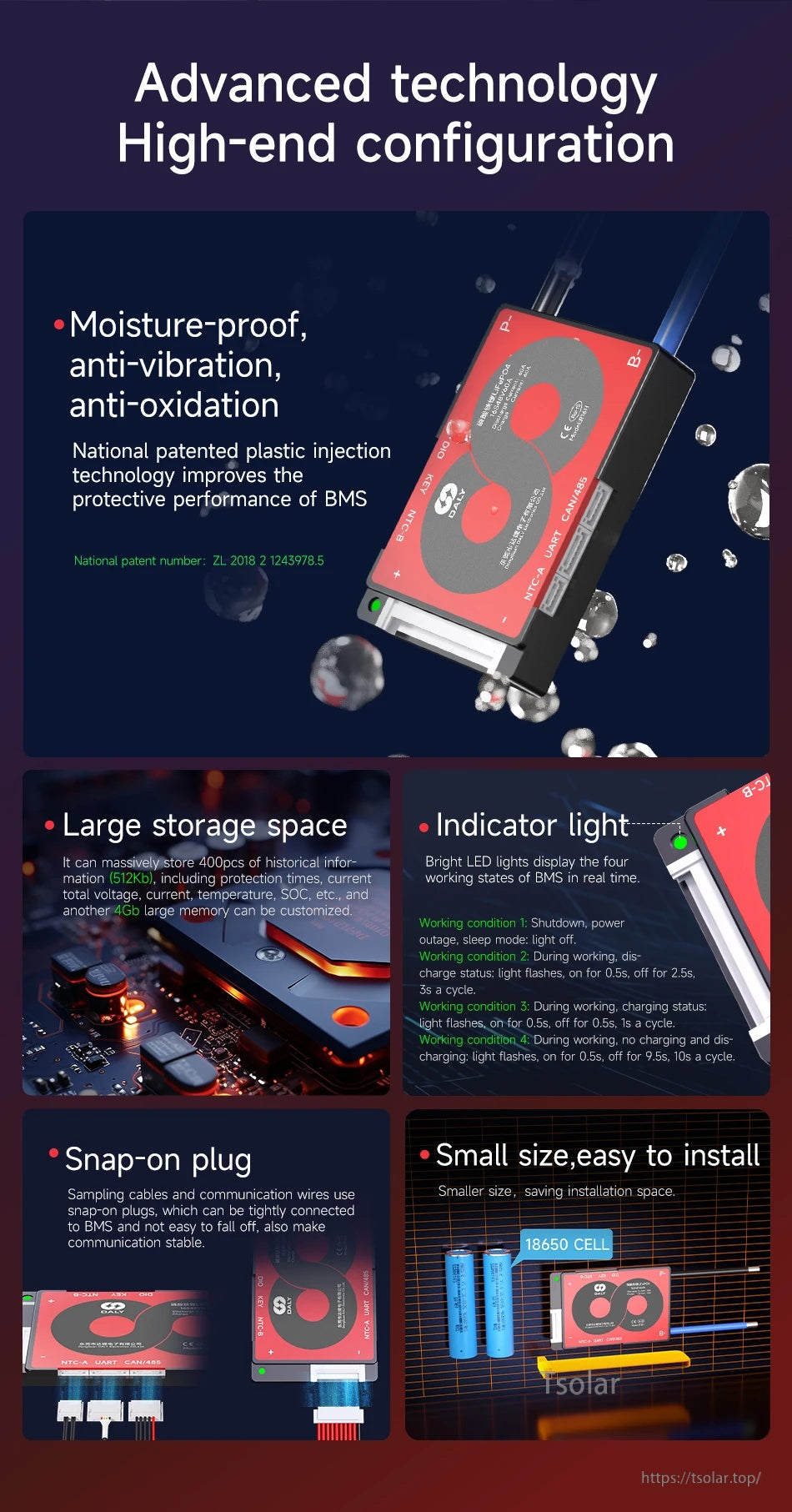

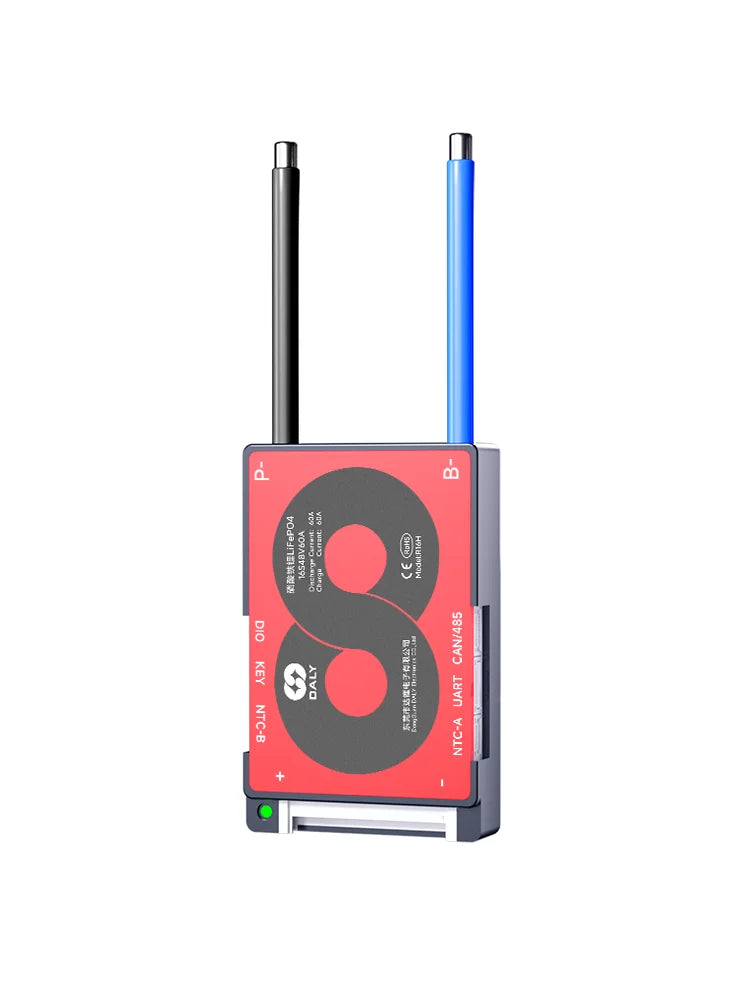

Practical build details include snap-on connectors, a clear status indicator light, and a compact housing for easier installation.

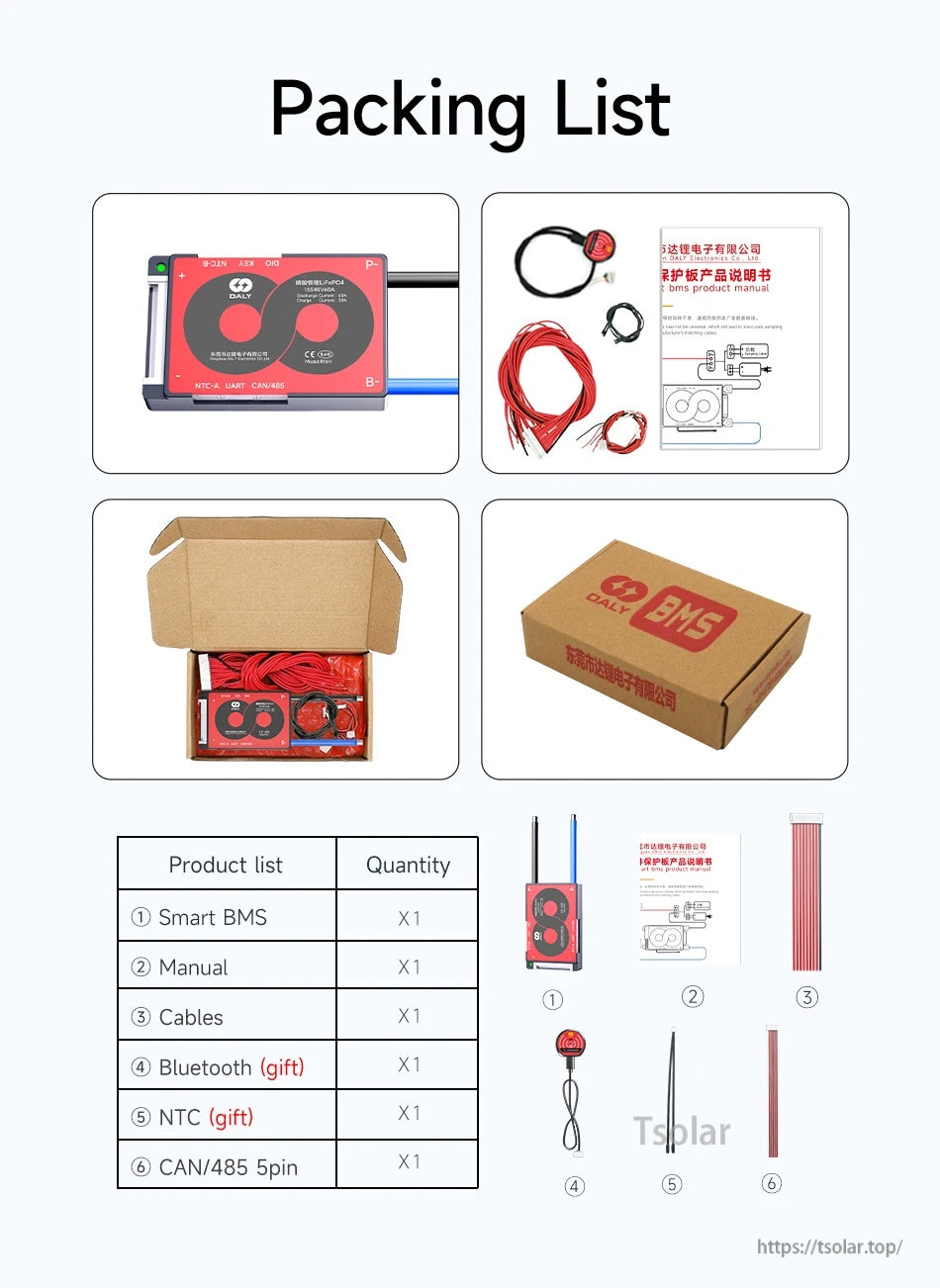

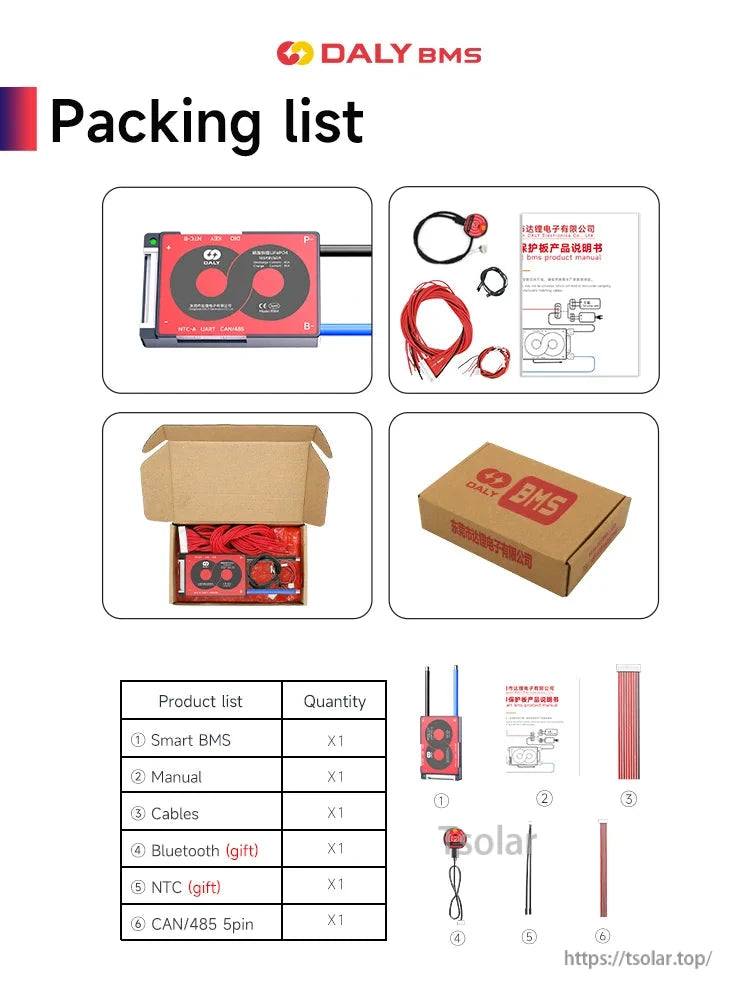

The Daly SMART H Series Smart BMS package includes the BMS unit, product manual, wiring harness, Bluetooth module, NTC sensor, and a CAN/485 5-pin lead.

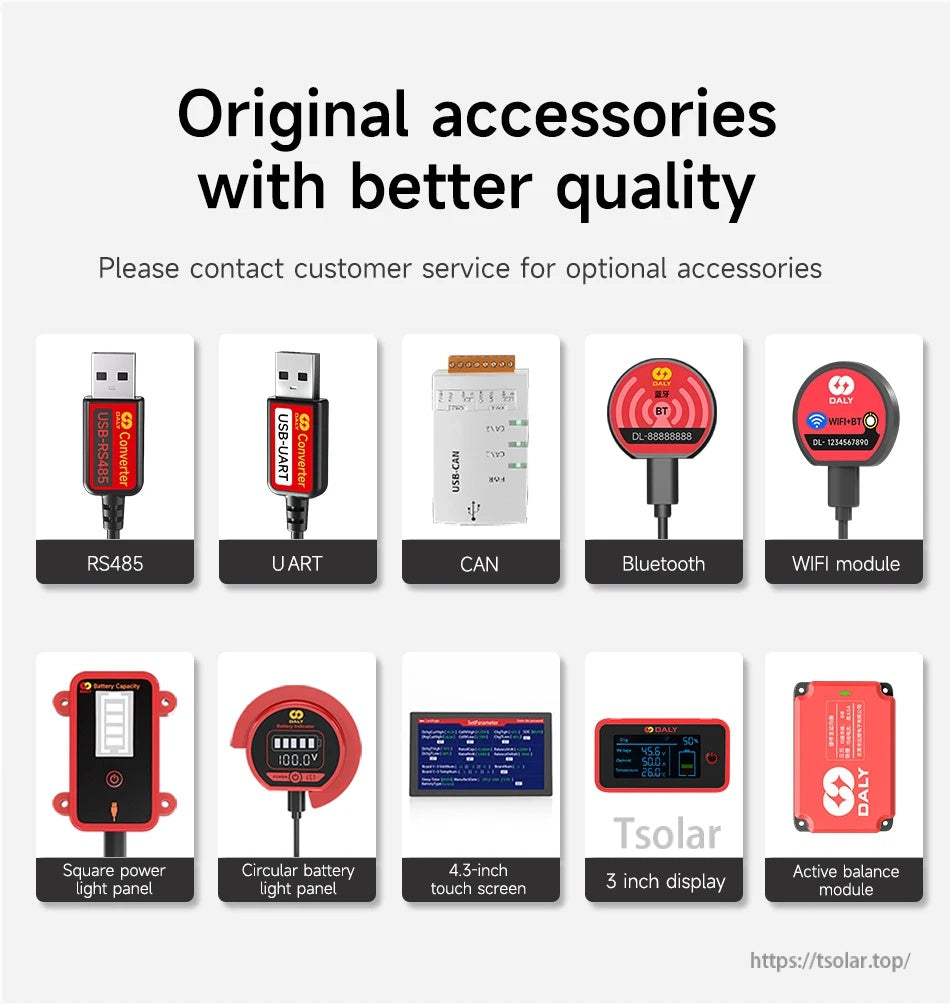

Daly SMART H Series Smart BMS optional accessories include RS485/UART/CAN communication adapters, Bluetooth/WiFi modules, display panels, and an active balance module.

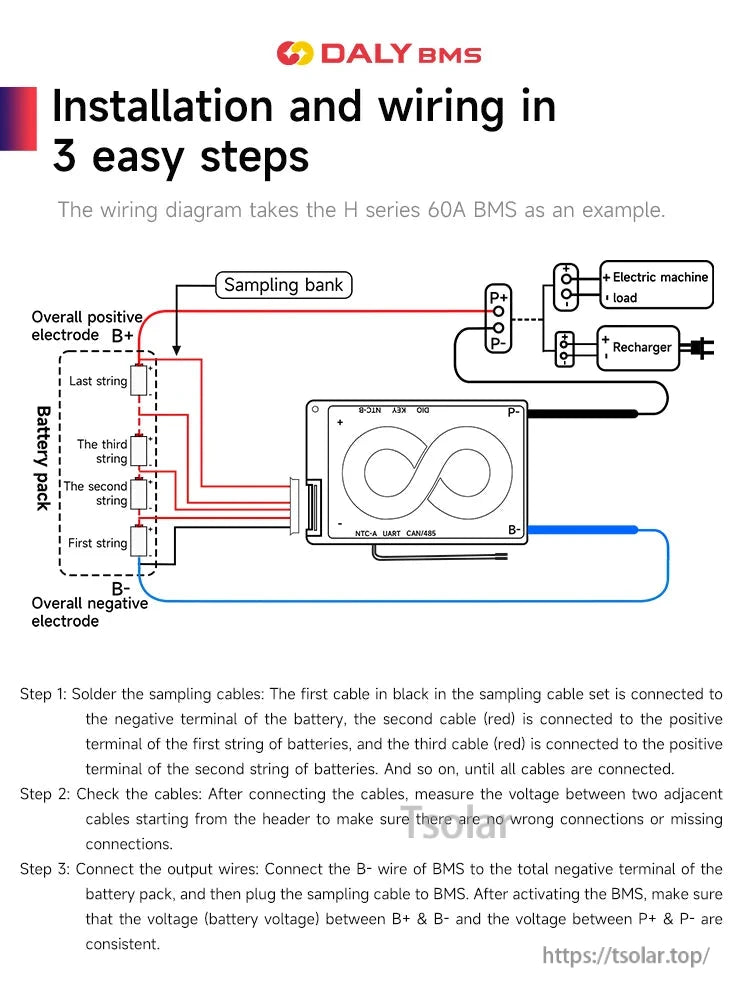

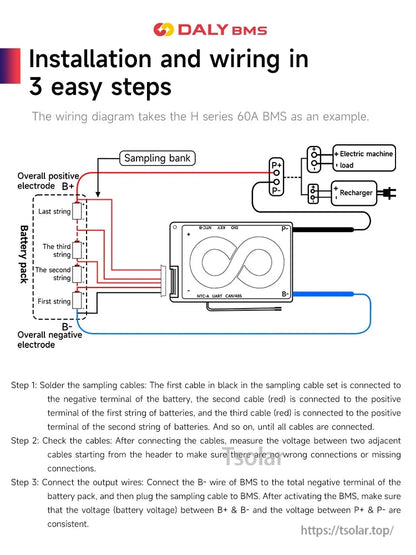

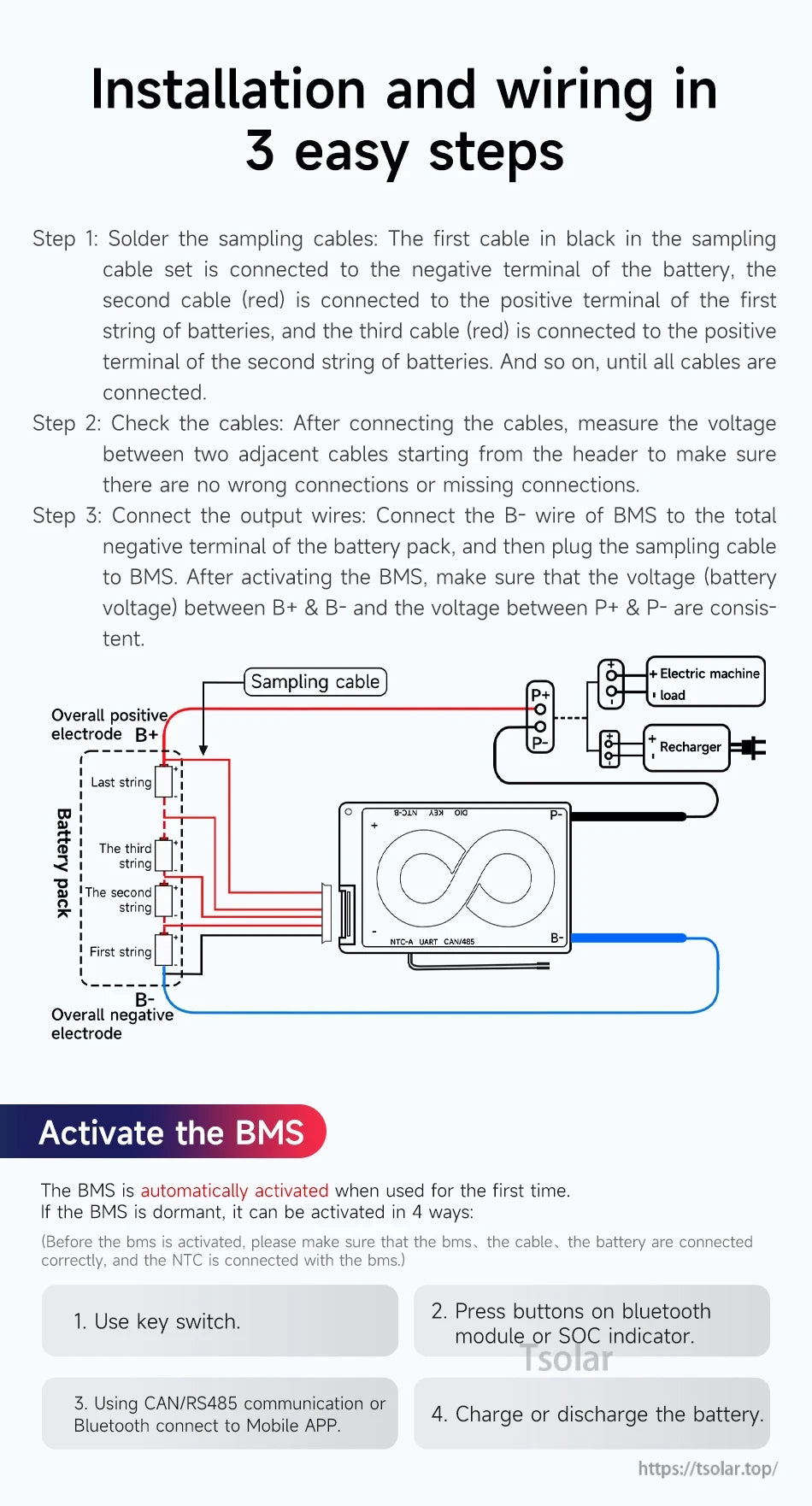

Daly SMART H Series smart BMS installation guidance covers sampling cable order, B+/B- and P+/P- wiring, and basic activation options.
Daly positions its smart BMS solutions around making green energy systems safer and smarter.
Daly’s smart BMS brand overview includes its production and office centers along with listed global export and ISO9001 certification details.
Daly outlines its manufacturing capacity and basic ordering details, including typical 3–7 day shipment timing and a 1-year warranty statement.
