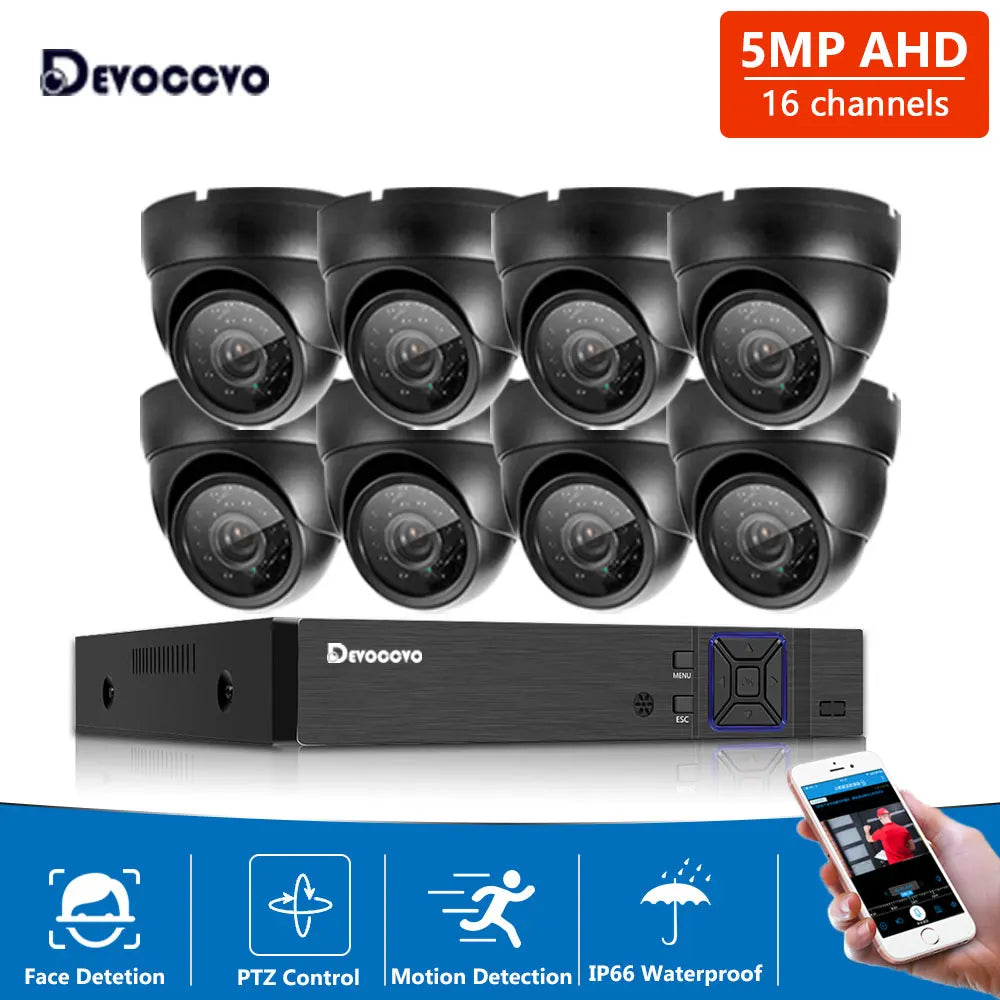

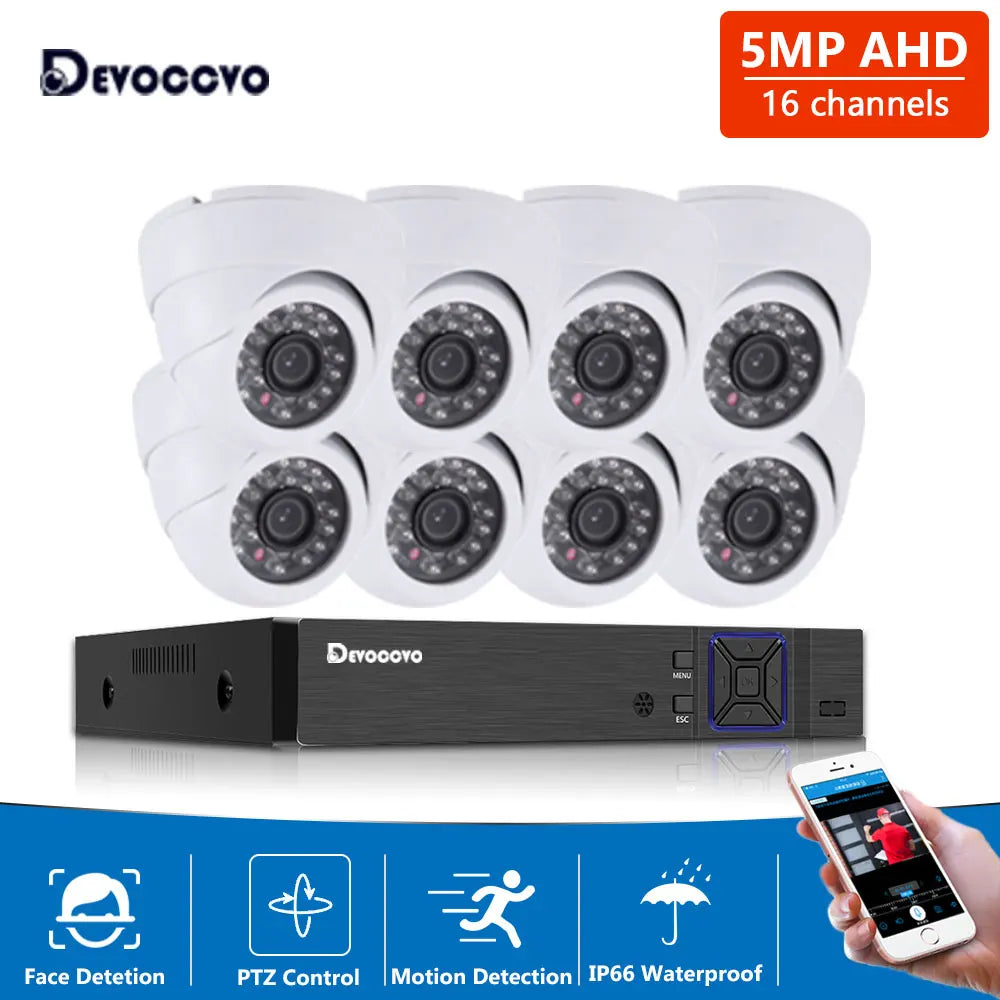

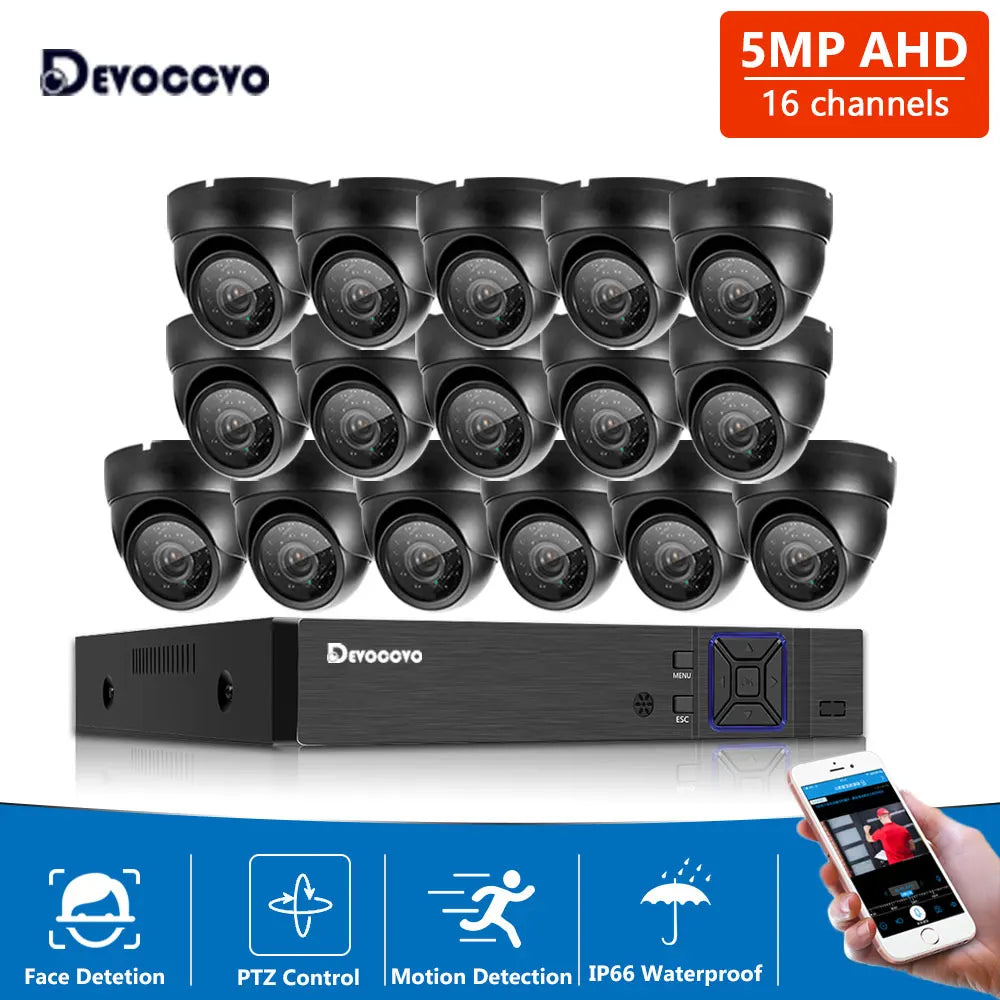

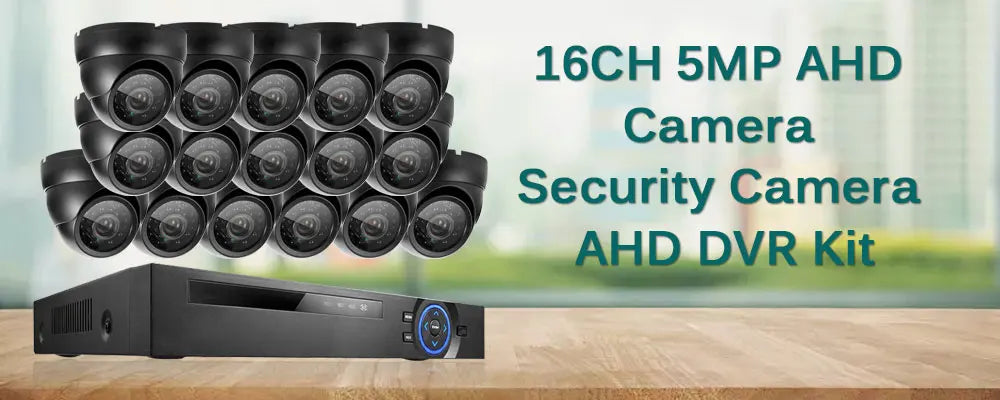

Devoccvo 16 Channel 5MP Security Camera System - Ultra HD 5MP 16CH AHD DVR Kit Outdoor Indoor Dome Camera Video Monitoring Kit

Main Features:

1. Ultra HD 5MP HD display, 6-in-1 hybrid digital video recorder;
2. Ultra HD 5MP AHD camera, metal material, IP66 waterproof, applicable to indoor and outdoor; Dust proof and reliable family safety;
4. Advanced H.265 video compression, plug and play, easy to set;
3. Support face detection and playback, provide ultra-high definition surveillance video images, and provide maximum detail and definition;
4. All cameras support a transmission distance of 500 meters, intelligent infrared night vision can reach 30-40 meters, and automatic infrared cutting provides clear daytime and nighttime vision;
6. Support motion detection, email alert, video playback and multi language;
7. Support Android, iPhone, Ipad, PC, VMS and P2P views;
8. Remote access anytime, anywhere;

Face Detection & Face Playback

Face Detection and Face playback and Face Record;Quickly capture face images and quickly play back face videos;Face Detection:automatically capture face images;Intelligent Face Playback: Intelligent Face video playback, saving time, not missing every details.

5MP High Quality Video

High-Definition interface output,Suport for online playback,Mobile remote,Multi-window display with 5.0MP Resolution.The angle will be more larger,and the image will be more clearer.

Ultra HD Day &Night Vision View

Every day real-time for you to provide high-quality video images, to bring you a different visual experience

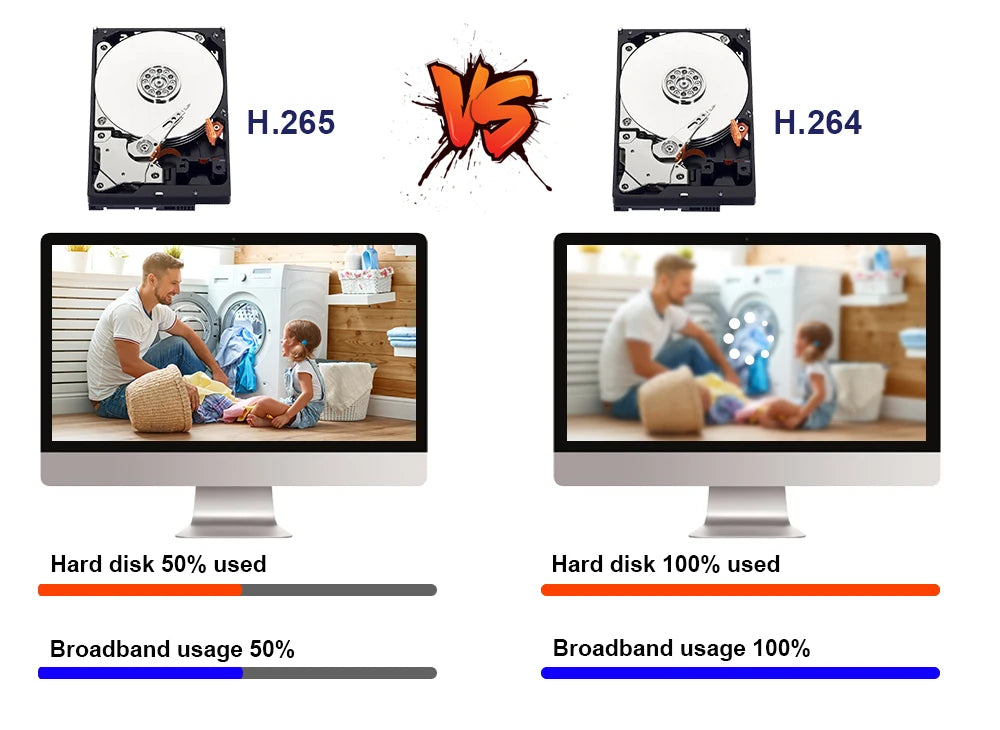

H.265 Advantage

H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.

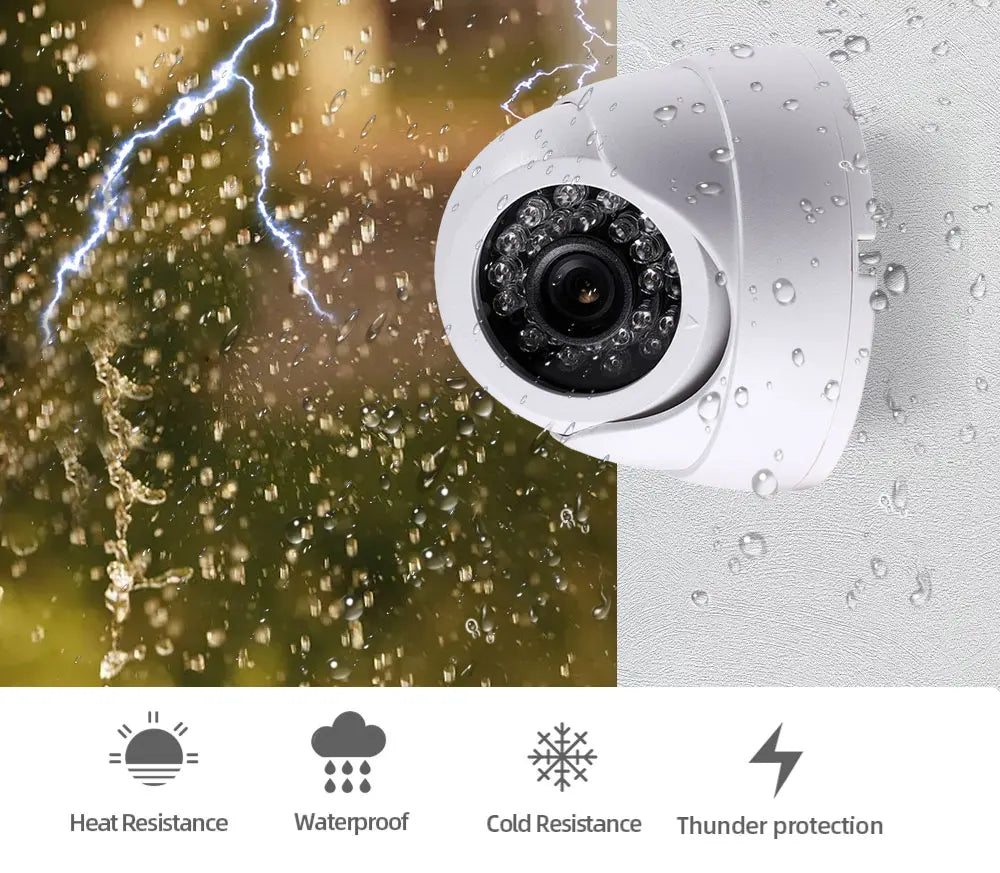

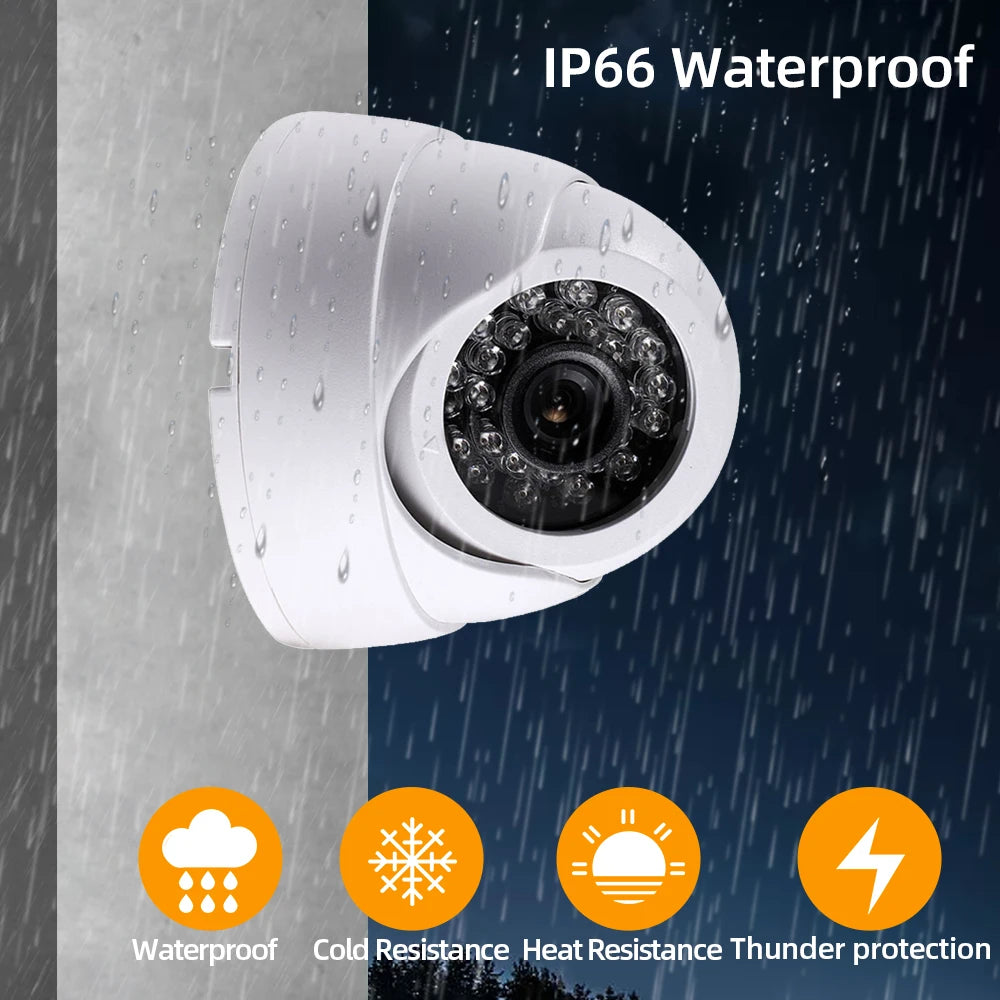

Outddor Weatherproof

Use them as outdoor cameras or indoor cameras, as they are built tough towithstand whatever the weather throws as then:rain,snow,dust and hot days .with IP66 weatherproof rating ,and cables threaded through the stand for extraprotection ,ensure you can reply on their performance,day in ,day out.Our camera adopts heavy-duty metal housing,professional IP66 weatherproof,Providing stable performance both indoor and outdoor.

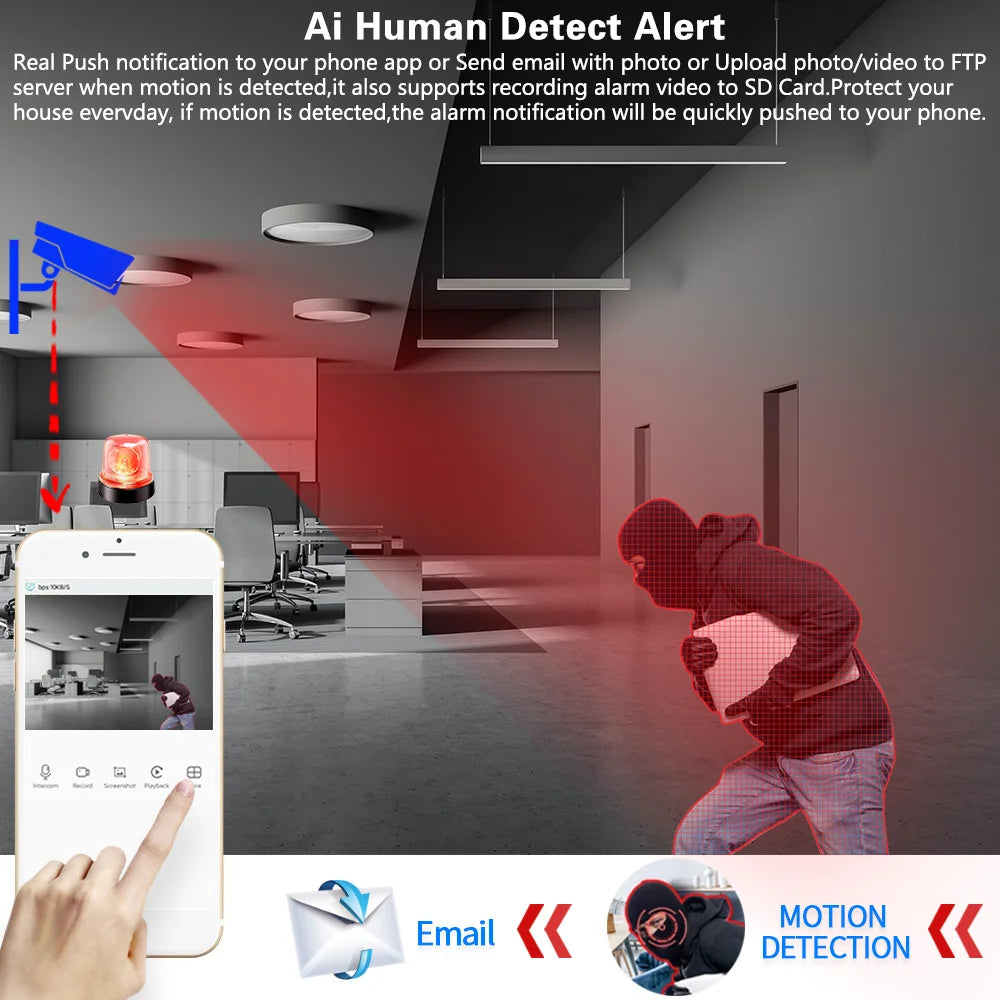

Motion Detection & E-mail Alert

Can set up the area you want to control,When it is triggered,it will send message to your email ,You can get the first hand information ,no matter when and where you are .

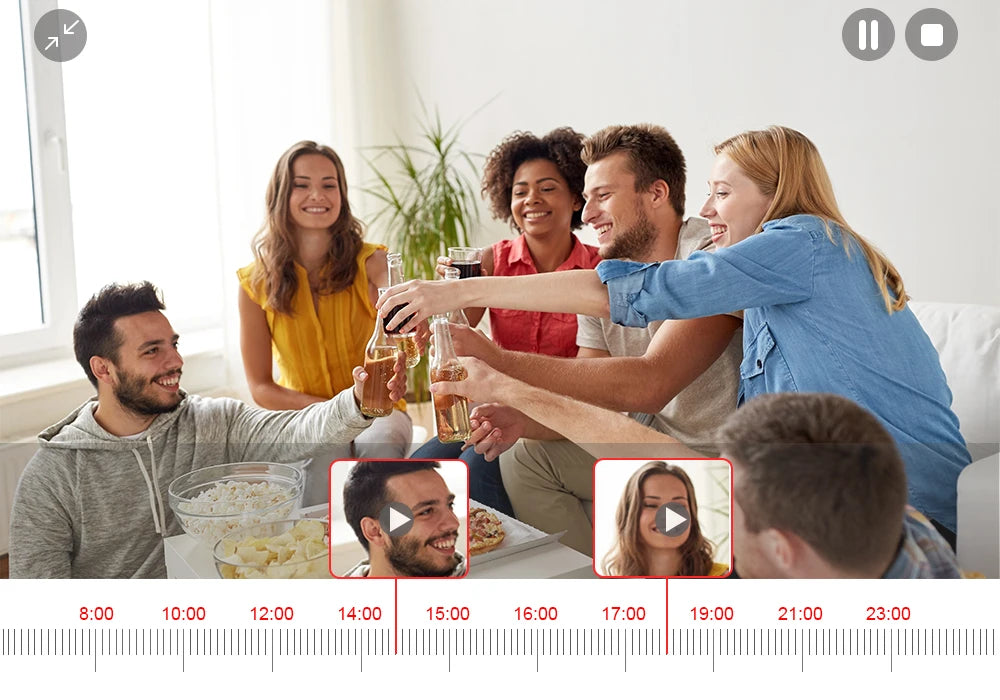

Smart playback

You can easy find the video footage you'd like to playback,Smart playback available with customizable searching area, playback time is greatly reduced by speeding through unimportant videos.

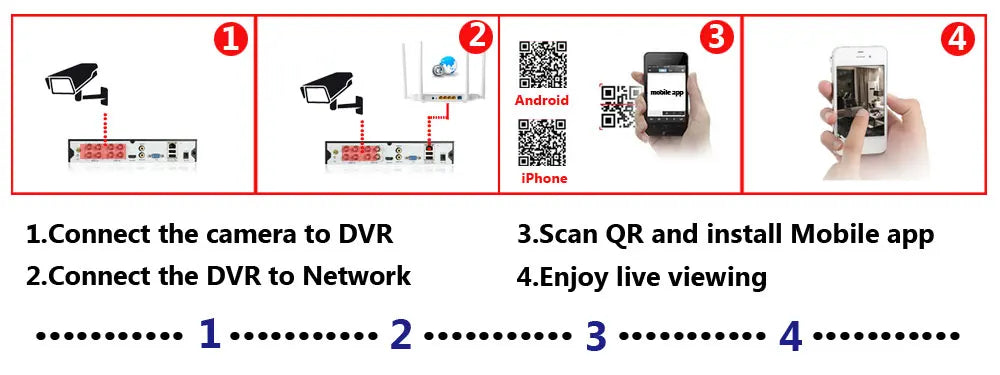

Easy remote view setting

Easy setting , just 4 steps for mobile phone viewing,View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy！！！

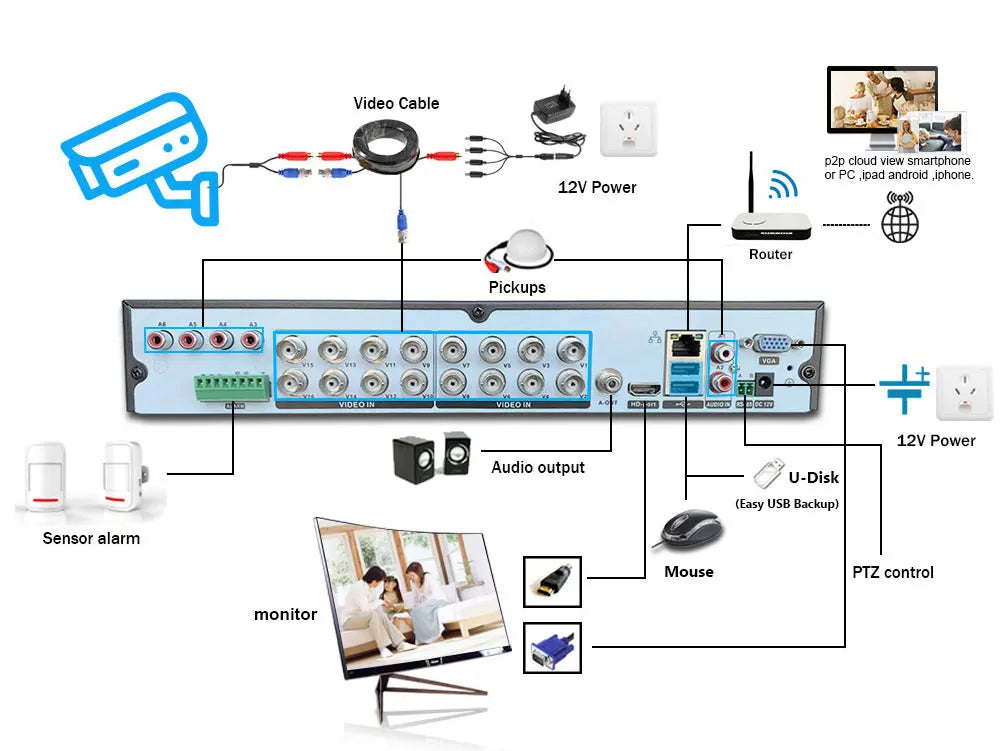

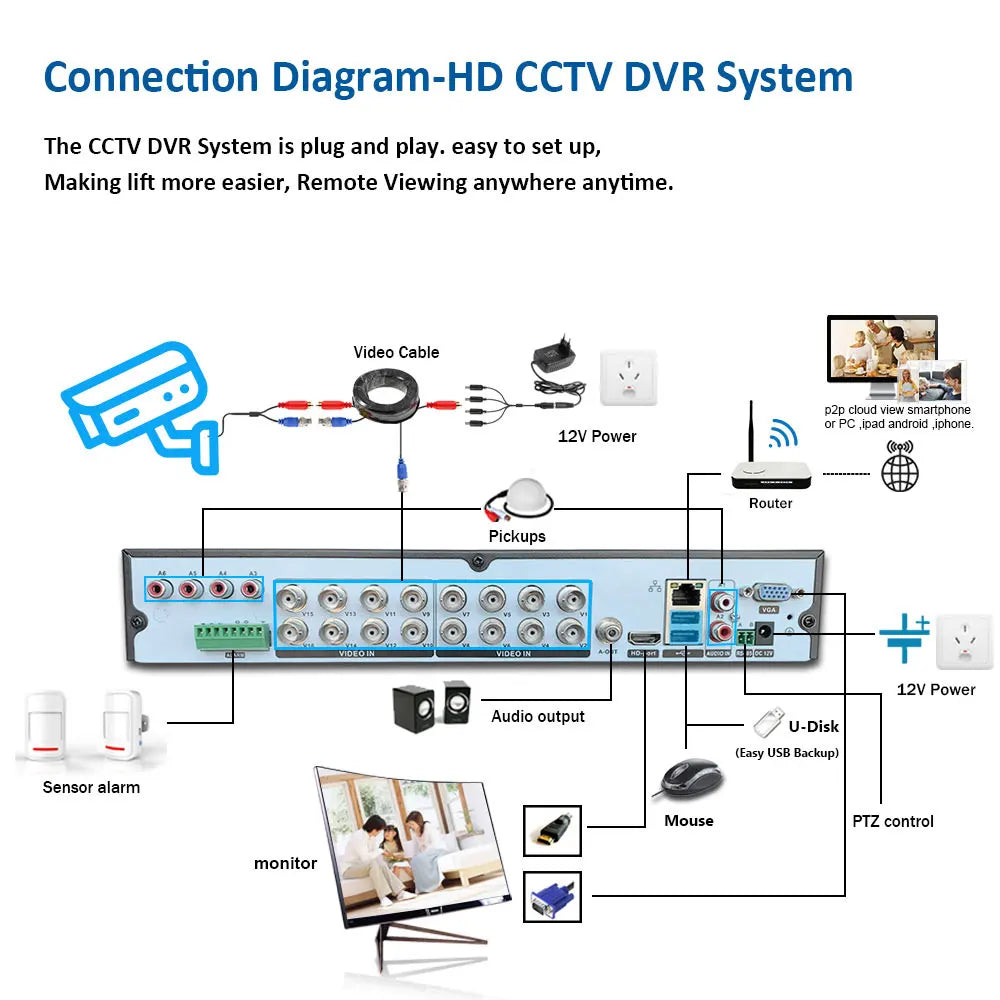

Connection Diagram

The cctv security system is plug and play ,easy to set up,Making lift more easier.Remote viewing anywhere anytime.

Remote access anywhere,anytime

Support ios, Android,Windows PC. With the free app XMEYE PRO. you'll know that's happening even when you're not around, Receive notifications and view live or recorded footage right from your phone.

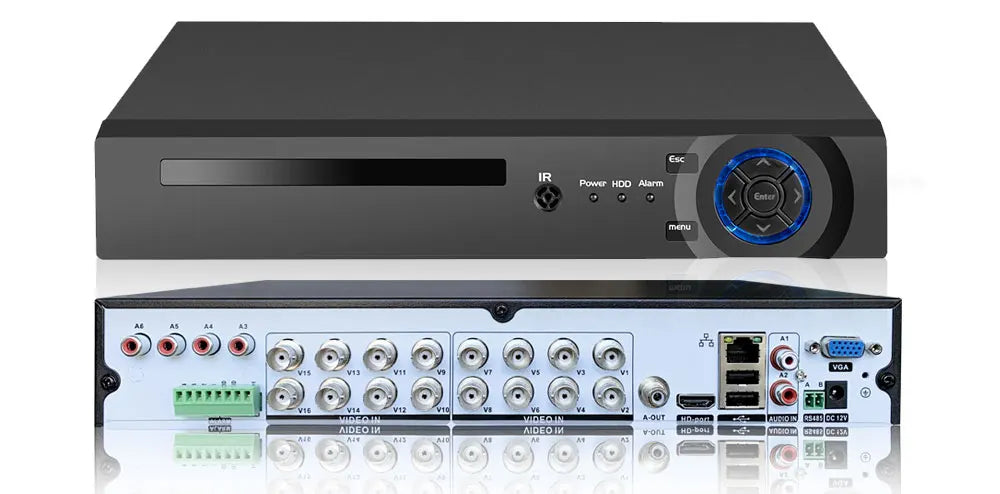

H.265 16CH 5MP DVR Specifications

System
Main processor: Embedded processor
Operating system: Embedded Linux
Video compression:H.265
System resource：Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up

Interface
Operation interface：16bit real color GUI interface support
Preview ： 1/4/8/9/16

Video
Video standard :PAL; NTSC
Image encode:H.265
Monitor quality: VGA,HDMI:High definition
Analog input ：16CH*5MP
Network input:4CH*5MP/16CH*1080P
Motion detection：Support
Email Alert : Support
Face Detection:Support
Face Playback:Support
Smart Playback:Support
Remote Access:Support

Audio
Audio compression ：G.711A
Intercom : Yes
Record&Playback
Record mode：manual>alarm>motion detection>timing
Local playback：5MP
Video search：Time, date, event, channel search
Storage&Back up
Video storage : Local HDD ,Network
Back up mode： Network backup, USB portable，HDD,USB imprint,SATA imprint

Interface
Video input：16CH BNC
Video output : 1ch VGA,1ch HDMI HD output
Loop output : N/A
Audio I/O :6CH input/1CH output
Alarm I/O:4CH input/1CH output
Network port:1* POE RJ45 1000M self-adaptive Ethernet port;
USB port : 2* USB 2.0
HDD port :2* SATA ports,max support 2* 8TB(HDD is optional)

Other
Power :DC 12V
USB Mouse：included
Remote Control : included
Temperature : -20℃+50℃
Humidity : -10%-90%
Dimension : L370mm* W305mm* H70mm
Weight :2.5KG

DVR Language
Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on

H.265 5.0MP AHD Camera Specifications

video
Video compression: H.265
Image sensor: 1/3 inch 5 megapixel
Video quality: 5.0MP
Lens: 3.6mm lens
Day/night mode: Day color/night switch to black and white mode
All
Working power supply: DC 12V
Operating temperature: - 50 ° F~122 ° F/- 40 ° C~50 ° C
Minimum illumination: 0.01 Lux
Settings: brightness, contrast, saturation, clarity, white balance
Automatic exposure control (AEC): automatic white balance (AWB); Automatic Band pass Filter (ABF)
Noise reduction: support 2D/3D
Bit rate control: VBR/CBR
Digital WDR: support
Email Alerts: Support
Motion detection: support
Weatherproof
IP66 weather proof: support
Housing material: metal
Indoor/outdoor: suitable for indoor or outdoor use
night vision sight
Distance: 40m
Infrared cut-off filter: Yes
Number of infrared lenses: 24 array infrared LEDs

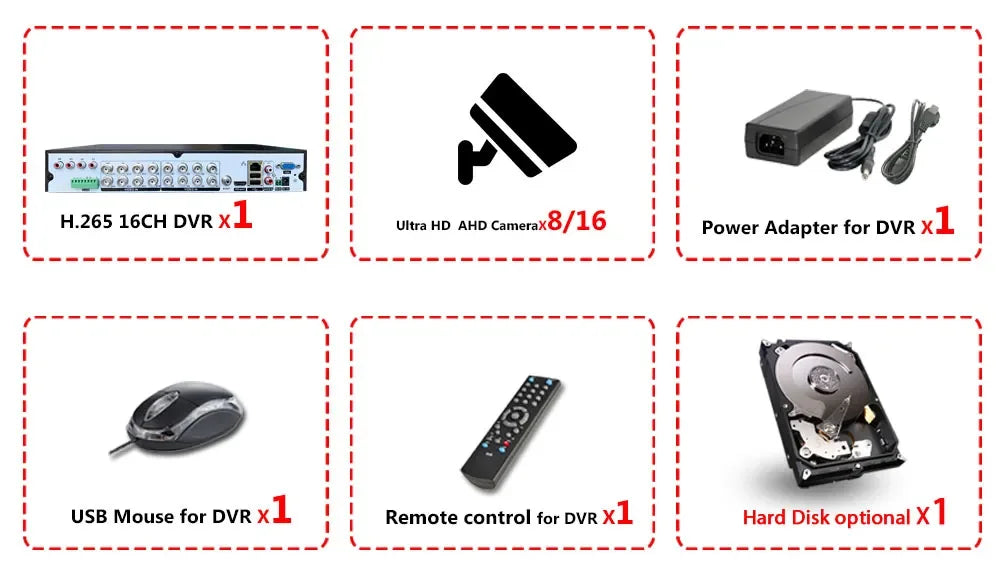

Packing List:

1 X 16CH H.265 AHD 5MP DVR 6-in-1 digital video recorder;
8/16x HD 5.0MP indoor and outdoor infrared day and night vision weather proof camera;
1 DVR power adapter;
1 DVR USB mouse;
1 X DVR remote control;
Optional Hard Disk!!!!

Your can install it there place

Application:Home,supermarket,hotel,garden,factory,shop office,,,etc,
