Overview

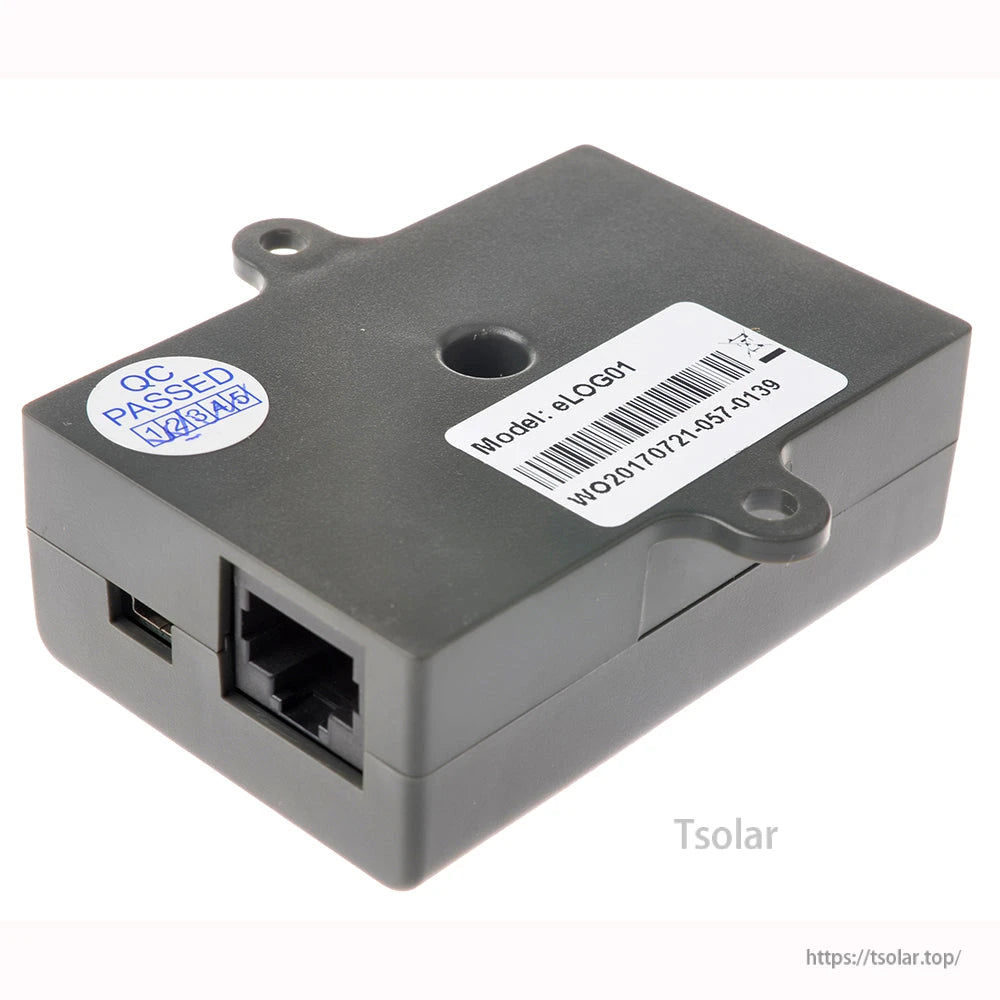

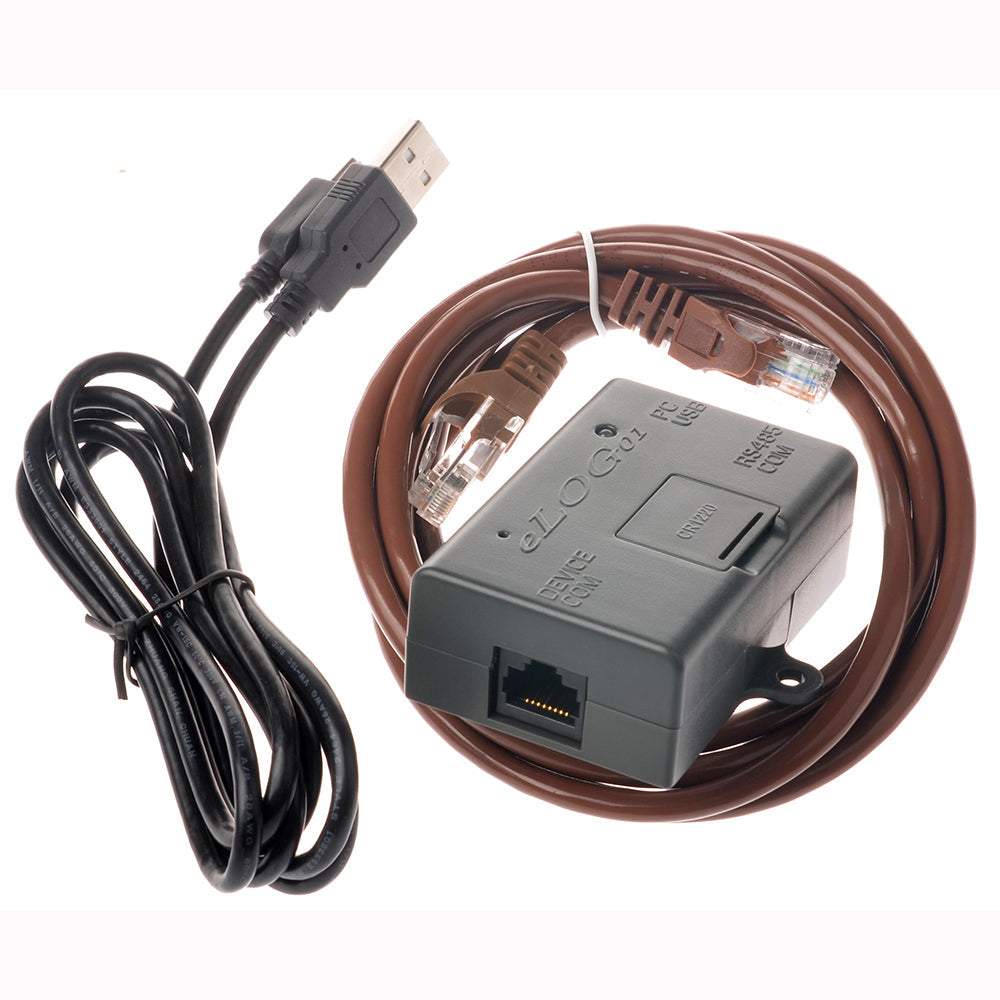

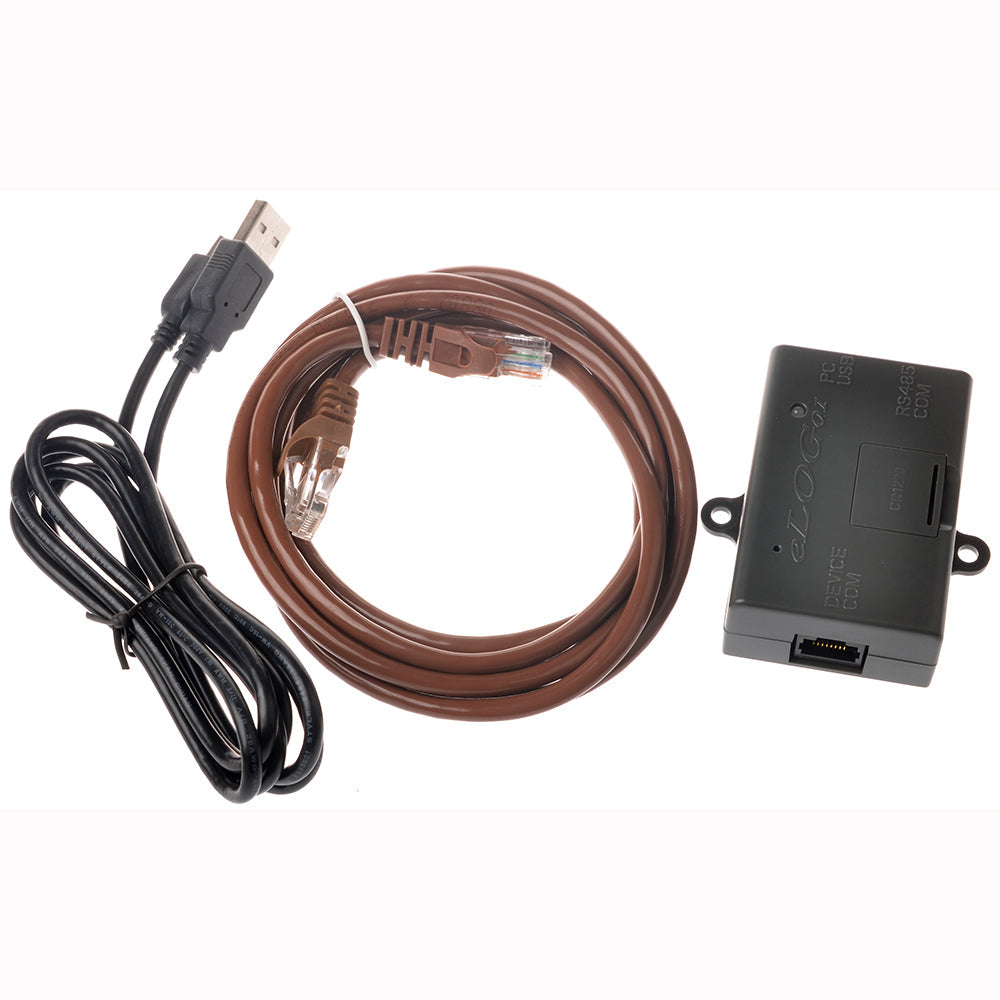

The EPEVER eLOG01 is a data logger accessory for Tracer BN and Tracer A MPPT solar controller systems, designed for real-time monitoring with PC software and the MT50. It connects to a PC via Micro USB and is powered through the controller communication (RS485) interface.
Key Features
- Compatible with PC software and MT50 for real-time monitoring
- Micro USB connection to PC (high compatibility)
- Powered by controller communication interface (RS485)
- Record capacity: 20000 points (MAX)
- LED indicator design for intuitive status display
Specifications
| Model | eLOG01 |
| Input voltage | 4-10VDC (powered up by RS485 interface) |
| Average power consumption | 0.3W |
| Baud rate | 115200 |
| Communication | RS485 |

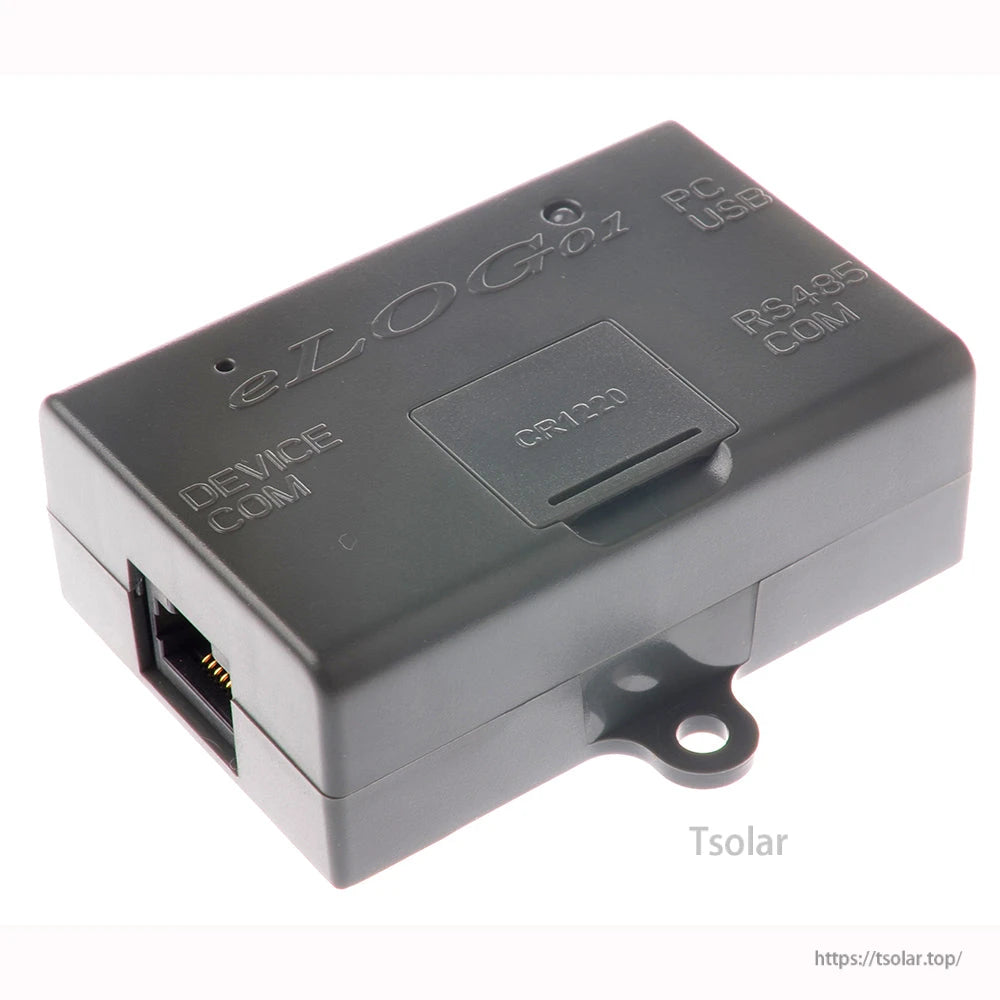

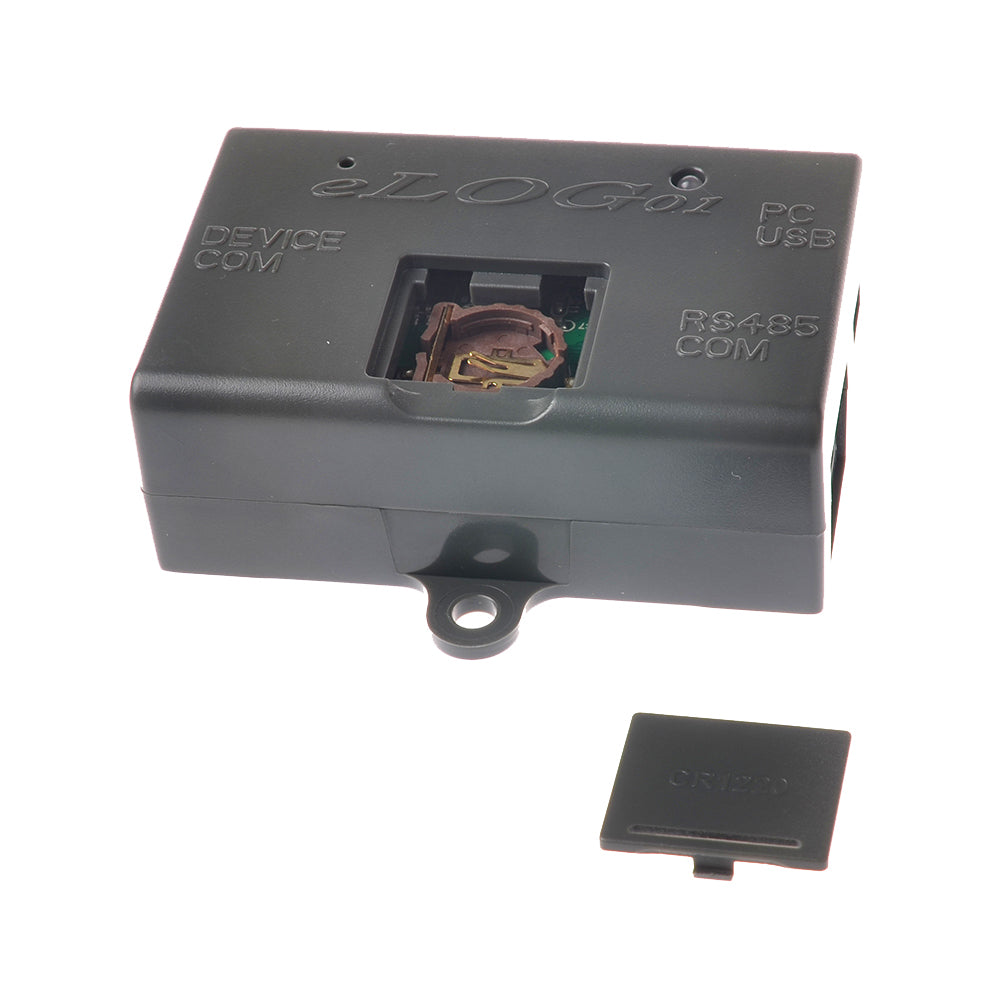

| Interface type | 2 RJ45; 1 Micro USB |
| Record time | 10 minutes |
| Dimensions | 71 x 67.62 x 25.8mm |
| Mounting dimension | 57.6mm |
| Mounting hole size | Phi 4.5 |
| Working temperature | -25°C to 75°C |
| Humidity | 5-95% (N.C.) |
| Enclosure | IP30 |
| Net weight | 42g |
| Warranty | 2 years |
