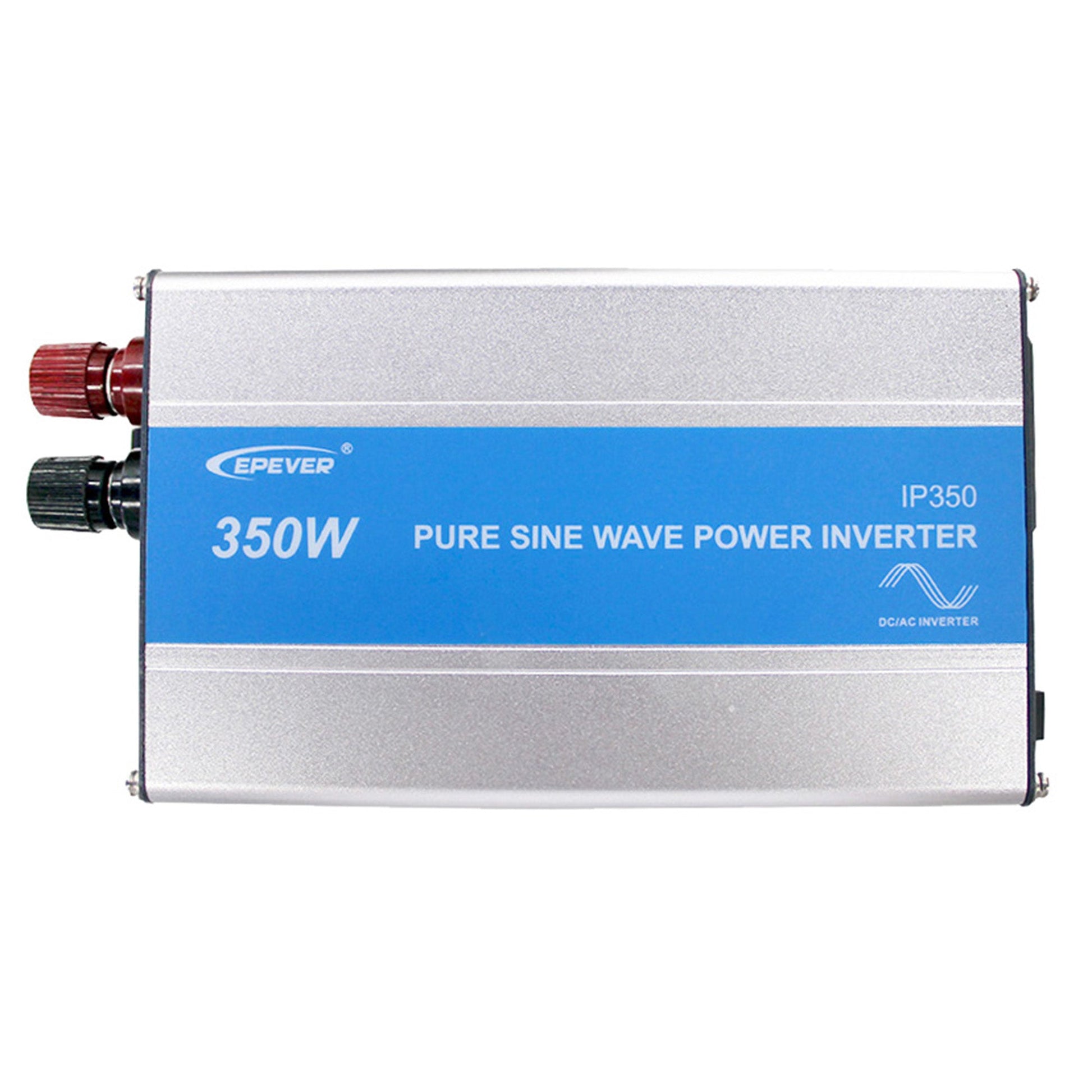

• EPEVER IPower Off Grid Inverter, EPEVER IP350 350W pure sine wave power inverter in silver case with red and black DC terminals

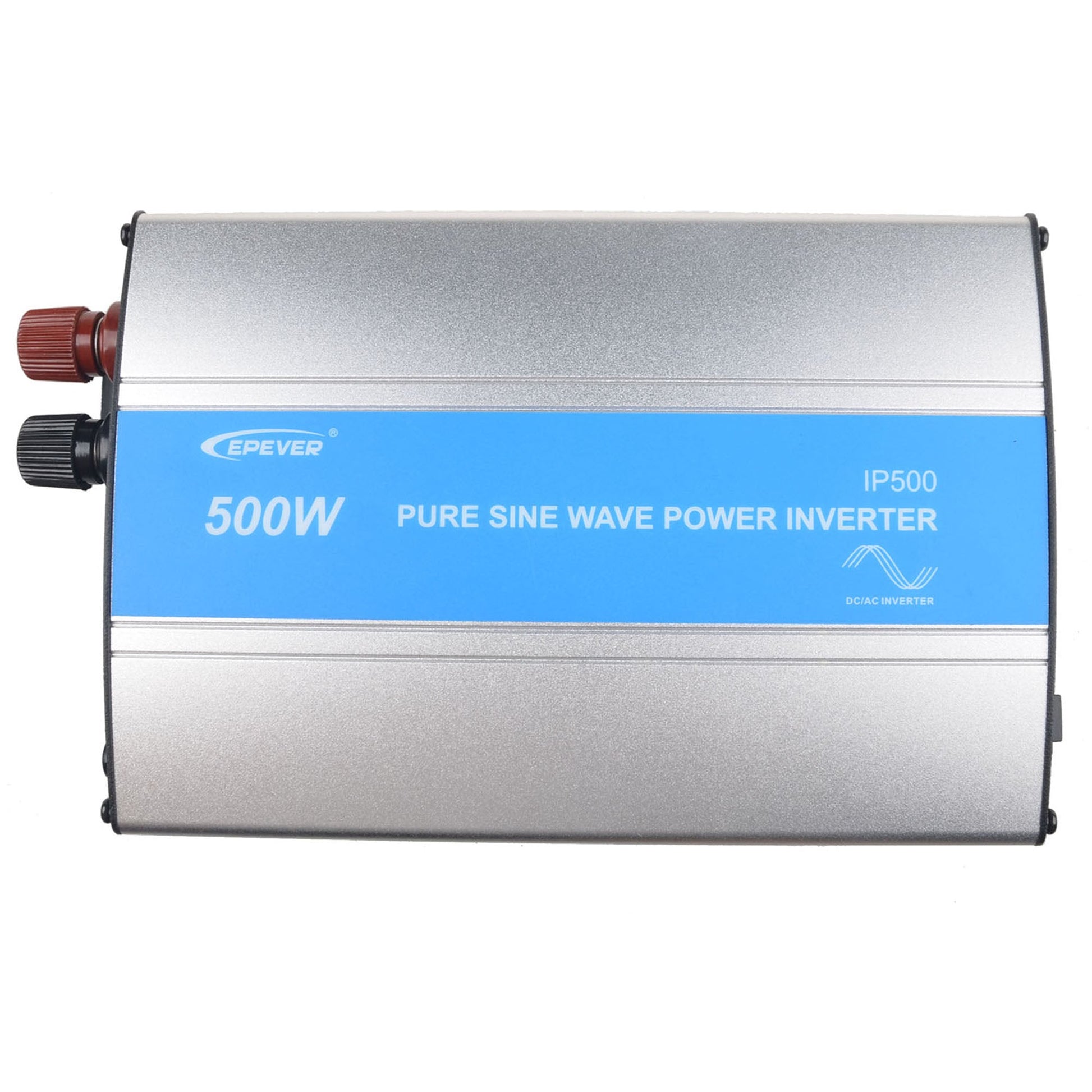

  • EPEVER IPower Off Grid Inverter, EPEVER IP500 500W pure sine wave power inverter with blue label and red/black DC input terminals

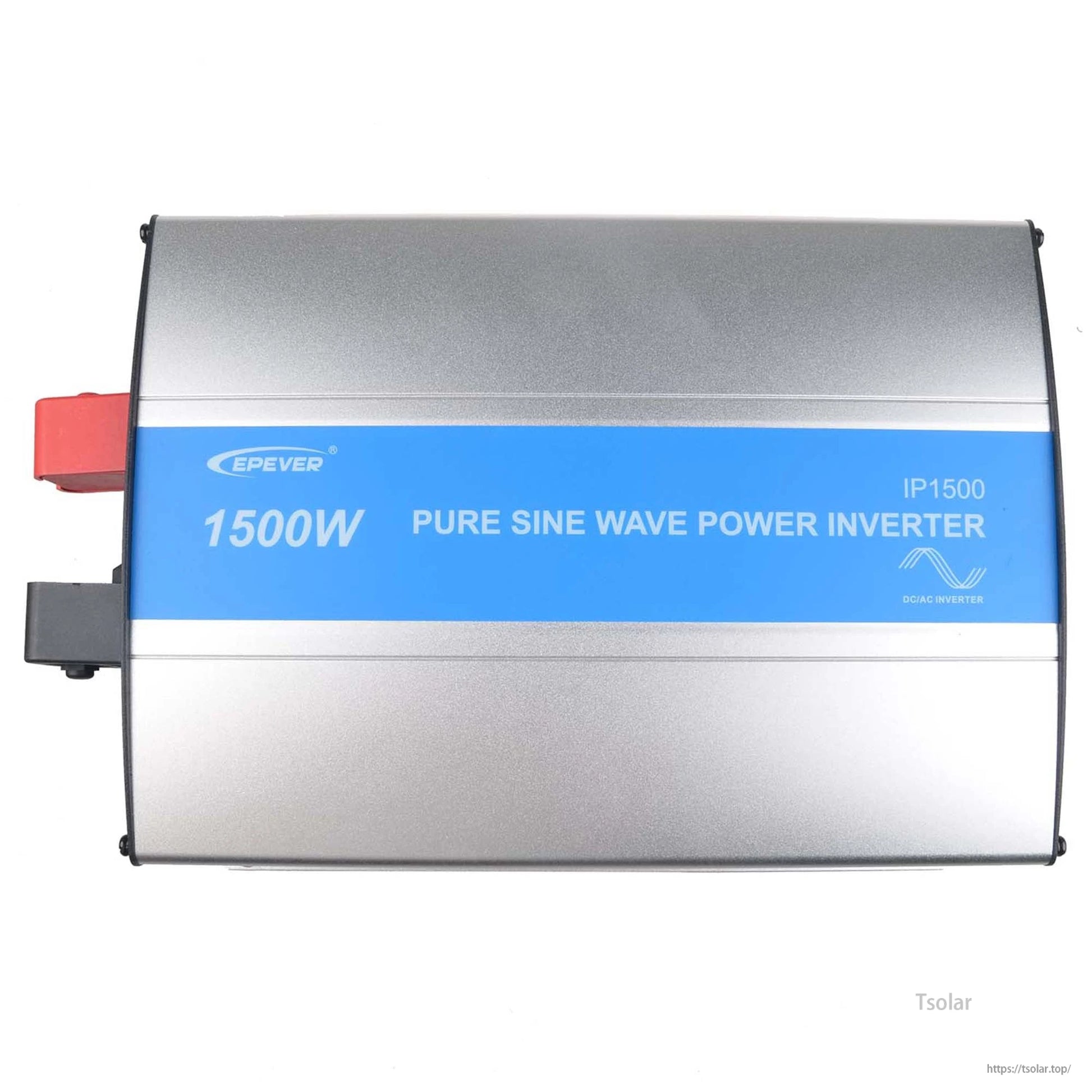

  • EPEVER IPower Off Grid Inverter, EPEVER iPower IP1500 1500W pure sine wave power inverter in silver housing with blue label

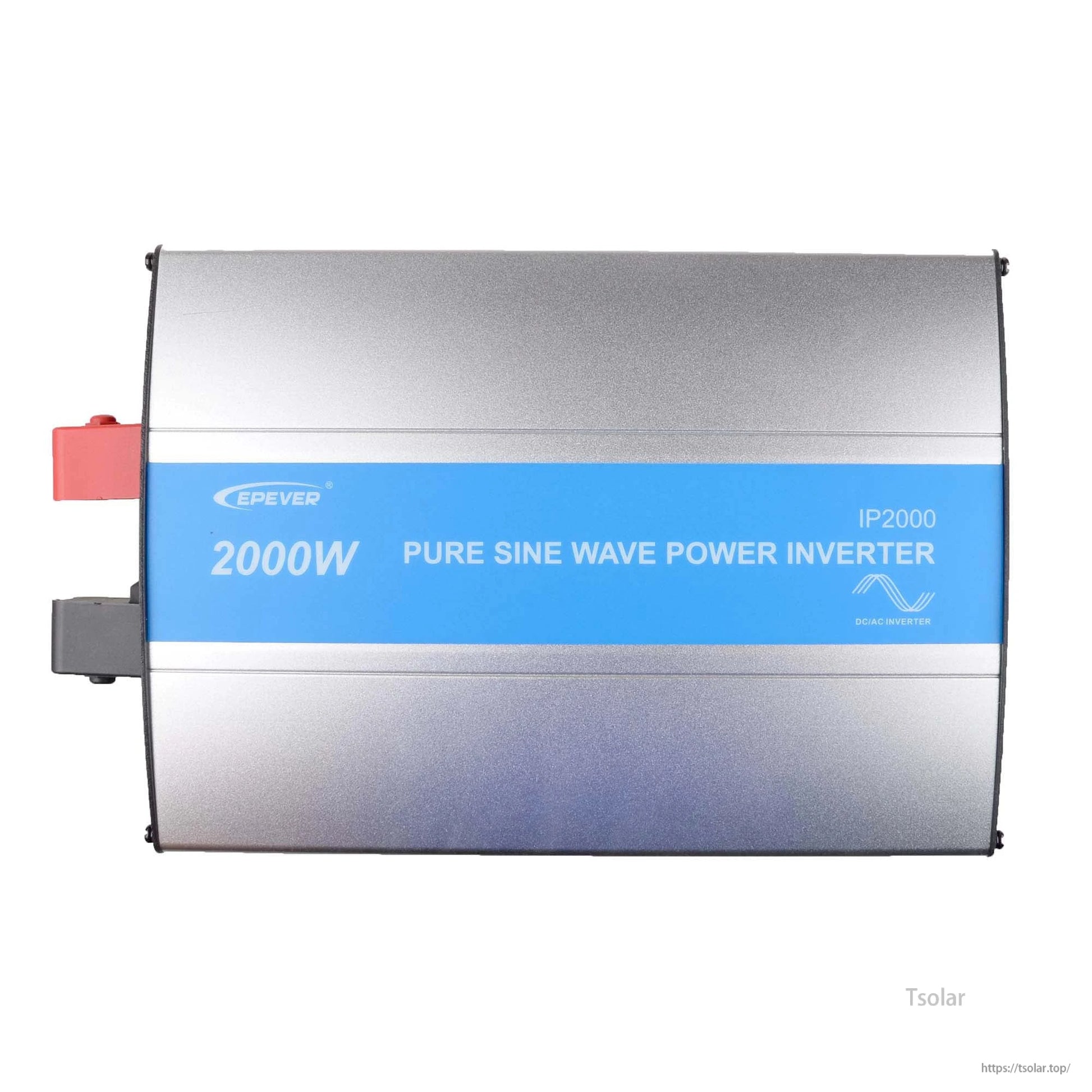

  • EPEVER IPower Off Grid Inverter, EPEVER IP2000 2000W pure sine wave power inverter with red and black terminals on the left side

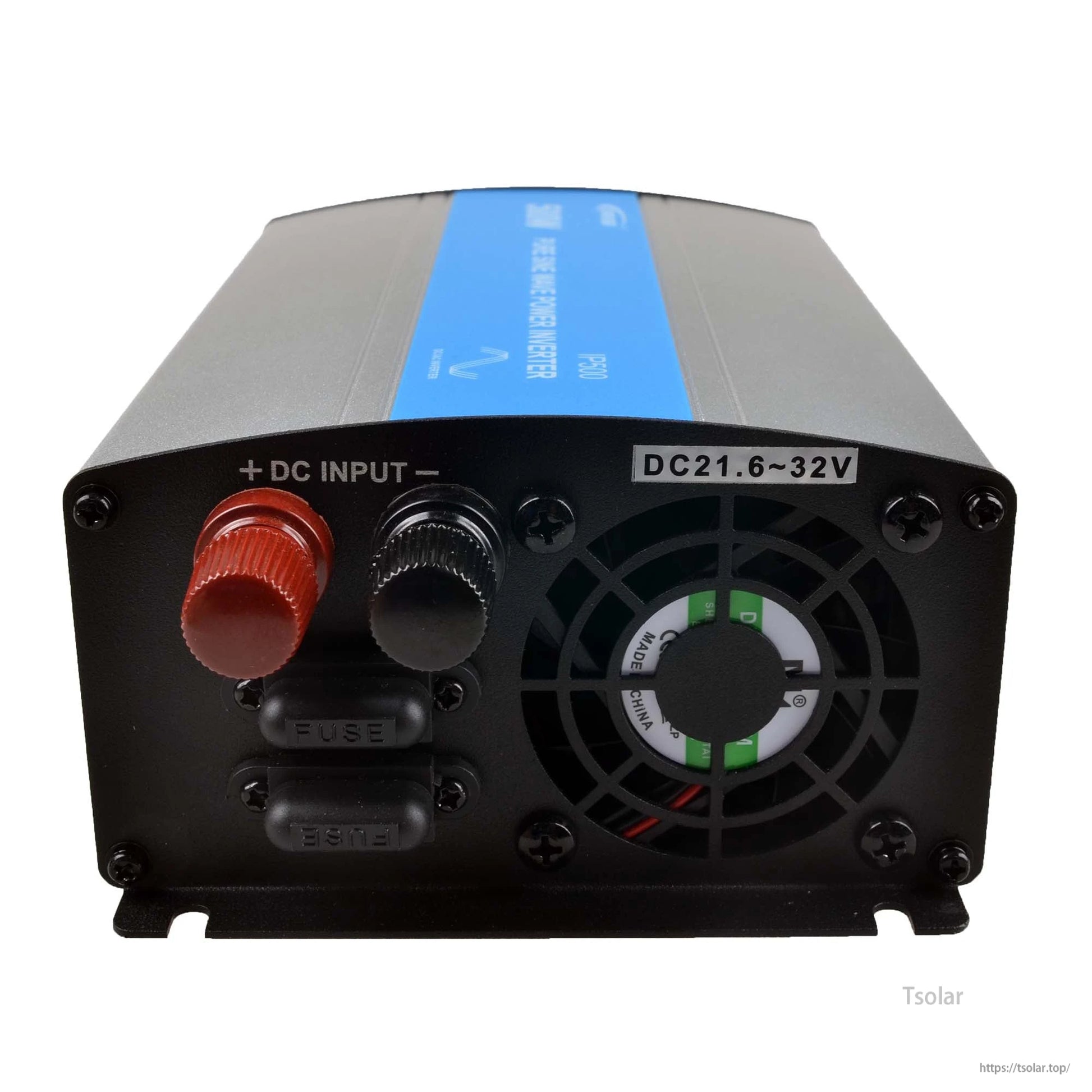

  • EPEVER IPower Off Grid Inverter, EPEVER iPower off-grid inverter with DC input terminals, fuse holder, and cooling fan, DC 21.6–32V label

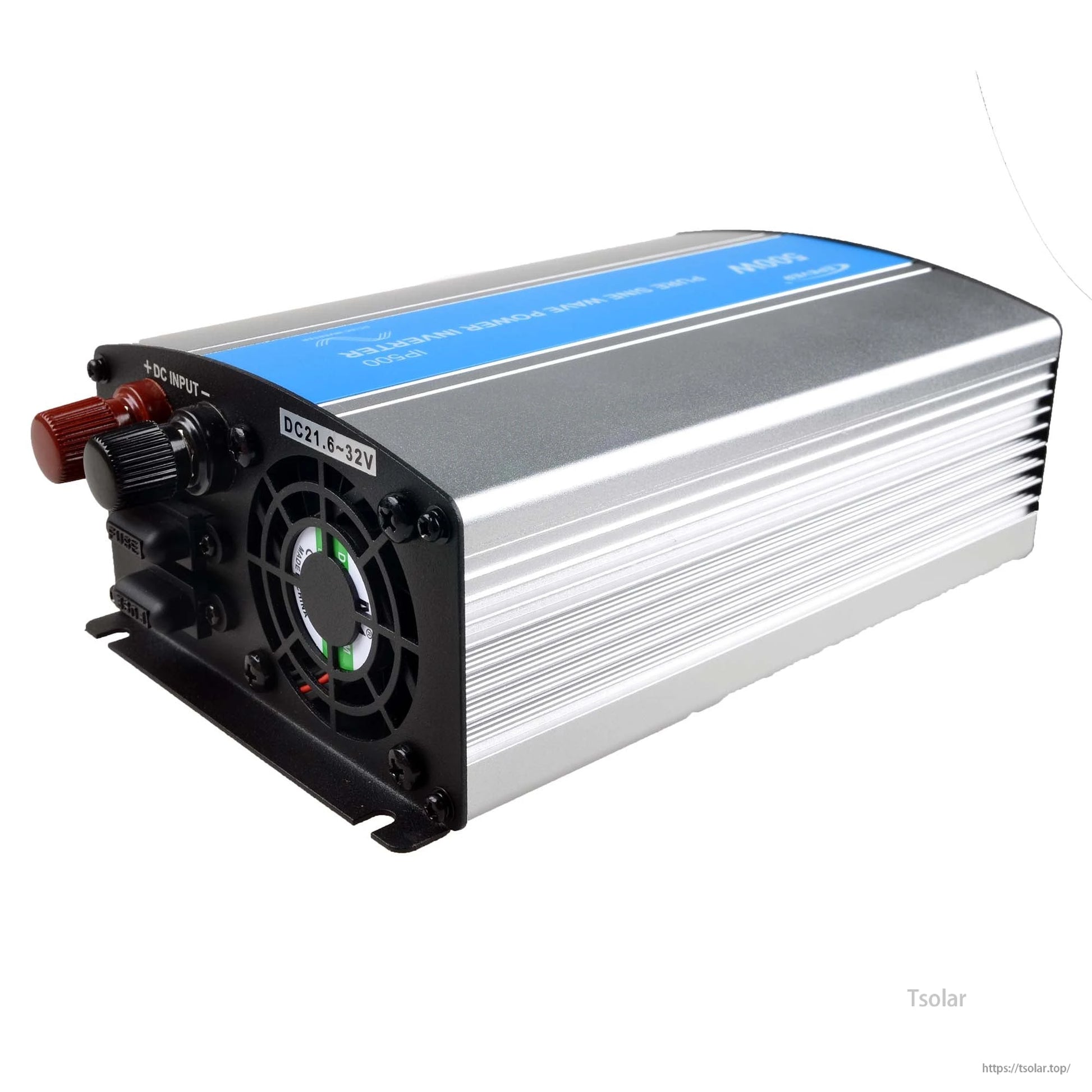

  • EPEVER IPower Off Grid Inverter, EPEVER iPower off-grid inverter with DC input terminals, cooling fan grille, and aluminum housing

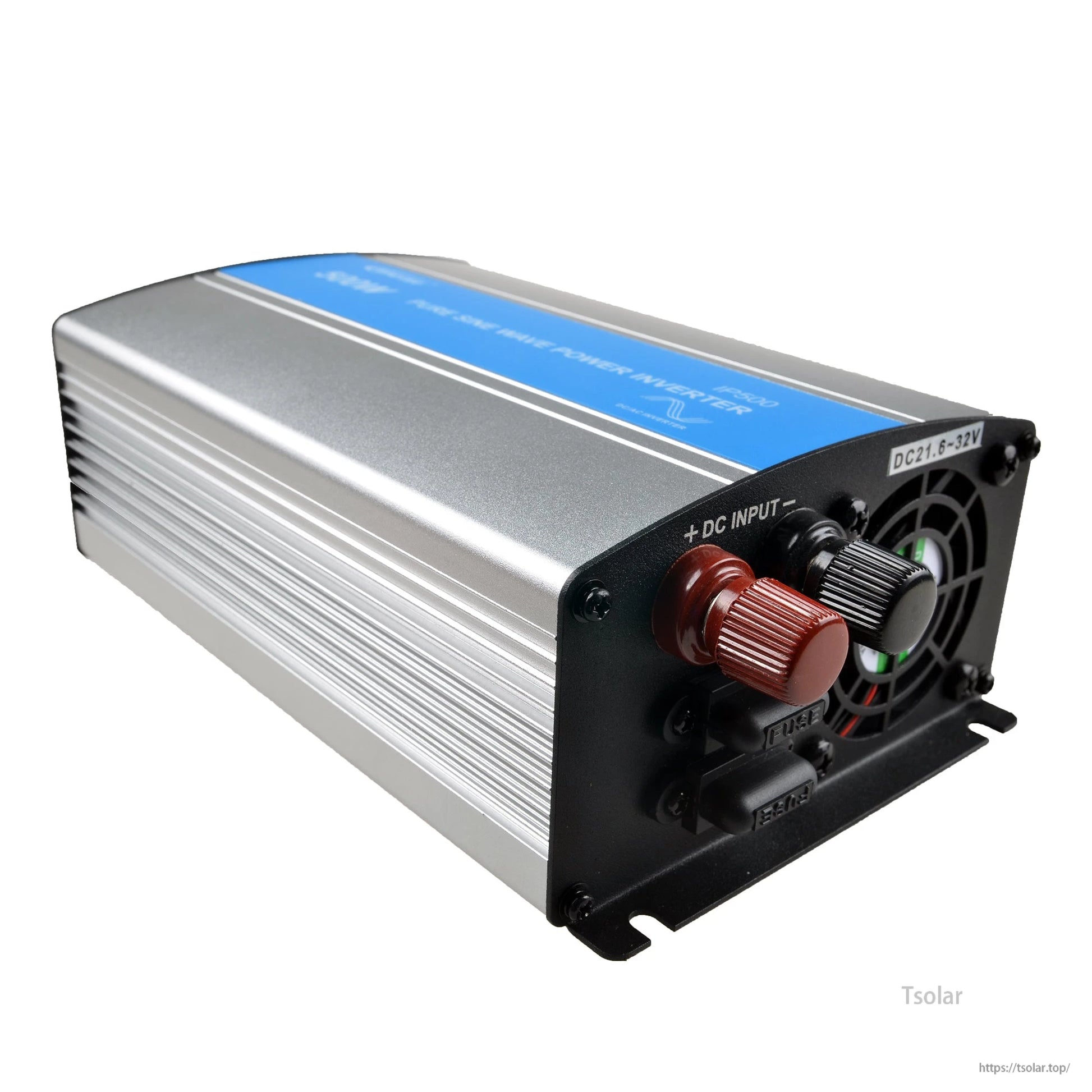

  • EPEVER IPower Off Grid Inverter, EPEVER iPower off-grid inverter with DC input terminals, cooling fan, and silver ribbed aluminum case
  • EPEVER IPower Off Grid Inverter, EPEVER iPower 600W off-grid power inverter with universal AC outlet, on/off switch and 5V USB port
1 8

EPEVER

EPEVER IPower Off Grid Inverter, Pure Sine Wave, 12/24/48V DC to 110/120V or 220/230V AC, 350VA-2000W

EPEVER IPower Off Grid Inverter, Pure Sine Wave, 12/24/48V DC to 110/120V or 220/230V AC, 350VA-2000W

$82.96 USD
$82.96 USD
Sale Sold out
Shipping calculated at checkout.
Output Continuous Power
Input Rated Voltage
Output Voltage
View full details

Overview

EPEVER IPower series is a pure sine wave off grid inverter designed to convert 12VDC / 24VDC / 48VDC into 110VAC / 220VAC output for household emergency lighting systems, vehicle-mounted systems, and small field power supply applications.

Key Features

  • Safe design with input and output electrical isolation
  • Advanced SPWM technology, pure sine wave output
  • Optional output voltage 220/230VAC (or 110/120VAC), set by DIP switch
  • Output frequency 50/60Hz, set by DIP switch
  • LED indicators for working and fault status
  • Lower no-load consumption
  • Max. efficiency up to 95%
  • Input protection: over voltage protection, low voltage protection
  • Output protection: over load protection, short circuit protection
  • Over temperature protection: temperature-controlled fan ventilation; inverter turns off automatically
  • Industrial grade design

For compatibility checks and help choosing the correct model (input voltage, output voltage, and power), contact https://tsolar.top/ or service@tsolar.top.

Specifications

Technical specifications (350W/500W)

Model 350-11 500-11 350-21 500-21 350-12 500-12 350-22 500-22
Input Rated Voltage 12VDC 24VDC 12VDC 24VDC
Input Voltage Range 10.8-16VDC 21.6-32VDC 10.8-16VDC 21.6-32VDC
Input surge voltage <32V <44V <32V <44V
Fuse 32VDC/50A 2*32VDC/35A 32VDC/30A 2*32VDC/25A 32VDC/50A 2*32VDC/35A 32VDC/30A 2*32VDC/25A
No-load current <0.7A <0.9A <0.5A <0.5A <0.7A <0.9A <0.5A <0.5A
Output Voltage 110VAC (±5%) 220VAC (±5%)
120VAC (-10% to +5%) 230VAC (-10% to +5%)
Output Continuous Power (-20°C to +45°C) 350VA 500VA 350VA 500VA 350VA 500VA 350VA 500VA
Power factor 0.8 0.8
Instantaneous impact power >=750VA >=1000VA >=750VA >=1000VA >=750VA >=1000VA >=750VA >=1000VA
Output way Single phase Single phase
Output Wave Pure sine wave Pure sine wave
Output Frequency 50/60Hz (±0.2%) 50/60Hz (±0.2%)
Distortion THD THD <= 5% (Resistive load) THD <= 5% (Resistive load)
Max. Efficiency 91% 92%
90% (IP350-11) 91% (IP350-12)
Max. USB Output 5VDC/1A 5VDC/1A
Model 350-11 / 350-12 350-21 / 350-22 500-11 / 500-12 500-21 / 500-22
DC input terminal 6mm^2
Overall dimension 214 x 105.5 x 57.7mm 232.2 x 132 x 74.5mm
Mounting dimension 185.5 x 76.7mm 205 x 102mm
Mounting hole size Φ4.2mm Φ5.2mm
Net weight 0.9kg 1.4kg
Working environment temperature -20°C to +45°C
Storage temperature range -35°C to +70°C
Humidity range <=93% (N.C.)
Enclosure IP20
Altitude <2000m (Derating to operate according to IEC62040 at a height exceeding 1000m)

Technical specifications (1500W/2000W)

Model 1500-11 1500-21 2000-21 2000-41 1500-12 1500-22 2000-22 2000-42
Input Rated Voltage 12VDC 24VDC 24VDC 48VDC 12VDC 24VDC 24VDC 48VDC
Input Voltage Range 10.8-16VDC 21.6-32VDC 21.6-32VDC 43.2-60VDC 10.8-16VDC 21.6-32VDC 21.6-32VDC 43.2-60VDC
Input surge voltage <20VDC <40VDC <40VDC <80VDC <20VDC <40VDC <40VDC <80VDC
No-load current <1.0A <0.6A <0.6A <0.4A <1.0A <0.6A <0.6A <0.4A
Output Voltage 110VAC (±5%) 110VAC (±5%) 220VAC (±5%) 220VAC (±5%)
120VAC (-7% to +5%) 120VAC (-10% to +5%) 230VAC (-7% to +5%) 230VAC (-10% to +5%)
Output Continuous Power 1200W 1600W 1200W 1600W
Output Power 15 min. 1500W 2000W 1500W 2000W
Instantaneous impact power 2400W 3200W 2400W 3200W
Output way Single phase Single phase Single phase Single phase
Output Wave Pure sine wave Pure sine wave Pure sine wave Pure sine wave
Output Frequency 50/60Hz (±0.2%) 50/60Hz (±0.2%) 50/60Hz (±0.2%) 50/60Hz (±0.2%)
Distortion THD THD <= 5% (Resistive load) THD <= 5% (Resistive load) THD <= 5% (Resistive load) THD <= 5% (Resistive load)
Max. Efficiency 93% 94% 95% 93% 94% 95%
Max. USB Output 5VDC/1A 5VDC/1A 5VDC/1A 5VDC/1A
Binding post Φ10mm Φ10mm Φ10mm Φ10mm
Model 1500-11 / 1500-12 1500-21 / 1500-22 2000-21 / 2000-22 2000-41 / 2000-42
Overall dimension 326.12 x 231.5 x 98.5mm 284.7 x 231.5 x 98.5mm 326.12 x 231.5 x 98.5mm
Mounting dimension 208 x 220mm 163 x 220mm 208 x 219.5mm
Mounting hole size Φ5.5mm Φ5.5mm
Net weight 3.9kg 4.0kg
Working Temperature -20°C to +45°C
Storage Temperature -35°C to +70°C
Humidity <95% (N.C.)
Enclosure IP20
Altitude <5000m (Derating to operate according to IEC62040 at a height exceeding 1000m)

Applications

  • Household emergency lighting system
  • Vehicle-mounted system
  • Small field power supply
