Overview
EPEVER eBox communication modules provide wireless monitoring for compatible solar controllers and inverters via an RS485 (RJ45) connection. Two versions are available: eBox-BLE-01 (RS485 to Bluetooth/BLE) and eBox-WIFI-01 (RS485 to WiFi), supporting mobile app monitoring with plug-and-play installation.
Key Features

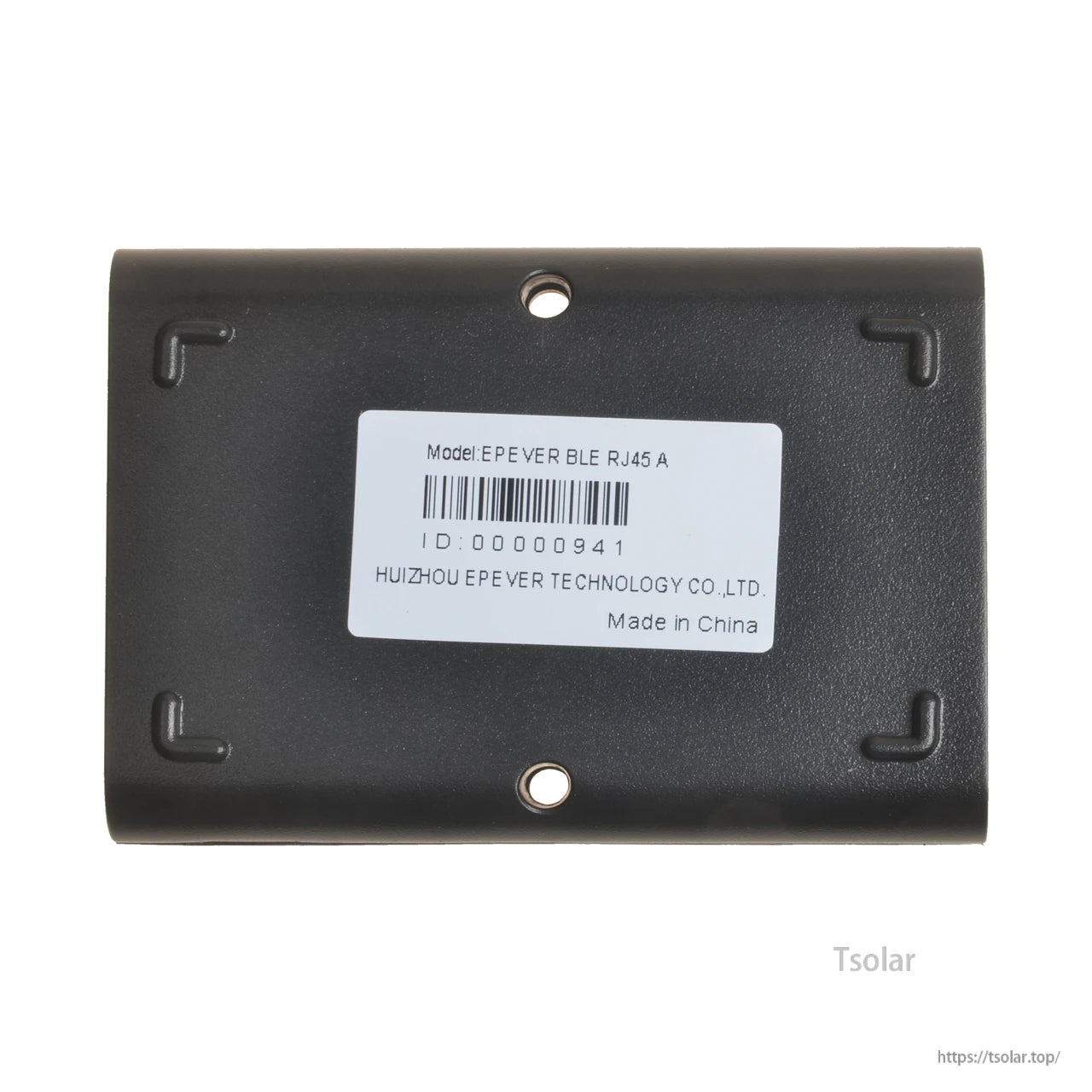

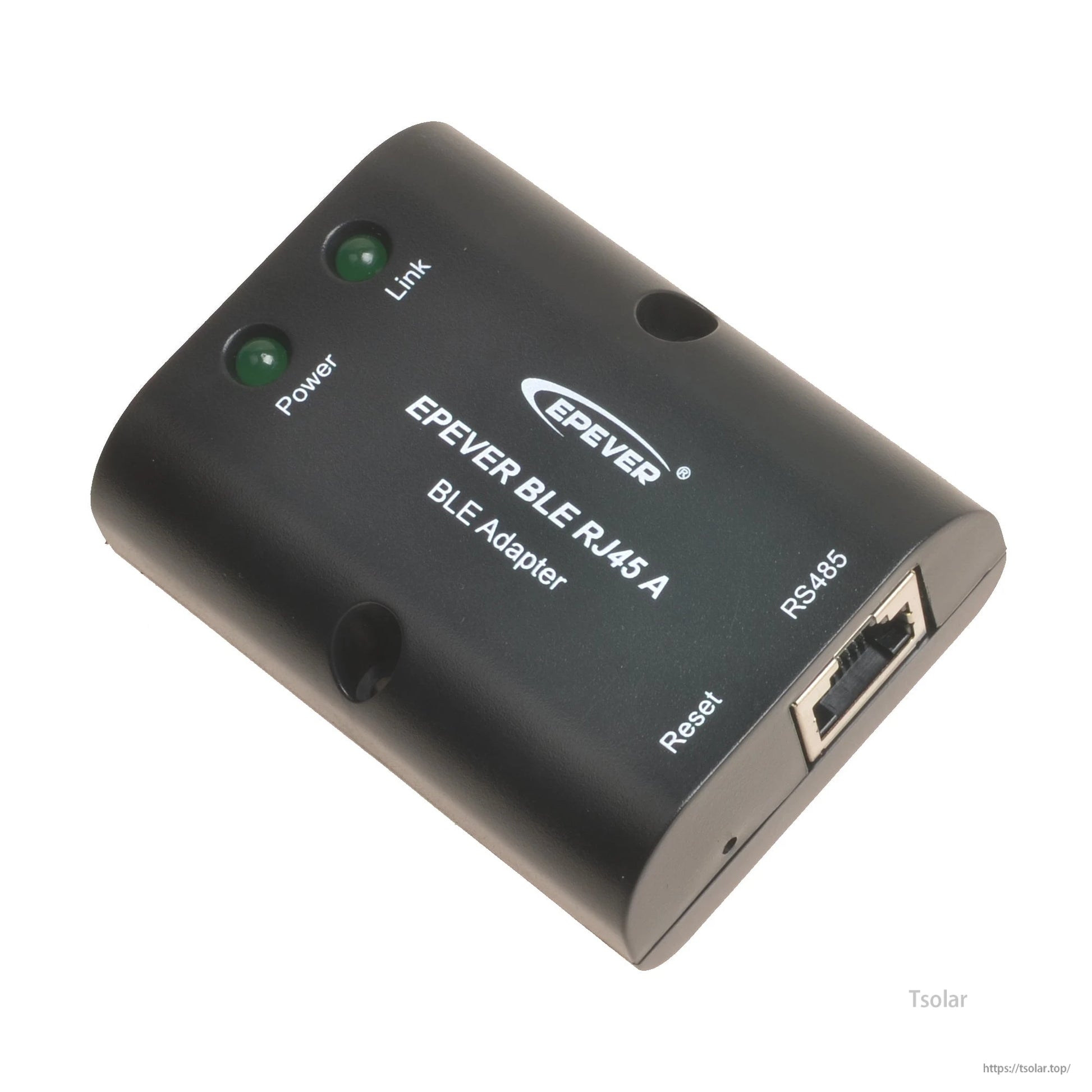

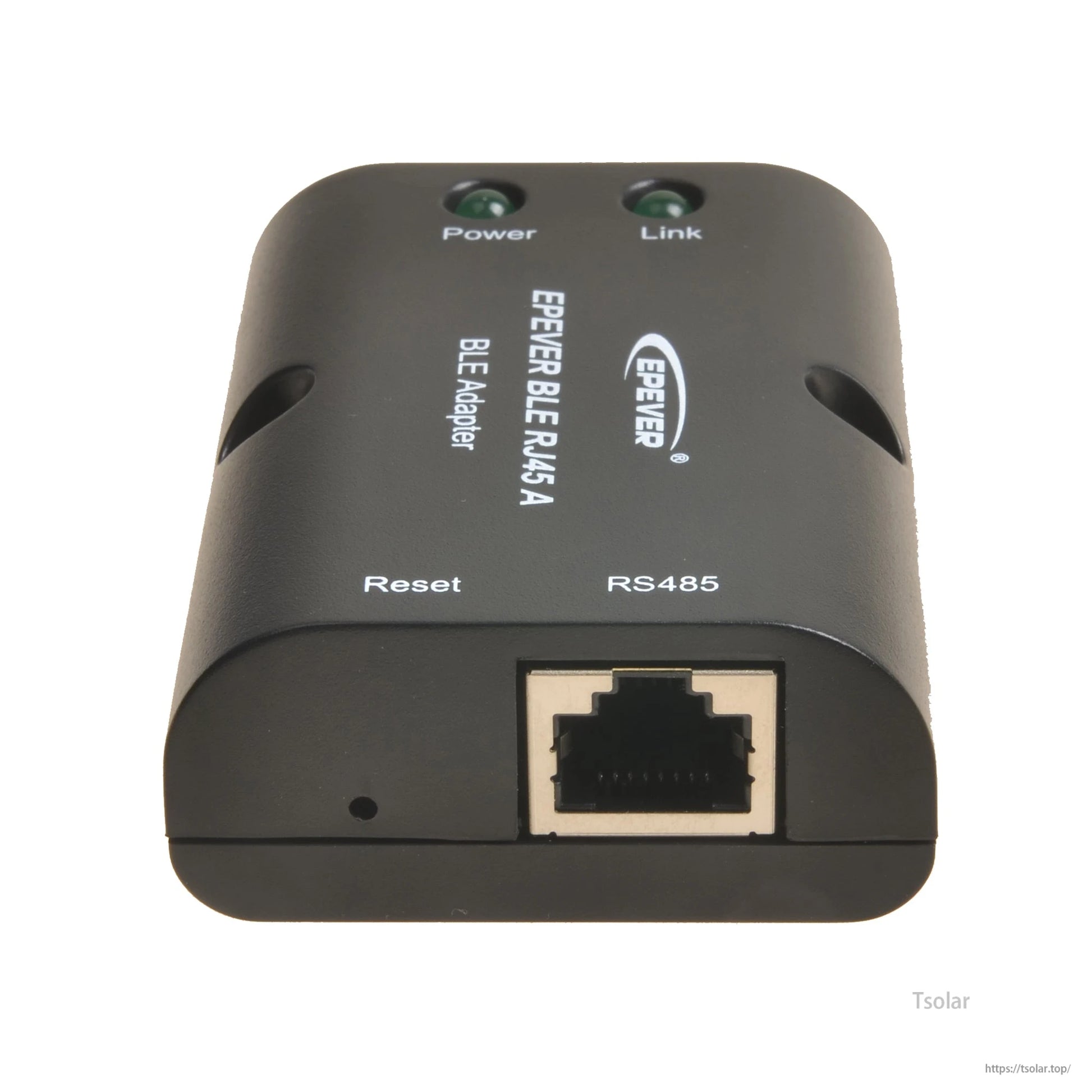

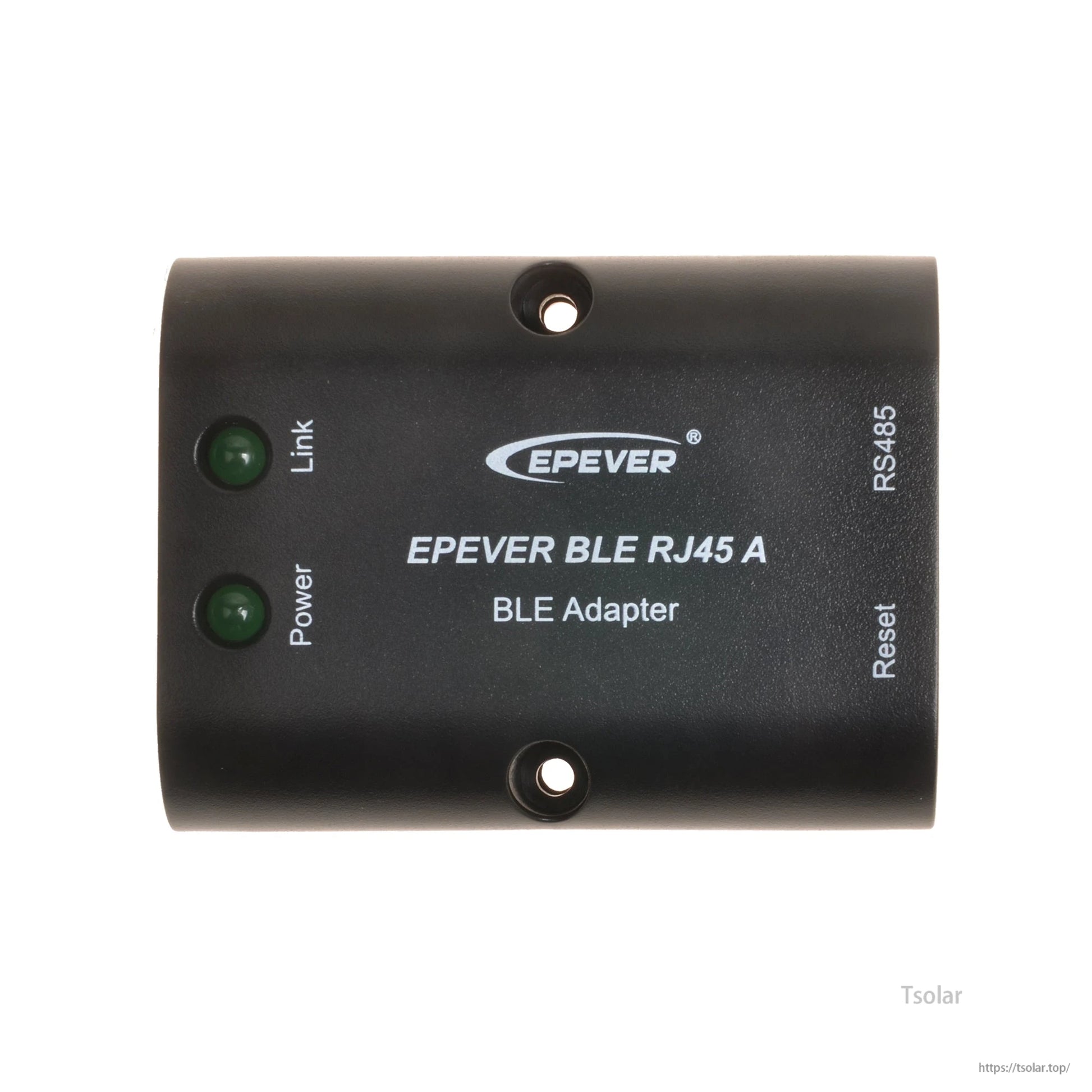

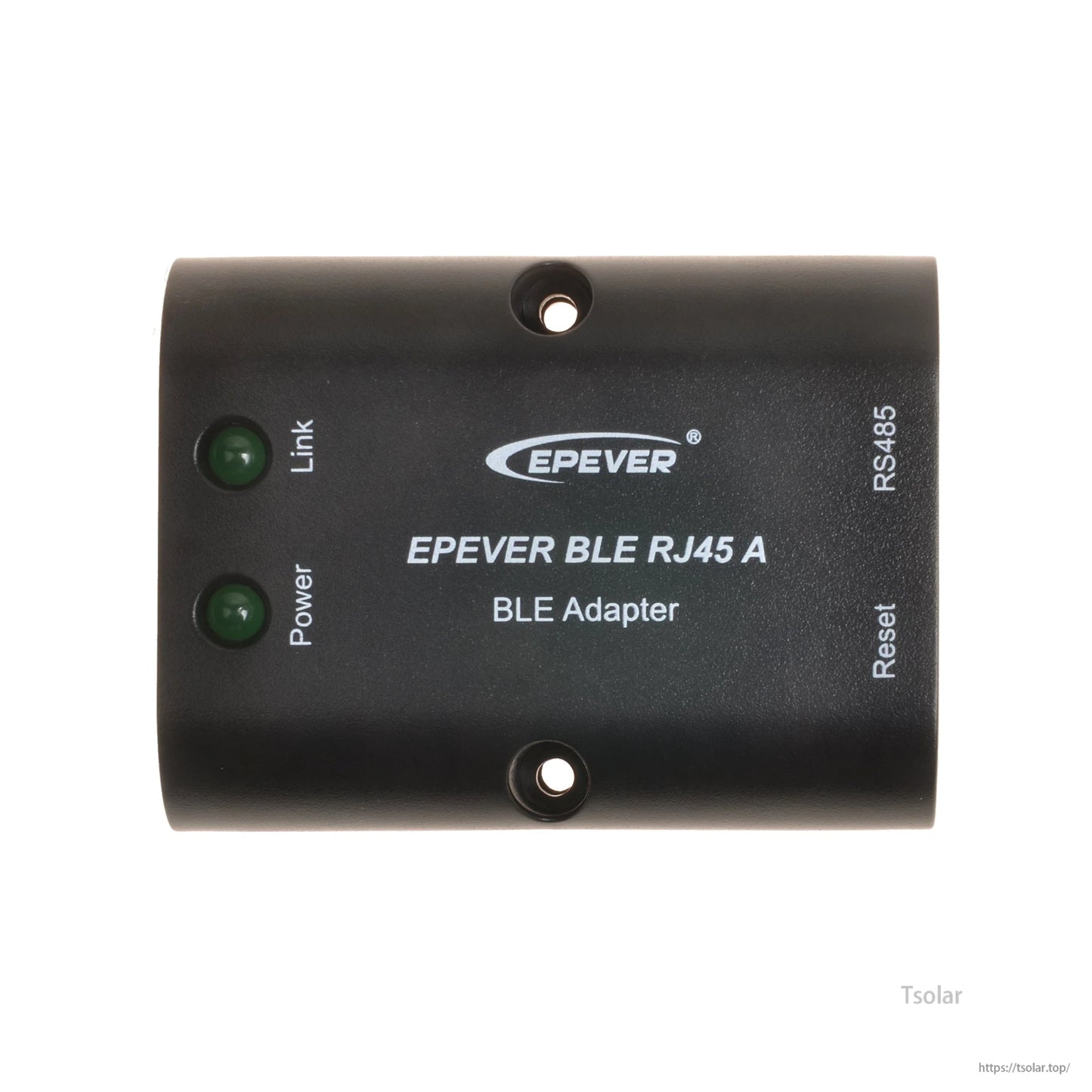

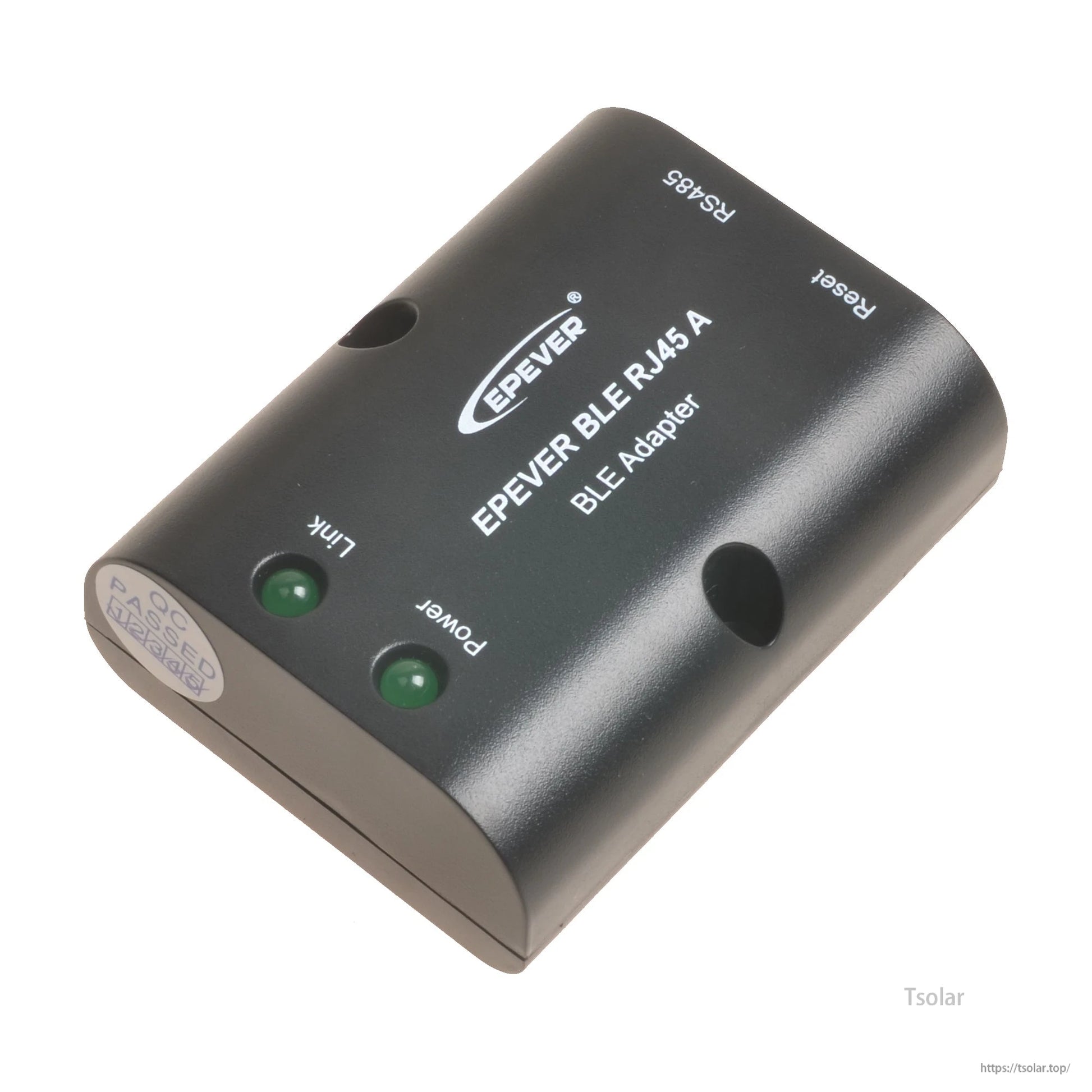

eBox-BLE-01 (Bluetooth/BLE)
- Wireless monitoring for solar controller and inverter
- Supports mobile phone app; plug and play; simple setup
- High-performance, ultra-low power Bluetooth dedicated chip
- Bluetooth 4.0 and BLE technology
- Fast communication with strong anti-interference ability
- No external power supply required
- Communication distance up to 10 m
- Master reset adapter

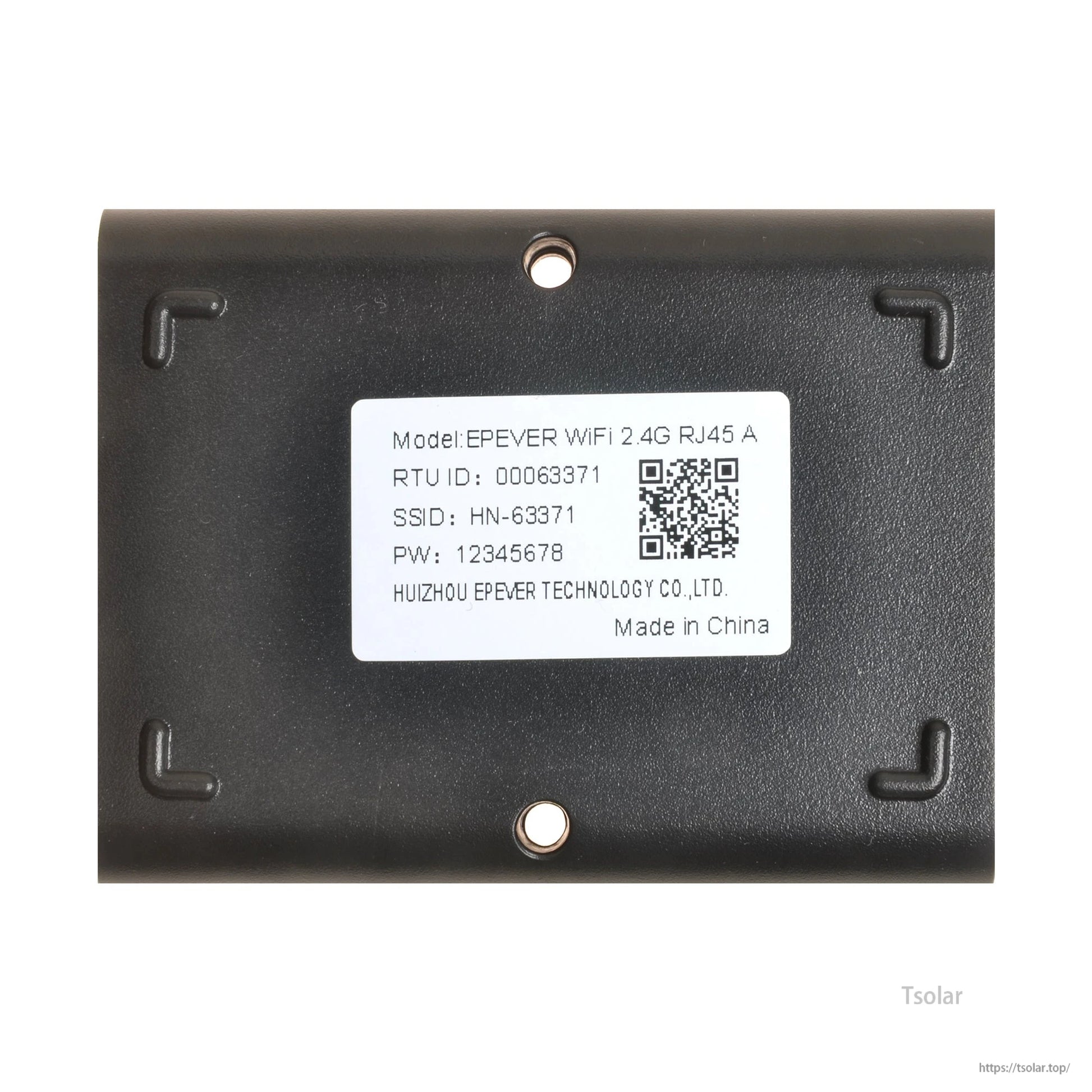

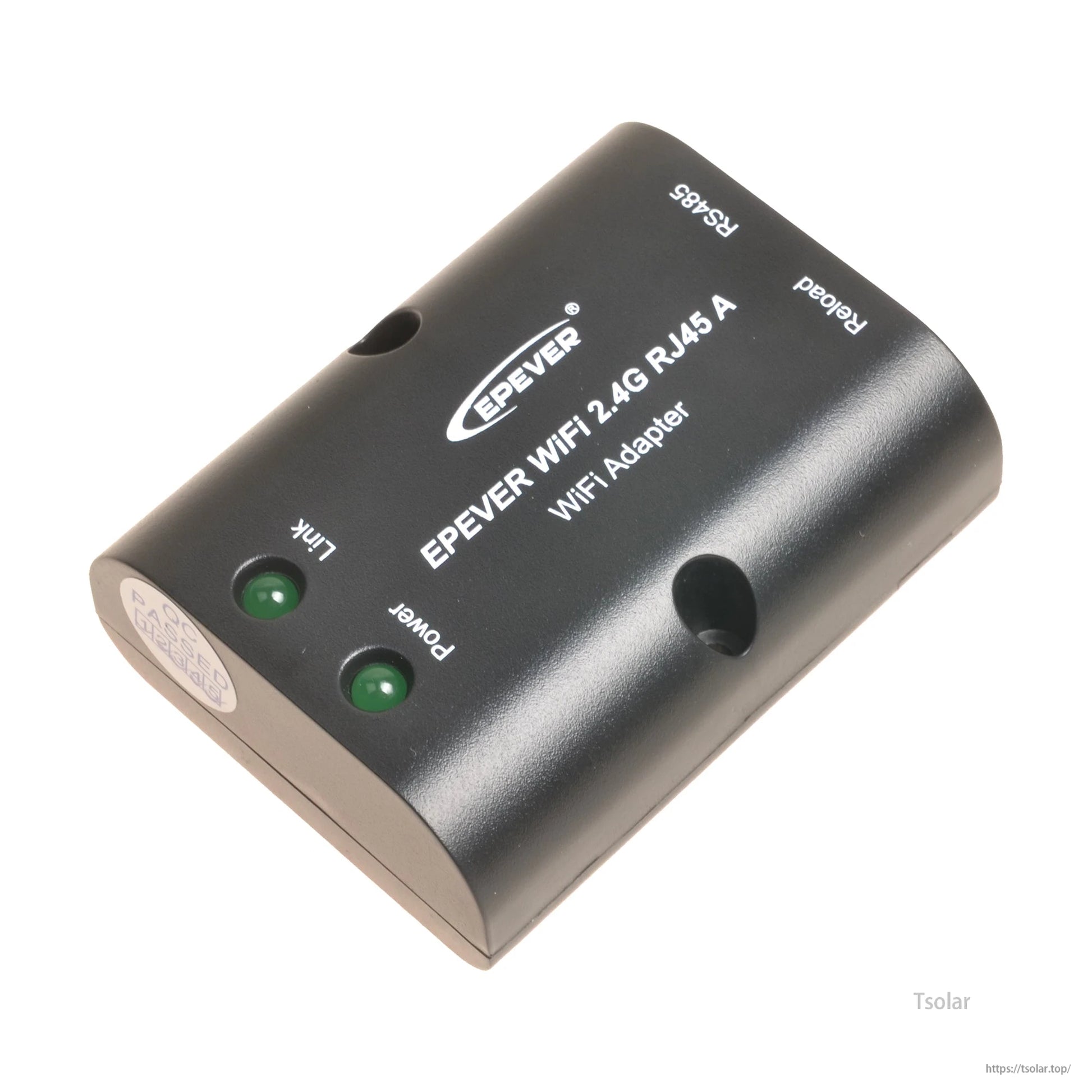

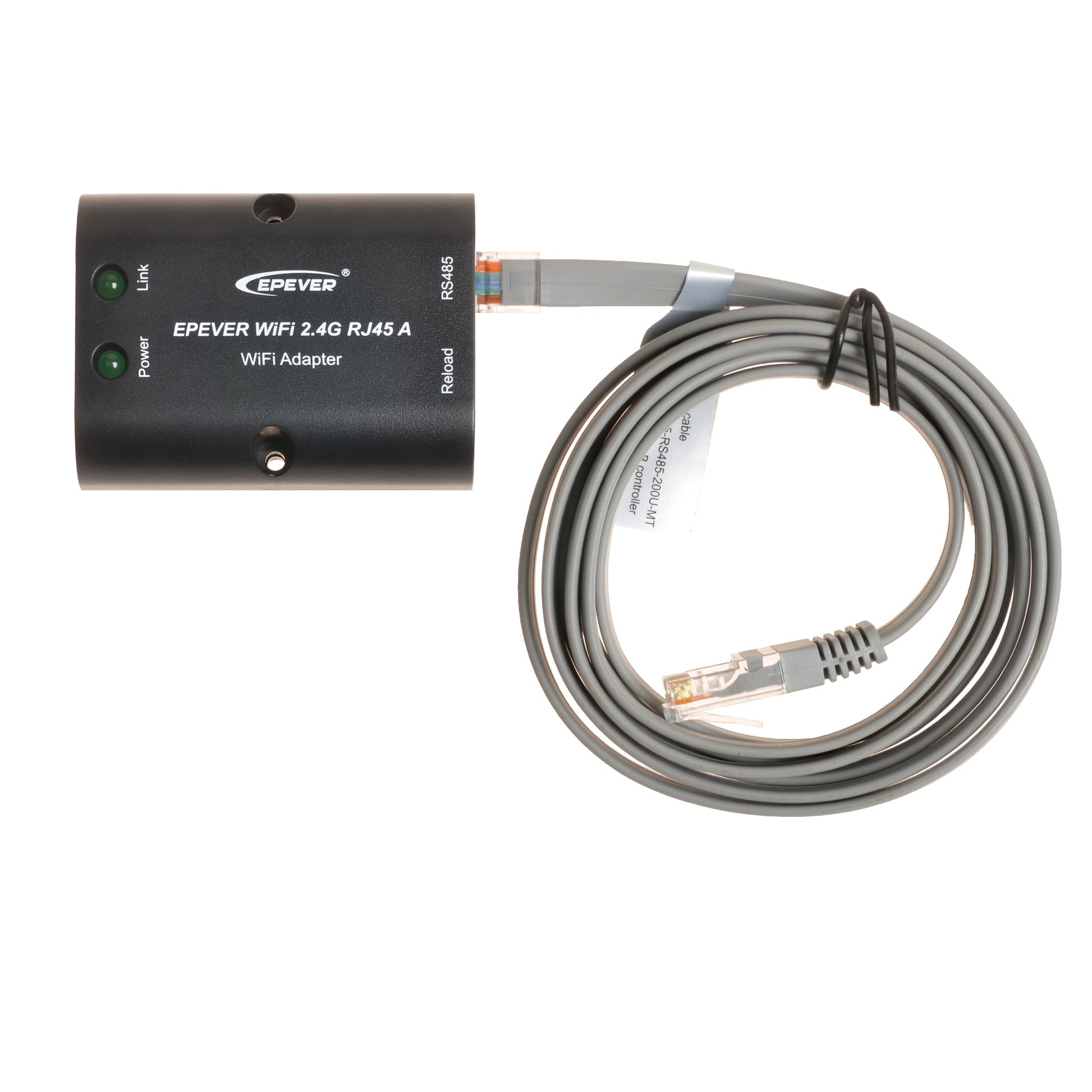

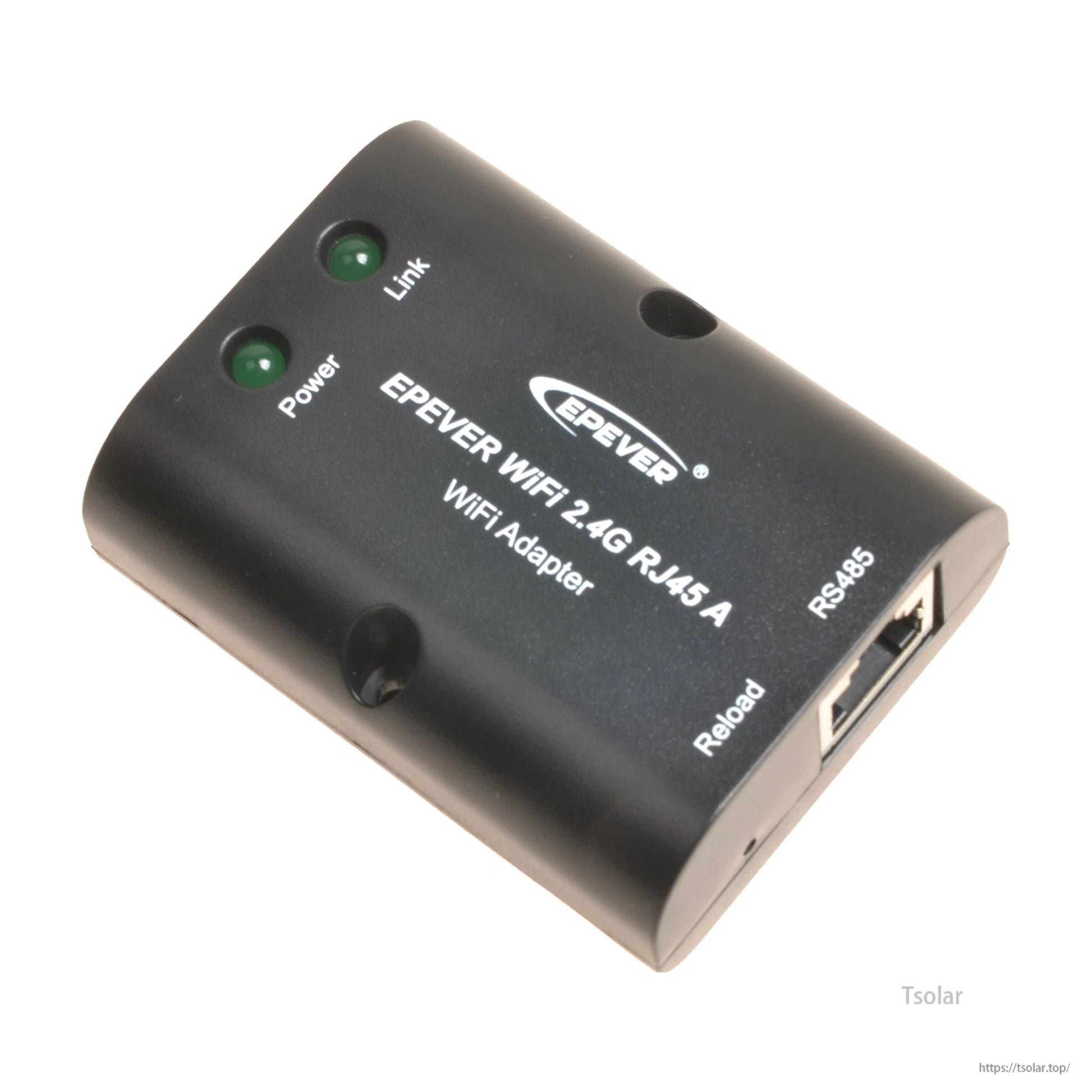

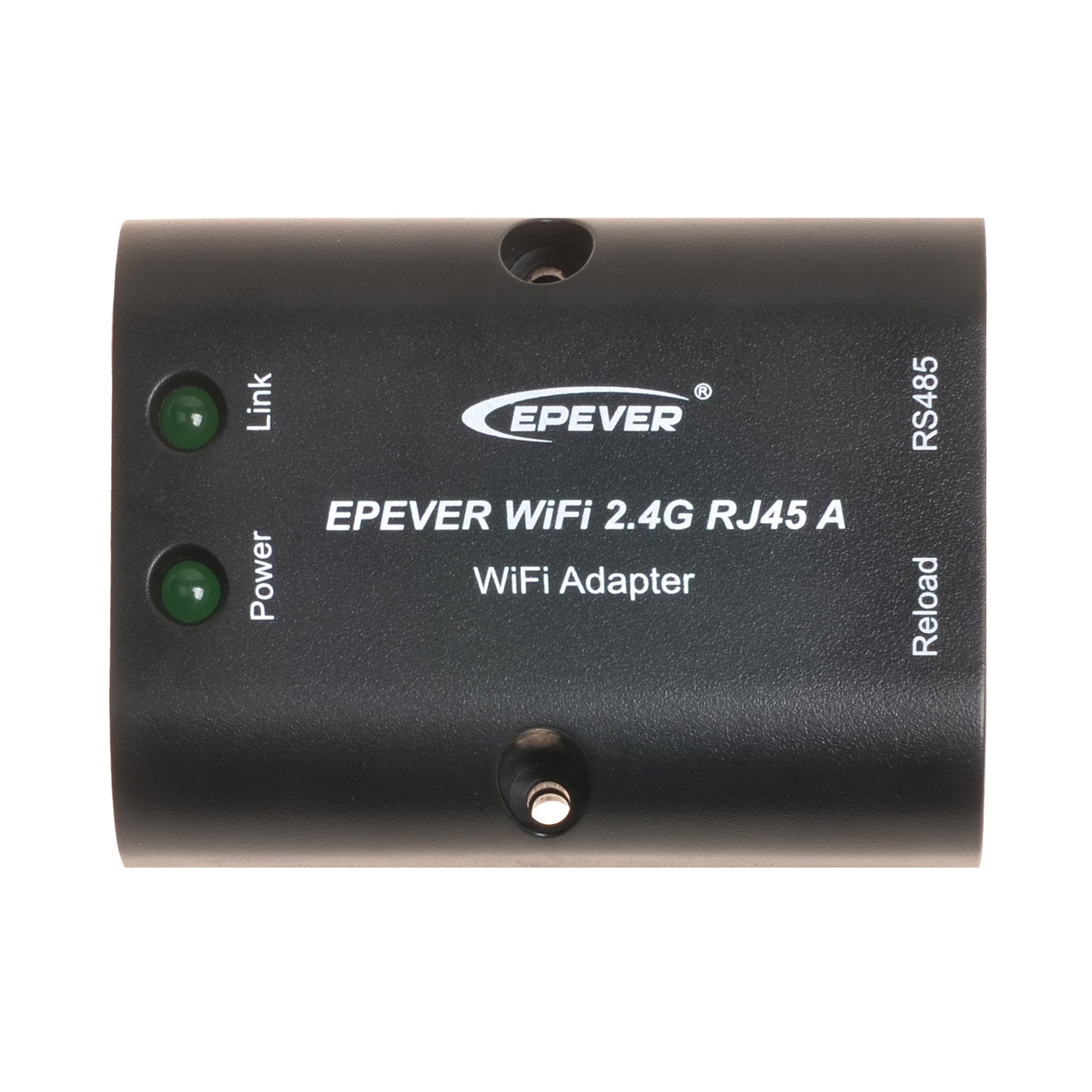

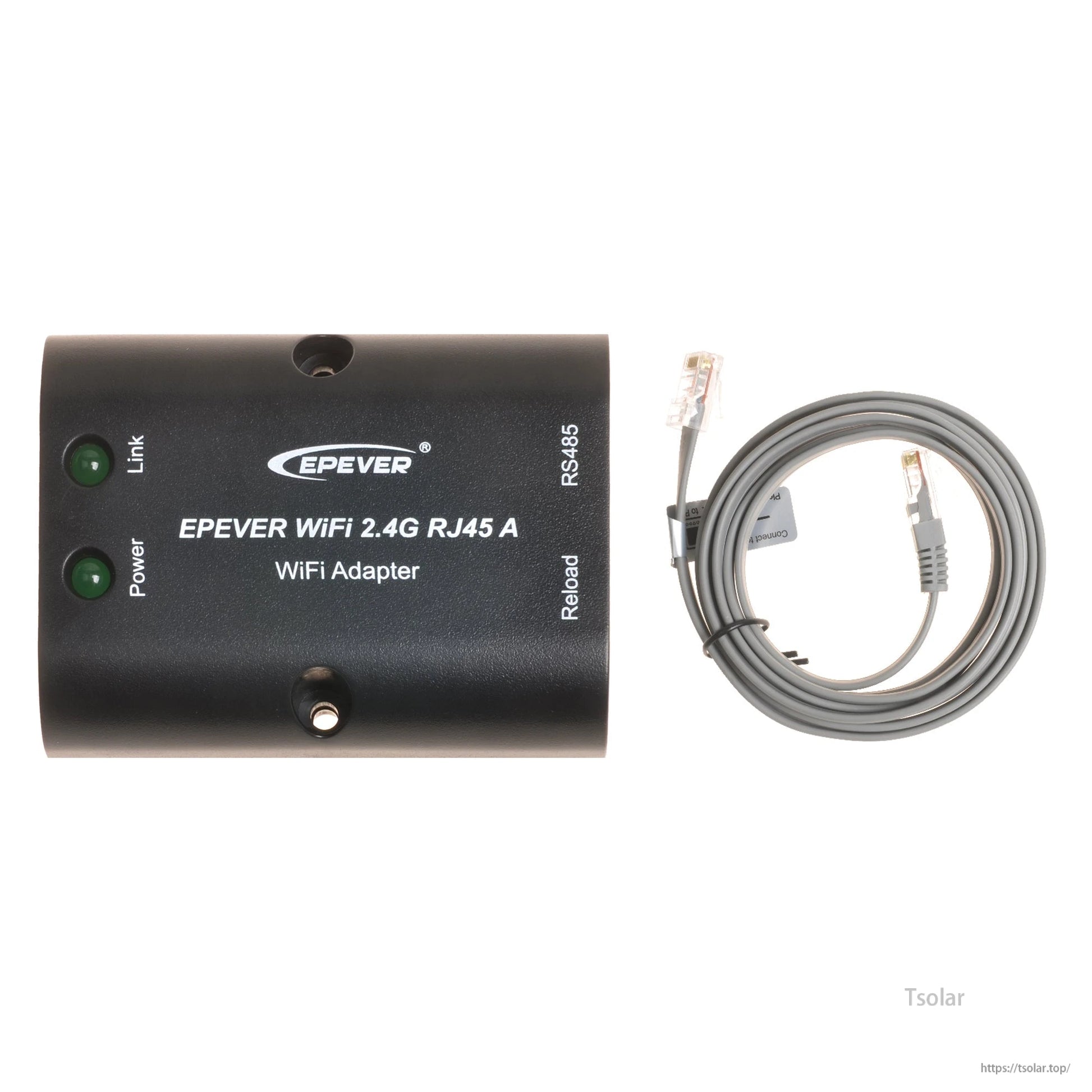

eBox-WIFI-01 (WiFi)
- Wireless monitoring for solar controller and inverter
- Supports mobile phone app; plug and play; simple setup
- High-performance CPU with core M4
- Ultra-low power consumption and high-speed data processing capability
- No external power supply required
- Communication distance up to 50 m
- One-key restore factory settings
For compatibility and setup support, contact https://tsolar.top/ or email service@tsolar.top.
Specifications
| Model | eBox-BLE-01 | eBox-WIFI-01 |
| Input Voltage | 5VDC (Direct powered by RS485 port) | 5VDC (Direct powered by RS485 port) |
| Standby Power Consumption | 0.04W | 0.20W |
| Operation Power Consumption | 0.05W | 0.25W |
| Communication Distance | ≤10m | ≤50m |
| Port Baud Rate | 300bps~230400bps (Default115200) | 300bps~230400bps (Default 115200) |
| Communication | RS485 to BLE | RS485 to WIFI |
| Interface Type | RJ45 | RJ45 |

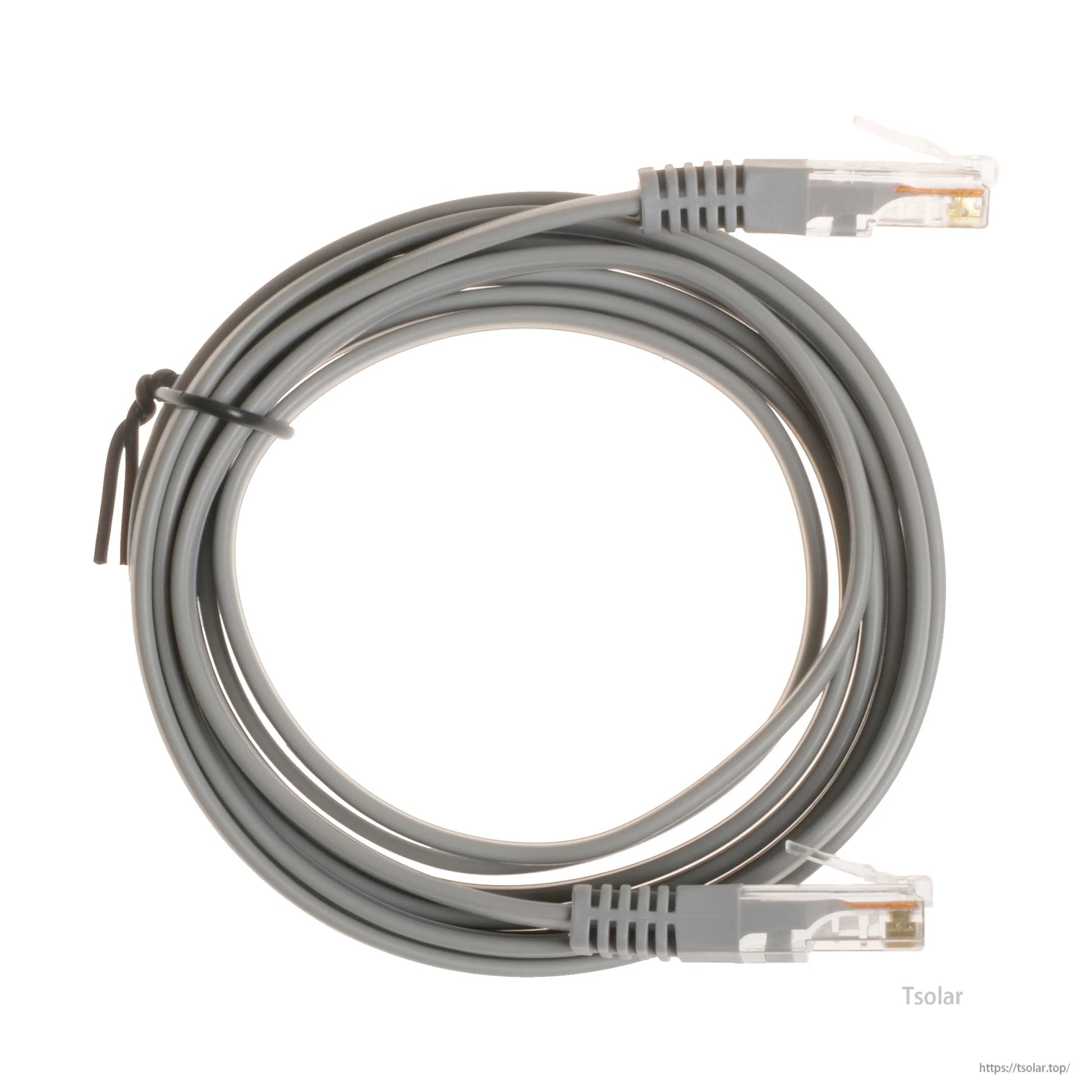

| Connecting Cable | Standard network cable (Parallel cable) | Standard network cable (Parallel cable) |
| Overall Dimension | 51*67*24.5mm | 51*67*24.5mm |
| Mounting Dimension | 41.2mm | 41.2mm |
| Mounting Hole Size | Ø3.2mm | Ø3.2mm |
| Working Temperature | -20 to 70°C | -35 to 75°C |
| Enclosure | IP30 | IP30 |
| Net Weight | 37g | 39g |
Applications
- Wireless monitoring of compatible EPEVER solar controllers and inverters via RS485 (RJ45)
- Mobile app monitoring for system status and parameters
Manuals / App
- APK Download: Epever (WIFI&BLE)

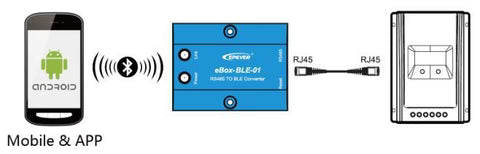

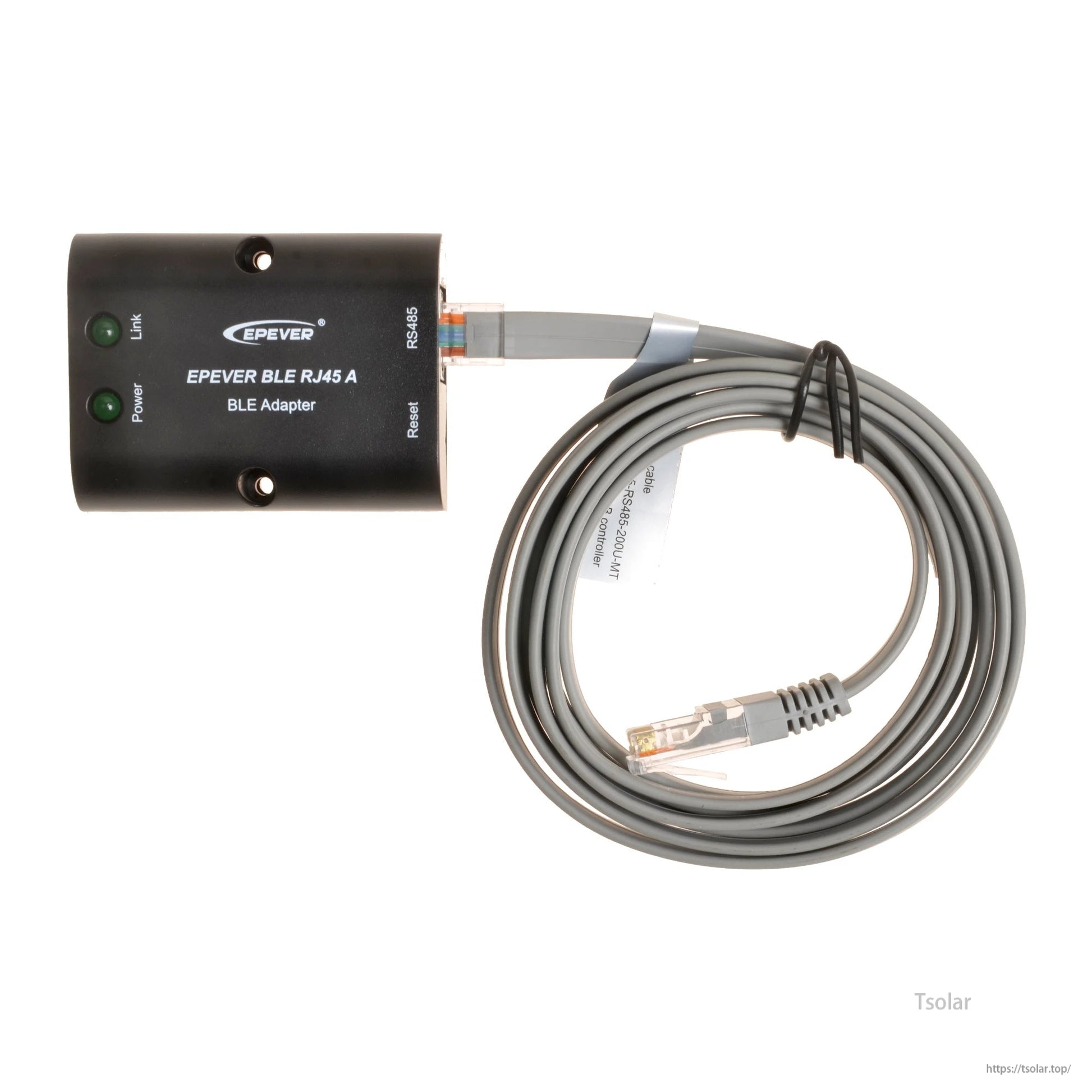

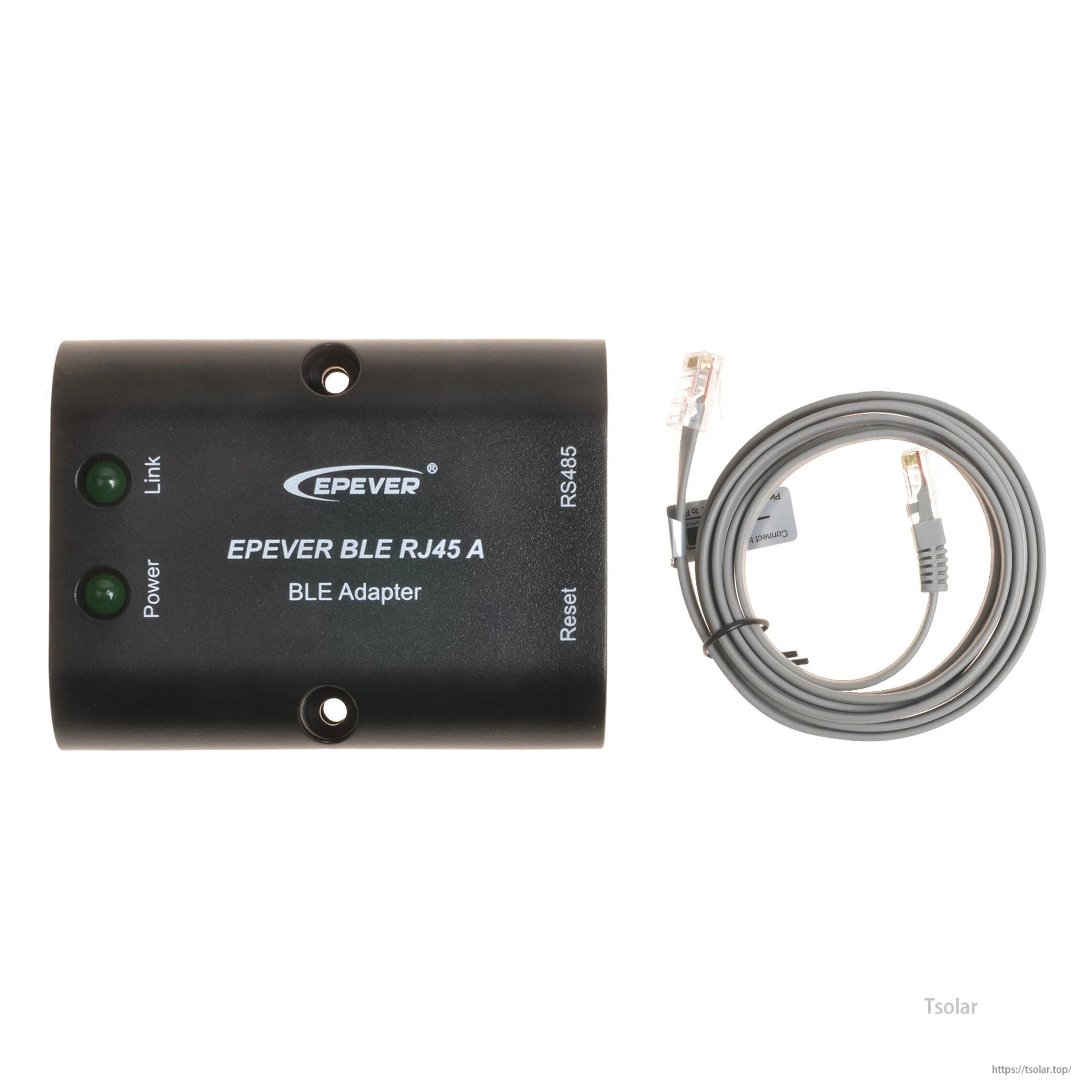

EPEVER eBox-BLE-01 adds Bluetooth app connectivity via RJ45/RS485 to compatible EPEVER controllers and inverters.
Details
EPEVER eBox-BLE-01 and eBox-WIFI-01 modules connect via RS485/RJ45 to support Bluetooth or WiFi monitoring with a mobile app.

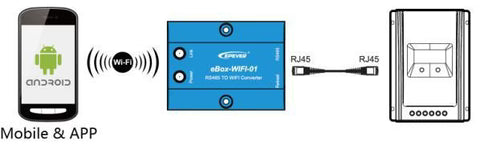

EPEVER eBox WiFi/Bluetooth communication modules connect to a controller or inverter via RS485 RJ45 for mobile app monitoring.
