Overview

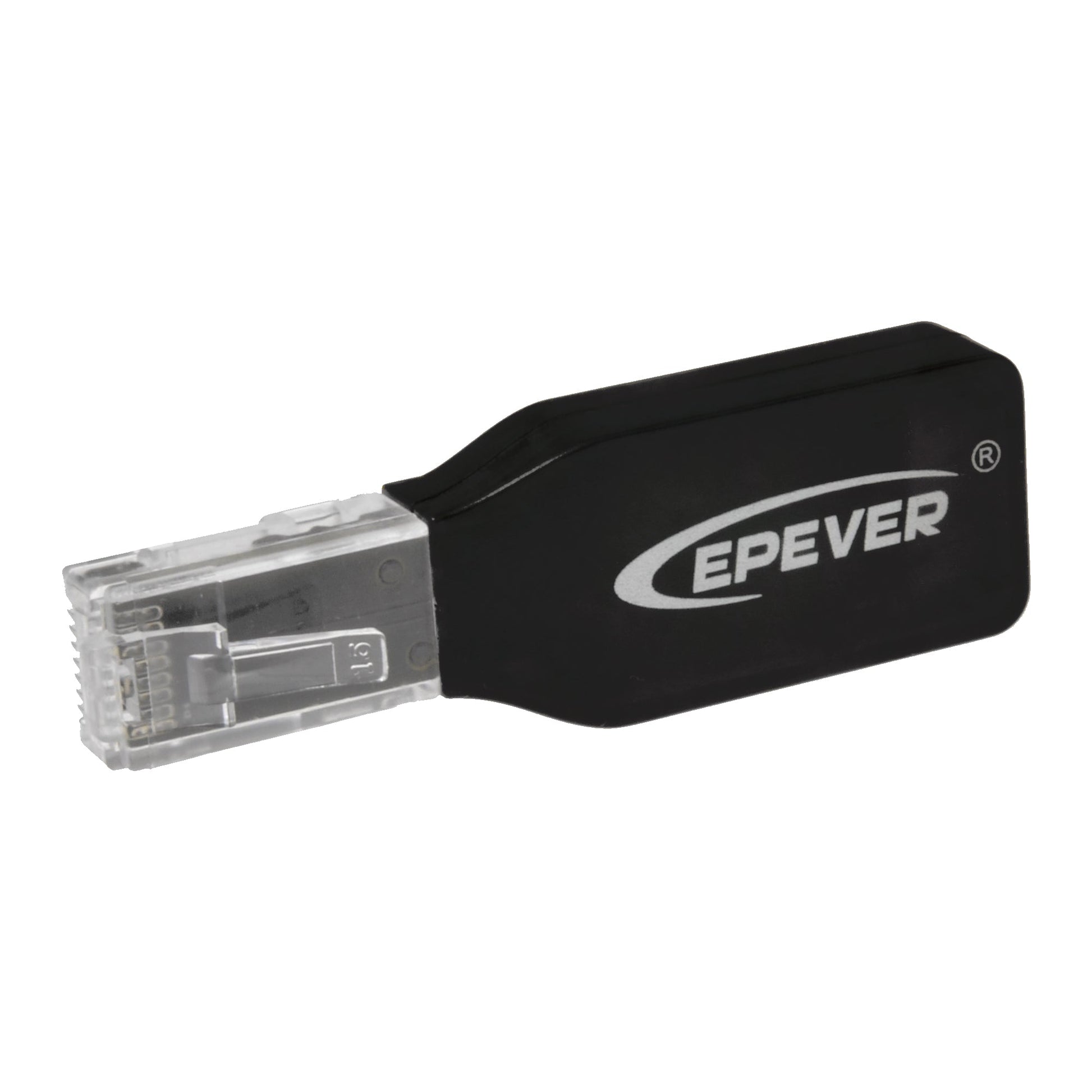

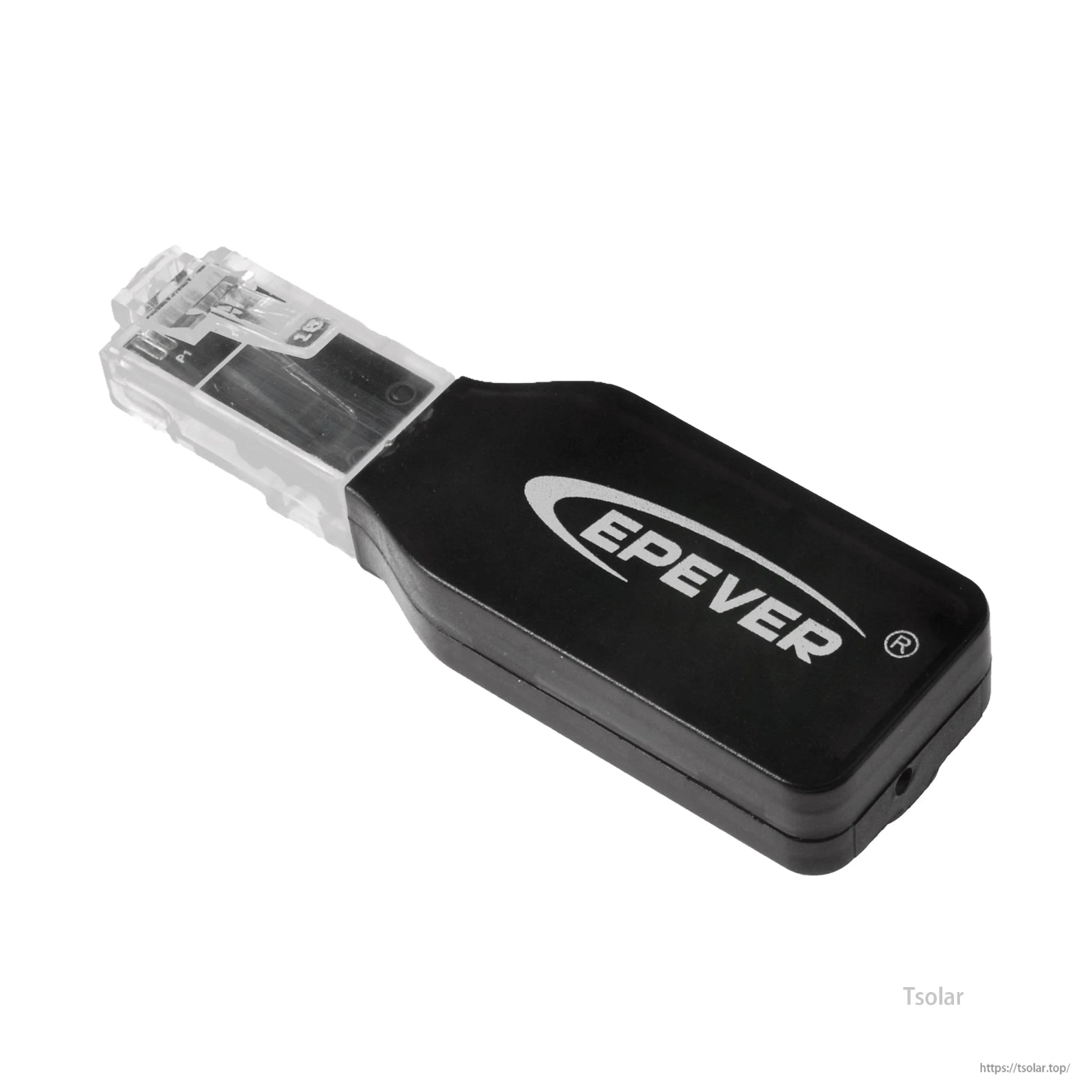

This EPEVER MPPT solar controller WiFi communication adapter/cable box is designed for EPEVER brand devices only and is not compatible with other brands. The WiFi model listed is EPEVER WiFi 2.4G RJ45 D, used to transmit operational data from compatible EPEVER solar controllers, inverters, or inverter/chargers to the EPEVER cloud server via a local 2.4G WiFi network for remote monitoring and parameter programming through the EPEVER server platform and mobile app.
Key Features

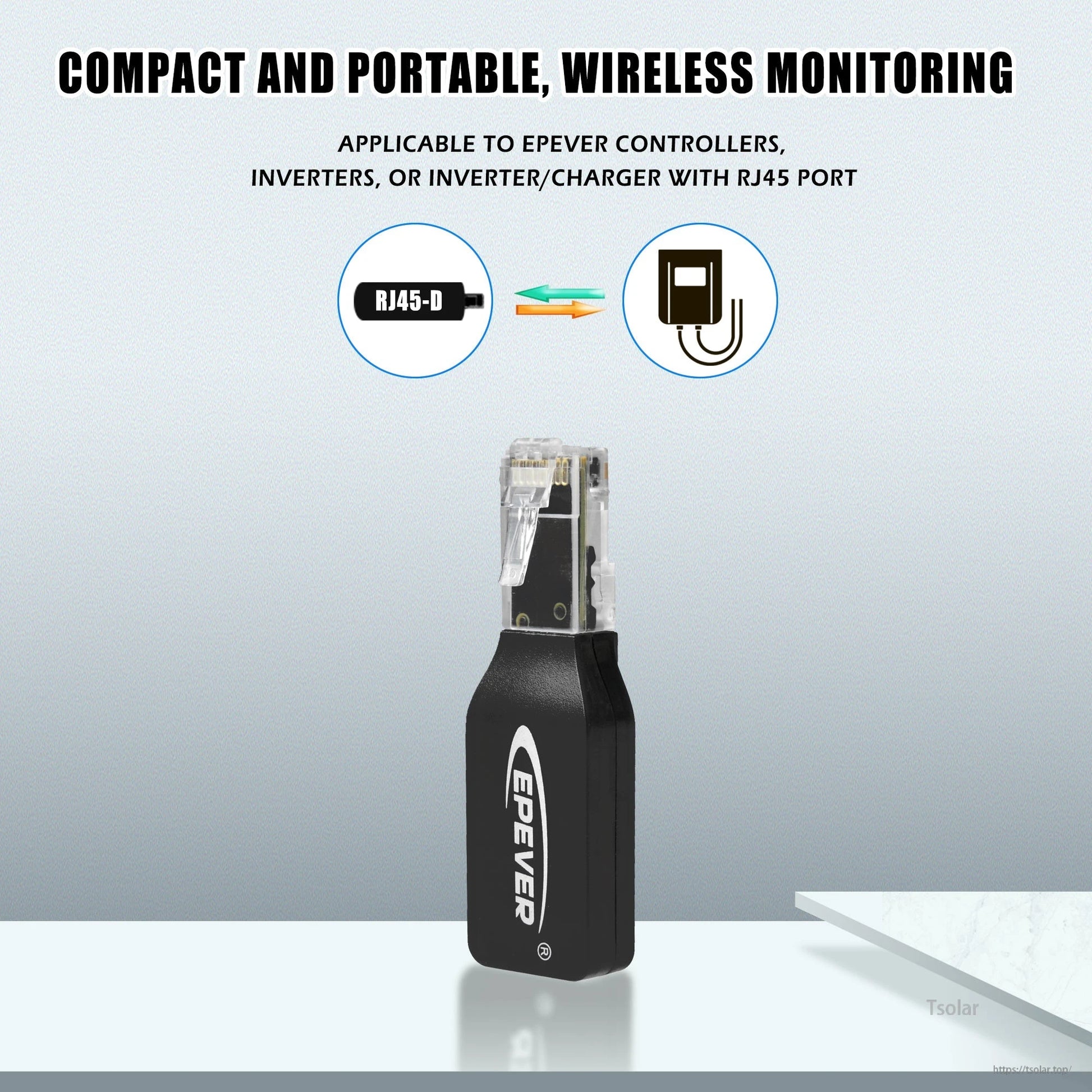

- Applicable to EPEVER controllers, inverters, or inverter/charger with RJ45 port

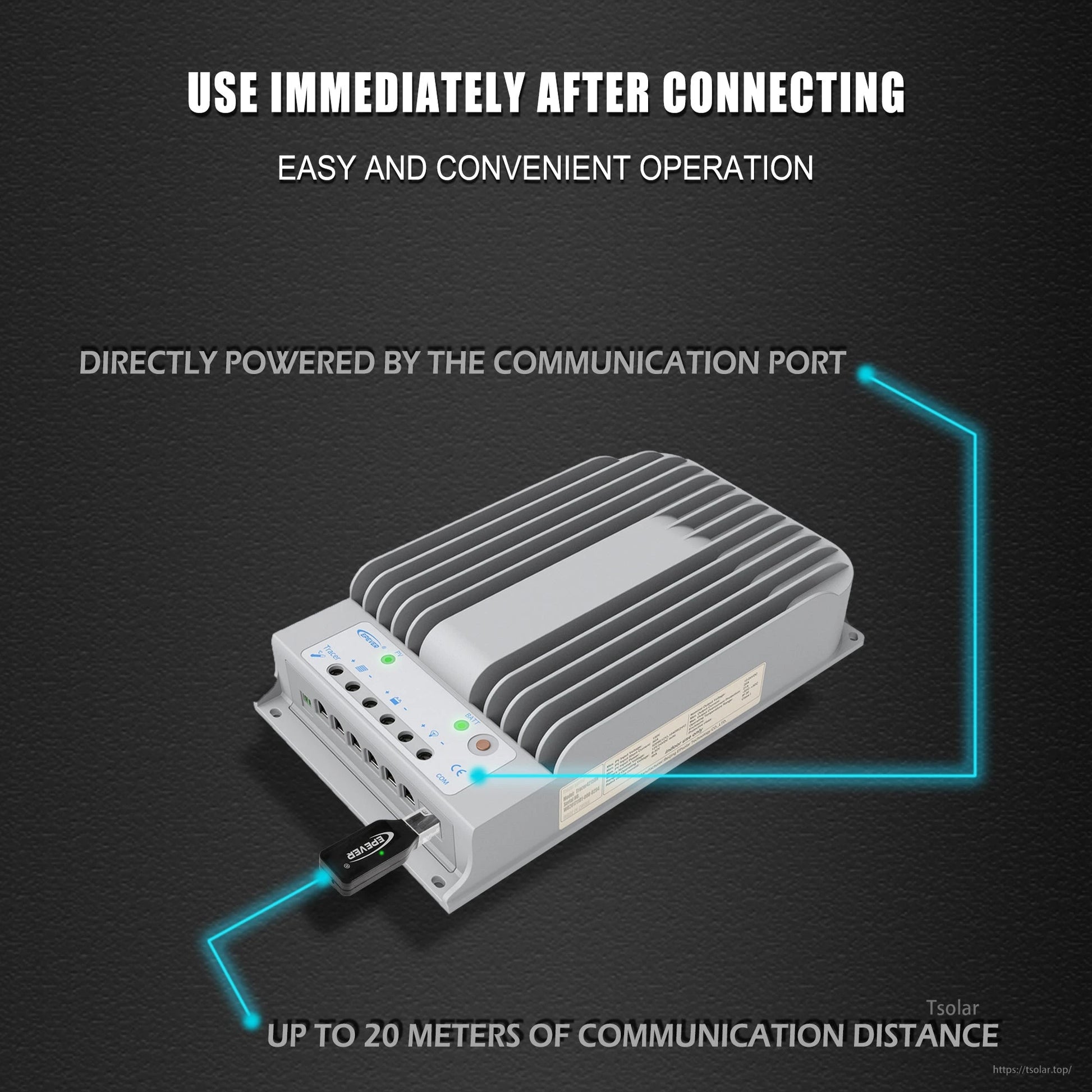

- Use immediately after connecting; easy and convenient operation
- Directly powered by the communication port
- Up to 20 meters communication distance

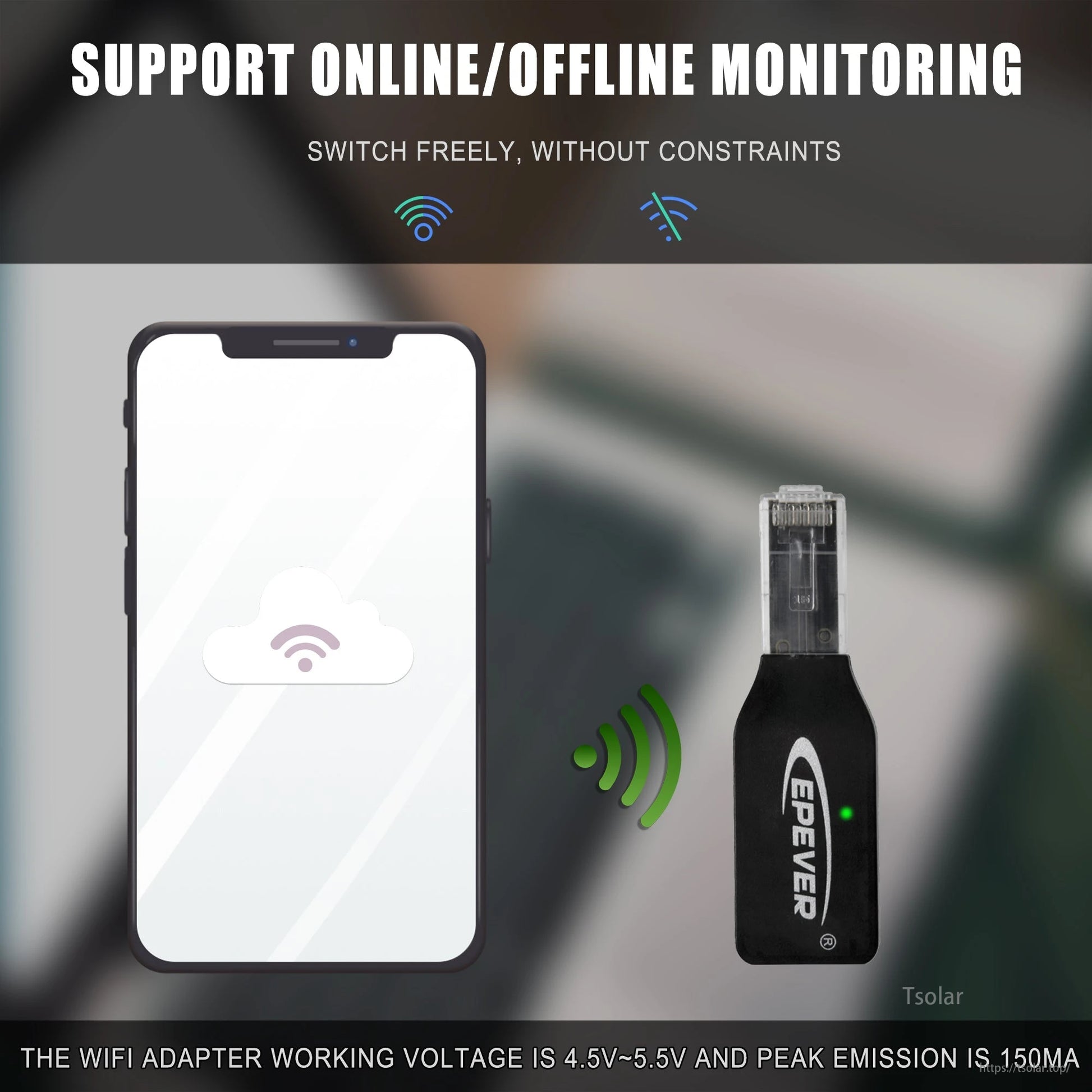

- Supports Local monitoring and "EPEVER Cloud" working mode
For compatibility confirmation before purchase, contact https://tsolar.top/ or service@tsolar.top.
Applicable Models
| Product series | Communication | Interface type |
|---|---|---|
| LS-B series | RS485 | RJ45 |
| VS-A series | ||
| VS-BN series | ||
| Tracer-A series | ||
| Tracer-BN series | ||
| SHI series | ||
| STI series | ||
| eTracer-AD series | 3.81-4P | |
| eTracer-BND series | ||
| iTracer-ND series |
Specifications

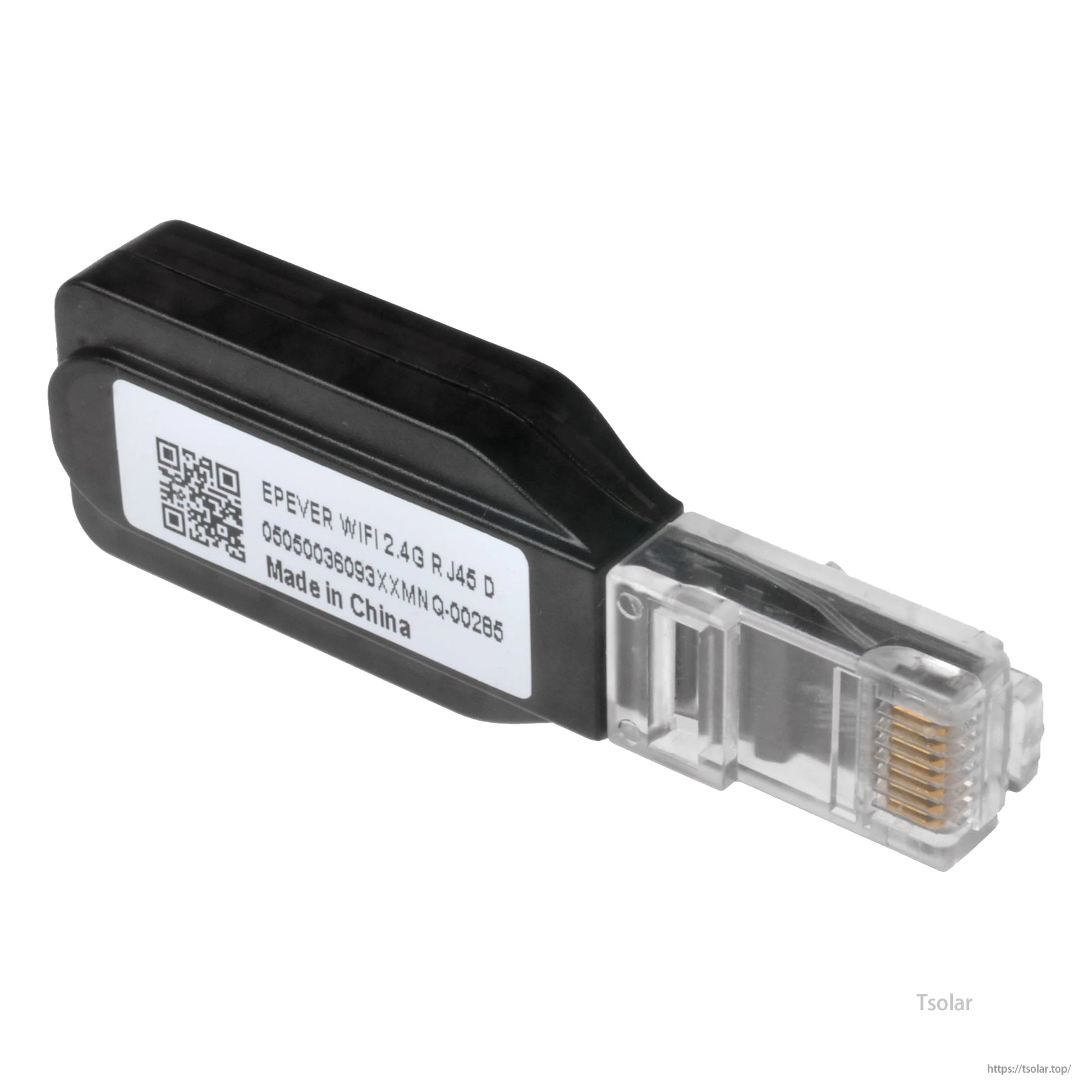

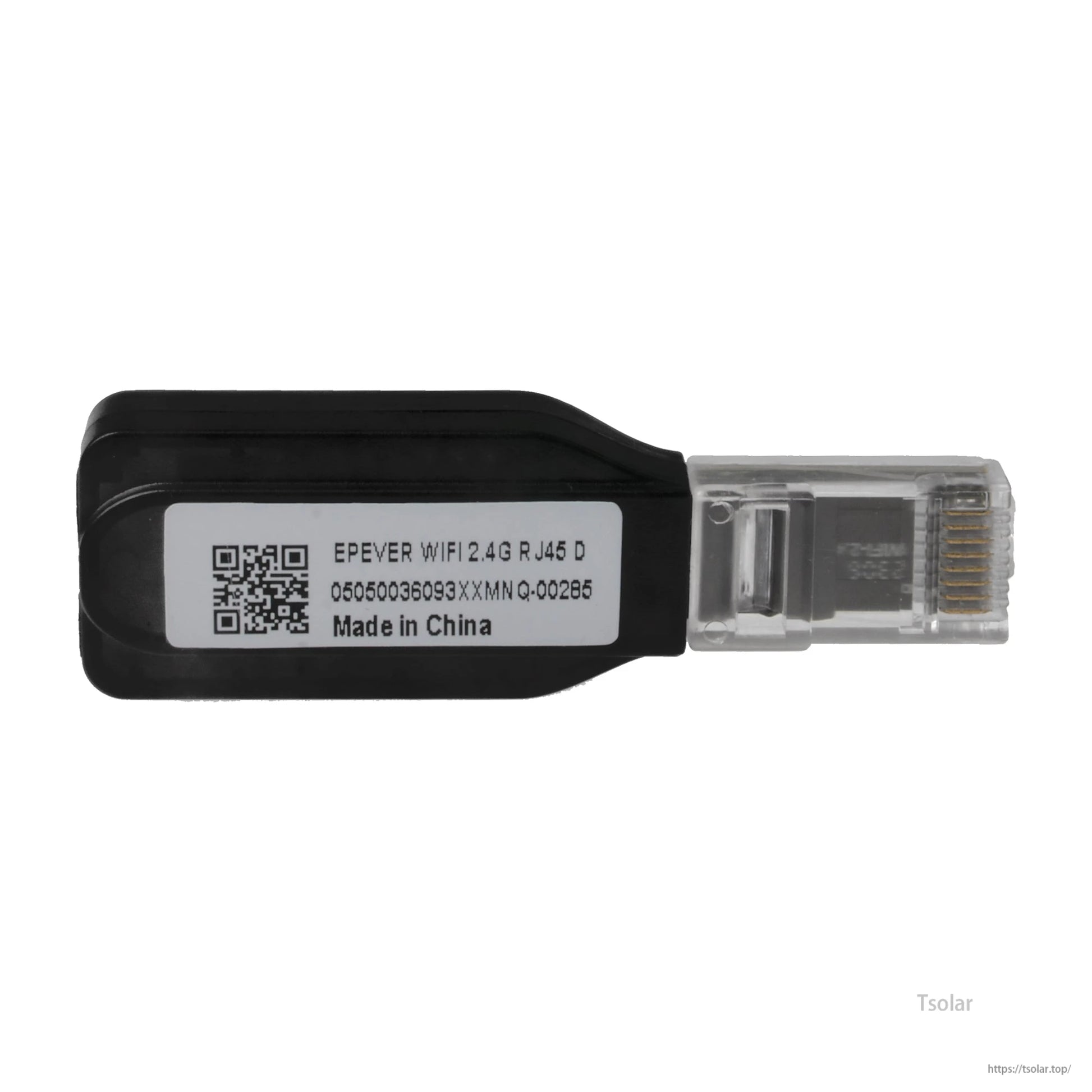

EPEVER WiFi 2.4G RJ45 D
| Working voltage | 5V± 0.5V (Powered by RS485 com. port) |
|---|---|
| Power consumption | Peak emission: 150mA; Idle: 310uA |
| Enclosure | IP30 |
| Communication method | RS485 |
| Communication parameters | 115200Bps, 8N1 |
| Interface standard | EPEVER communication standard V1-1.0 |
| Work frequency | 2.4 ~ 2.4835GHz |
| Work temperature range | -40°C ~ 85°C |

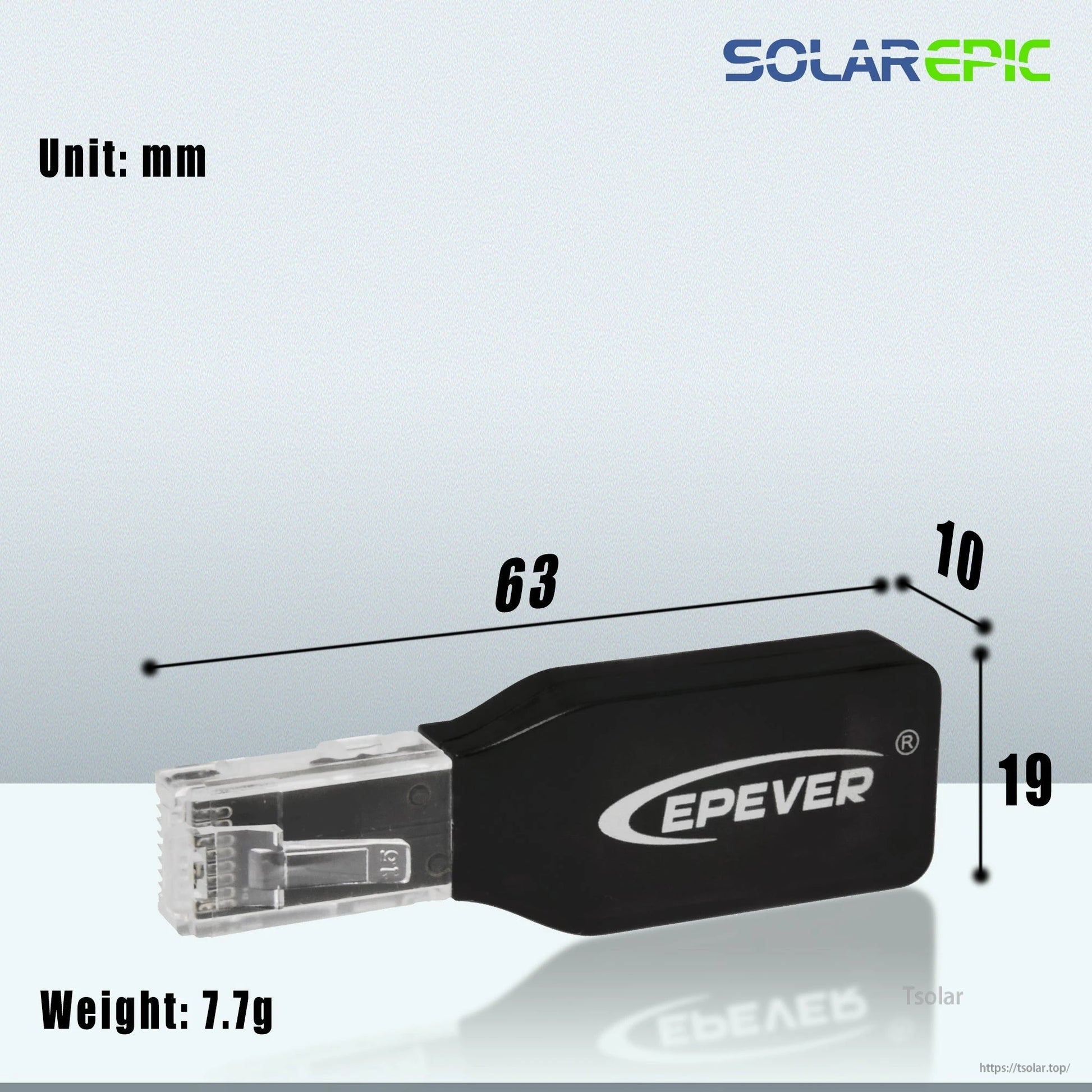

| Dimension | 63mm x 19mm x 10mm |
| Net weight | 7.7g |
Video Demo
Additional Reference (Bluetooth Adapter Information)
EPEVER BLE RJ45 A is described as a Bluetooth adapter suitable for EPEVER solar controller, inverter, and inverter/charger. Visible labels and diagrams indicate BLE Adapter, RJ45, and monitoring via Mobile & APP (Android shown).
Features (as provided): Support communication by APP; support data encryption; use immediately after connecting; fast communication and strong anti-interference ability; directly powered by the communication port; up to 30 meters communication distance.
| Models | EPEVER BLE RJ45 A |
|---|---|
| Input Voltage | 5V± 0.5V (Powered by RS485 com. port) |
| Power consumption | 5V@30mA |
| Communication | ≤10m |
| Serial port baud rate | 2400 ~ 115200bps (default 115200bps) |
| Communication | RS485 to Bluetooth |
| Interface type | RJ45 |
| Connecting cable | Standard network cable (parallel line) |
| Bluetooth protocol | Bluetooth 5.0, compatible with Bluetooth 4.0 |
| Overall dimension | 51*67*24.5mm |
| Mounting dimension | 41.2 |
| Mounting hole size | Φ3.2 |
| Working temperature | -20 ~ 70°C |
| Enclosure | IP30 |
| Net weight | 38g |
Details

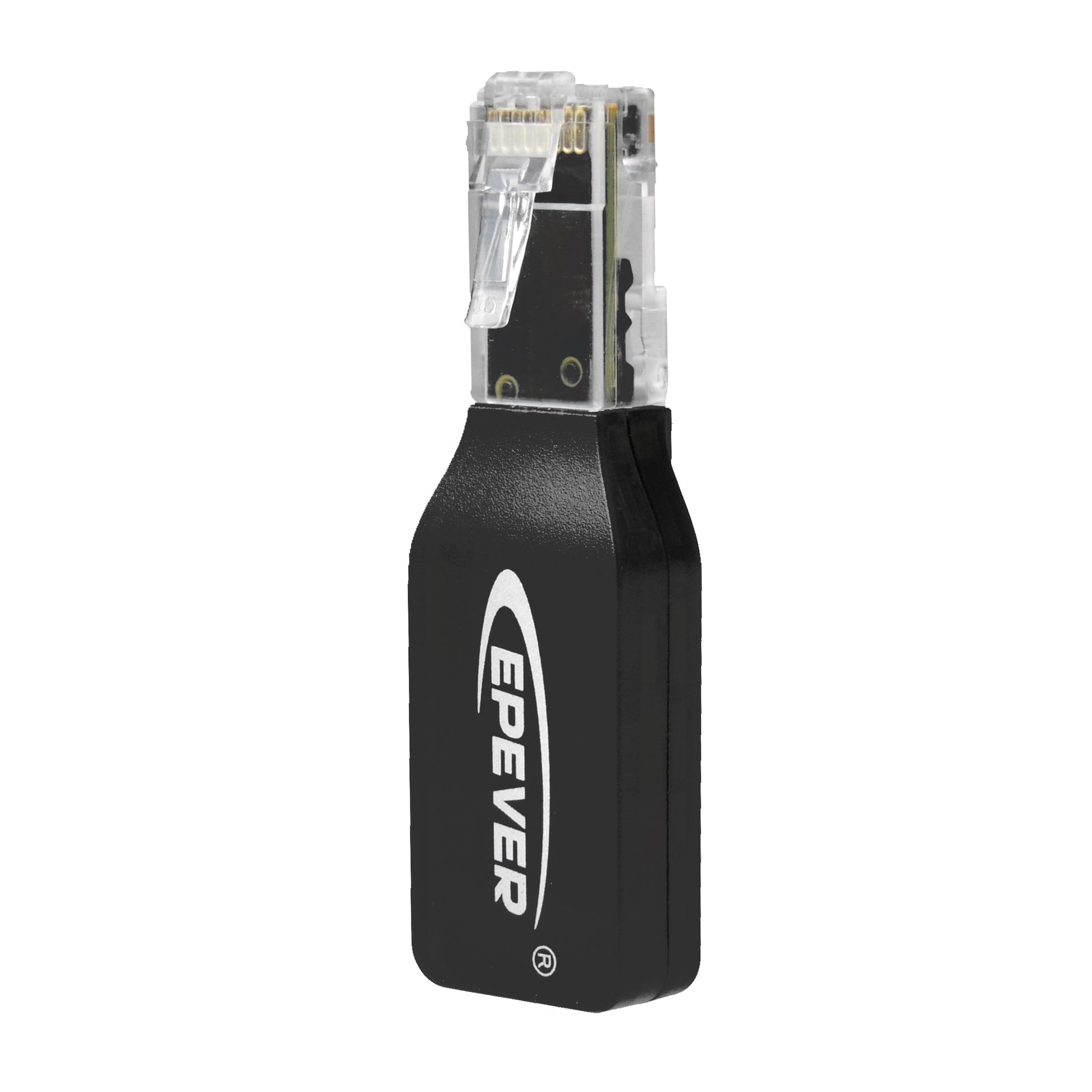

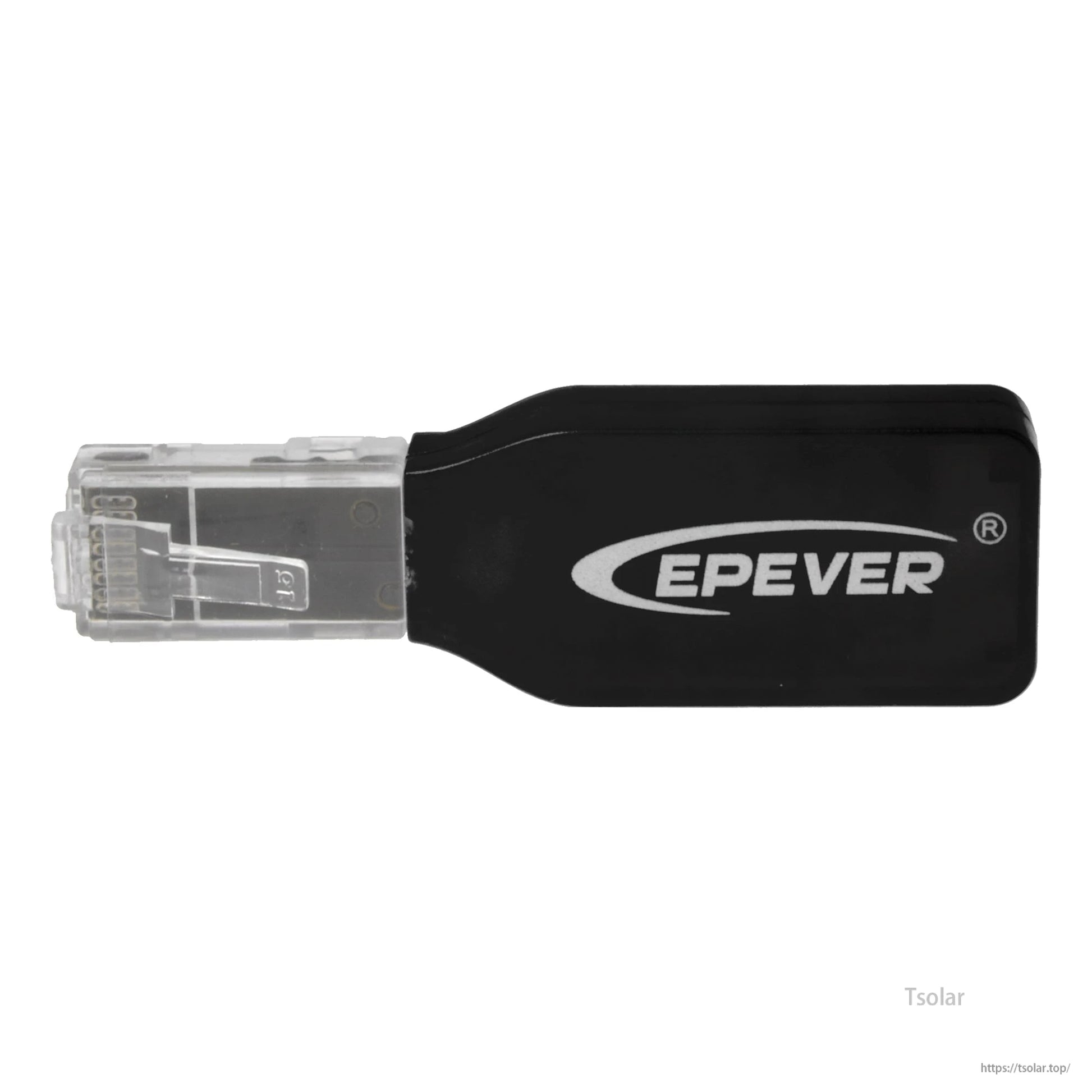

The EPEVER WiFi communication adapter plugs into an RJ45 connection to support wireless monitoring and setup from a mobile app.

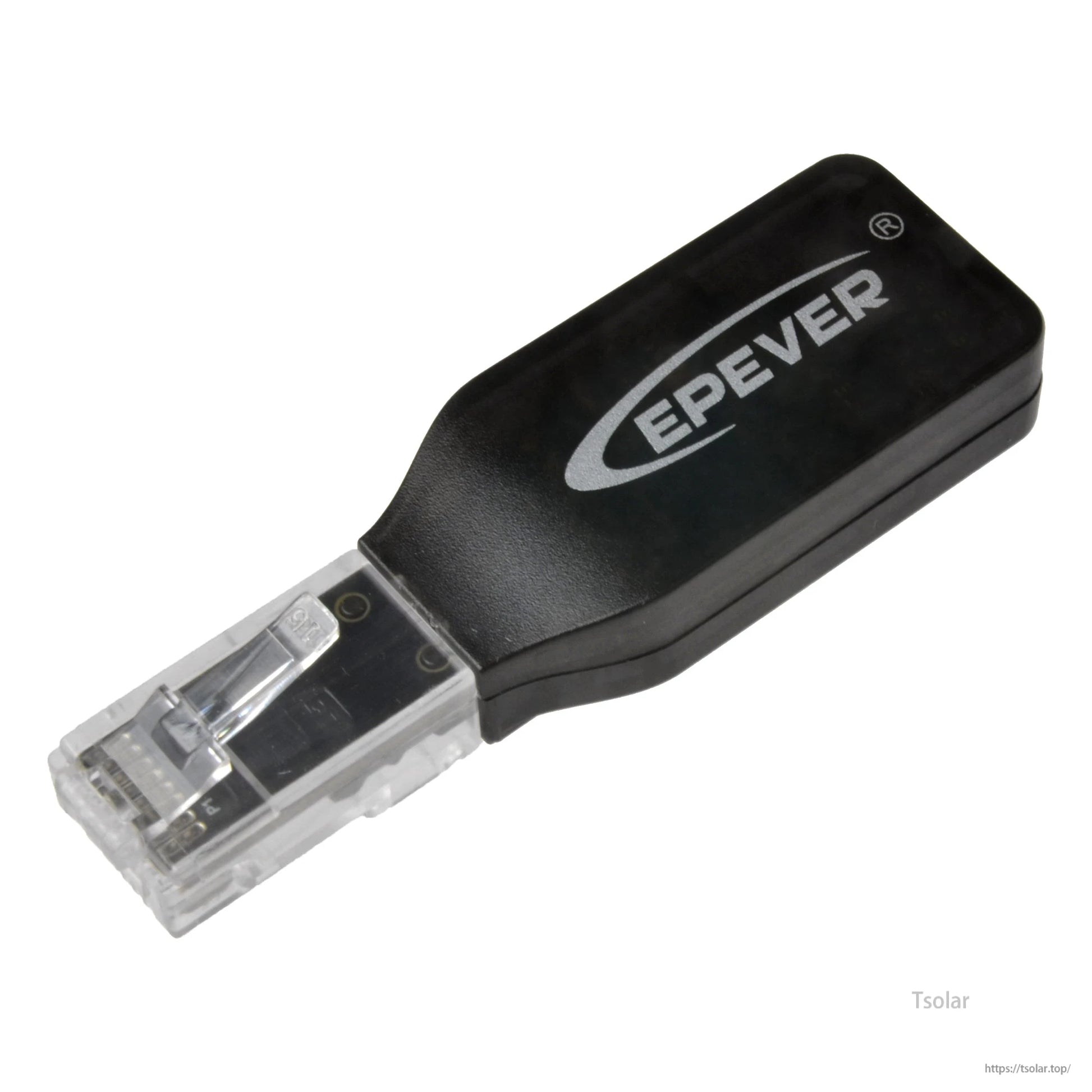

The EPEVER WiFi RJ45 (RS485) adapter provides a simple way to connect a compatible MPPT solar controller to a phone or PC for monitoring.
