Overview

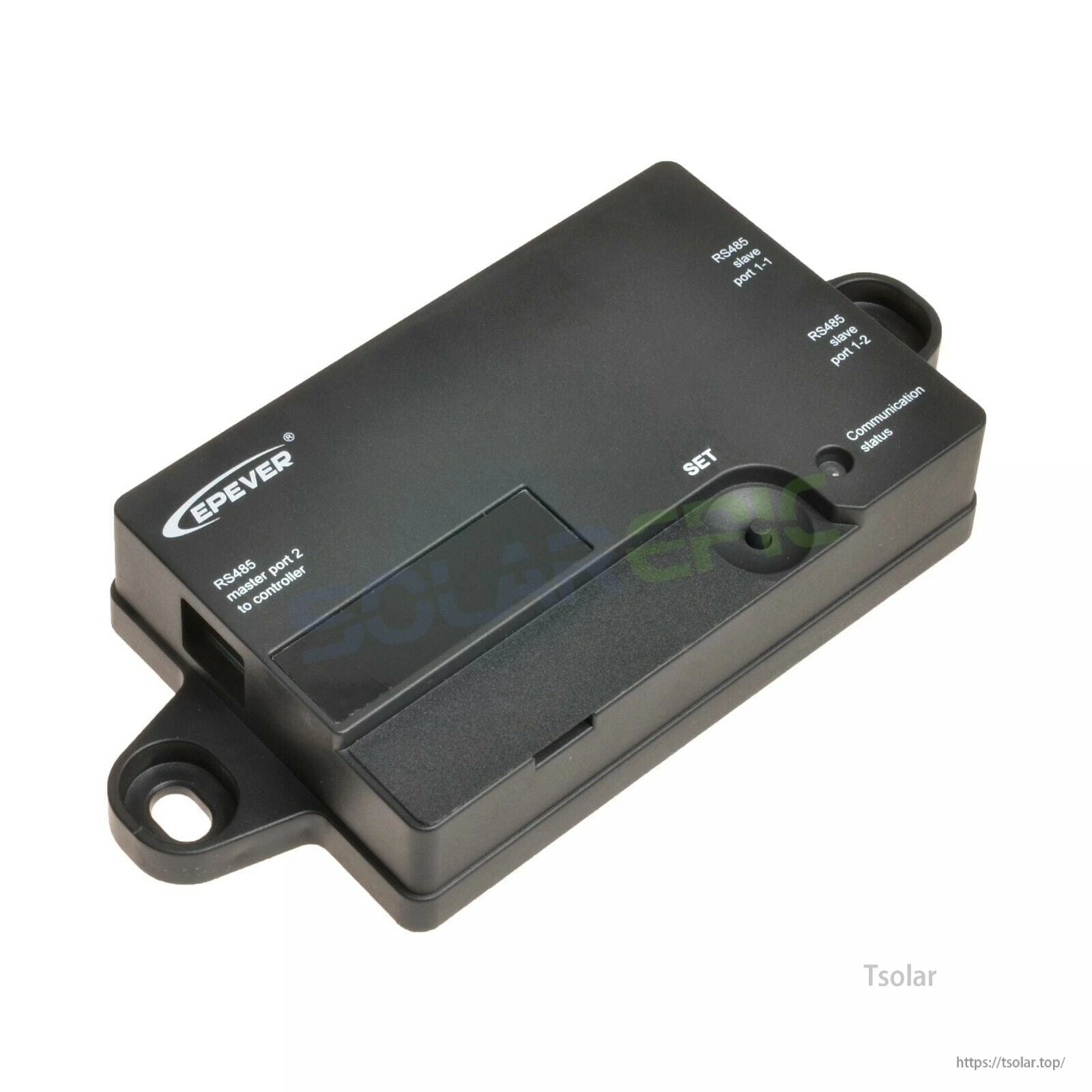

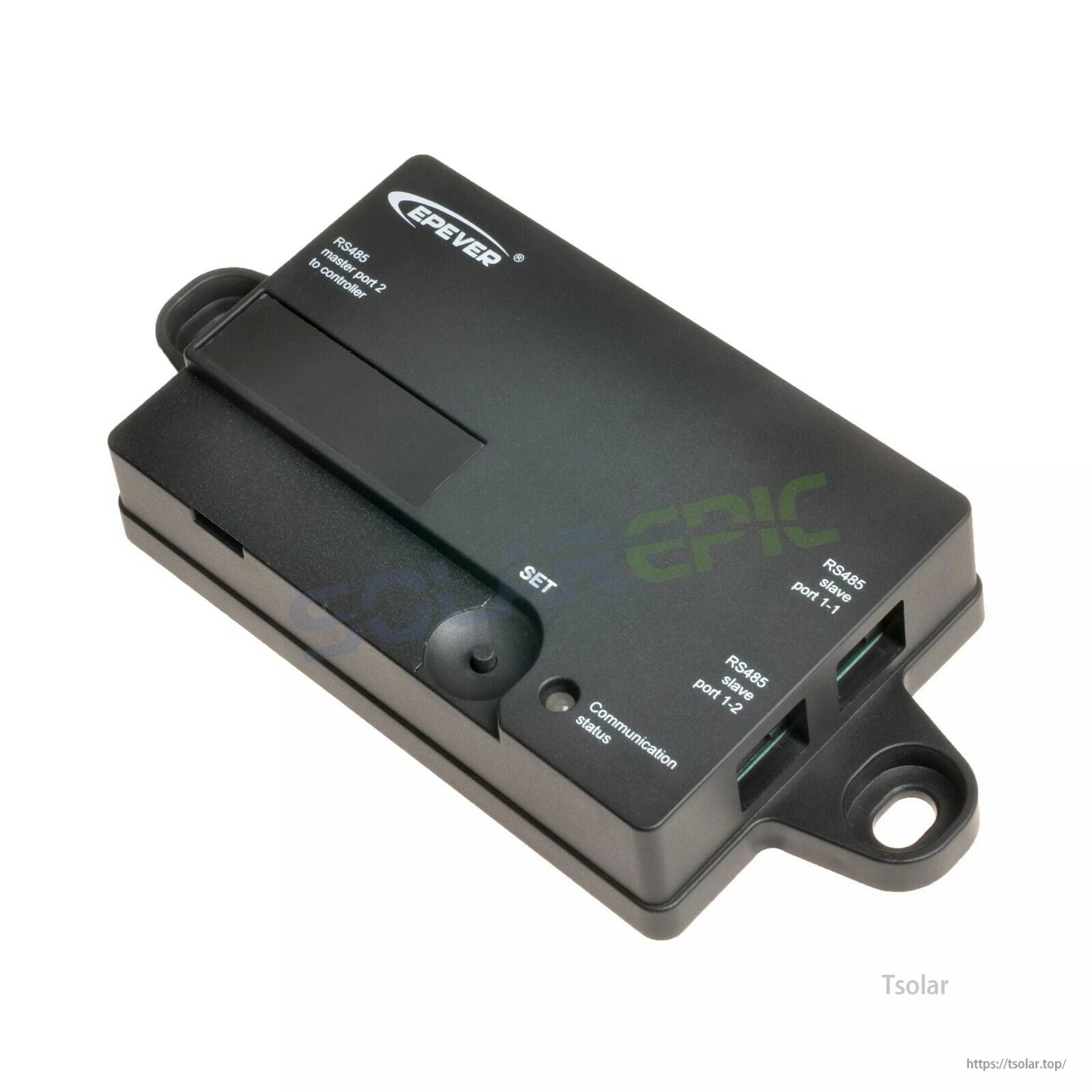

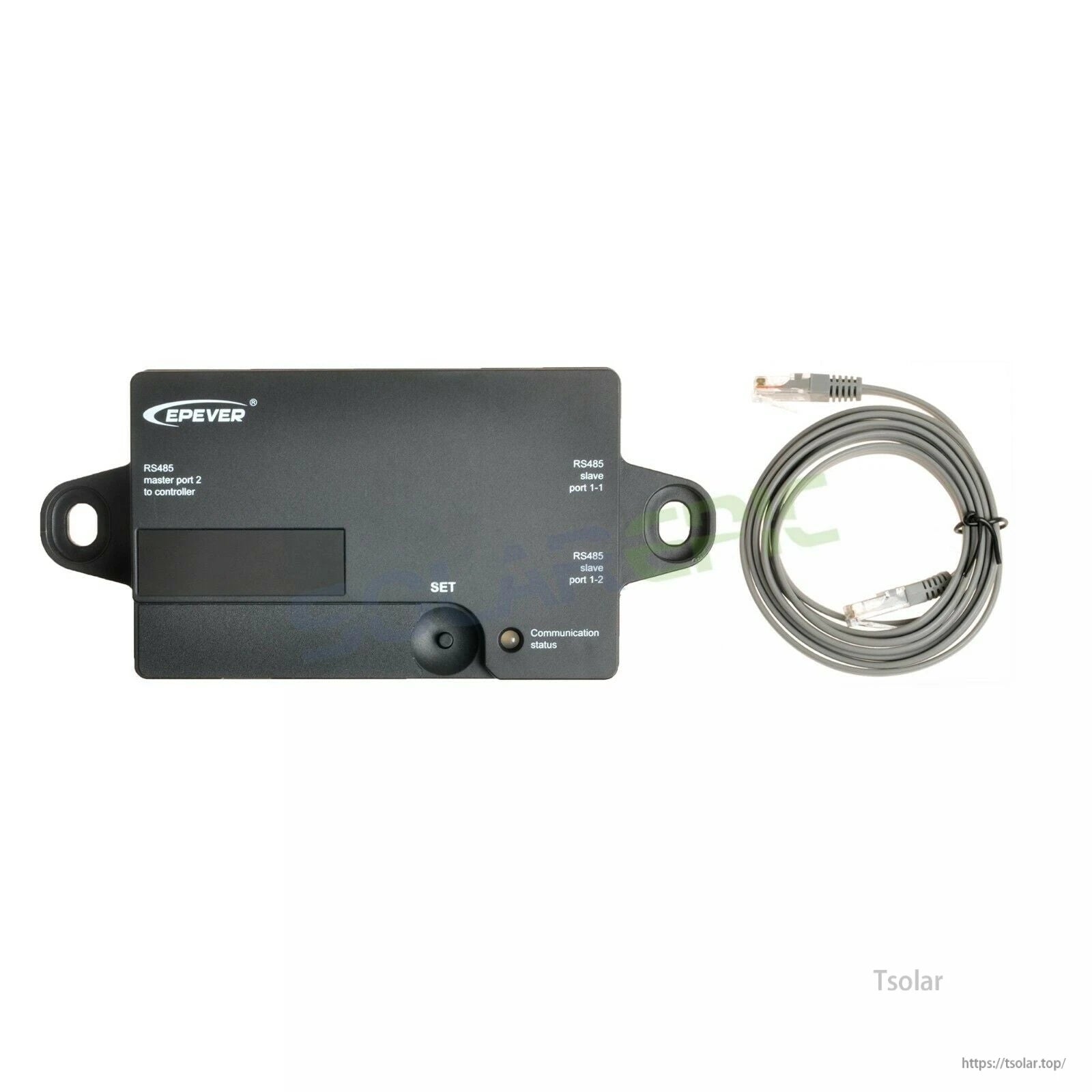

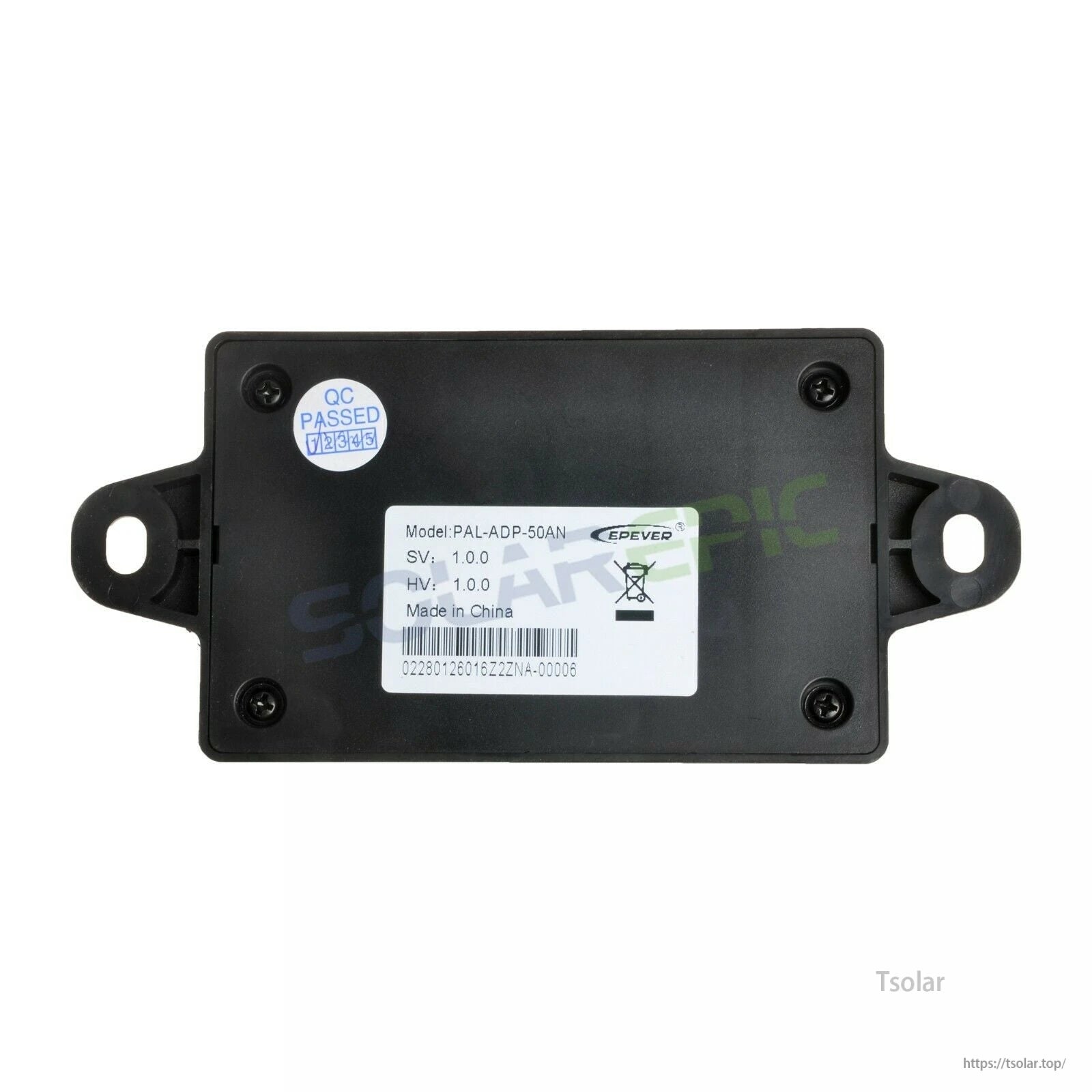

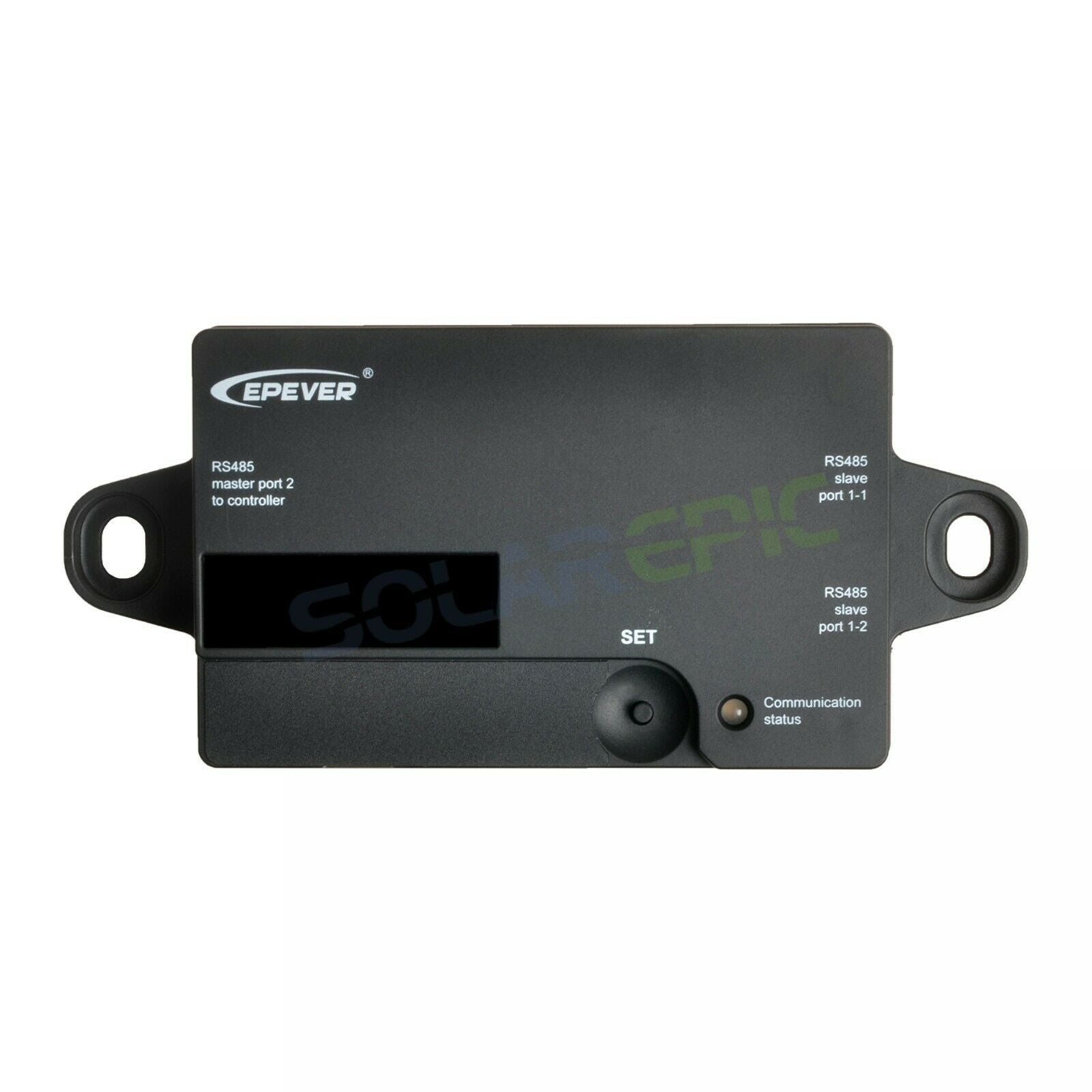

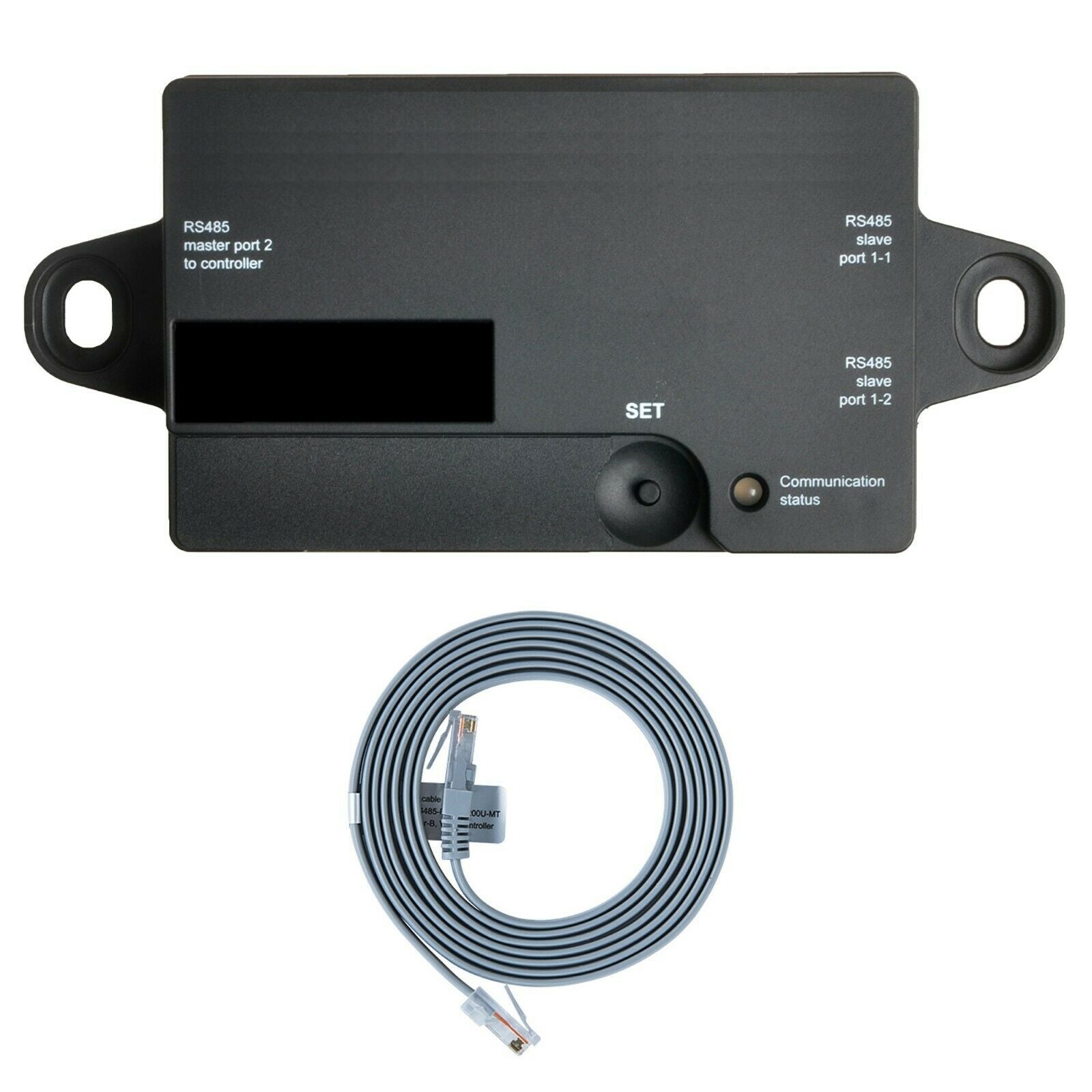

Epever PAL-ADP-50AN PT Adapter (model: PT-ADP-PORT) is an accessory for parallel operation of compatible solar charge controllers. It balances charging current across multiple controllers, monitors charging status in real time, and supports PC software monitoring/parameter setting for each controller in a parallel system.
Compatibility note: This adapter is specified for Epever Tracer AN (50A–100A) series solar controllers, and PT series N+1 modular solar controllers.
Key Features
- Intelligent master/slave identification for equal-flow charging (one master controller; remaining units are slave controllers)
- Real-time monitoring of controller online status and switching of charging controller quantity
- Supports up to 6 controllers in parallel
- Communication port supports standard Modbus protocol for connection to modules or PC software for remote monitoring
- One-button setting for communication baud rate
- LED indicator for running status
Specifications
| Model | PT-ADP-PORT |
| Apply to model | Tracer AN (50–100A) series solar controller PT series N+1 modular solar controller |
| Input voltage | 5VDC (Power supply by the controller) |
| Operation power consumption | 0.25W |
| Serial port baud rate | 9600 115200 (Default) |
| Overall dimension | 151.5*69.9*38mm |
| Mounting Dimension | 133.4mm |
| Mounting hole size | Φ6.5 |
| Working temperature | -35~75°C |
| Enclosure | IP30 |
| Weight | 39g |
Applications
- Parallel installation of multiple Tracer AN controllers with current balancing
- Parallel controller systems requiring Modbus communication and PC parameter configuration

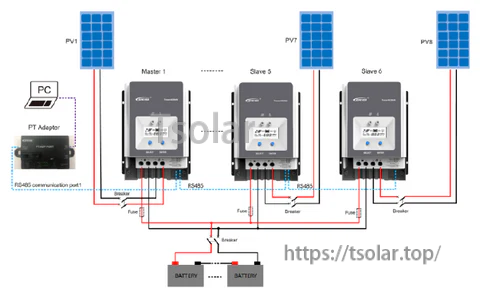

- Typical parallel wiring labels shown: PV1 / PV7 / PV8, Master 1, Slave 5, Slave 6, PC, PT Adapter, RS485, Fuse, Breaker, Battery
Manuals
For compatibility checks before purchase or setup support, contact https://tsolar.top/ or service@tsolar.top.
Video
Details
The Epever PAL-ADP-50AN PT Adapter connects a PC to an RS485 master/slave controller network for monitoring and configuration.
