Overview

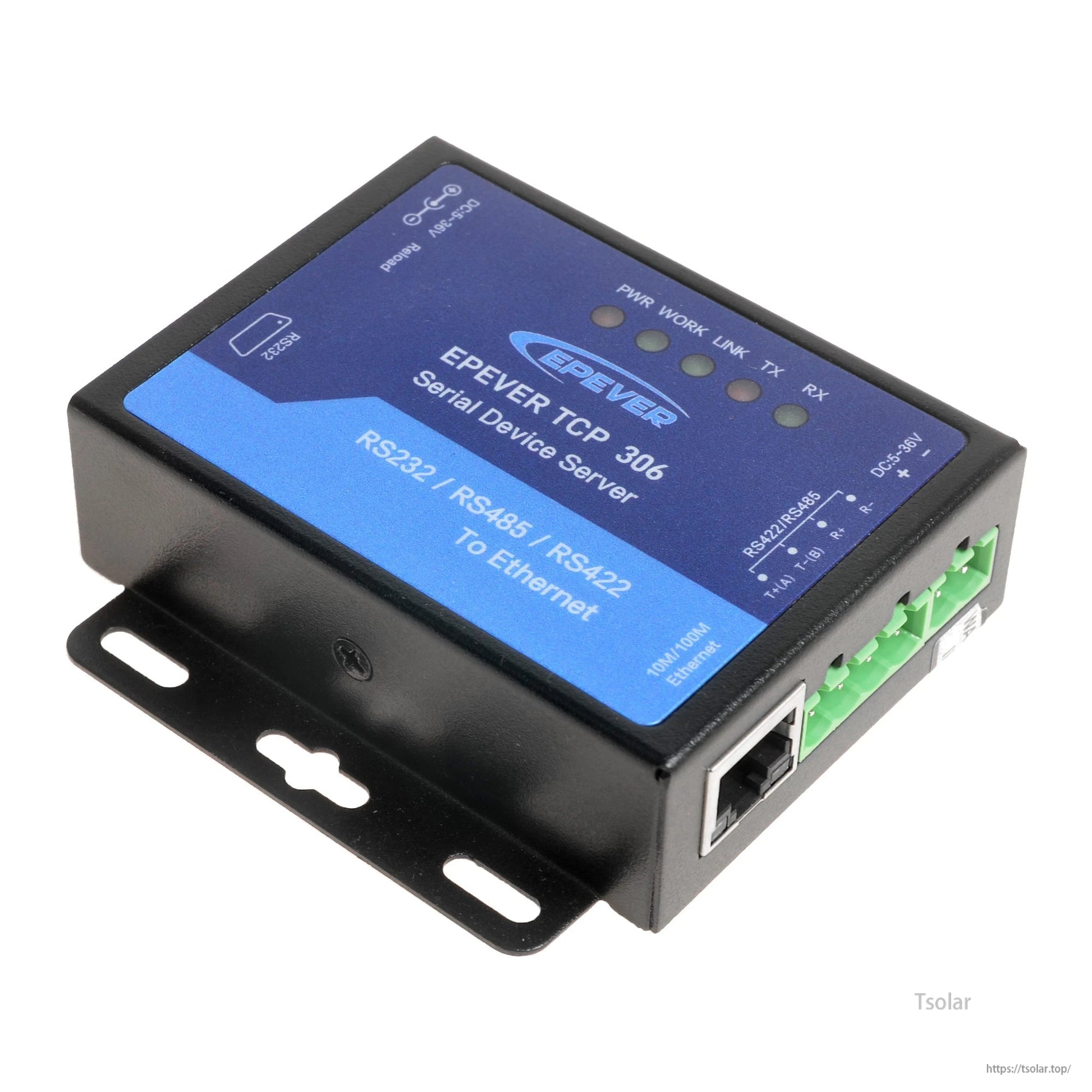

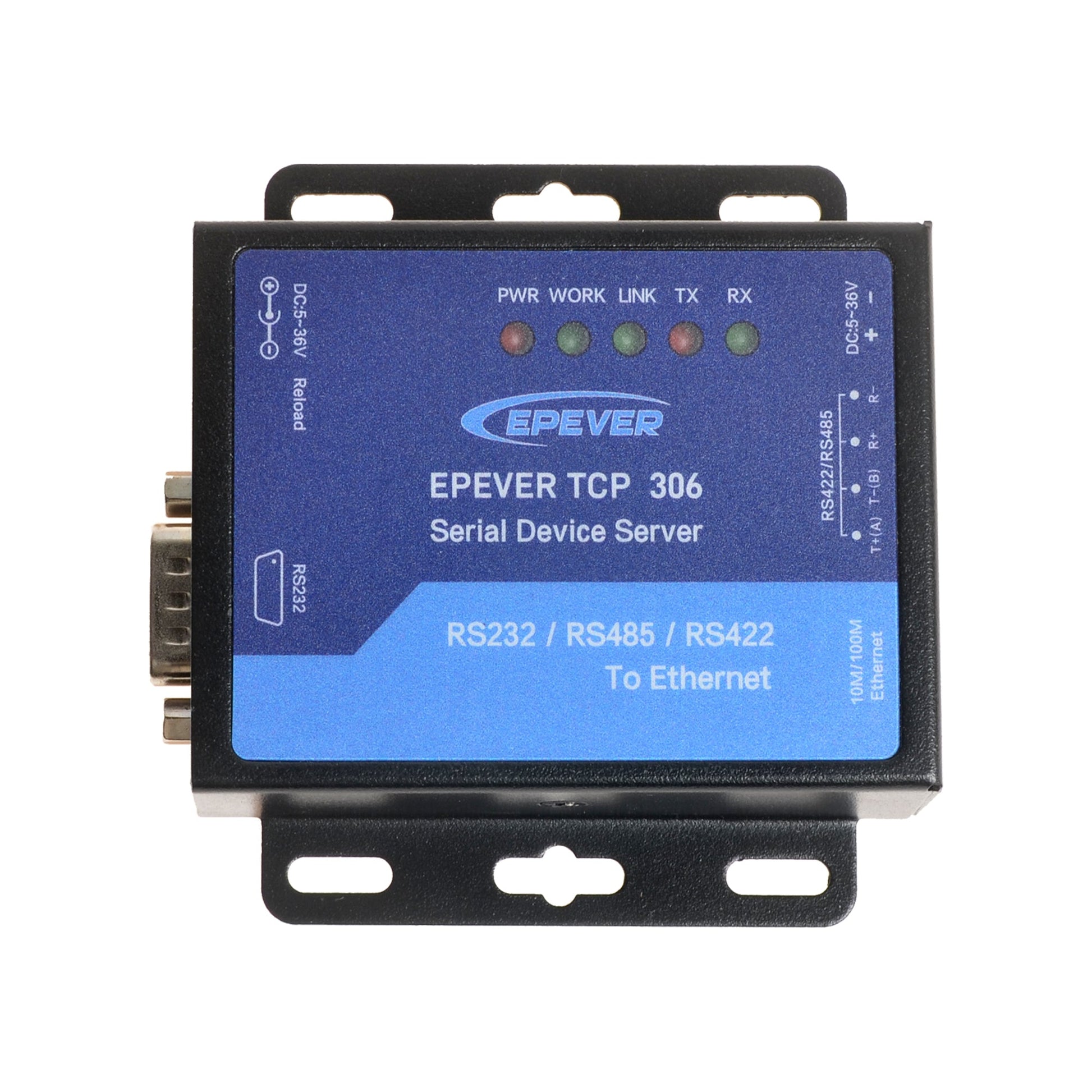

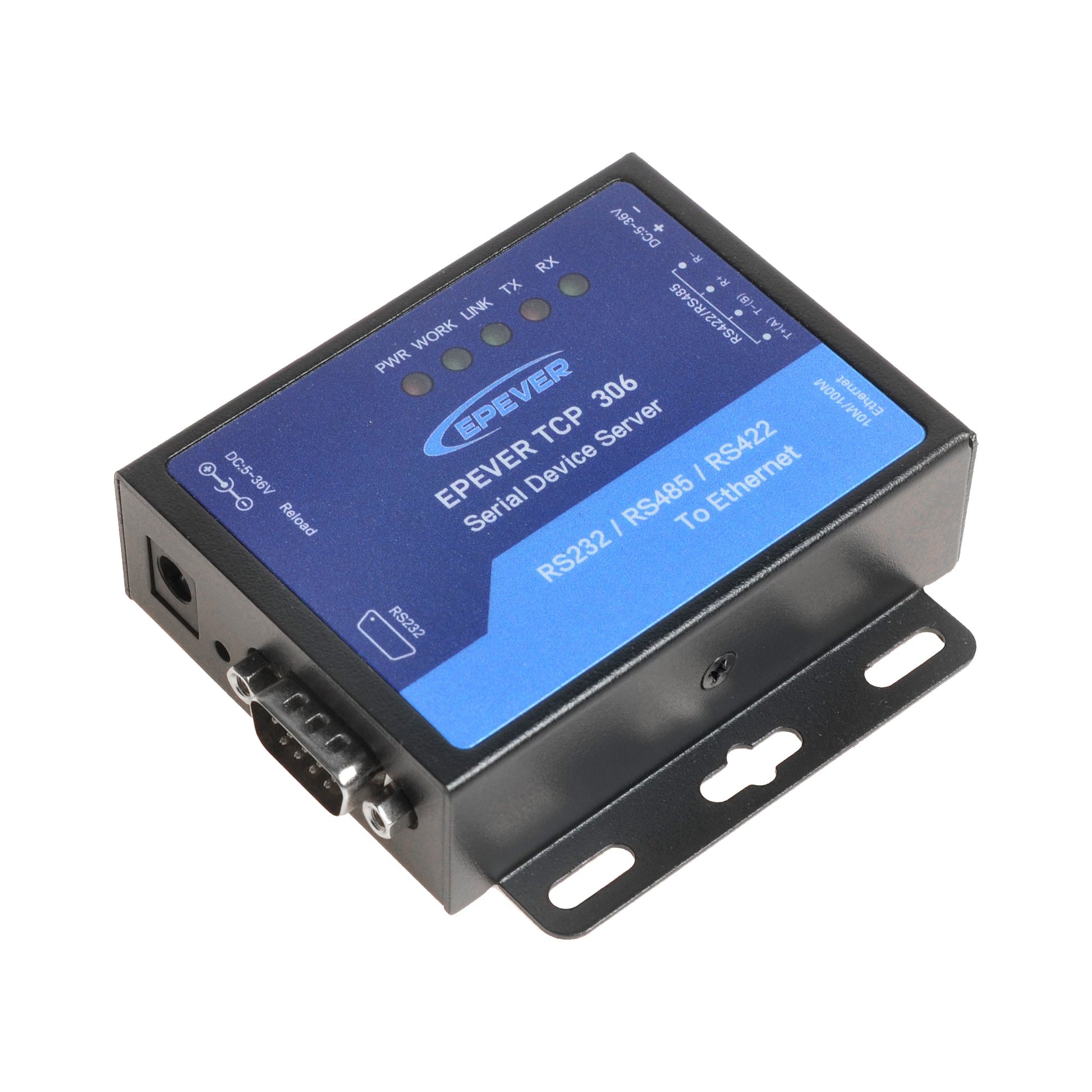

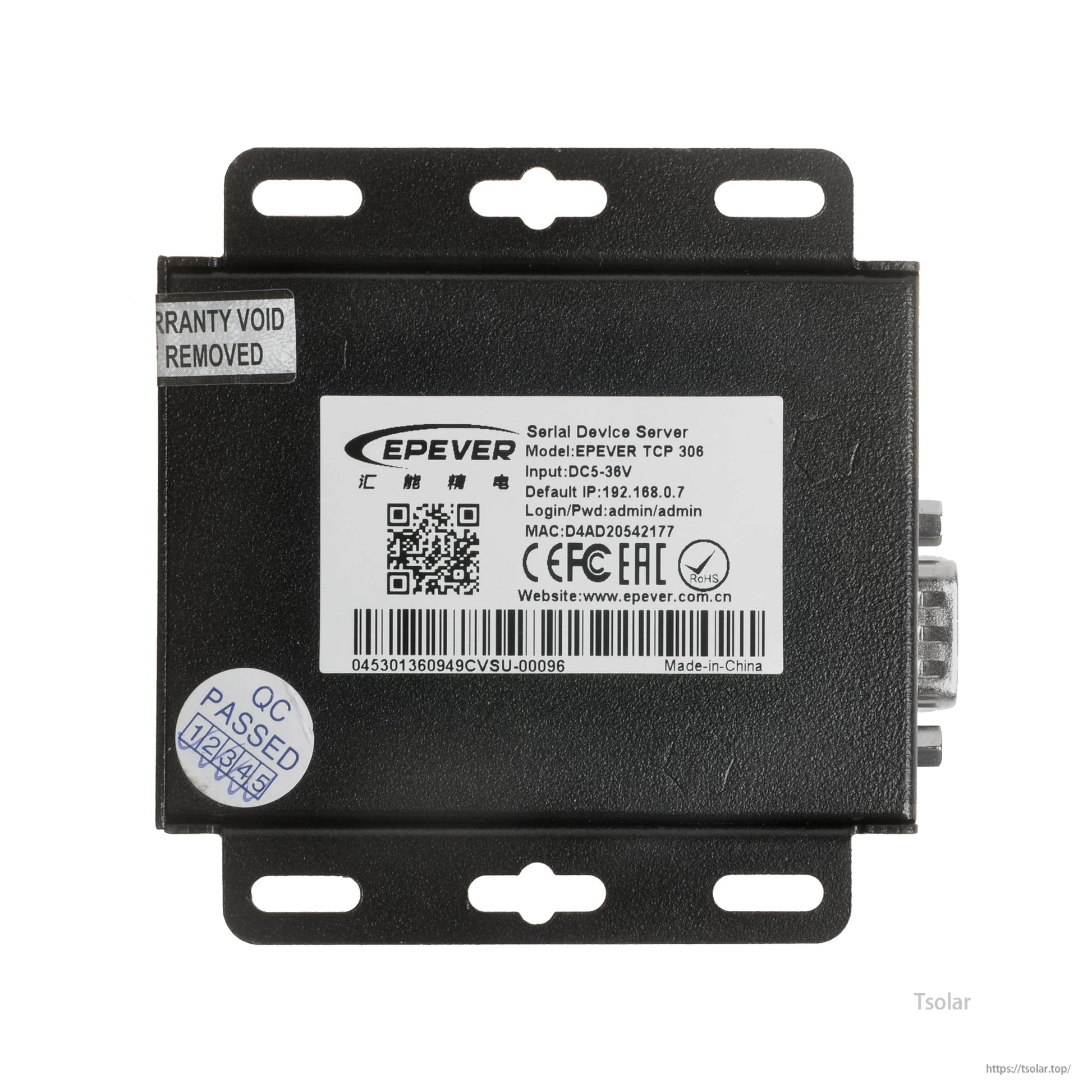

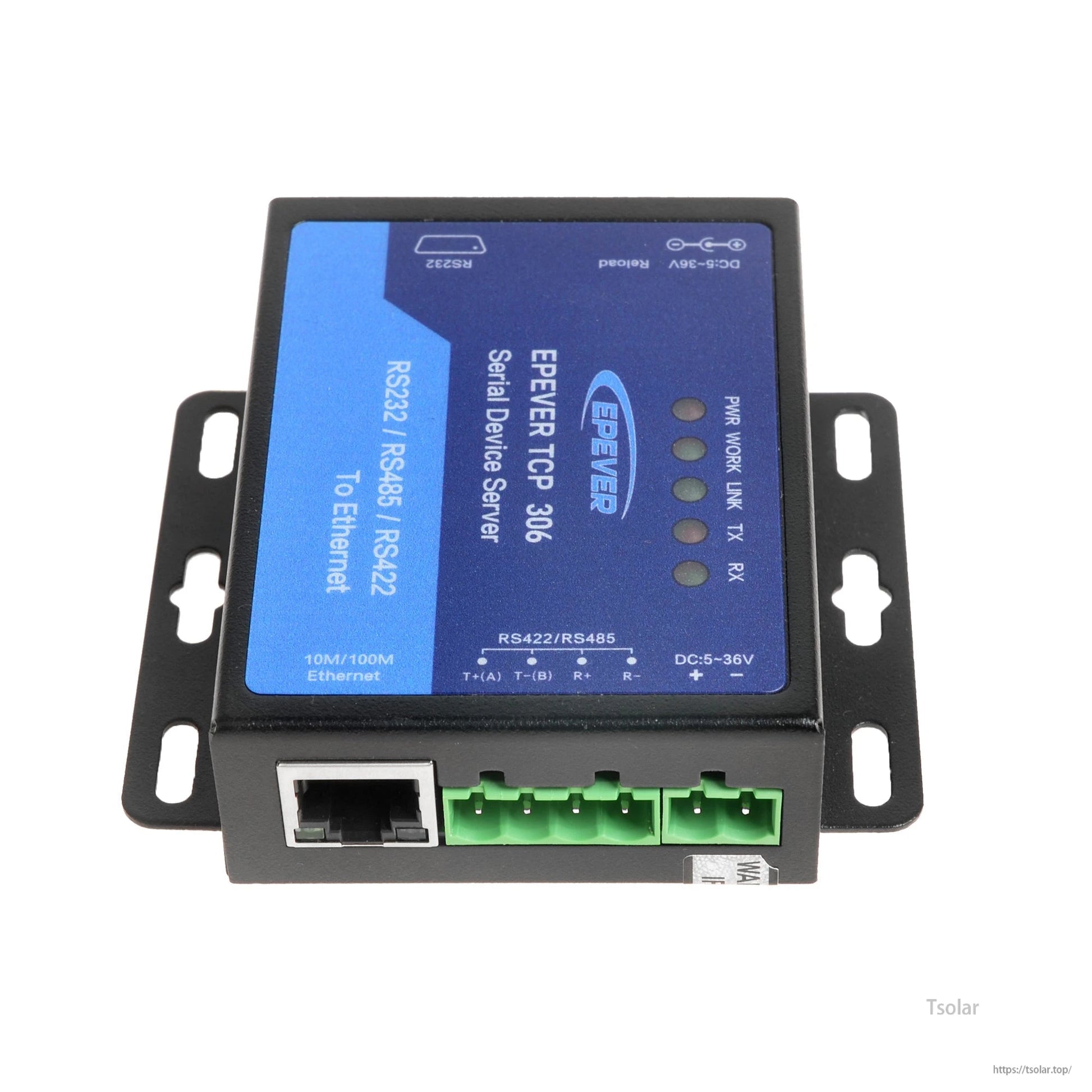

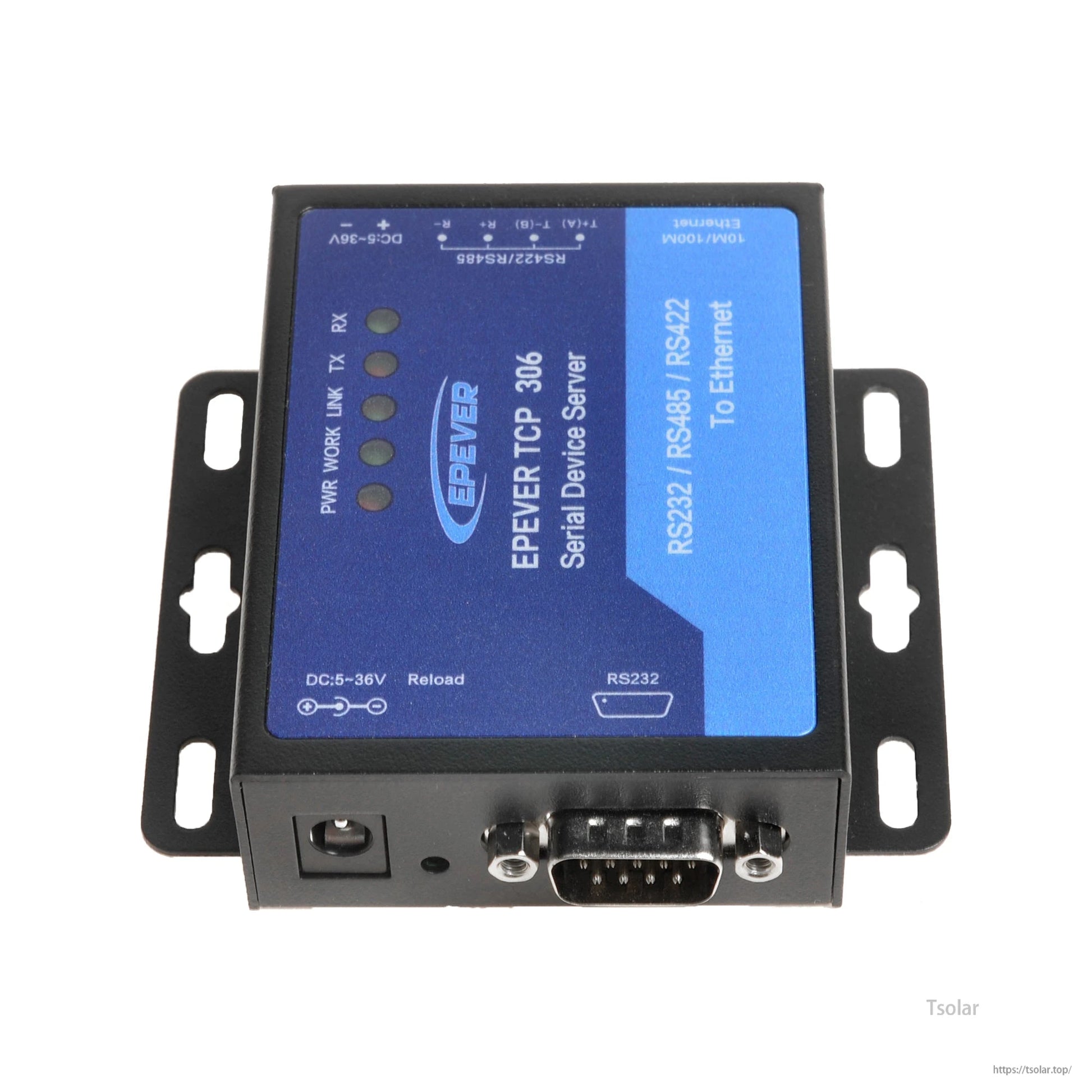

EPEVER TCP 306 is a serial device server that connects EPEVER solar controller, inverter, and inverter/charger equipment via an RS485 port. Through a TCP network, it transfers collected data to the EPEVER cloud server to enable remote monitoring, parameter setting, and data analysis. The device server’s IP address, TCP server, and TCP client settings can also be modified using PC software.
Key Features
- Standard network cable port
- Adjustable 10M/100M Ethernet port
- Configurable serial port baud rate (600bps~230.4Kbps)
- DHCP function to automatically obtain an IP address
- High compatibility without drivers
- Unlimited communication distance
- Flexible power supply for the communication interface
- Low power consumption and high running speed
Specifications
| Model | TCP 306 |
| Product type | Serial device server |
| Serial interface | RS485 |
| Network communication | TCP network |
| Ethernet | 10M/100M (adjustable) |
| Serial baud rate | 600bps~230.4Kbps (configurable) |
| IP assignment | DHCP (auto obtain IP address) |
| Driver requirement | No drivers |
Applications

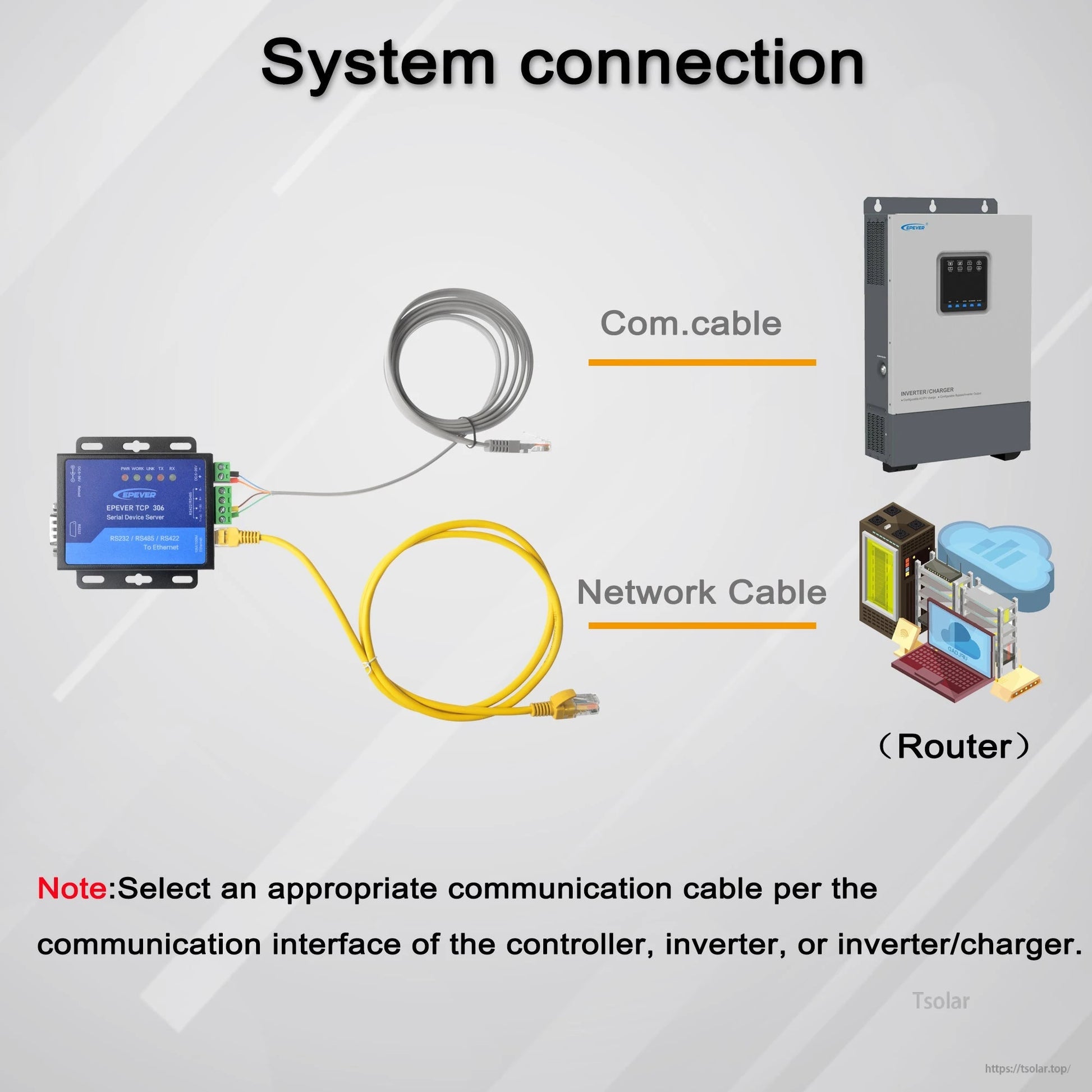

- Remote monitoring and data analysis for EPEVER solar controllers, inverters, and inverter/chargers (RS485 to TCP)
- Network-based parameter setting via EPEVER cloud server
For pre-purchase compatibility questions or configuration support, contact https://tsolar.top/ or email service@tsolar.top.
