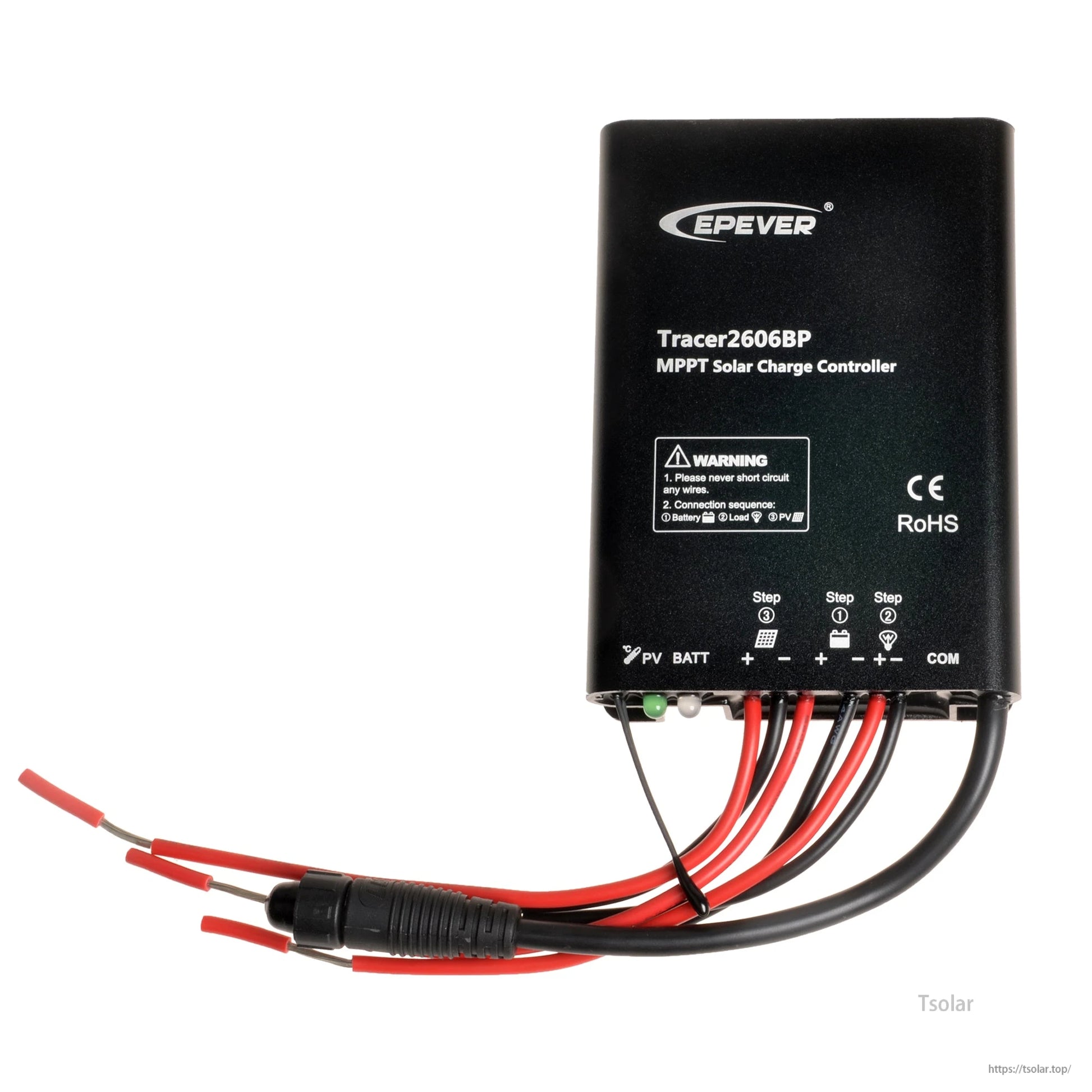

  • Epever Tracer2606BP waterproof MPPT solar charge controller with PV, battery and COM wired leads

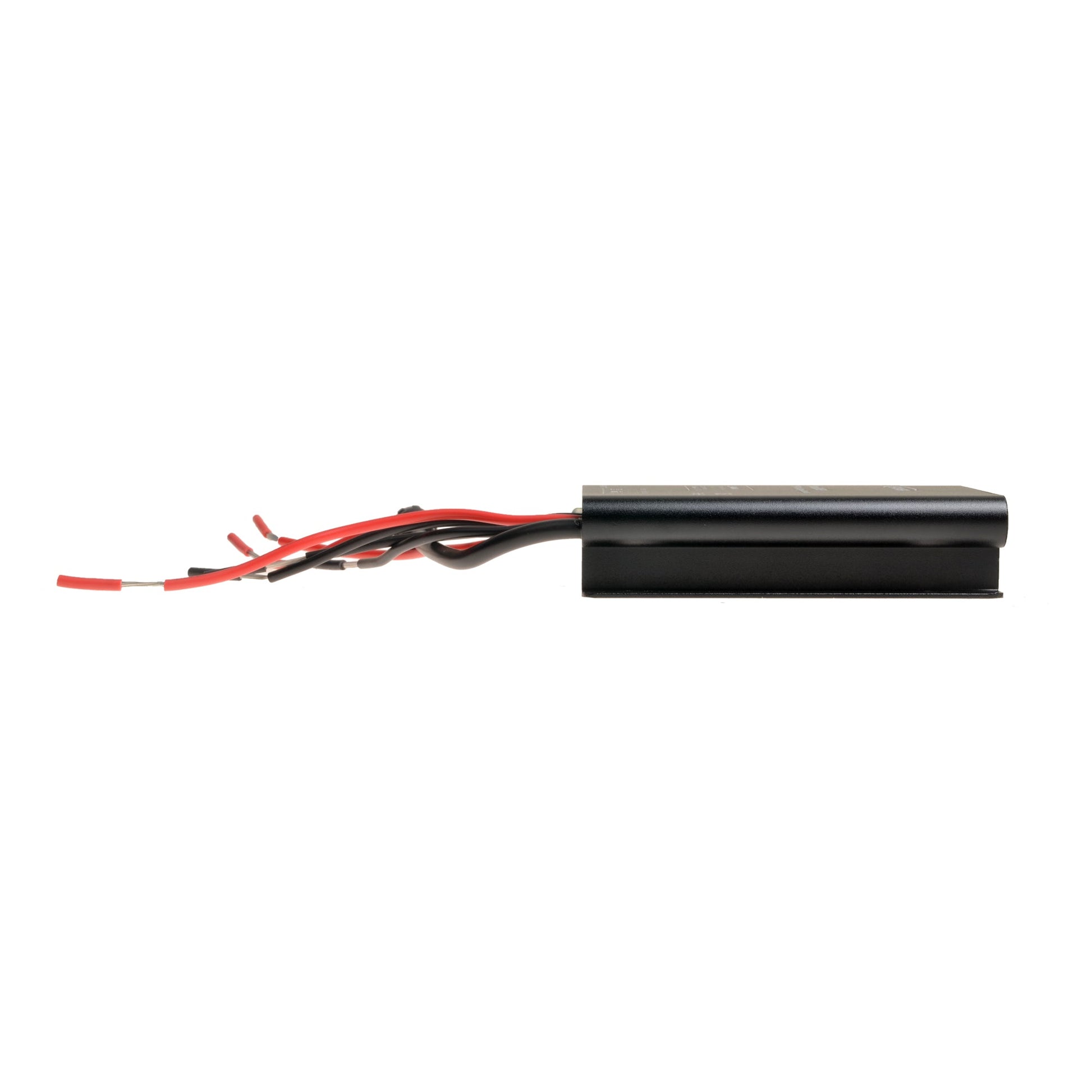

  • Epever Tracer BP waterproof solar charge controller module with pre-wired red and black leads
  • Epever Tracer BP waterproof MPPT solar charge controller housing with mounting tabs and a wired connector
  • Epever Tracer BP waterproof solar charge controller with mounting slots and pre-wired red/black cable leads

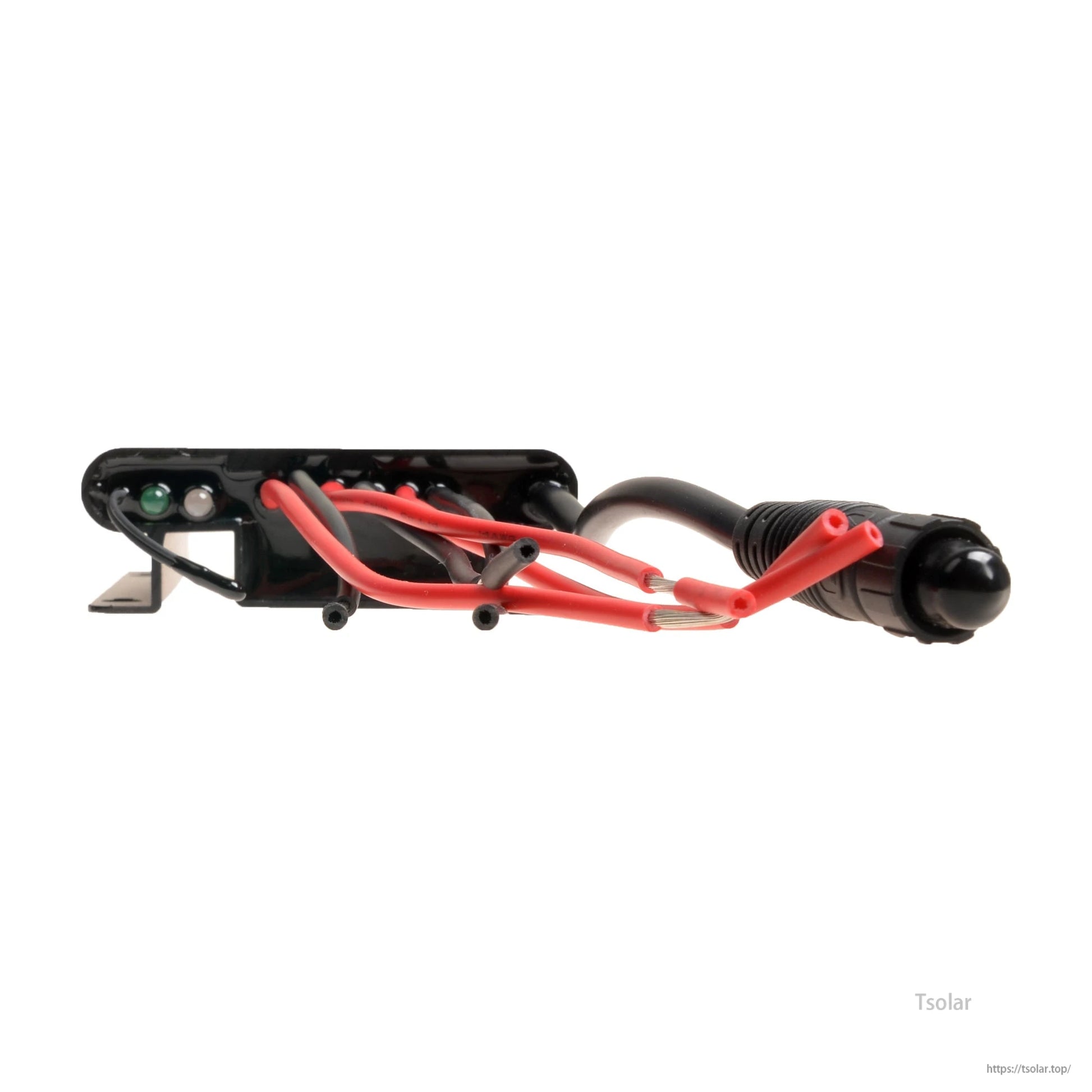

  • Waterproof MPPT solar charge controller with potted black housing, mounting bracket, and prewired red and black leads

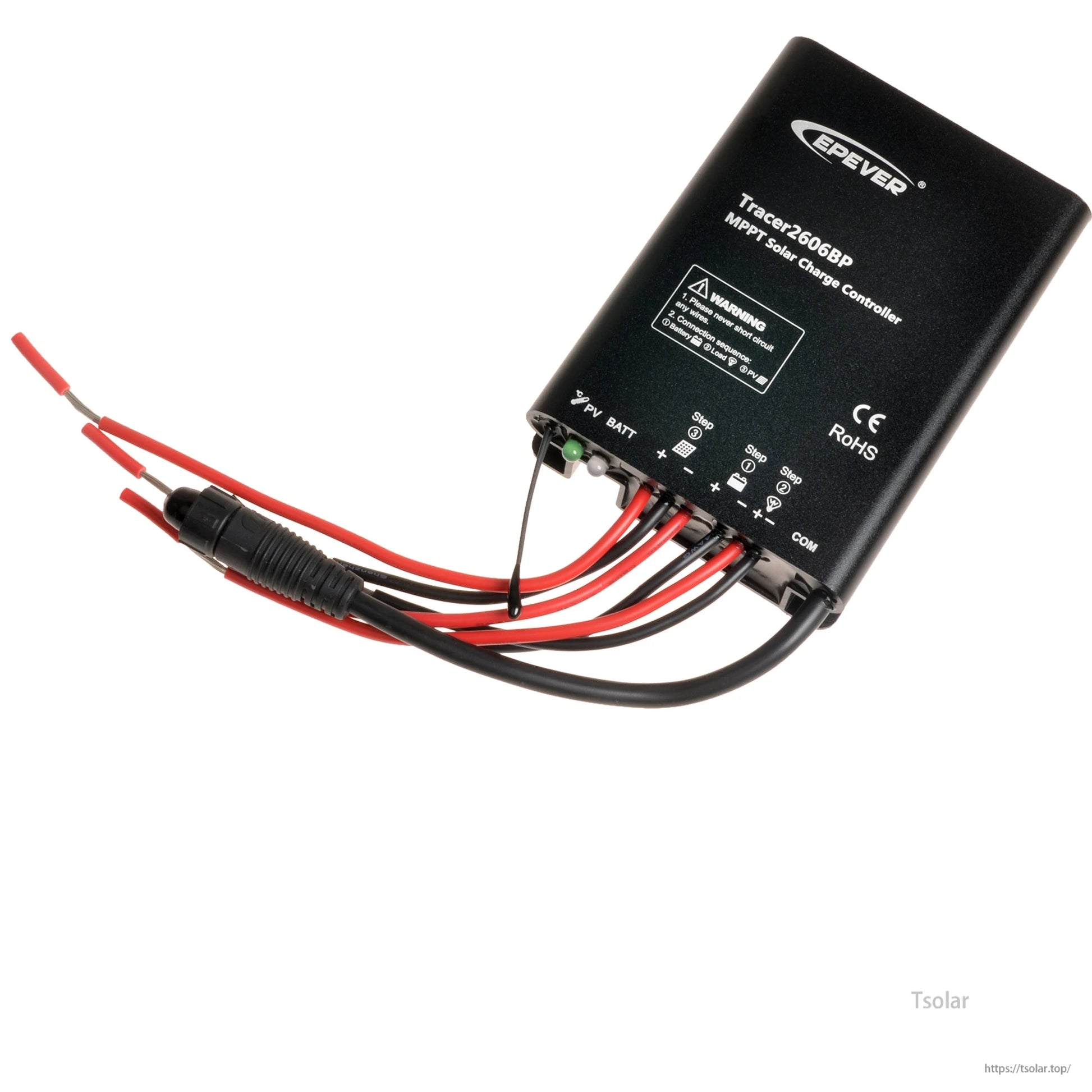

  • EPEVER Tracer2606BP MPPT solar charge controller with wired PV and battery leads and status LEDs

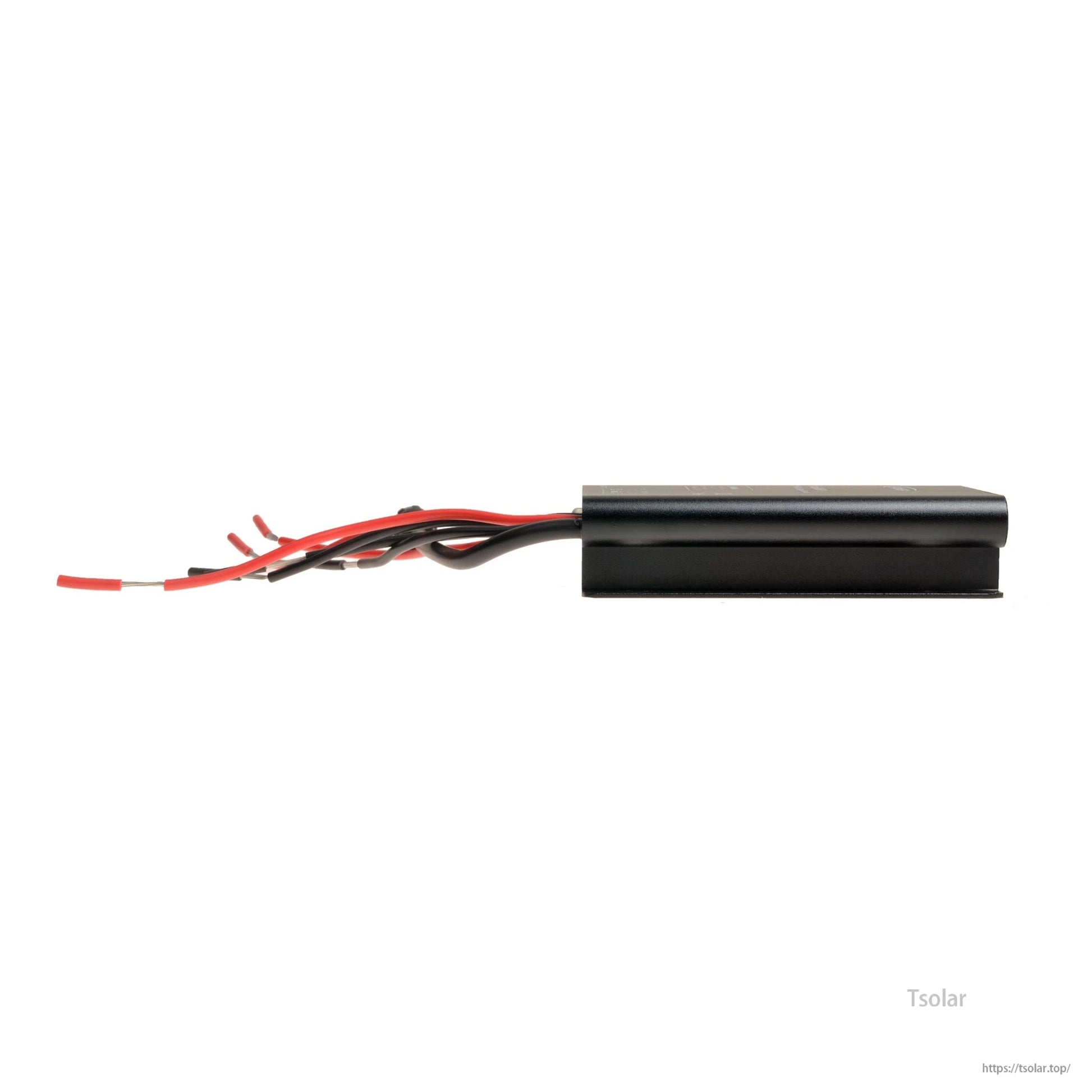

  • Epever Tracer BP waterproof MPPT solar charge controller with black sealed housing and red/black wire leads

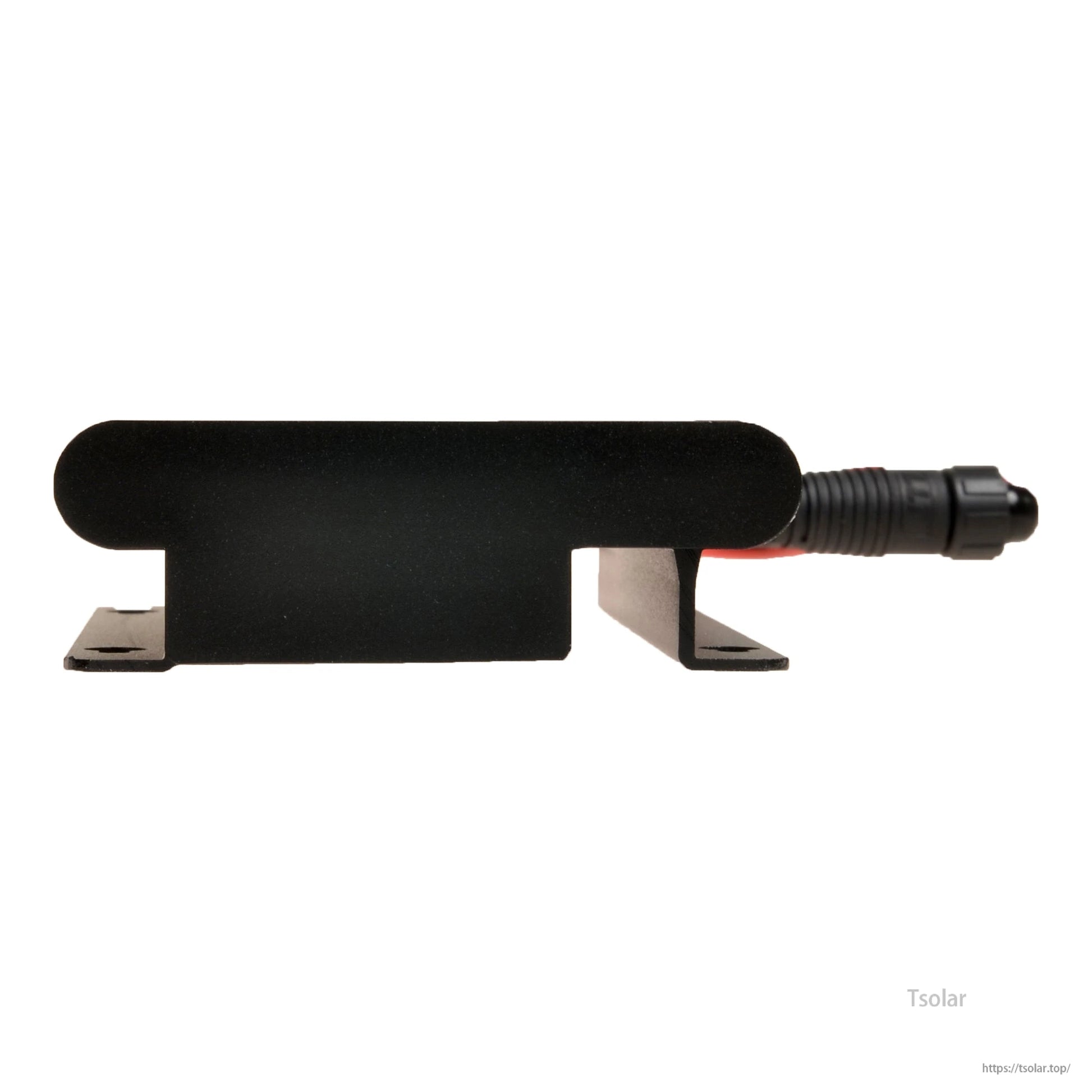

  • Epever Tracer BP waterproof MPPT solar charge controller housing with mounting brackets and sealed cable lead

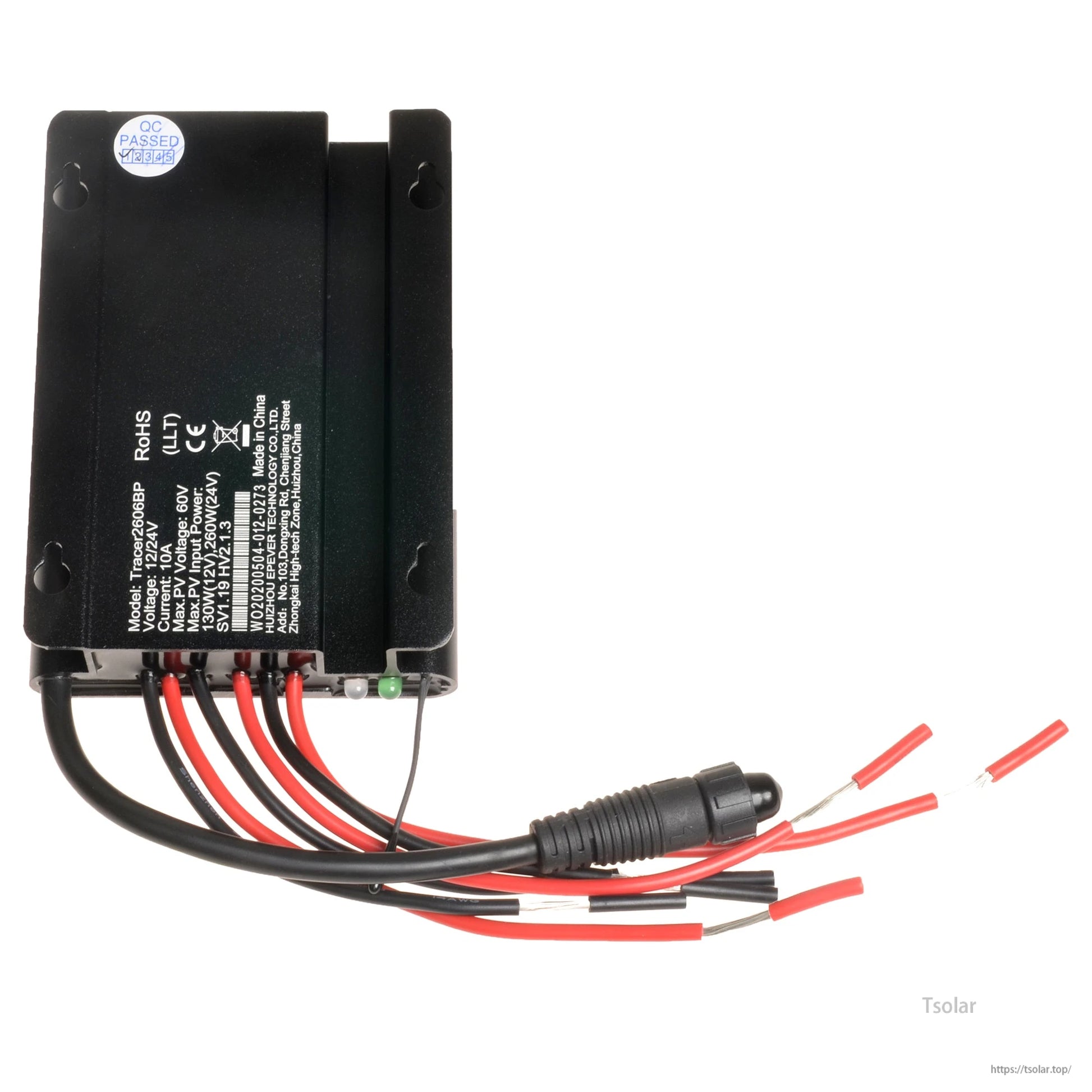

  • Back view of Epever Tracer2606BP MPPT solar charge controller 12/24V 10A with wired leads and label specs
  • Epever Tracer BP waterproof MPPT solar charge controller module with prewired leads, connector, and status LEDs

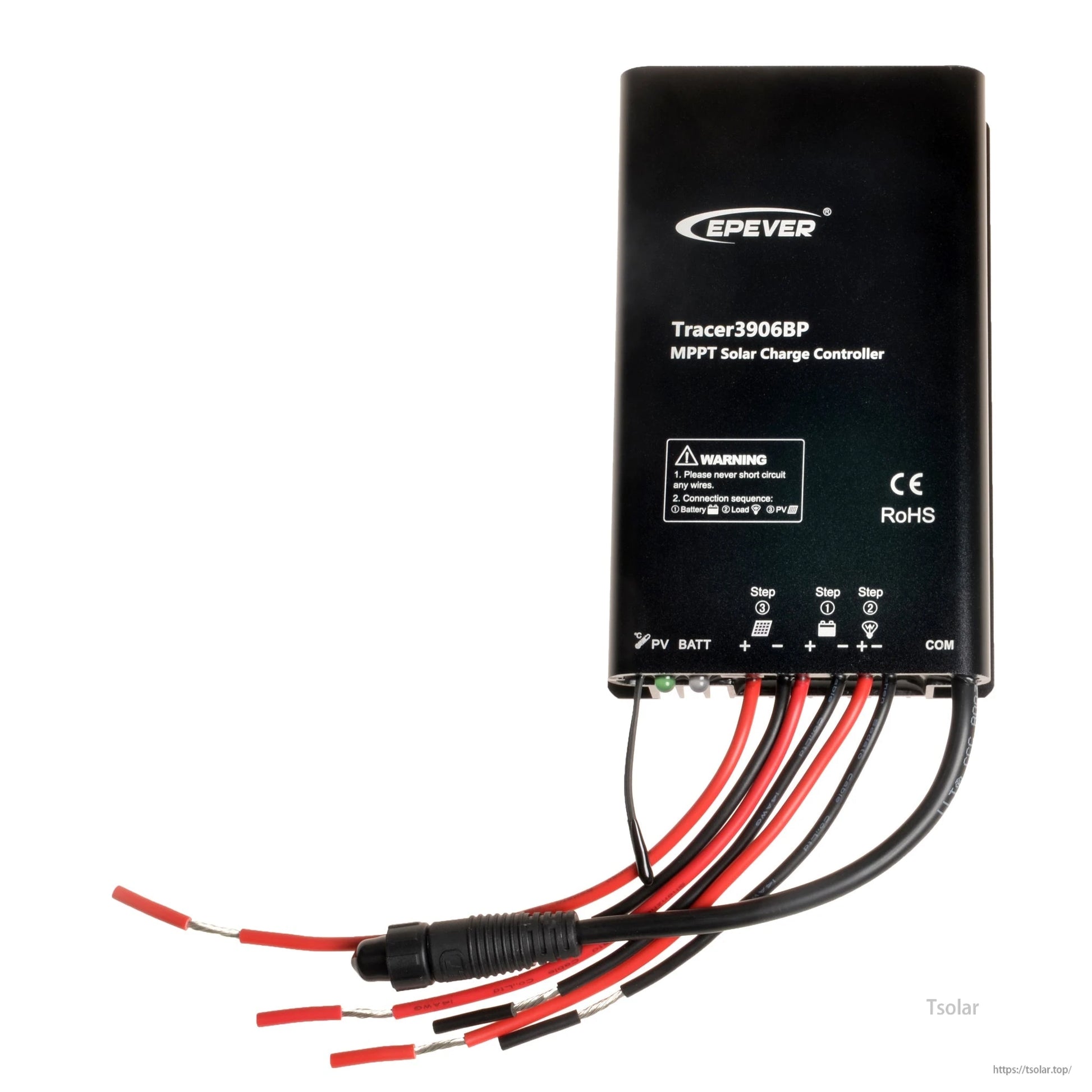

  • EPEVER Tracer3906BP MPPT solar charge controller with PV, battery and load terminals and wired leads

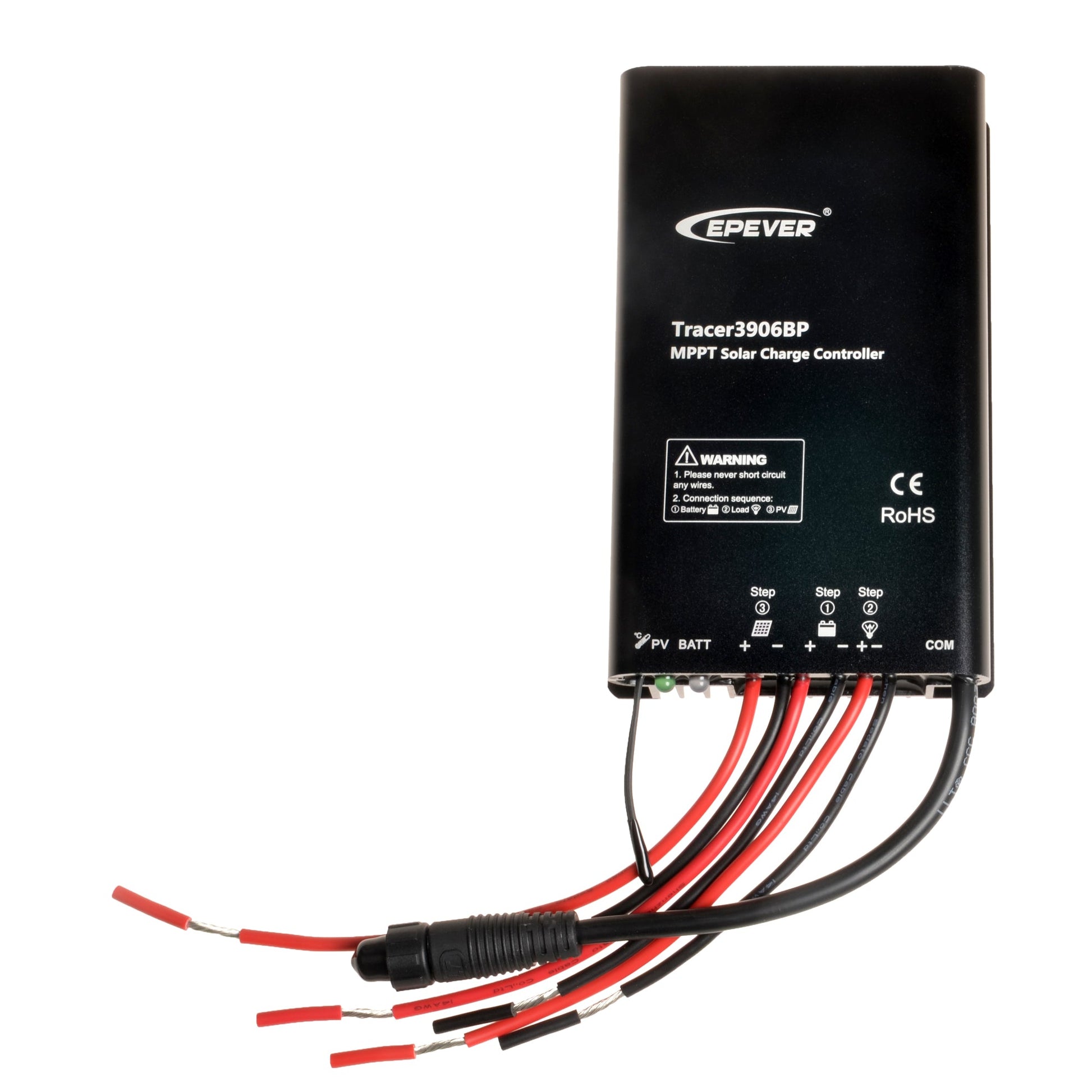

  • EPEVER Tracer3906BP MPPT solar charge controller with labeled PV and BATT terminals and prewired leads

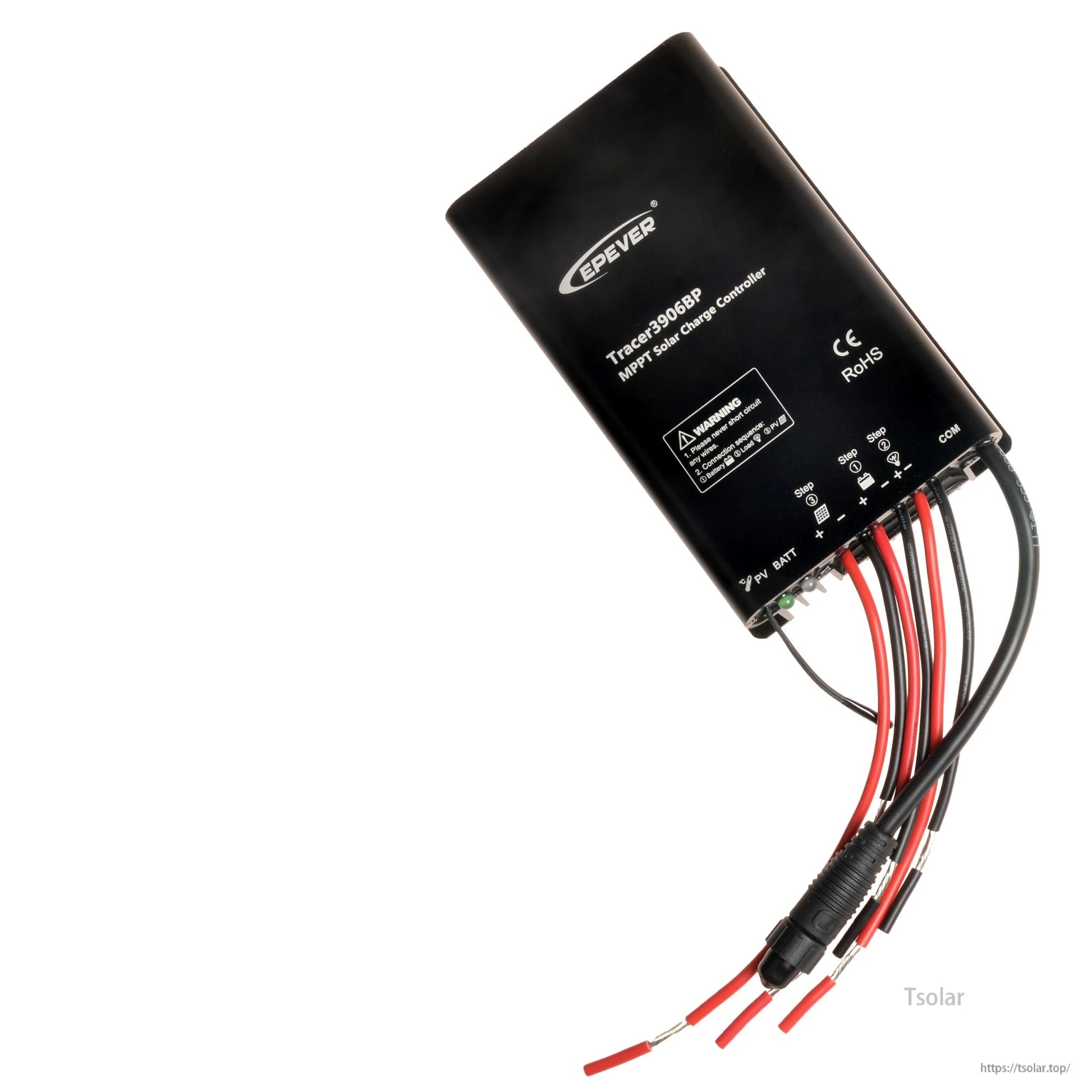

  • EPEVER Tracer BP MPPT solar charge controller with waterproof black housing and red/black PV and battery leads

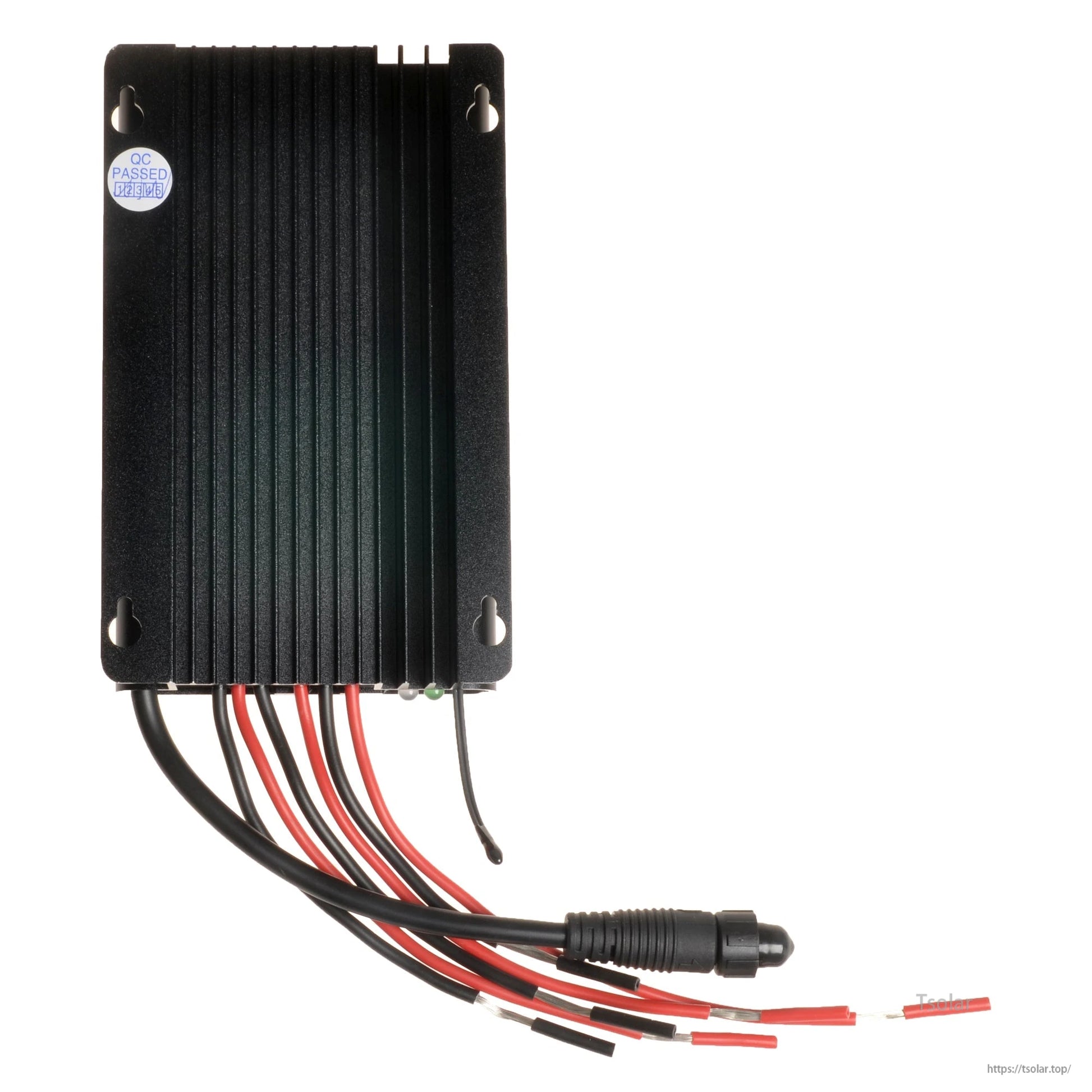

  • Epever Tracer BP waterproof MPPT solar charge controller with finned black case, mounting holes and wired leads

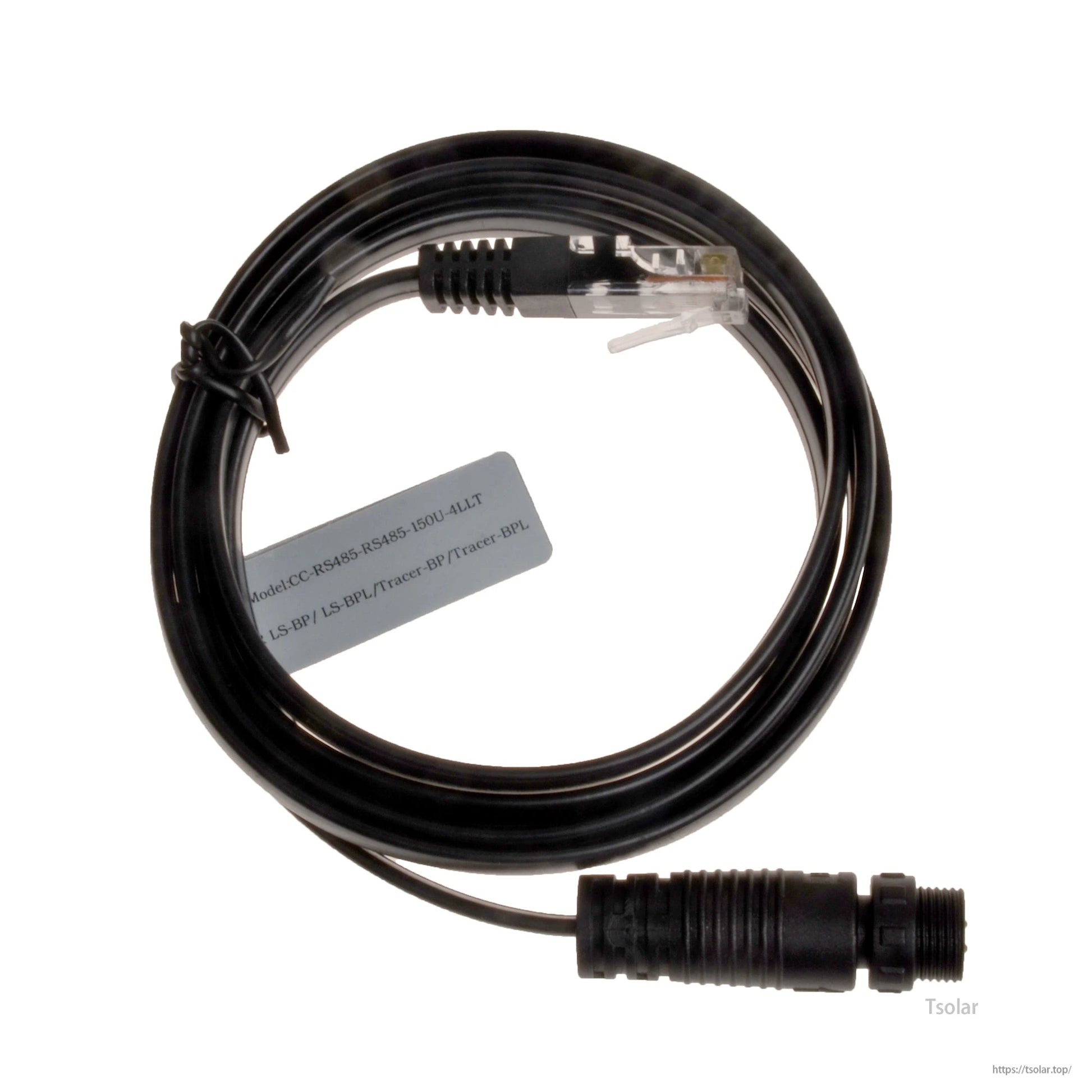

  • Epever RS485 communication cable with RJ45 plug and waterproof round connector for Tracer BP controller

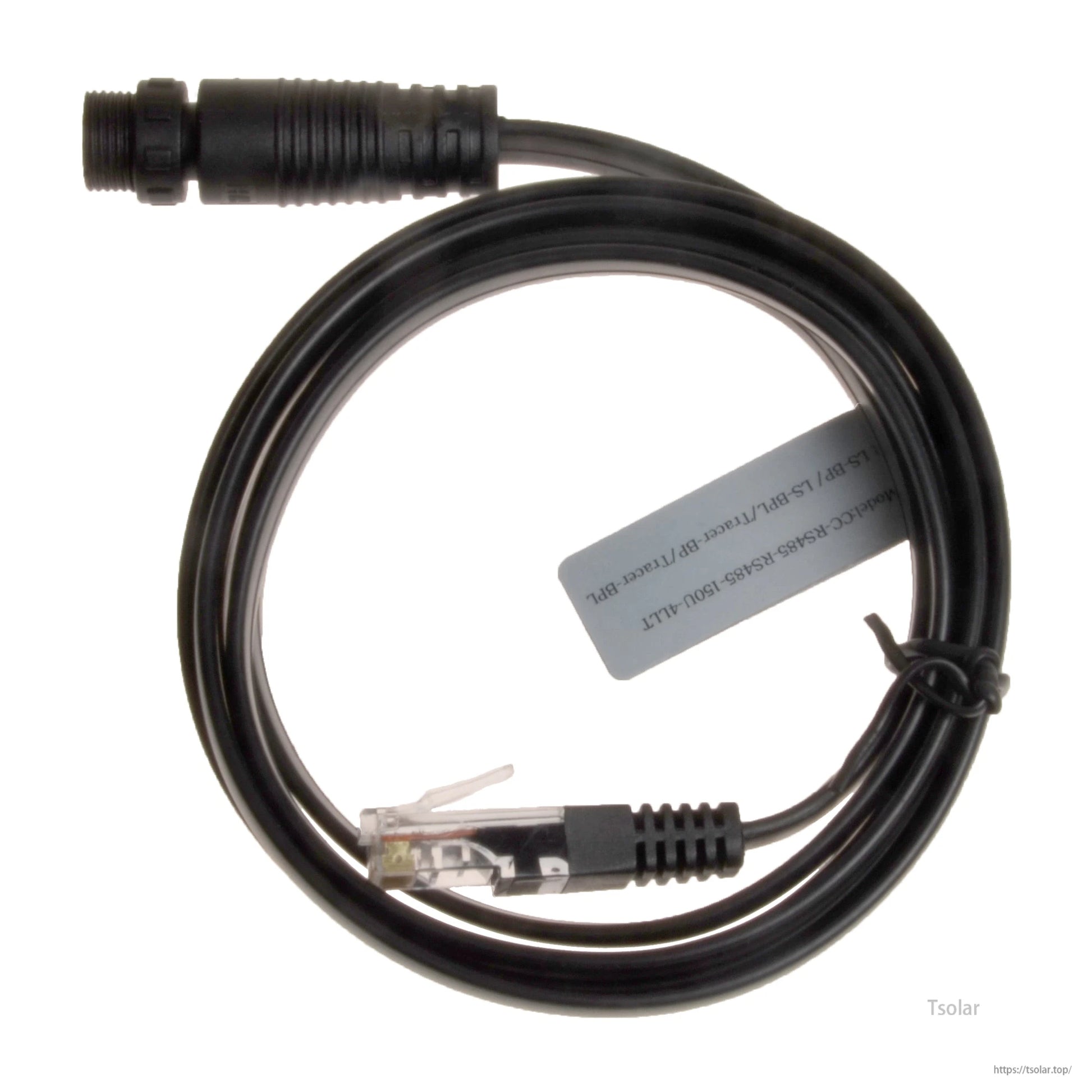

  • RS485 to RJ45 communication cable with waterproof circular connector for Epever Tracer BP solar controller

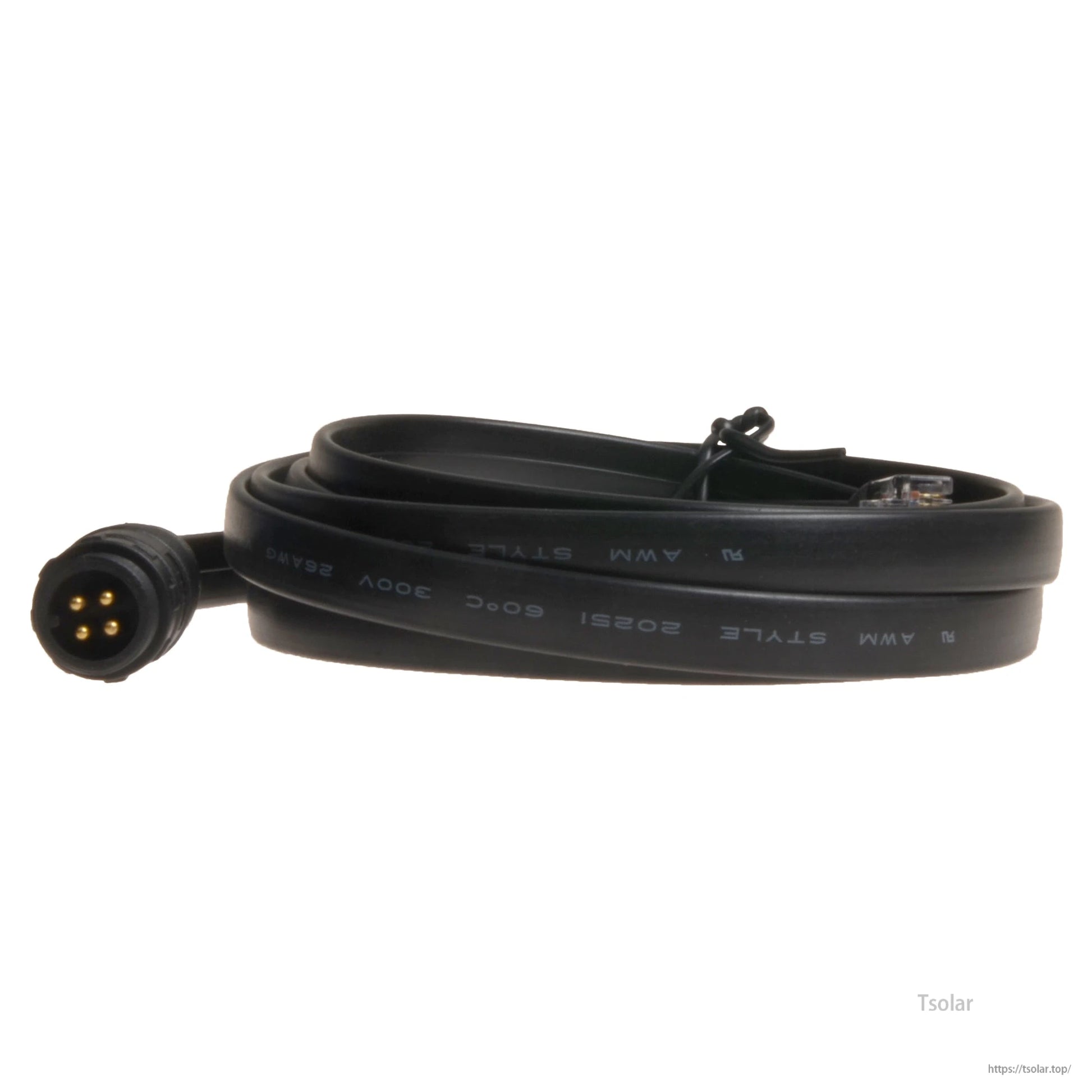

  • Coiled black RS485 communication cable with 4‑pin waterproof round connector for Epever Tracer BP controller

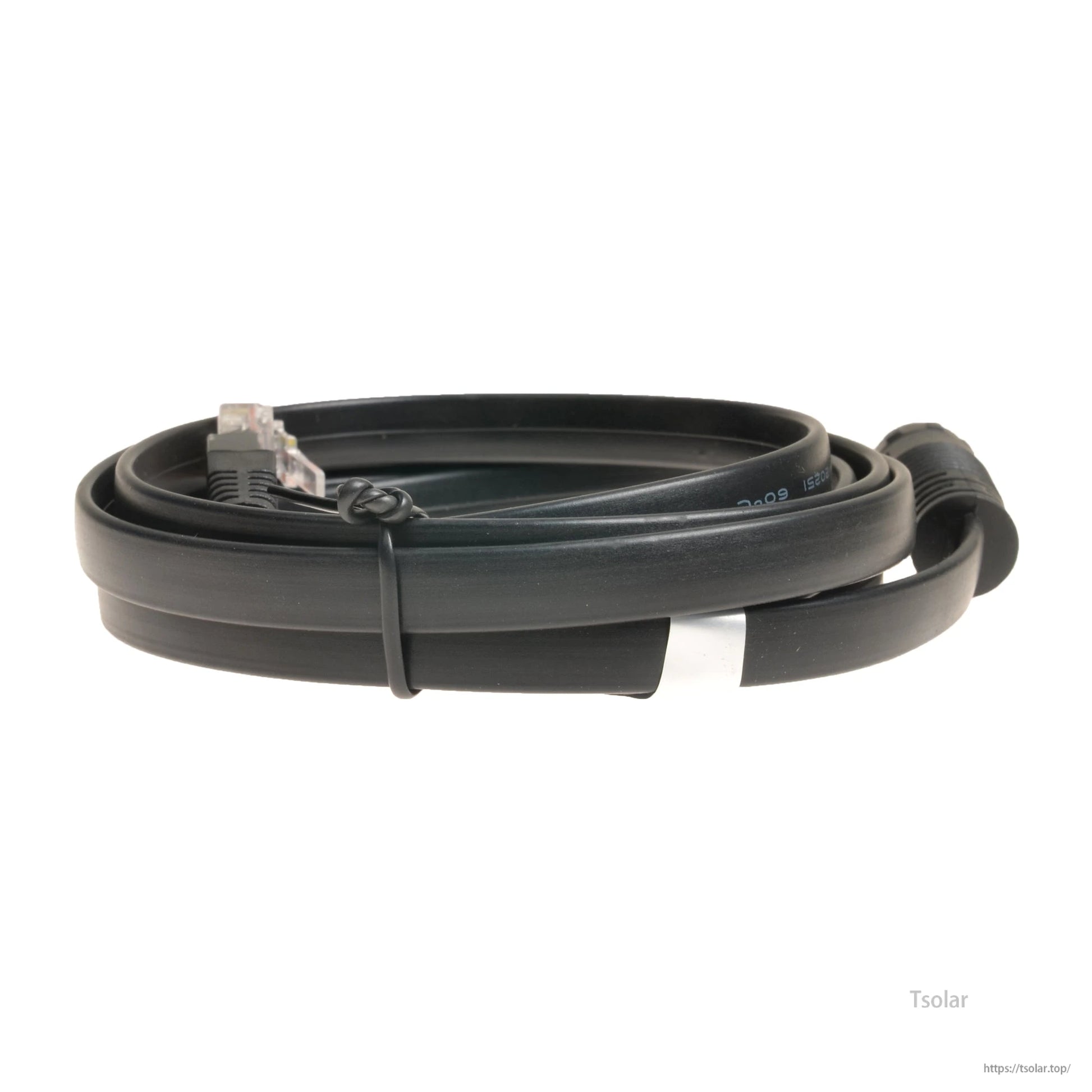

  • Coiled black RS485 communication cable with RJ45 plug and round waterproof connector for Epever Tracer BP controller
  • Epever Tracer3906BP MPPT solar charge controller with wired leads and COM port connector
1 18

EPEVER

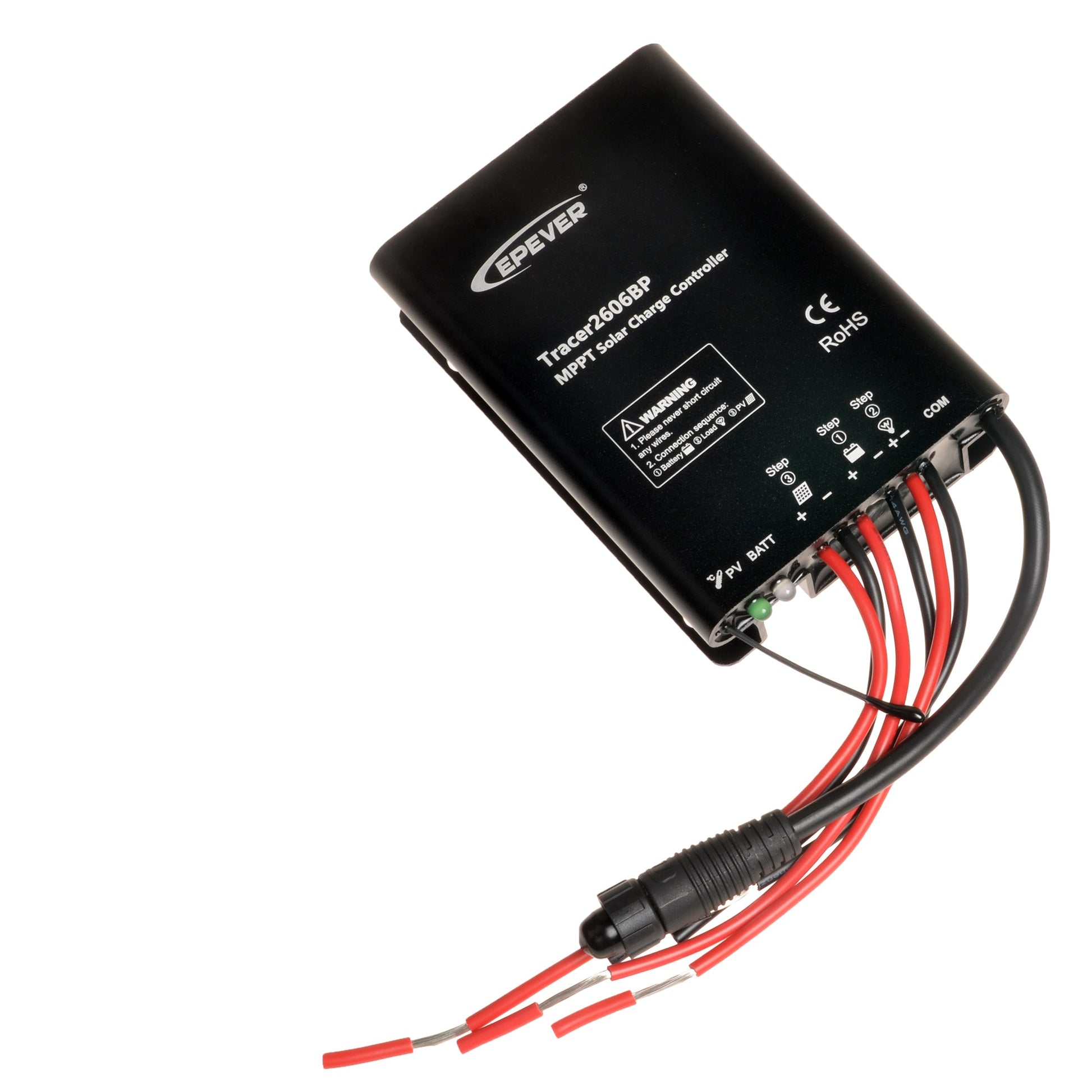

Epever Tracer BP Waterproof MPPT Solar Charge Controller 10A/15A/20A/30A 12/24V Auto RS485

Epever Tracer BP Waterproof MPPT Solar Charge Controller 10A/15A/20A/30A 12/24V Auto RS485

$51.00 USD
$51.00 USD
Sale Sold out
Shipping calculated at checkout.
Package:
View full details

Overview

The Epever Tracer BP series is a waterproof MPPT solar charge controller for 12/24VDC (auto) systems, available in 10A, 15A, 20A, and 30A versions. It supports sealed, gel, flooded, and lithium batteries (LiFePO4 / Li-NiCoMn / User) and provides system charge/discharge management with MPPT tracking. Waterproof class is listed as IP65, while the technical specifications list the enclosure as IP67.

Key Features

  • Advanced MPPT technology with tracking efficiency no less than 99%
  • Maximum conversion efficiency: 98%
  • Wide working environment temperature: -40°C to +60°C (see model-specific limits in Specifications)
  • Supports lithium batteries (LiFePO4 / Li-NiCoMn) and lead-acid (Sealed / Gel / Flooded)
  • Lithium battery self-activating and low temperature protection function
  • PV power limitation function
  • RS485 communication, standard Modbus protocol
  • Monitoring/setting via Mobile APP or PC software through RS485 (RS485 to USB / RS485 to USB OTG adapters shown), compatible accessories shown: SPP-02 programmer, MT50 meter, and a wireless collector
  • Aluminum housing for cooling
  • Real-time energy statistics function
  • Long lifespan design; five years warranty

For pre-purchase compatibility checks (battery type, RS485 monitoring accessories, and model selection), contact service@tsolar.top.

Models

  • 10A: Tracer2606BP — 130W/12V, 260W/24VDC; max PV 60V
  • 15A: Tracer3906BP — 195W/12V, 390W/24VDC; max PV 60V
  • 20A: Tracer5206BP — 260W/12V, 520W/24VDC; max PV 60V
  • 30A: Tracer7810BP — 390W/12V, 780W/24VDC; max PV 100V

Load Working Mode

  • Manual Mode
  • Light ON/OFF (Default)
  • Light ON + Timer
  • Real-time Control
  • Intelligent Power Mode

Electronic Protections

  • PV over current protection
  • PV short circuit protection
  • PV reverse polarity protection
  • Battery reverse polarity protection
  • Battery over voltage protection
  • Battery over discharge protection
  • Battery overheating protection
  • Lithium battery low temperature protection
  • Load overload protection
  • Load short circuit protection

Specifications

Model Tracer2606BP Tracer3906BP Tracer5206BP Tracer7810BP
Alternate model shown Tracer2610BP Tracer3910BP Tracer5210BP -
Nominal system voltage 12/24VDC auto
Rated charge/discharge current 10A 15A 20A 30A
Rated charge power 130W/12V; 260W/24V 195W/12V; 390W/24V 260W/12V; 520W/24V 390W/12V; 780W/24V
Max. PV open circuit voltage Tracer**06BP: 60V at minimum operating environment temperature; 46V at 25°C environment temperature
Tracer**10BP: 100V at minimum operating environment temperature; 92V at 25°C environment temperature
MPP voltage range Tracer**06BP: (Battery voltage + 2V) to 36V
Tracer**10BP: (Battery voltage + 2V) to 72V
Battery type Sealed / Gel / Flooded; LiFePO4 / Li-NiCoMn / User
Equalize charging voltage Sealed: 14.6V (12V), 29.2V (24V) / Gel: No / Flooded: 14.8V (12V), 29.6V (24V); Li-battery: No
Boost charging voltage Sealed: 14.4V (12V), 28.8V (24V) / Gel: 14.2V (12V), 28.4V (24V) / Flooded: 14.6V (12V), 29.2V (24V) / LiFePO4: 14.6V / Li-NiCoMn: 12.51V / User: 9-34V
Float charging voltage Sealed/Gel/Flooded: 13.8V (12V), 27.6V (24V)
LiFePO4: 14.4V / Li-NiCoMn: 12.39V / User: 9-34V
Low voltage reconnect voltage Sealed/Gel/Flooded: 12.6V (12V), 25.2V (24V)
LiFePO4: 12.0V / Li-NiCoMn: 10.8V / User: 9-34V
Low voltage disconnect voltage Sealed/Gel/Flooded: 11.1V (12V), 22.2V (24V)
LiFePO4: 10.6V / Li-NiCoMn: 9.3V / User: 9-34V
Self-consumption ≤13mA/12V; ≤11.5mA/24V
Communication RS485
Overall dimension 124 x 89 x 30mm 150 x 93.5 x 32.7mm 150 x 93.5 x 32.7mm 153.3 x 105 x 52.1mm
Net weight 0.54kg 0.74kg 1.2kg 1.26kg
Enclosure IP67
Working environment temperature -40°C to +60°C -40°C to +50°C
  • Lithium battery does not automatically identify system voltage and has no temperature compensation coefficient.
  • Programmable voltage value by SPP-02, RC-02 and APP.

Manuals

User's Manual (PDF)

Video

Details

Epever Waterproof MPPT Solar Charge Controller 10A 15A 20A 30A Battery Regulator

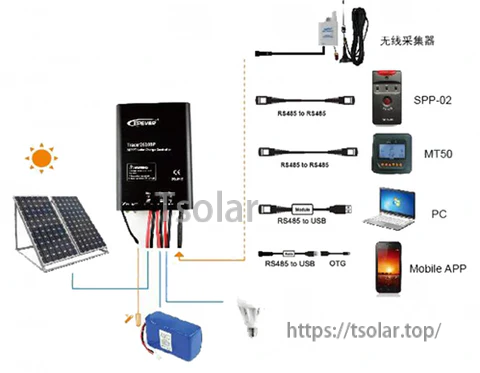

The Epever Tracer BP MPPT controller wiring diagram shows PV and battery connections plus RS485 options for an MT50 meter, PC, or mobile app via RS485-to-USB/OTG adapters.
