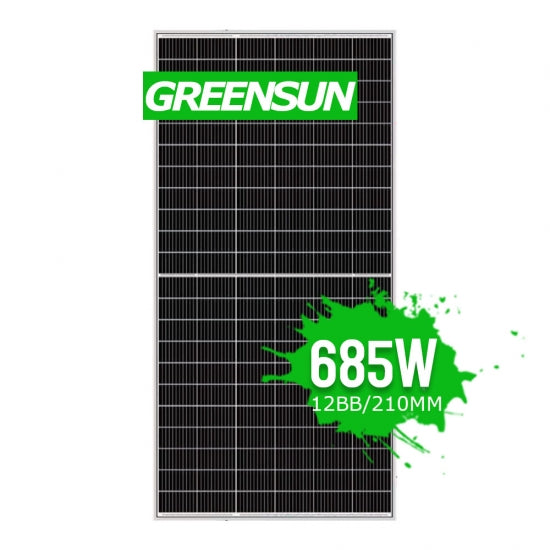

Greensun 685W Solar Panel | High-Efficiency Monocrystalline Half-Cell Module
The Greensun 685W Solar Panel is a high-performance monocrystalline module designed for both commercial and residential applications. Featuring 132 half-cut PERC cells (210mm x 210mm), this panel offers superior efficiency and reliable power output. With a sleek design available in full black or silver frame options, the Greensun 685W Solar Panel is engineered to maximize energy yields while maintaining long-term durability.
This module supports advanced P-Type cell technology and a positive power tolerance of 0~+5W, ensuring consistent performance across various conditions. The Greensun 685W Solar Panel is an ideal choice for large-scale solar projects, offering high efficiency, robust construction, and versatile installation options.
Key Features of the Greensun 685W Solar Panel:
- Multi Busbar Technology: Improved light trapping and current collection enhance module power output and reliability.
- Durability Against Extreme Environmental Conditions: Designed with high salt mist and ammonia resistance.
- Reduced Hot Spot Loss: Optimized electrical design and lower operating current result in reduced hot spot loss and better temperature management.
- Enhanced Mechanical Load: Certified to withstand 2400 Pascal wind loads and 5400 Pascal snow loads.
- Longer Lifetime Power Yield: The panel features 0.55% annual power degradation and comes with a 25-year linear power warranty.
Key Specifications for the Greensun 685W Solar Panel:
| Parameter | Details |
|---|---|
| Brand | Greensun or OEM Service |
| Product Origin | China |
| Color Options | Full Black/Silver |
| Shipping Port | Ningbo or Shanghai |
| Number of Cells | 132 cells |
| Solar Cell Type | Mono 210mm x 210mm |
| Power Range | 685W |
| Panel Size | 2400mm x 1303mm x 35mm |
| Certification | IEC, CE, TUV, CSA, CEC, UL |
| Lead Time | 7 days |
| Payment Options | T/T, Credit Card, Paypal, Western Union |
| Warranty | 25 Years |
| Size | 2400mm x 1303mm x 35mm |
| Weight | 36KG |
Datasheet Details:
| Model | Rated Maximum Power (Pmax) [W] | Open Circuit Voltage (Voc) [V] | Maximum Power Voltage (Vmp) [V] | Short Circuit Current (Isc) [A] | Maximum Power Current (Imp) [A] | Module Efficiency [%] |
|---|---|---|---|---|---|---|
| GSM660W | 660W | 45.55V | 38.38V | 18.45A | 17.20A | 21.1% |
| GSM670W | 670W | 45.87V | 38.68V | 18.67A | 17.32A | 21.6% |
| GSM680W | 680W | 46.19V | 38.98V | 18.90A | 17.44A | 21.9% |
| GSM685W | 685W | 46.35V | 39.13V | 19.01A | 17.50A | 22.1% |
ELECTRICAL CHARACTERISTICS AT STC
| PV Module | GSMxxx-66M (xxx = Peak Power Watts) |
|---|---|
| Nominal Power (Pmax) | 655W |
| Open Circuit Voltage (Voc) | 45.4V |
| Short Circuit Current (Isc) | 18.37A |
| Voltage at Nominal Power (Vmp) | 38.23V |
| Current at Nominal Power (Imp) | 17.14A |
| Module Efficiency (%) | 20.95 |
| Operating Temperature | 0°C to +5°C |
ELECTRICAL CHARACTERISTICS AT NOCT
| Parameter | 655W | 660W | 665W | 670W | 675W | 680W | 685W |
|---|---|---|---|---|---|---|---|
| Nominal Power (Pmax) | 496W | 500W | 504W | 508W | 511W | 515W | 519W |
| Open Circuit Voltage (Voc) | 43.00V | 43.15V | 43.31V | 43.37V | 43.63V | 43.79V | 43.95V |
| Short Circuit Current (Isc) | 14.79A | 14.83A | 14.87A | 14.91A | 14.95A | 14.99A | 15.03A |
| Voltage at Nominal Power (Vmp) | 35.93V | 36.08V | 36.23V | 36.38V | 36.53V | 36.68V | 36.83V |
| Current at Nominal Power (Imp) | 13.80A | 13.84A | 13.91A | 13.96A | 13.99A | 14.04A | 14.99A |
Performance and Environmental Characteristics:
| Parameter | Details |
|---|---|
| Power Tolerance | 0~+5W |
| Temperature Coefficient of Isc (α_Isc) | +0.048%/°C |
| Temperature Coefficient of Voc (β_Voc) | -0.270%/°C |
| Temperature Coefficient of Pmax (γ_Pmp) | -0.350%/°C |
| Operating Temperature Range | -40°C to +85°C |
The Greensun 685W Solar Panel is a reliable and efficient solution for maximizing energy production, whether used in large-scale commercial installations or residential projects. Its combination of high efficiency, robust design, and positive power tolerance ensures stable performance, even in harsh environments.

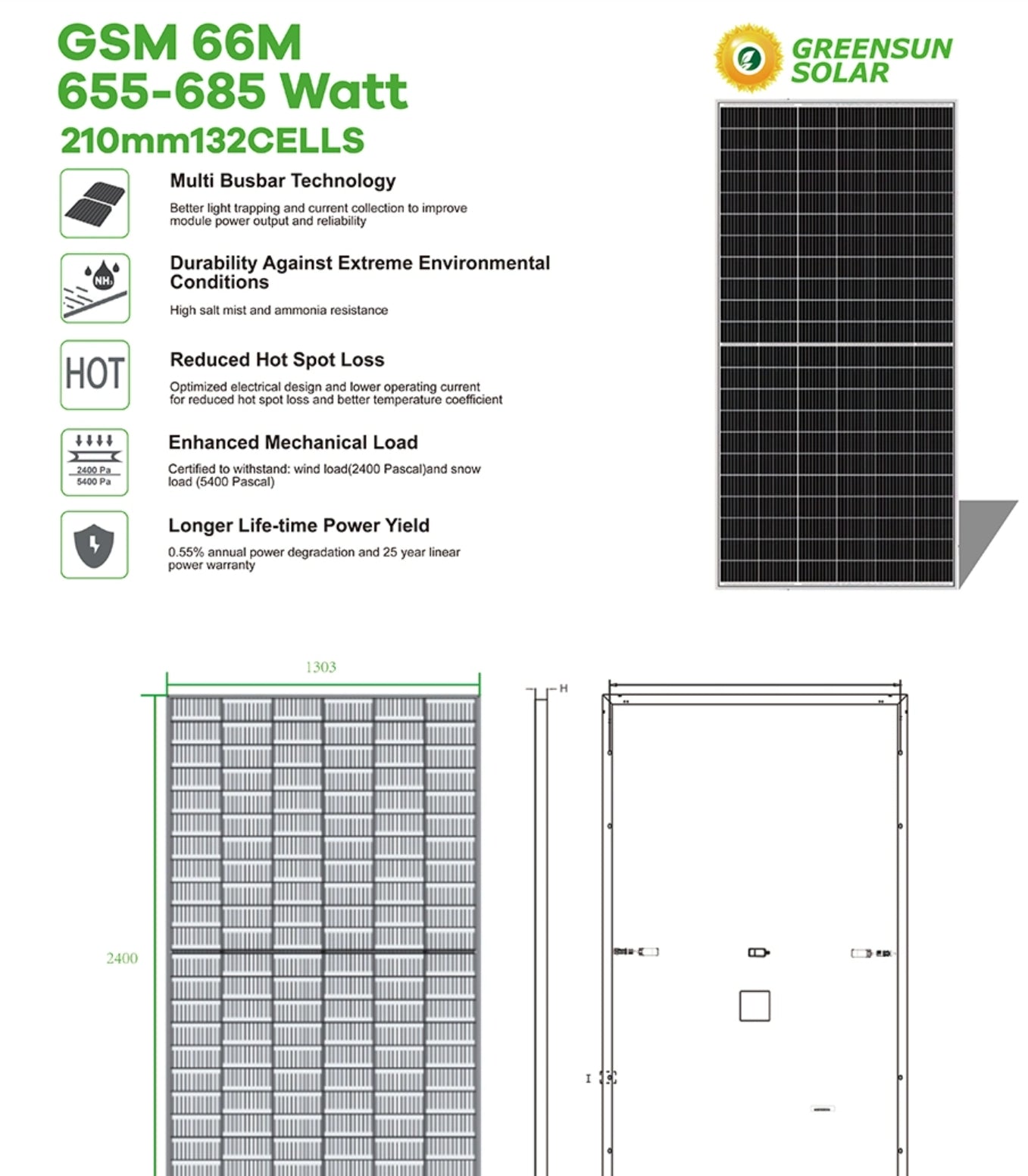

Greensun 685W Solar Panel: High-Efficiency Power Generation The Greensun 685W solar panel features a powerful output of 655-685 watts, making it an excellent choice for residential and commercial applications. With its 21mm thickness and 132 cells, this module boasts enhanced light trapping and current collection capabilities. The multi-busbar technology ensures better power output and reliability. The panel is designed to withstand extreme environmental conditions, including high salt mist and ammonia resistance. Additionally, the optimized electrical design reduces hot spot loss and improves temperature coefficient. This solar panel also features a robust mechanical load capacity, certified by J40QPa for wind loads up to 2400 Pascal and snow loads exceeding 5400 Pascal. Enjoy a longer lifespan with an annual power degradation of just 0.55% and a comprehensive 25-year warranty.

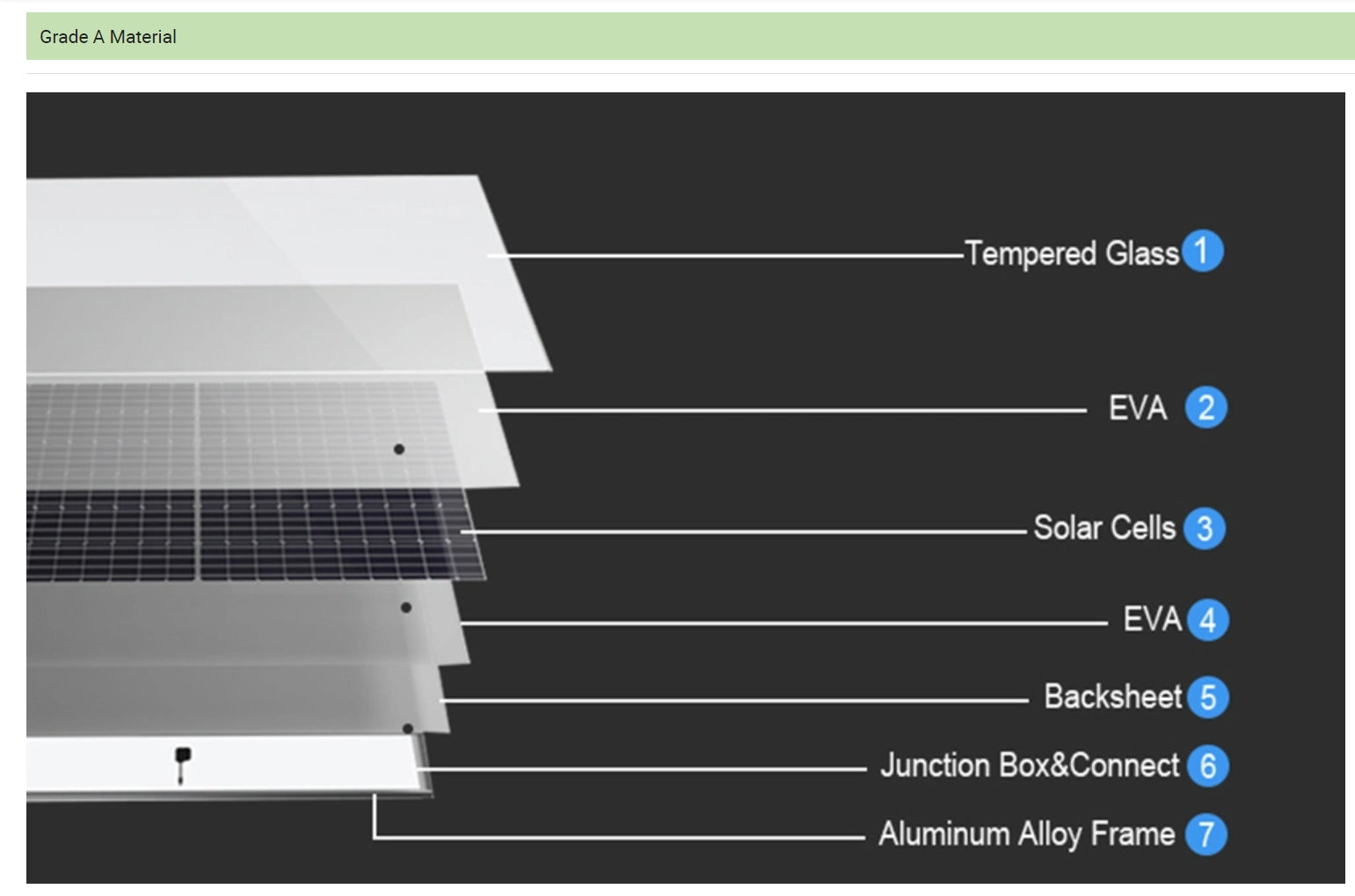

Greensun 685W Solar Panel features Grade A material, tempered glass and EVA encapsulation. It contains 2 solar cells and 3 layers of EVA backsheet for efficient energy conversion. The junction box and connectors are durable with aluminum alloy framing for a robust structure.

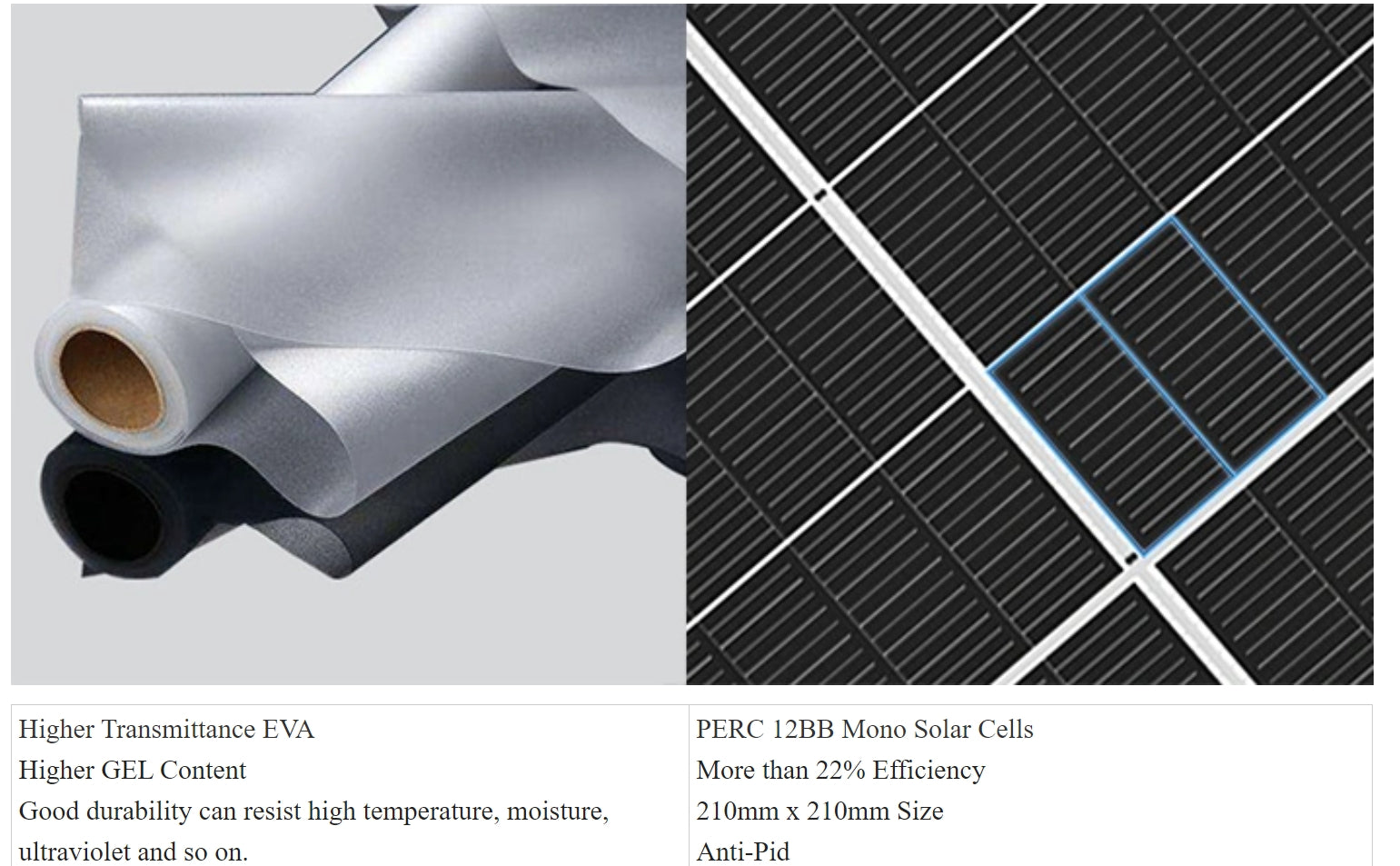

Greensun 685W Solar Panel features higher transmittance EVA, PERC 12BB mono solar cells with over 22% efficiency. It has good durability, resisting high temperatures, moisture, and UV rays. The size is 20mm x 20mm, and it's anti-PID (Preventive Installation Damage) designed for reliable performance.

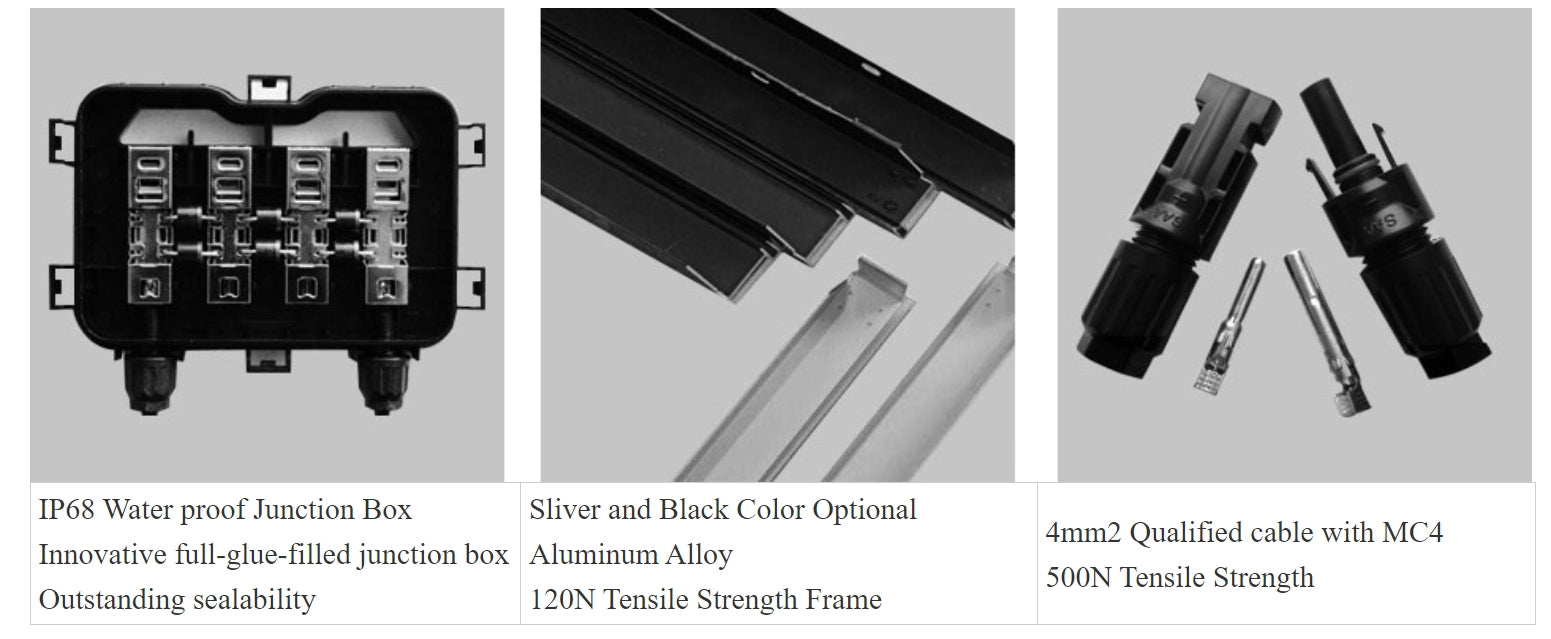

Greensun 685W Solar Panel. IP68 water-resistant junction box with optional 4mm² cable and MC4 connectors. Aluminum alloy frame provides outstanding tensile strength and sealability, with a tensile strength of 120N.

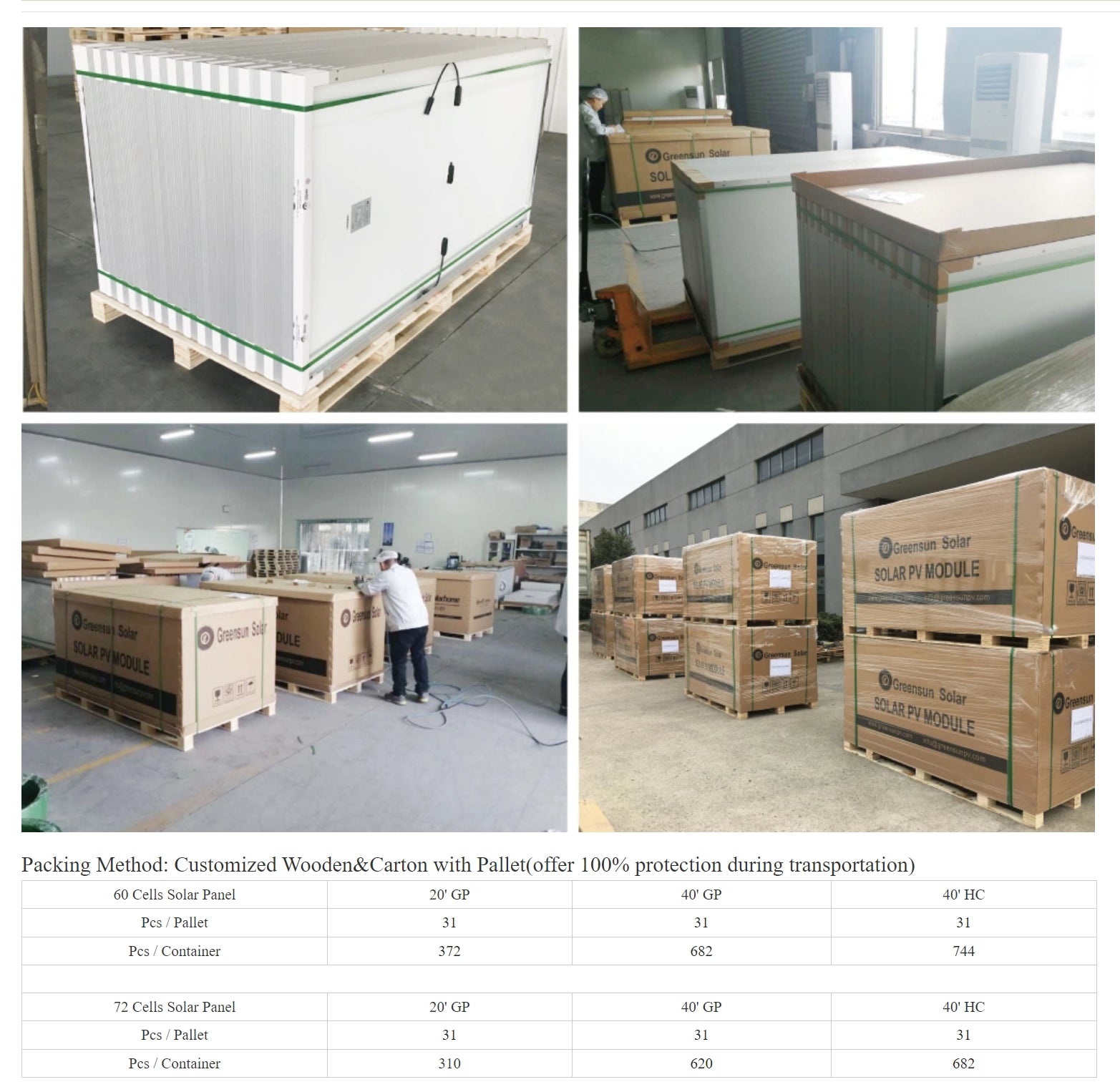

The Greensun 685W Solar Panel is a high-performance module designed for both residential and commercial installations. With an impressive power output of 655-685 Watts, this solar panel features 60 high-efficiency cells that ensure maximum energy harvesting. The module comes with customized wooden carton packaging, complete with pallet protection to safeguard against damage during transportation.
