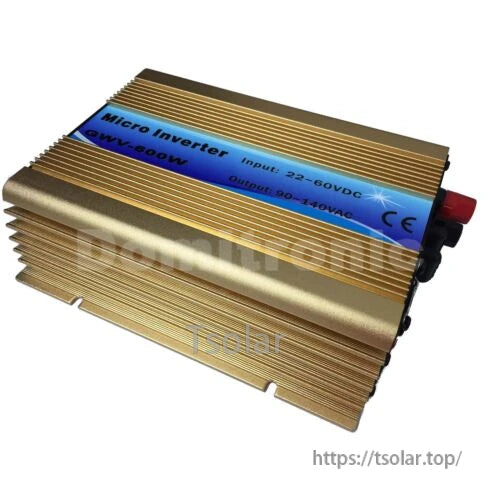

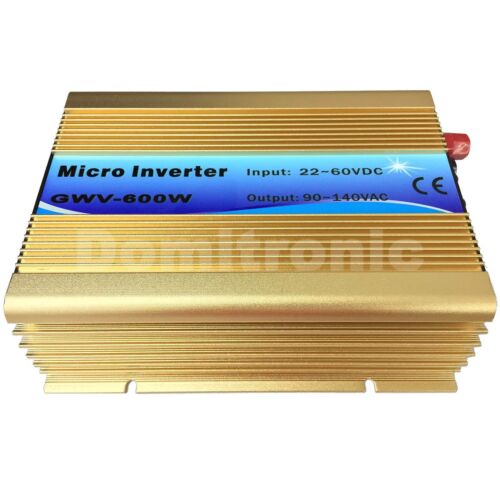

Overview
This grid tie inverter converts solar panel DC power to grid-synchronized AC power for connection to a residential utility grid. It is specified for 24V/30V/36V solar panels in 60-cell and 72-cell formats, with DC input 22V-60V and AC output options of 110V or 230V at 50Hz/60Hz (auto control). Color: Golden.
Key Features
- Power options: 600W / 500W / 400W / 300W / 200W
- DC input range: 22-60VDC
- MPPT voltage range: 25-48V
- AC output range options: 120VAC (90-140VAC) or 230VAC (190-260VAC)
- 50Hz/60Hz auto control

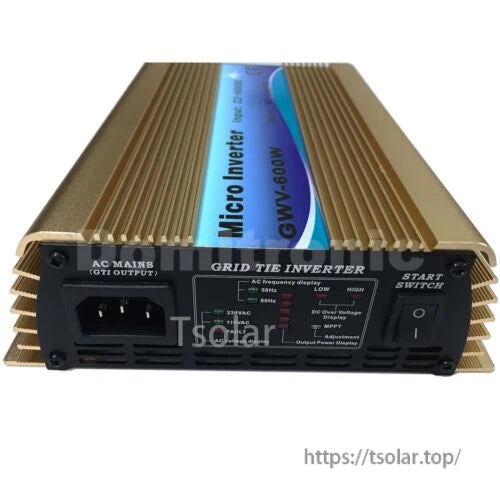

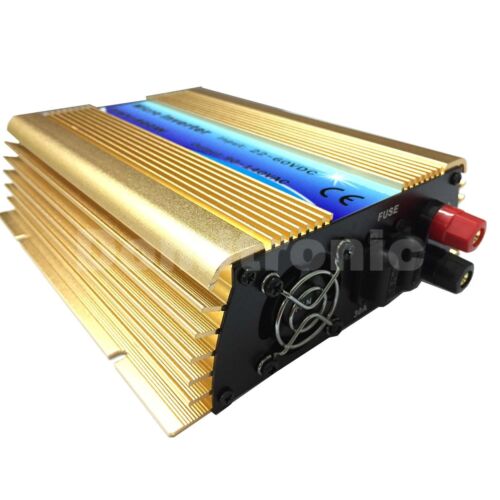

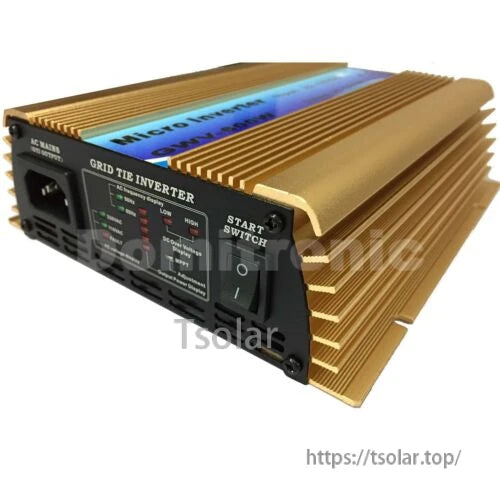

- LED status display; fan cooling
- Protections: Islanding; short-circuit; converse connection; low voltage; over voltage; over temperature protection
Specifications
Solar panel compatibility
- 60-cell solar panel: Vmp 26-30V; Voc 34-38V
- 72-cell solar panel: Vmp 35-38V; Voc 44-48V
Electrical & environmental

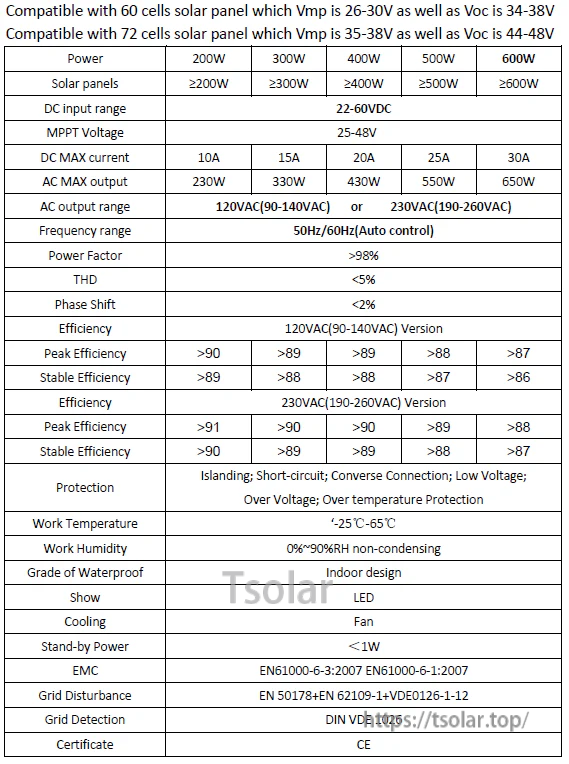

| Parameter | Value |
|---|---|
| DC input range | 22-60VDC |
| MPPT voltage | 25-48V |
| AC output range (option) | 120VAC (90-140VAC) or 230VAC (190-260VAC) |
| Frequency range | 50Hz/60Hz (Auto control) |
| Power Factor | >98% |
| THD | <5% |
| Phase Shift | <2% |
| Work Temperature | -25 C-65 C |
| Work Humidity | 0%-90%RH non-condensing |
| Grade of Waterproof | Indoor design |
| Show | LED |
| Cooling | Fan |
| Stand-by Power | <1W |
Model variants (by rated power)
| Rated power | Solar panels | DC MAX current | AC MAX output | Peak efficiency (120VAC version) | Stable efficiency (120VAC version) | Peak efficiency (230VAC version) | Stable efficiency (230VAC version) |
|---|---|---|---|---|---|---|---|
| 200W | ≥200W | 10A | 230W | >90 | >89 | >91 | >90 |
| 300W | ≥300W | 15A | 330W | >89 | >88 | >90 | >89 |
| 400W | ≥400W | 20A | 430W | >89 | >88 | >90 | >89 |
| 500W | ≥500W | 25A | 550W | >88 | >87 | >89 | >88 |
| 600W | ≥600W | 30A | 650W | >87 | >86 | >88 | >87 |
Standards & Certifications
- Certification: CE, ROHS
- EMC: EN61000-6-3:2007; EN61000-6-1:2007
- Grid disturbance: EN 50178 + EN 62109-1 + VDE0126-1-12
- Grid detection: DIN VDE0126
Applications
- Grid-connected PV systems using 60-cell (24V) or 72-cell (36V) solar panels
- Residential grid feed-in systems with a two-way AC meter

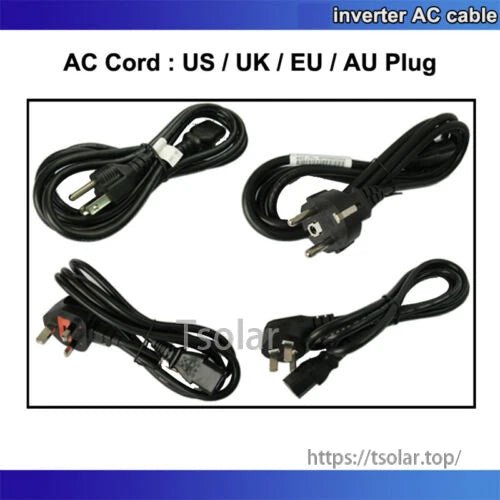

For product selection help and technical support, contact https://tsolar.top/ or email service@tsolar.top.
Details

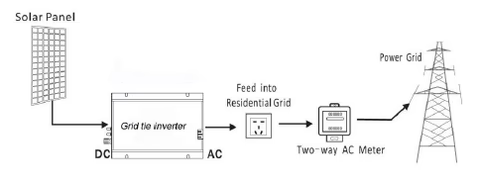

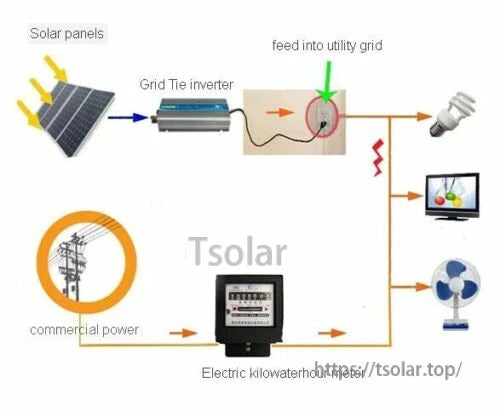

A grid tie inverter connects a solar panel’s DC output to AC power feeding into the residential grid through a two-way AC meter.

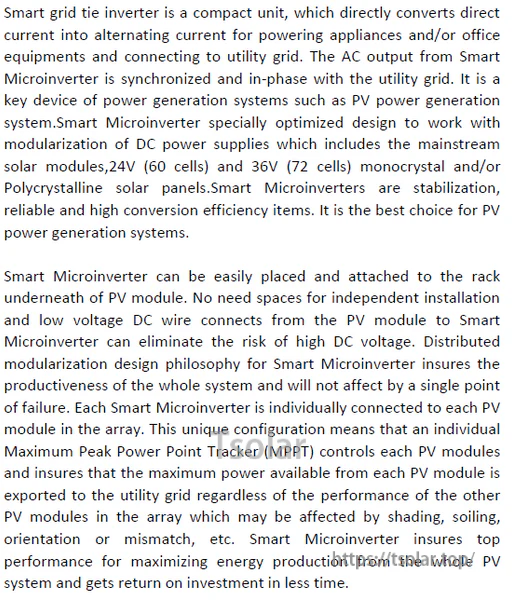

The smart grid-tie microinverter converts DC from 24V (60-cell) or 36V (72-cell) solar panels to AC synchronized with the utility grid and supports MPPT control per module.
Grid tie inverter options range from 200W to 600W with a 22–60VDC input, MPPT 25–48V, and 120VAC or 230VAC output.
