Overview

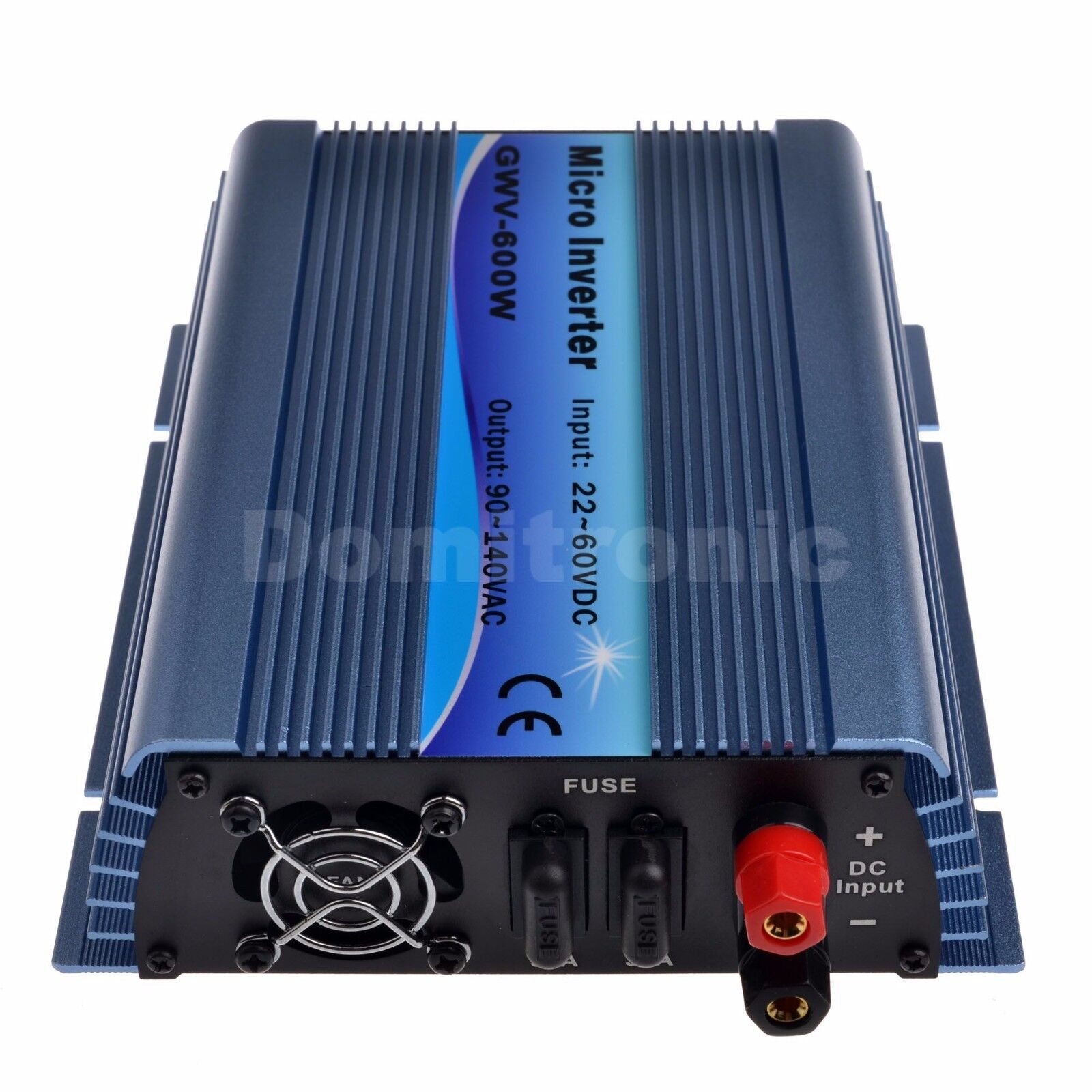

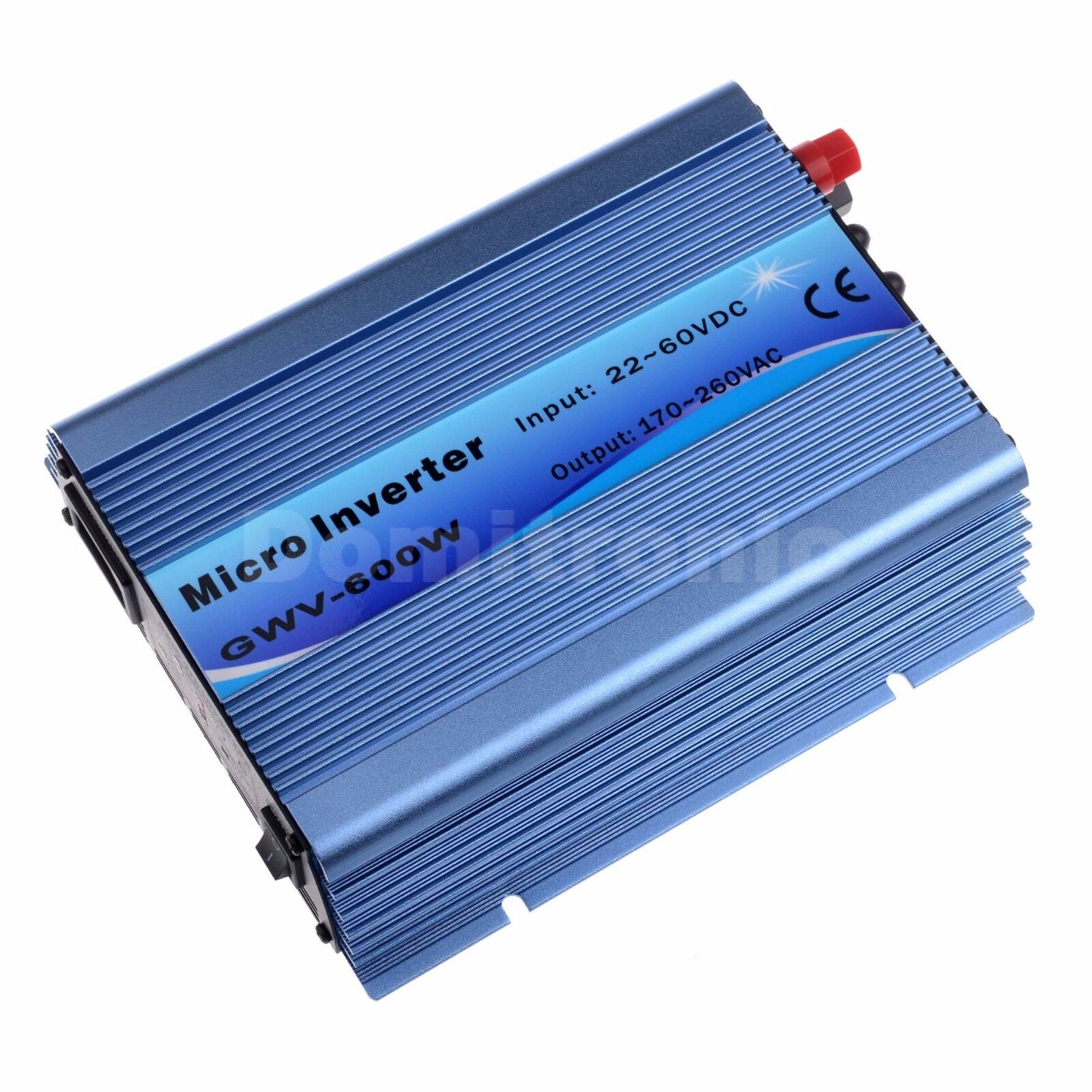

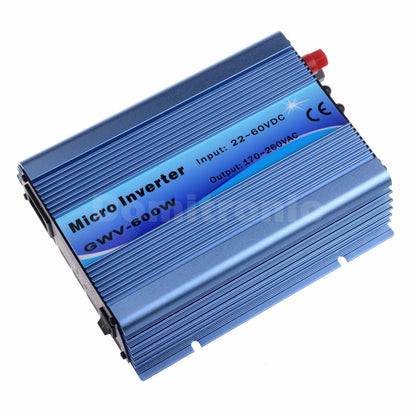

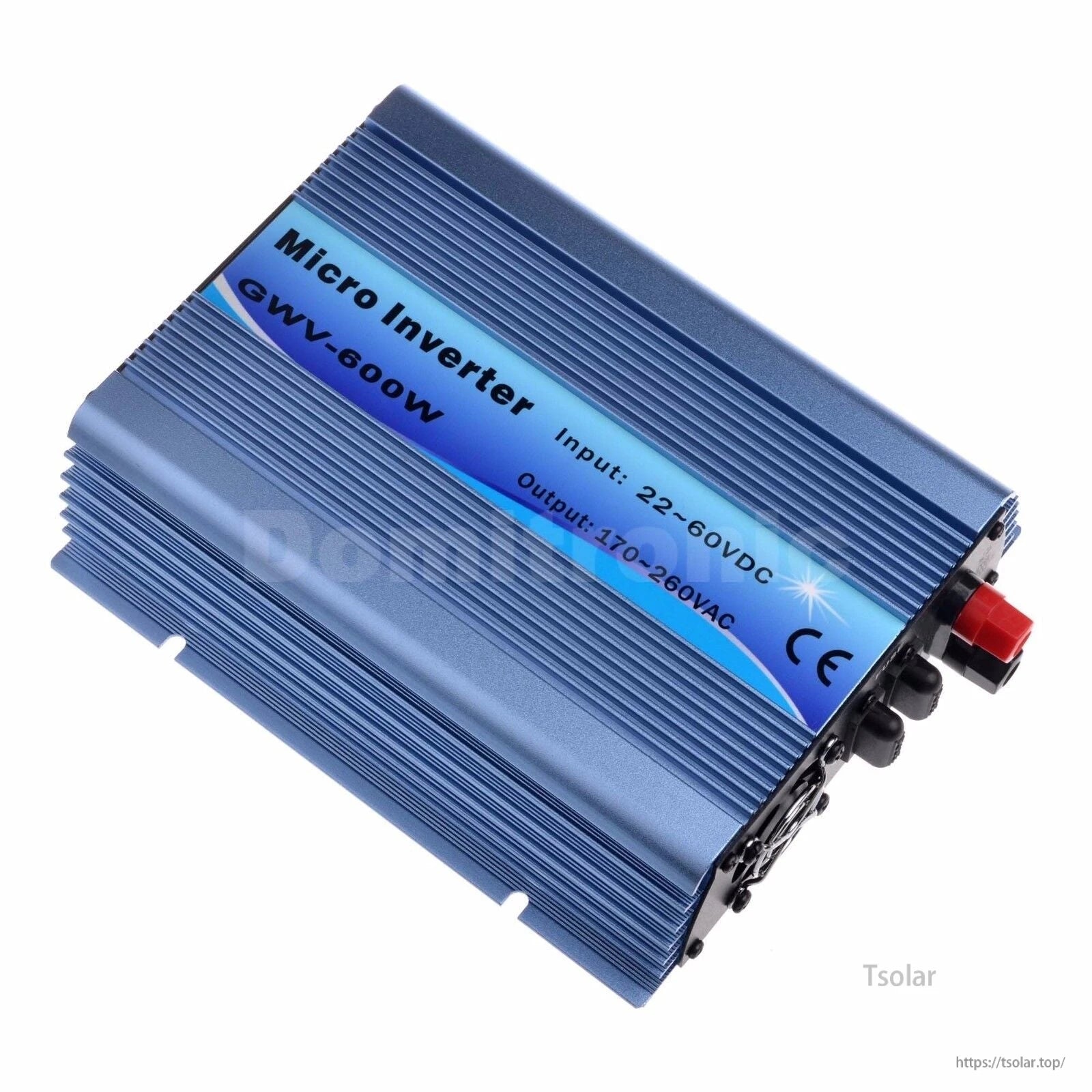

This grid tie inverter (Sky Blue) converts DC power from a solar panel to utility-synchronized AC power for connection to the residential grid via a two-way AC meter. It is designed for 60-cell and 72-cell solar modules, including 24V/30V/36V panel configurations.
Key Features
- Power options: 200W / 300W / 400W / 500W / 600W
- DC input range: 22-60VDC; MPPT voltage: 25-48V
- AC output options: 110V or 230V; 50Hz/60Hz (Auto control)
- Indoor design with fan cooling, indicator LED, and standby power <1W
- Protections: Islanding; Short-circuit; Reverse Connection; Low Voltage; Over Voltage; Over temperature Protection
- Certifications listed: CE, ROHS
Specifications
Solar panel compatibility
- 60-cell solar panel: Vmp 26-30V; Voc 34-38V
- 72-cell solar panel: Vmp 35-38V; Voc 44-48V
Electrical & environmental parameters

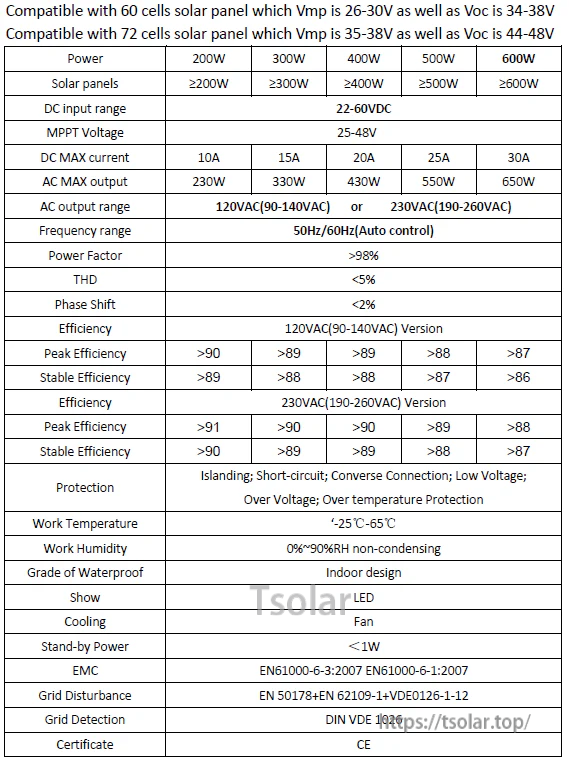

| Parameter | 200W | 300W | 400W | 500W | 600W |
|---|---|---|---|---|---|
| Recommended solar panels | ≥200W | ≥300W | ≥400W | ≥500W | ≥600W |
| DC input range | 22-60VDC | ||||
| MPPT Voltage | 25-48V | ||||
| DC MAX current | 10A | 15A | 20A | 25A | 30A |
| AC MAX output | 230W | 330W | 430W | 550W | 650W |
| AC output range | 120VAC (90-140VAC) or 230VAC (190-260VAC) | ||||
| Frequency range | 50Hz/60Hz (Auto control) | ||||
| Power Factor | >98% | ||||
| THD | <5% | ||||
| Phase Shift | <2% | ||||
| Peak Efficiency (120VAC version) | >90 | >89 | >89 | >88 | >87 |
| Stable Efficiency (120VAC version) | >89 | >88 | >88 | >87 | >86 |
| Peak Efficiency (230VAC version) | >91 | >90 | >90 | >89 | >88 |
| Stable Efficiency (230VAC version) | >90 | >89 | >89 | >88 | >87 |
| Work Temperature | -25C-65C | ||||
| Work Humidity | 0%-90%RH non-condensing | ||||
| Grade of Waterproof | Indoor design | ||||

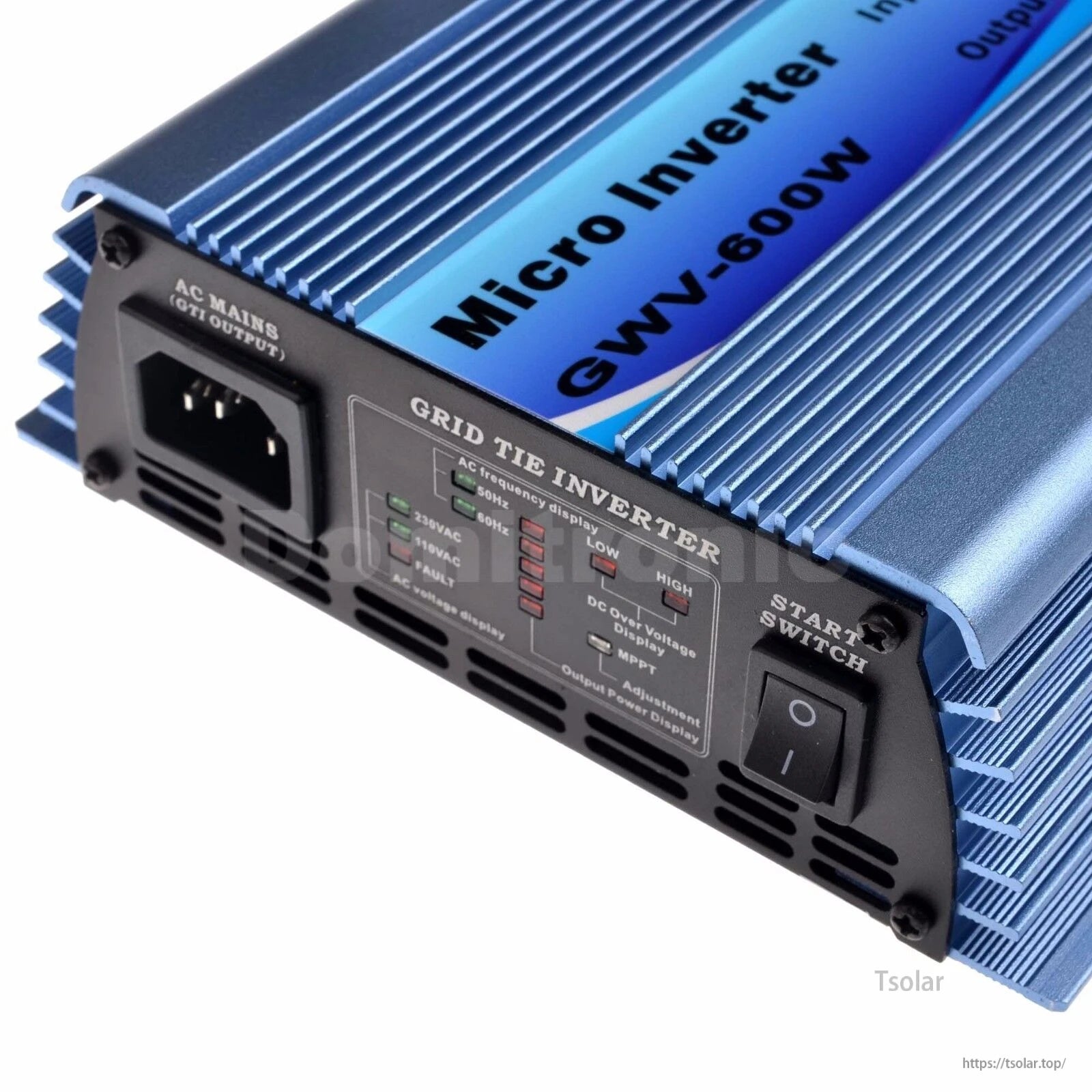

| Show | Indicator LED | ||||

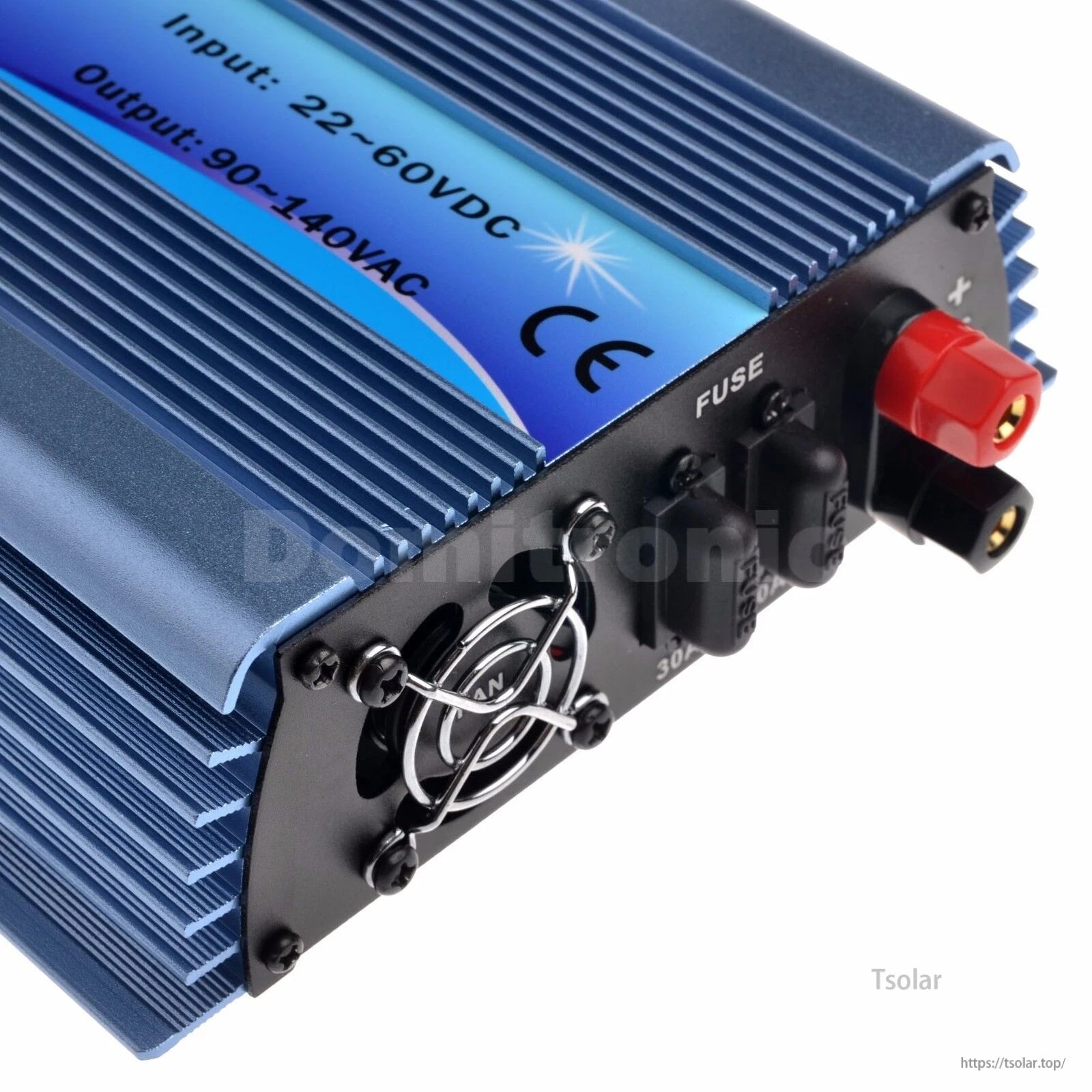

| Cooling | Fan | ||||
| Stand-by Power | <1W | ||||
| EMC | EN61000-6-3:2007; EN61000-6-1:2007 | ||||
| Grid Disturbance | EN 50178 + EN 62109-1 + VDE0126-1-12 | ||||
| Grid Detection | DIN VDE 1026 | ||||
| Certificate | CE | ||||
Whats Included
- 1 x Solar Inverter
- 1 x User's Manaul

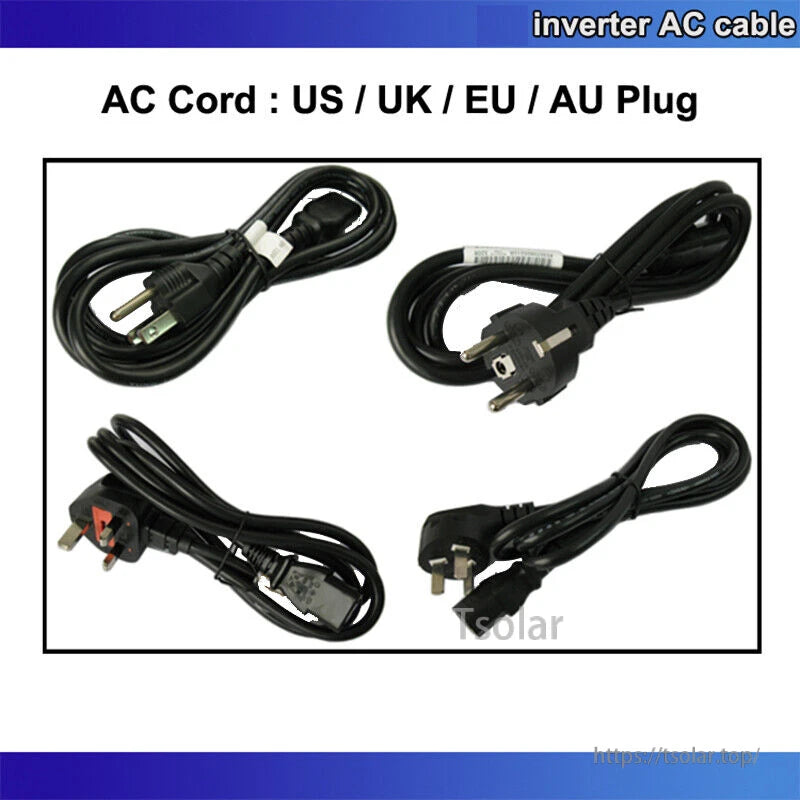

- 1 x AC Cord
Warranty
1 Years Warranty
Applications
- Grid-connected PV systems using 60-cell (24V) or 72-cell (36V) solar panels
- Residential solar generation setups using a two-way AC meter
For product selection and compatibility confirmation (panel Vmp/Voc, AC voltage, and wattage), contact customer support at https://tsolar.top/ or service@tsolar.top.
Details

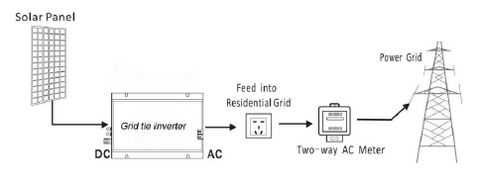

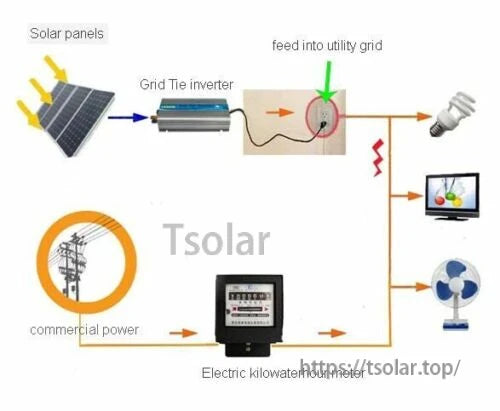

A grid tie inverter converts solar panel DC into AC and feeds it into the residential grid through a two-way AC meter.

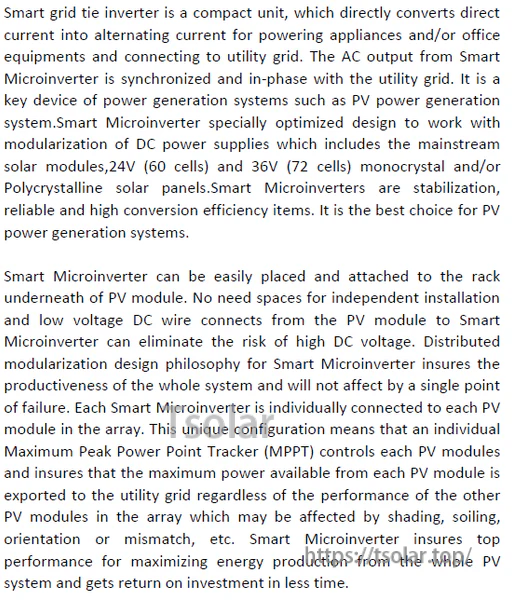

The smart grid-tie microinverter converts a solar panel’s DC output into AC power synchronized with the utility grid.
Grid tie inverter specs list 200W to 600W models with 22–60VDC input, MPPT 25–48V, and 120/230VAC output options for different solar panel setups.
