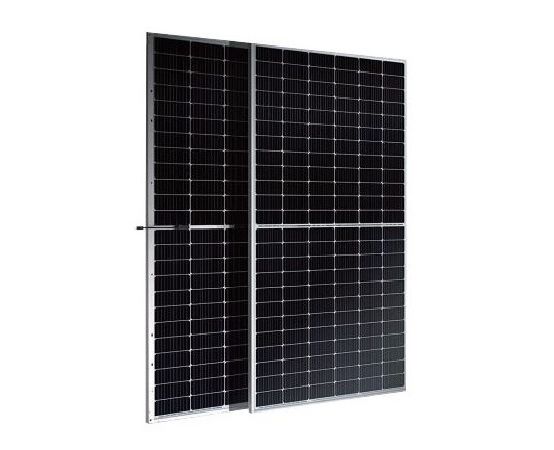

Gstar 540W Solar Panel Overview
The Gstar 540W Bifacial 144 Half-Cut Mono Solar Panel is a cutting-edge solar module designed to deliver exceptional performance in a variety of environments. This panel features advanced 10BB half-cut technology, which improves efficiency and reduces internal resistance, resulting in lower power loss and enhanced energy output. The bifacial design allows the panel to capture sunlight from both sides, increasing power generation by 5-25%, making it ideal for installations in high-humidity, windy, and dusty areas.
With dimensions of 89.69 x 44.64 x 1.18 inches and weighing 89.69 lbs, this robust solar panel is engineered for durability and long-term performance. The special circuit design significantly lowers the risk of hot spots, ensuring reliable operation even in harsh conditions. The panel's dual-glass construction enhances its resilience against environmental factors, making it a versatile solution for both commercial and residential solar projects.
Gstar 540 Watt Solar Panel Key Features:
- 10BB Half-Cut Cell Technology: New circuit design reduces internal current and Rs loss, improving overall efficiency.
- Significantly Lower Hot Spot Risk: Special circuit design minimizes the risk of hot spots, ensuring long-term reliability.
- Double Power Output: Bifacial design increases power output by 5-25%, maximizing energy production.
- Wider Application: High resistance to water permeability and wear, making it ideal for use in high-humidity, windy, and dusty areas.
- PID Resistance: Excellent Anti-PID performance guaranteed through optimized mass-production processes and material control.
Gstar 540W Solar Panel Specifications:
| Parameter | Details |
|---|---|
| Rated Power Output | 540 W |
| Voltage (VOC) | 46.7 V |
| Number of Cells | 144 |
| Cell Type | Bifacial, Monocrystalline |
| Technology | 10BB Half-Cut Mono PERC |
| Dimensions (LxWxH) | 89.69 x 44.64 x 1.18 in |
| Weight | 89.69 lbs |
| Frame Color | Silver |
| Color | White |
| Pallet Quantity | 36 panels per pallet |
| Container Quantity | 576 panels |
| Manufacturer | Gstar |
| Manufacturer Part # | GSD7G72M-540WT |
| Condition | NEW |
| Volts | 46.7 V |
| Warranty | Refer to the manufacturer’s warranty details |
Shipping and Ordering Information:
- Minimum Order: 1 x Pallet (36 panels)
- Shipping: Can be arranged; please send email to service@tsolar.top for a shipping quote.
- Note: No pick-up unless it’s a minimum pallet order.
Applications:
The Gstar 540W Bifacial 144 Half-Cut Mono Solar Panel is perfect for:
- Commercial Installations: High power output and bifacial design make it ideal for large-scale solar farms.
- Residential Installations: Boosts energy production and enhances energy independence for homes.
- Off-Grid Systems: Reliable power source for remote locations with challenging environmental conditions.
Warranty & Certifications
- 12 Years Product Warranty
- 30 Years Linear Power Warranty
- 0.45% Annual Degradation Over 30 Years
- Certified under IEC 61215 / IEC 61730 / UL 61730
- Quality, Environment, and Occupational Health and Safety Management Systems certified under ISO9001:2015, ISO14001:2015, and ISO45001:2018.
This high-performance solar panel is engineered to meet the demands of various solar projects, offering reliable and efficient energy production with the added benefit of bifacial technology. The Gstar 540W Bifacial 144 Half-Cut Mono Solar Panel is an excellent choice for those seeking to maximize energy output and system reliability.

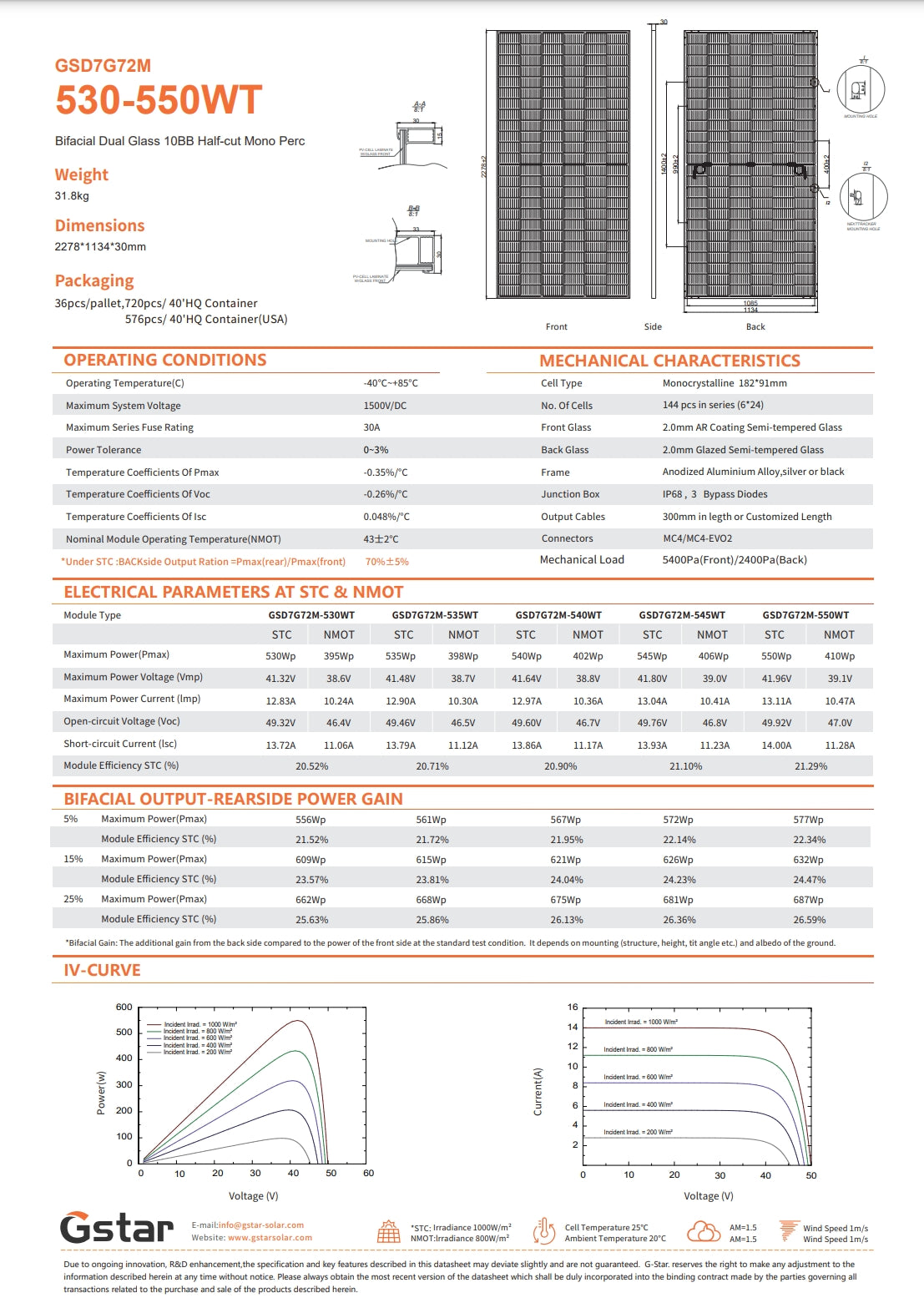

Gstar 540W Solar Panel Datasheet
Electrical Parameters at STC & NMOT
| Module Type | GSD7G72M-530WT | GSD7G72M-535WT | GSD7G72M-540WT | GSD7G72M-545WT | GSD7G72M-550WT |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 530Wp | 535Wp | 540Wp | 545Wp | 550Wp |
| Maximum Power Voltage (Vmp) | 41.32V | 41.48V | 41.64V | 41.80V | 41.96V |
| Maximum Power Current (Imp) | 12.83A | 12.90A | 12.97A | 13.04A | 13.11A |
| Open-Circuit Voltage (Voc) | 49.32V | 49.46V | 49.60V | 49.76V | 49.92V |
| Short-Circuit Current (Isc) | 13.72A | 13.79A | 13.86A | 13.93A | 14.00A |
| Module Efficiency STC (%) | 20.52% | 20.71% | 20.90% | 21.10% | 21.29% |
Bifacial Output - Rear Side Power Gain
| Bifacial Gain | Maximum Power (Pmax) | Module Efficiency STC (%) |
|---|---|---|
| 5% | 556Wp | 21.52% |
| 15% | 609Wp | 23.57% |
| 25% | 662Wp | 25.63% |
Mechanical Characteristics
| Parameter | Details |
|---|---|
| Cell Type | Monocrystalline 182×91mm |
| No. of Cells | 144 pcs in series (6×24) |
| Front Glass | 2.0mm AR Coating Semi-tempered Glass |
| Back Glass | 2.0mm Glazed Semi-tempered Glass |
| Frame | Anodized Aluminium Alloy, silver or black |
| Junction Box | IP68, 3 Bypass Diodes |
| Output Cables | 300mm in length or Customized Length |
| Connectors | MC4/MC4-EVO2 |
| Mechanical Load | 5400Pa (Front) / 2400Pa (Back) |
Operating Conditions
| Parameter | Details |
|---|---|
| Operating Temperature (C) | -40°C ~ +85°C |
| Maximum System Voltage | 1500V/DC |
| Maximum Series Fuse Rating | 30A |
| Power Tolerance | 0 ~ 3% |
| Temperature Coefficients of Pmax | -0.35%/°C |
| Temperature Coefficients of Voc | -0.26%/°C |
| Temperature Coefficients of Isc | 0.048%/°C |
| Nominal Module Operating Temperature (NMOT) | 43°C ± 2°C |

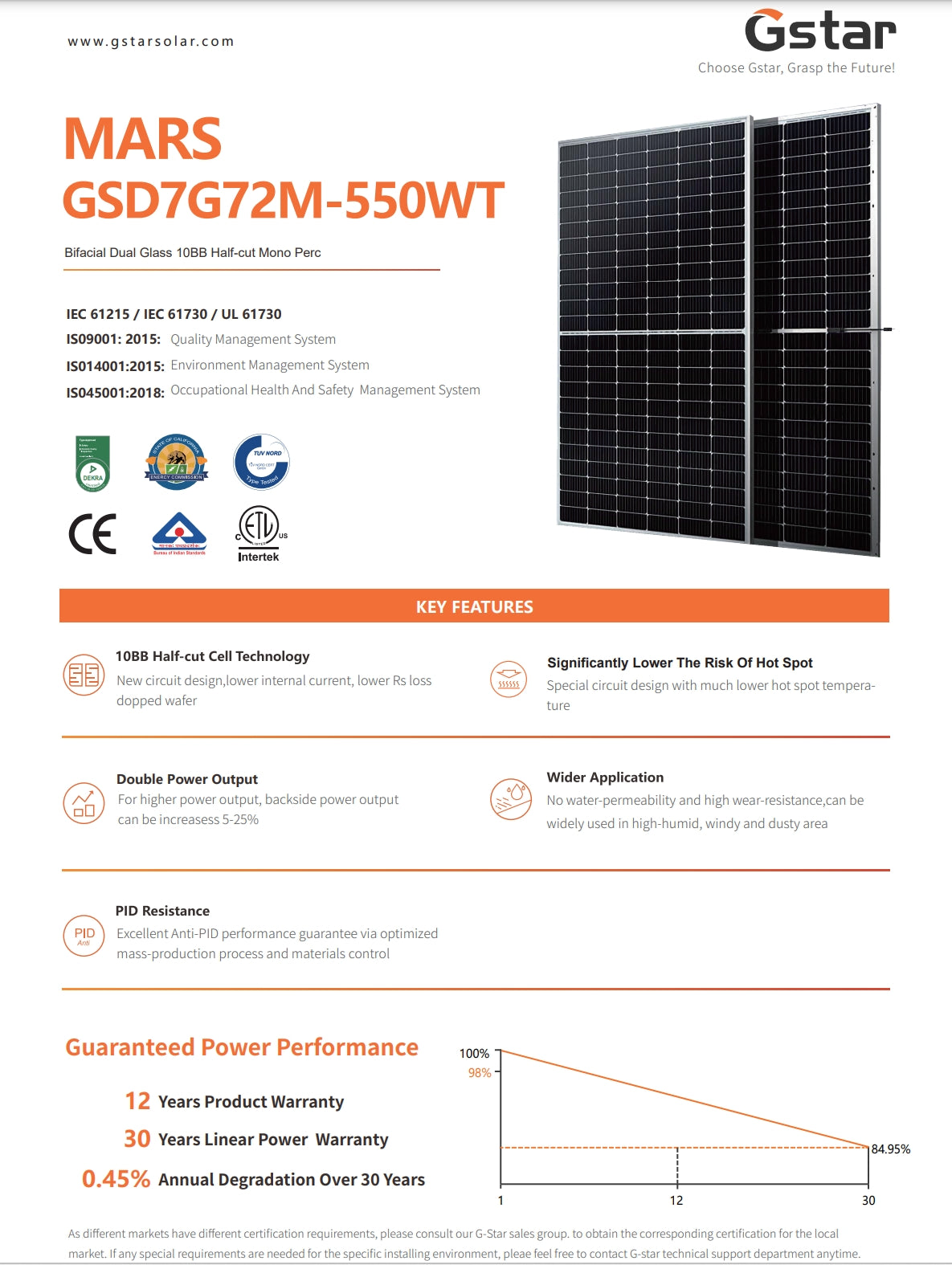

GSTAR 540W Solar Panel: Choose G-Star, Grasp the Future! MARS GSDZGZZM-SSOWT Bifacial Dual Glass, 10BB Half-Cut Mono Perc Cell Technology with significantly lower risk of hot spot. New circuit design for lower internal current and Rs loss. Double power output for wider application in high-humid, windy, and dusty areas. Excellent anti-PID performance guarantee. Guaranteed power performance: 100% efficient over 12 years. Product warranty: 30 years; linear power warranty: 12 years. Annual degradation: 0.45%, over 30 years.
