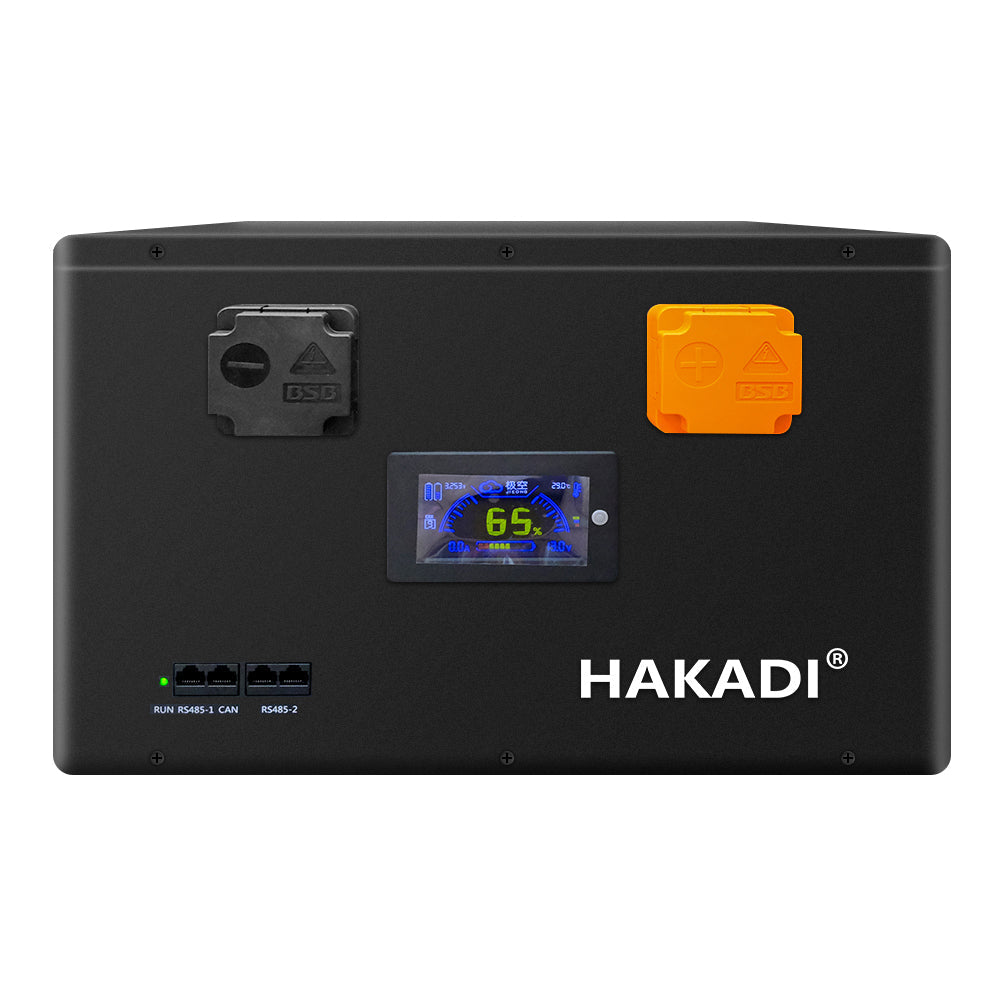

• HAKADI 12V LiFePO4 DIY battery box front panel with LCD monitor, terminals, and RS485/CAN ports
  • HAKADI 12V DIY battery box lifestyle scene with callouts for JK 300A BMS, 2A active balance, 315A fuse

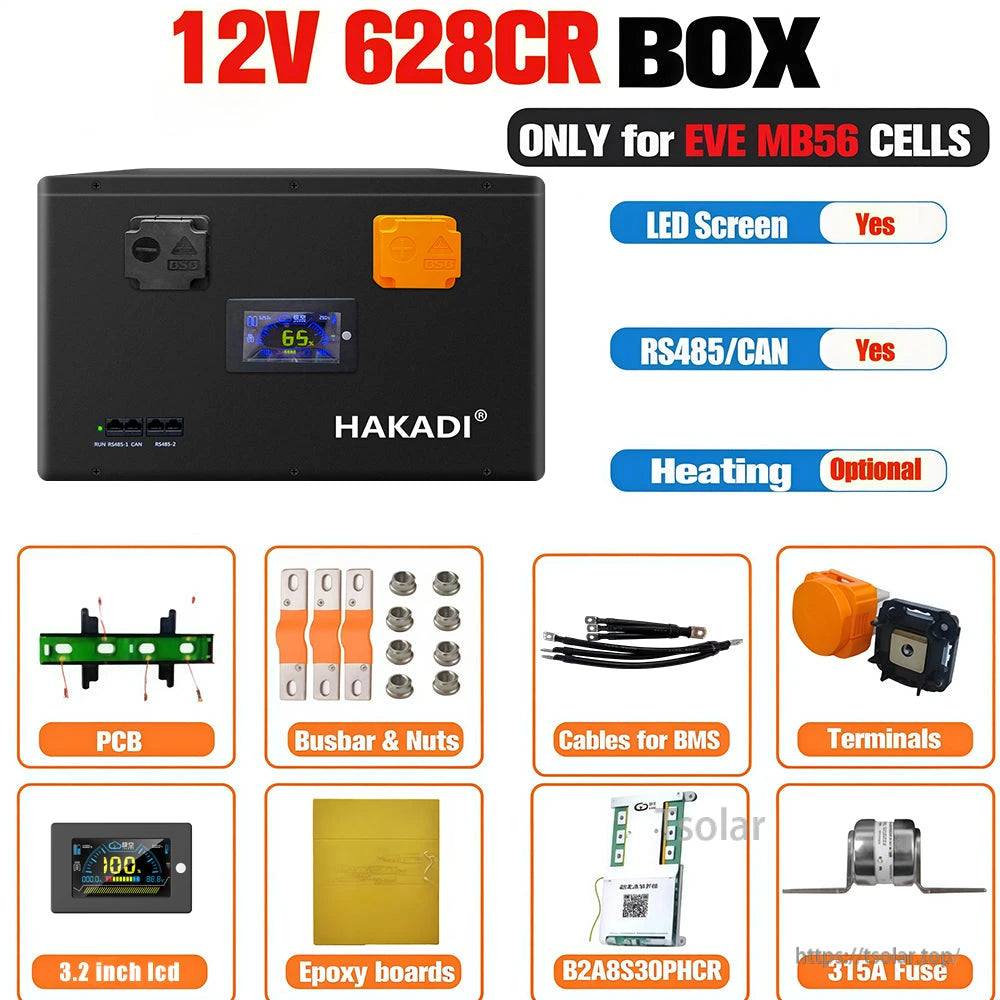

  • 12V 628Ah battery box kit contents diagram showing PCB, busbars, BMS cables, terminals, LCD, and 315A fuse

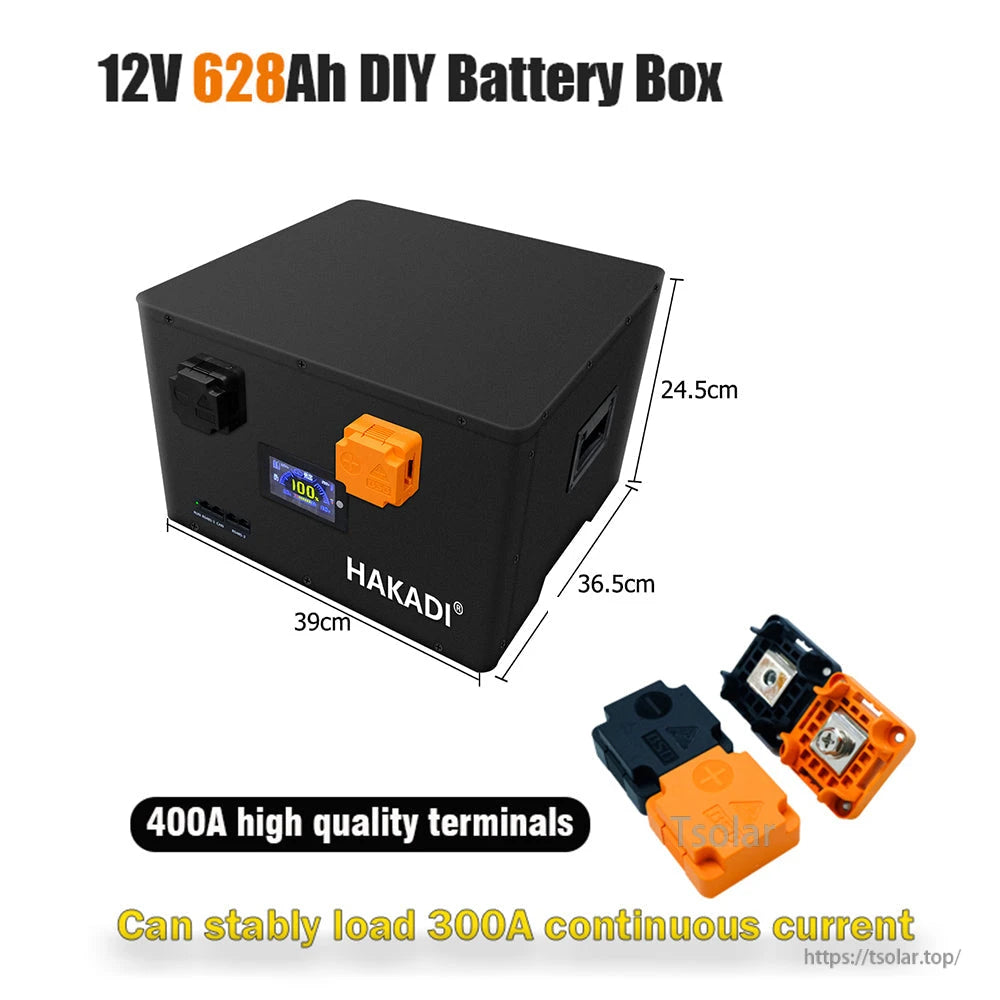

  • Angled view of 12V 628Ah DIY battery box with dimensions 39 x 36.5 x 24.5 cm and terminal close-up

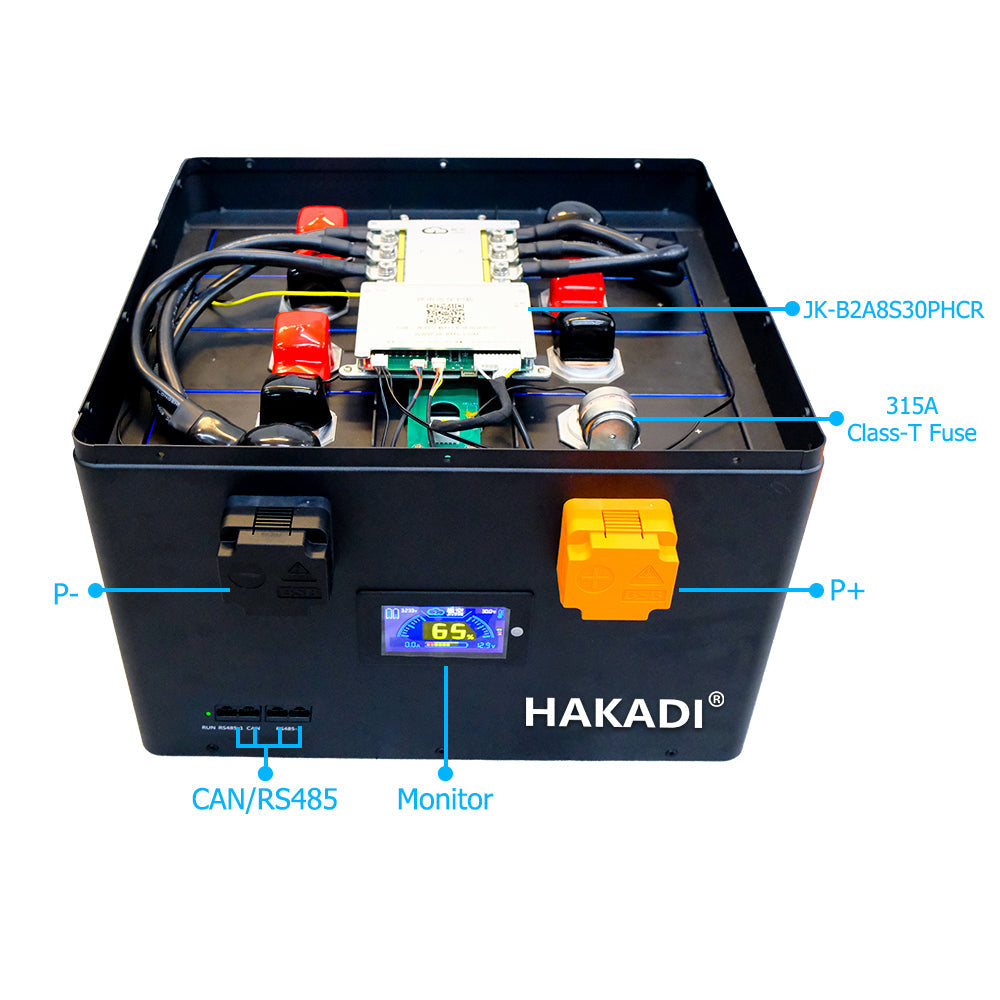

  • Open-top view showing internal wiring with JK-B2A8S30PHCR BMS, 315A Class-T fuse, CAN/RS485, P+ and P-

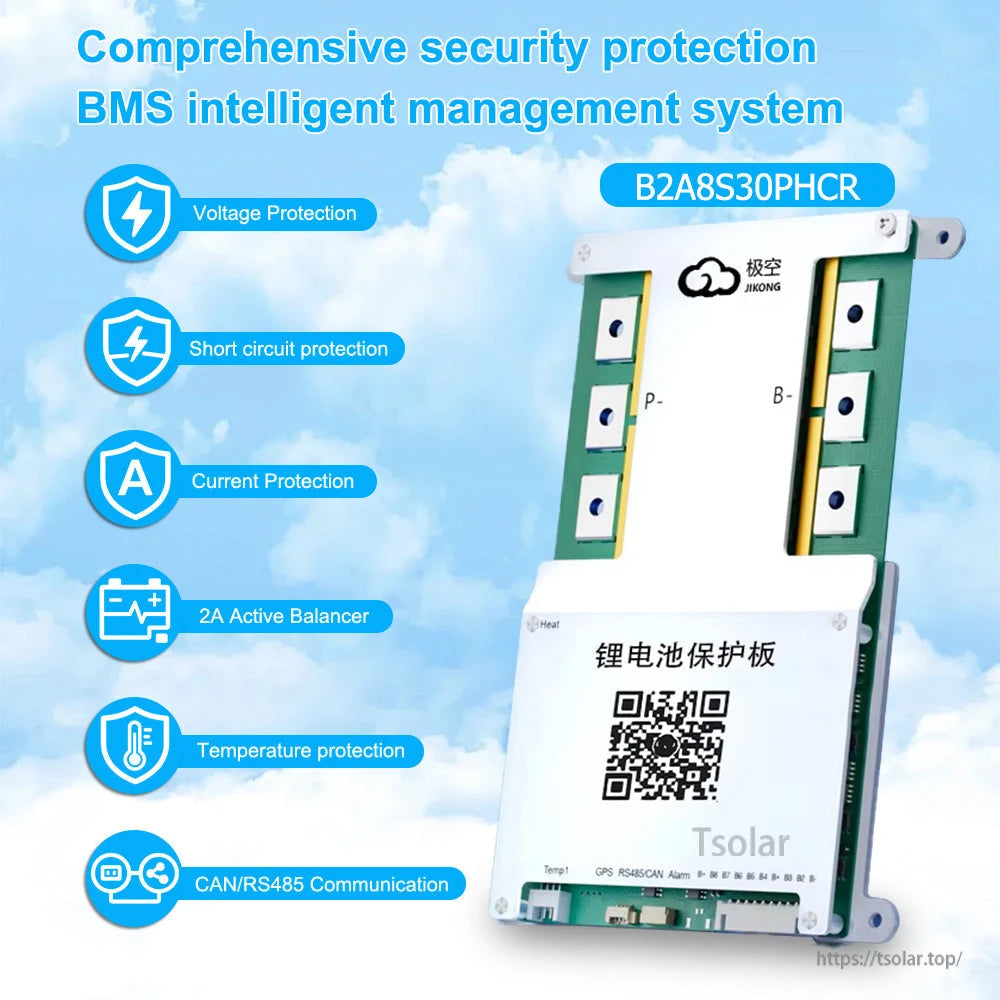

  • JK B2A8S30PHCR BMS graphic showing voltage, short-circuit, current and temperature protection plus CAN/RS485

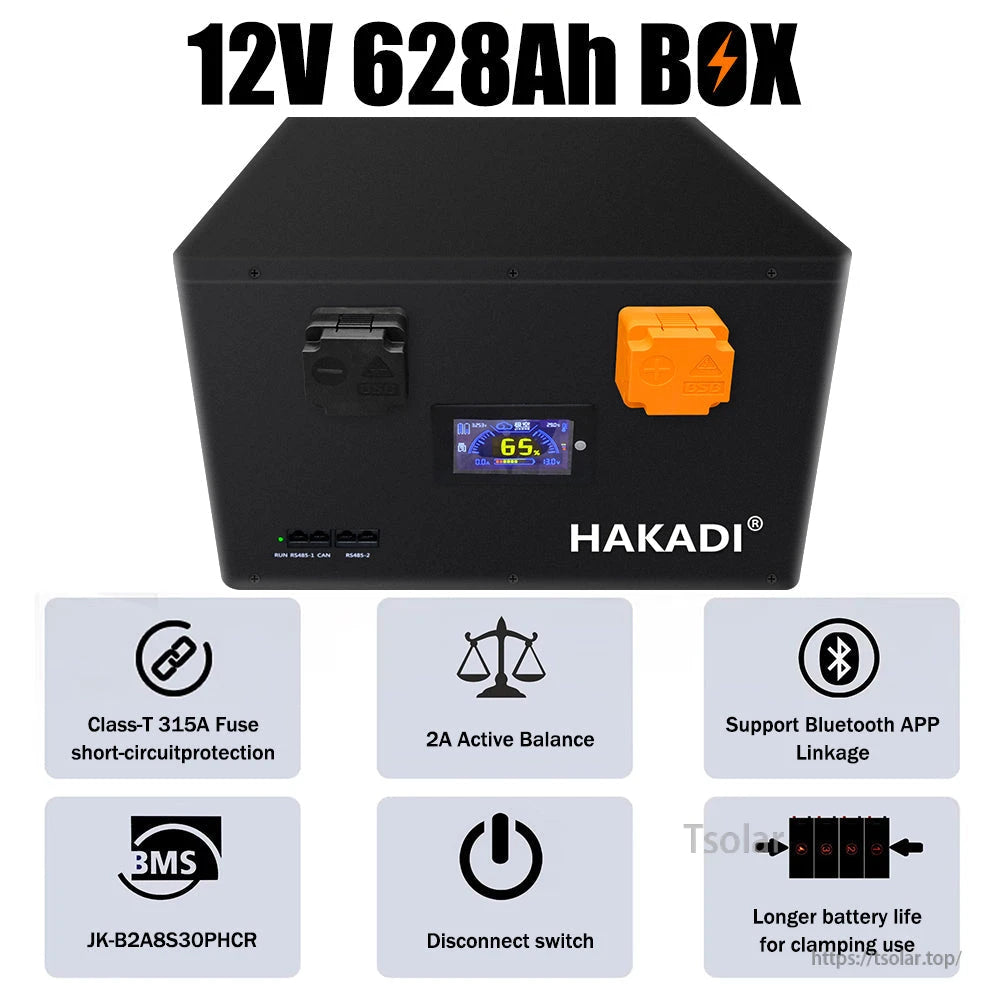

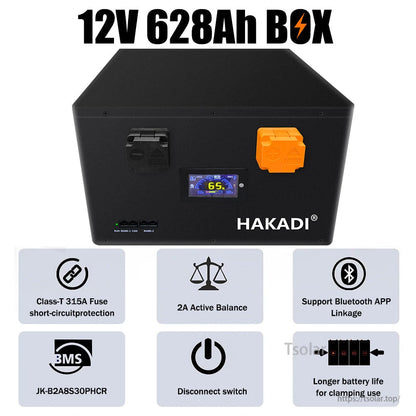

  • Front view feature icons for 12V 628Ah box: 315A Class-T fuse, 2A active balance, Bluetooth app, disconnect
  • Application collage showing battery box for golf cart, RV, yacht, and home power supply use cases

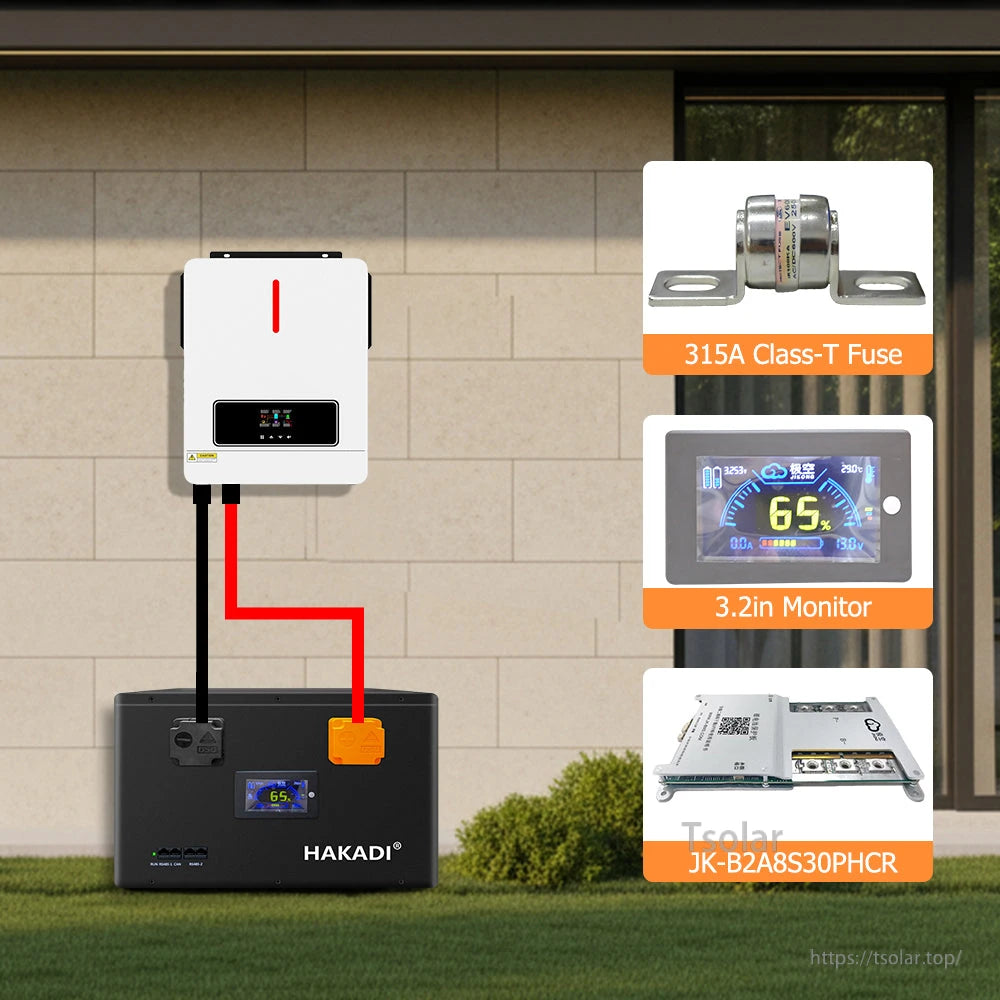

  • Home inverter connection diagram with HAKADI battery box plus 315A Class-T fuse, 3.2in monitor and JK BMS
  • Compatibility graphic listing inverter brands (Growatt, Victron, SMA, Deye, MUST, SRNE, Pylontech, Voltronic)
1 10

HAKADI

HAKADI 12V EVE MB56 628Ah LiFePO4 DIY Battery Box w/ JK 300A BMS, 2A Balance, RS485/CAN

HAKADI 12V EVE MB56 628Ah LiFePO4 DIY Battery Box w/ JK 300A BMS, 2A Balance, RS485/CAN

$464.20 USD
$464.20 USD
Sale Sold out
Shipping calculated at checkout.
Options
View full details

Overview

HAKADI 12V 628Ah DIY battery box (12V 628CR box) designed ONLY for EVE MB56 628Ah LiFePO4 cells. This enclosure integrates a JK BMS (300A) with 2A active balancing and a front display, making it suitable for DIY battery builds and off-grid solar energy storage systems. LiFePO4 cells are not included.

Key Features

  • Compatibility: only for EVE MB56 cells (628Ah)
  • JK BMS: 300A (JK V19 BMS noted)
  • Active balance: 2A
  • Communication: RS485/CAN
  • Display: LED screen; 3.2-inch monitor/display listed
  • Protection: Class-T fuse overcurrent protection (Class-T fuse included)
  • Bluetooth app linkage supported (Bluetooth BMS noted)
  • Disconnect switch function indicated
  • Heating: optional

Specifications

Product type LiFePO4 DIY battery box / battery enclosure kit
System voltage 12V
Target cell model EVE MB56
Target capacity 628Ah
Enclosure dimensions (L*W*H) 390*365*245mm (only for EVE MB56)
BMS JK BMS, 300A (JK V19 BMS noted)
Active balancing 2A
Communication RS485/CAN
Display LED screen; 3.2-inch display/monitor
Terminal connectors 400A positive/negative terminal connectors
Class-T fuse 315A (shown) / 350A (listed)
Heating Optional

What’s Included

  • 2 * Positive/negative 400A terminal connectors
  • 8 * Epoxy boards
  • 1 * JK BMS switch line
  • 6 * Insulation covers
  • 1 * 12V PCB boards
  • 1 * Class-T fuse (315A shown / 350A listed)
  • 1 * 3.2-inch display screen
  • 3 * Flexible busbar
  • Other accessories
  • Bluetooth BMS noted as JK-B2A8S30P with link board for communication (JK-B2A8S30PHCR marking also shown)

For pre-sale fitment questions (EVE MB56 cell confirmation, BMS communication, or parts checklist), contact https://tsolar.top/ or service@tsolar.top.

Important Notices

  • THE PACKAGE DOES NOT INCLUDE LiFePO4 CELLS.
  • Ensure battery cells are consistent before building the pack.

Applications

  • DIY 12V LiFePO4 battery packs based on EVE MB56 628Ah cells
  • Off-grid solar energy storage
  • Home power supply
  • RV power supply
  • Golf cart power supply
  • Yacht power supply

Tutorial Video

Warranty

A 5-year warranty is stated in the provided information.

Details

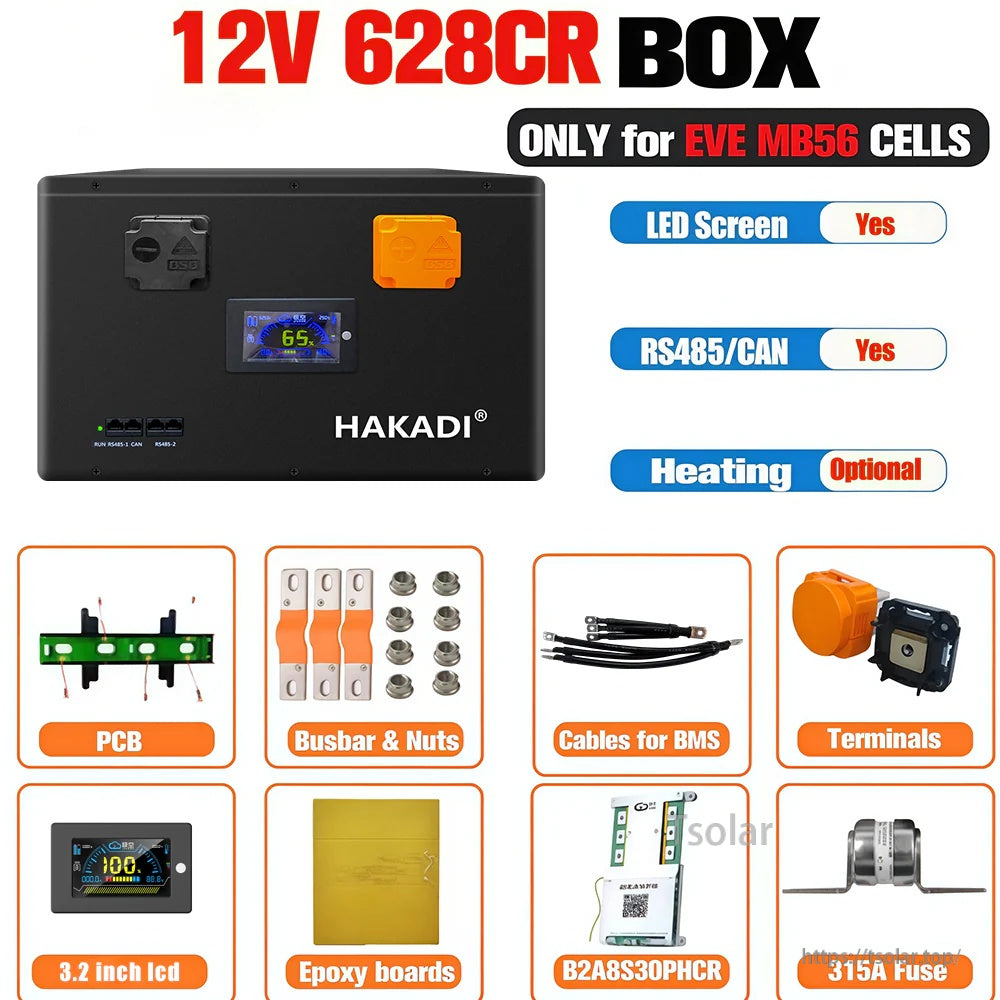

HAKADI 12V 628Ah DIY battery box for EVE MB56 cells with JK 300A BMS, LED display, RS485/CAN

Built for EVE MB56 628Ah LiFePO4 cells, this 12V enclosure integrates a JK 300A BMS with 2A active balancing, a front display, and RS485/CAN communication.

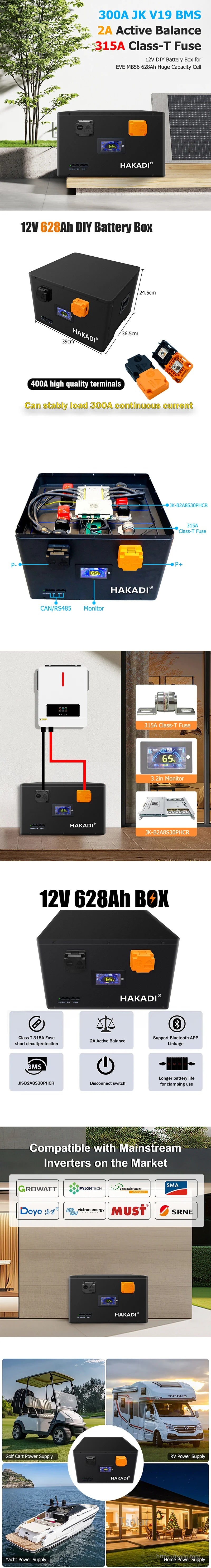

Infographic of 12V 628Ah battery box kit layout, wiring overview, included parts, and off-grid use cases

A quick overview of the enclosure layout, included accessories, and common build applications for DIY 12V LiFePO4 energy storage.
