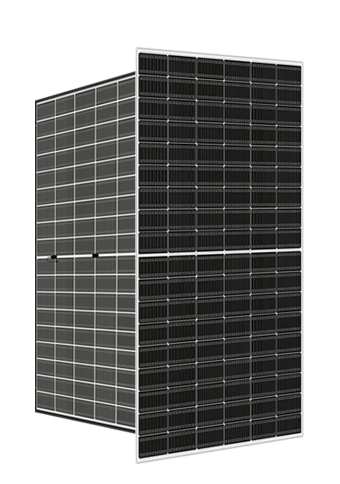

Horay Solar Ocean 440W Solar Panel Overview
The Horay Solar Ocean 440 Watt Solar Panel is a high-efficiency solar module designed for peak performance and durability in a variety of environmental conditions. With a maximum power output of 440W and module efficiency reaching 22.53%, this panel is engineered to deliver superior energy yield. It features SMBB cells that enhance current collection and reduce heat loss, ensuring reliable power generation. The panel's robust construction, including an IP68-rated junction box and 2.0mm coated ultra-clear glass, guarantees resilience against harsh environments, making it an ideal choice for both residential and commercial installations.
Solar Ocean 440 Watt Solar Panel Key Features
- SMBB Cell: Enhanced current collection capability reduces internal heat loss, improving overall module efficiency.
- Higher Output Power: The 108 half-cell Monocrystalline module provides a maximum power output of 440W, delivering excellent energy yield.
- Low Light Performance: Optimized for low-light conditions, this panel ensures stable performance in varying light environments.
- LID Free: The N-type solar cell design naturally eliminates LID (Light Induced Degradation), ensuring consistent power generation.
- Harsh Environmental Adaptability: Successfully passed rigorous salt spray and ammonia corrosion tests, ensuring durability in extreme conditions.
- High Load Capacity: Capable of withstanding wind loads up to 2400 Pa and snow loads up to 5400 Pa, making it ideal for regions with severe weather.
Horay Solar Ocean 440W Solar Panel Specifications
- Weight: 24 kg
- Dimensions: 1722 mm × 1134 mm × 30 mm
- Cell Dimensions: 182 mm × 91 mm
- Cell Amount: 54 × 2 pcs
- Maximum System Voltage: 1500V
- Junction Box: IP68
- Type of Front Glass: 2.0 mm Coated ultra-clear glass
- Type of Back Glass: 2.0 mm Heat-strengthened glass
- Frame: Aluminum Alloy
- Cable: 4 mm², +300, -300 mm/±1100 mm (Length customizable)
- Connector: MC4 compatible
- Application Level: Class A
Horay Solar Ocean 440W Datasheet
Electrical Parameters at STC
| Module Type | HS420TC-MHO-D | HS425TC-MHO-D | HS430TC-MHO-D | HS435TC-MHO-D | HS440TC-MHO-D |
|---|---|---|---|---|---|
| Power | 420W | 425W | 430W | 435W | 440W |
| Open Circuit Voltage | 38.73V | 38.93V | 39.13V | 39.33V | 39.53V |
| Short Circuit Current | 14.01A | 14.07A | 14.15A | 14.22A | 14.33A |
| Maximum Power Voltage | 32.44V | 32.64V | 32.84V | 33.04V | 33.24V |
| Maximum Power Current | 12.95A | 13.03A | 13.11A | 13.17A | 13.24A |
| Module Efficiency | 21.51% | 21.80% | 22.02% | 22.28% | 22.53% |
Electrical Parameters at BNPI
| Power | 463W | 468W | 474W | 479W | 485W |
|---|---|---|---|---|---|
| Open Circuit Voltage | 38.91V | 39.10V | 39.30V | 39.50V | 39.70V |
| Short Circuit Current | 15.41A | 15.48A | 15.56A | 15.64A | 15.73A |
| Maximum Power Voltage | 31.81V | 32.01V | 32.22V | 32.43V | 32.52V |
| Maximum Power Current | 14.56A | 14.64A | 14.73A | 14.81A | 14.89A |
Electrical Parameters at NMOT
| Power | 320W | 324W | 328W | 332W | 336W |
|---|---|---|---|---|---|
| Open Circuit Voltage | 36.61V | 36.92V | 37.12V | 37.32V | 37.53V |
| Short Circuit Current | 11.31A | 11.37A | 11.43A | 11.49A | 11.55A |
| Maximum Power Voltage | 30.11V | 30.32V | 30.51V | 30.73V | 30.92V |
| Maximum Power Current | 10.62A | 10.68A | 10.74A | 10.80A | 10.86A |
Temperature Characteristics
- NMOT: 45 ± 2°C
- Temp Coefficient of ISC: +0.04%/°C
- Temp Coefficient of VOC: -0.23%/°C
- Temp Coefficient of Pmax: -0.28%/°C
Packing Configuration
- Modules/Pallet: 36 Pieces
- Packaging Description: 26 Pallets, Total = (36 + 36) × 13 = 936 Pieces
- Modules/40’ Container: 936 Pieces
Maximum Rating
- Power Selection: 0~+5W
- Measuring Uncertainty of Pm: 0~±3%
- Operating Temperature: -40°C~+85°C
- Wind Load/Snow Load: 2400Pa/5400Pa
- Fuse Current: 25A
Warranty
- Quality Warranty: 30 Years
- Power Warranty: 30 Years

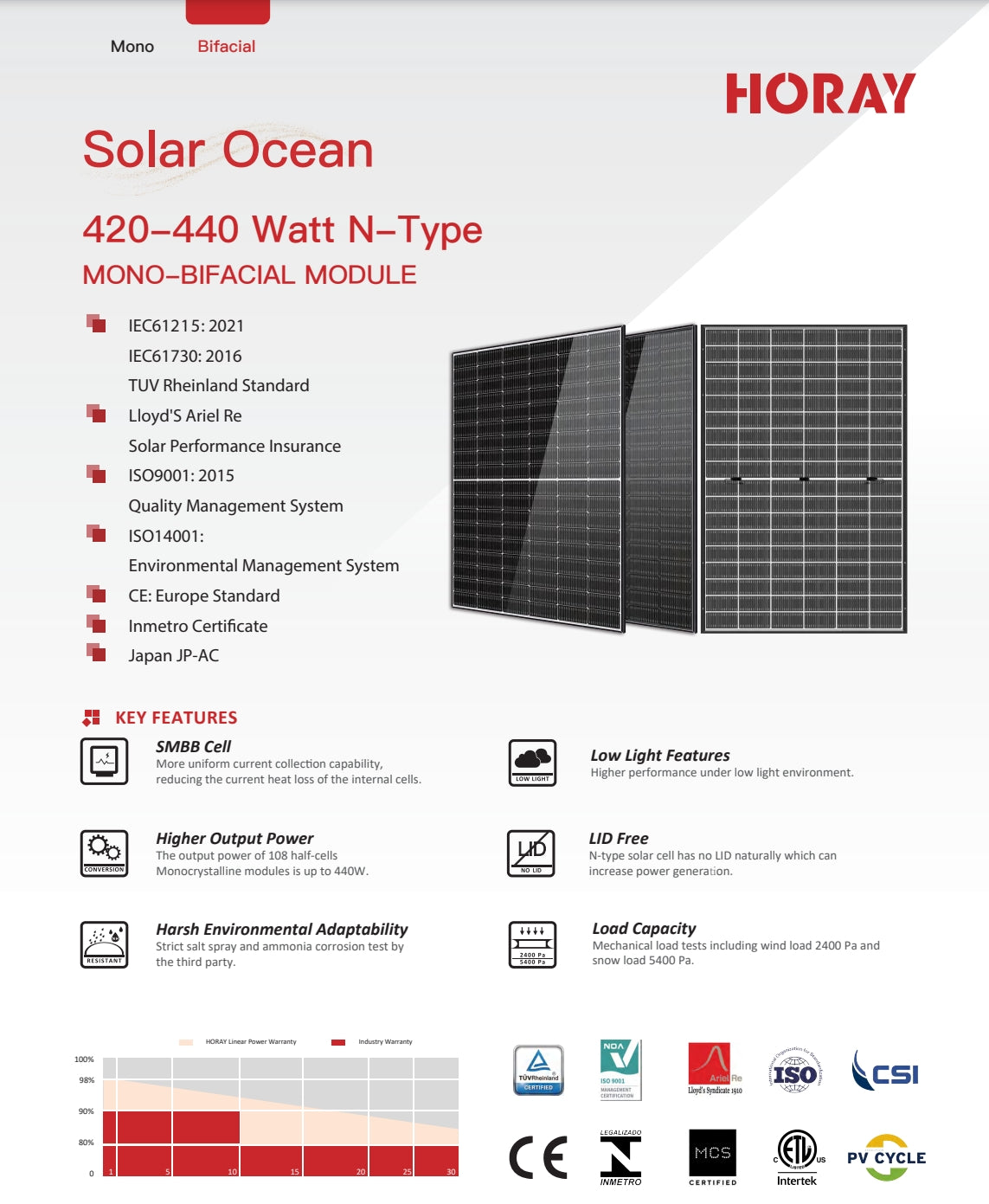

Introducing the Horay Solar Ocean 440W Solar Panel, a high-performance N-type mono-bifacial module with Mono Bifacial HIORAY technology. Features include SMBB cells for uniform current collection, reducing heat loss and increasing output power under low light conditions. The solar panel also boasts higher performance in harsh environmental conditions, including salt spray, ammonia corrosion, and mechanical loads up to 2400 Pa and snow load up to 5400 Pa. With a 10-year warranty and certifications from IEC, TUV Rheinland, Lloyd's, Ariel Re, and Inmetro, this solar panel is designed for reliable performance and durability. Enjoy peace of mind with our ISO 9001:2015 Quality Management System and ISO 14001:2004 Environmental Management System.

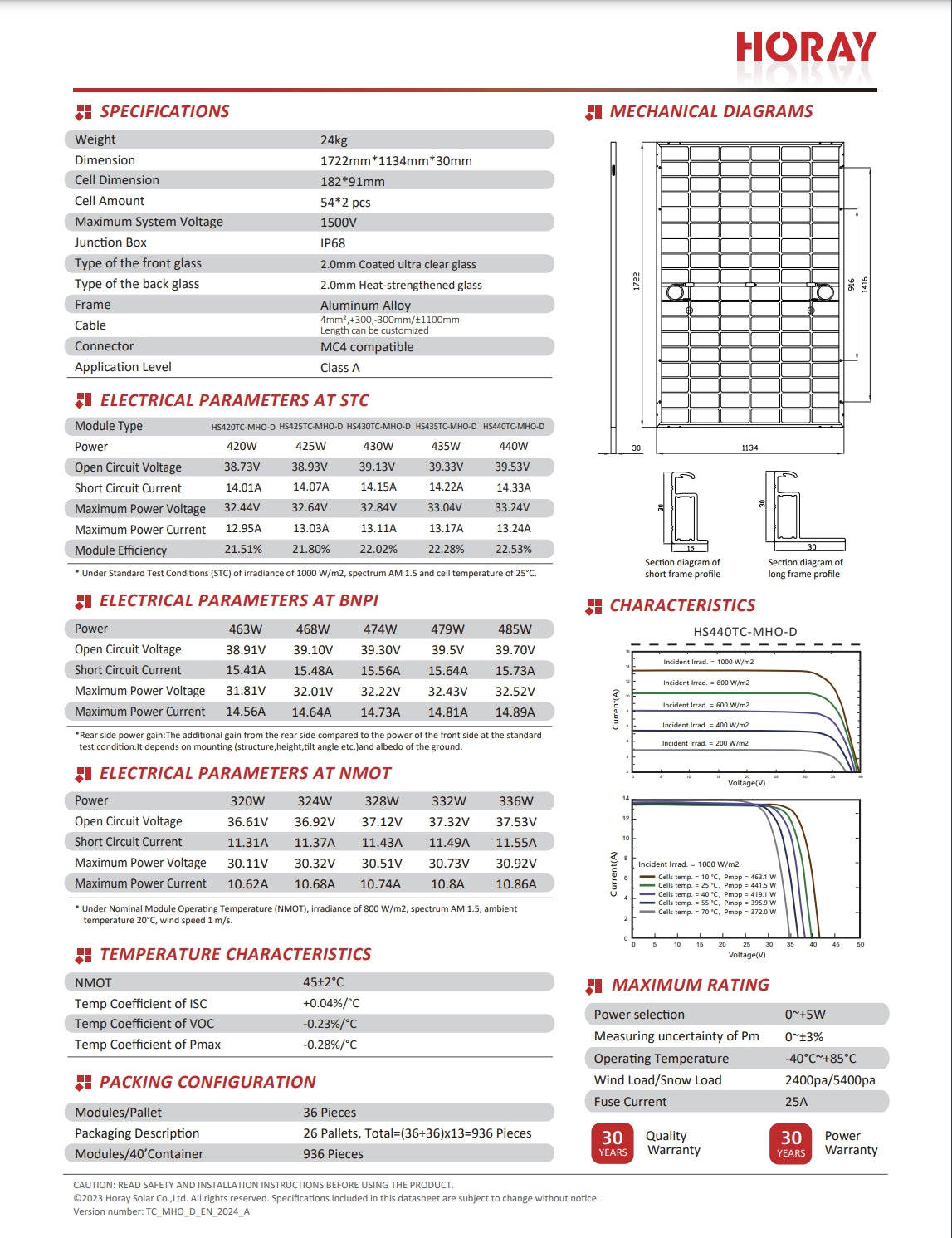

Horay Solar Ocean 440W Solar Panel, a high-performance module with a power output of 420-440 watts, features a mechanical diagram and specifications, including weight, dimension, cell dimensions, and more.
