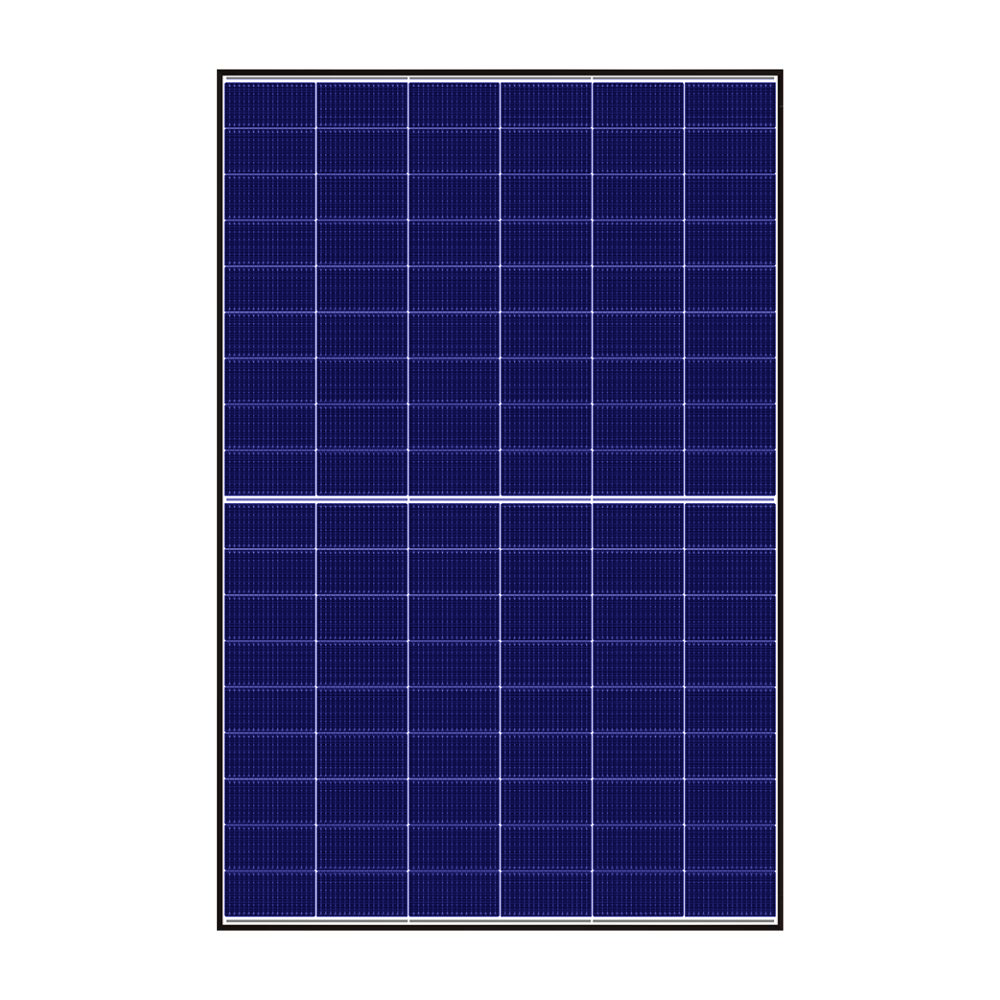

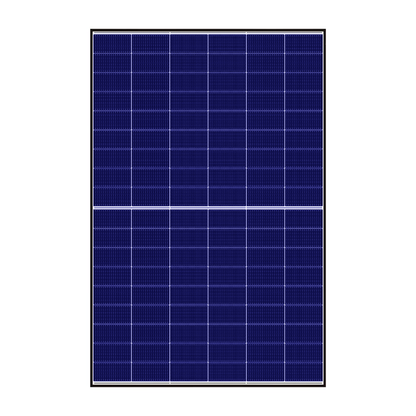

Hyundai 440W Solar Panel Overview
The Hyundai 440W Solar Panel (Model HiT-H440OF-BF) is a premium N-Type HJT (Heterojunction Technology) module, designed to deliver exceptional performance and long-term reliability. Manufactured with advanced technology in Korea, this panel is suitable for both residential and commercial applications. With high efficiency, enhanced power generation in low light, and a robust design, the Hyundai 440W Solar Panel ensures maximum energy production and durability. The panel measures 1722 x 1134 x 30 mm, weighs 22 kg, and features a 30 mm black anodized aluminum frame.
Hyundai 440 Watt Solar Panel Key Features
- High Efficiency with HJT Technology: HJT cells offer excellent light absorption and passivation effects, increasing module efficiency.
- Enhanced Power Generation: Low temperature coefficient (-0.26%/°C) allows the panel to generate more electricity, making it ideal for rooftop installations with large temperature fluctuations.
- Long-Term Reliability: The HeteroMax™ design uses N-type wafers that eliminate LID and features a double glass design to prevent internal material corrosion.
- Higher Bifaciality: The natural bifacial symmetrical structure of HJT cells brings bifaciality up to 90%, generating 2%-4% higher power than bifacial PERC cells.
- Reliable Warranty: Backed by Hyundai's strong financial stability, this panel comes with a dependable 30-year warranty covering material, workmanship, and performance.
Hyundai 440W Datasheet
Electrical and Mechanical Specifications
| Parameter | Value |
|---|---|
| Series | OF |
| Cells | 108 x N-Type HJT cells |
| Power Output | 440 W |
| Dimensions (LxWxH) | 1722 x 1134 x 30 mm |
| Weight | 22 kg |
| Frame | 30 mm black anodized aluminum |
| Connectors | Genuine MC4 |
| Backsheet | White |
| Lead Length | 1.2 m |
| Maximum System Voltage | 1500 V (IEC) |
| Junction Box | IP68 |
| Bifaciality | 85% ± 5% |
| Warranty | 30 years |
Electrical Performance (STC)
| Parameter | 430 W | 435 W | 440 W | 445 W | 450 W |
|---|---|---|---|---|---|
| Nominal Output (Pmax) | 430 W | 435 W | 440 W | 445 W | 450 W |
| Open Circuit Voltage (Voc) | 40.30 V | 40.56 V | 40.83 V | 41.09 V | 41.34 V |
| Short Circuit Current (Isc) | 13.35 A | 13.41 A | 13.47 A | 13.53 A | 13.58 A |
| Voltage at Pmax (Vmp) | 33.73 V | 34.01 V | 34.29 V | 34.56 V | 34.84 V |
| Current at Pmax (Imp) | 12.76 A | 12.80 A | 12.84 A | 12.88 A | 12.92 A |
| Module Efficiency | 22.02% | 22.28% | 22.55% | 22.79% | 23.04% |
| Temperature Coefficient of Pmax | -0.26 % / °C | ||||
| Temperature Coefficient of Voc | -0.24 % / °C | ||||
| Temperature Coefficient of Isc | +0.04 % / °C |
Mechanical Characteristics
| Parameter | Value |
|---|---|
| Dimensions | 1722 x 1134 x 30 mm |
| Weight | 22 kg |
| Solar Cells | N-Type HJT, 182 mm x 91.75 mm, 108 cells |
| Output Cables | Cable (+): 1,200 mm, (-): 1,200 mm / 4 mm² / UV resistant |
| Connector | Staubli MC4-Evo2 |
| Junction Box | IP68 |
| Construction | Front Glass: anti-reflective solar glass, 1.6 mm |
| Frame | Anodized aluminum alloy (Black) |
| Front Side Maximum Static Loading | 5400 Pa |
| Rear Side Maximum Static Loading | 2400 Pa |
Shipping Configurations
| Parameter | Value |
|---|---|
| Container Size | 40 |
| Modules per Pallet | 36 |
| Pallets per Container | 26 |
| Modules per Container | 936 |
Warranty
- 30-Year Product Warranty: Covers materials and workmanship.
- 30-Year Performance Warranty: First year degradation: 1%. Linear warranty after the second year with 0.375% annual degradation, 88% is guaranteed up to 30 years.
The Hyundai 440W Solar Panel (HiT-H440OF-BF) integrates advanced HJT technology and robust design, making it a reliable and efficient choice for various solar energy applications. With high module efficiency, superior bifaciality, and a comprehensive 30-year warranty, this panel ensures long-term performance and reliability, making it an excellent investment for both residential and commercial solar power systems.

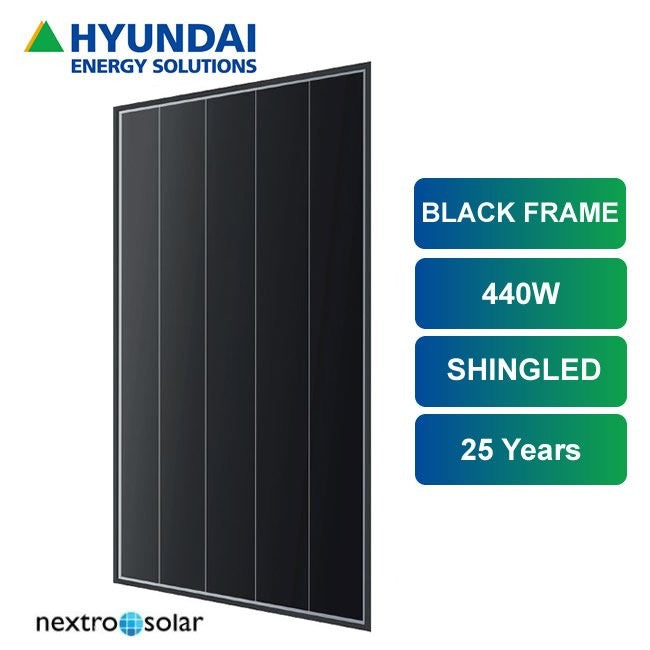

Hyundai Energy Solutions' black-framed, shingled 440W solar panel with a 25-year warranty from Nextro Solar.

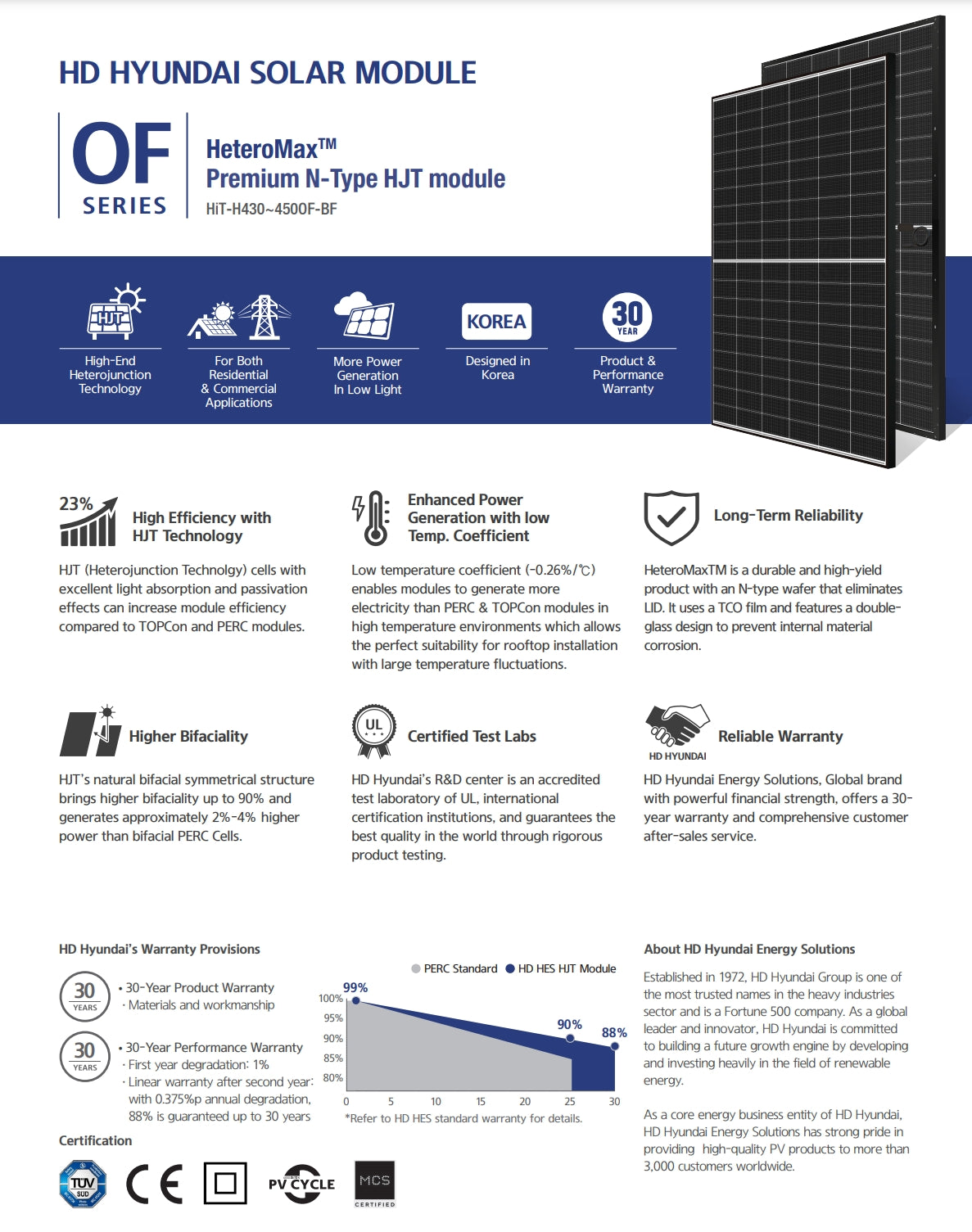

Hyundai's 440W Solar Panel features a HeteroMaxTm Premium N-Type module with high-efficiency HJT technology, offering enhanced power generation in low-light conditions. With a durable design and excellent light absorption, this panel generates more electricity than PERC & TOPCon modules. It also boasts a natural bifacial symmetrical structure for up to 90% higher power output and features a double-glass design to prevent internal corrosion. Backed by a 30-year warranty and rigorous testing, Hyundai's solar panels are designed for residential and commercial applications, providing reliable energy solutions for years to come.

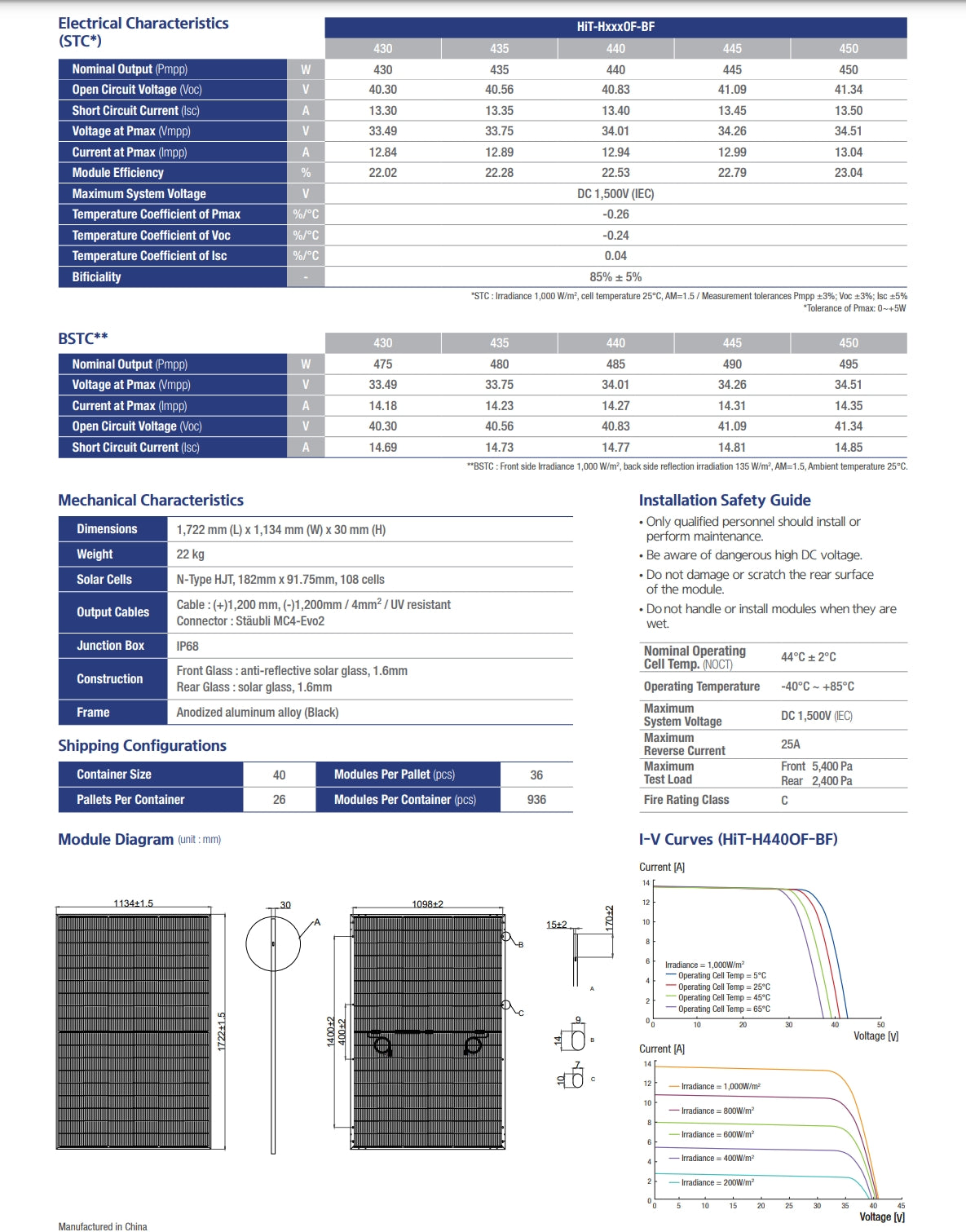

Hyundai's 440W Solar Panel features electrical characteristics including a nominal output of 430-450 watts, open circuit voltage of 40.3-41.34 volts, and short circuit current of 13.3-13.5 amps. It also boasts a module efficiency of 22.02-23.04%, temperature coefficients, and maximum system voltage of 1,500V DC (IEC). The panel is suitable for installation in temperatures ranging from -40°C to +85°C and has dimensions of 1,722mm x 1,134mm x 30mm, weighing 22kg.
