JA Solar 500W Solar Panel (480-505 Watt)

JA Solar 500W Solar Panel Overview

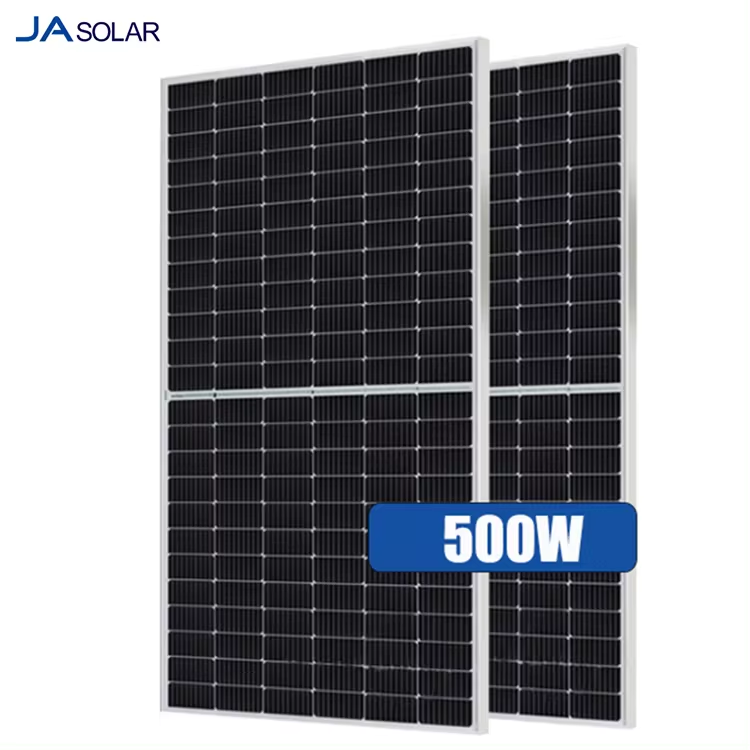

The JA Solar 500W Deep Blue 3.0 Solar Panel (JAM66S30 480-505/MR/1500V Series) is a high-efficiency monocrystalline PERC solar module designed for both residential and commercial applications. It combines the latest half-cell technology with 11BB PERC cells, ensuring maximum efficiency of up to 21.1%, enhanced temperature performance, and reduced resistive loss, even in shaded conditions. With 505W peak power output, this panel is engineered to deliver superior performance across various climates, while minimizing LCOE (Levelized Cost of Electricity) and offering a lower risk of hot spots.

The Deep Blue 3.0 series features advanced PERC technology, which optimizes energy production by reflecting unused sunlight back into the cells. This solar panel is manufactured by JA Solar, a globally recognized leader in the solar industry, known for their stringent quality control, high production standards, and competitive pricing. This module also benefits from comprehensive warranties, including a 12-year product warranty and 25-year linear power output warranty, ensuring a long-lasting and reliable investment for any solar installation.

JA Solar 500 Watt Solar Panel Key Features:

• High Power Output: Offers up to 505W of power, making it one of the most efficient solar panels available in its class.
• PERC Technology: Monocrystalline PERC cells enable higher energy conversion, improved low-light performance, and reduced shading effects.
• Half-Cell Design: The half-cell configuration reduces resistive losses, enhances mechanical loading tolerance, and minimizes the impact of shading on energy generation.
• Durability: Withstands 5400 Pa of snow load and 3600 Pa of wind pressure, making it suitable for challenging environments.
• Positive Power Tolerance: Ensures up to +5W of additional power output, guaranteeing greater energy yield.
• Superior Warranties: Backed by 12-year product warranty and 25-year linear power output warranty, with only 0.55% annual degradation.

JA Solar 500W Datasheet

Electrical Characteristics at STC (Standard Test Conditions)

Mechanical Characteristics

Performance Characteristics

The 500W Deep Blue 3.0 JA Solar Panel utilizes 11BB PERC technology with half-cell design, significantly boosting energy generation while improving resistance to shading. The PERC technology increases light capture and enhances efficiency under low-light conditions, allowing the panel to maintain high productivity even in cloudy environments. With a maximum efficiency of 21.1%, the panel delivers excellent output, making it a top performer in its category.

Temperature Coefficients:

• Pmax: -0.35%/°C
• Voc: -0.275%/°C
• Isc: +0.044%/°C

This superior temperature coefficient ensures stable energy production, even in extreme temperatures. The JA Solar 500W Panel is optimized to minimize the effects of temperature rise, maintaining reliable output under various weather conditions.

Application and Installation

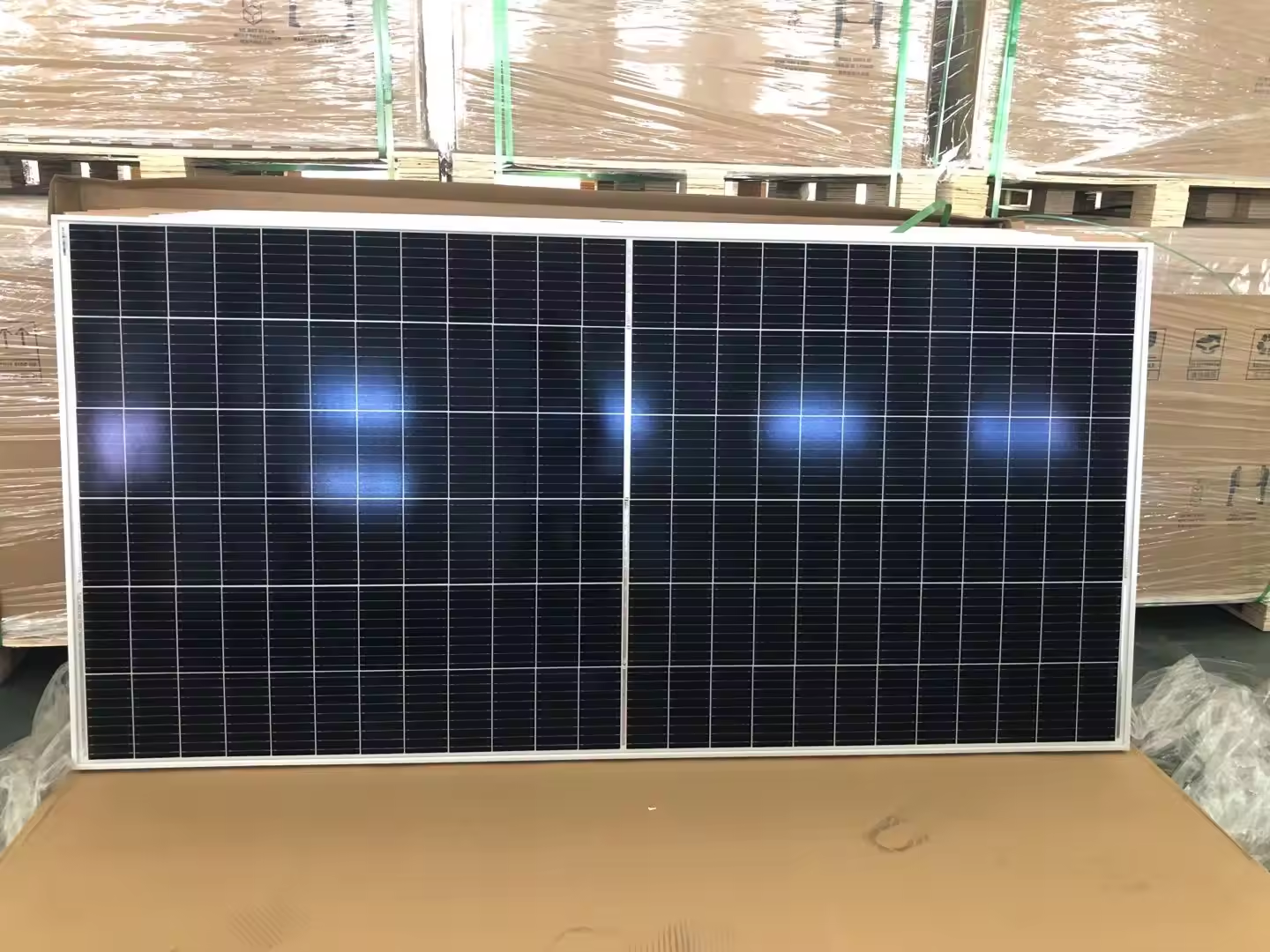

The JA Solar 500W Deep Blue 3.0 Solar Panel is ideal for:

• Residential Roofs: Due to its high power density and compact size, this panel maximizes energy production in limited spaces.
• Commercial Installations: Perfect for large-scale commercial projects, where maximum efficiency and power output are crucial for reducing energy costs.
• Utility-Scale Projects: Suitable for extensive solar farms that require highly efficient and durable panels to meet long-term energy goals.

The panel can be easily installed using standard mounting systems, and its half-cell technology provides greater flexibility in various system configurations, improving performance and reducing shading losses.

Warranty and Certifications

Conclusion

The JA Solar 500W Deep Blue 3.0 Solar Panel is an excellent choice for both residential and commercial solar installations, offering cutting-edge PERC technology, high efficiency, and durability. Its half-cell configuration and 11BB design enhance performance while reducing power losses, ensuring greater energy yields and a longer lifespan. Backed by a 25-year performance warranty and global certifications, this panel is built to deliver reliable and consistent energy generation, making it a solid investment for your solar energy needs.

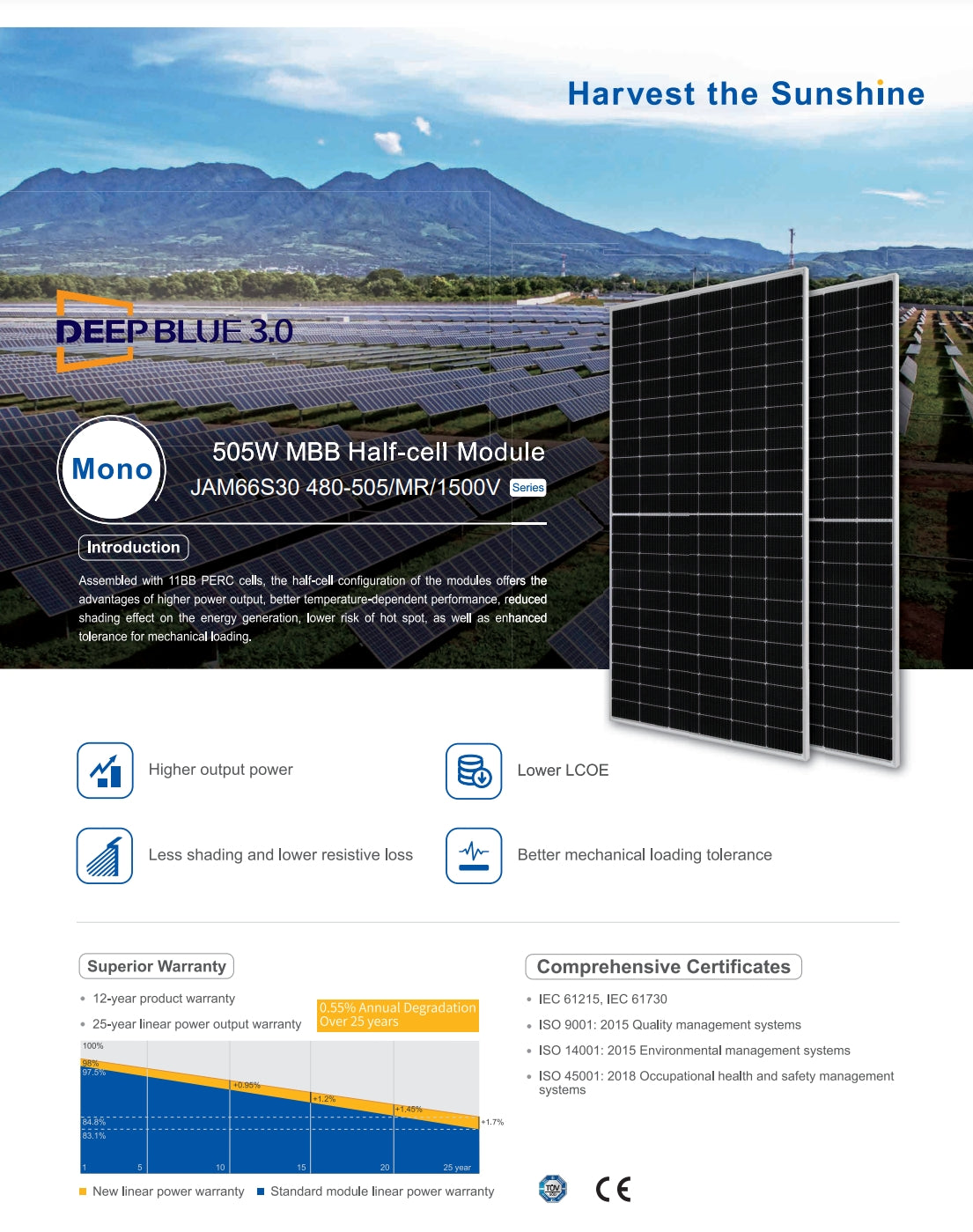

JA Solar 500W Solar Panel (480-505 Watt) Product Introduction The JA Solar 500W solar panel is assembled with 11BB PERC cells, featuring a half-cell configuration that offers advantages such as higher power output, better temperature-dependent performance, reduced shading effect on energy generation, lower risk of hot spot, and enhanced tolerance for mechanical loading. Benefits include higher output power, lower LCOE, less shading and lower resistive loss, and superior warranty.

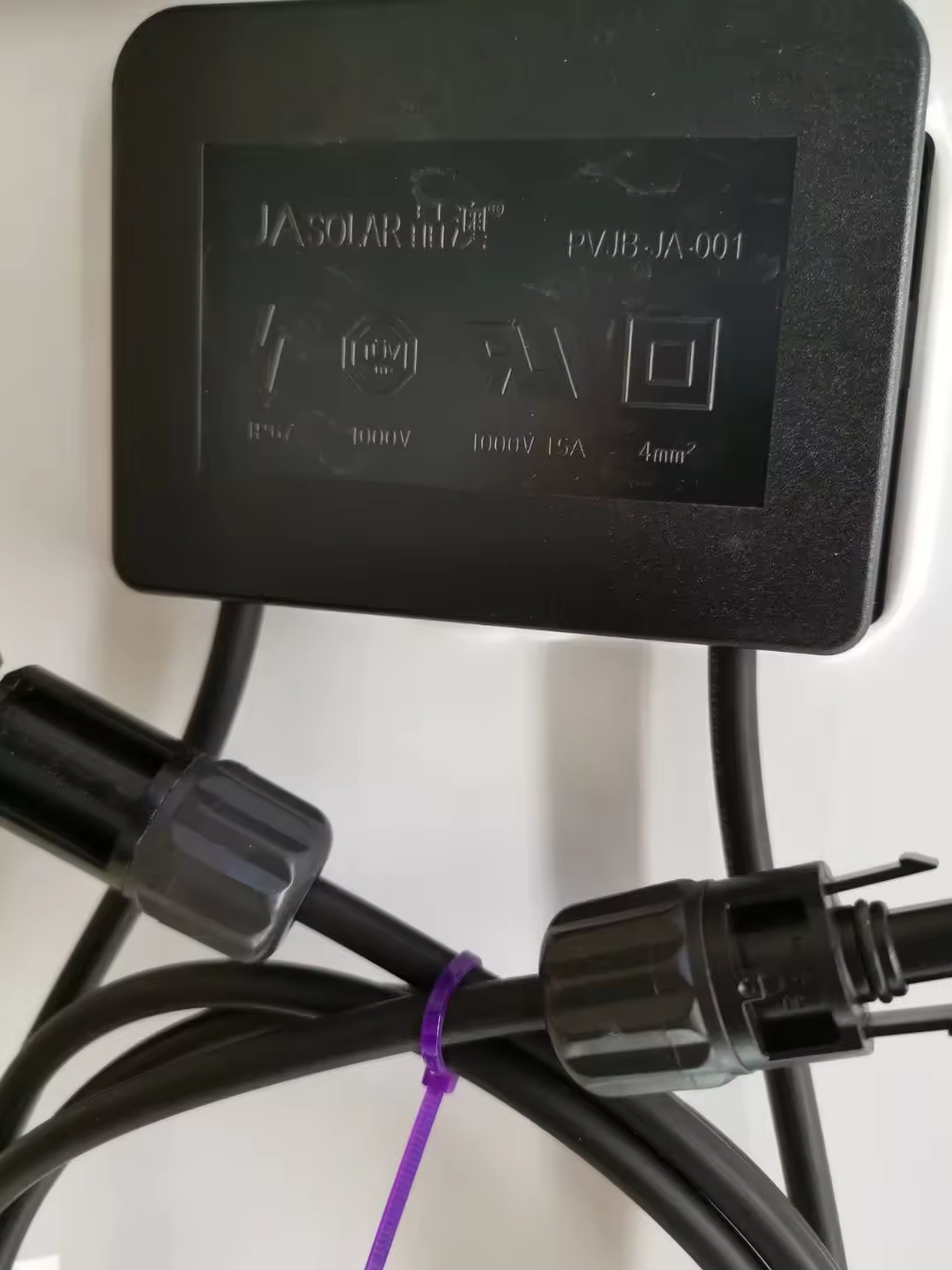

JA Solar JAM66S30 480-505W MRM1SOOV Series Mechanical Diagrams and Specifications: Cell Mono Weight: 26.3kg; Unil Dimensions: 2093+2mm x 1134+2mm x 300mm; Cable Cross Section Size: IEC 12 AWG (UL) of cells 132 (6*22); Grounding Holes: Shown on the back side; Junction Box IP68 diodes. Country of Manufacturer: China/Vietnam Remark: Customized frame color and cable length available upon request. Electrical Parameters at STC: JAM66S30 JAM66S30 JAM66S30 JAM66S30 JAM66S30 JAM66S30 Type 480/MIISOOV, 485/MRI1SOOV, 490/MRI1SOOV, 495/MRI1SOOV, 500/MRI1SOOV, 505/MRI1SOOV Rated Maximum Power (Pmax): 480-505W; Open Circuit Voltage (Voc): 45.07-45.72V; Maximum Power Voltage (Vmp): 37.62-38.53V; Short Circuit Current (Isc): 13.65-14.00A; Module Efficiency: 20.22-21.3%; Power Tolerance: 0-5W. Temperature Coefficient of Isc: +0.045%/C; Temperature Coefficient of Voc: -0.2759%/C; Temperature Coefficient of Pmax: -0.3509%/C. Electrical Parameters at NOCT Operating Conditions: JAM66S30-480, JAM66S30-485, JAM66S30-490, JAM66S30-495, JAM66S30-500, JAM66S30-505 Type: IMRIISOOV, MRM1SOOV, IMR IS00V, KMRMSOEV, MRI1SDOV, INRNSOvY Maximum System Voltage: 1500V DC; Rated Max Power (Pmax): 363-382W; Operating Temperature: -40°C to +85°C; Open Circuit Voltage (Voc): 42.15-42.86V. Maximum Series Fuse Rating: 254A; Maximum Static Load: 1,800 Pa.
