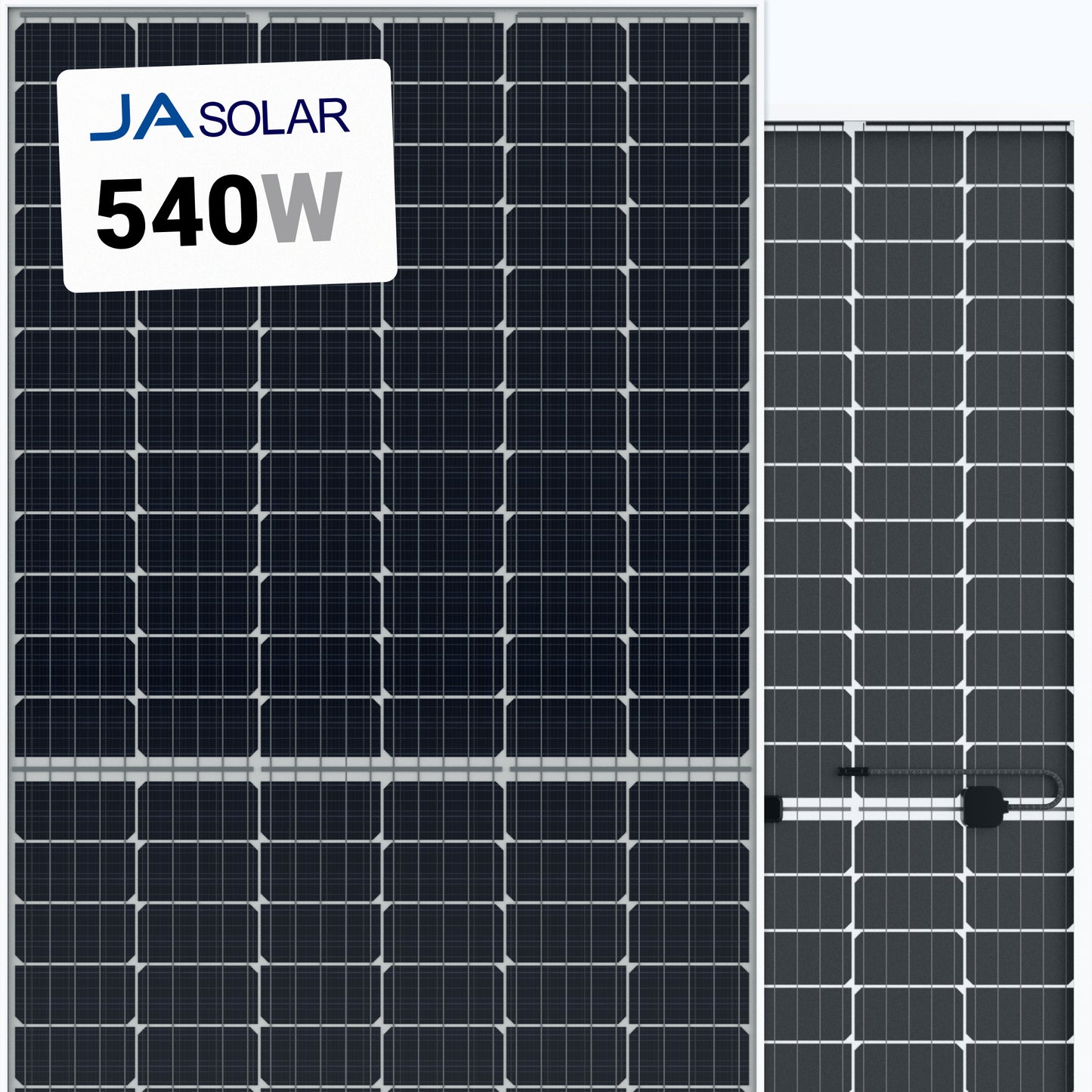

JA Solar 540W Solar Panel Overview
The JA Solar 540W D30 Series Bifacial Mono Half Cell Module is a high-efficiency solar panel designed for both commercial and residential applications. This advanced module integrates 11BB PERCIUM cells in a half-cut configuration, which enhances performance and durability. With a bifacial design, the panel captures sunlight from both the front and back sides, significantly boosting energy production. The glass-on-glass construction ensures long-term reliability, even in harsh environmental conditions.
The D30 series features a slightly larger footprint compared to the D10 series, making it ideal for installations requiring maximum power output within a limited space. The panel is equipped with genuine MC4 1500V connectors on 1300mm cables, providing flexibility and ease of installation. With a rated power output of 540W, this module offers superior efficiency and energy yield, making it an excellent choice for various solar projects.
JA Solar 540 Watt Solar Panel Key Features:
- 11BB PERCIUM Cells: Advanced cell technology enhances power output and module efficiency.
- Bifacial Design: Captures sunlight from both sides, increasing overall energy yield by up to 25%.
- Half-Cut Cell Configuration: Reduces power loss, improves performance, and increases reliability.
- Glass-on-Glass Construction: Provides enhanced durability and protection against environmental factors.
- Longer Cables: 1300mm cables with genuine MC4 1500V connectors offer installation flexibility.
JA Solar 540W Specifications:
| Parameter | Details |
|---|---|
| Rated Power Output | 540 Watts |
| Cell Type | Monocrystalline PERC |
| Number of Cells | 144 (Half-Cut) |
| Connector Type | MC4 1500V |
| Cable Length | 1300mm |
| Frame Color | Silver |
| Backsheet Color | Glass |
| Dimensions (LxWxH) | 90.00 x 44.65 x 1.38 in |
| Weight | 70.00 lbs |
| Pallet Quantity | 31 modules per pallet |
| Container Quantity | 587 modules per container |
| Manufacturer Part Number | JAM72D30-540/MB |
| Warranty | 12-year product warranty, 30-year power output warranty |
Applications:
The JA Solar 540W D30 Series Bifacial Mono Half Cell Module is perfect for a wide range of applications, including:
- Commercial Solar Installations: Ideal for large-scale projects requiring high efficiency and maximum energy yield.
- Residential Installations: Boosts energy independence and sustainability for homes.
- Utility-Scale Projects: Reliable performance and high power output make it a top choice for utility-scale solar farms.
Shipping Information:
- Shipping Weight: 69.67 lbs per panel
- Shipping Dimensions: 90 x 44.65 x 1.38 inches
- Minimum Order Quantity: 31 panels per pallet
The JA Solar 540W D30 Series Bifacial Mono Half Cell Module is an exceptional solar panel that combines advanced technology with robust design. Its high efficiency, bifacial design, and durable construction make it a top choice for maximizing energy production in various solar installations.
JA Solar 540W Datasheet

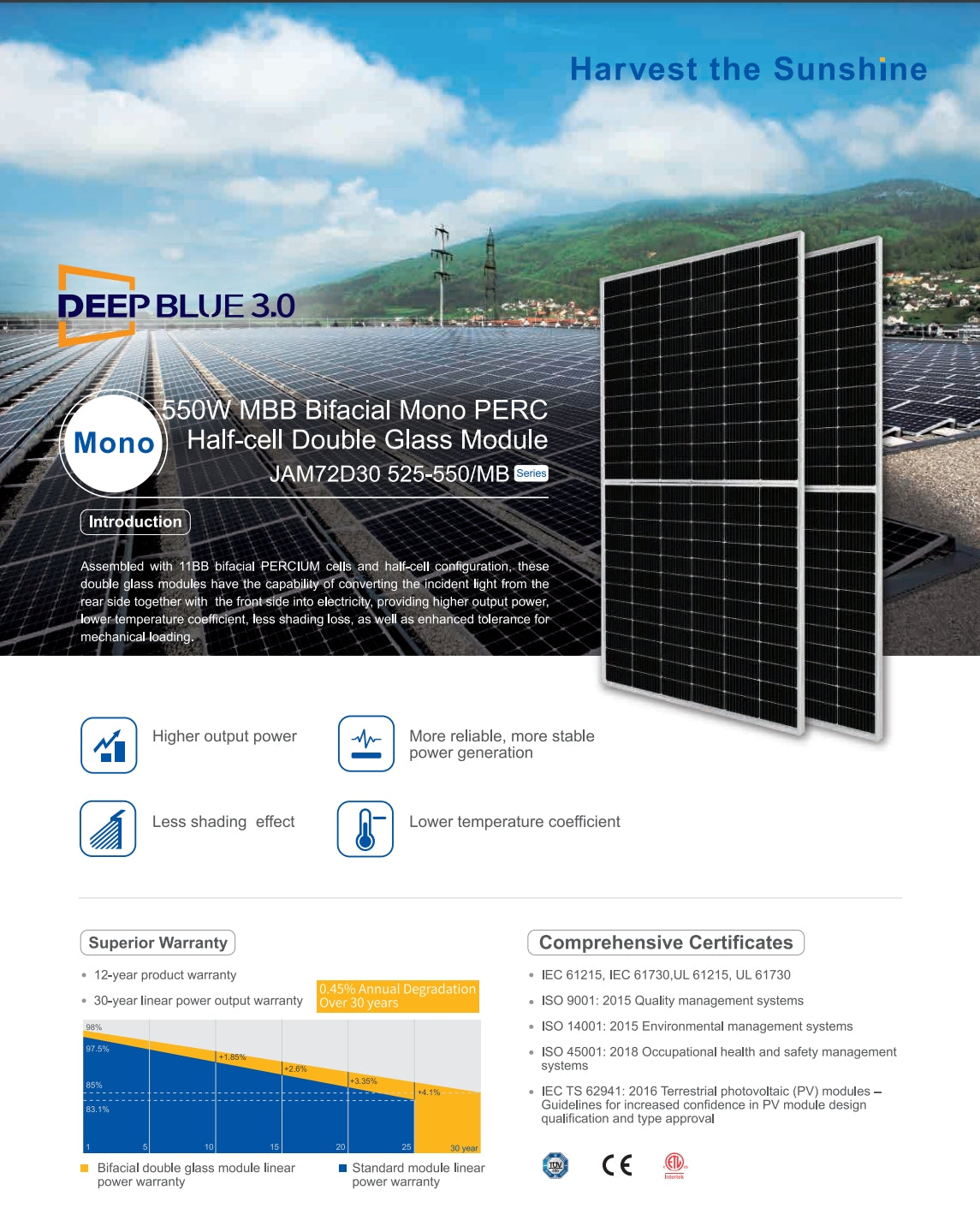

JA Solar 540W solar panel features a high-efficiency bifacial design with half-cell configuration and double glass modules. This technology allows for increased energy conversion from both front and rear sides, resulting in higher output power and reduced temperature coefficient. With a lower shading loss and enhanced mechanical loading tolerance, this module ensures reliable and stable power generation. Key Features: Higher output power More reliable and stable power generation Reduced shading effect Lower temperature coefficient Comprehensive certifications: IEC 61215, IEC 61730, UL 61215, UL 61730 12-year product warranty

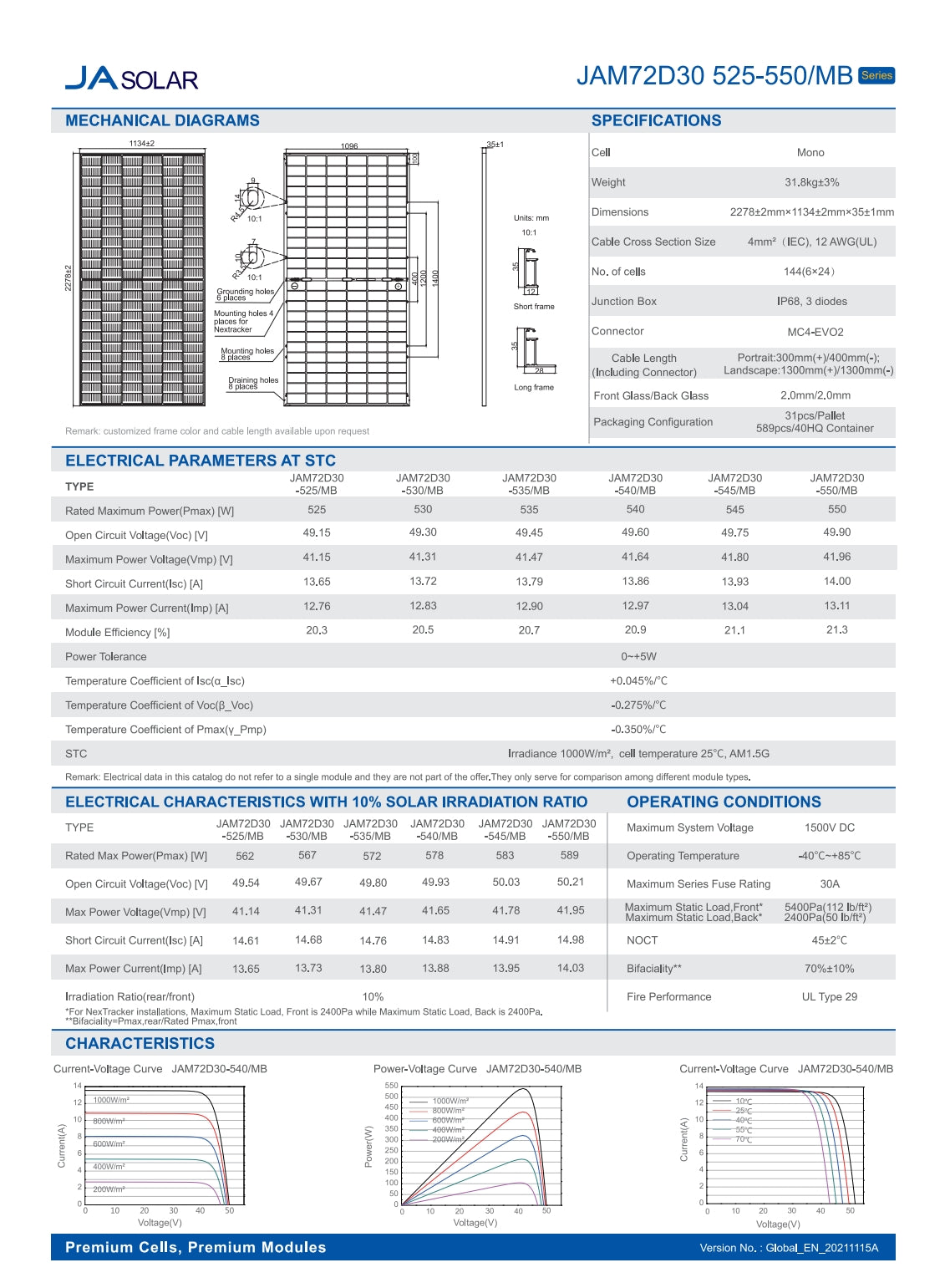

JASOLAR JAM72D3O Series MECHANICAL DIAGRAMS SPECIFICATIONS EEN Cell Mono Weight 31.8kg+3% Dimensions 2278mm+2mmx1134.2mmx35.1mm Cable Cross Section Size 4mm (IEC); 12 AWG(UL) Number of Cells 144 (6*24) Tolerances Grounding Chon Trame Junction Box IP68 3 Diodes Mounting Notes Placo NexTracker Connector MC4-EVO2 Notes Moyntins Cable Length Permitted 300mm (+/-40mm, including connector) Landscape: 1300mm (+/-300mm) Holes Drainage Long Irradiation Front Glass Back Glass 2.0mm/2.0mm Packaging Configuration 31pcs/Pallet Remark Customized frame color and cable length available upon request
